XML Indexing Structure

1. XML Indexing Structure by XSoumia Elghani & XHanaa Talei CSC5370

2. Table of Content • Introduction • Motivation • Full Text Indexing • Graphs • Natix • Sphinx • Lore System • Index Fabric

3. Introduction

4. Motivation Web Billion of documents Finding a document become impossible Need of efficient indexing techniques

5. Full Text Indexing A full text provides standard retrieval of all text objects. • B+ tree. • Inverted list.

6. B+ Tree • It is the most widely used of several index structures that maintain their efficiency. • B+ Tree is a dynamic structure • Insertions and deletions leave tree height balanced • Almost always better than maintaining a sorted file • B+ tree is also based on rotation • Most widely used index in Data base mangement systems

7. HIW? Original: Insert 28:

8. Cont… Insert 70: Insert 95:

9. Inverted List They store data from the database as keys sodata content can be quickly searched on.

10. Graphs • As we can represent data as tree, we can represent it as a graph.

11. More details Employees Programmers Statisticians  Leads Workson Consults  Projects

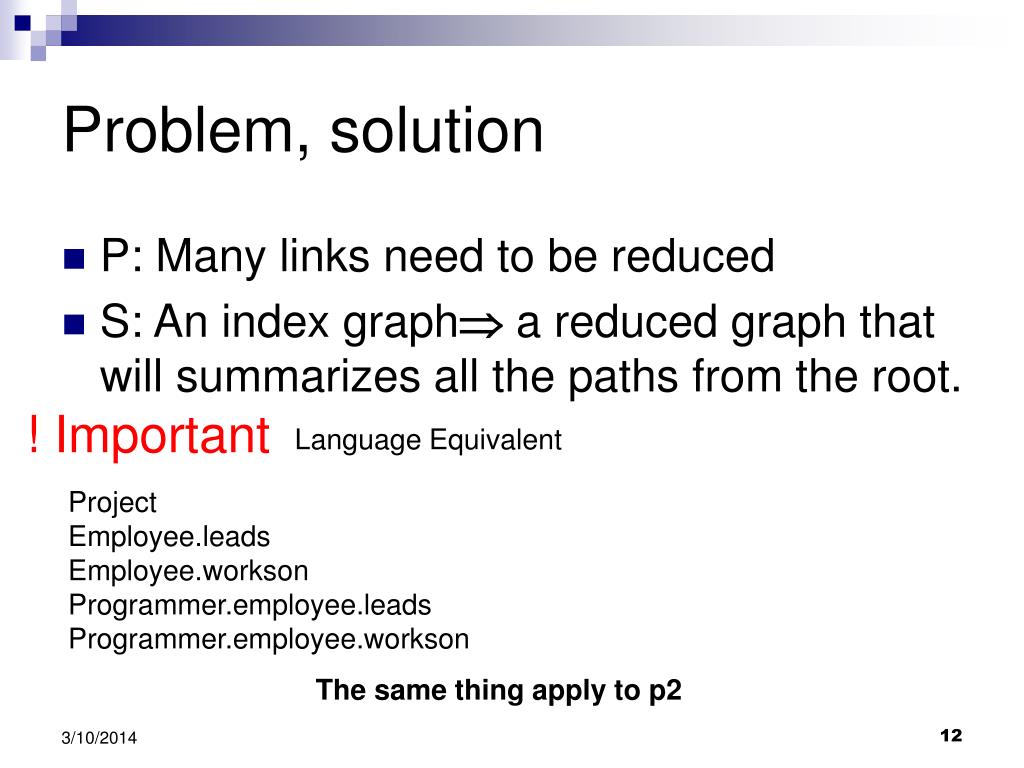

12. Problem, solution • P: Many links need to be reduced • S: An index graph a reduced graph that will summarizes all the paths from the root. ! Important Language Equivalent Project Employee.leads Employee.workson Programmer.employee.leads Programmer.employee.workson The same thing apply to p2

13. Implementing an index?? • Each node is a hash table containing one entry for each label at that node. Each index node has an extent: a list of pointers to all data nodes in the corresponding class. i.e: the extent of the node h4 is the list [e1, e2] We compute the query on the index and obtain a set of index nodes; and then we compute the union of all extents.

14. Index

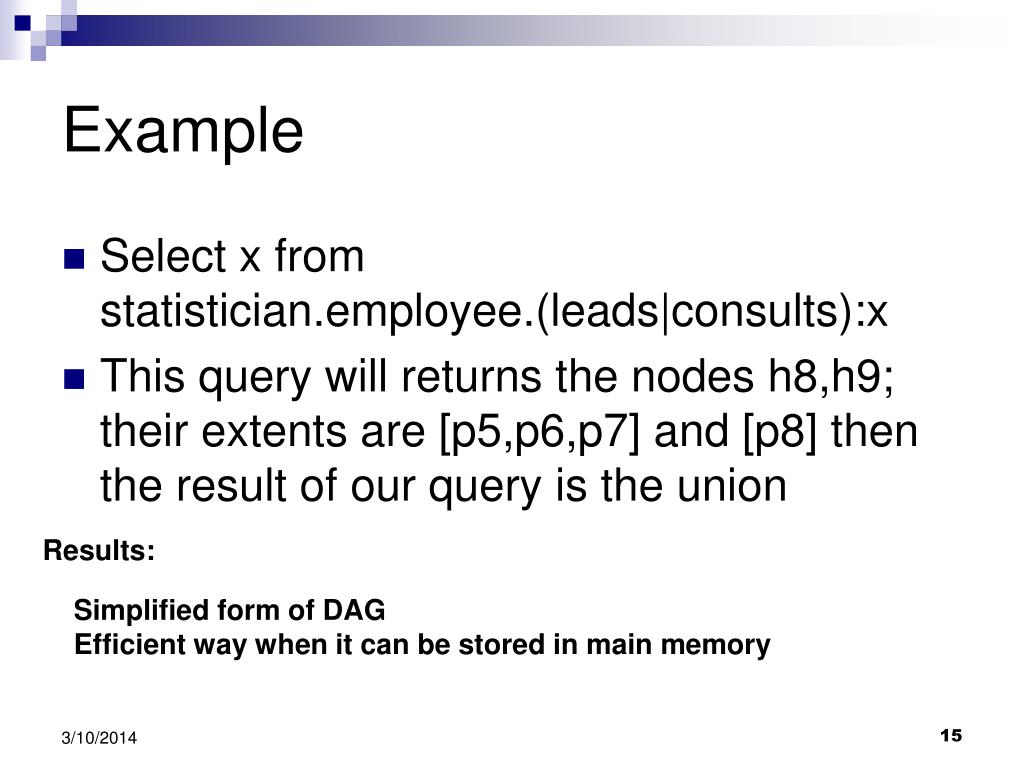

15. Example • Select x from statistician.employee.(leads|consults):x • This query will returns the nodes h8,h9; their extents are [p5,p6,p7] and [p8] then the result of our query is the union Results: Simplified form of DAG Efficient way when it can be stored in main memory

16. Natix • An efficient, native repository for storing, retrieving and managing tree structured large objects, preferably XML documents • It is based on split algorithm • Dynamically maintains physical records of size smaller than a page which contain sets of connected tree nodes. • It is similar to the hybrid system , but with some extensions

17. Natix Architecture • Record Manager: provided memory spaces divided into segments (collection of equal size pages) and each page holds one or more records. • Tree storage manager: operate on top of RM; it maps the tree used to model the document(topic)

18. Cont.. • Index management • Query engine • Schema manager, take care of the DTD • Document manager (validate the schema), make the necessary index update.. But they are not implemented yet

19. Physical Model In order to store our logical tree, there are two important ways to classify the physical node: object content • Large tree

20. 1. Object content • The classification is based on the content of the node: • Aggregate: inner nodes of the tree; they contain their respective child nodes. • Literal:leaf nodes containing stream of bytes • Proxy: nodes which point to different records (thery are used in the representation of large trees.)

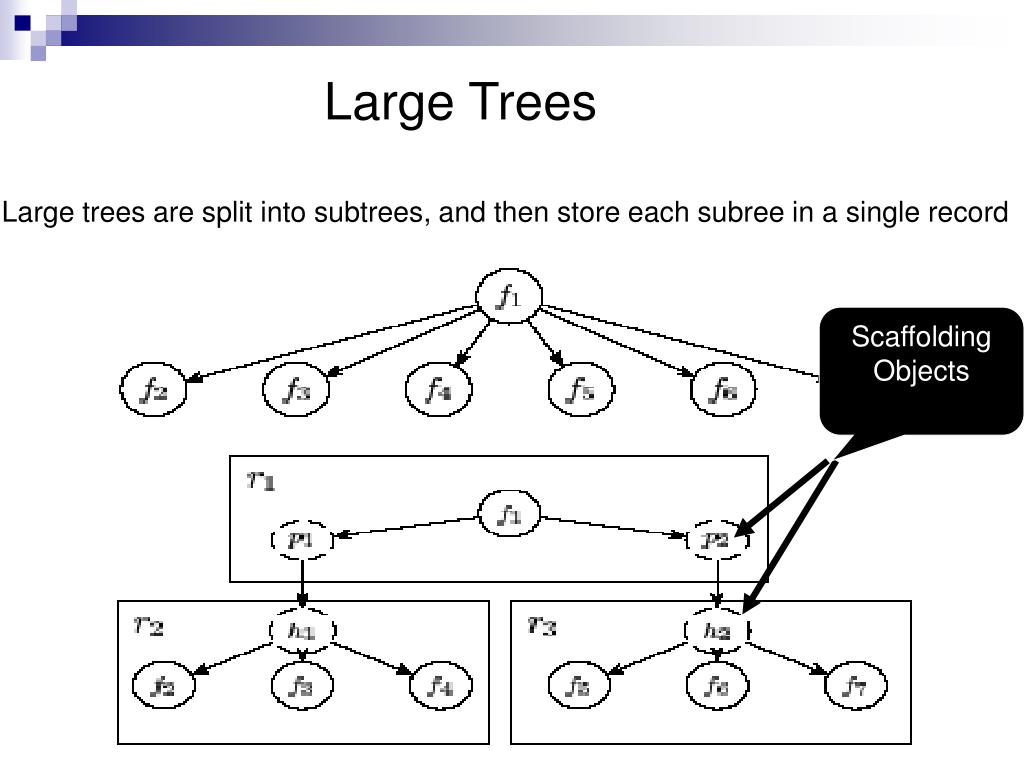

21. Large Trees Large trees are split into subtrees, and then store each subree in a single record Scaffolding Objects

22. Second Step Soumia

23. Sphinx • Schema-conscious Path-Hierarchy Indexing of Xml. • Uses DTD to speed up the search process. • XML document Document Graph. • DTD  Schema Graph.

24. Sphinx - Example

25. Sphinx - Example

26. Lore System • DBMS designed for semistructured data • Uses OEM graph, a label directed graph. • Vertices are objects • Each object has a unique object identifier (e.g. &19)

27. Lore System

28. Indexes in Lore • To indentify objects with specific values: • Value Index • Text Index • To traverse DB graph: • Link Index • Path Index

29. Value Index (Vindex) • Implemented as B+trees • Takes a label ‘l’, a comparator ‘c’, and a value ‘v’ • Returns all atomic objects having: • an incoming edge with the given label • a value satisfying the given operator and value • e.g. l=Price c=‘>’ v= 15.00 result= {&11, &15}.

30. Text Index (Tindex) • Implemented using inverted lists. • Maps a given word ‘w’ and label ‘l’ to a list of atomic values with incoming edge ‘l’ that contain word ‘w’. • Label can be omitted for a full search. • Returns a list of postings (o,n) indicating that ‘w’ appears in object ‘o’ as the nth word in the value. • e.g. w=“Ford” l= Name result = {(&17,2),(&21,2)}

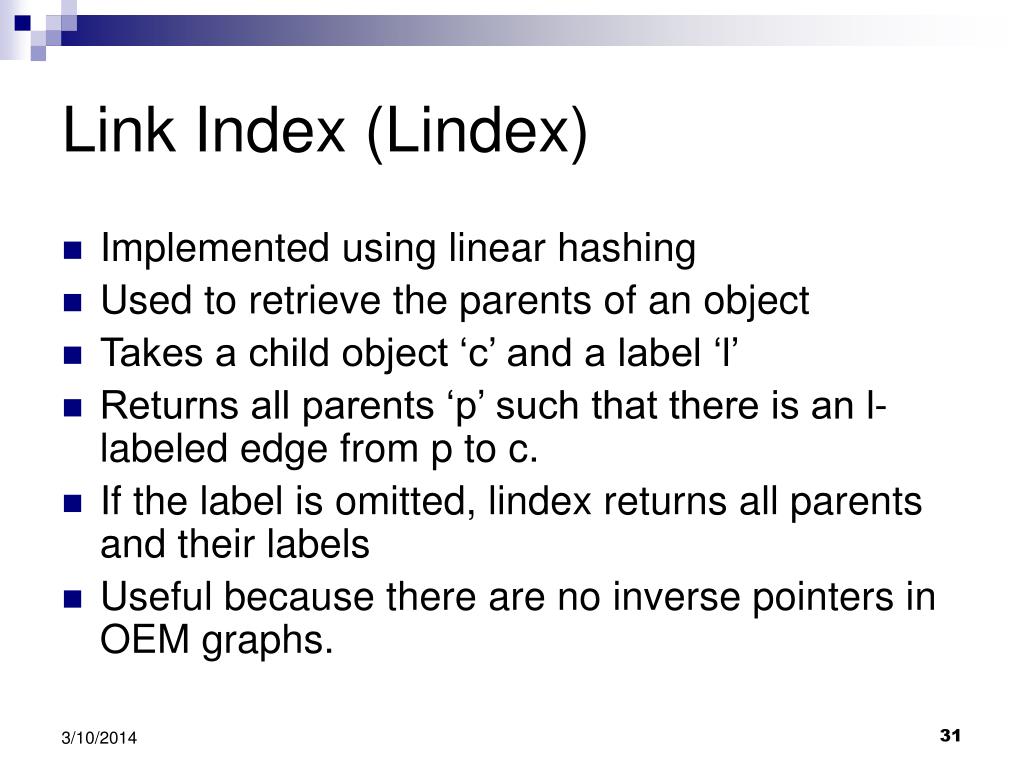

31. Link Index (Lindex) • Implemented using linear hashing • Used to retrieve the parents of an object • Takes a child object ‘c’ and a label ‘l’ • Returns all parents ‘p’ such that there is an l-labeled edge from p to c. • If the label is omitted, lindex returns all parents and their labels • Useful because there are no inverse pointers in OEM graphs.

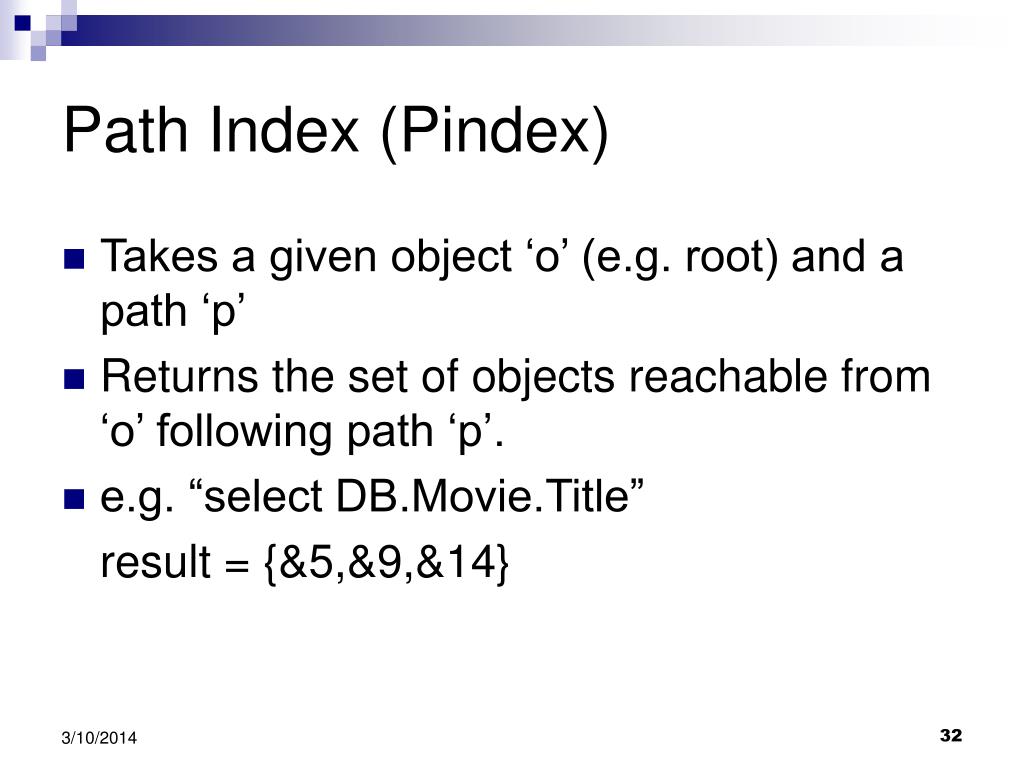

32. Path Index (Pindex) • Takes a given object ‘o’ (e.g. root) and a path ‘p’ • Returns the set of objects reachable from ‘o’ following path ‘p’. • e.g. “select DB.Movie.Title” result = {&5,&9,&14}

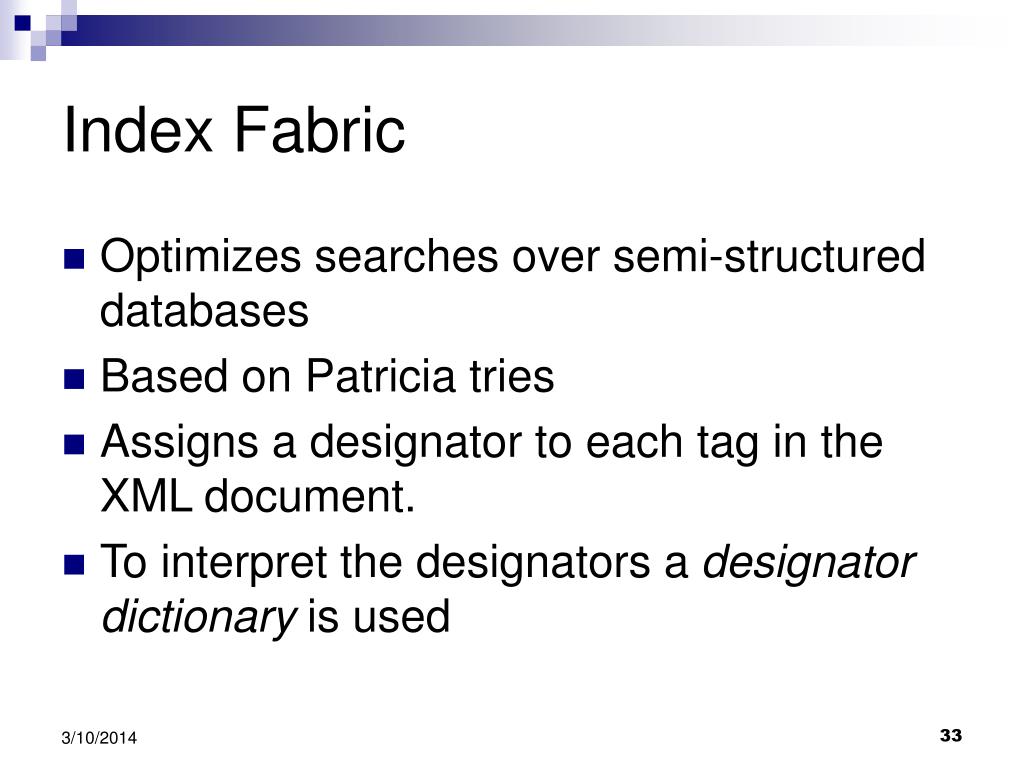

33. Index Fabric • Optimizes searches over semi-structured databases • Based on Patricia tries • Assigns a designator to each tag in the XML document. • To interpret the designators a designator dictionary is used

34. Practical Algorithm to Retrieve Information Coded in Alphanumeric Nodes are labelled with their depth Patricia Tries

35. Index Fabric – Example

36. Index Fabric - Example

37. Index Fabric - Example

38. Conclusion • A number of indexing techniques • Different approaches • Under construction (e.g. Natix) • Still developing and improving

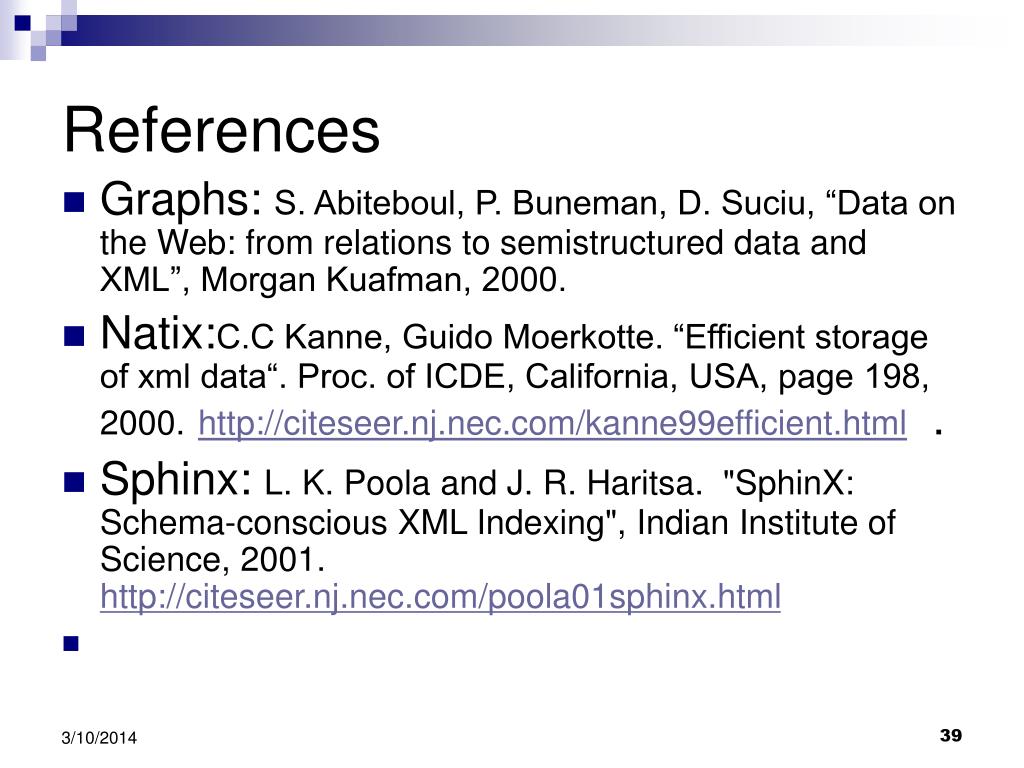

39. References • Graphs: S. Abiteboul, P. Buneman, D. Suciu, “Data on the Web: from relations to semistructured data and XML”, Morgan Kuafman, 2000. • Natix:C.C Kanne, Guido Moerkotte. “Efficient storage of xml data“. Proc. of ICDE, California, USA, page 198, 2000.http://citeseer.nj.nec.com/kanne99efficient.html  . • Sphinx: L. K. Poola and J. R. Haritsa. "SphinX: Schema-conscious XML Indexing", Indian Institute of Science, 2001. http://citeseer.nj.nec.com/poola01sphinx.html

40. References • Lore: J. McHugh, J. Widom, S. Abiteboul, Q. Luo, and A. Rajamaran. “Indexing semistructured data “. Technical report, Stanford University, Computer Science Department, 1998.http://citeseer.nj.nec.com/mchugh98indexing.html. • Index Fabric: B. Cooper, N. Sample, M. J. Franklin, G. R. Hjaltason, and M. Shadmon. “A fast index for semistructured data”. In Proceedings of VLDB, 2001. http://citeseer.nj.nec.com/cooper01fast.html.
