TDC561 Network Programming

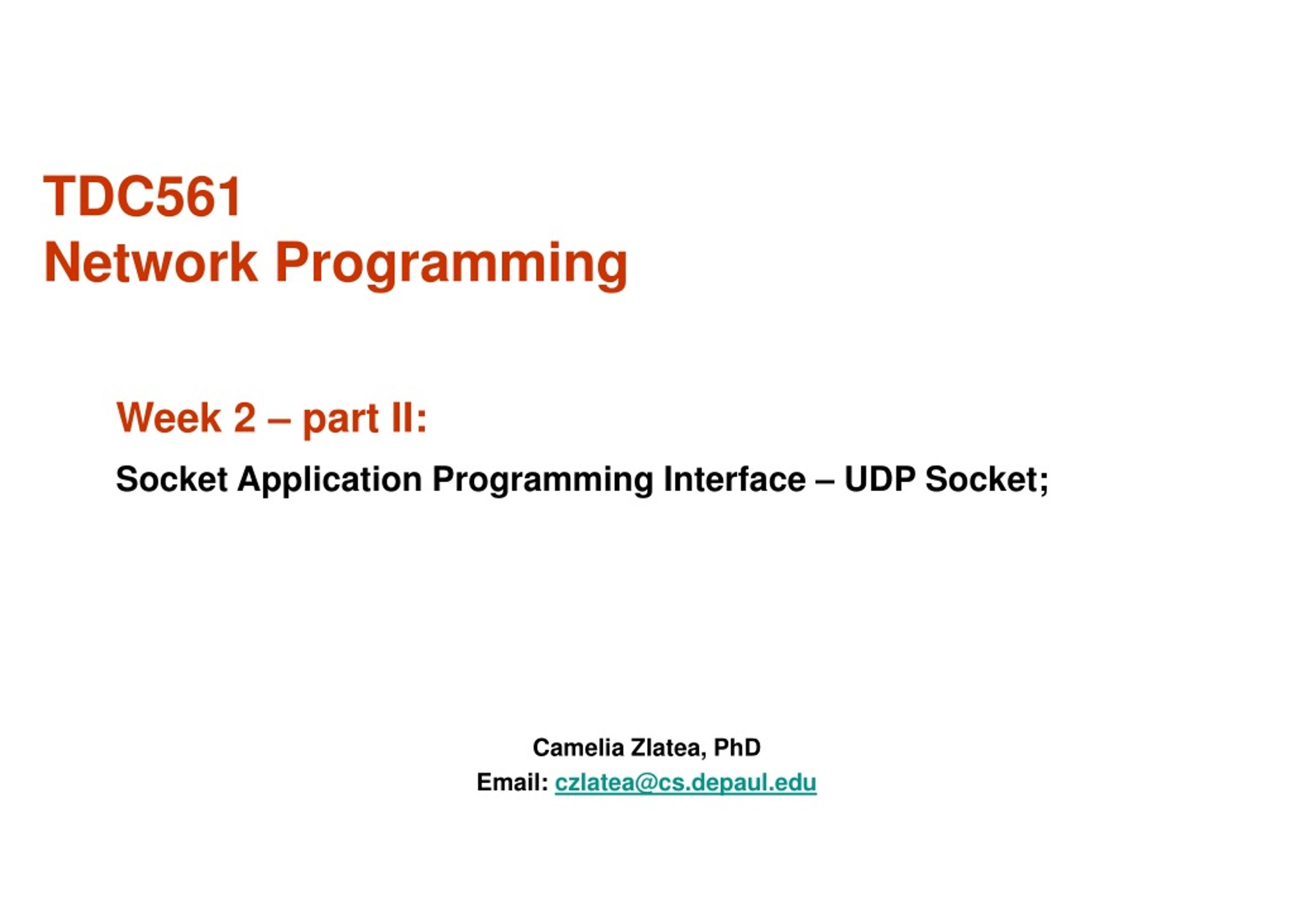

TDC561 Network Programming Week 2 – part II: Socket Application Programming Interface – UDP Socket; Camelia Zlatea, PhD Email: czlatea@cs.depaul.edu

UDP Clients and Servers • Connectionless clients and servers create a socket using SOCK_DGRAM instead of SOCK_STREAM • Connectionless servers do not call listen() or accept(), and usually do not call connect() • Since connectionless communications lack a sustained connection, several methods are available that allow you to specify a destination addresswith every call: • sendto(sock, buffer, buflen, flags, to_addr, tolen); • recvfrom(sock, buffer, buflen, flags, from_addr, fromlen)

Datagram Socket Transaction (UDP Connection) Server Client socket() socket() bind() sendto() data recvfrom() data sendto() recvfrom() close()

UDP Client and Server Client Flows • Client Flow • Create UDP socket. • Create sockaddr with address of server. • Call sendto(), sending request to the server. • If a reply is needed, call recvfrom() • Server Flow • Create UDP socket and bind to well known address. • Call recvfrom() to get a request, notifying the address of the client. • Process request and send reply back with sendto().

Creating a UDP socket int socket(int family,int type,int proto); int sock; sock = socket( AF_INET, SOCK_DGRAM, 0); if (sock<0) { /* ERROR */ }

Binding to well known address int mysock; struct sockaddr_in myaddr; mysock = socket(AF_INET,SOCK_DGRAM,0); myaddr.sin_family = AF_INET; myaddr.sin_port = htons( 6990 ); myaddr.sin_addr = htonl( INADDR_ANY ); bind(mysock, &myaddr, sizeof(myaddr));

Sending UDP Datagrams ssize_t sendto( int sockfd, void *buff, size_t nbytes, int flags, const struct sockaddr* to, socklen_t addrlen); sockfd is a UDP socket buff is the address of the data (nbytes long) to is the address of a sockaddr containing the destination address. Return value is the number of bytes sent, or -1 on error.

Sending UDP Datagrams • Return Value sendto() • indicates how much data was accepted by the Kernel (OS) for sending as a datagram • does NOT say how much data actually reached the destination. • Errors from sendto() EBADF, ENOTSOCK: bad socket descriptor EFAULT: bad buffer address EMSGSIZE: message too large ENOBUFS: system buffers are full • No error condition to indicate that the destination did not get receive the datagram

Receiving UDP Datagrams ssize_t recvfrom( int sockfd, void *buff, size_t nbytes, int flags, struct sockaddr* from, socklen_t *fromaddrlen); sockfd is a UDP socket buff is the address of a buffer (nbytes long) from is the address of a sockaddr. Return value is the number of bytes received and put into buff, or -1 on error.

Receiving UDP Datagrams • If buff is not large enough, any extra data is lost • The sockaddr at from is filled in with the address of the sender. • The fromaddrlen should be set before invoking. • If from and fromaddrlen are NULL there is no way to identify who sent the data. • Same errors as sendto, but also: • EINTR: System call interrupted by signal. • Blocking operation ( by default ) • recvfrom doesn’t return until there is a datagram available • waiting/blocking time can be indefinite

UDP Echo Server int mysock; struct sockaddr_in myaddr, cliaddr; char msgbuf[MAXLEN]; socklen_t clilen; int msglen; mysock = socket(AF_INET,SOCK_DGRAM,0); myaddr.sin_family = AF_INET; myaddr.sin_port = htons( S_PORT ); myaddr.sin_addr = htonl( INADDR_ANY ); bind(mysock, &myaddr, sizeof(myaddr)); while (1) { len=sizeof(cliaddr); msglen=recvfrom(mysock,msgbuf,MAXLEN,0,cliaddr,&clilen); sendto(mysock,msgbuf,msglen,0,cliaddr,clilen); }

UDP Daytime Client and Server • Server waits for requests on a known port. • Client sends a UDP request to server. • Server responds with daytime info. • No connection establishment! • No reliability!

UDP Server #include "unp.h" #include <time.h> int main(int argc, char **argv) { int sockfd, clilen; struct sockaddr_in servaddr, cliaddr; char buff[MAXLINE], req[REQ_LEN]; time_t ticks; /* Create a socket */ sockfd = Socket(AF_INET, SOCK_DGRAM, 0); /* Initialize server’s address and well-known port */ bzero(&servaddr, sizeof(servaddr)); servaddr.sin_family = AF_INET; servaddr.sin_addr.s_addr = htonl(INADDR_ANY); servaddr.sin_port = htons(13); /* daytime server */ /* Bind server’s address and port to the socket */ Bind(sockfd, (struct sockaddr *) &servaddr, sizeof(servaddr));

UDP Server for ( ; ; ) { /* Wait for client request */ len = sizeof(cliaddr); n = Recvfrom( sockfd, req, REQ_LEN, 0, &cliaddr, &clilen); /* Retrieve the system time */ ticks = time(NULL); snprintf(buff, sizeof(buff), "%.24s\r\n", ctime(&ticks)); /* Send to client*/ Sendto(sockfd, buff, strlen(buff), 0, &cliaddr, clilen); } }

UDP Client #include "unp.h" int main(int argc, char **argv) { int sockfd, n, servlen; char req[10], recvline[MAXLINE + 1]; struct sockaddr_in servaddr; if( argc != 2 )err_quit(“usage : gettime <IP address>”); /* Create a UDP socket */ sockfd = Socket(AF_INET, SOCK_DGRAM, 0); /* Specify server’s IP address and port */ bzero(&servaddr, sizeof(servaddr)); servaddr.sin_family = AF_INET; servaddr.sin_port = htons(13); /* daytime server port */ Inet_pton(AF_INET, argv[1], &servaddr.sin_addr);

UDP Client /* Send message to server requesting date/time */ strcpy(req, “GET_TIME”); Sendto(sockfd, req, strlen(req), 0, (struct sockaddr *)&servaddr, sizeof(servaddr)); /* Read date/time from the socket */ servlen = sizeof(servaddr); n= Recvfrom(sockfd, recvline, MAXLINE, 0, (struct sockaddr *)&servaddr, &servlen); recvlen[n] = 0; printf(“%s”, recvlen); close(sockfd); }

Background SlidesUDP Protocol - Terms and Concepts

TCP/IP Summary • IP: network layer protocol • unreliable datagram delivery between hosts. • UDP: transport layer protocol - provides fast / unreliable datagram service. Pros: Less overhead; fast and efficient • minimal datagram delivery service between processes. • unreliable, since there is no acknowledgement of receipt, there is no way to know to resend a lost packet • no built-in order of delivery, random delivery • connectionless; a connection exists only long enough to deliver a single packet • checksum to guarantee integrity of packet data • TCP: transport layer protocol . Cons: Lots of overhead • connection-oriented, full-duplex, reliable, byte-stream delivery service between processes. • guaranteed delivery of packets in order of transmission by offering acknowledgement and retransmission: • sequenced delivery to the application layer, by adding a sequence number to every packet. • checksum to guarantee integrity of packet data

End-to-End (Transport) Protocols • Underlying best-effort network • drops messages • re-orders messages • delivers duplicate copies of a given message • limits messages to some finite size • delivers messages after an arbitrarily long delay • Common end-to-end services • guarantee message delivery • deliver messages in the same order they are sent • deliver at most one copy of each message • support arbitrarily large messages • support synchronization • allow the receiver to apply flow control to the sender • support multiple application processes on each host

UDP Application Application Application process process process Ports Queues Packets demultiplexed UDP Packets arrive

UDP Header 0 16 31 Src Port Address Dst Port Address Checksum Length of DATA DATA • Simple Demultiplexor • Unreliable and unordered datagram service • Adds multiplexing • No flow control • Endpoints identified by ports • servers have well-known ports • see /etc/services on Unix • Optional checksum • pseudo header + udp header + data • UDP Packet Format

Datagram Sockets • Connectionless sockets, i.e., C/S addresses are passed along with each message sent from one process to another • Peer-to-Peer Communication • Provides an interface to the UDP datagram services • Handles network transmission as independent packets • Provides no guarantees, although it does include a checksum • Does not detect duplicates • Does not determine sequence • ie information can be lost, wrong order or duplicated
