Fan-filter-unit

<br>Fan filter unit is a versatile built-in fan ceiling unit for effective turbulence and laminar clean rooms. It prevents heat dissipation from within the unit thus preventing premature equipment failure. Provision with embedded frame filter adoption for liquid sealed ceiling skeleton.https://www.labonics.com/Laboratory-Furniture/air-purification-equipment/fan-filter-unit

CindyLabonics
Télécharger la présentation

Fan-filter-unit

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

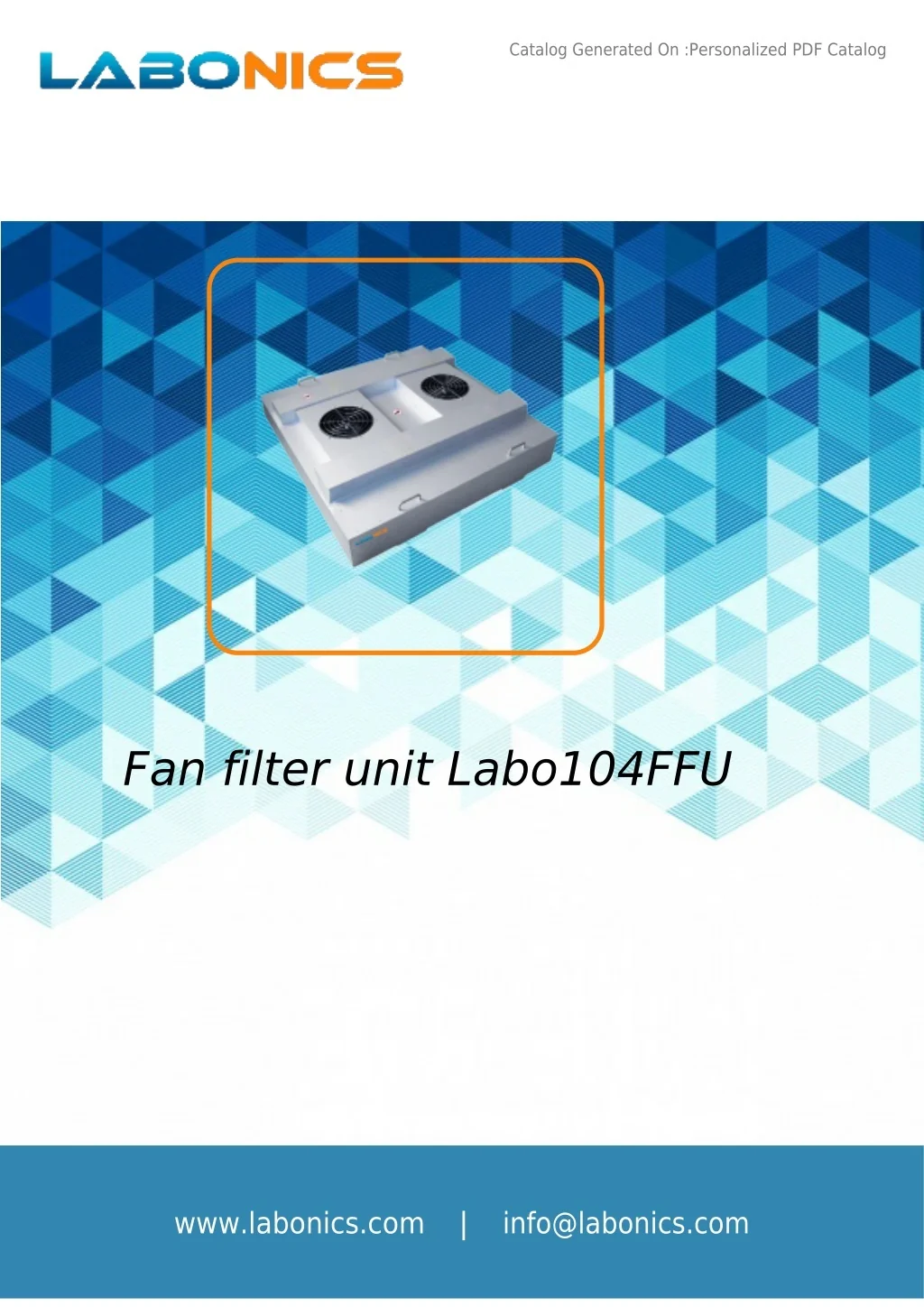

  1. Catalog Generated On : Personalized PDF Catalog Fan filter unit Labo104FFU www.labonics.com | info@labonics.com

  2. Description : Fan filter unit Labo104FFU is a versatile built-in fan ceiling unit for effective turbulence and laminar clean rooms. It prevents heat dissipation from within the unit thus preventing premature equipment failure. Provision with embedded frame filter adoption for liquid sealed ceiling skeleton. Specifications : Body dimensions ( W x L x H ) 725 x 1475 x 230 mm Filter dimensions ( W x L x D ) 720 x 1470 x 69 mm Air value 19 CMM ~ 26 CMM 3 1500 m /h Material Powder coat steel Galvanized aluminium plate Stainless steel 304 Filter HEPA ULPA HEPA filter size 0.3 µm ULPA filter size 0.12 µm Filter efficiency 0.9999 Connection type Terminal block Male and female connector Power cord Fan pressure 220 Pa Noise 50 dB ~ 56 dB High efficiency power Three section adjustable Five section adjustable Power 210 W

  3. Power supply AC single phase 110 V 50 Hz ; 220 V 60 Hz AC single phase 110 V 50 Hz ; 380 V 60 Hz Weight 50 kgs Features : ■Independent control unit ■Filter - HEPA / ULPA ■Error indicator lamp ■Power indicator switch ■Overload protective switch ■Reserved run and fault dry connection monitoring ■Material (Powder coated steel / galvanized aluminium plate / stainless steel 304) Applications : Used to supply purified air to cleanrooms, laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air

  4. Labonics Systems Ltd. 9 Overton Road Walthamstow London E10 7NN UK Email: info@labonics.com | Website: www.labonics.com
