Automatic Microtome

Automatic Microtome is a fully automated microtome, offers adjustable speed with three <br>sectioning modes (Continuous, Step, Single) for users selection. Designed with streamlined <br>molded housing, hand wheel for smooth running and stepping-motor advance technology for <br>fine sectioning and trimming of specimen with selectable specimen retraction. Features, <br>a precise micro motion specimen feeding system, microcomputer controlled optical signal <br>and stepper motor to regulate specimen feeding, and a removable waste tray for specimen <br>dismantling. Automatic Microtome offers, 0.5 u03bcm to 100 u03bcm sectio

Eleanor96
Télécharger la présentation

Automatic Microtome

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

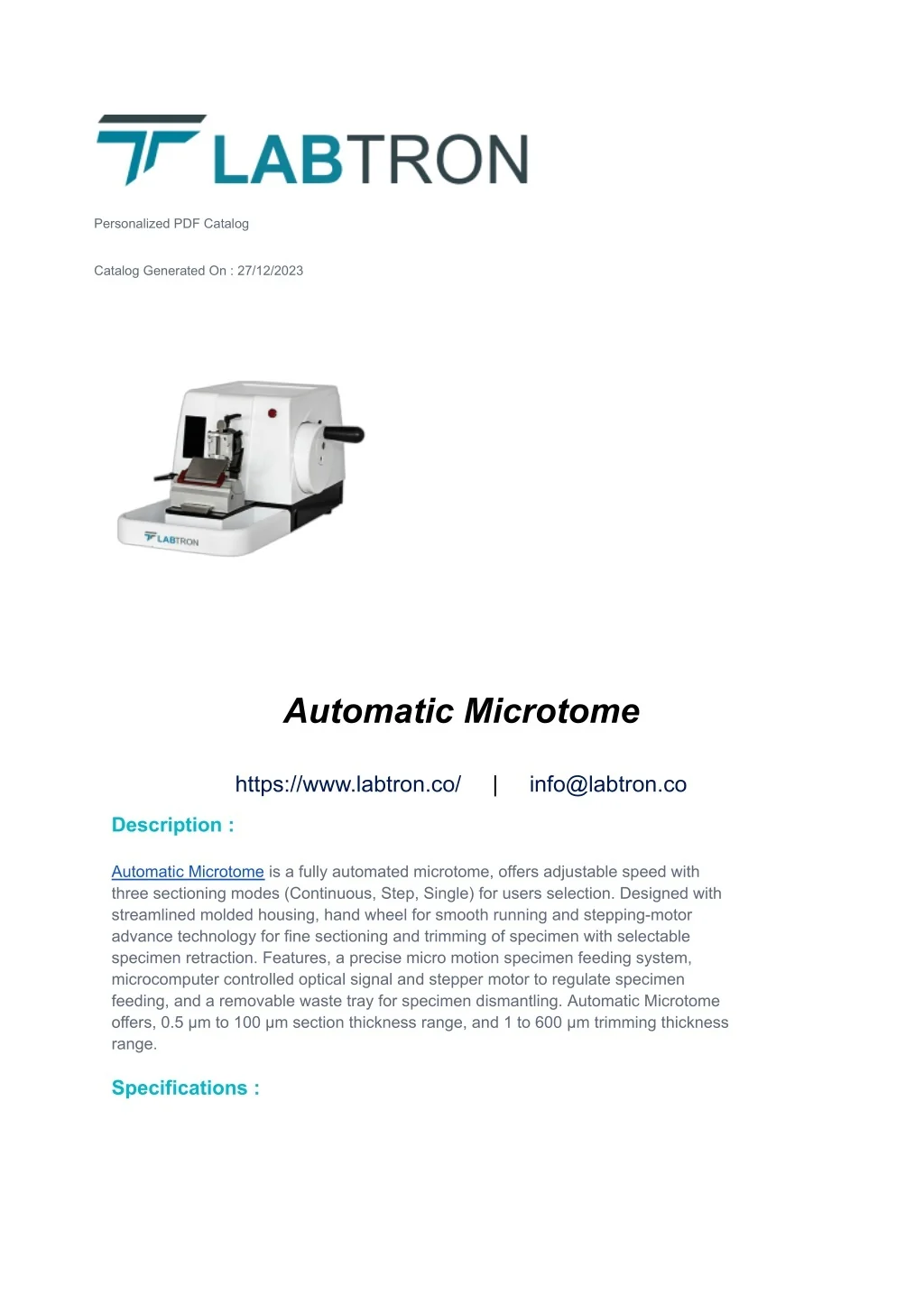

  1. Personalized PDF Catalog Catalog Generated On : 27/12/2023 Automatic Microtome https://www.labtron.co/ | info@labtron.co Description : Automatic Microtome is a fully automated microtome, offers adjustable speed with three sectioning modes (Continuous, Step, Single) for users selection. Designed with streamlined molded housing, hand wheel for smooth running and stepping-motor advance technology for fine sectioning and trimming of specimen with selectable specimen retraction. Features, a precise micro motion specimen feeding system, microcomputer controlled optical signal and stepper motor to regulate specimen feeding, and a removable waste tray for specimen dismantling. Automatic Microtome offers, 0.5 μm to 100 μm section thickness range, and 1 to 600 μm trimming thickness range. Specifications :

  2. 0.5 μm to 100 μm (3 to 5 μm best slicing Section thickness range effect) 0.5 to 5 μm, in 0.5 μm increment 5 to 20 μm, in 1 μm increment Section thickness setting 20 to 60 μm, in 5 μm increment 60 to 100 μm, in 10 μm increment Trimming thickness range 1 to 600 μm 1 to 10 μm, in 1 μm increment 10 to 20 μm, in 2 μm increment Trimming thickness setting 20 to 50 μm, in 5 μm increment 50 to 100 μm, in 10 μm increment 100 to 600 μm, in 50 μm increment Specimen retraction thickness 10 to 150 μm, In 1 μm increment Specimen vertical stroke 60 mm Specimen horizontally stroke 25 mm Specimen holder adjustment system Horizontal orientation (X axis): ± 8° Max specimen size with C clamp 55 mm × 45 mm (H×W) Power supply 100/240 V, 50/60 Hz

  3. Dimensions (W×D×H) 560 × 470 × 300 mm Weight 35 kg Features : Fully-automatic sectioning with adjustable speed with Three sectioning modes (Continuous, Step, Single) for users selection Streamlined molded housing offers attractive appearance and easy maintenance Advanced retraction function makes better sectioning and retraction value is adjustable Electronic trim function to switch from trim to section mode Section counting function sums total section pieces and overall thickness Signal and stepper motor to control specimen feeding Automatic memorized coarse feed and reload function improves cutting efficiency Advanced slide mechanism and groove ensures the precision of specimen movement Specimen fine orientation of 8° on X/Y axes Universal specimen holder includes C clamp, Optional Cassette Clamp Spacious and ingenious waste tray A hand wheel force balancing system to adjust the balancing force during smooth and even rotations, sectioning

  4. Two safety lock mechanisms on the hand wheel (one lock on top, other at any position) Self-diagnostic prompt, Alarm system to warn forward and backward limitations Applications : Automatic Microtome used for sectioning (slicing, trimming) of biological specimens across Histopathology, Medicine, Biology for scientific research and analysis. www.labtron.co

  5. Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
