Automatic polarimeter

The automatic polarimeter comes with 7 inch TFT touch screen <br>& long-life LED with 589 nm filter as light source instead of <br>traditional limited hours light source for use. With four <br>measurement options like optical rotation, specific rotation, <br>concentration and international sugar content it can determine <br>the concentration of substance, content, purity etc. Equipped <br>with built-in peltier temperature control system ensures accurate <br>readings. Polarimeter is used across sugar, pharmacy, food & <br>chemistry industry.

Eleanor96
Télécharger la présentation

Automatic polarimeter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

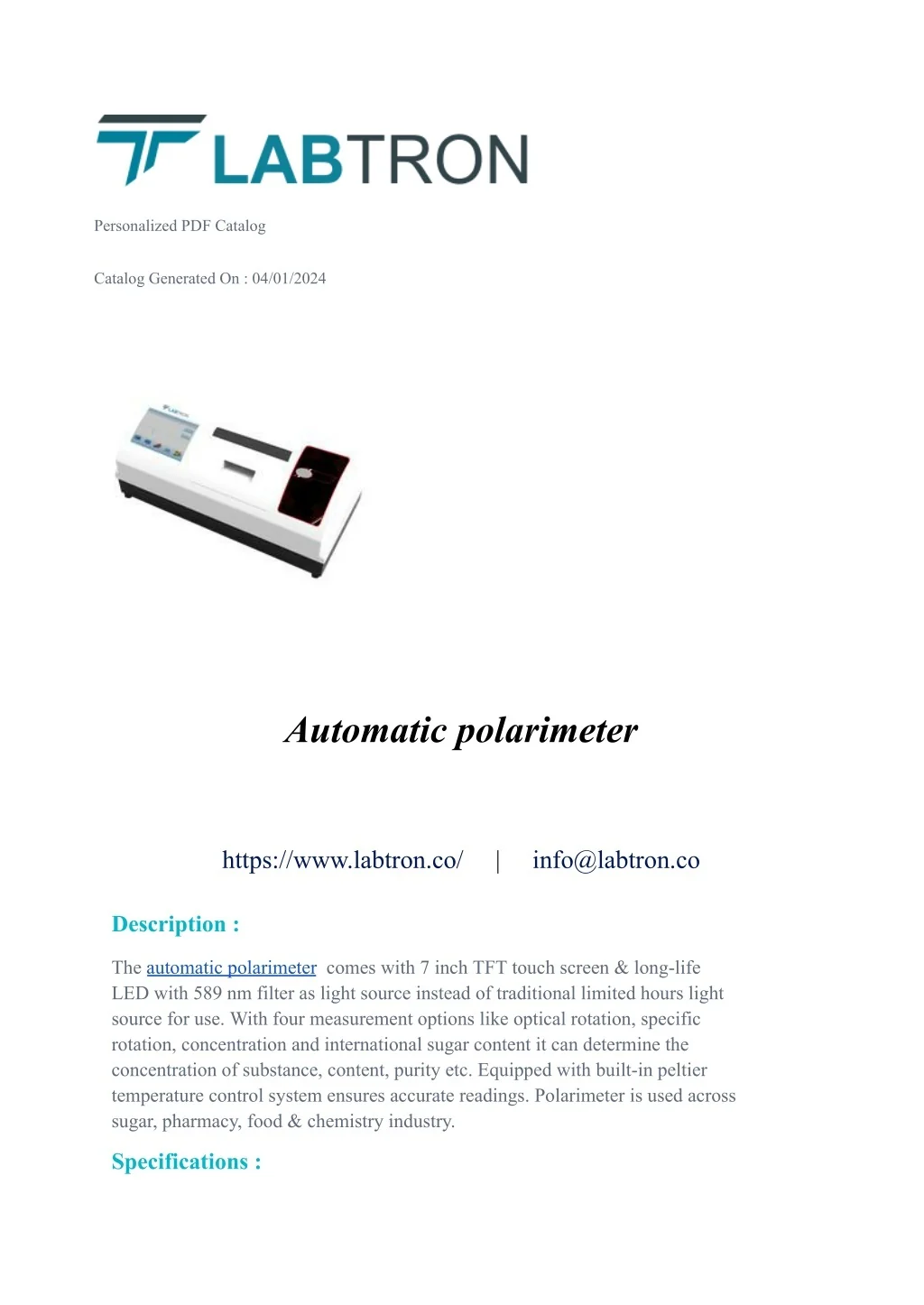

  1. Personalized PDF Catalog Catalog Generated On : 04/01/2024 Automatic polarimeter https://www.labtron.co/ | info@labtron.co Description : The automatic polarimeter comes with 7 inch TFT touch screen & long-life LED with 589 nm filter as light source instead of traditional limited hours light source for use. With four measurement options like optical rotation, specific rotation, concentration and international sugar content it can determine the concentration of substance, content, purity etc. Equipped with built-in peltier temperature control system ensures accurate readings. Polarimeter is used across sugar, pharmacy, food & chemistry industry. Specifications :

  2. Four modes: optical rotation, specific rotation, Measurement mode concentration and international sugar content Calibration mode Automatic Calibration Measuring Range ±89.99°, ±259°Z Minimum reading 0.001°(optical rotation) Accuracy ±0.01°(-45° ≤ optical rotation ≤ +45°) Repeatability (standard 0.002°(optical rotation) deviations) Measurable sample min. 0.01 transmittance Light source LED Working wavelength 589.3 nm Test tube One 200 mm & One 100 ml Temperature control Built-in semiconductor mode Temperature control 10 to 45 °C range Temperature control ± 0.2°C accuracy

  3. Display mode 7 inch TFT touch screen Data storage capacity 1000 sets of data Interface USB, RS232 Power supply 250 W Power AC 220V ± 10% 50 Hz Dimension 820 × 420 × 440 mm Net weight 28 kg Gross Weight 32 kg Features : Highly integrated, fully automatic polarimeter 7 inch TFT touch screen 4 selectable measurement options Long LED life light source, with 589.3 nm filter Built-in Parr (peltier) temperature control system ± 89° measurement scope for chiral compounds over broad range of concentration Automatic calculations of non-standard test tube measurements Automatic marking for time, date, sample name

  4. Easy to operate Applications : Automatic polarimeter is used in detection of sugar, pharmacy, food, drugs, chemical testing also for detection of starch, agriculture products, amino acids & other materials. www.labtron.co

  5. Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
