  1. Access Control Lists Lecture 1 PJC CCNA Semester 2 Ver. 3.0 by William Kelly

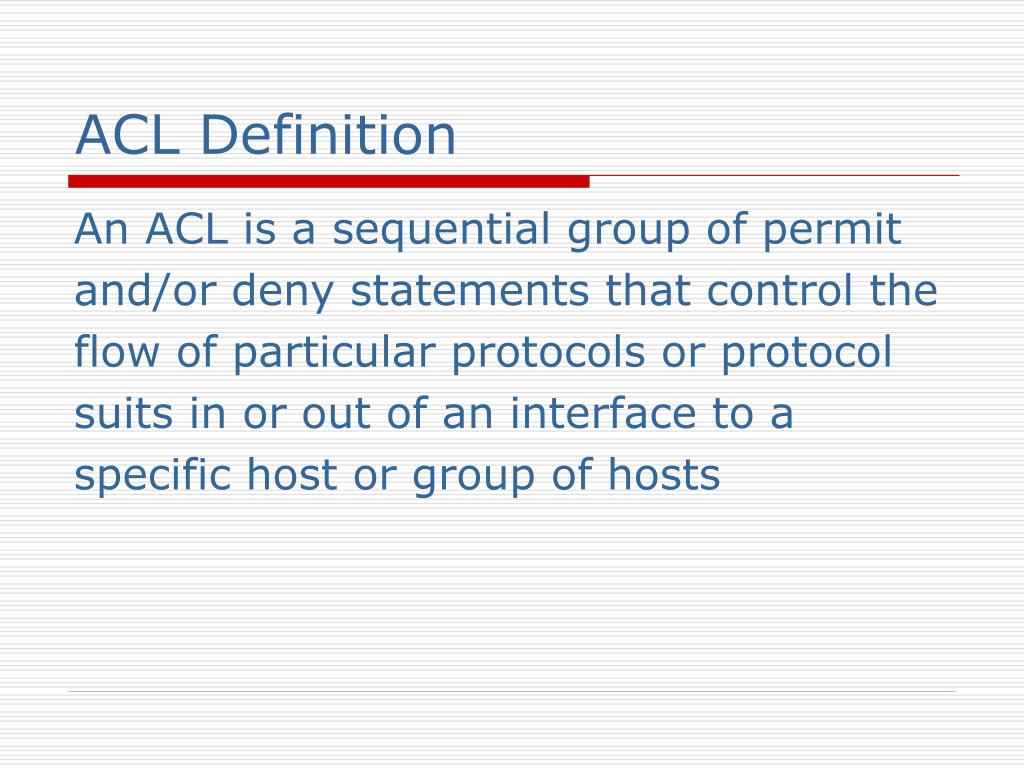

  2. ACL Definition An ACL is a sequential group of permit and/or deny statements that control the flow of particular protocols or protocol suits in or out of an interface to a specific host or group of hosts

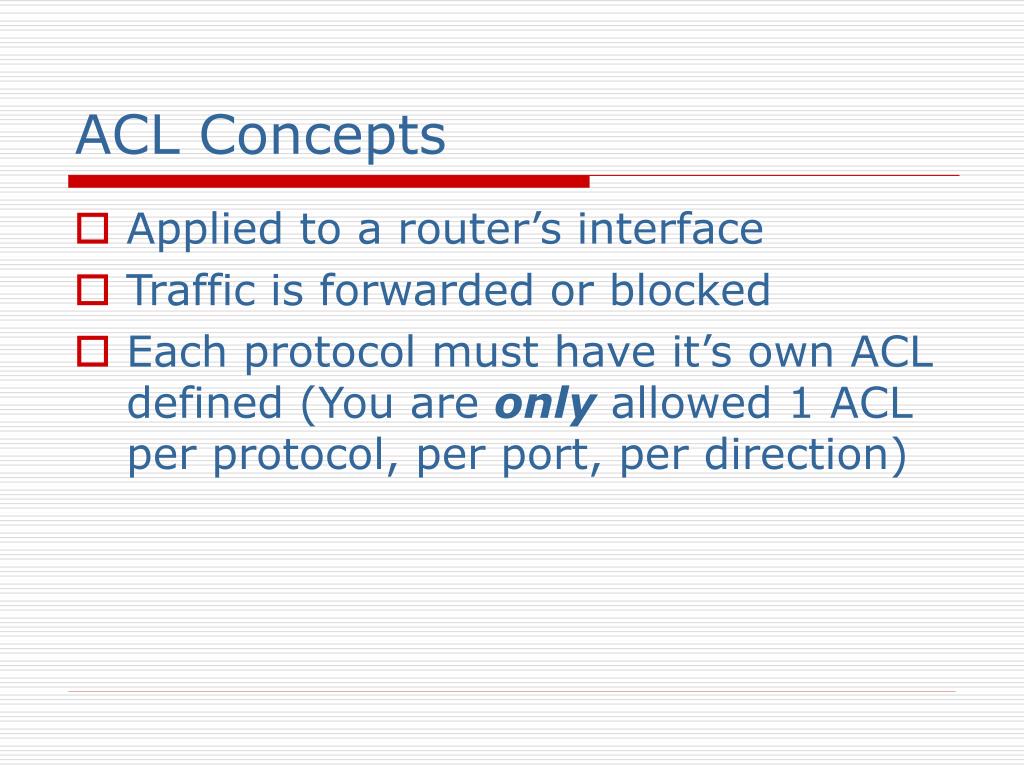

  3. ACL Concepts • Applied to a router’s interface • Traffic is forwarded or blocked • Each protocol must have it’s own ACL defined (You are only allowed 1 ACL per protocol, per port, per direction)

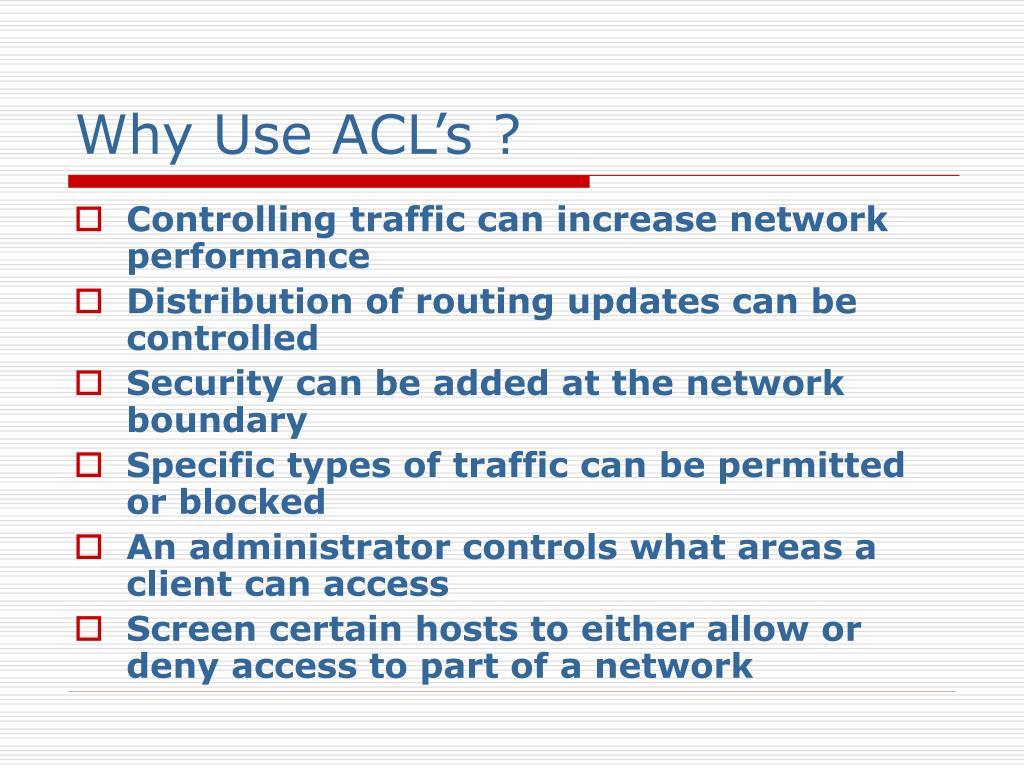

  4. Why Use ACL’s? • Controlling traffic can increase network performance • Distribution of routing updates can be controlled • Security can be added at the network boundary • Specific types of traffic can be permitted or blocked • An administrator controls what areas a client can access • Screen certain hosts to either allow or deny access to part of a network

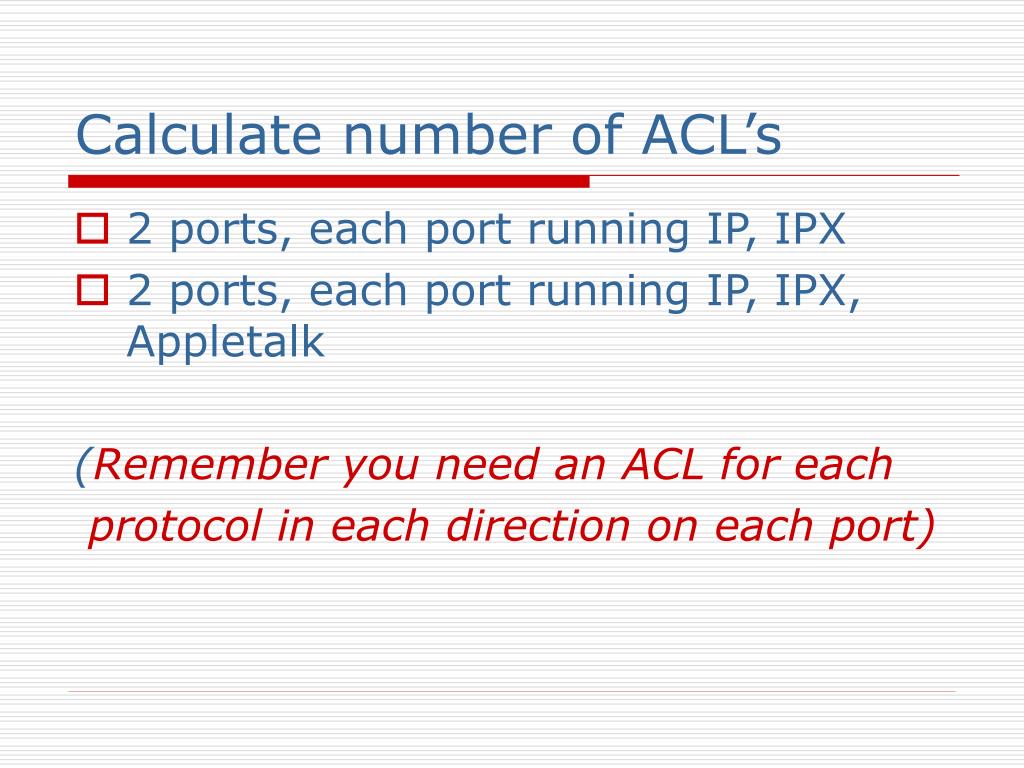

  5. Calculate number of ACL’s • 2 ports, each port running IP, IPX • 2 ports, each port running IP, IPX, Appletalk (Remember you need an ACL for each protocol in each direction on each port)

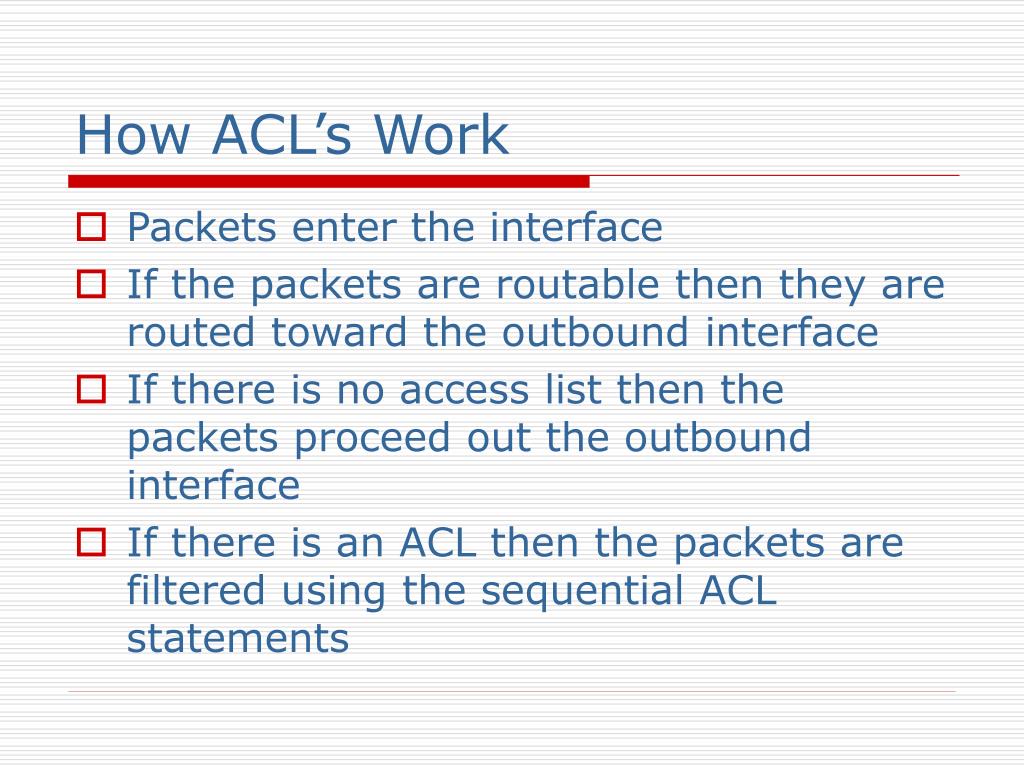

  6. How ACL’s Work • Packets enter the interface • If the packets are routable then they are routed toward the outbound interface • If there is no access list then the packets proceed out the outbound interface • If there is an ACL then the packets are filtered using the sequential ACL statements

  7. ACL Basic Flowchart

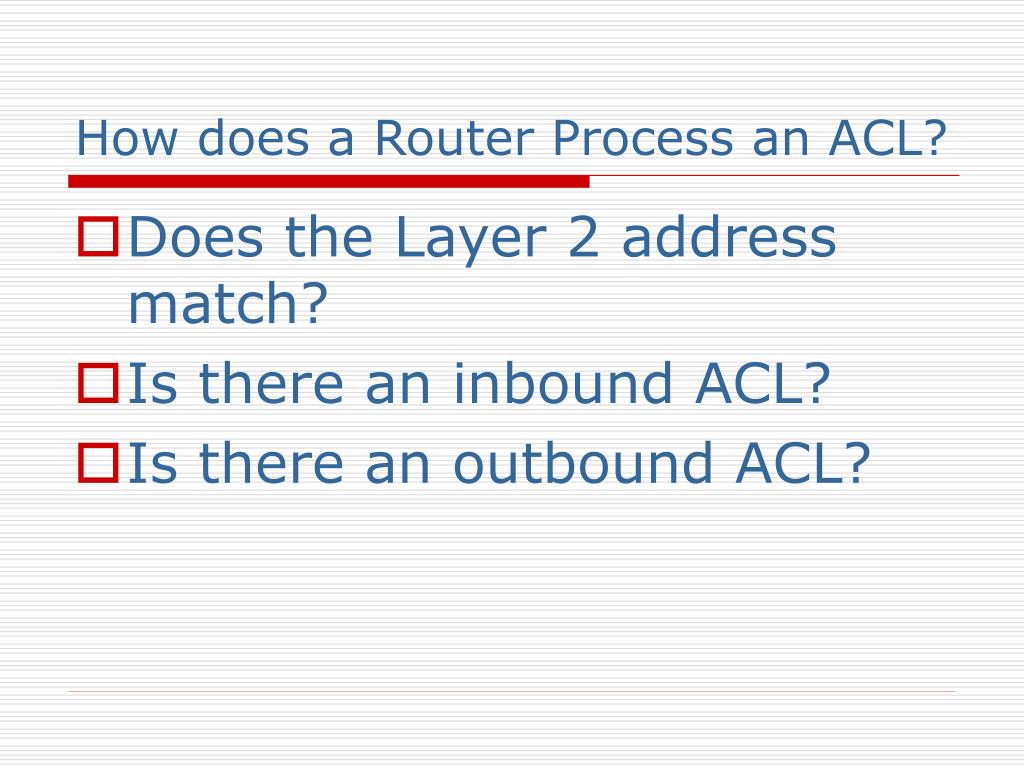

  8. How does a Router Process an ACL? • Does the Layer 2 address match? • Is there an inbound ACL? • Is there an outbound ACL?

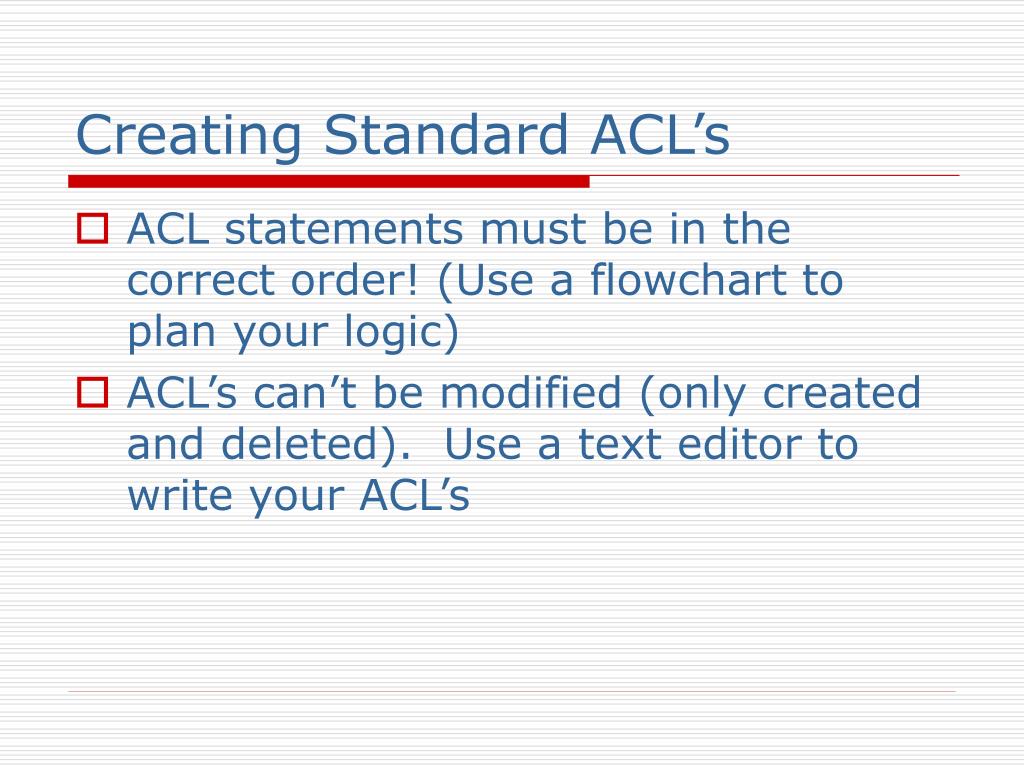

  9. Creating Standard ACL’s • ACL statements must be in the correct order! (Use a flowchart to plan your logic) • ACL’s can’t be modified (only created and deleted). Use a text editor to write your ACL’s

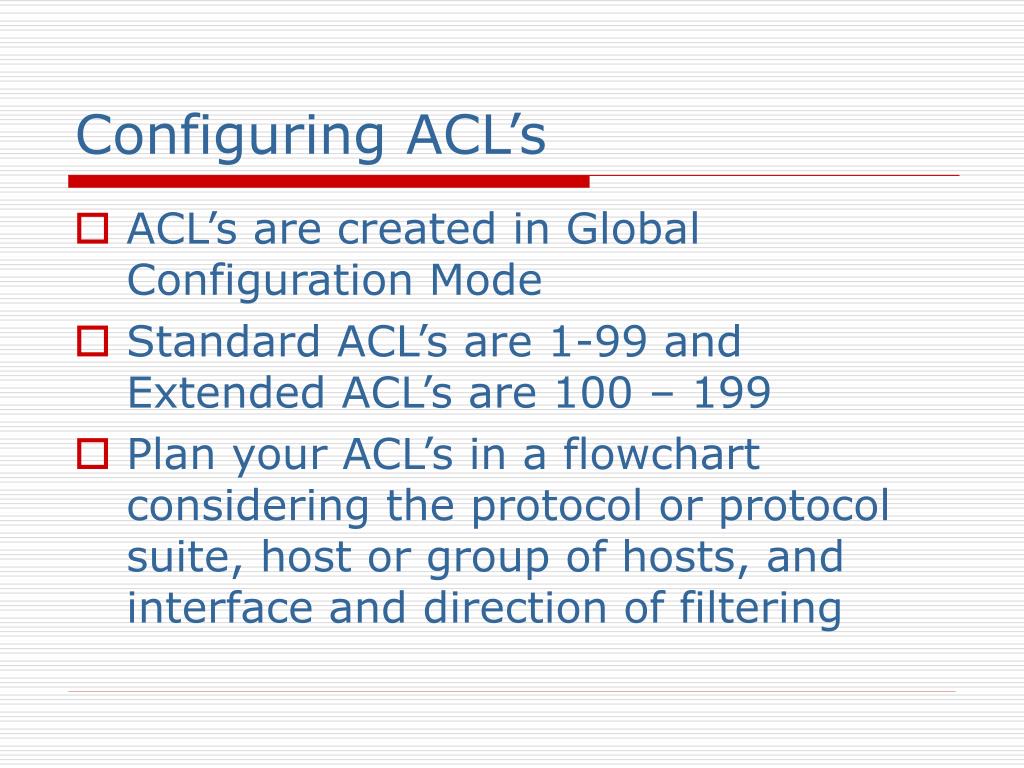

  10. Configuring ACL’s • ACL’s are created in Global Configuration Mode • Standard ACL’s are 1-99 and Extended ACL’s are 100 – 199 • Plan your ACL’s in a flowchart considering the protocol or protocol suite, host or group of hosts, and interface and direction of filtering

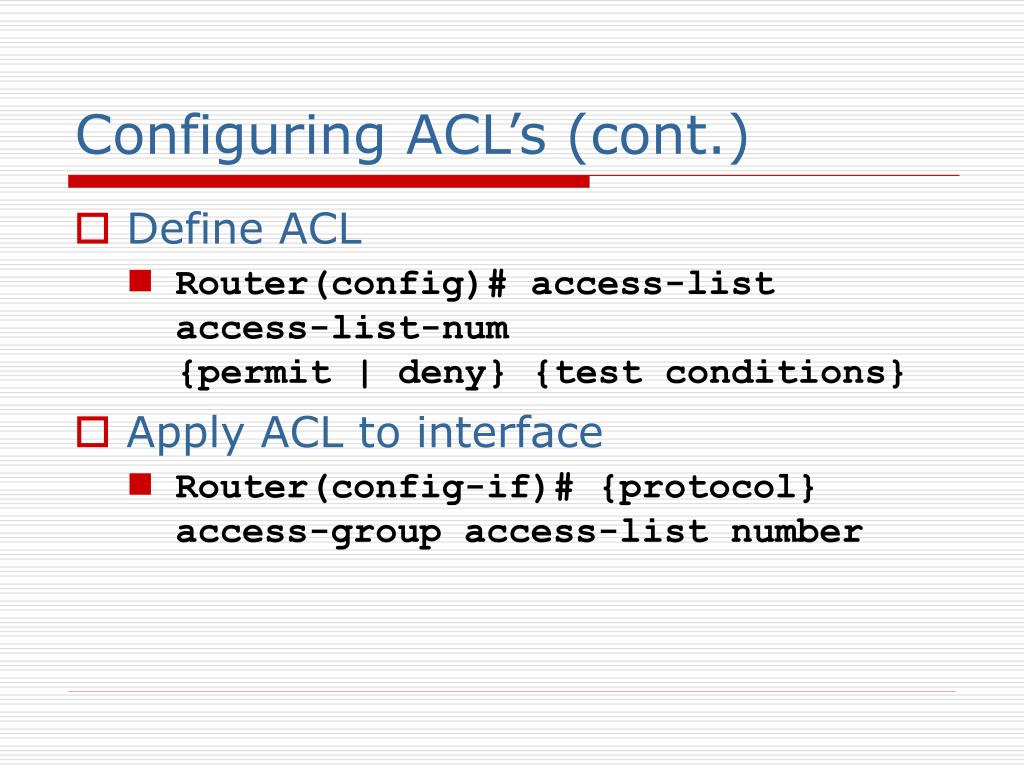

  11. Configuring ACL’s (cont.) • Define ACL • Router(config)# access-list access-list-num {permit | deny} {test conditions} • Apply ACL to interface • Router(config-if)# {protocol} access-group access-list number

  12. Points to remember creating ACL’s • Outbound ACL’s are more efficient • If you need to alter an ACL use no access-list list-number (Remember you can’t modify an standard ACL so you must erase it and create it again with your changes. This is why you should create ACL’s in a text file) (See Basic Rules in Online Curriculum)

  13. Wildcard Mask Bits • Wildcard mask bits appear “similar” to a reverse subnet mask but have NO RELATIONSHIP TO SUBNET MASKS!! • 0 means check a position • 1 means don’t check a position

  14. Common Wildcard command and Abbreviations • Permit 0.0.0.0 255.255.255.255is the same as permit any • Permit 181.16.1.1 0.0.0.0is the same aspermit host 181.16.1.1(ONLY A PARTICULAR HOST IS MATCHED!!)

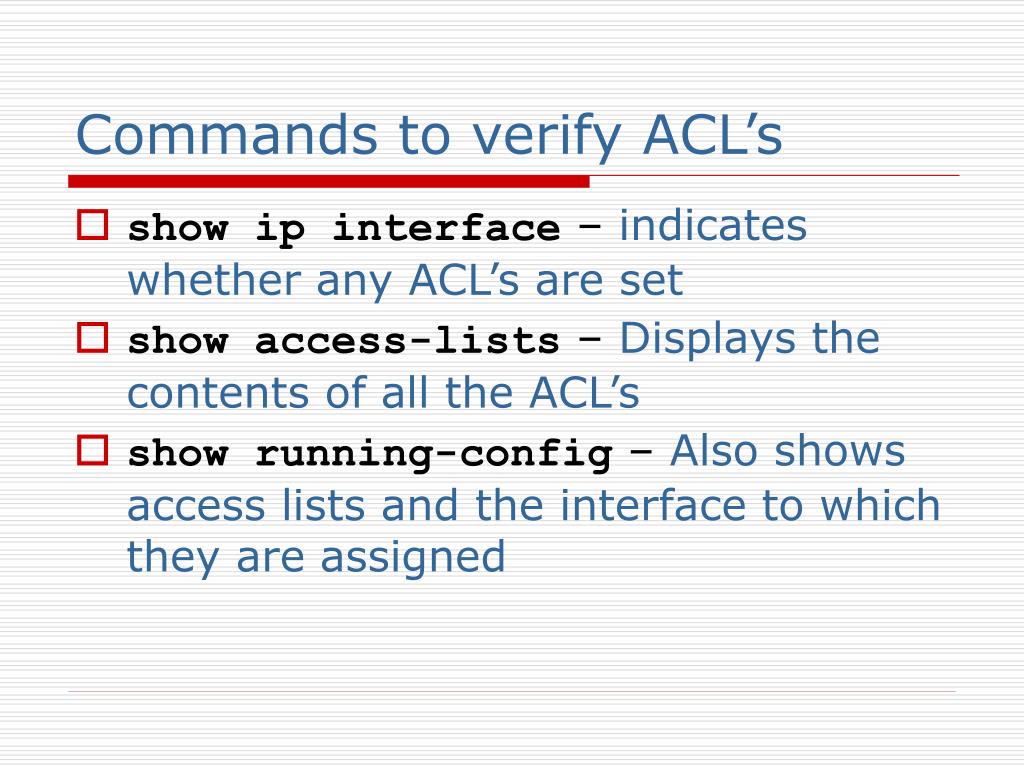

  15. Commands to verify ACL’s • show ip interface – indicates whether any ACL’s are set • show access-lists – Displays the contents of all the ACL’s • show running-config – Also shows access lists and the interface to which they are assigned

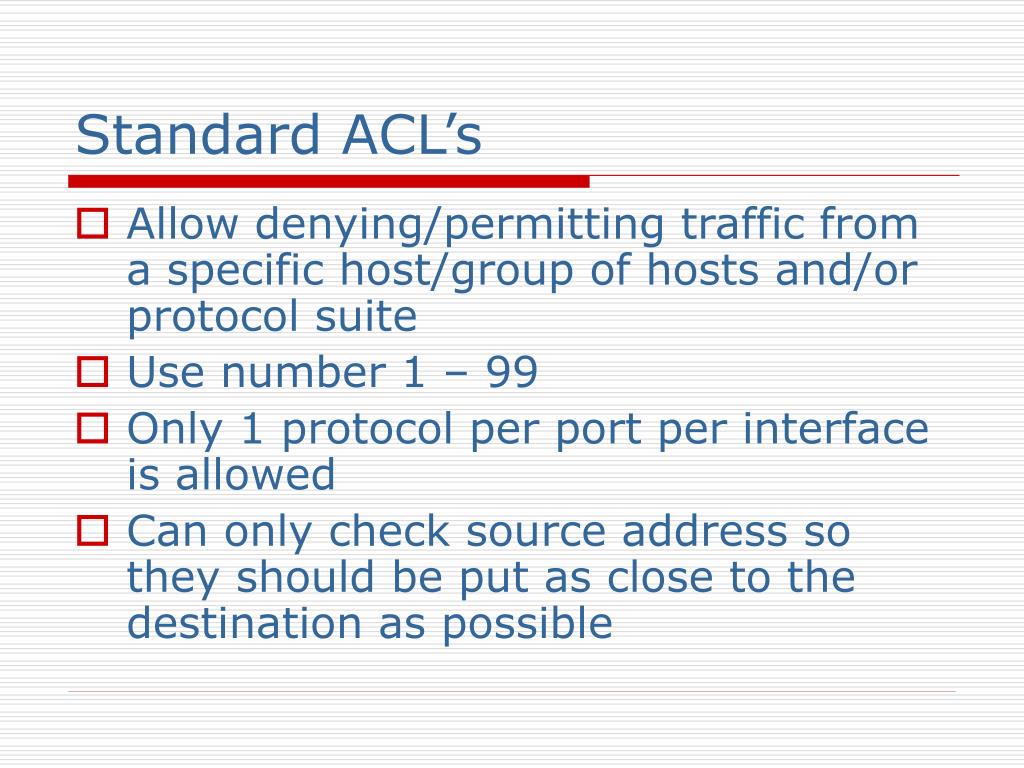

  16. Standard ACL’s • Allow denying/permitting traffic from a specific host/group of hosts and/or protocol suite • Use number 1 – 99 • Only 1 protocol per port per interface is allowed • Can only check source address so they should be put as close to the destination as possible

  17. Extended ACL’s • Allow denying/permitting traffic from a specific host/group of hosts and/or protocol suite/protocol and/or port/group of ports • Use number 100 – 199 • Only 1 protocol per port per interface is allowed • Can check source and destination address so they should be put as close to the source as possible

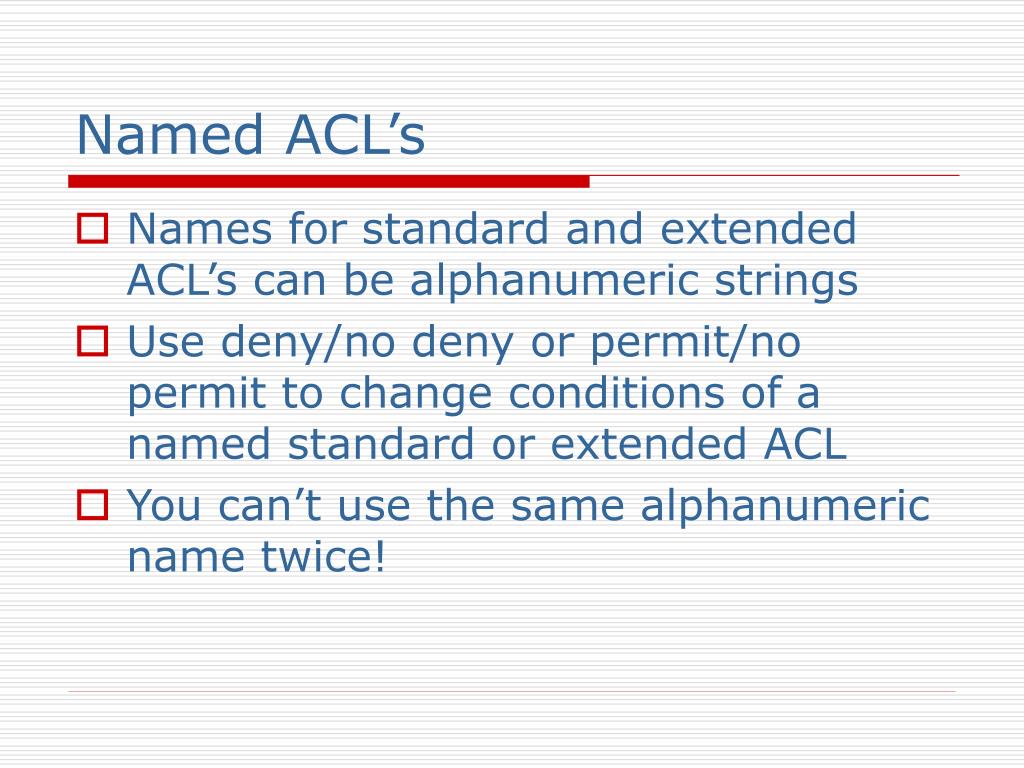

  18. Named ACL’s • Names for standard and extended ACL’s can be alphanumeric strings • Use deny/no deny or permit/no permit to change conditions of a named standard or extended ACL • You can’t use the same alphanumeric name twice!
