  1. Mechatronics: Education, Research & Development Prepared by: Dr. rer. nat. AshrafAboshosha Event: http://www.icgst.com/con11/aiml11/index.html EAEA, NCRRT, Engineering Dept. www.icgst.com, www.icgst-amc.com editor@icgst.com Tel.: 0020-12-1804952 Fax.: 0020-2-24115475

  2. Mechatronics Education Research Development

  3. Education • Bsc., Msc. and PhD regulations (Catalog) • Preparation of curricula guidelines (Printed and Online materials) • Academic advertising for mechatronics • Preparing list of lab equipments • Educational/public training courses (courses and partners) • Comparative survey on local/international mechatronics institutes • Contact with mechatronics pioneers to share ideas and strategies • Inviting our strategic partners to explore the future

  4. Research • Preparing our short/long term research plan (topics, fund, priorities) • Contacting mechatronics leading firms to join our strategic partnership • Academic promotion for our research products • Scheduling our academic activities (conferences, training, visiting Prof. etc.) • Preparing our academic exchange program • Preparing our academic press (small scale) • Contacting our strategic partners to plan the future work

  5. Development • A survey on the local and international job market of mechatronics • A survey on the increasing demand in automation and exploring the available chances of this field • Preparing a study on mechatronics standards in industry and automation • Linking education, research and development

  6. What is the Mechatronics? Mechatronics basically refers to mechanical electrical systems and is centred on mechanics, electronics, computing and control which, combined, make possible the generation of simpler, more economical, reliable and versatile systems. The term "mechatronics" was first assigned by Mr. Tetsuro Mori, a senior engineer of the Japanese company Yaskawa, in 1969.

  7. What is the Mechatronics? © Uni North Carolina

  8. Mechatronics Curricula • Introduction to engineering (eng. math, physics, chemistry, mechanical systems, eng. drawing, etc.), • Engineering software; C, Java, Matlab, Labview, VEE, Linux etc. • Fundamental of mechanical system design and analysis • Electronic devices, circuits and systems • Digital systems, computer architecture and computer interface • Applied control theory (I, II and III) • Robotics (sensors, actuators, control, vision, AI, etc.) • Instrumentation and measurements • Signal & image processing • CAD/CAM, NC and CNC • Embedded systems, sensors, actuators and software • Fine mechanical parts, MEMS and nanotechnology • Integrated mechanical/electrical systems • Language (English)

  9. Mechatronics Labs (6G*N) • Computer software lab • Aero-, thermo- and fluid dynamics • Embedded systems lab • CAD/CAM lab • Digital electronics lab • Robotics • Robocup team lab • Electronics lab • Advanced electricity lab • Lab of mechanical systems • Lab for fundamental chemistry • Lab for basics of physics • Eng. drawing hall • Electrical/mechanical workshops • Language lab

  10. Embedded Systems A combination of hardware and software which together form a component of a Mechatronics systems. An embedded system is designed to run on its own without human intervention, and may be required to respond to events in real time.

  11. Embedded Systems in Automotive Applications • Entertainment • Generation II ABS • Heads-up monitoring • Night vision • Back-up collision sensor • Navigation • Tire pressure sensing • Holonomic non-holonomic motion • Adaptive control • Satellite services radio/GPS • Tele-operation • Software control • Rain-sensing • Auto parking • Simulators • Testing

  12. Hardware, Software, and Firmware Hardware is the name given to the physical devices and circuitry of the computer. Software refers to the programs written for the computer. Firmware is the term given to programs stored in ROMs or in Programmable devices which permanently keep their stored information.

  13. Robotics Curricula Introduction to Robotics: History, Asimov’s laws, Different types of robot platforms (humanoid, Car-like, holonomic & non-holonomic, miniature, manipulators, animators, indoor, outdoor, space robots, medical robots, under water robots, locomotion, areal robots, educational robots, legged robots, mobile robots, robot simulators etc.) Path Planning: objectives and methods (Voronoi, Bug, potential field, visibility, reactive, road map). Environment modeling:the general meaning and the applied techniques (occupancy grid, topological graphs, integrated, 3D modelling). Distributed sensors:IR, laser, sonar, E-nose, vision, artificial skin, artificial ear etc. Robot kinematics and inverse kinematics Sensors Integration: advantages, weaknesses and methods (Bayes network, Kalman filter, fuzzy logic, particle filter). Robot actuators:Hydraulic, pneumatic and electric drives (DC, Ac, servo, and stepper motors) Self localization:Introduction and techniques (SLAM, Markov, Bayes network, expectation maximizing, maximum likelihood).

  14. NASA Mars Rover DLR Gripper Asimo Humanoid Indoor Robots Robot Base Station KUKA Manipulator Outdoor Robots Robot Platforms (1)

  15. Robocup Team Qurio Humanoid Aibo 4 legged Robot Robot Platforms (2) NAO Humanoid

  16. Robot Platforms (3) Snake Robot HEXAPOD Robot Big Dog Robot Underwater Robot Micro Robot Flying UAV

  17. Robot Platforms (4) Robot simulators

  18. Robot Platforms (5) Robot educational kits CCD Camera Compass IR PSD Servo motor Sonar Laser ranger Robot sensors

  19. Robot Platforms (6) NXT Intelligent Brick Servo Motor Sound Sensor Light Sensor Touch Sensor key transponder Accelerometer Sensor Compass Sensor Ultrasonic Sensor LEGO MINDSTORMS NXT

  20. Stepper, AC and DC Motors

  21. PLC and Microcontrollers

  22. GPIB Pc Board Serial/paralell CAN BUS PC-based Measurement and Control

  23. Buses: USB USB (Universal Serial Bus) is a new external bus developed by Intel, Compaq, DEC, IBM, Microsoft, NEC and Northern Telcom and released to the public in 1996 with the Intel 430HX Triton II Mother Board. USB has the capability of transferring 12 Mbps, supporting up to 127 devices and only utilizing one IRQ. For PC computers to take advantage of USB the user must be running Windows 95 OSR2, Windows 98 or Windows 2000. Linux users also have the capability of running USB with the proper support drivers installed. USB cables are hot swappable which allows users to connect and disconnect the cable while the computer is on without any physical damage to the cable. USB Logo USB mini USB Type A & B

  24. Buses: USB USB VERSIONS: USB 1.0 - The original release of USB supports 127 devices transferring 12 Mbps. USB 1.1 - Also known as full-speed USB, USB 1.1 is similar to the original release of USB however minor modifications for the hardware and the specifications. This version of USB still only supports a rate of 12 Mbps. USB 2.0 - USB 2.0 also known as hi-speed USB was developed by Compaq, Hewlett Packard, Intel, Lucent, Microsoft, NEC and Philips and was introduced in 2001. Hi-speed USB is capable of supporting  a transfer rate of up to 480 Mbps and is backwards compatible meaning it is capable of supporting USB 1.0 and 1.1 devices and cables.

  25. Buses: USB • USB Architecture: • Host • One host per system • Typically the PC in standard USB topology • Can be any device in OTG • Hub • Provides connecting ports, power, terminations • Device/Node (i.e. Slave) • Peripheral application

  26. Buses: USB • USB Specifications: • A unique connector • Hub topology • Auto detection and configuration • Low power • High Performance • Supports up to 127 external devices • Provides power • BW:USB 1.1: 12 Mb/s, USB 2.0: 480 Mb/s

  27. Buses: USB • USB Topology: • Maximum cable length of 30 meters • Maximum of five non-root hubs • Only a function is allowed in tier 7 • Maximum of six segments • Hub at center of each star • Each segment 5m max • Tiered star

  28. Buses: USB • USB Devices: • HUB • Simplifies USB Connectivity • Detect attach and detach • Functions • USB devices that transmit or receive data

  29. Buses: FireWire • By Apple • BW: • 400 Mbps • 800 Mbps for 1394b • Can send more than a CD every 10 sec • Plug & play • Support 63 devices • Provides power • Digital audio, video, external hard drives, …

  30. Buses: FireWire • The original FireWire was faster than USB when it came out. • Transfer rates of up to 400 Mbps. • The maximum distance between devices is 4.5 meters of cable length. • Eventually, FireWire 800 replaced USB 2.0 very easily. • FireWire 800 had a transfer rate of up to 800 Mbps. • The maximum distance of cable length between devices is 100 meters.

  31. Buses: FireWire 12Mbps USB 1.1 FW 400 400 Mbps USB 2.0 480 Mbps FW 800 800 Mbps

  32. USB versus FireWire

  33. BUSES: GPIB • INTRODUCTION: • In 1965, Hewlett-Packard designed the Hewlett-Packard Interface Bus ( HP-IB ) to connect their line of programmable instruments to their computers. Because of its high transfer rates (nominally 1 Mbytes/s), this interface bus quickly gained popularity. It was later accepted as IEEE Standard 488-1975, and has evolved to ANSI/IEEE Standard 488.1-1987. • Today, the name G eneral Purpose Interface Bus (GPIB) is more widely used than HP-IB. ANSI/IEEE 488.2-1987 strengthened the original standard by defining precisely how controllers and instruments communicate. • Standard Commands for Programmable Instruments (SCPI ) took the command structures defined in IEEE 488.2 and created a single, comprehensive programming command set that is used with any SCPI instrument. Figure 1 summarizes GPIB history.

  34. BUSES: GPIB • GPIB can connect 15 instruments (0~31 address can be assigned) to a PC (controller). The PC handles the transmission on the bus. • 8 bits parallel transmission, up to 8 Mbits/s transmission speed. • The total cable length in a system should not exceed 20m (2m max. between a device and next device) • Text mode commands. (Easy to differentiate) • Using three handshake line for handshaking to ensure data transmission accuracy.

  35. BUSES: GPIB Oscilloscope Function generator GPIB Interface Digital multi-meter Switch

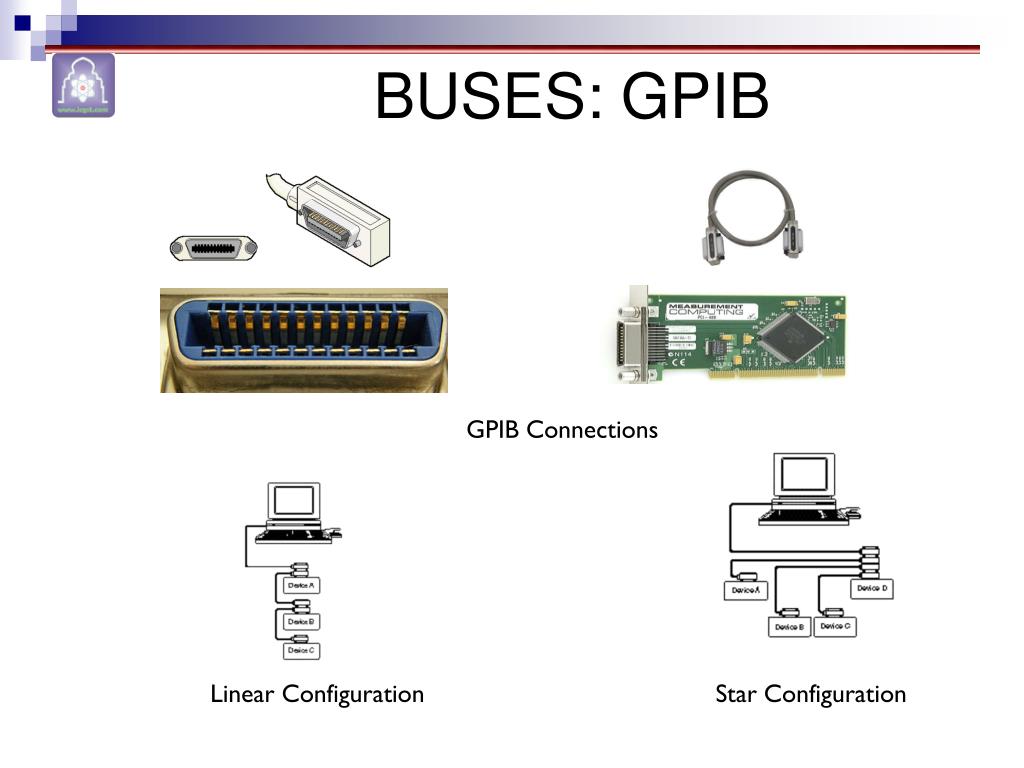

  36. BUSES: GPIB GPIB Connections Linear Configuration Star Configuration

  37. BUSES: CAN Controller–area network (CAN or CAN-bus) is a vehicle bus standard designed to allow microcontrollers and devices to communicate with each other within a vehicle without a host computer. The CAN Bus is an automotive bus developed by Robert Bosch, which has quickly gained acceptance into the automotive and aerospace industries. CAN is a serial bus protocol to connect individual systems and sensors as an alternative to conventional multi-wire looms. It allows automotive components to communicate on a single or dual-wire networked data bus up to 1Mbps.

  38. BUSES: CAN In 2006, over 70% of all automobiles sold in North America will utilize CAN Bus technology. Beginning in 2008, the Society of Automotive Engineers (SAE) requires 100% of the vehicles sold in the USA to use the CAN Bus communication protocol while the European Union has similar laws. Several new after market devices have been introduced into the market that utilize the CAN Bus protocol but until now, there have been no new devices that assist the aging after market remote starter and alarm system technology. Now there is an after market module that offers remote starter and alarm connectivity to the CAN Bus communication protocol.

  39. Labview Matlab IDL Linux Qt HP-VEE Engineering Software Mathematica C ++ Mathcad Autocad PowerSHAPE PowerMILL CopyCAD

  40. End Thank you http://www.icgst.com/con11/aiml11/index.html
