  1. FDOT Central OfficeITS Software Update Trey Tillander, P.E. Traffic Engineering and Operations Office

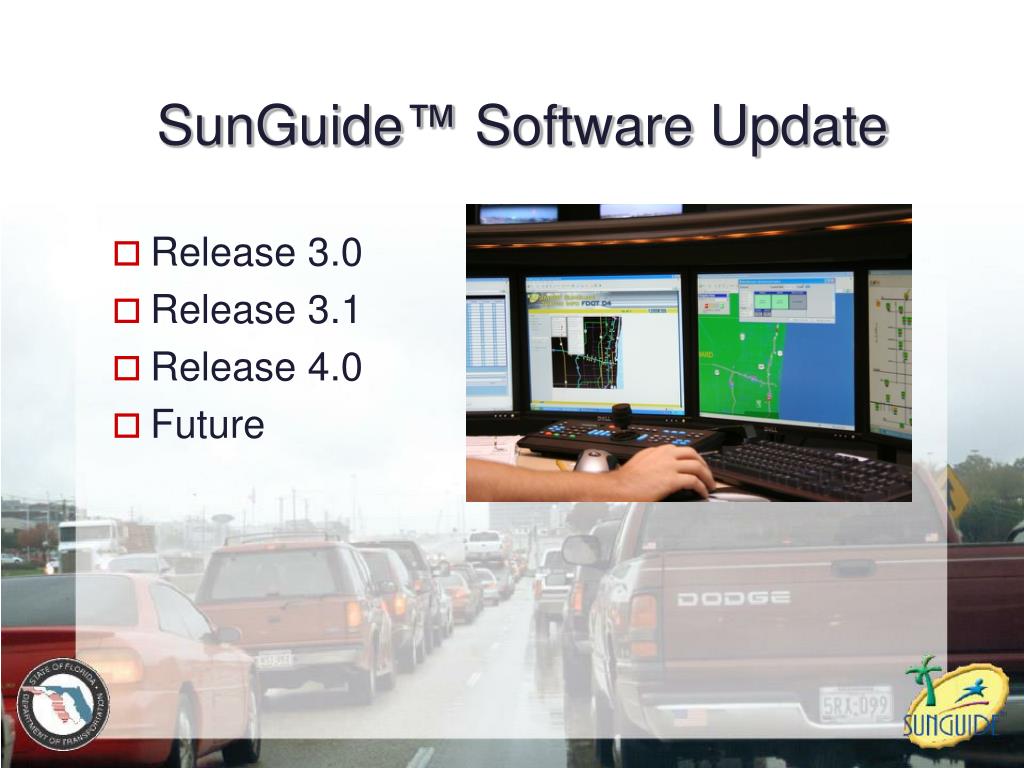

  2. SunGuide™ Software Update • Release 3.0 • Release 3.1 • Release 4.0 • Future

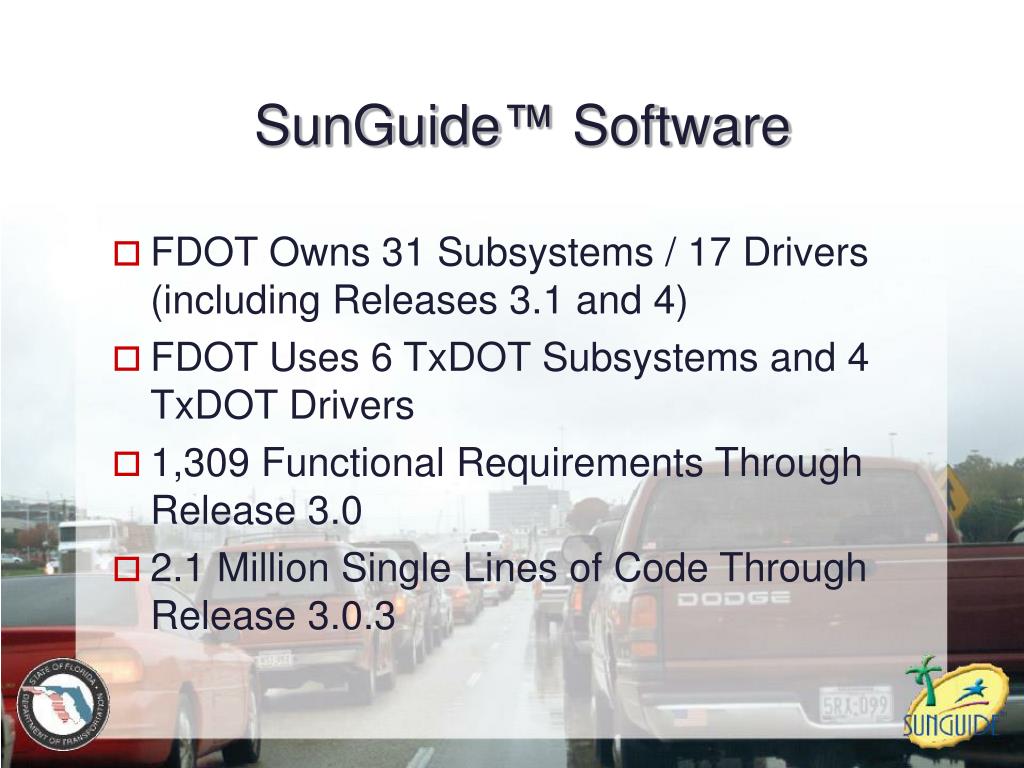

  3. SunGuide™ Software • FDOT Owns 31 Subsystems / 17 Drivers (including Releases 3.1 and 4) • FDOT Uses 6 TxDOT Subsystems and 4 TxDOT Drivers • 1,309 Functional Requirements Through Release 3.0 • 2.1 Million Single Lines of Code Through Release 3.0.3

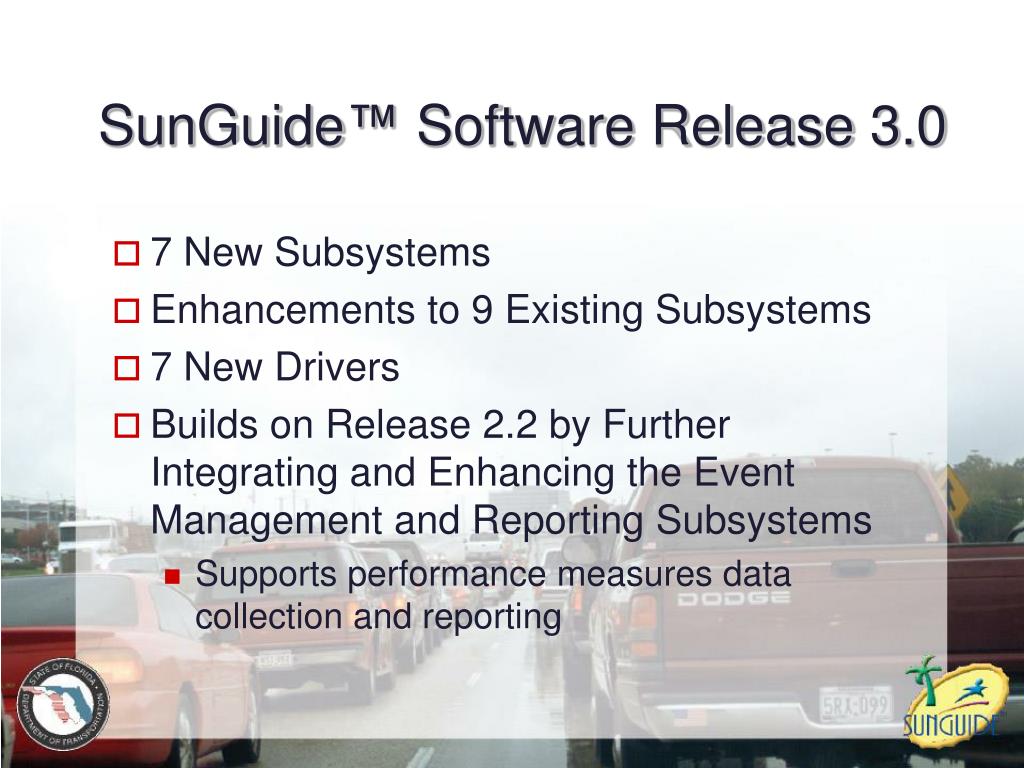

  4. SunGuide™ Software Release 3.0 • 7 New Subsystems • Enhancements to 9 Existing Subsystems • 7 New Drivers • Builds on Release 2.2 by Further Integrating and Enhancing the Event Management and Reporting Subsystems • Supports performance measures data collection and reporting

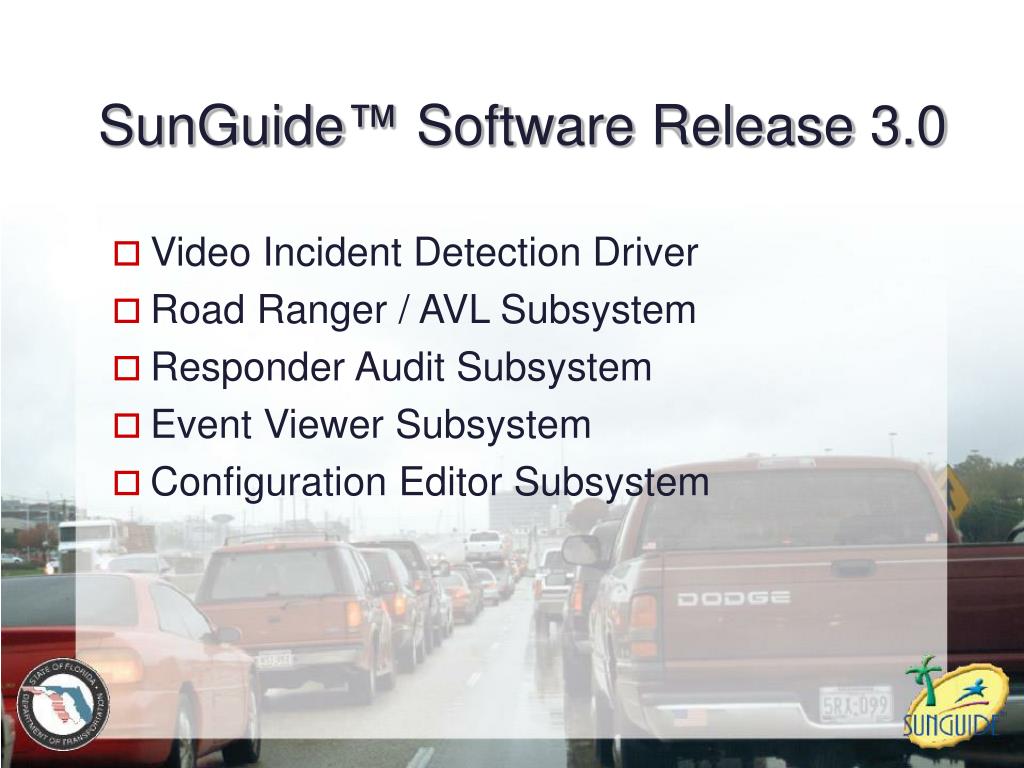

  5. SunGuide™ Software Release 3.0 • Video Incident Detection Driver • Road Ranger / AVL Subsystem • Responder Audit Subsystem • Event Viewer Subsystem • Configuration Editor Subsystem

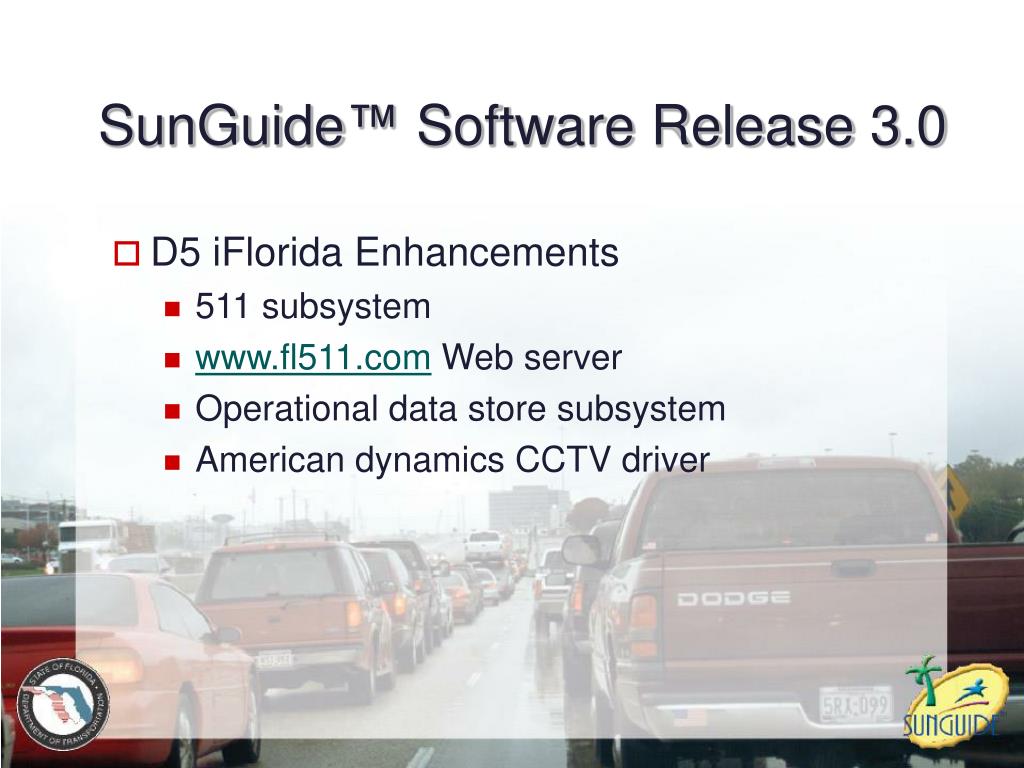

  6. SunGuide™ Software Release 3.0 • D5 iFlorida Enhancements • 511 subsystem • www.fl511.com Web server • Operational data store subsystem • American dynamics CCTV driver

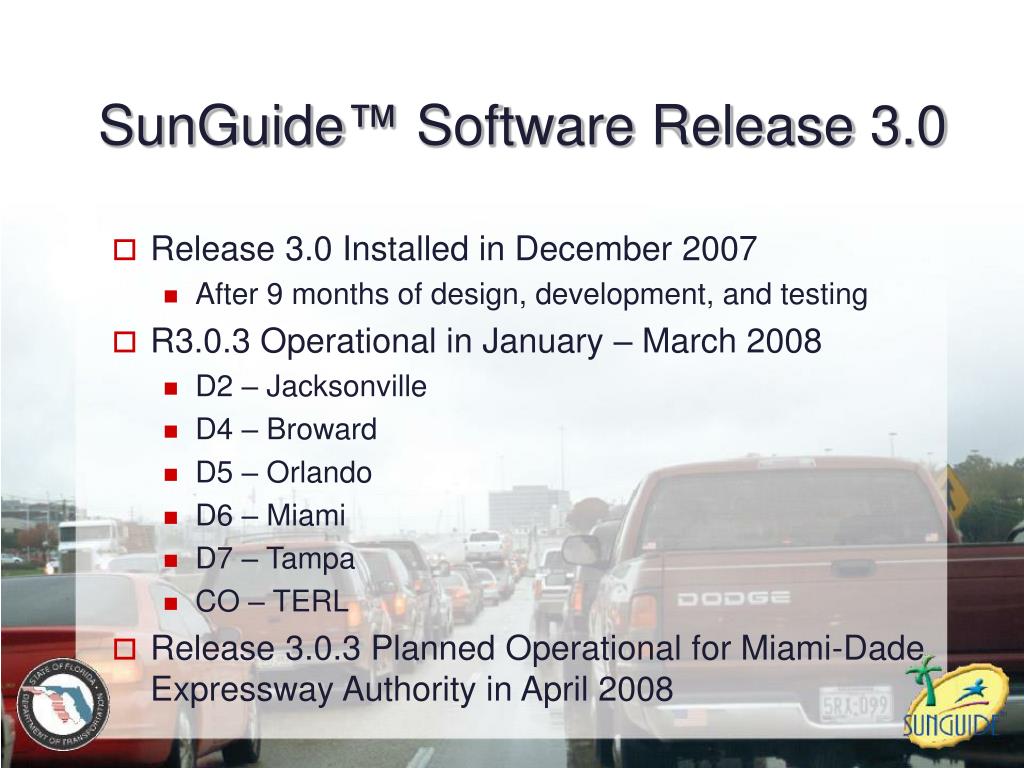

  7. SunGuide™ Software Release 3.0 • Release 3.0 Installed in December 2007 • After 9 months of design, development, and testing • R3.0.3 Operational in January – March 2008 • D2 – Jacksonville • D4 – Broward • D5 – Orlando • D6 – Miami • D7 – Tampa • CO – TERL • Release 3.0.3 Planned Operational for Miami-Dade Expressway Authority in April 2008

  8. SunGuide™ Software Release 3.1 • Adds 176 Functional Requirements • I-95 Express Lanes • Pricing subsystem • Variable time of day • Manual incident override • Toll viewer • Enhancements to dynamic message sign and event management subsystems

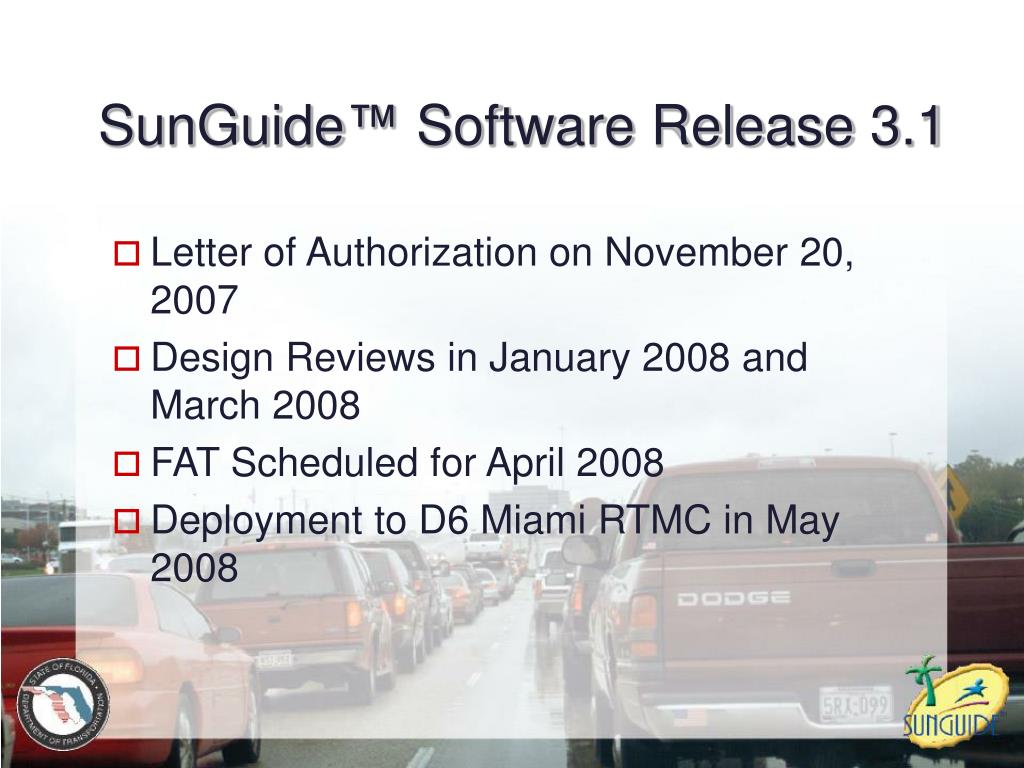

  9. SunGuide™ Software Release 3.1 • Letter of Authorization on November 20, 2007 • Design Reviews in January 2008 and March 2008 • FAT Scheduled for April 2008 • Deployment to D6 Miami RTMC in May 2008

  10. SunGuide™ Software Release 4.0 • Adds 82 Functional Requirements • Enhancements to Existing Travel Time Subsystem • Probe Travel Time Subsystem • AVI Data Collection Drivers • LPR Data Collection Drivers • Supports Legacy Projects for D5, OOCEA, Florida’s Turnpike Enterprise (iFlorida), and D3 (Tallahassee)

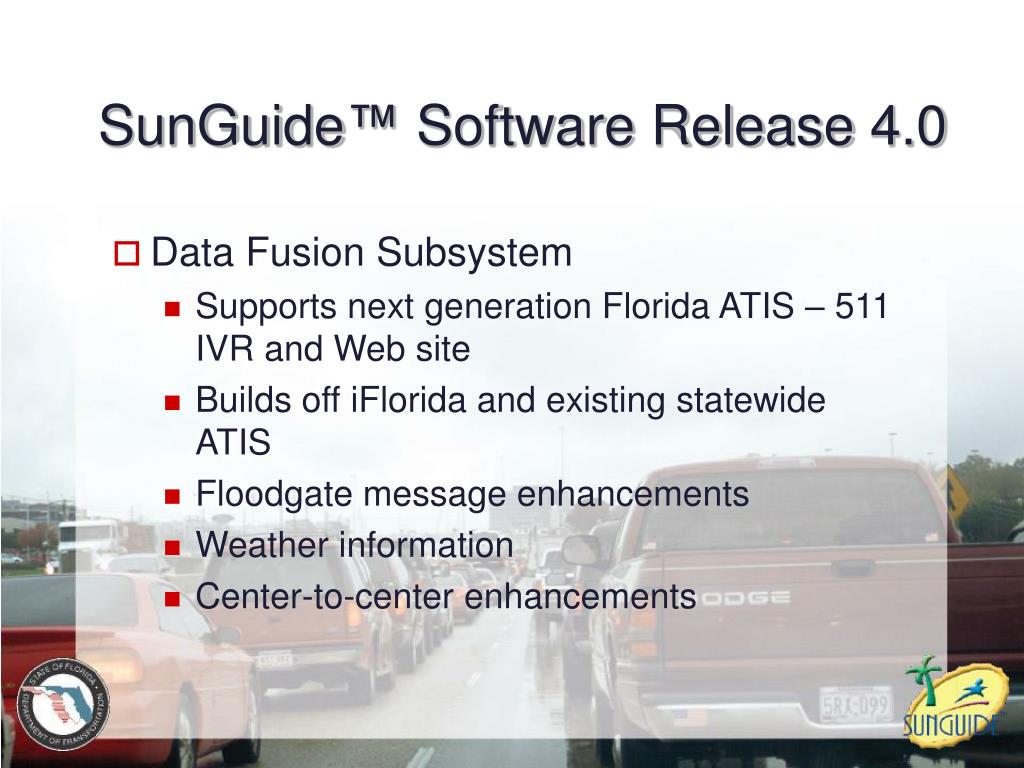

  11. SunGuide™ Software Release 4.0 • Data Fusion Subsystem • Supports next generation Florida ATIS – 511 IVR and Web site • Builds off iFlorida and existing statewide ATIS • Floodgate message enhancements • Weather information • Center-to-center enhancements

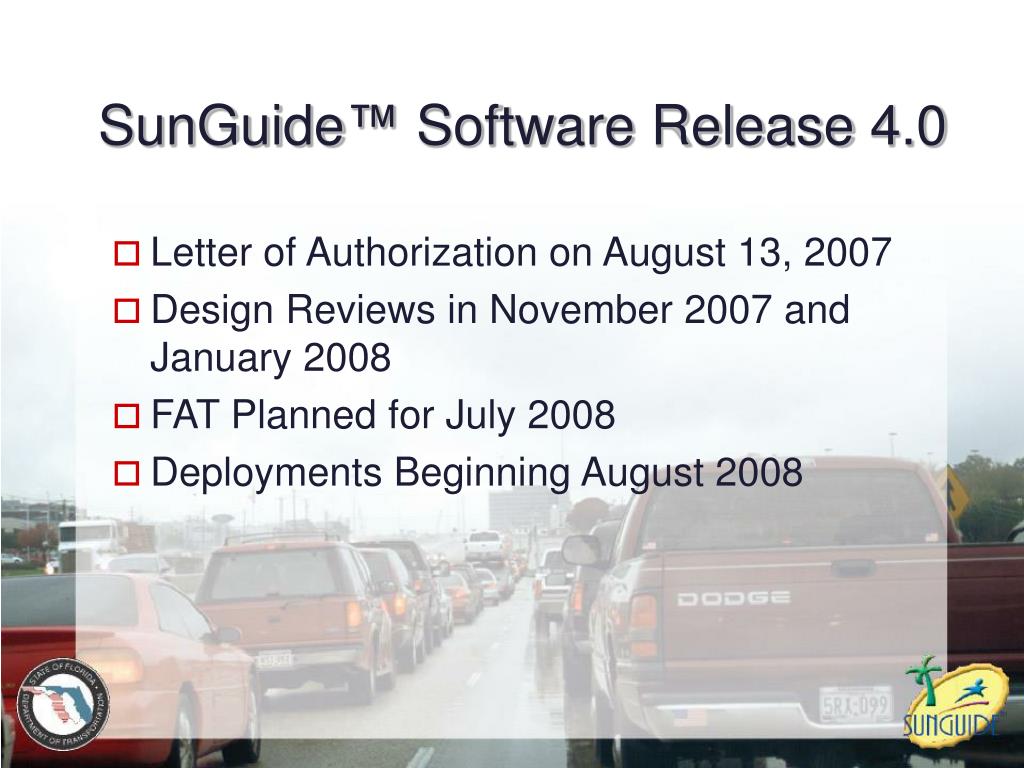

  12. SunGuide™ Software Release 4.0 • Letter of Authorization on August 13, 2007 • Design Reviews in November 2007 and January 2008 • FAT Planned for July 2008 • Deployments Beginning August 2008

  13. SunGuide™ Software Future • DMS Messaging / Response Plan Enhancement • Florida Highway Patrol Computer-Aided Dispatch Interface • Express Lanes Enhancement to support I-95 Express Phases 1B and 2 • Fully dynamic • Automated incident override

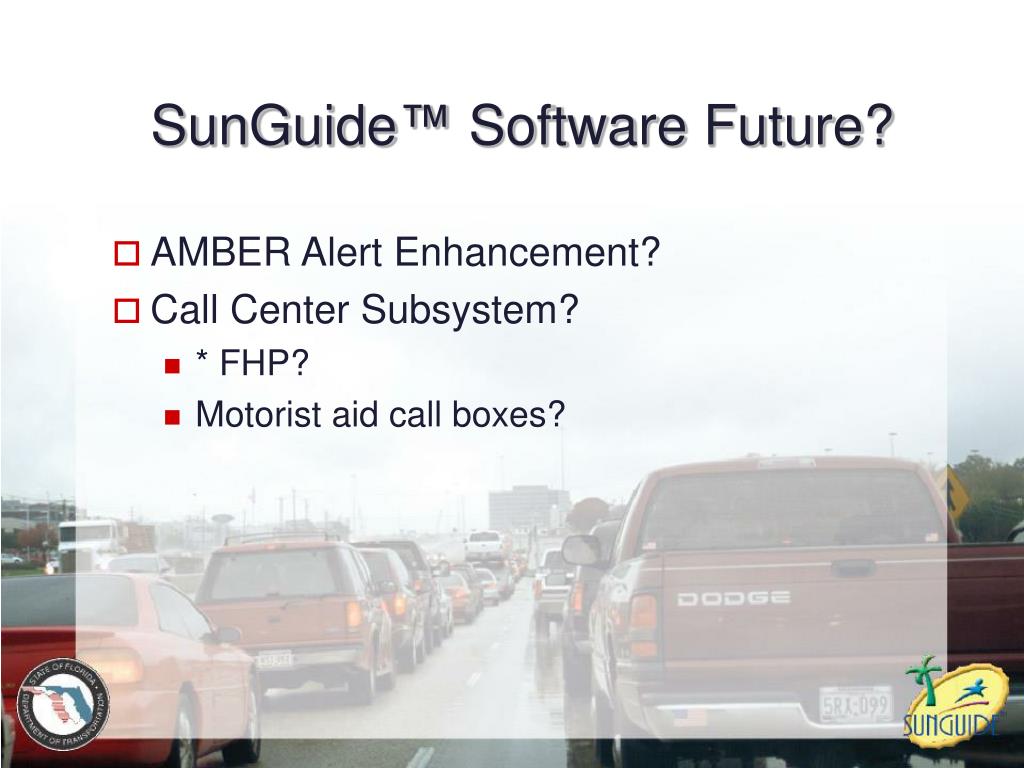

  14. SunGuide™ Software Future? • AMBER Alert Enhancement? • Call Center Subsystem? • * FHP? • Motorist aid call boxes?

  15. Questions? Trey Tillander, P.E. FDOT Central Office 850-410-5617 Trey.Tillander@dot.state.fl.us
