  1. Introducing a Presentation by Bob Coats Vice President of Engineering Pandrol USA, Inc. Bridgeport, NJ TRB Session #734 - Jan. 14, 2004

  2. PANDROL USA DIRECT FIXATION SYSTEMS 1. Single Resilient System (SRS) 2. VIPA SP 3. PANGUARD TRB Session #734 - Jan. 14, 2004

  3. Simple resilient rail pad - Decreasing rail pad stiffness means more movement – Which can increase insulator wear and clip flexing TRB Session #734 - Jan. 14, 2004

  4. Pandrol Single Resilient System • Use of studded rubber rail pad • Vertical stiffness controlled by: • Pad thickness • Material hardness • Number & diameter of studs TRB Session #734 - Jan. 14, 2004

  5. TRB Session #734 - Jan. 14, 2004

  6. Baseplate Pad Pandrol VIPA – SP TRB Session #734 - Jan. 14, 2004

  7. Top Plate VIPA – SP Factory assembly TRB Session #734 - Jan. 14, 2004

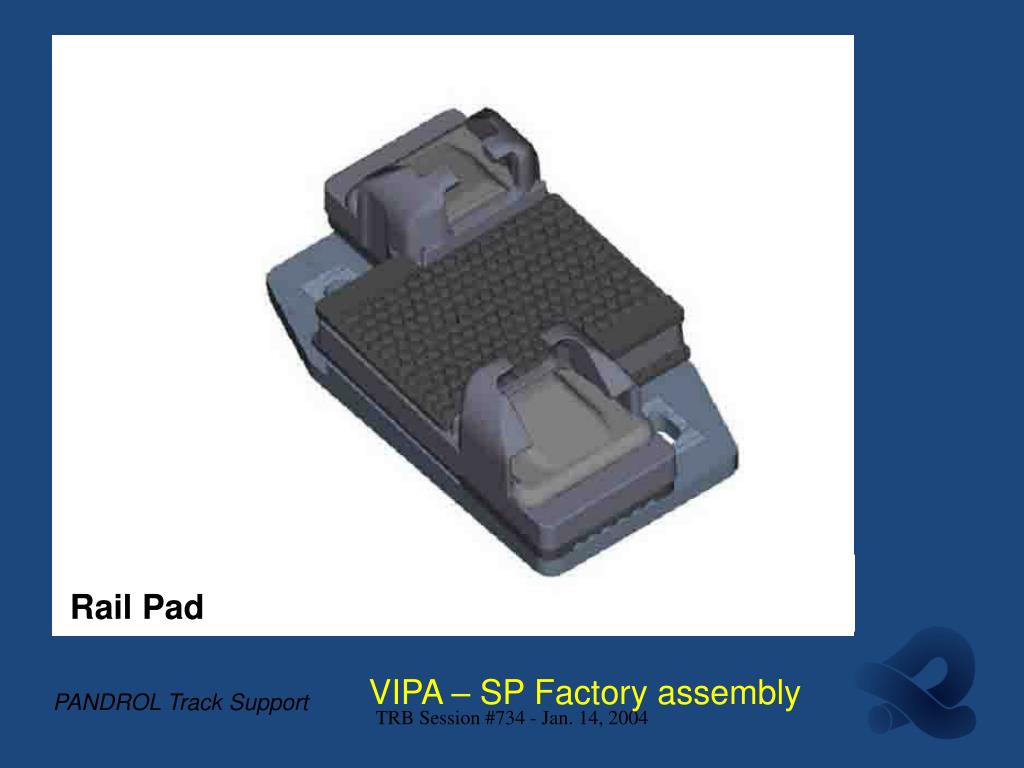

  8. Rail Pad VIPA – SP Factory assembly TRB Session #734 - Jan. 14, 2004

  9. Clips with Toe Insulators VIPA – SP Factory assembly TRB Session #734 - Jan. 14, 2004

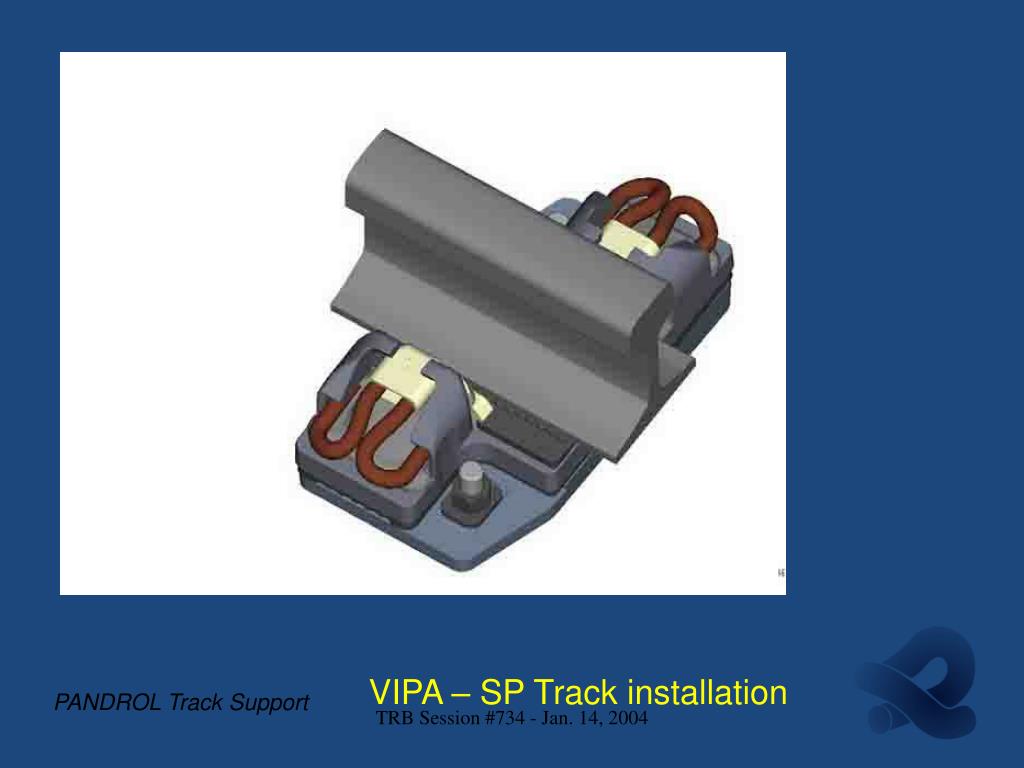

  10. VIPA – SP Track installation TRB Session #734 - Jan. 14, 2004

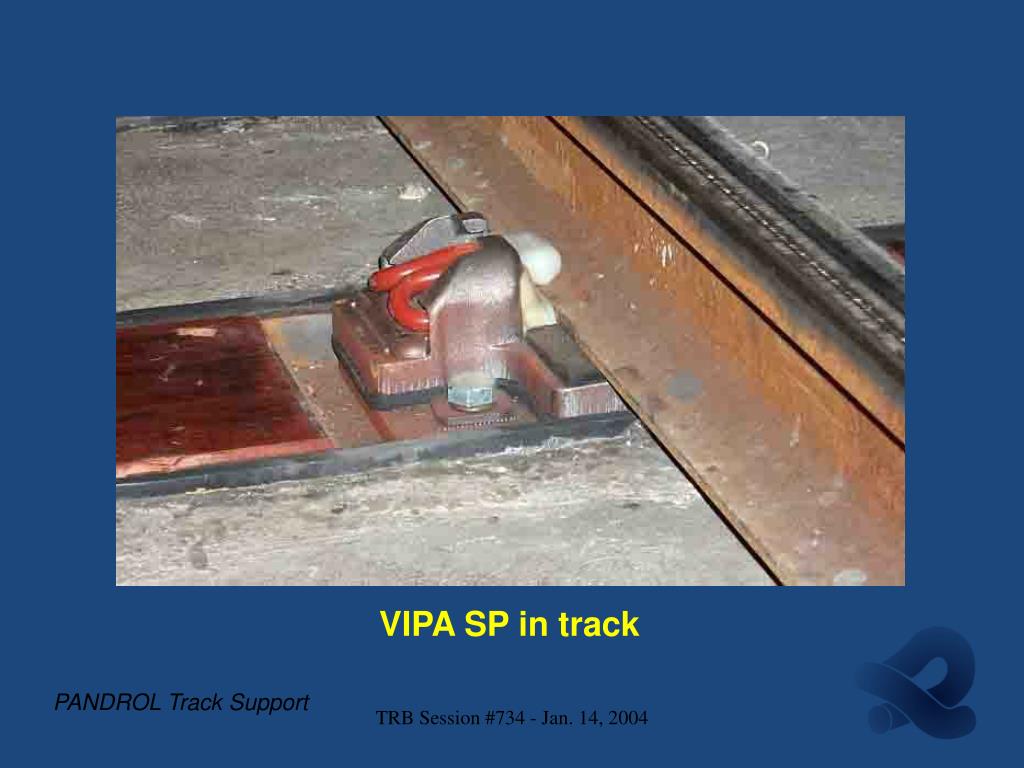

  11. VIPA SP in track TRB Session #734 - Jan. 14, 2004

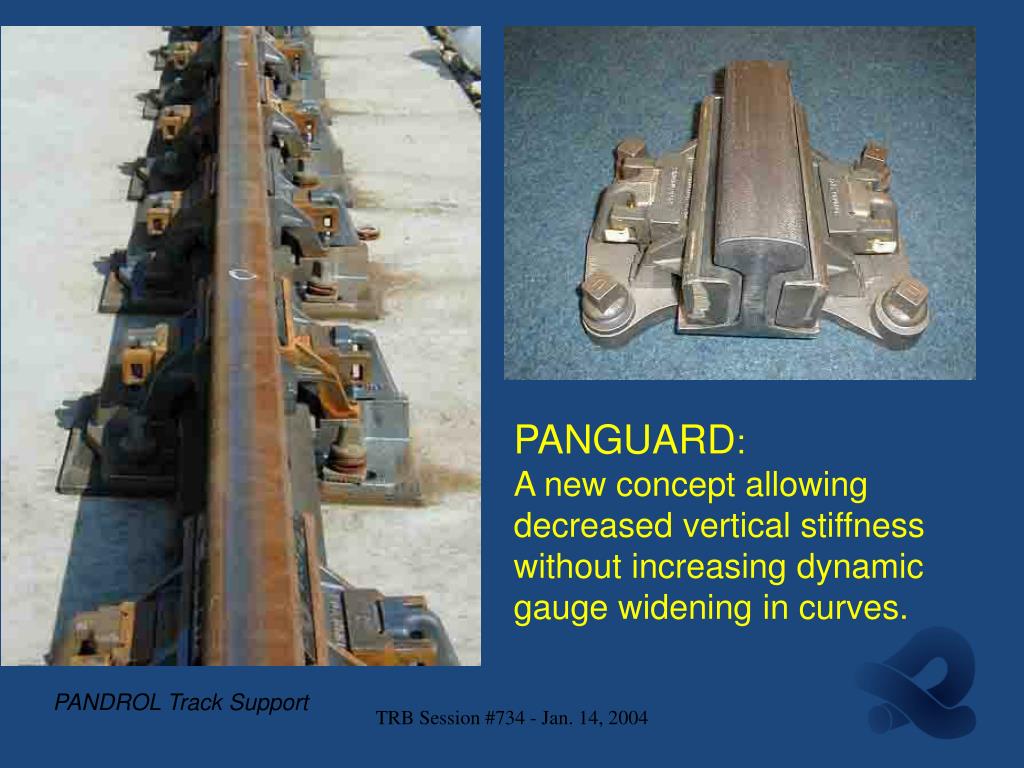

  12. PANGUARD: A new concept allowing decreased vertical stiffness without increasing dynamic gauge widening in curves. TRB Session #734 - Jan. 14, 2004

  13. Railtrack, Waterloo East, London, 2000 TRB Session #734 - Jan. 14, 2004
