Abaqus Setup

Abaqus Setup. Element Axisymmetric type=CAX4R Boundary Center – XSYMM Bottom – YSYMM TOP – Load 0.025mm/s Material Properties EG = 0.857GPa EK = 2.24GPa Mu_R = 11.0MPa Lamda_L = 1.45 D0 = 0.0017s -1 M = 0.011 ALPHA = 0.08 H0 = 2.75GPa SCV = 24MPa S0 = 20MPa G0 = 6.0e -3

Jims
Télécharger la présentation

Abaqus Setup

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

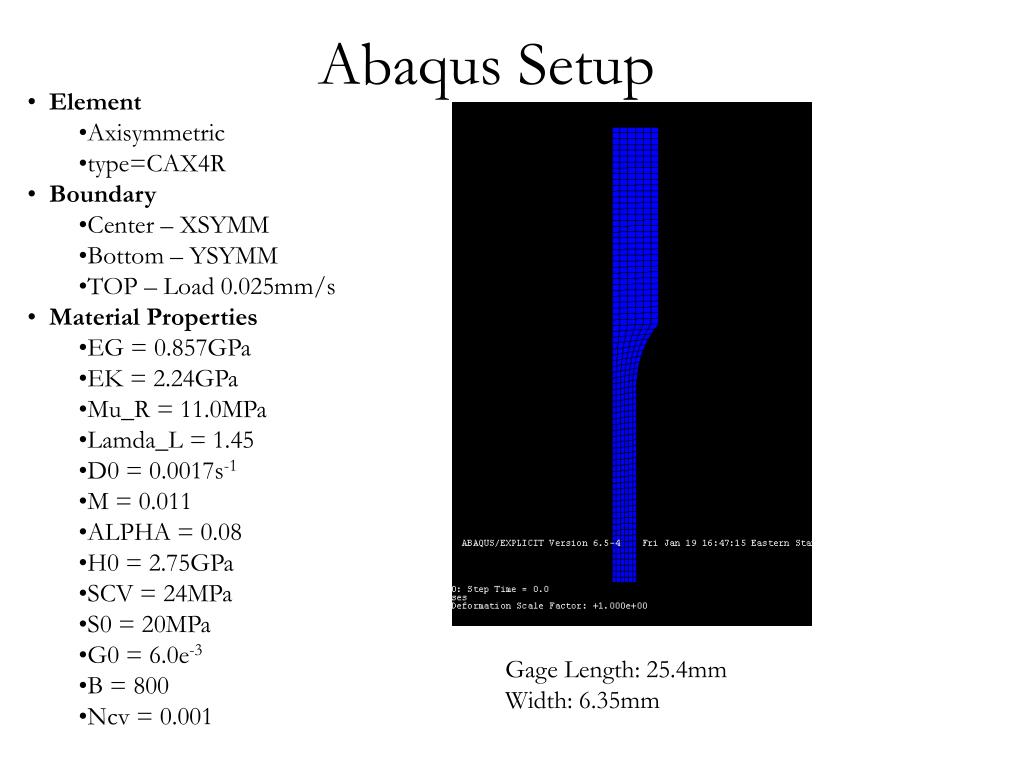

  1. Abaqus Setup • Element • Axisymmetric • type=CAX4R • Boundary • Center – XSYMM • Bottom – YSYMM • TOP – Load 0.025mm/s • Material Properties • EG = 0.857GPa • EK = 2.24GPa • Mu_R = 11.0MPa • Lamda_L = 1.45 • D0 = 0.0017s-1 • M = 0.011 • ALPHA = 0.08 • H0 = 2.75GPa • SCV = 24MPa • S0 = 20MPa • G0 = 6.0e-3 • B = 800 • Ncv = 0.001 Gage Length: 25.4mm Width: 6.35mm

  2. Abaqus Results Onset of necking: Strain ~ 0.09

  3. Abaqus Results Strain ~ 0.13

  4. Abaqus Results Strain ~ 0.20

  5. Abaqus Results Strain ~ 0.40

  6. Abaqus Results Strain ~ 0.60
