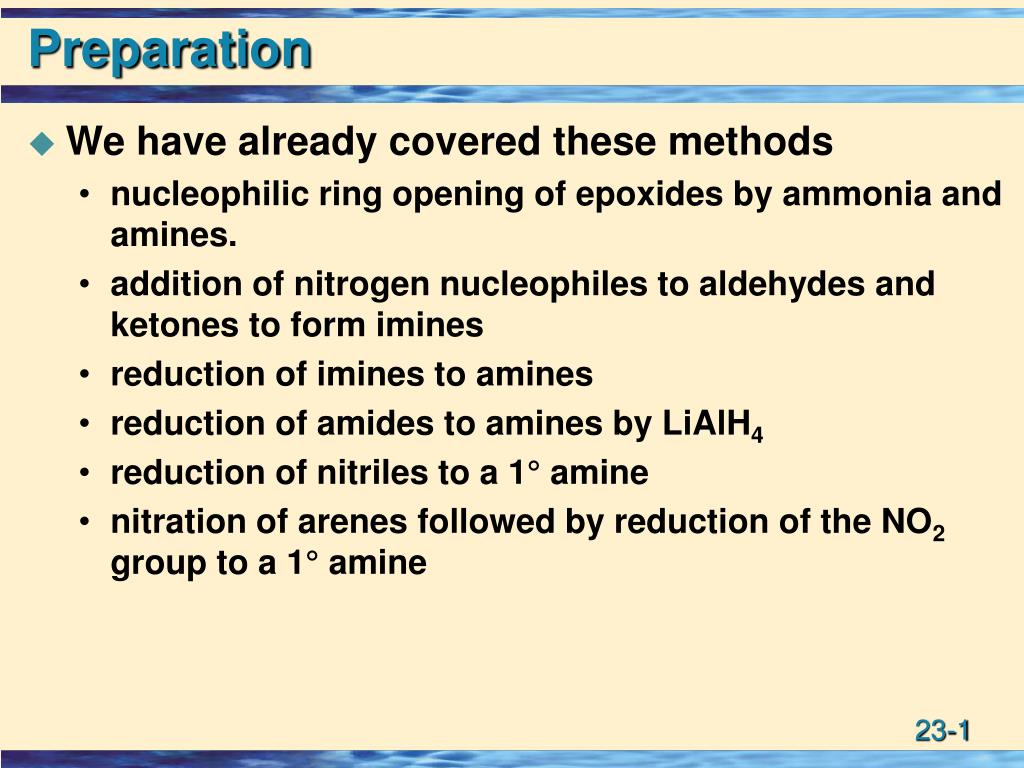

  1. Preparation • We have already covered these methods • nucleophilic ring opening of epoxides by ammonia and amines. • addition of nitrogen nucleophiles to aldehydes and ketones to form imines • reduction of imines to amines • reduction of amides to amines by LiAlH4 • reduction of nitriles to a 1° amine • nitration of arenes followed by reduction of the NO2 group to a 1° amine

  2. Preparation • Alkylation of ammonia and amines by SN2 substitution. • Unfortunately, such alkylations give mixtures of products through a series of proton transfer and nucleophilic substitution reactions. polyalkylations

  3. Preparation via Azides • Alkylation of azide ion. Overall Alkyl Halide  Alkyl amine

  4. Example: Preparation via Azides • Alkylation of azide ion. Note retention of configuration, trans  trans

  5. Reaction with HNO2 • Nitrous acid, a weak acid, is most commonly prepared by treating NaNO2 with aqueous H2SO4 or HCl. • In its reactions with amines, nitrous acid: • Participates in proton-transfer reactions. • A source of the nitrosyl cation, NO+, a weak electrophile.

  6. Reaction with HNO2 • NO+ is formed in the following way. • Step 1: Protonation of HONO. • Step 2: Loss of H2O. • We study the reactions of HNO2 with 1°, 2°, and 3° aliphatic and aromatic amines.

  7. Tertiary Amines with HNO2 • 3° Aliphatic amines, whether water-soluble or water-insoluble, are protonated to form water-soluble salts. • 3° Aromatic amines: NO+ is a weak electrophile and participates in Electrophilic Aromatic Substitution.

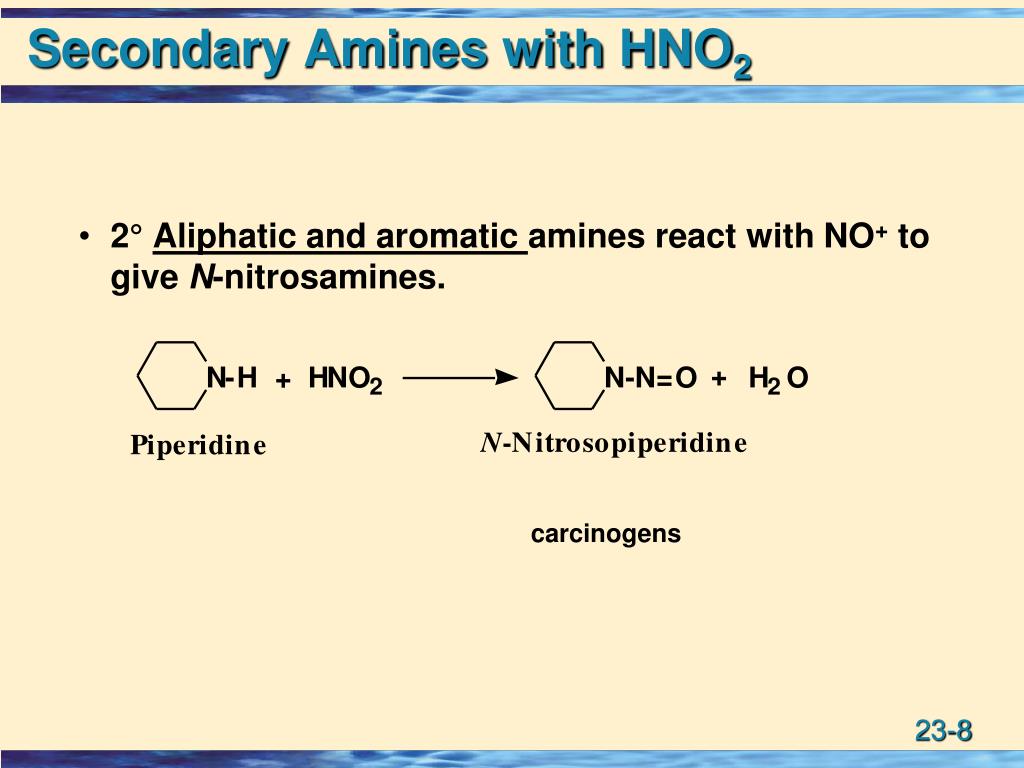

  8. Secondary Amines with HNO2 • 2° Aliphatic and aromatic amines react with NO+ to give N-nitrosamines. carcinogens

  9. Amines with HNO2 • Reaction of a 2° amine to give an N-nitrosamine. • Step 1: Reaction of the 2° amine (a nucleophile) with the nitrosyl cation (an electrophile). • Step 2: Proton transfer.

  10. RNH2 with HNO2 • 1° aliphatic amines give a mixture of unrearranged and rearranged substitution and elimination products, all of which are produced by way of a diazonium ion and its loss of N2 to give a carbocation. • Diazonium ion: An RN2+ or ArN2+ ion

  11. 1° RNH2 with HNO2 • Formation of a diazonium ion. Step 1: Reaction of a 1° amine with the nitrosyl cation. Step 2: Protonation followed by loss of water.

  12. 1° RNH2 with HNO2 • Aliphatic diazonium ions are unstable and lose N2 to give a carbocation which may: 1. Lose a proton to give an alkene. 2. React with a nucleophile to give a substitution product. 3. Rearrange and then react by Steps 1 and/or 2.

  13. 1° RNH2 with HNO2 • Tiffeneau-Demjanov reaction: Treatment of a -aminoalcohol with HNO2 gives a ketone and N2.

  14. Mechanism of Tiffeneau-Demjanov • Reaction with NO+ gives a diazonium ion. • Concerted loss of N2 and rearrangement followed by proton transfer gives the ketone. Similar to pinacol rearrangement

  15. Pinacol Rearrangement: an example of stabilization of a carbocation by an adjacent lone pair. Overall:

  16. Mechanism Reversible protonation. Elimination of water to yield tertiary carbocation. This is a protonated ketone! 1,2 rearrangement to yield resonance stabilized cation. Deprotonation.

  17. 1° ArNH2 with HNO2 • The -N2+ group of an arenediazonium salt can be replaced in a regioselective manner by these groups.

  18. 1° ArNH2 with HNO2 • A 1° aromatic amine converted to a phenol.

  19. 1° ArNH2 with HNO2 Problem:What reagents and experimental conditions will bring about this conversion?

  20. 1° ArNH2 with HNO2 • Problem: Show how to bring about each conversion.

  21. Hofmann Elimination • Hofmann elimination: Thermal decomposition of a quaternary ammonium hydroxide to give an alkene. • Step 1: Formation of a 4° ammonium hydroxide.

  22. Hofmann Elimination • Step 2: Thermal decomposition of the 4° ammonium hydroxide.

  23. Hofmann Elimination • Hofmann elimination is regioselective - the major product is the least substituted alkene. • Hofmann’s rule:Any -elimination that occurs preferentially to give the least substituted alkene as the major product is said to follow Hofmann’s rule.

  24. Hofmann Elimination • The regioselectivity of Hofmann elimination is determined largely by steric factors, namely the bulk of the -NR3+ group. • Hydroxide ion preferentially approaches and removes the least hindered hydrogen and, thus, gives the least substituted alkene. • Bulky bases such as (CH3)3CO-K+ give largely Hofmann elimination with haloalkanes.

  25. Cope Elimination • Cope elimination:Thermal decomposition of an amine oxide. Step 1: Oxidation of a 3° amine gives an amine oxide. Step 2: If the amine oxide has at least one -hydrogen, it undergoes thermal decomposition to give an alkene.

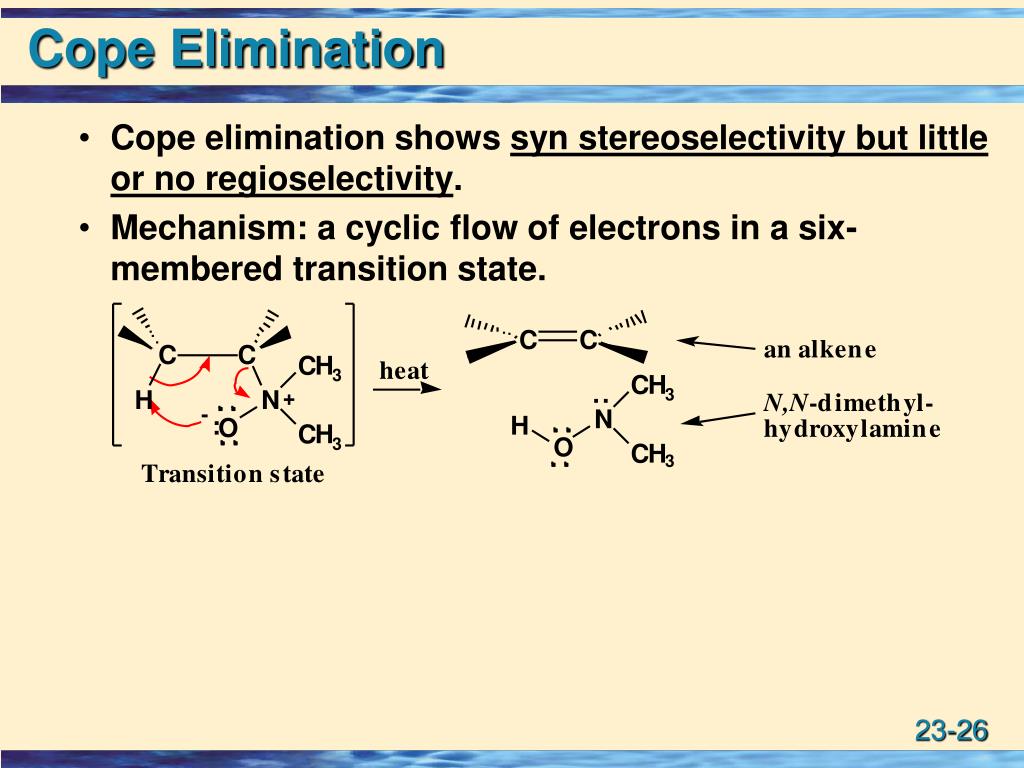

  26. Cope Elimination • Cope elimination shows syn stereoselectivity but little or no regioselectivity. • Mechanism: a cyclic flow of electrons in a six-membered transition state.
