  1. Chapter 3 The Entity-Relationship Model

  2. ER Model • Conceptual Design answers: • What are the entities and relationships? • What information about these entities and relationships should we store in the database? • What are the integrity constraints or business rules? • ER Model Concepts: • Entity types • Relationship types • Attributes

  3. Diagrammatic notation • Use of UML class diagram for displaying ER concepts. • UML class represents an entity type. • First section include entity type name. • Second section lists attributes. • Third section is not displayed (or used for derived attributes). • Relation types represented as lines connecting entity types (classes). • Some UML terminology differs from ER terminology (discussed later).

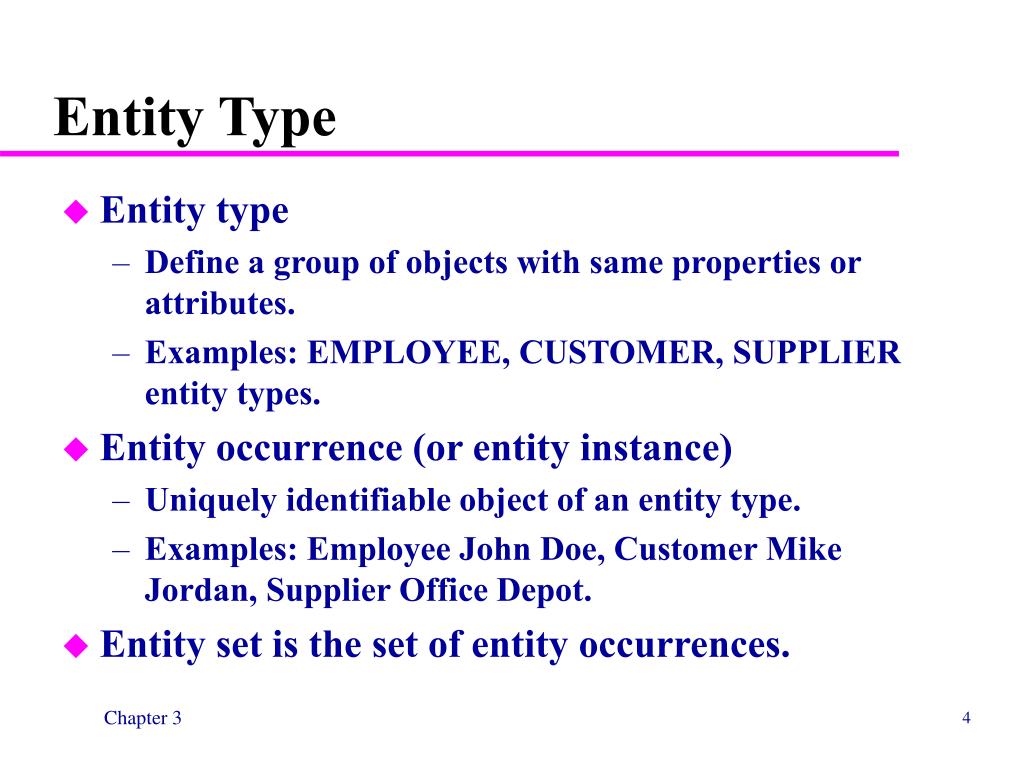

  4. Entity Type • Entity type • Define a group of objects with same properties or attributes. • Examples: EMPLOYEE, CUSTOMER, SUPPLIER entity types. • Entity occurrence (or entity instance) • Uniquely identifiable object of an entity type. • Examples: Employee John Doe, Customer Mike Jordan, Supplier Office Depot. • Entity set is the set of entity occurrences.

  5. ER diagram of Staff and Branch entity types An entity type is displayed in a rectangular box.

  6. Relationship Types • Relationship type • Define a set of meaningful associations among entity types. • Examples: A Branch HAS some Staff, An Employee WORKS ON a Project. • Relationship occurrence • Uniquely identifiable association, which includes one occurrence from each participating entity type. • Relationship set is the set of relationship occurrences (current state of a relationship).

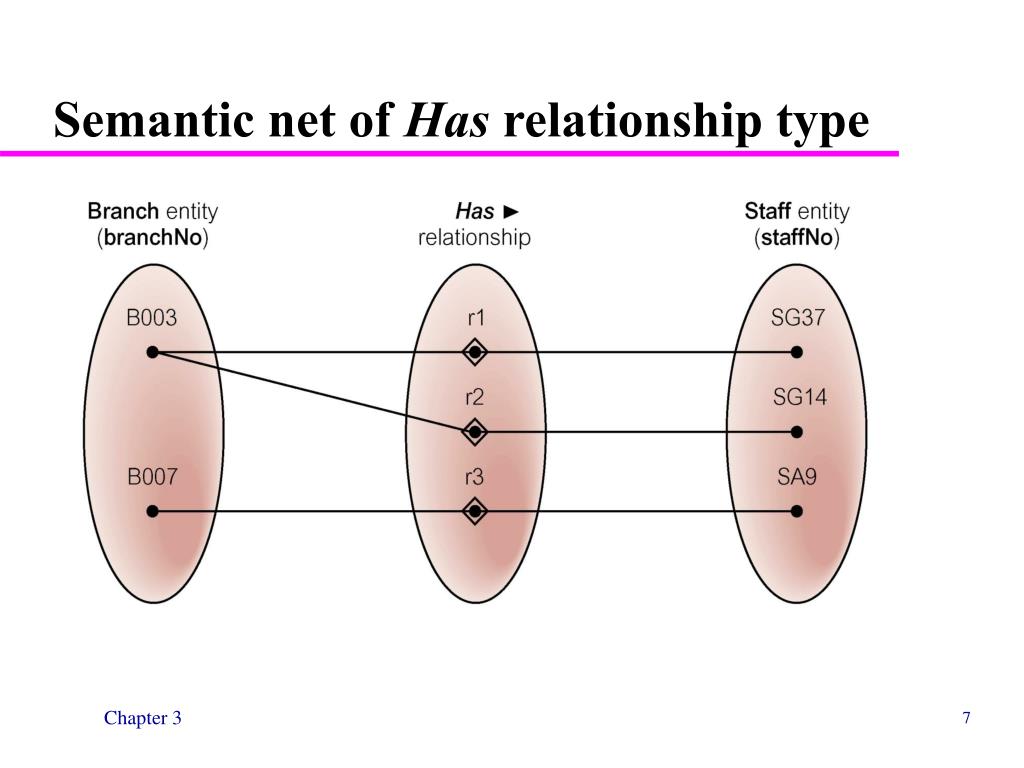

  7. Semantic net of Has relationship type

  8. ER diagram of Branch Has Staff relationship Another notation: Has Branch Staff

  9. Relationship Types • Degree of a Relationship • Number of participating entities in relationship. • Relationship of degree : • two is binary • three is ternary • four is quaternary.

  10. Binary and ternary relationships Binary: Ternary:

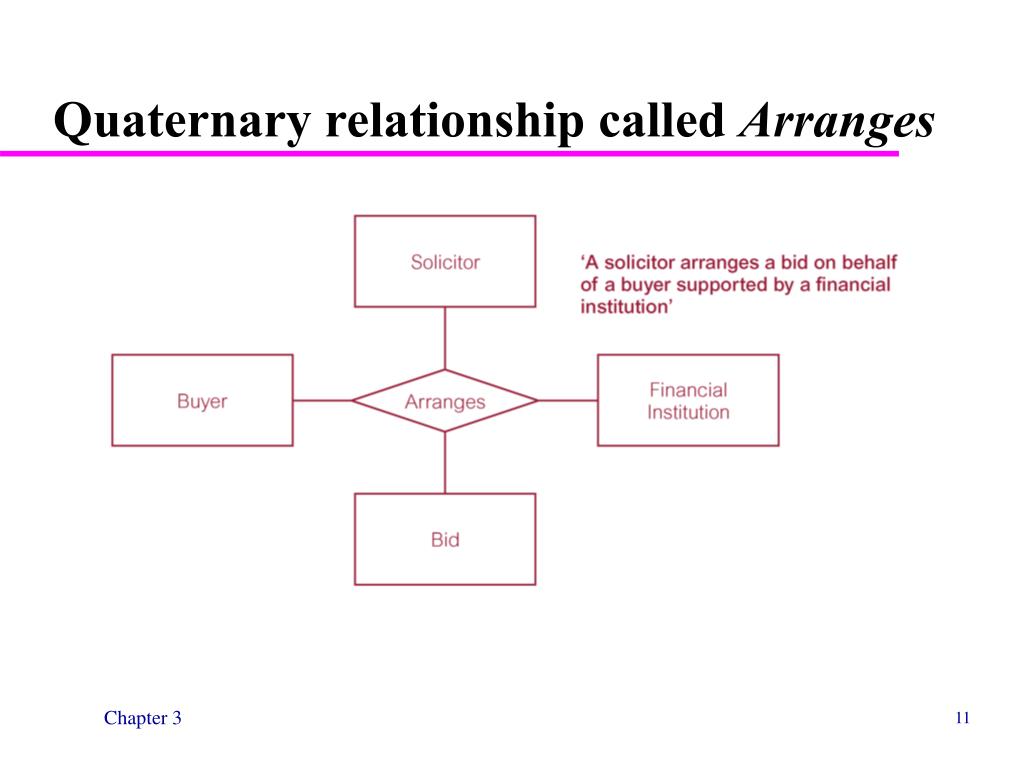

  11. Quaternary relationship called Arranges

  12. Relationship Types • Recursive Relationship • A relationship type where same entity type participates more than once in different roles. • Relationships may be given role names to indicate purpose that each participating entity type plays in a relationship.

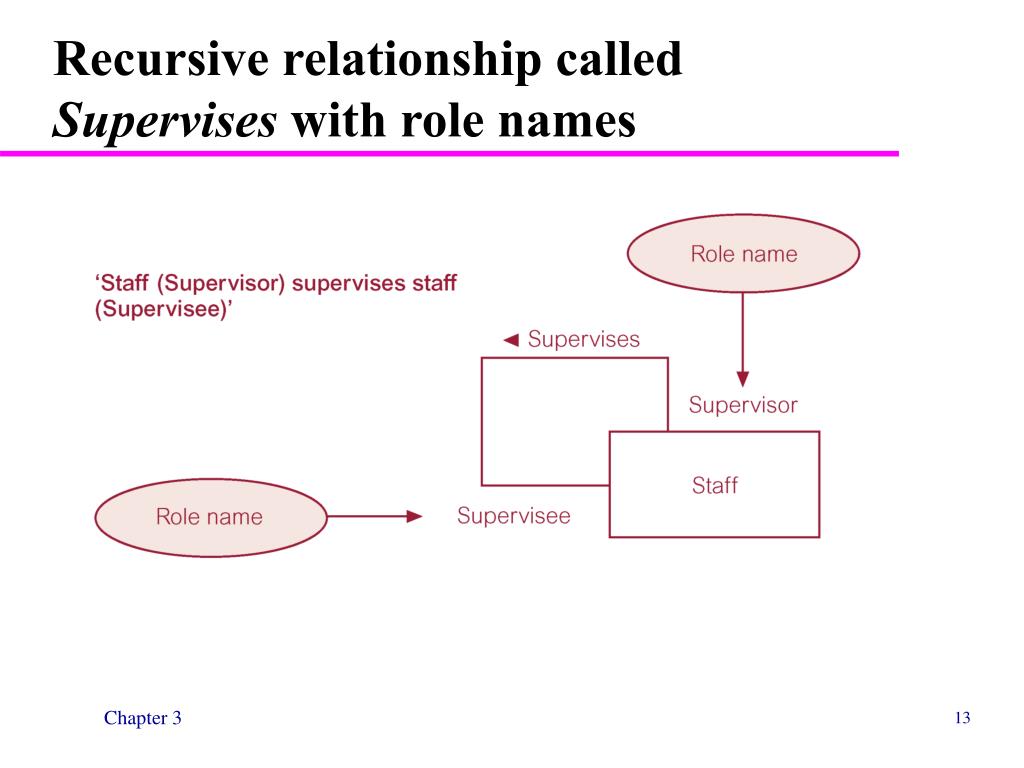

  13. Recursive relationship called Supervises with role names

  14. Entities associated through two distinct relationships with role names

  15. Attributes • Attribute • Property of an entity or a relationship type. • Attribute Domain • Set of allowable values for one or more attributes. • Simple Attribute (or single-valued Attribute) • An entity has a single atomic value for the attribute. • Example: Employee with SSN 123-45-6789 • Composite Attribute • Attribute composed of multiple components. • Examples: Address, Name. • It can be nested.

  16. Attributes • Multi-valued Attribute • Attribute that holds multiple values for each occurrence of an entity type. • Example: Previous jobs for an employee. • Derived Attribute • Attribute that represents a value that is derivable from value of a related attribute, or set of attributes, not necessarily in the same entity type. • Example: Age derived from DOB and Today’s date.

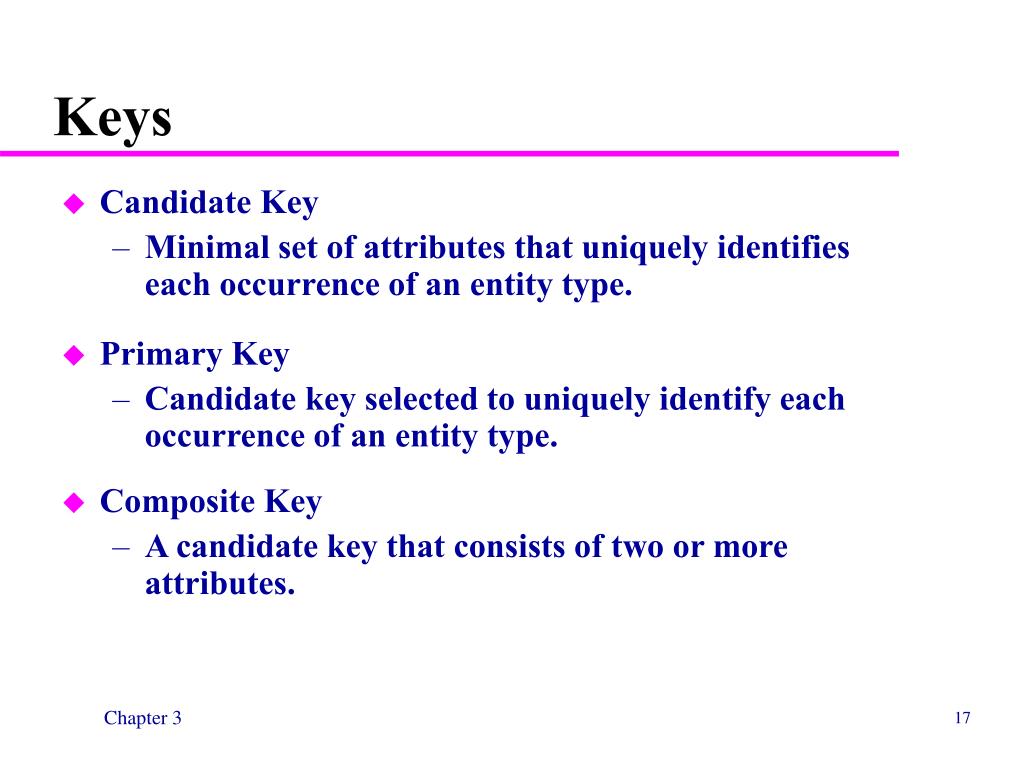

  17. Keys • Candidate Key • Minimal set of attributes that uniquely identifies each occurrence of an entity type. • Primary Key • Candidate key selected to uniquely identify each occurrence of an entity type. • Composite Key • A candidate key that consists of two or more attributes.

  18. ER diagram of Staff and Branch entities and their attributes

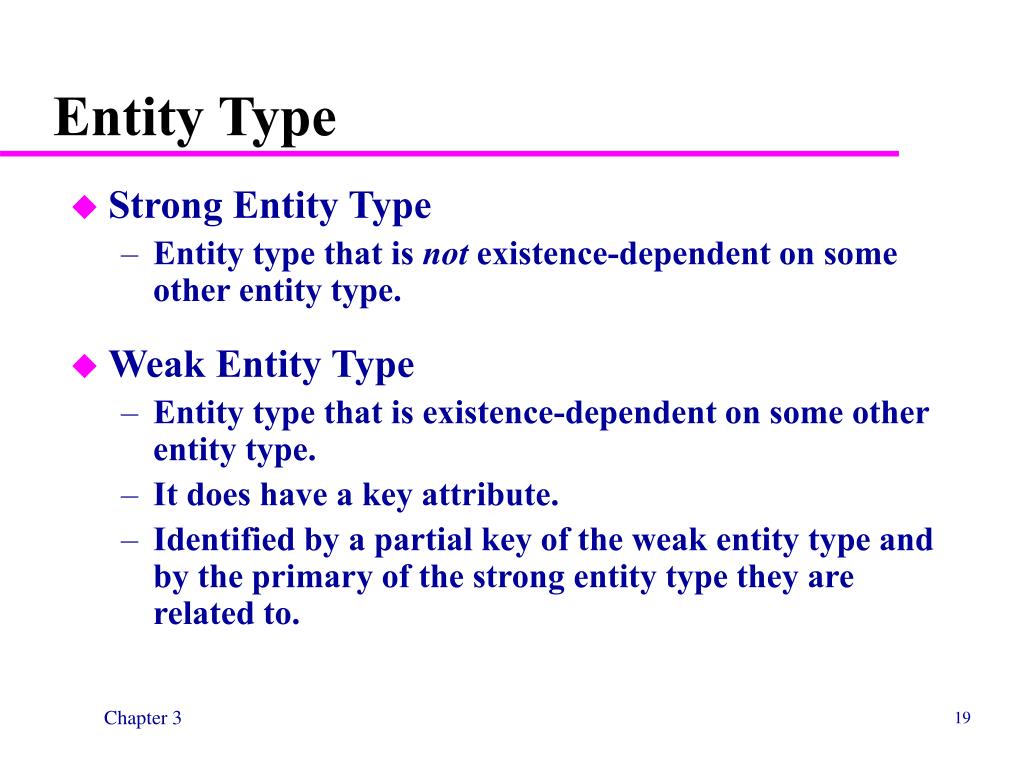

  19. Entity Type • Strong Entity Type • Entity type that is not existence-dependent on some other entity type. • Weak Entity Type • Entity type that is existence-dependent on some other entity type. • It does have a key attribute. • Identified by a partial key of the weak entity type and by the primary of the strong entity type they are related to.

  20. Strong entity type called Client and weak entity type called Preference

  21. Relationship called Advertises with attributes

  22. Structural Constraints • Main type of constraint on relationships is called multiplicity. • Multiplicity - number (or range) of possible occurrences of an entity type that may relate to a single occurrence of an associated entity type through a particular relationship. • Represents policies (called business rules) established by user or company.

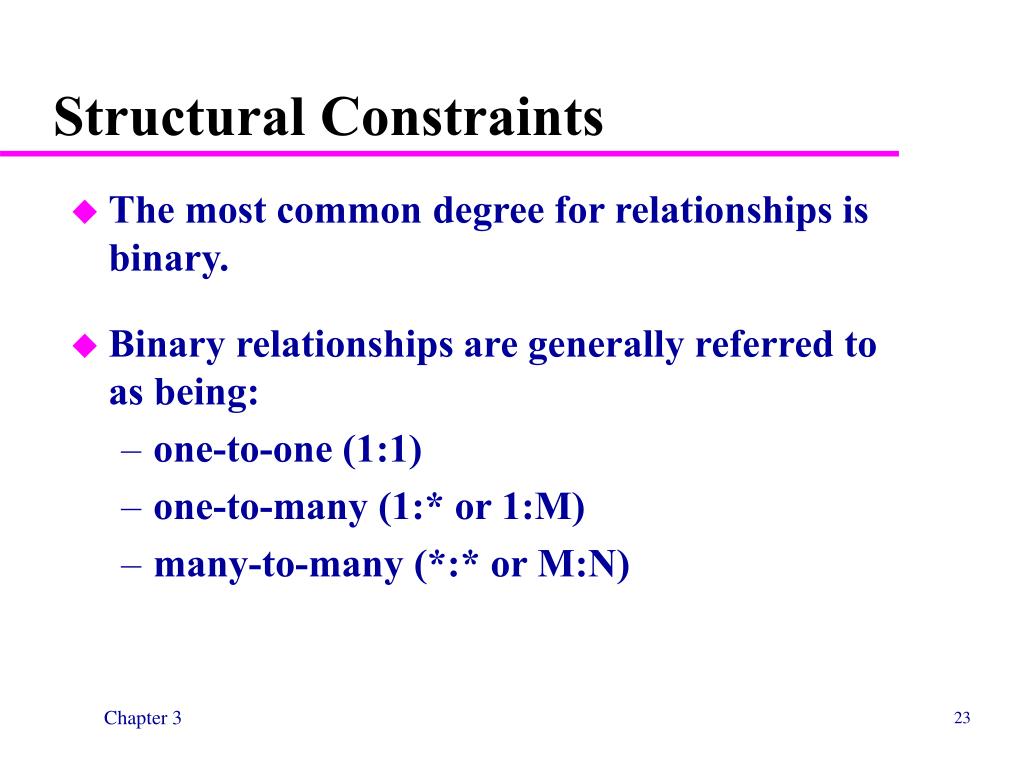

  23. Structural Constraints • The most common degree for relationships is binary. • Binary relationships are generally referred to as being: • one-to-one (1:1) • one-to-many (1:* or 1:M) • many-to-many (*:* or M:N)

  24. Semantic net of Staff Manages Branch relationship type One-to-one (1:1) relationship

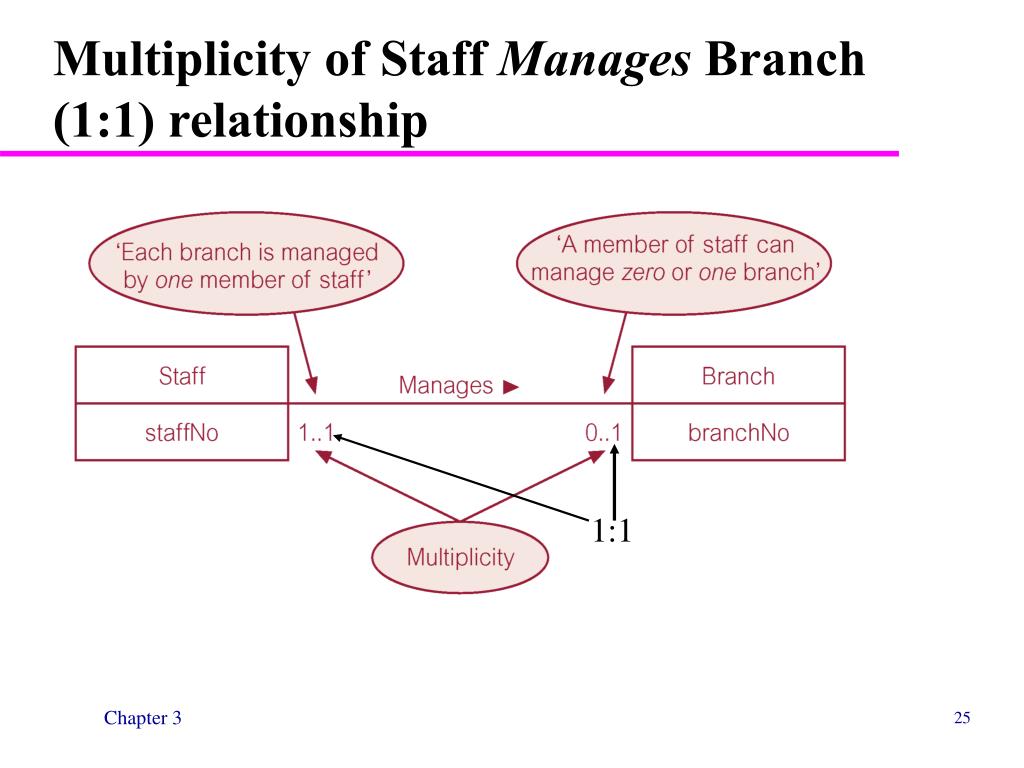

  25. Multiplicity of Staff Manages Branch (1:1) relationship 1:1

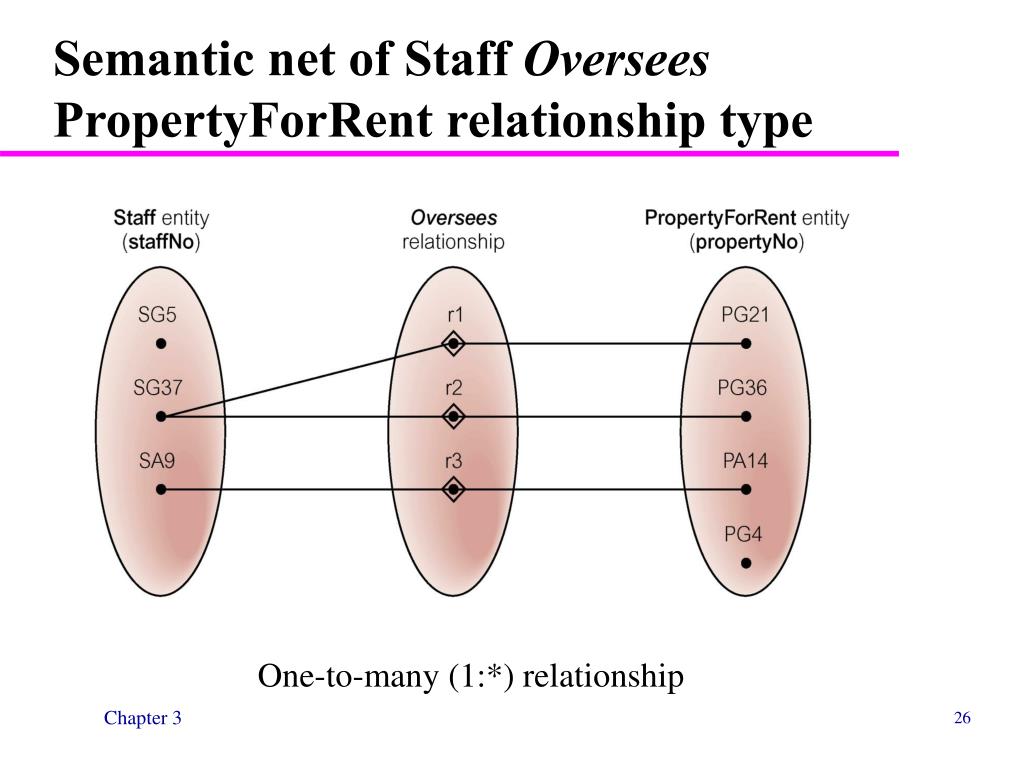

  26. Semantic net of Staff Oversees PropertyForRent relationship type One-to-many (1:*) relationship

  27. Multiplicity of Staff Oversees PropertyForRent (1:*) relationship type 1:M

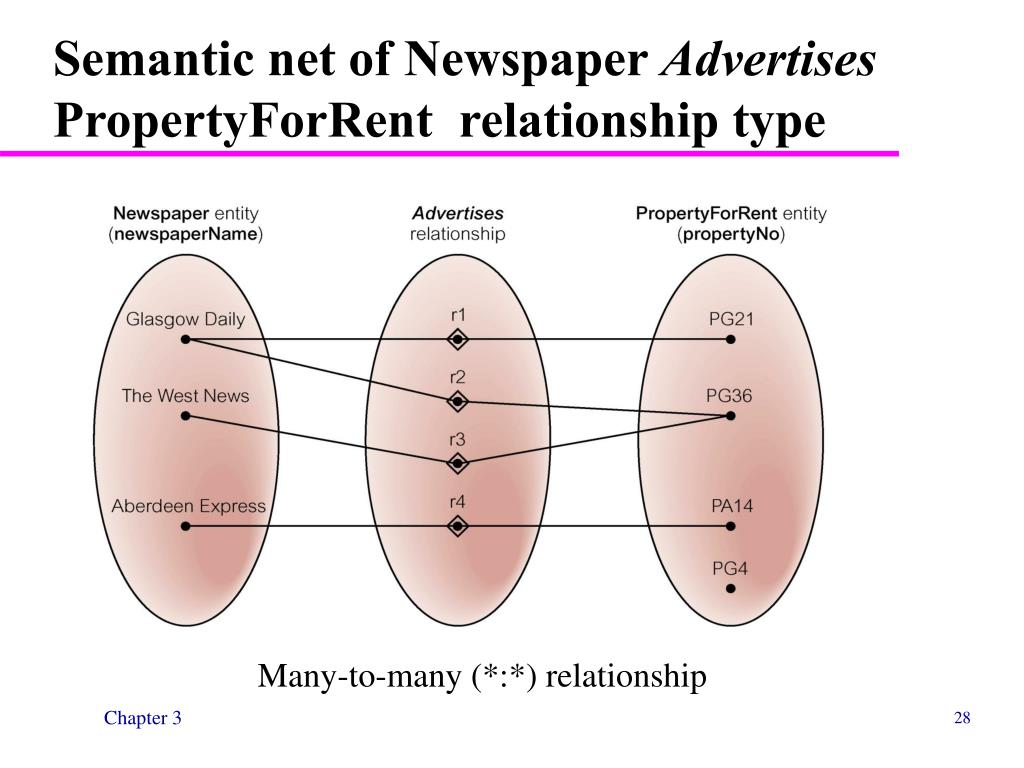

  28. Semantic net of Newspaper Advertises PropertyForRent relationship type Many-to-many (*:*) relationship

  29. Multiplicity of Newspaper Advertises PropertyForRent (*:*) relationship

  30. Structural Constraints • Multiplicity for Complex Relationships • Number (or range) of possible occurrences of an entity type in an n-ary relationship when other (n-1) values are fixed for the other participating entity types.

  31. Semantic net of ternary Registers relationship with values for Staff and Branch entities fixed

  32. Multiplicity of ternary Registers relationship A staff/branch value pair registers zero or more clients

  33. Summary of multiplicity constraints

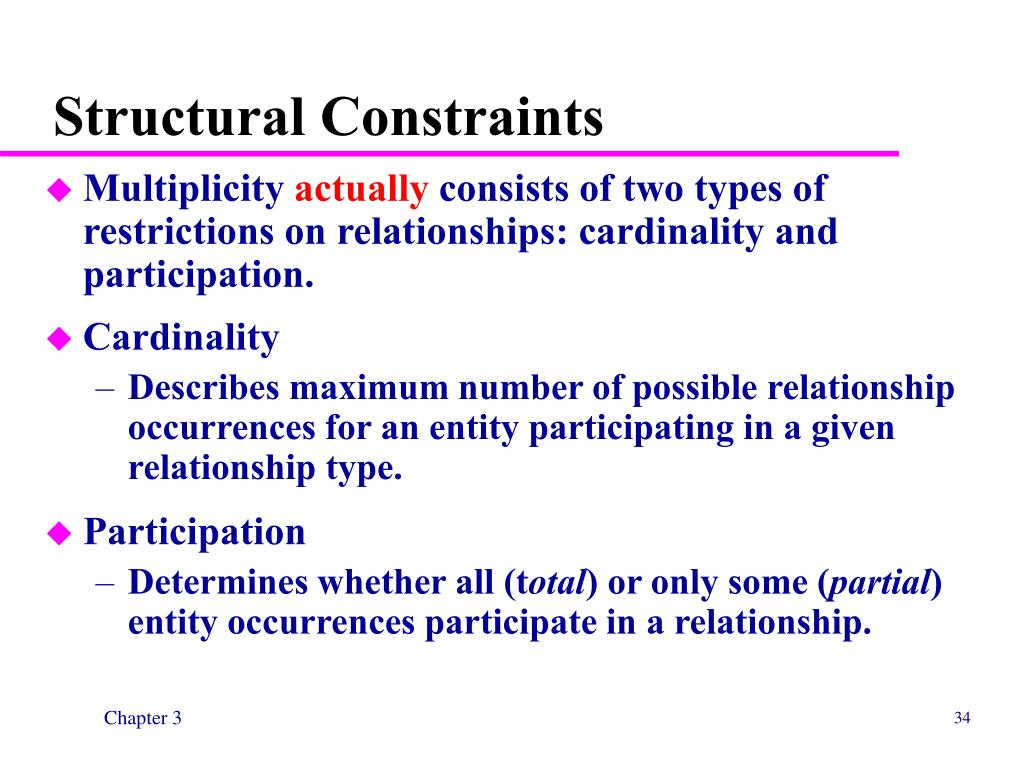

  34. Structural Constraints • Multiplicity actually consists of two types of restrictions on relationships: cardinality and participation. • Cardinality • Describes maximum number of possible relationship occurrences for an entity participating in a given relationship type. • Participation • Determines whether all (total) or only some (partial) entity occurrences participate in a relationship.

  35. Multiplicity as cardinality and participation constraints

  36. Problems with ER Models • Problems may arise when designing a conceptual data model called connection traps. • Often due to a misinterpretation of the meaning of certain relationships. • Two main types of connection traps are called fan traps and chasmtraps.

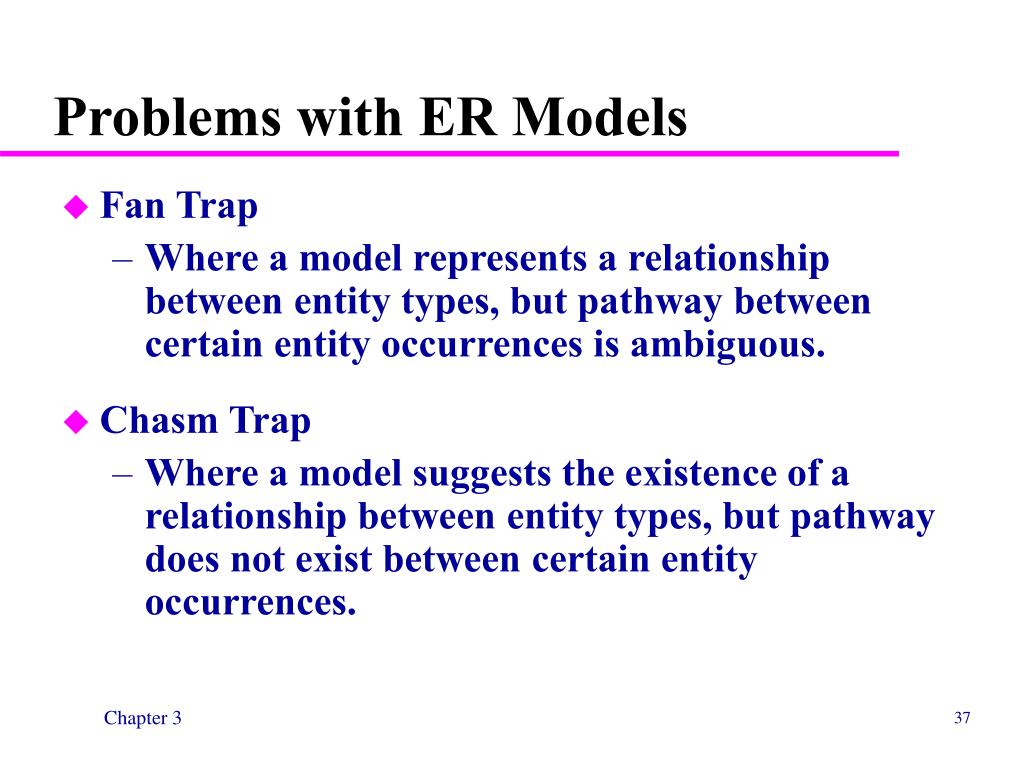

  37. Problems with ER Models • Fan Trap • Where a model represents a relationship between entity types, but pathway between certain entity occurrences is ambiguous. • Chasm Trap • Where a model suggests the existence of a relationship between entity types, but pathway does not exist between certain entity occurrences.

  38. An Example of a Fan Trap At which branch office does staff number SG37 work?

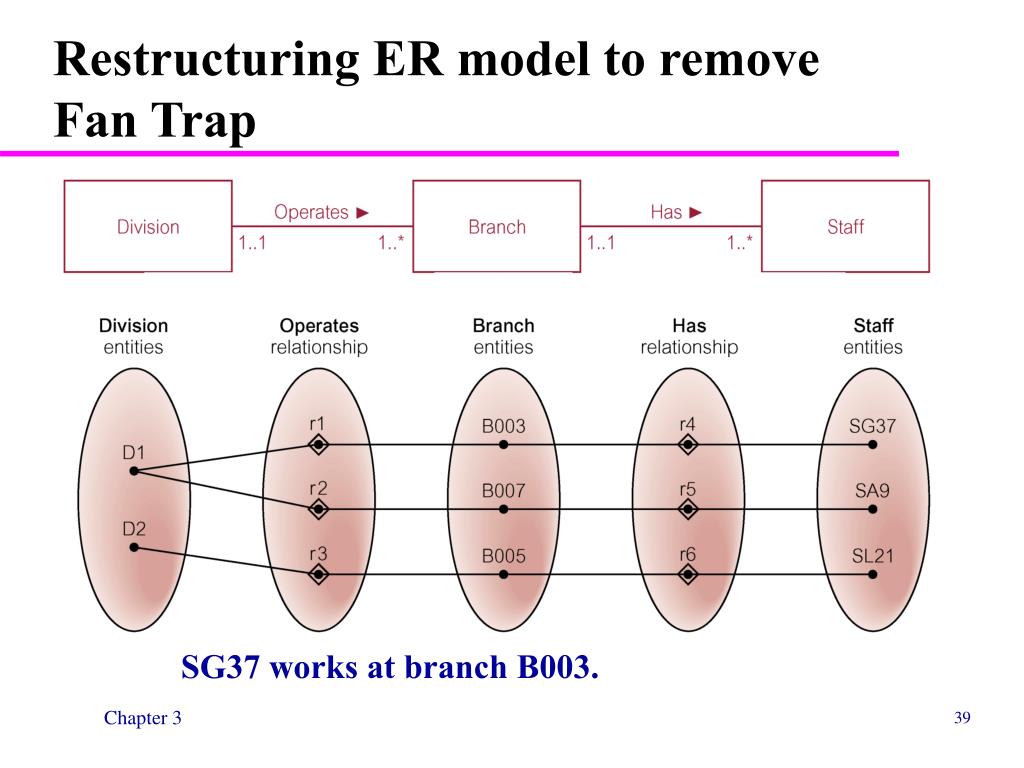

  39. Restructuring ER model to remove Fan Trap SG37 works at branch B003.

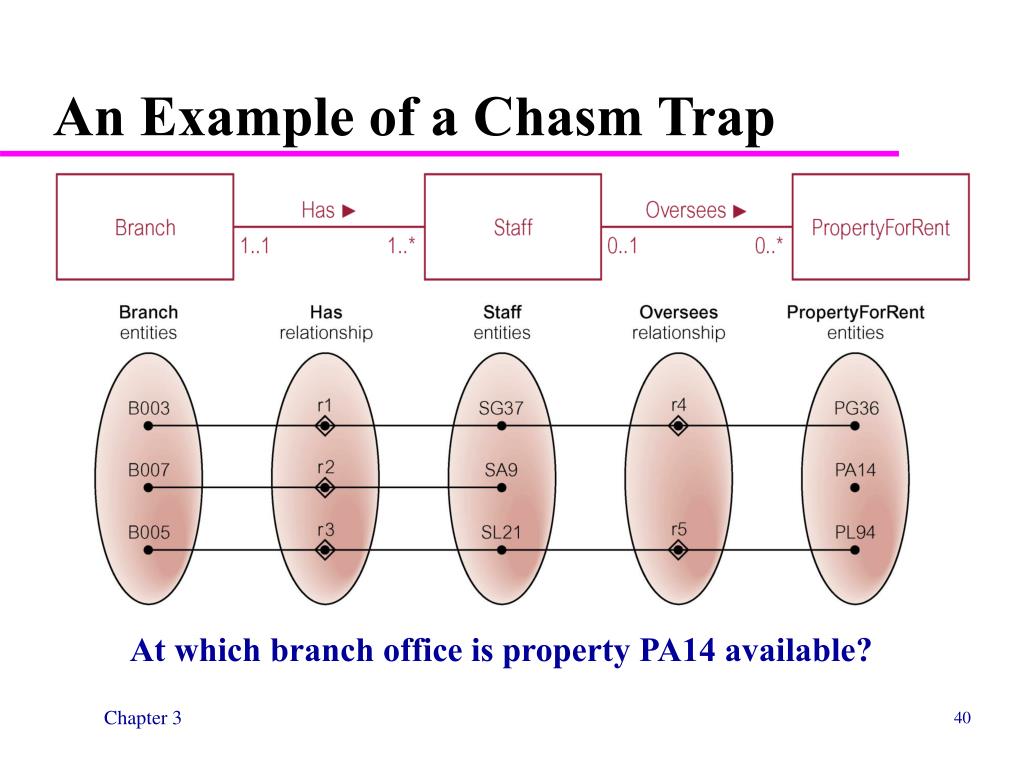

  40. An Example of a Chasm Trap At which branch office is property PA14 available?

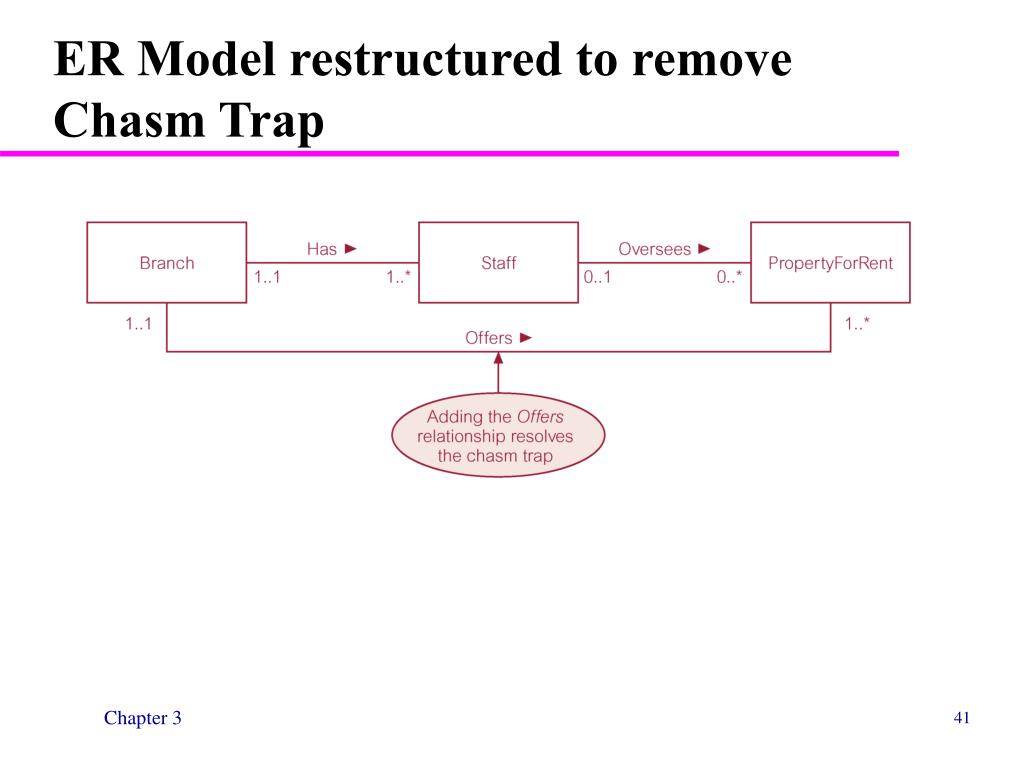

  41. ER Model restructured to remove Chasm Trap

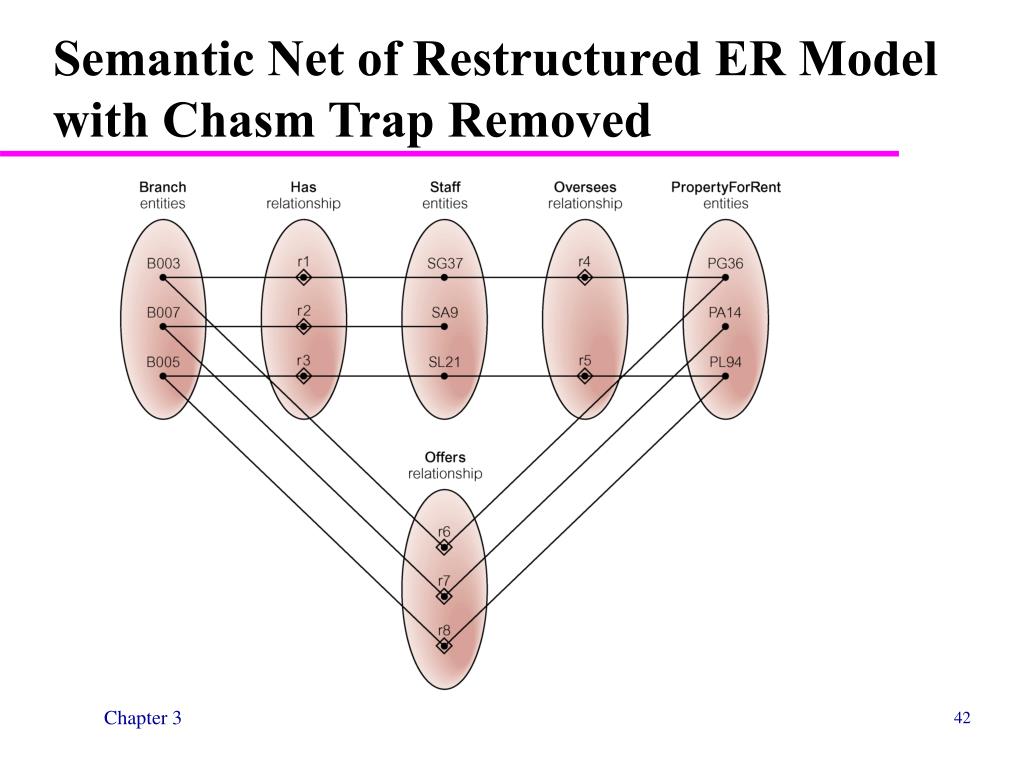

  42. Semantic Net of Restructured ER Model with Chasm Trap Removed

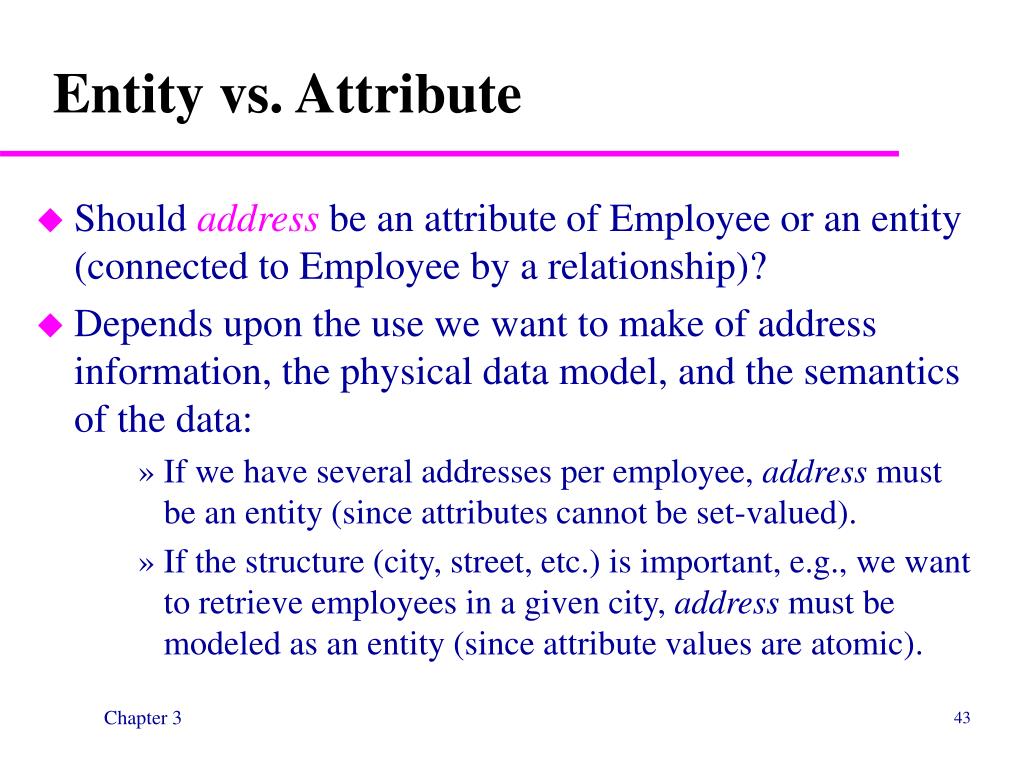

  43. Entity vs. Attribute • Should addressbe an attribute of Employee or an entity (connected to Employee by a relationship)? • Depends upon the use we want to make of address information, the physical data model, and the semantics of the data: • If we have several addresses per employee, address must be an entity (since attributes cannot be set-valued). • If the structure (city, street, etc.) is important, e.g., we want to retrieve employees in a given city, address must be modeled as an entity (since attribute values are atomic).

  44. Employee ssn name dob Employee ssn name dob Entity vs. Attribute from to • Works_In1 does not allow an employee to work in a department for two or more periods. • Similar to the problem of wanting to record several addresses for an employee. • Solution: Place periods in a separate entity type. Department did dname budget 0:* 1:1 Works_In1 Department did dname budget 0:* 1:1 Works_In2 1:* Duration from to

  45. Employee ssn name dob Employee ssn name dob Entity vs. Relationship since dbudget • First ER diagram OK if a manager gets a separate budget for each dept. • What if a manager gets a budget that covers all managed depts? • Redundancy of dbudget, which is stored for each dept managed by the manager. • Misleading: suggests dbudget tied to managed dept. • Solution: Create a separate entity type Mgr_Appts. Department did dname budget 1:1 0:1 Manages1 Department did dname budget 1:1 0:1 Manages2 0:1 Mgr_Appts apptnum since dbudget

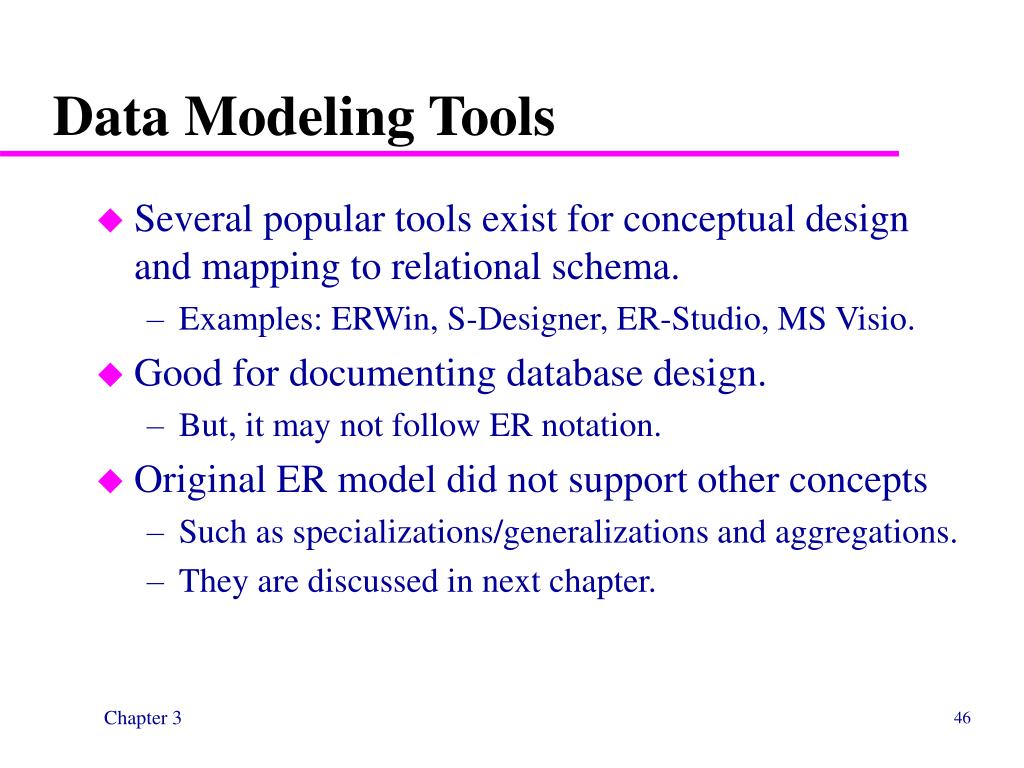

  46. Data Modeling Tools • Several popular tools exist for conceptual design and mapping to relational schema. • Examples: ERWin, S-Designer, ER-Studio, MS Visio. • Good for documenting database design. • But, it may not follow ER notation. • Original ER model did not support other concepts • Such as specializations/generalizations and aggregations. • They are discussed in next chapter.
