  1. VHDL Project III:Two’s ComplementArray Multiplier Slides Available at: www.pages.drexel.edu/~mjm46 Matthew Murach

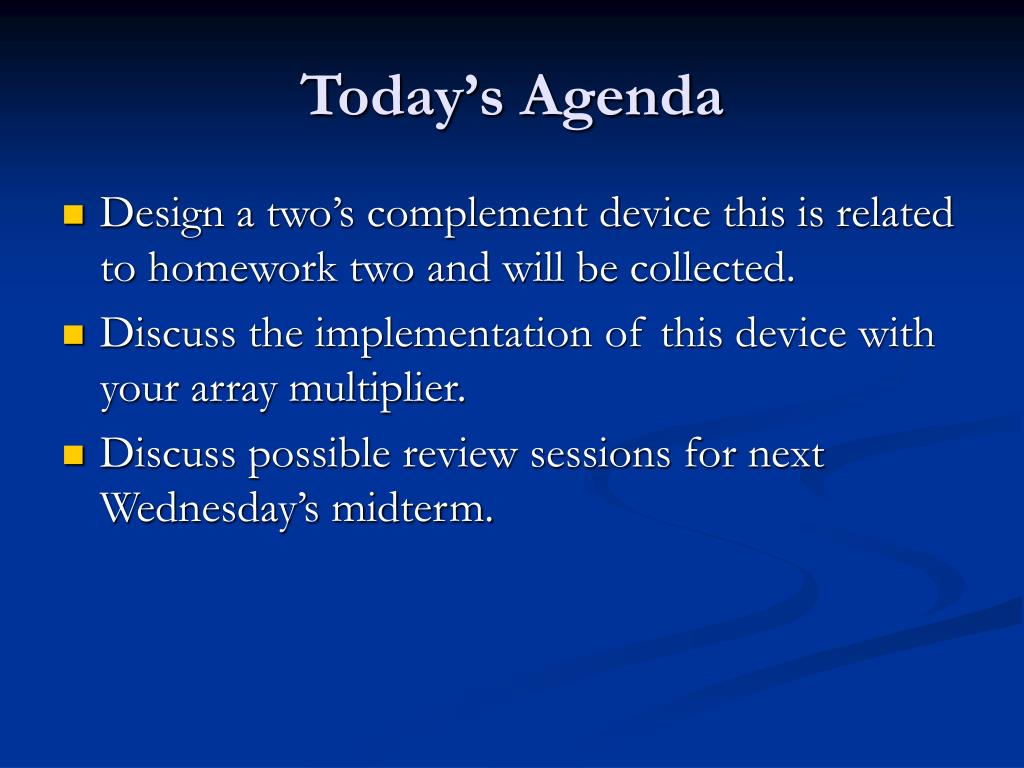

  2. Today’s Agenda • Design a two’s complement device this is related to homework two and will be collected. • Discuss the implementation of this device with your array multiplier. • Discuss possible review sessions for next Wednesday’s midterm.

  3. Two’s Complement Method 1 • Two’s complement operation is performed in the following manner. 0101 (5)  1010 + 1  1011(-5) 0111 (7)  1000 + 1  1001(-7) • Likewise the reverse is also true 1011 (-5)  0100 + 1  0101 (5) 1001 (-7)  0110 + 1  0111 (7)

  4. Two’s complement (cont) • Note that two’s complement uses the following procedure: 1.) Invert the bits 2.) Add one to the result • There exists another algorithm that computes the two’s complement.

  5. Booth’s algorithm • In Booth’s algorithm, we locate the first 1 starting from the least significant bit (LSB) • Then we invert the rest. 0111 (7)  1001 (-7) 0100 (4)  1100 (-4) 0100 (4)  1011 + 1  1100 (-4)

  6. Guidelines for two’s complement • Your two’s complement design should operate with any size vector. That is to say that you must have a generic for the size of the vector. • Your device should have the following signals control logic, an input vector, and an output vector. Note that you do not have to make your two’s complement synchronous.
