Automatic Melting Point

Automatic melting point consists of a semi-automatic detection method with a 4 piece per batch processing capacity. The system is equipped with a Wi-Fi serial port and a USB RS232 SD card for data interface. PID-precision temperature control mode with a fully enclosed design of the furnace body.<br><br>

Kimber4
Télécharger la présentation

Automatic Melting Point

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

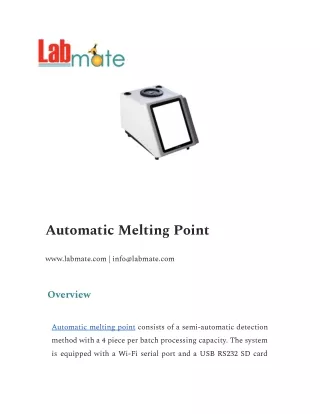

  1. Automatic Melting Point www.labmate.com | info@labmate.com Overview Automatic melting point consists of a semi-automatic detection method with a 4 piece per batch processing capacity. The system is equipped with a Wi-Fi serial port and a USB RS232 SD card

  2. for data interface. PID-precision temperature control mode with a fully enclosed design of the furnace body. Specifications : Temperature Room Temperature - 360℃ Range Resolution 0.01℃ Control Mode PID Precise temperature control, fully enclosed design of the furnace body Detection Semi- Automatic Method Processing 4 pcs per batch Capacity Heating Rate 0.1℃ - -20℃

  3. Accuracy ± 0.3℃ (<250℃); ± 0.5℃ (>250℃) Repeatability Melting point repeatability was ± 0.1℃ at 0.1℃/ min Magnification 9 times Display 10.4-inch TFT color touch screen Method Storage 32 GB Map Save 200 groups Printing Wi-Fi serial port Method Export in PDF & EXCEL multiple file formats

  4. Data Interface USB RS232 SD Wi-fi, RJ45, U disk Small OD: ⏀1.3 mm; ID: ⏀1.1 mm Capillary Size Power Supply 110 – 230 V, 50/ 60 Hz, 120 W Dimensions (L 400 × 280 × 330 mm × W × H) Weight 4.1 Kg Features : - It is safe, simple, easy-to-use, and reliable - Large temperature range from room temperature to 360℃ - HD color screen window - 4 pcs per batch processing capacity - 0.01℃ temperature resolution - PID precise temperature control mode

  5. - Repeatability ±0.1℃ at 0.1℃/ min - Magnification of 9 times - Data storage of 32 GB - Can map save up to 200 groups - 10.4-inch FTF color touch screen - USB RS232 SD user interface Applications : Melting point apparatus are used to determine the melting point of oil and fat in the food and pharmaceutical industries, biochemistry, medicines, mining, and the water management industry. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
