Fireriser ® UL FM Gate Valves

Fireriser ® UL FM Gate Valves. All Gate valves with SS Stems for better corrosion resistance (Competitors use common brass) Available in 200 PSI and 300 PSI Pressure Ratings Non Rising Stem and Rising Stem (OS&Y) Types available Fusion Bonded Epoxy Coated In Fire Engine Red

Leo
Télécharger la présentation

Fireriser ® UL FM Gate Valves

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

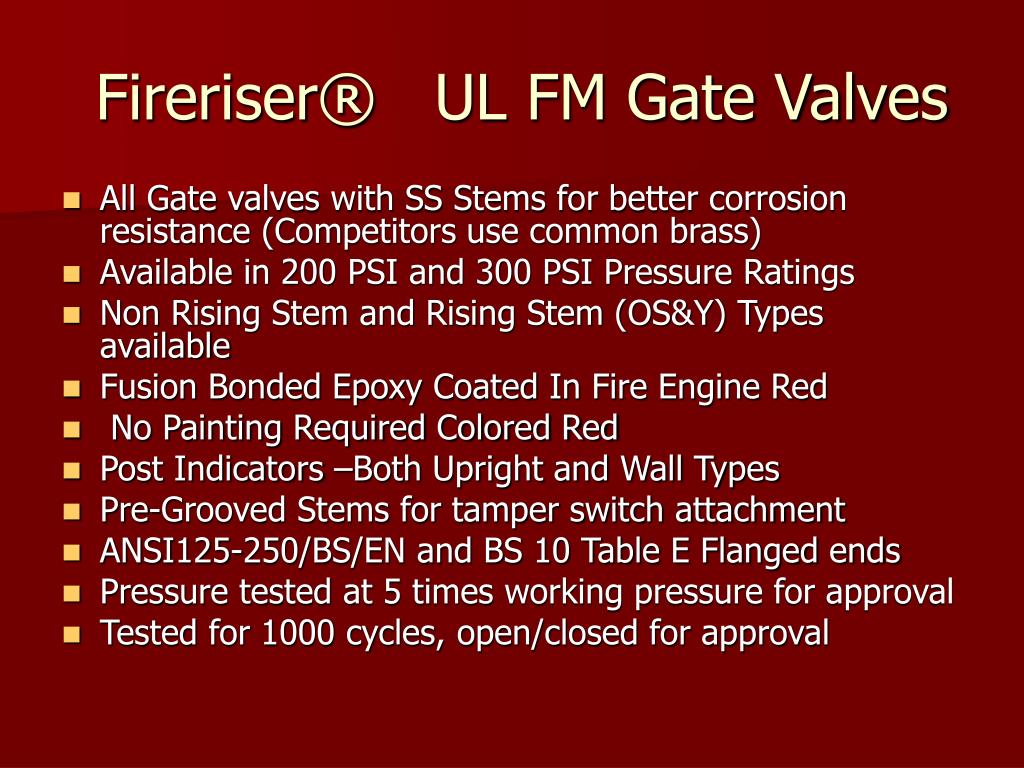

  1. Fireriser® UL FM Gate Valves • All Gate valves with SS Stems for better corrosion resistance (Competitors use common brass) • Available in 200 PSI and 300 PSI Pressure Ratings • Non Rising Stem and Rising Stem (OS&Y) Types available • Fusion Bonded Epoxy Coated In Fire Engine Red • No Painting Required Colored Red • Post Indicators –Both Upright and Wall Types • Pre-Grooved Stems for tamper switch attachment • ANSI125-250/BS/EN and BS 10 Table E Flanged ends • Pressure tested at 5 times working pressure for approval • Tested for 1000 cycles, open/closed for approval

  2. OS&Y

  3. NRS

  4. PIV

  5. Fireriser® Butterfly Valves • Grooved and Wafer Types • 175PSI and 300 PSI Pressure Ratings • Internal monitor switches as standard • Nylon Coated Bodies –Grooved End Type • Metric and ANSI size Grooved end connections • Size range from 2 ½” (65mm) to 12”(300mm) • UL Listed/FM Approved • Tested at 5 times working pressure for approval • Tested for 1000 cycles, open/closed for approval

  6. Grooved

  7. Wafer

  8. Firefly® Butterfly Valves • From 1” (25mm)to 2 ½” (65mm) • UL Listed FM approved • 1” (25mm)to 2 ½”(65mm) Threaded Ends • 2” (50mm) and 2 ½”(65mm) Grooved ends • Internal monitor switches as standard • Metric and ANSI Grooved Ends Available • Ideal as Zone shut off Valves. • Cost less than gate valves • Easier to install than cumbersome and expensive gate valves. • Tested at 5 times working pressure for approval • Tested for 1000 cycles, open/closed for approval

  9. Firefly
