  1. Plate with a hole in tension

  2. Steps • Defining a problem heading • Selecting master degrees of freedom • Defining model geometry • Defining boundary conditions • Defining loads • Defining the material • Generating elements onto geometry surfaces • Solving • Plotting element vectors • Plotting stress bands

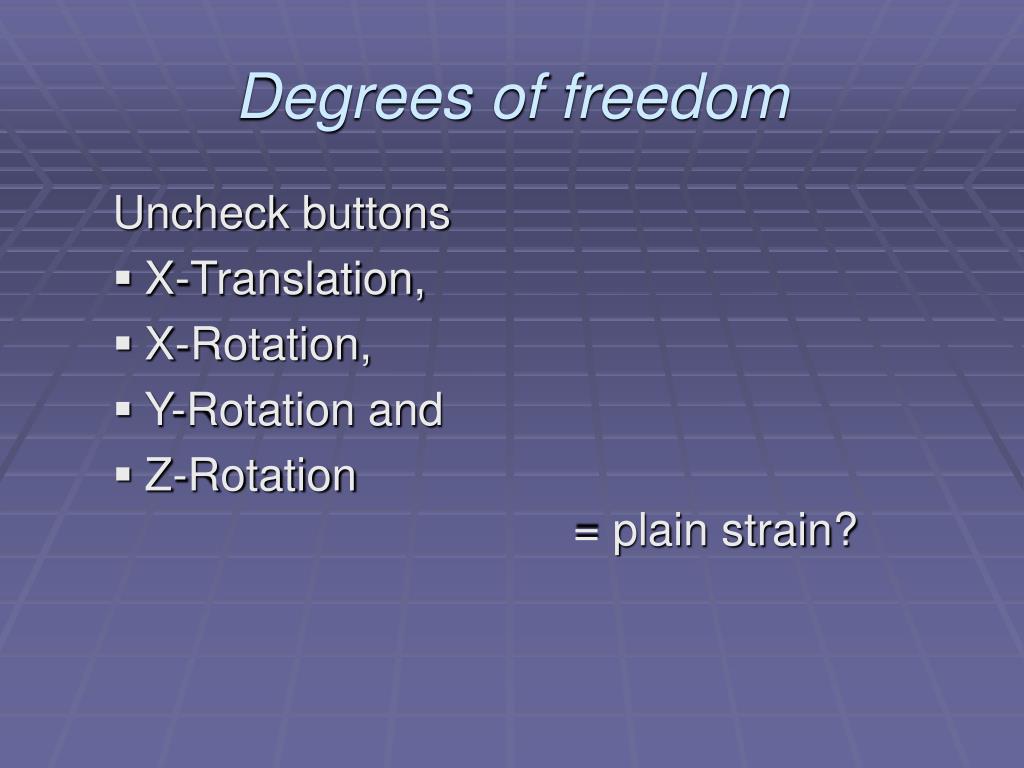

  3. Degrees of freedom Uncheck buttons • X-Translation, • X-Rotation, • Y-Rotation and • Z-Rotation = plain strain?

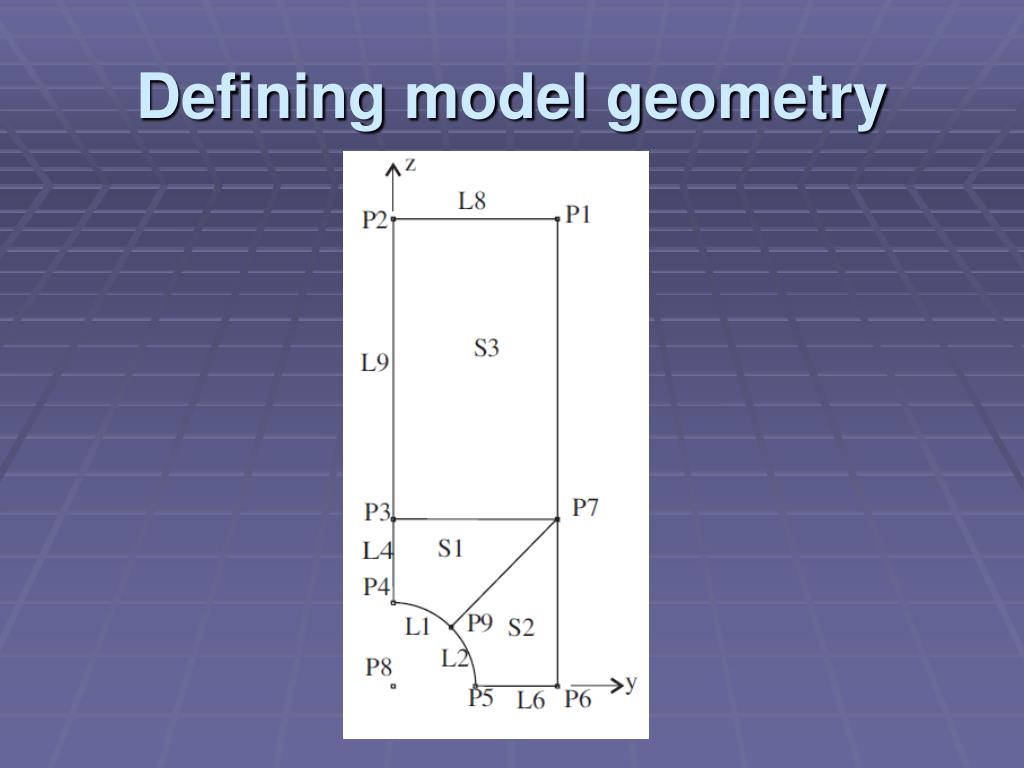

  4. Defining model geometry

  5. Defining and applying boundary conditions

  6. Defining and applying loads

  7. Defining the material • Isotropic Linear Elastic Material • Young’s Modulus = 7E4 • Poisson’s ratio = 0.25

  8. Defining the elements

  9. Examining the solution
