  1. Physics of Animation Alej Garcia Dept. Physics SJSU www.algarcia.org

  2. Anatomy for Artists Surgeons and artists learn anatomy, but for very different purposes. Thomas Eakins Leonardo da Vinci Life drawing is difficult but it’s not brain surgery

  3. Physics for Animators An engineer’s calculation of motion needs to be highly accurate, with precise measurements. Animators, on the other hand, usually don’t need such mathematical precision. It just has to look right. It’s not rocket science.

  4. Motion & Mechanics The study of motion is a fundamental field of physics known as mechanics. “In order to do the fantastic we must first understand the real.” Walt Disney

  5. Motion & Mechanics Physical laws apply equally to living characters, living beings are just a little more complex (but then so is an automobile engine) Thomas Eakins

  6. Physics in Maya Animation software, such as Maya, have sophisticated physics “engines” that use the laws of physics to compute motion. Easier to use these tools knowing physics.

  7. It’s all in the timing… An essential element of animation is the timing between frames “It’s not important what goes on each frame of film; it’s the spaces between the frames that are important. “ Norman McLaren

  8. Timing: Frames, Keys, & Clocks • We’ll use three different ways of measuring time: • Frames (intervals of 1/24th of a second) • Keys (given number of frames between poses) • Clocks (actual seconds as measured by a clock) • IMPORTANT: We’ll select the keys such that there are always the same number of frames between each key.

  9. Uniform Motion 1 2 3 4 5 Equal Distances Arbitrary Rolling ball is an example of uniform motion. Velocity of the ball is constant (with no friction). NOTE: In all examples there are an equal number of frames between keys

  10. Uniform Motion in Perspective

  11. Uniform Motion in Perspective Uniform motion may not appear uniform due to distortion of scale when shown in perspective. Vanishing Point Horizon Line Distances are equally-spaced, in perspective.

  12. Accelerating Motion & Falling 1 1 1 Falling is an example of accelerating motion (in animation, “slowing out”). 2 4 3 Distance between keys increases in the ratios 1:3:5:7:9… starting from point of release (key #1). 3 Total distance from point of release (key #1) increases in the ratios 1:4:9:16:25:… or 12:22:32:42:52… 9 5 In “Straight Ahead” animation after drawing keys #1 and #2 the positions of the rest are given by these rules. 4 7 16

  13. Distance Fallen Distance fallen from key #1 (release point) to key #2 depends on the number of frames between keys. Distance fallen from key #2 to #3 is three times further; from #3 to #4 is five times, from #4 to #5 is seven times, etc. Note: These distance do not depend on the object’s weight.

  14. (6 frames) (12 frames) Falling Bowling Ball 1 (Release) 1 (Release) 2 2 Bowling ball is one foot in diameter. Balls falls by one diameter in the first six frames. Same times 3 3 4 4 Falls ¼ of diameter in the first three frames. 5 5 6 frames per key 3 frames per key (and dolly in)

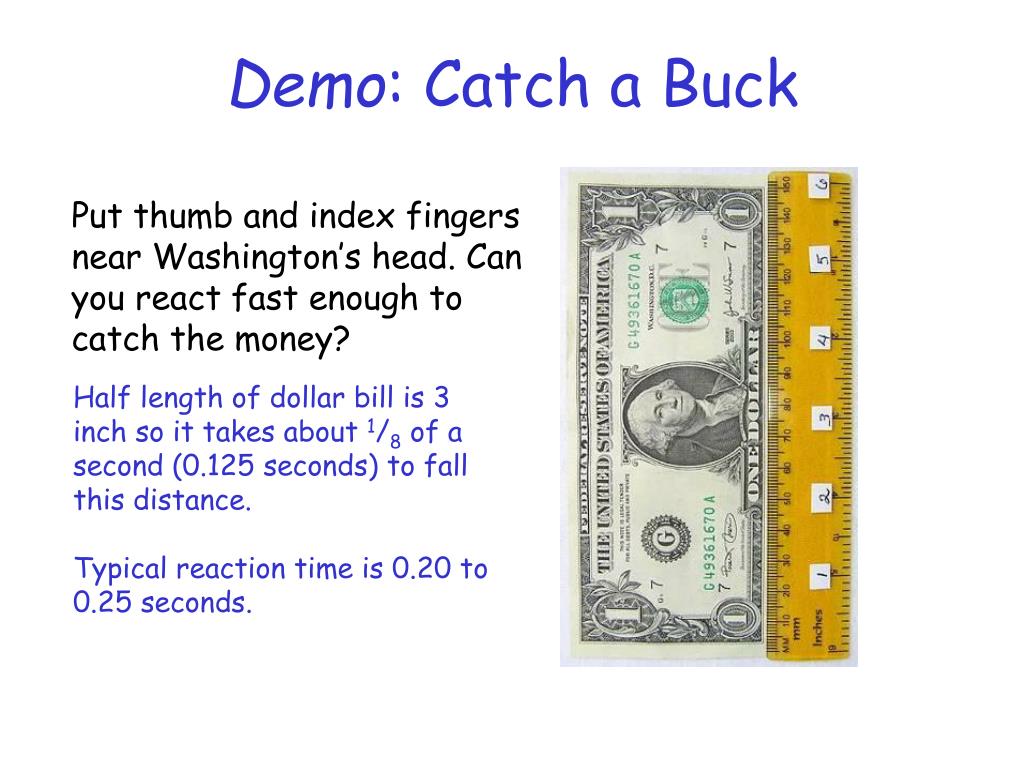

  15. Demo: Catch a Buck Put thumb and index fingers near Washington’s head. Can you react fast enough to catch the money? Half length of dollar bill is 3 inch so it takes about 1/8 of a second (0.125 seconds) to fall this distance. Typical reaction time is 0.20 to 0.25 seconds.

  16. Measuring Reaction Time Distance (inches) Time (sec.) 1 0.07 2 0.10 3 0.12 4 0.14 5 0.16 6 0.17 7 0.19 8 0.20 10 0.23 12 0.25 14 0.27 16 0.29 18 0.30 Release Catch

  17. Rolling Downhill 1 Key #1 is point of release 1 3 2 5 3 7 4 Rolling downhill is also accelerating motion Very similar to falling except distances are smaller and depend on the slope of the incline.

  18. Demo: Galileo’s Clicking Ramps Roll balls down notched, inclined ramps and listen for the clicks. 8 16 24 32 40 48 56 64 Start 1 4 9 16 25 36 49 64 4=2x2 9=3x3 16=4x4 25=5x5 36=6x6 49=7x7 64=8x8

  19. Sliding with Friction Block stops here Sliding this way 3 1 5 1 2 3 4 Sliding with friction is another example of accelerating motion but in this case the object “slows in.” Draw last key (where object stops) first and draw keys leading up to it in the ratios 1:3:5:7:9:…

  20. In-betweens of Accelerated Motion Shooting on Twos (2 frames per key) 1 3 5 Accelerating this way 1 frame per key 7 1 2 3 4 5 6 1/4 3/4 5/4 7/4 9/4 11/4 5/4+7/4 = 12/4 = 3 To draw in-betweens of accelerating motion, divide first distance by 4, then keep the same ratios of 1:3:5:7.

  21. Falling a la Chai An approximation to real falling that’s easy to use for pose-to-pose animation 1 1 1 1 2 2 3 3 3 3 • Recipe for “Falling a la Chai”: • Draw interval from first & last keys. • Divide interval in half. Mark a key. • Divide top part in half. Mark a key. • Divide top part in half. • Divide top part in half. Mark a key. 4 5 4 4 8 7 Key #4 is a bit too high but who’ll notice? 5 5 Falling a la Chai Real Falling

  22. Falling a la Chai (Extended) Accelerating this way Real Falling 1 3 5 7 9 11 1 3 4 8 8 8 Falling a la Chai Uniform Slowing out The most noticeable acceleration occurs in the initial “slowing out.” Though the separations increase as an object accelerates, you can approximate the motion as uniform for the second half of the fall.

  23. Falling and Floating Light objects, such as a beach ball, initially fall with accelerating motion. Due to air resistance, the motion transitions to uniform motion after falling a certain distance. For very light objects, such as a leaf, this transition is almost immediate. 1 3 Accelerating Motion 5 Uniform Motion 5 5 Squirrels cannot die from a fall. 5

  24. Hyper-acceleration 1 Constant acceleration 1 3 Release 2 5 3 7 1 4 Release 2 3 Hyper-acceleration 4 If the slope of an incline increases, the acceleration itself accelerates.

  25. Tipping Over Brick tipped 2º off-balance then released. A good example of hyper-acceleration is an object tipping over when off-balance. Release At 4º in ½ second At 15º in 1 second At 57º in 1½ second No simple way to compute hyper-acceleration.

  26. Acceleration “Stretch” Objects visually stretch as they gain speed due to motion blur. Objects do not physically stretch as they fall (not even raindrops). Motion blur does not depend on the object’s material, however, it will look more natural for rigid objects to stretch less than elastic objects. High-speed camera Human eye

  27. Moving & Falling 2 1 4 3 1 5 Arbitrary 3 Ball rolling off of a table combines horizontal and vertical motion. Falling starts with key #4, with vertical distances increasing as 1:3:5:7:… Horizontal distances equally spaced as with uniform motion. Arc is the combination of uniform horizontal motion and accelerating vertical motion. 6 5 7 7

  28. Demo: Fall and Fire FALL 1 FIRE 1 1 One ball is released and falls straight down. Other ball is fired horizontally. At all times the balls are at the same height. Hit the ground at the same time. 2 2 3 3 3 5 4 4

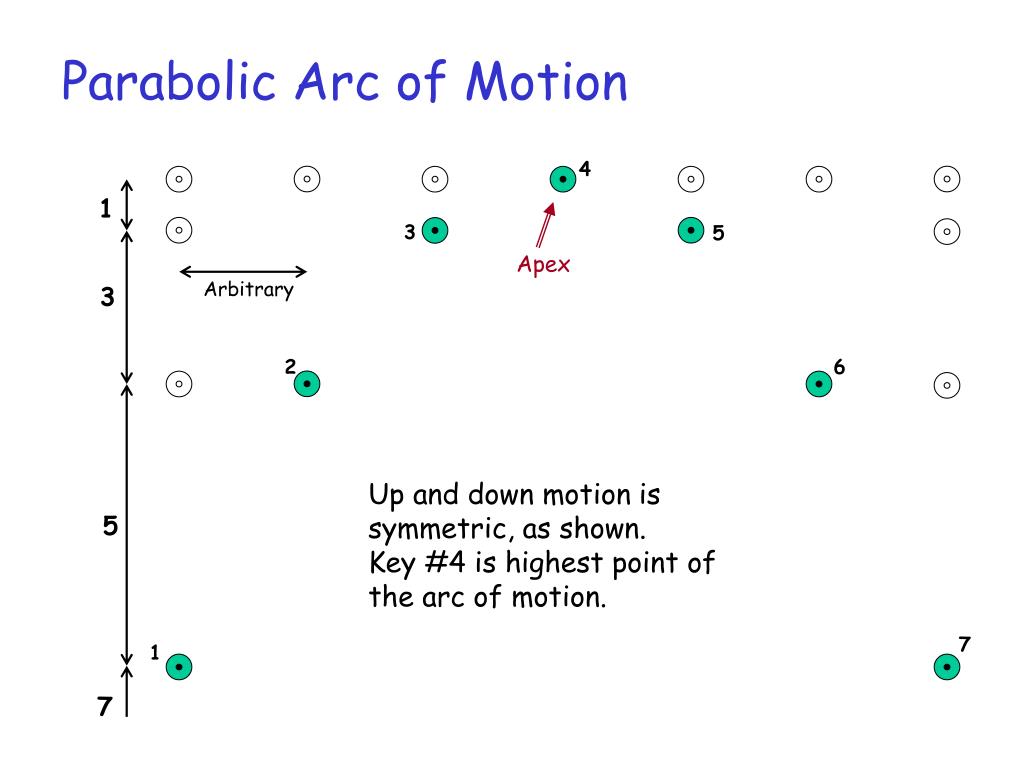

  29. Parabolic Arc of Motion 4 1 3 5 Apex Arbitrary 3 2 6 Up and down motion is symmetric, as shown. Key #4 is highest point of the arc of motion. 5 7 1 7

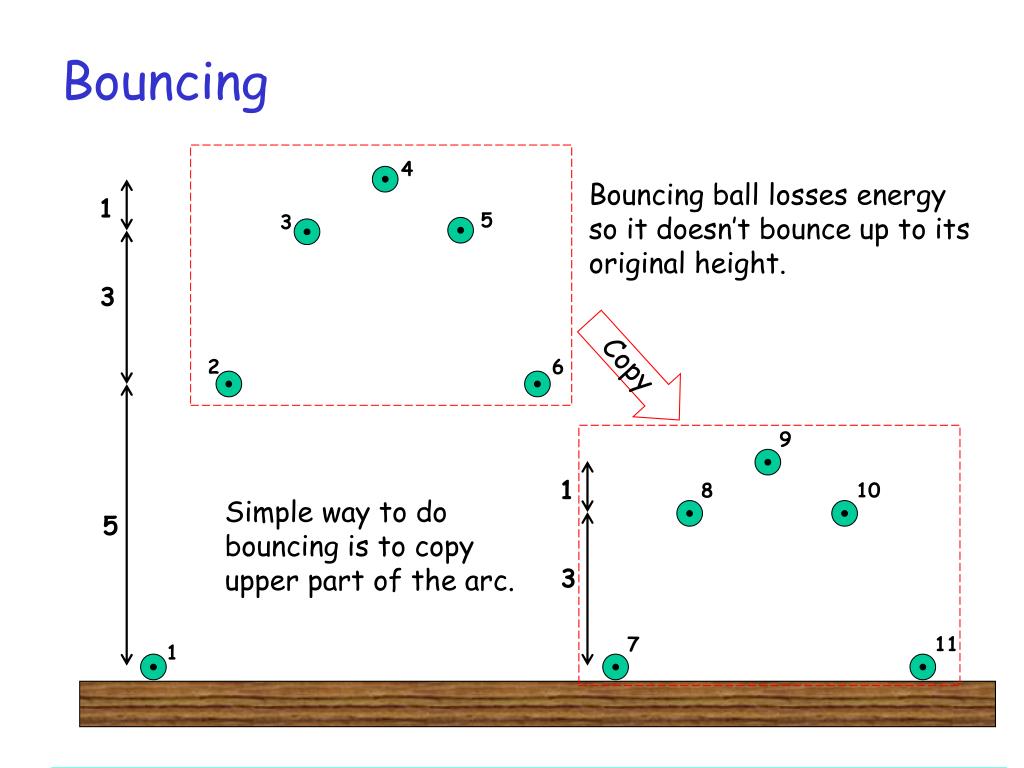

  30. Bouncing 4 Bouncing ball losses energy so it doesn’t bounce up to its original height. 1 5 3 3 Copy 2 6 9 1 8 10 Simple way to do bouncing is to copy upper part of the arc. 5 3 7 11 1

  31. Bouncing with Squash & Stretch Stretch is added where motion is the fastest. Squash is used to emphasize impact on bounce.

  32. Parabolic Arc in Perspective Maximum height (ball at midpoint) VP HL Ball starts and ends on the ground.

  33. Parabolic Arc in Perspective (cont.) 1 VP HL 3 Add points to the curve by ‘tweening’ from the point of maximum height.

  34. Spinning and Tumbling Arbitrary 4 1 5 3 3 A spinning object turns by the same (arbitrary) angle between keys. Spinning occurs about the object’s center of mass. 2 6 5 General tumbling motion (e.g., throw a chair) is very complicated! 7 1 7 Note: If axe is about 10” long then 4 frames between keys.

  35. Brick Drop 1 2 3 1 • A brick tipping off of a table combines all the elements described above: • Hyper acceleration as the brick tips over. • Constant acceleration in the vertical falling. • Uniform velocity in the horizontal motion. • Constant rotation as the brick falls. 4 3 5 5 6

  36. What creates action? • Various types of physical motion are: • Uniform motion (no acceleration) • Constant acceleration • Hyper-acceleration (non-constant) • But why do objects accelerate? • Answer: Forces!

  37. Newton’s First Law of Motion An object moves with constant, uniform motion until acted on by a force. No force FORCE

  38. First Law (Full Version) An object at rest remains at rest & an object in motion remains in uniform motion*, unless a force acts on the object. *Moving in a straight line with constant speed. First Law is also known as principle of inertia.

  39. Demo: Tablecloth Pull Flower Vase Yank quickly Tablecloth Due to the vase’s inertia it remains at rest since almost no force acts on the vase if one pulls quickly & straight.

  40. Demo: Riding Light Rail When a moving train stops, you continue moving forward. When the stopped train starts moving again, you remain stationary and are thrown backwards. In both cases, it’s due to your inertia.

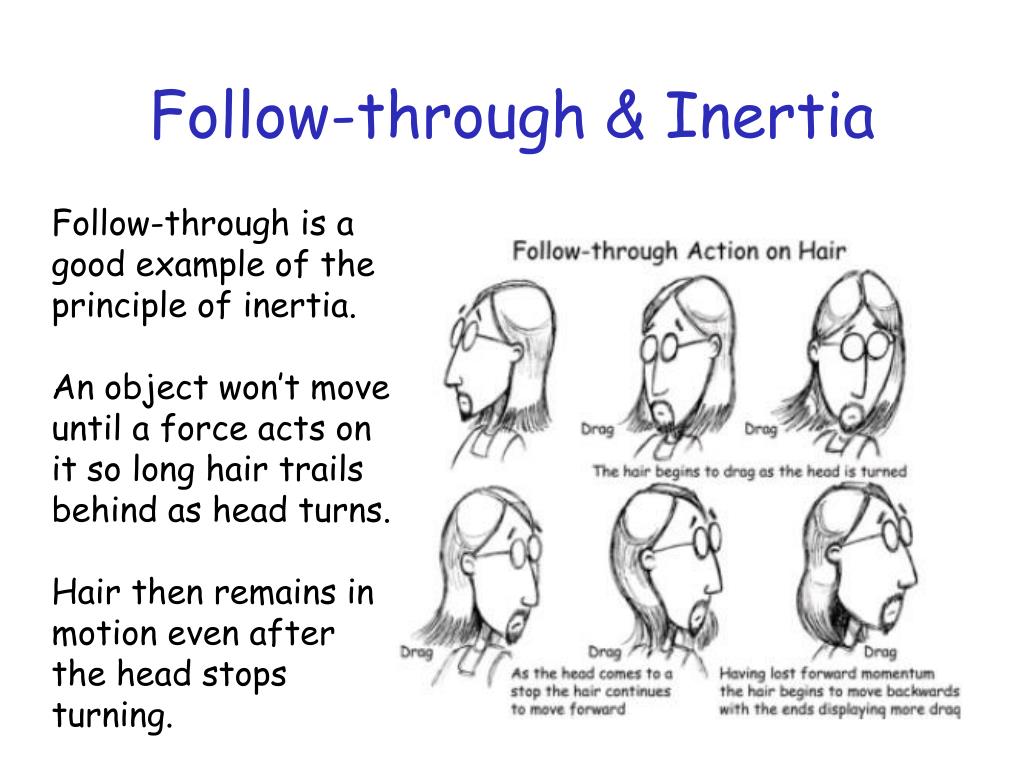

  41. Follow-through & Inertia Follow-through is a good example of the principle of inertia. An object won’t move until a force acts on it so long hair trails behind as head turns. Hair then remains in motion even after the head stops turning.

  42. Newton’s Second Law (Part 1) The greater the force on acting on an object, the greater the acceleration of that object.

  43. Newton’s Second Law (Part 2) The greater the mass of an object, the less it accelerates when acted on by the same force.

  44. Free Fall Acceleration Newton’s Second Law explains why heavy and light objects fall with same acceleration. Ratio of weight to mass always the same since weight depends on mass.

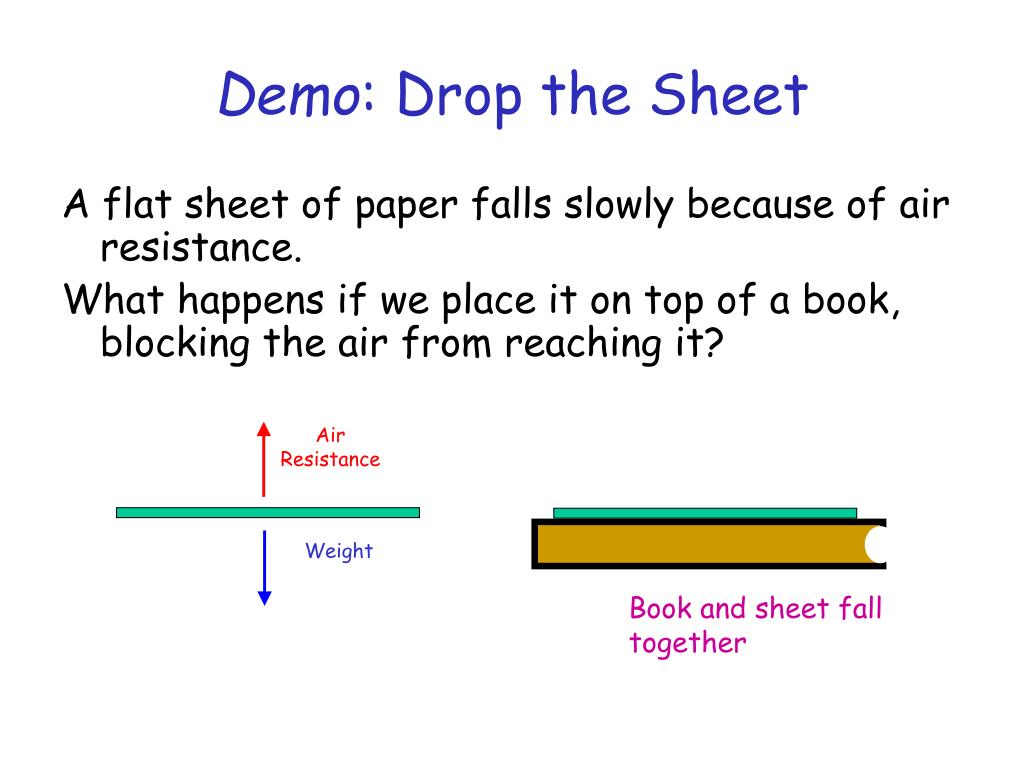

  45. Demo: Drop the Sheet A flat sheet of paper falls slowly because of air resistance. What happens if we place it on top of a book, blocking the air from reaching it? Air Resistance Weight Book and sheet fall together

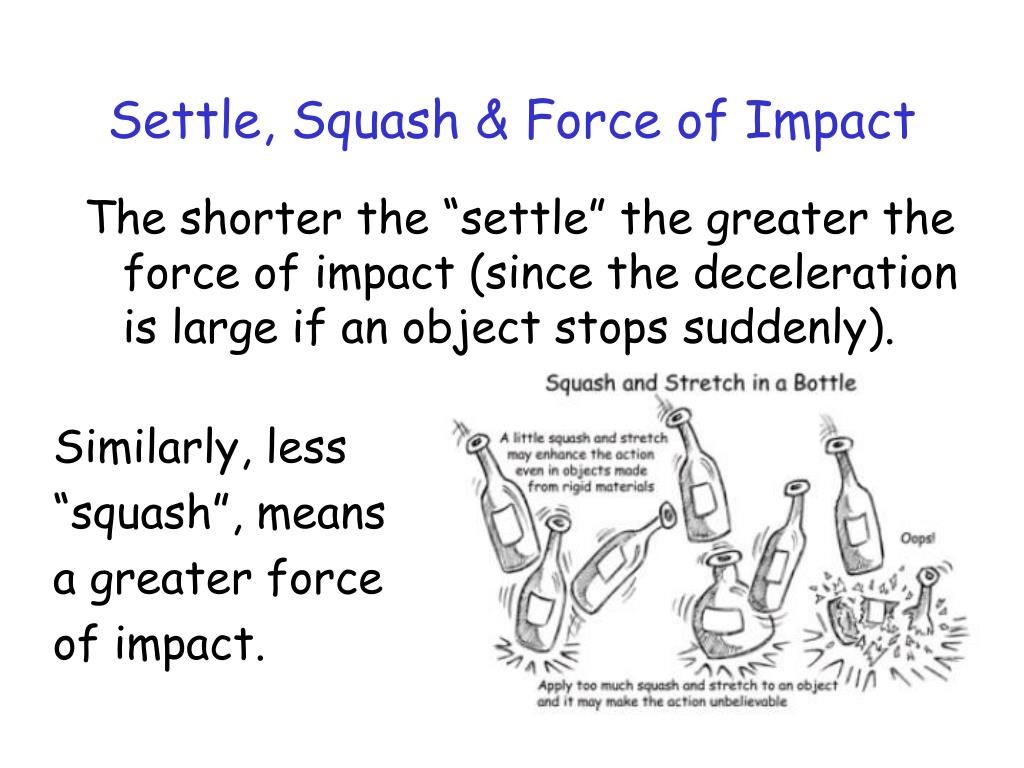

  46. Settle, Squash & Force of Impact The shorter the “settle” the greater the force of impact (since the deceleration is large if an object stops suddenly). Similarly, less “squash”, means a greater force of impact.

  47. Demo: Bed of Nails One may safely lay or sit on a bed of nails, as long as there are enough nails since the force per nail is small. Weight of 150 pounds is distributed over 300 nails. Force per nail is ½ lb. Need 5 lb per nail to pierce skin. The one thing you never want to do with a bed of nails is jump into bed! Big deceleration means big force. Ouch!

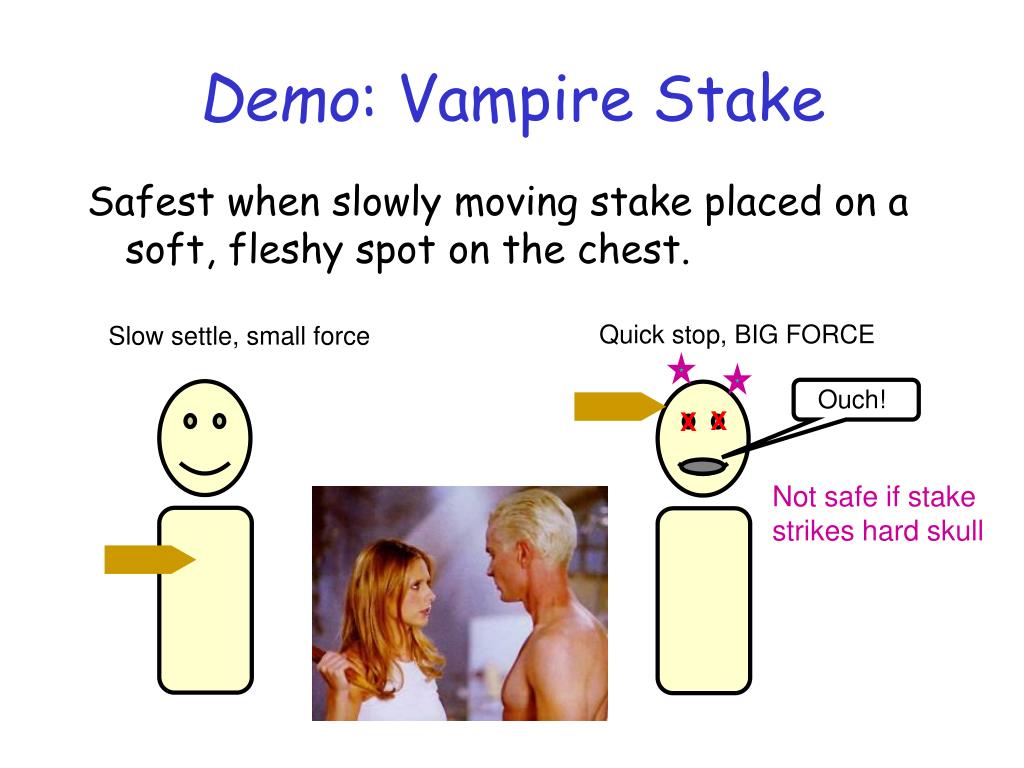

  48. Quick stop, BIG FORCE Ouch! X X Not safe if stake strikes hard skull Demo: Vampire Stake Safest when slowly moving stake placed on a soft, fleshy spot on the chest. Slow settle, small force

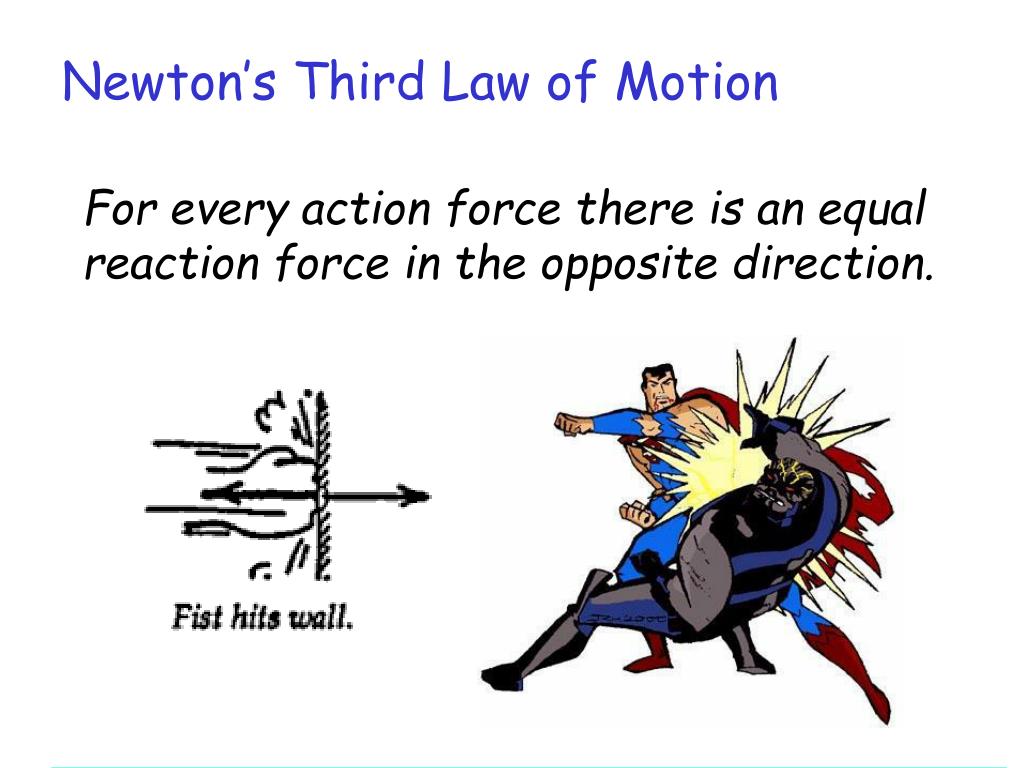

  49. Newton’s Third Law of Motion For every action force there is an equal reaction force in the opposite direction.

  50. Walking, Running & Jumping What forces accelerate us into motion when we walk, run, or jump?
