  1. A Cholesky Out-of-Core factorization Jorge Castellanos Germán Larrazábal Centro Multidisciplinario de Visualización y Cómputo Científico (CEMVICC)‏ Facultad Experimental de Ciencias y Tecnología (FACYT)‏ Universidad de Carabobo Valencia - Venezuela

  2. Out-of-core - motivation The computational kernel that consumes the more of CPU time in a engineer numerical simulation package is the linear solver The linear solver is mainly based on a classic solving method, i.e., direct or iterative method The problem matrix associated to the equations system is sparse and have a big size Iterative methods are highly parallel (based on matrix-vector product) but they are not general and they need preconditioning Direct methods (Cholesky, LDLT or LU) are more general (inputs: matrix A and rhs vector b), but they main advantage is the amount of memory needed when the problem size A increases

  3. Out-of-core - motivation • Efficient numerical solutions of linear system of equations can show limitations when the associated set of matrices does not fit into memory • Data can not be stored in memory, therefore it must be stored in hard disk • Disk access is very slow (latency+bandwidth) compared to memory access • In order to have good performance, the algorithm should (Toledo, 1999): • Carry out the storage in terms of consecutive large blocks • Use the data stored in memory as many times as possible

  4. Out-of-core - definition • Algorithms which are designed to have efficient performance when their data structure is stored in disk are called “out-of-core algorithms” (Toledo, 1999). • Out-of core applications handle very large data sets to store in conventional internal memory • There are a group of applications (parallel out-of-core) with data sets whose address space exceeds the capacity of the virtual memory • Examples: • Scientific computing (modeling, simulation, etc.)‏ • Scientific visualization • Database

  5. Another face The out-of-core concept permits users to solve efficiently large problems using inexpensive computers Storage in disk is cheaper than storage in main memory (DRAM) and its actual cost rate is 1 to 100 (dec, 2007)‏ An out-of-core algorithm running on a machine with a limited memory can give a better cost/performance ratio than in-core algorithms running on a machine with enough memory

  6. Related work In 1984, J. Reid creates the TREESOLV, written in fortran to solve big linear equation sytems based on the multifrontal algorithm In 1999, E. Rothberg and R. Shreiber, review the implementation of 3 out-of-core methods for the Cholesky factorization. Each is based on a partitioning of the matrix into panels En 2009, J. Reid and J. Scott present a Cholesky Out-of-core solver written in fortran 95, whose operation is based on a virtual memory package that provides the facilities to read/write hard disk files

  7. Out-of-core support - proposal To incorporate into UCSparseLib library a low level software layer that frees the user from worrying about memory constraints The low level software layer will handle the I/O operations automatically The support includes: caches, prefetching, multithreading, among other features to obtain good computational performance The out-of-core support manages the memory The implementation makes use of “in-core” coding included in the UCSparseLib library

  8. UCSparseLib • UCSparseLib (Larrazabal, 2004) has a set of functionalities for solving sparse linear systems • The library handles and stores sparse matrices using a compact format similar to: • CRS (Compressed Row Storage) • CCS (Compressed Column Storage)‏ • It was designed with an out-of-core perspective

  9. UCSparseLib • PDVSA - INTEVEP S. A. • Oil reservoir simulator (SEMIYA) • CSRC (Computational Sciences Research Center), SDSU, USA • Ocean simulator • Computational fluid dynamic • ULA • Portal of damage project • CEMVICC • CFD projects

  10. UCSparseLib Modules I/O operations: read and write matrices in a single format Matrix-Vector operations: basic operations, vector-vector, matrix-vector, reordering, etc. Direct and Iterative methods: Cholesky, LDLT, LU, Jacobi, Gauss-Seidel, Conjugate Gradient, GMRES, etc. Preconditioners: Incomplete factorizations Algebraic multigrid: AMG with different setup phases: aggregation, red-black colouring, strong connection Eigenvalues: eigenvalues and eigenvectors for sparse symmetric matrices Another routines: Timers, memory management and debugger

  11. Sparse matrices - CRS

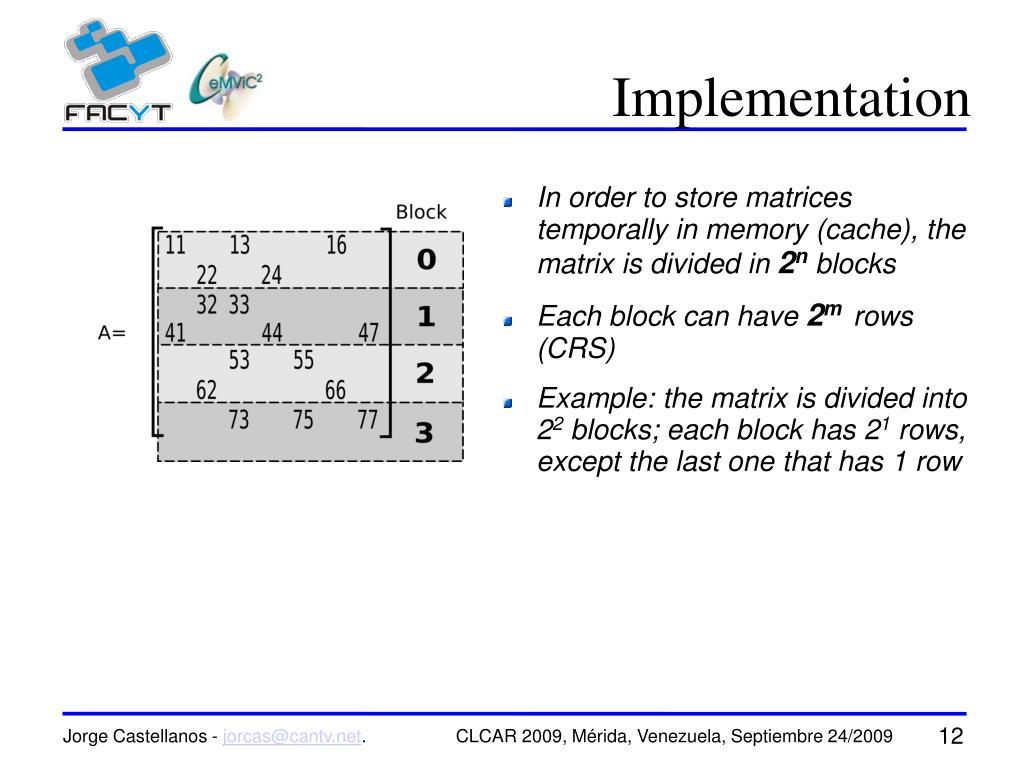

  12. Implementation In order to store matrices temporally in memory (cache), the matrix is divided in 2n blocks Each block can have 2m rows (CRS)‏ Example: the matrix is divided into 22 blocks; each block has 21 rows, except the last one that has 1 row

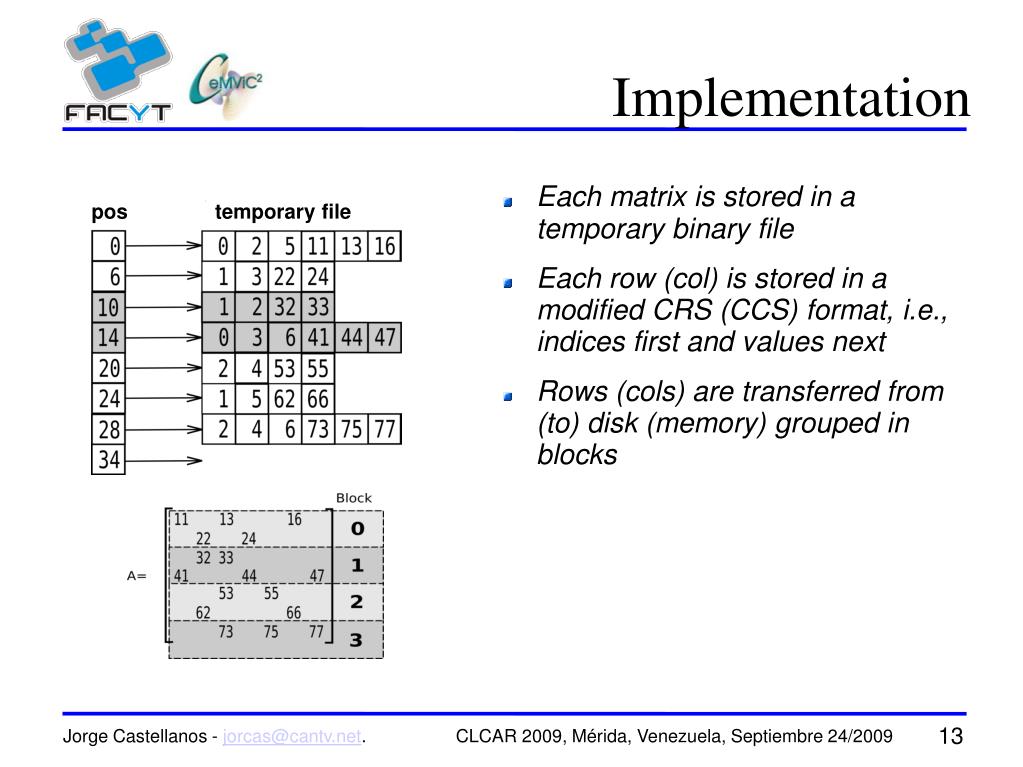

  13. Implementation Each matrix is stored in a temporary binary file Each row (col) is stored in a modified CRS (CCS) format, i.e., indices first and values next Rows (cols) are transferred from (to) disk (memory) grouped in blocks pos temporary file

  14. Implementation WRITE temporary file

  15. Implementation temporary file READ_WRITE temporary file

  16. Implementation temporary file READ_WRITE temporary file READ temporary file temporary file

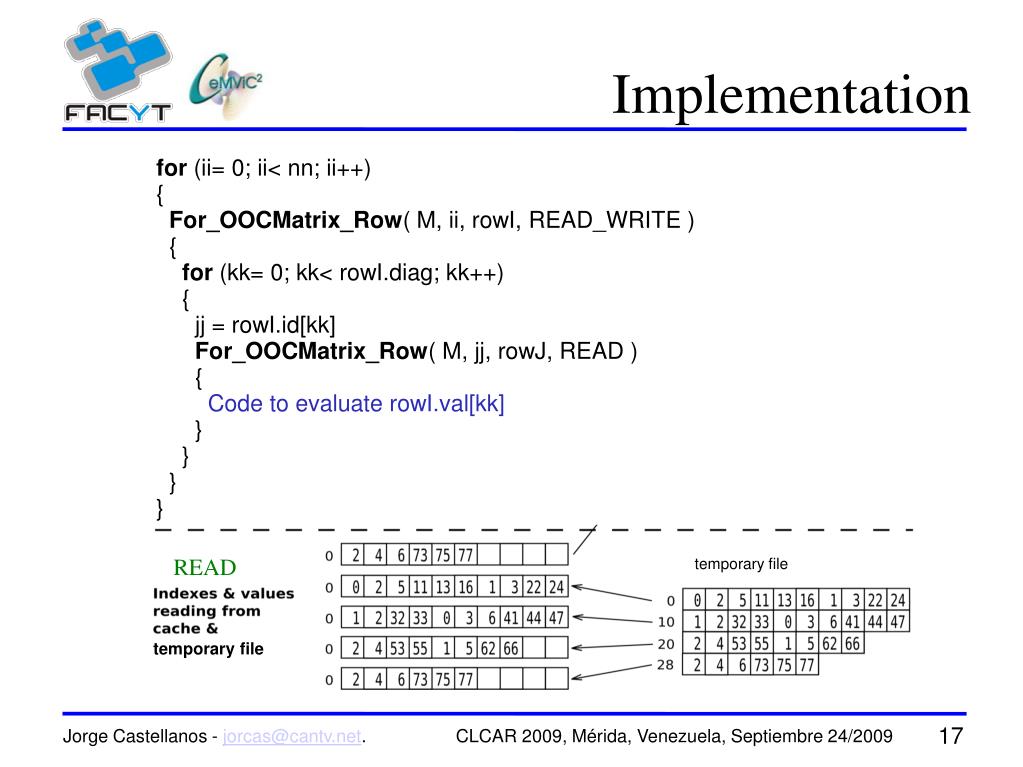

  17. Implementation for (ii= 0; ii< nn; ii++)‏ { For_OOCMatrix_Row( M, ii, rowI, READ_WRITE )‏ { for(kk= 0; kk< rowI.diag; kk++) {jj = rowI.id[kk] For_OOCMatrix_Row( M, jj, rowJ, READ ) { Code to evaluate ‏rowI.val[kk] } } } } READ_WRITE READ temporary file temporary file

  18. Implementation To support the nesting of ForOOCMatrix_Row macros, the cache used in earlier versions was modified to have multiple ways To mitigate the effect of misses increasing caused by the nested macro, a Reference Prediction Table (RPT) based on the proposal of Chen & Baer (1994) was incorporated To ensure that the input/output cache data worked in parallel with computation to hide the latency caused by misses and pre-fetches an Outstanding Request List based on the scheme proposed by D. Kroft (1987) was implemented

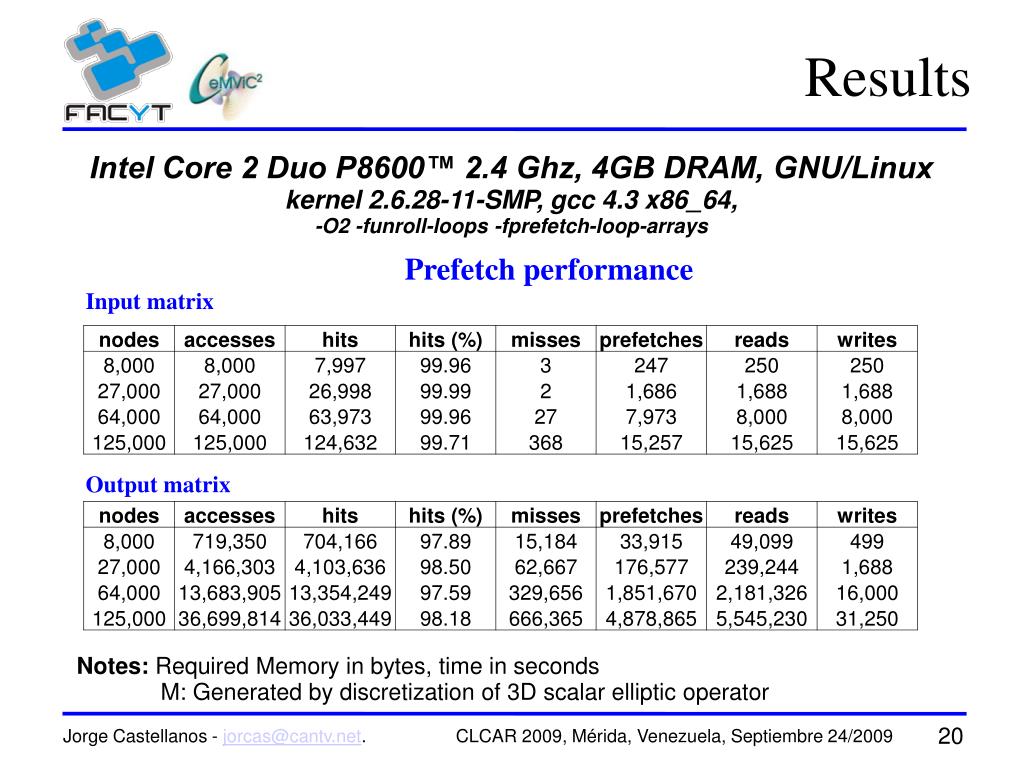

  19. Results Intel Core 2 Duo P8600™ 2.4 Ghz, 4GB DRAM, GNU/Linuxkernel 2.6.28-11-SMP, gcc 4.3 x86_64, -O2 -funroll-loops -fprefetch-loop-arrays Matrices characteristics Use of memory and execution time Notes: Required Memory in bytes, time in seconds

  20. Results Intel Core 2 Duo P8600™ 2.4 Ghz, 4GB DRAM, GNU/Linuxkernel 2.6.28-11-SMP, gcc 4.3 x86_64, -O2 -funroll-loops -fprefetch-loop-arrays Prefetch performance Input matrix Output matrix Notes: Required Memory in bytes, time in seconds M: Generated by discretization of 3D scalar elliptic operator

  21. Conclusions The out-of-core kernel supports efficiently the Cholesky sparse matrix factorization because it shows big saves in memory use with overheads less than the 148% in CPU time For a better performance of the out-of-core support, we believe it is important to have a high efficiency prefetch algorithm, as in this work, which reduces the adverse effect of cache misses The prefetch algorithm must operate in parallel with the computation to take advantage of multicore technology present in most of the modern personal computers

  22. Future work To incorporate improvements in the parallelization of the prefetch algorithm to reduce the penalty in execution time To study the effect of the block size of the cache and the total size of the cache (number of blocks) in order to define heuristics for automatic selection of these parameters To extend the use of the out-of-core layer to other UCSparseLib library functions, including direct methods: LU and LDLT To implement the out-of-core support for other methods of solving sparse linear systems such as iterative methods and algebraic multigrid

  23. References J. Castellanos and G. Larrazábal, Implementación out-of-core para producto matriz-vector y transpuesta de matrices dispersas, Conferencia Latinoamericana de Computación de Alto Rendimiento, Santa Marta, Colombia. Pags. 250--256. ISBN: 978--958--708--299--9, 2007. J. Castellanos and G. Larrazábal, Soporte out-of-core para operaciones básicas con matrices dispersas, En Desarrollo y avances en métodos numéricos para ingeniería y ciencias aplicadas, Sociedad Venezolana de Métodos Numéricos en Ingeniería, Caracas, Venezuela. ISBN: 978--980--7161--00--8, 2008. T.F. Chen and J.L. Baer, A performance study of software and hardware data prefetching schemes, In International Symposium on Computer architecture, Proceedings of the 21st annual international symposium on Computer Architecture, Chicago Ill, USA, Pages 223-232, 1994.Z. Bai, J. Demmel, J. Dongarra, A. Ruhe and H. van der Vorst, Templates for the Solution of Algebraic Eigenvalue Problems: A Practical Guide, SIAM, Philadelphia, 2000.

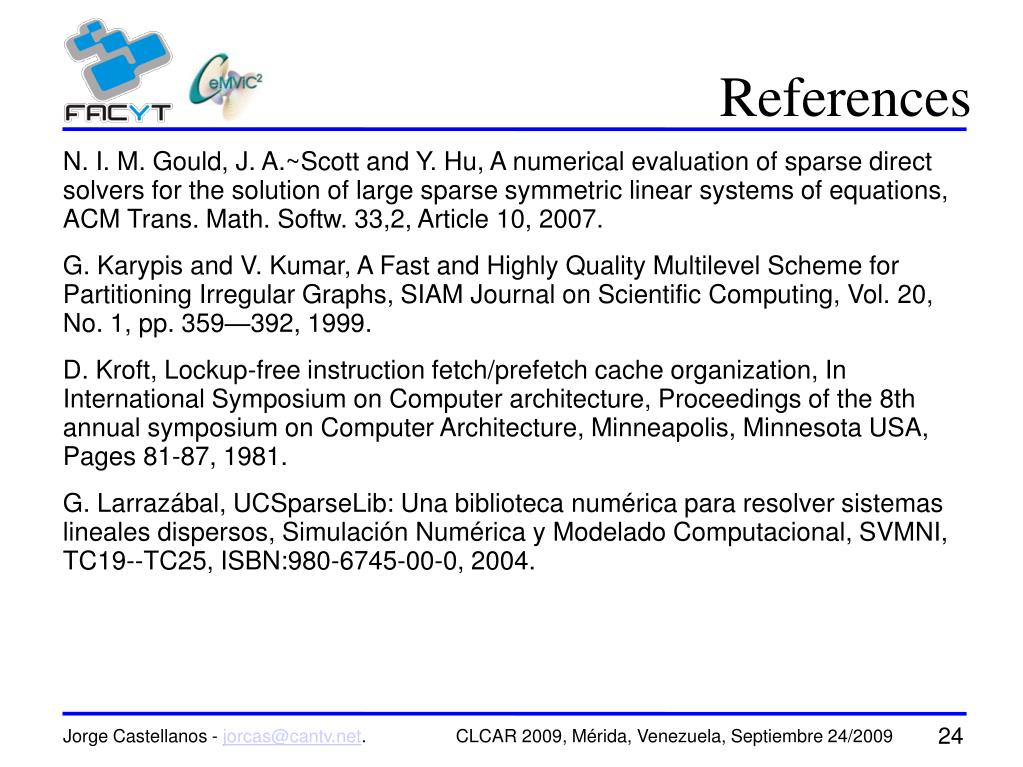

  24. References N. I. M. Gould, J. A.~Scott and Y. Hu, A numerical evaluation of sparse direct solvers for the solution of large sparse symmetric linear systems of equations, ACM Trans. Math. Softw. 33,2, Article 10, 2007. G. Karypis and V. Kumar, A Fast and Highly Quality Multilevel Scheme for Partitioning Irregular Graphs, SIAM Journal on Scientific Computing, Vol. 20, No. 1, pp. 359—392, 1999. D. Kroft, Lockup-free instruction fetch/prefetch cache organization, In International Symposium on Computer architecture, Proceedings of the 8th annual symposium on Computer Architecture, Minneapolis, Minnesota USA, Pages 81-87, 1981. G. Larrazábal, UCSparseLib: Una biblioteca numérica para resolver sistemas lineales dispersos, Simulación Numérica y Modelado Computacional, SVMNI, TC19--TC25, ISBN:980-6745-00-0, 2004.

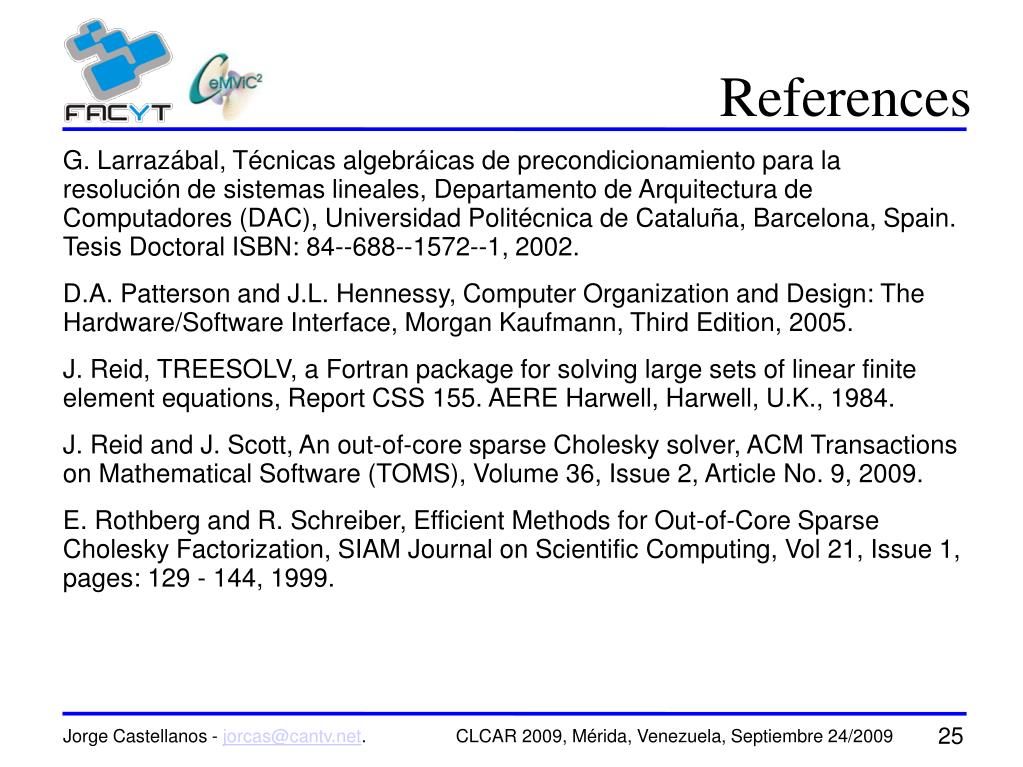

  25. References G. Larrazábal, Técnicas algebráicas de precondicionamiento para la resolución de sistemas lineales, Departamento de Arquitectura de Computadores (DAC), Universidad Politécnica de Cataluña, Barcelona, Spain. Tesis Doctoral ISBN: 84--688--1572--1, 2002. D.A. Patterson and J.L. Hennessy, Computer Organization and Design: The Hardware/Software Interface, Morgan Kaufmann, Third Edition, 2005. J. Reid, TREESOLV, a Fortran package for solving large sets of linear finite element equations, Report CSS 155. AERE Harwell, Harwell, U.K., 1984. J. Reid and J. Scott, An out-of-core sparse Cholesky solver, ACM Transactions on Mathematical Software (TOMS), Volume 36, Issue 2, Article No. 9, 2009. E. Rothberg and R. Schreiber, Efficient Methods for Out-of-Core Sparse Cholesky Factorization, SIAM Journal on Scientific Computing, Vol 21, Issue 1, pages: 129 - 144, 1999.

  26. References A.J. Smith, Cache Memories, ACM Computing Surveys, Vol 14, Issue 3, pages: 473-530, 1982. S. Toledo, A survey of out-of-core algorithms in numerical linear algebra, In External Memory Algorithms and Visualization, J. Abello and J. S. Vitter, Eds., DIMACS Series in Discrete Mathematics and Theoretical Computer Science, 1999.
