Jacketed-Glass-Reactor-LB-96JGR

<br>The Jacketed Glass Reactor is an advanced laboratory tool featuring a resilient <br>double-layered glass design for precise temperature regulation. With user-friendly<br>attributes, it is perfect for a variety of research applications, ensuring reliable <br>and efficient chemical processes. Ideal for both research and production settings, <br>it offers unparalleled performance in scientific experiments.

Mary238
Télécharger la présentation

Jacketed-Glass-Reactor-LB-96JGR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

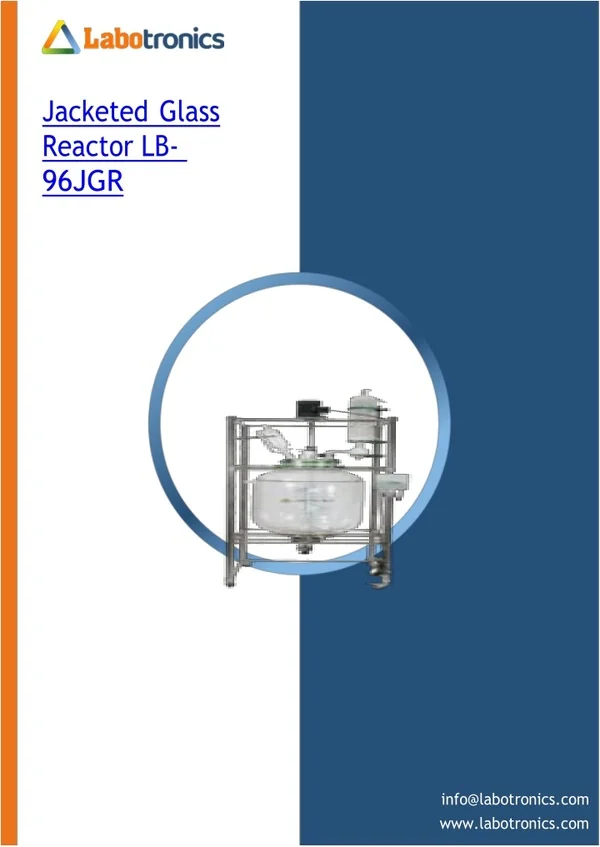

  1. Jacketed Glass Reactor LB- 96JGR info@labotronics.com www.labotronics.com

  2. Overview Jacketed Glass Reactor has a capacity of 150 L, with a rotating speed from 0 rpm to 600 rpm. It is equipped with a maximum jacket pressure of 0.5 bar. It features PTFE wetted components in order to prevent corrosion and enhances chemical resistance. It has a large dual layer condenser for efficient condensation during distillation and reflux operations. Specifications : Reaction volume 150 L Jacket volume 40 L Rotating speed 0 rpm ~ 600 rpm Working temp. range -60 °C ~ 200 °C Neck number on lid 6 Max jacket pressure 0.5 bar Overall dimension 1050 x 850 x 2900 mm Motor power 370 W Features : Material: Stainless Steel 304 and epoxy-coating aluminumGlassware is made of borosilicate 3.3 glass for excellent chemical and physical performance Glass/PTFE wetted components for outstanding corrosion resistance Heating fluid inlet/outlet Ports: 20 mm glass hose barb Pressure rating: Full vacuum to atmosphere Cooling area: 0.2 m (double coil)

  3. Applications : Used for biochemical and synthesis reaction-distillation, reflux, stirring, etc. at a constant temperature conditions Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
