Atomic Structure Timeline

Atomic Structure Timeline. Use the following information to complete the lecture handout. On tomorrow’s quiz, you will be expected to… draw the atomic models match scientists to their experiments and discoveries place the models in chronological order. Democritus (400 B.C.).

Mercy
Télécharger la présentation

Atomic Structure Timeline

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Atomic Structure Timeline Use the following information to complete the lecture handout. On tomorrow’s quiz, you will be expected to… draw the atomic models match scientists to their experiments and discoveries place the models in chronological order

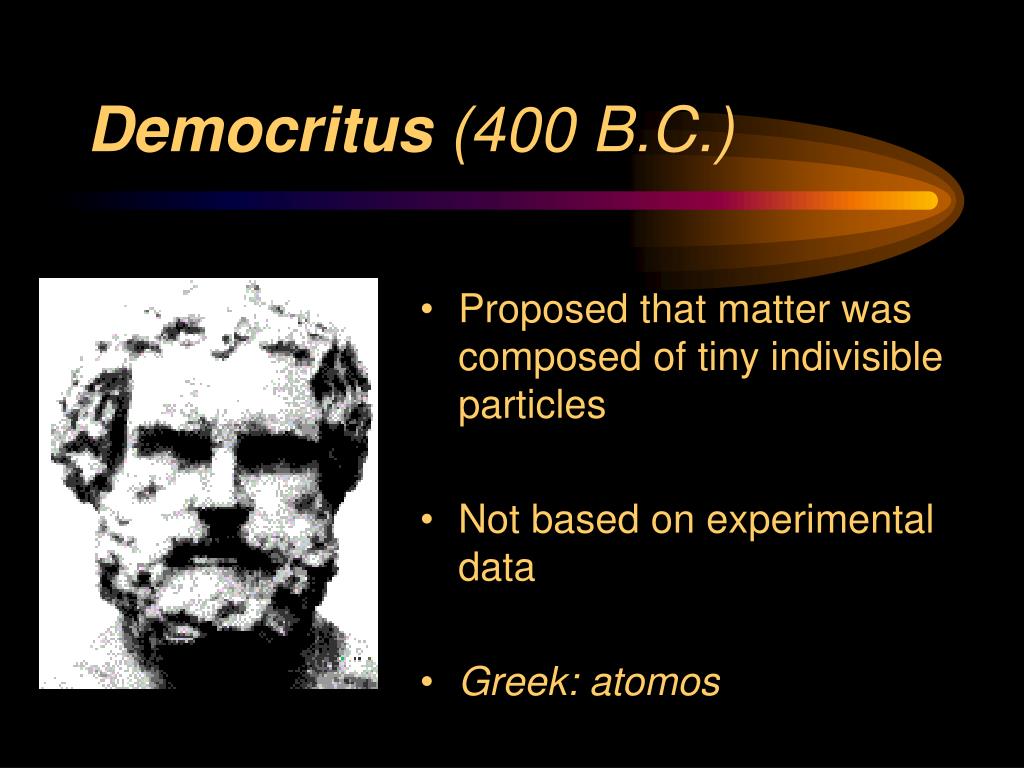

  2. Democritus (400 B.C.) • Proposed that matter was composed of tiny indivisible particles • Not based on experimental data • Greek: atomos

  3. Alchemy (next 2000 years) • Mixture of science and mysticism. • Lab procedures were developed, but alchemists did not perform controlled experiments like true scientists.

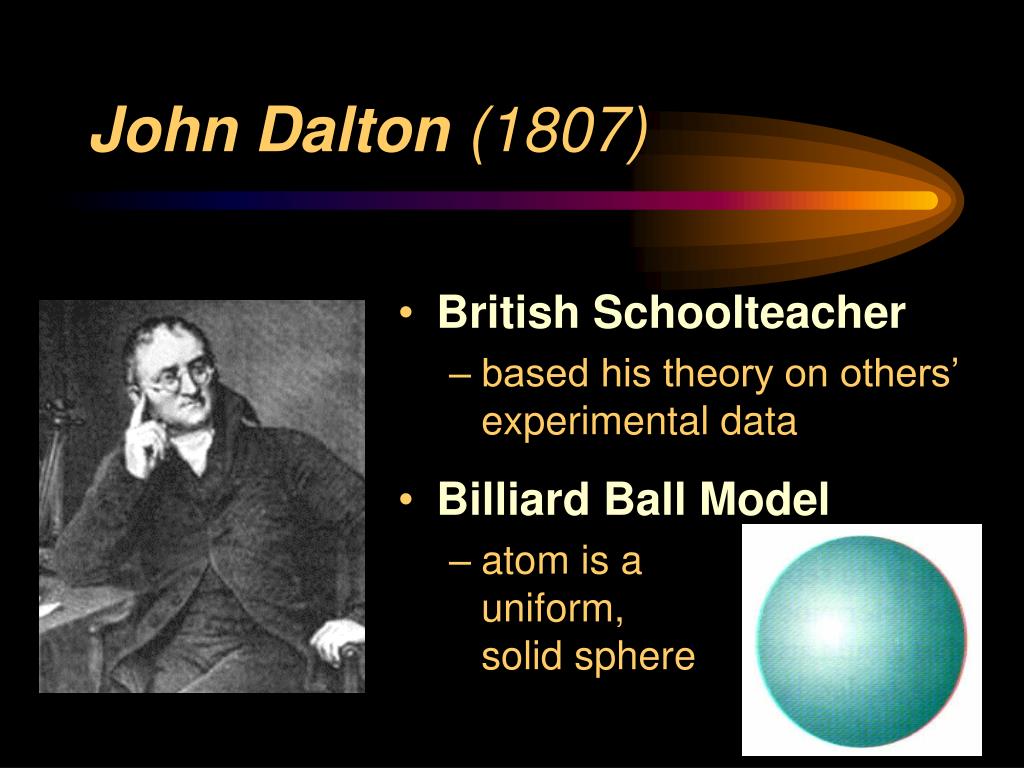

  4. John Dalton (1807) • British Schoolteacher • based his theory on others’ experimental data • Billiard Ball Model • atom is a uniform, solid sphere

  5. John Dalton Dalton’s Four Postulates 1. Elements are composed of small indivisible particles called atoms. 2. Atoms of the same element are identical. Atoms of different elements are different. 3. Atoms of different elements combine together in simple proportions to create a compound. 4. In a chemical reaction, atoms are rearranged, but not changed.

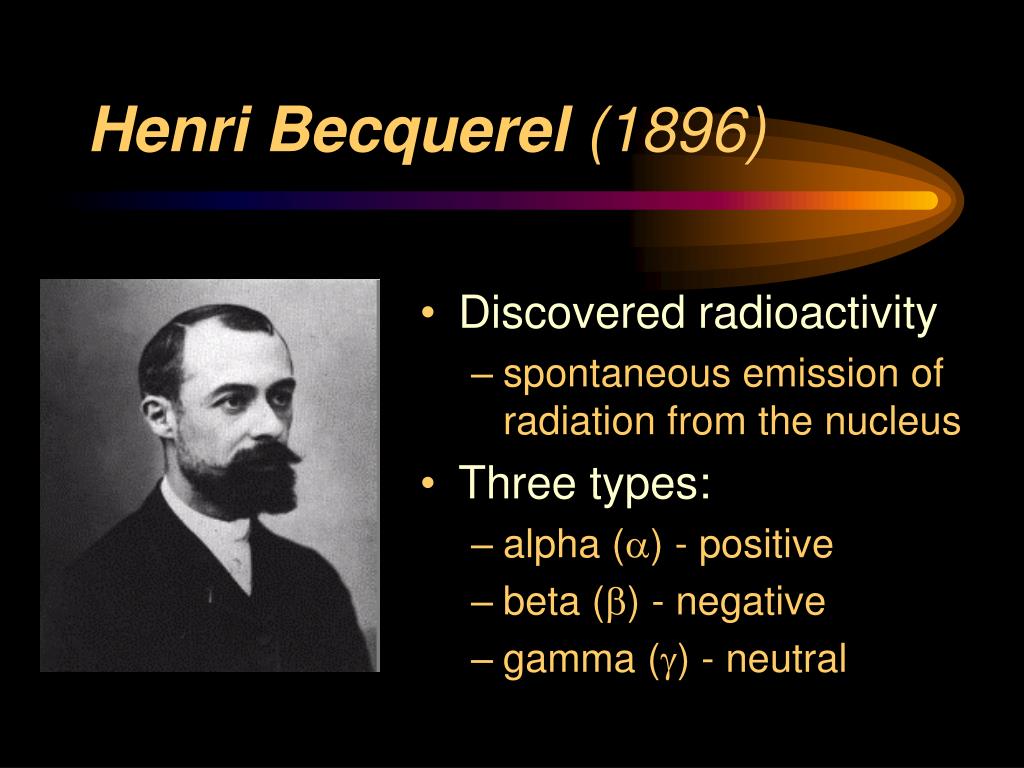

  6. Henri Becquerel (1896) • Discovered radioactivity • spontaneous emission of radiation from the nucleus • Three types: • alpha () - positive • beta () - negative • gamma () - neutral

  7. J. J. Thomson (1903) • Cathode Ray Tube Experiments • beam of negative particles • Discovered Electrons • negative particles within the atom • Plum-pudding Model

  8. J. J. Thomson (1903) Plum-pudding Model • positive sphere (pudding) with negative electrons (plums) dispersed throughout

  9. Ernest Rutherford (1911) • Gold Foil Experiment • Discovered the nucleus • dense, positive charge in the center of the atom • Nuclear Model

  10. Ernest Rutherford (1911) • Nuclear Model • dense, positive nucleus surrounded by negative electrons

  11. Niels Bohr (1913) • Bright-Line Spectrum • tried to explain presence of specific colors in hydrogen’s spectrum • Energy Levels • electrons can only exist in specific energy states • Planetary Model

  12. Niels Bohr (1913) • Planetary Model • electrons move in circular orbits within specific energy levels Bright-line spectrum

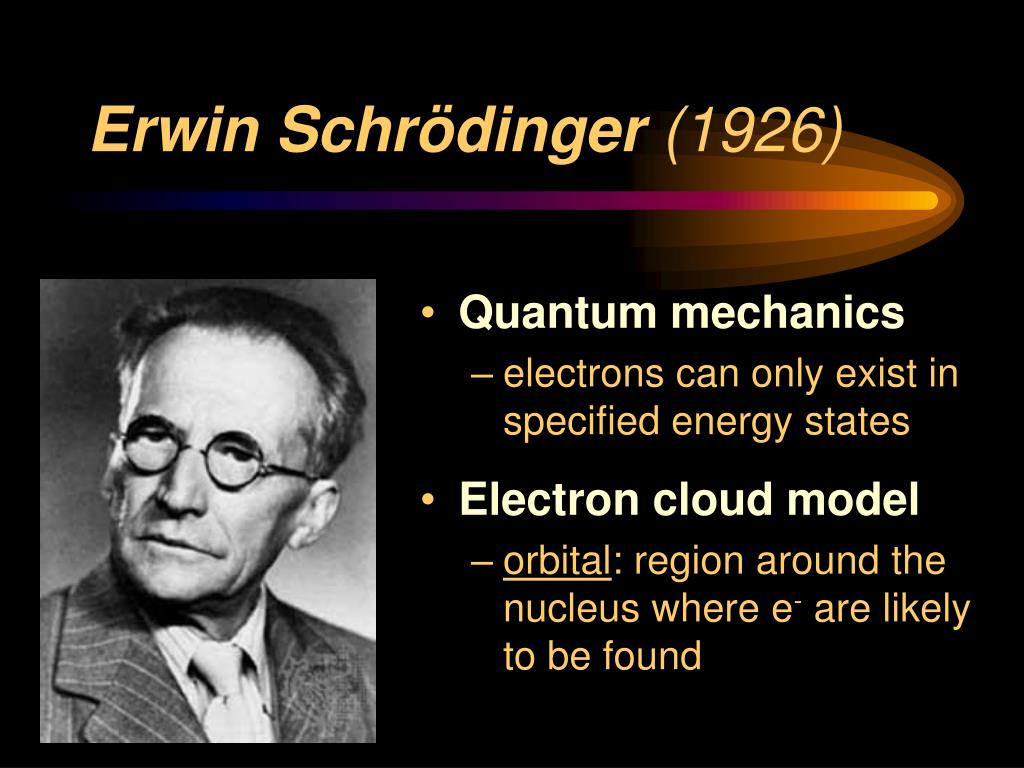

  13. Erwin Schrödinger (1926) • Quantum mechanics • electrons can only exist in specified energy states • Electron cloud model • orbital: region around the nucleus where e- are likely to be found

  14. Erwin Schrödinger (1926) Electron Cloud Model (orbital) • dots represent probability of finding an e-not actual electrons

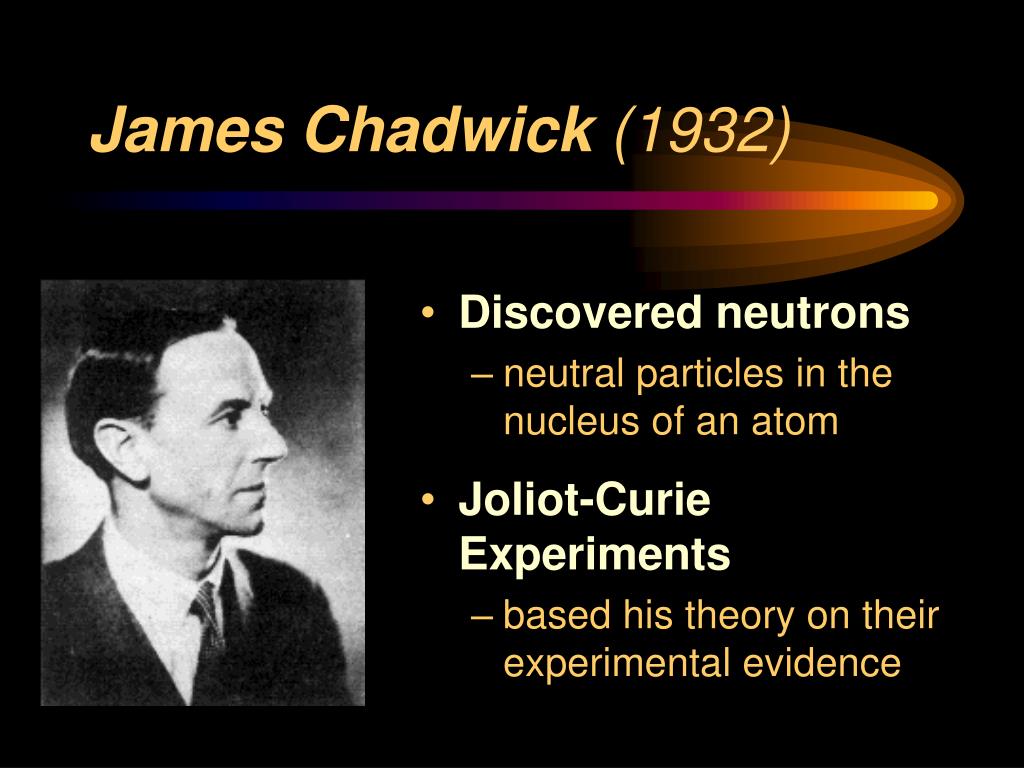

  15. James Chadwick (1932) • Discovered neutrons • neutral particles in the nucleus of an atom • Joliot-Curie Experiments • based his theory on their experimental evidence

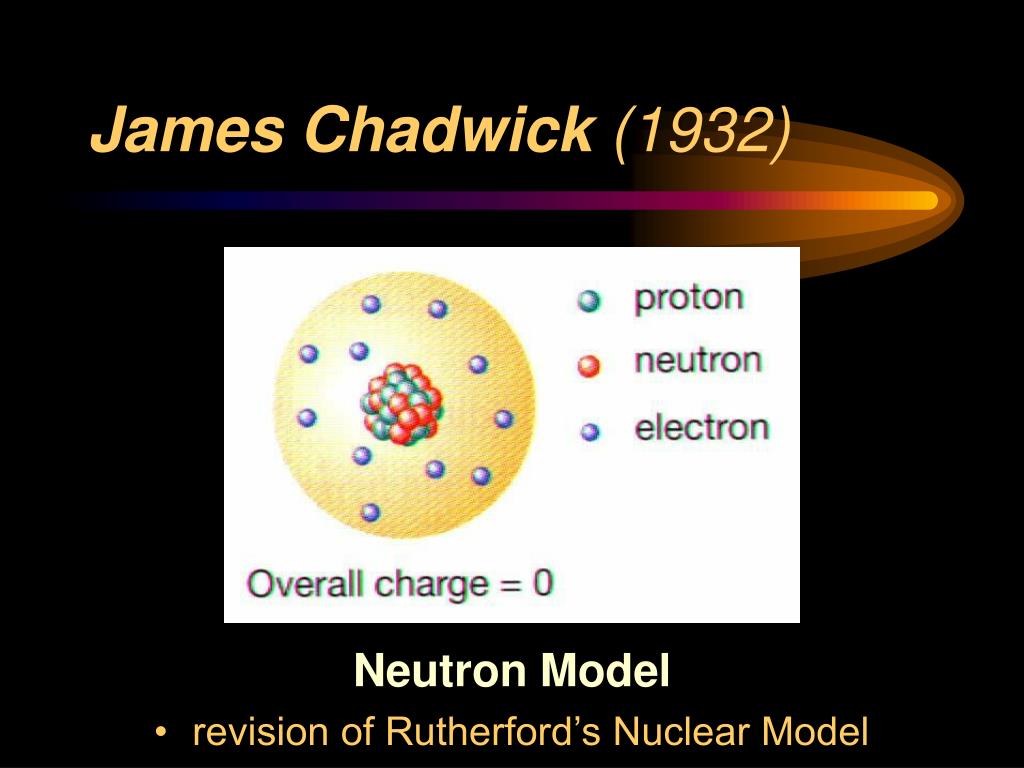

  16. James Chadwick (1932) Neutron Model • revision of Rutherford’s Nuclear Model
