  1. Ted – A language for Modeling Telecommunication Networks Kalyan Perumall, Richard Fujimoto Georgia College of Technology Andrew Ogielski Rutgers university Presented By: Abhishek Chugh

  2. Introduction • Designed mainly for modeling telecommunication networks • Language specification is split into two distinct parts – • MetaTed • External language • MetaTed – incomplete language – more appropriately called a framework. • When MetaData is combined with any programming language, say £, complete language is formed. • £ - flavor of TeD. • concept of outsourcing.

  3. Objectives in the design of TeD Language • General for modeling current as well as future telecommunication networks. • Should provide for specification, description as well as simulation. • Support object orientation – encapsulation, inheritance and polymorphism. • Should provide support for user-definable and extensible libraries.

  4. Fundamental Concepts • Entity • Event • Channel • Architecture • State • Behavior • Process • Component • Result

  5. Concepts Overview • Physical and conceptual objects are modeled as entities. • Entities interact through channels. • Events – Information units which flow through channels. • Entities are highly modular. • The entity construct describes the entity’s external input/output view.

  6. Entity

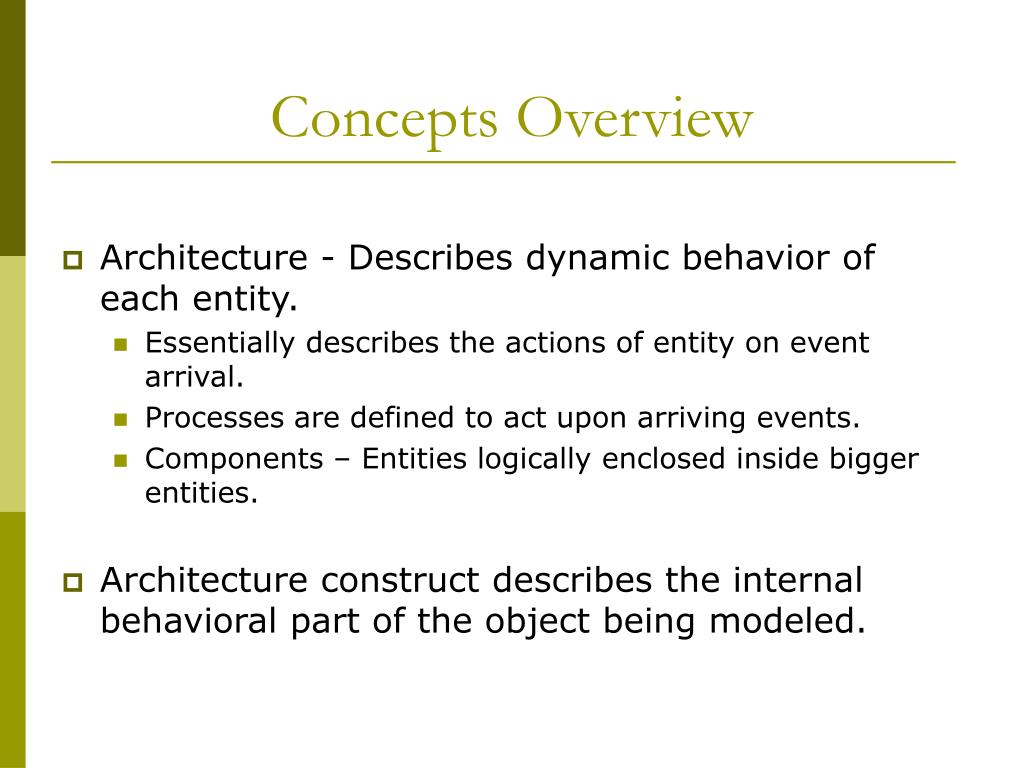

  7. Concepts Overview • Architecture - Describes dynamic behavior of each entity. • Essentially describes the actions of entity on event arrival. • Processes are defined to act upon arriving events. • Components – Entities logically enclosed inside bigger entities. • Architecture construct describes the internal behavioral part of the object being modeled.

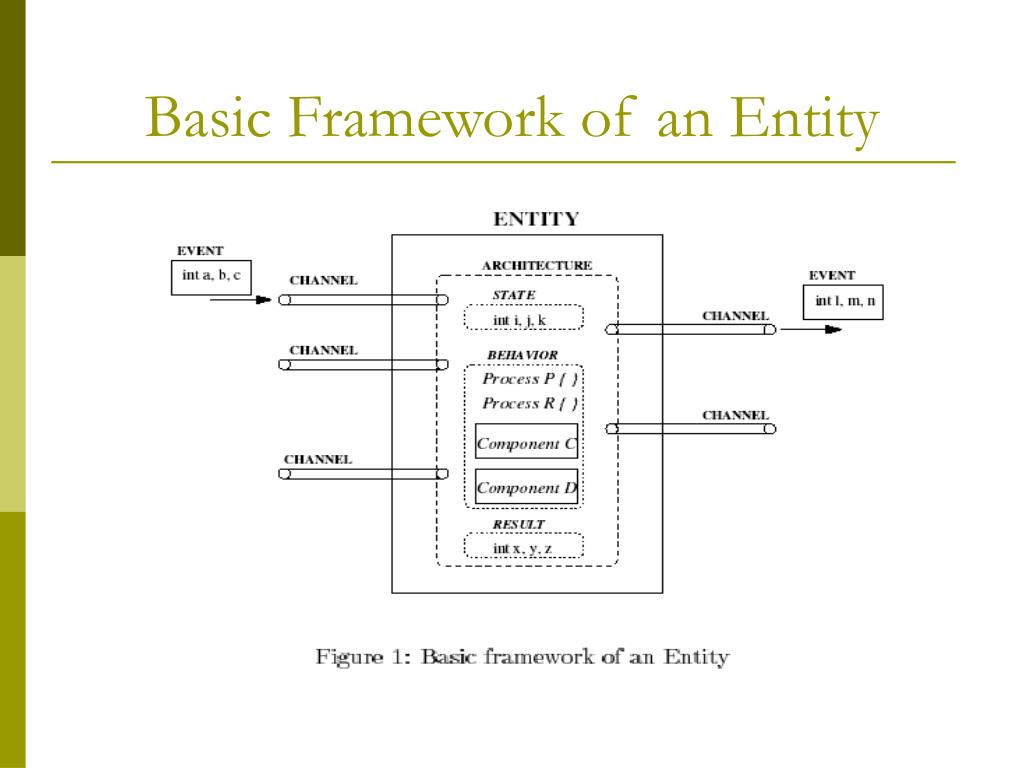

  8. Basic Framework of an Entity

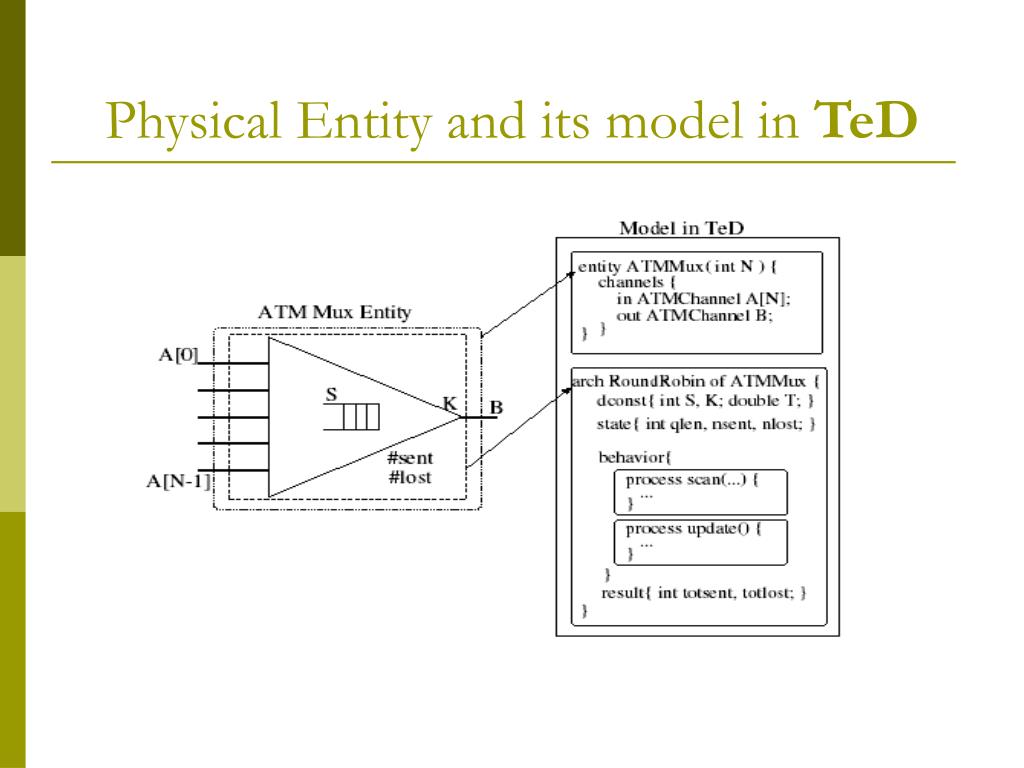

  9. Physical Entity and its model in TeD

  10. Entity Declaration • Defines the external view of a physical or conceptual object. • Essentially defines the input and output specifications. Entity ATMMux ( int N ) { channels { in ATMChannel A[$PARAM(N)$] ; out ATMChannel B ; } }

  11. Event and Channel Declaration • Channel – port of input or output. • An output channel of an entity can be mapped to an input channel of another entity. • A channel type is defined as a set of event types. • Two channels can be mapped only if they are compatible. • Declarations Event ATMCell {$ char data[53]; $} Channel ATMChannel { ATMCEll }

  12. Architecture Declaration • Mainly consists of following parts: • Deferred Constants: Items whose value could be different for different instances of entity. • State: Variables that together form a part of the abstract state of the model. • Channels: Set of channels used for communication among internal processes and components of an architecture. • Behavior Processes: Threads of computation that act on events arriving on interface and internal channels. • Behavior Components: Set of entities that ft logically form sub entities of an entity’s behavior. • Result: A set of values that are an abstraction of result.

  13. Architecture Declaration Declaration: Architecture of ATMMux ( int N ) { dconst{$ int S, K; double T; $} state{$ int qlen, nsent, nlost; $ } behavior { process#1 scan( A ); process#2 update; } result{$ int totsent, totlost; $ } }

  14. Processes • Leaf elements in the behavior tree. • Acts on behalf of entities that own them. • Basic functionality consists of combination of two types of action: • Computation: using state variables. • Synchronization: using channels and time. • Processes can be categorized based on their channel-synchronization method: • Arrival-driven: Wait for activity on a set of channels and performcomputation actions upon arrival of events on that channels. • Self-Driven: Consists of combination of one or more computation and synchronization actions.

  15. Processes • Computation actions are specified using action statements in the external language. • Synchronization actions are specified using wait statement. • Wait onchannel-vars causes process to wait until at least one event arrives on at least one channel. • Wait untilcondition makes the process to wait until the condition evaluates to true. • Wait forexpression causes the process to wait for amount of time given by the expression.

  16. Process Declaration process #1 ATMMux : scan( A[ $0$ to $PARAM(N)-1$ ] ) { \{ for( int i=0, n=ASETSZ(A); i<n; i++ ) { if( STATE(qlen) < DCONST(S) ) STATE(qlen)++ ; else STATE(nlost)++ ; } \} } process #2 ATMMux : update { /{ if( STATE(qlen) > 0 ) { { CHANNEL(B) << EVENT(ATMCell,() ); STATE(qlen)--; STATE(nsent)++; } \} }

  17. External Code block • External language expressions and declarations are used for certain purposes. • External code blocks are any valid external language expressions enclosed between a pair of $ signs, or between \{ and \}.

  18. Applause !!
