  1. Chapter 7: The Object-Oriented Approach to Requirements Systems Analysis and Design in a Changing

  2. The Unified Modeling Language and the Object Management Group • Object-oriented modeling notation is Unified Modeling Language (UML) • UML was presented to Object Management Group (OMG) as standard modeling technique • Purpose of Object Management Group • Promote theory and practice of object technology for development of distributed systems • Provide common architectural framework for OO Systems Analysis and Design in a Changing World, 3rd Edition

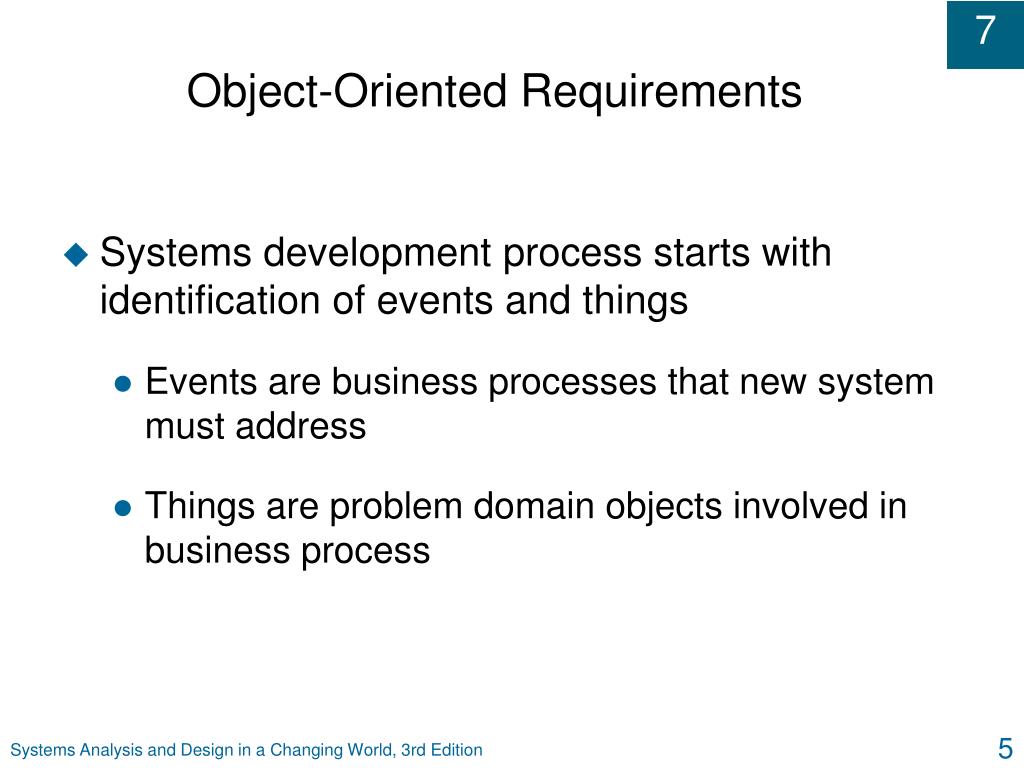

  3. Object-Oriented Requirements • Systems development process starts with identification of events and things • Events are business processes that new system must address • Things are problem domain objects involved in business process Systems Analysis and Design in a Changing World, 3rd Edition

  4. Object-Oriented Approach Models • Class diagram – definition of system components • Use case diagrams and use case descriptions – show user roles and how they use the system • Systems sequence diagrams (SSDs) – define inputs and outputs and sequence of interactions between user and system for a use case • Statechart diagrams – describe states of each object • Activity diagrams – describe user activities Systems Analysis and Design in a Changing World, 3rd Edition

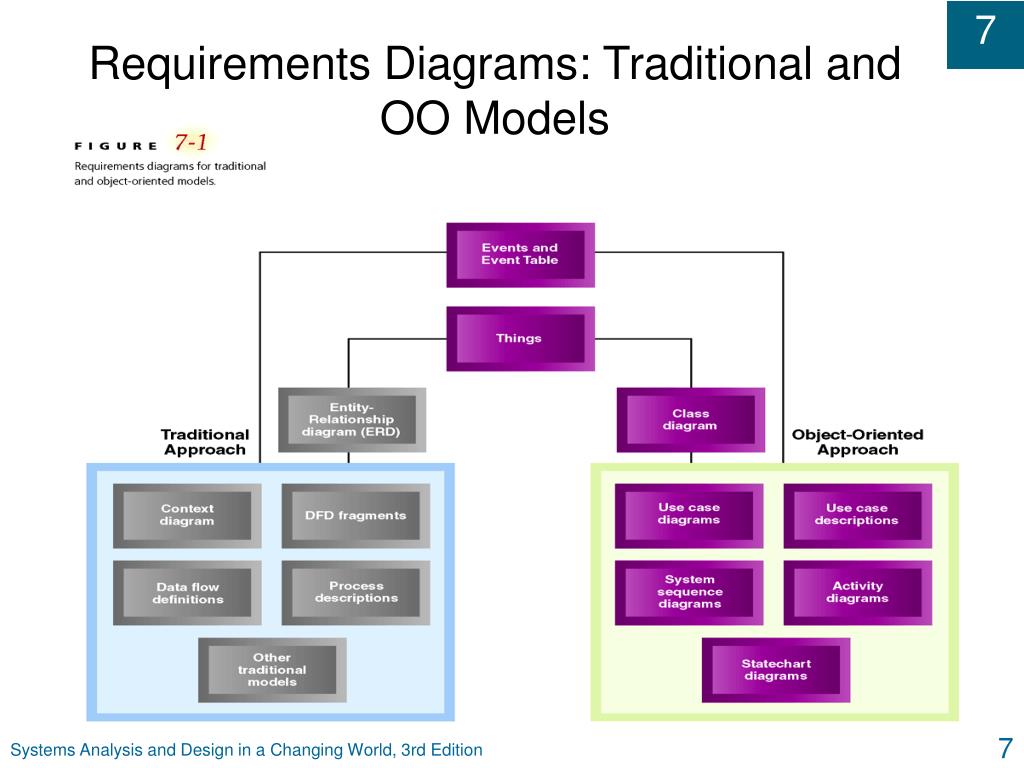

  5. Requirements Diagrams: Traditional and OO Models Systems Analysis and Design in a Changing World, 3rd Edition

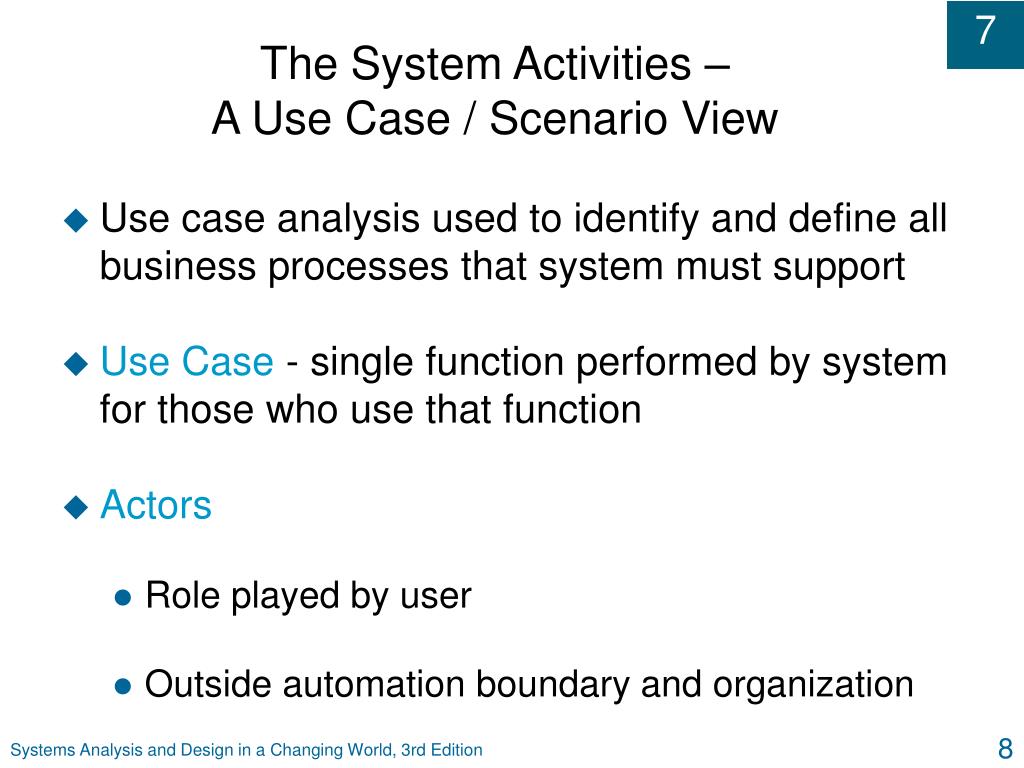

  6. The System Activities – A Use Case / Scenario View • Use case analysis used to identify and define all business processes that system must support • Use Case - single function performed by system for those who use that function • Actors • Role played by user • Outside automation boundary and organization Systems Analysis and Design in a Changing World, 3rd Edition

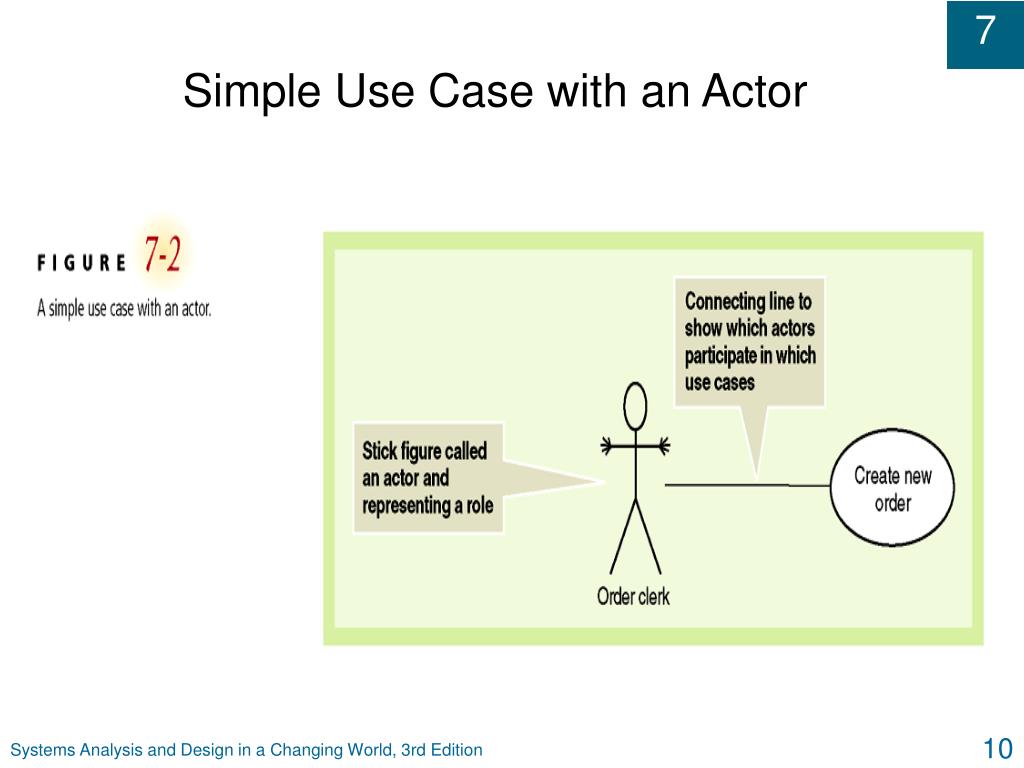

  7. Simple Use Case with an Actor Systems Analysis and Design in a Changing World, 3rd Edition

  8. Use Case Diagram with System Boundary Systems Analysis and Design in a Changing World, 3rd Edition

  9. Use Case of Customer Support System Systems Analysis and Design in a Changing World, 3rd Edition

  10. All Use Cases Including Customer Systems Analysis and Design in a Changing World, 3rd Edition

  11. Example of Order-Entry Subsystem with <<Includes>> Use Cases(Figure 7-6) <<includes>> Common Subroutines Systems Analysis and Design in a Changing World, 3rd Edition

  12. Developing a Use Case Diagram • Starting points for use case development • Use event table • Identify all actors of the system • Identify functions actors perform with system • Develop flow of activities to identify various scenarios • Common internal use cases can be identified and separated into different use cases Systems Analysis and Design in a Changing World, 3rd Edition

  13. Brief Description of Create New OrderUse Case Systems Analysis and Design in a Changing World, 3rd Edition

  14. Intermediate Description of the Telephone Order Scenario for Create New Order Systems Analysis and Design in a Changing World, 3rd Edition

  15. Intermediate Description of the Web Order Scenario for Create New Order Systems Analysis and Design in a Changing World, 3rd Edition

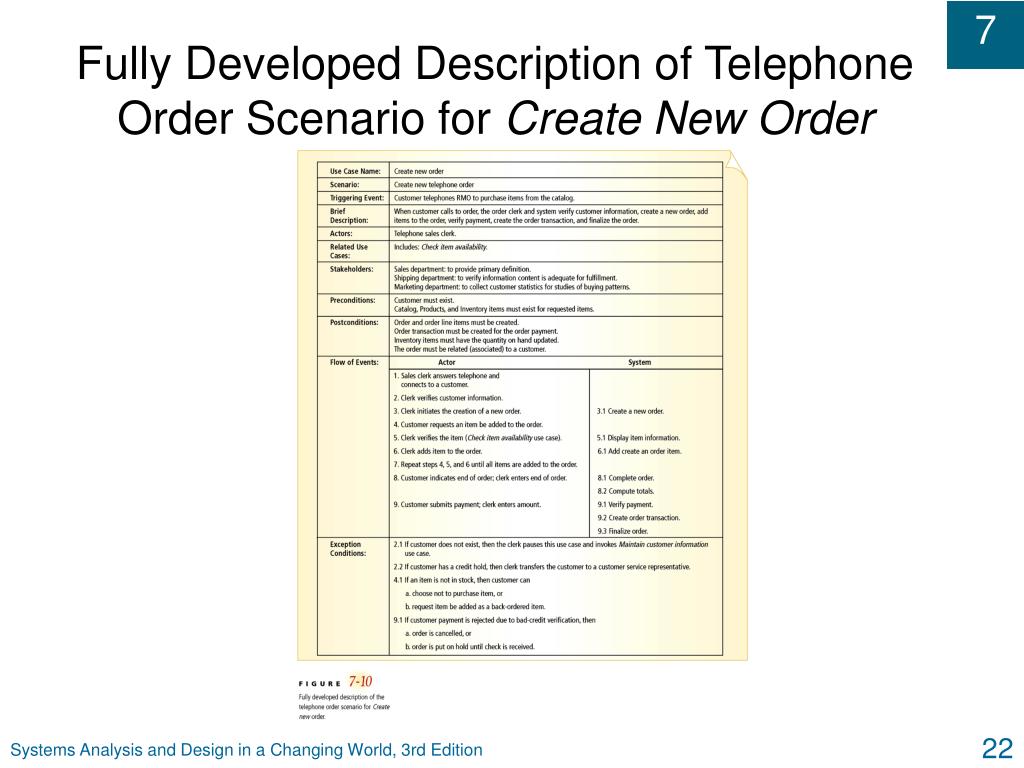

  16. Fully Developed Description of Telephone Order Scenario for Create New Order Systems Analysis and Design in a Changing World, 3rd Edition

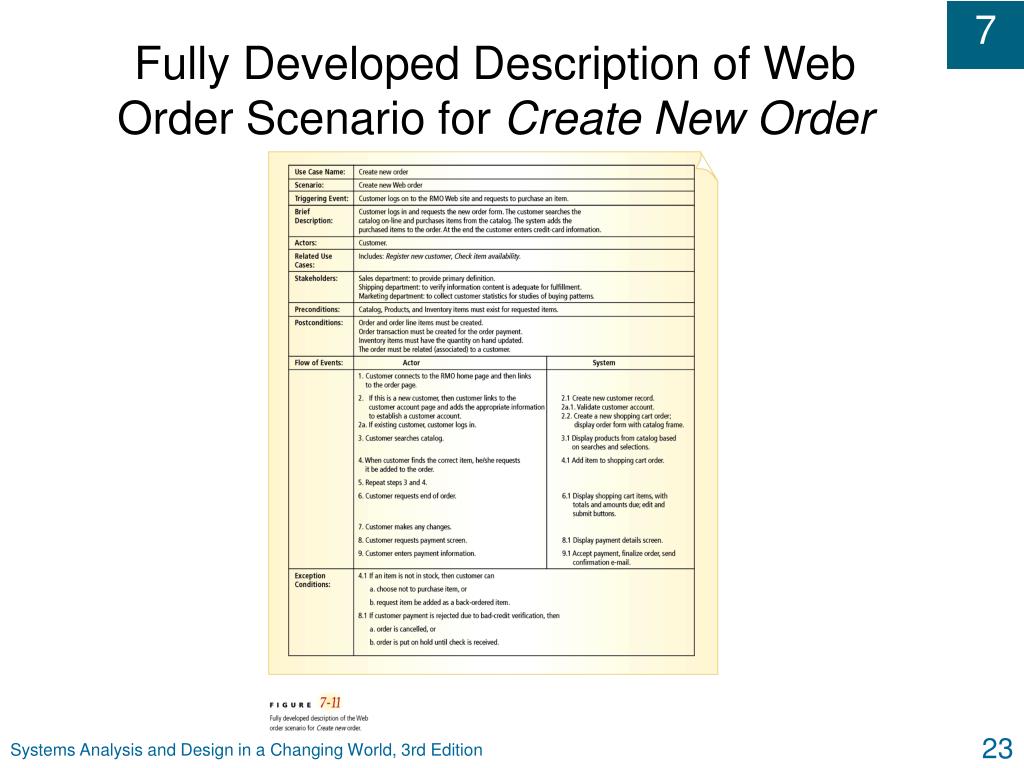

  17. Fully Developed Description of Web Order Scenario for Create New Order Systems Analysis and Design in a Changing World, 3rd Edition

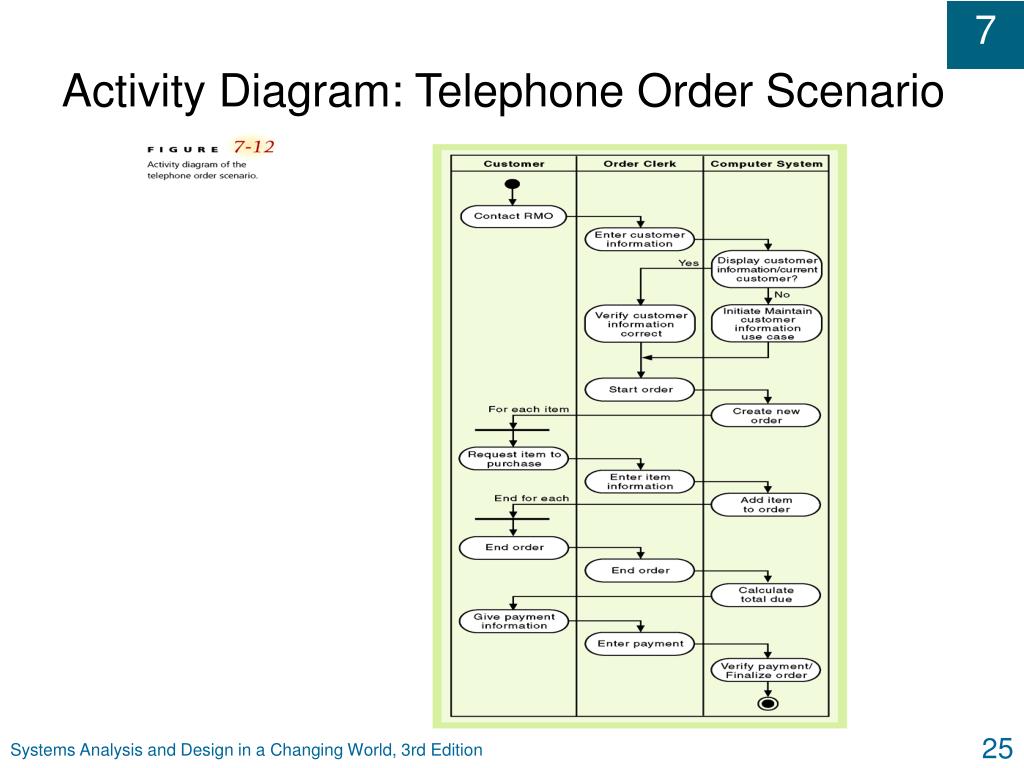

  18. Activity Diagram: Telephone Order Scenario Systems Analysis and Design in a Changing World, 3rd Edition

  19. Activity Diagram: Web Order Scenario Systems Analysis and Design in a Changing World, 3rd Edition

  20. Problem Domain Modeling – The Domain Model Class Diagram • Class diagram is focal point of object-oriented development • Provides definition of system components • Contains important class structural information for implementation with object-oriented programming • Provides conceptual data model to describe classes for database definition • Consists of problem domain classes and implementation classes Systems Analysis and Design in a Changing World, 3rd Edition

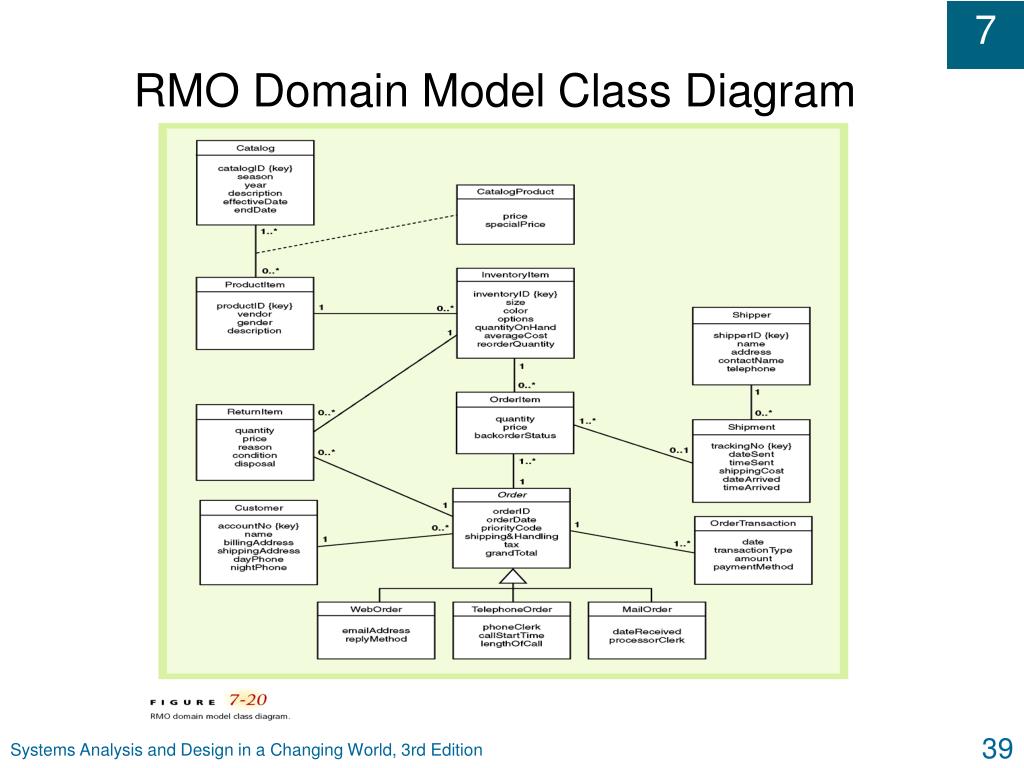

  21. RMO Domain Model Class Diagram Systems Analysis and Design in a Changing World, 3rd Edition

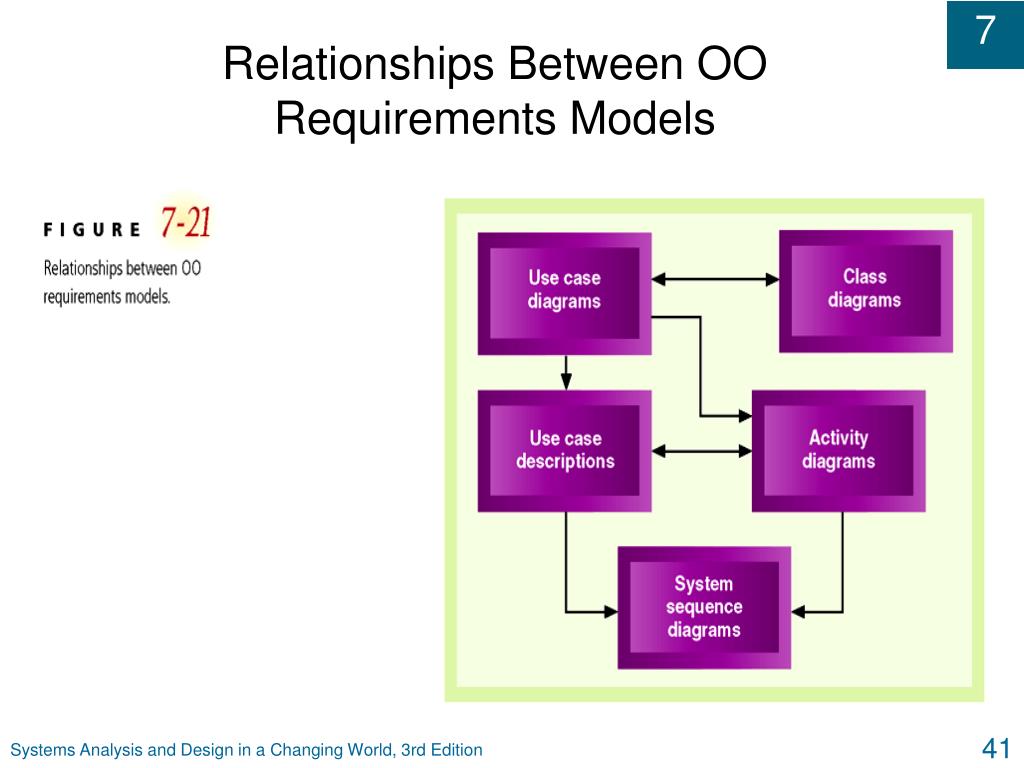

  22. Relationships Between OO Requirements Models Systems Analysis and Design in a Changing World, 3rd Edition

  23. Use Case Diagram for Inventory System Systems Analysis and Design in a Changing World, 3rd Edition

  24. Relationships Between OO Requirements Models (Figure 7-28) Systems Analysis and Design in a Changing World, 3rd Edition
