Data Mining Final Project

1. Data Mining Final Project Nick Foti Eric Kee

2. Topic: Author Identification • Author Identification • Given writing samples, can we determine who wrote them? • This is a well studied field • See also: “stylometry” • This has been applied to works such as • The Bible • Shakespeare • Modern texts as well

3. Corpus Design • A corpus is: • A body of text used for linguistic analysis • Used Project Gutenberg to create corpus • The corpus was designed as follows • Four authors of varying similarity • Anne Brontë • Charlotte Brontë • Charles Dickens • Upton Sinclair • Multiple books per author • Corpus size: 90,000 lines of text

4. Dataset Design • Extracted features common in literature • Word Length • Frequency of “glue” words • See Appendix A and [1,2] for list of glue words • Note: corpus was processed using • C#, Matlab, Python • Data set parameters are • Number of dimensions: 309 • Word length and 308 glue words • Number of observations: ≈ 3,000 • Each obervation ≈ 30 lines of text from a book

5. Classifier Testing and Analysis • Tested classifier with test data • Used testing and training data sets • 70% for training, 30% for testing • Used cross-validation • Analyzed Classifier Performance • Used ROC plots • Used confusion matrices • Used common plotting scheme (right) Red Dots Indicate True-Positive Cases E X A M P L E 78% 55% 45% 22% Anne B. FP Anne B. TP Charlotte B. FP Charlotte B. TP

6. Binary Classification

7. Word Length Classification • Calculated average word length for each observation • Computed gaussian kernel density from word length samples • Used ROC curve to calculate cutoff • Optimized sensitivity and specificity with equal importance

8. Word Length: Anne B. vs Upton S. Anne Brontë Charlotte Brontë 100% 100% 0% 0% Anne B. F P Upton Sinclair F P Upton Sinclair T P Anne B. T P

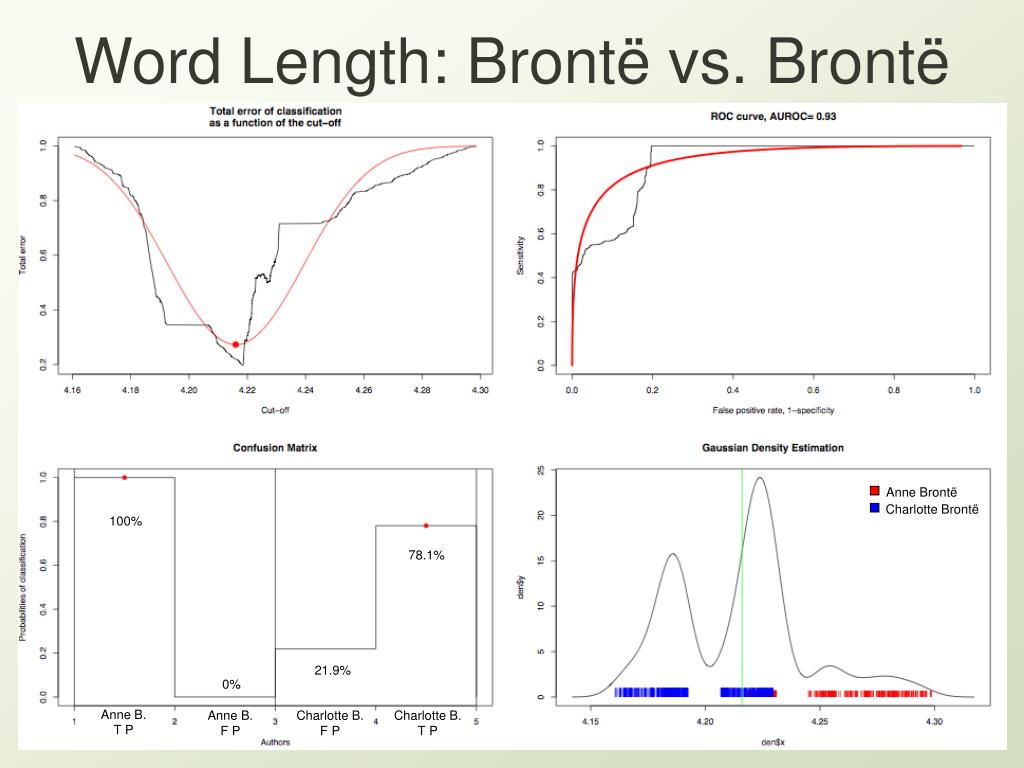

9. Word Length: Brontë vs. Brontë Anne Brontë Charlotte Brontë 100% 78.1% 21.9% 0% Anne B. T P Anne B. F P Charlotte B. F P Charlotte B. T P

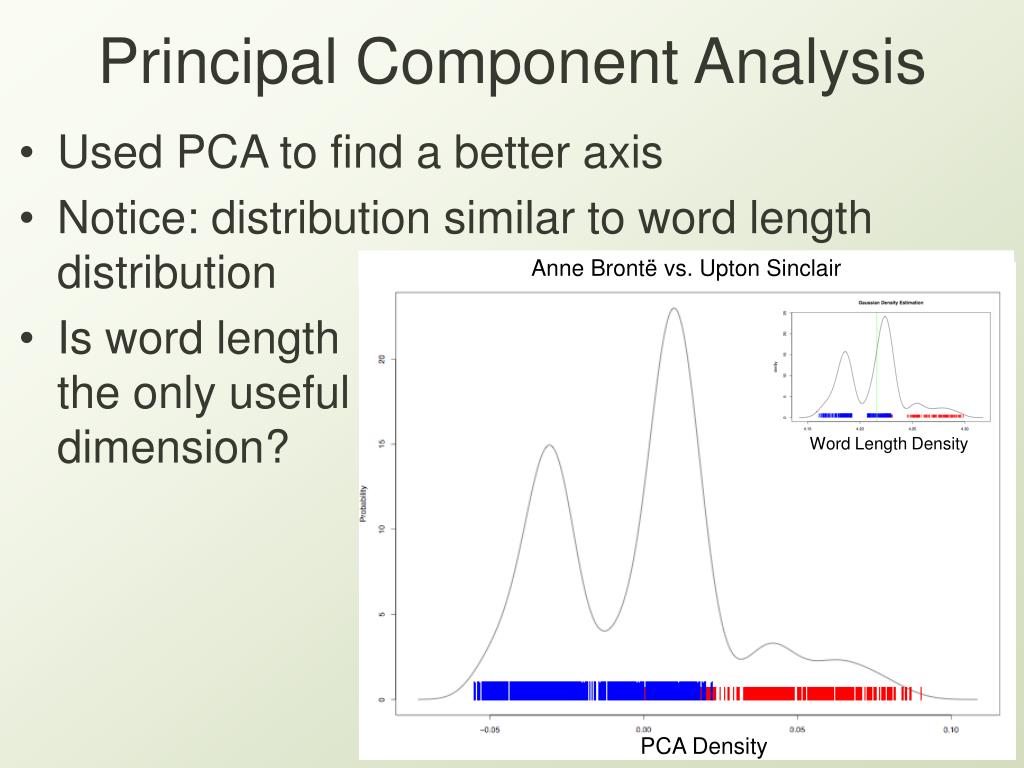

10. Principal Component Analysis • Used PCA to find a better axis • Notice: distribution similar to word length distribution • Is word lengththe only usefuldimension? Anne Brontë vs. Upton Sinclair Word Length Density PCA Density

11. Principal Component Analysis Without word length • It appears that word length is the most useful axis • We’ll come back to this… Anne Brontë vs. Upton Sinclair PCA Density

12. K-Means • Used K-means to find dominant patterns • Unnormalized • Normalized • Trained K-means on training set • To classify observations in test set • Calculate distance of observation to each class mean • Assign observation to the closest class • Performed cross-validation to estimate performance

13. Unnormalized K-means Anne Brontë vs. Upton Sinclair 98.1% 92.1% 7.9% 1.9% Anne B. T P Anne B. F P Upton Sinclair F P Upton Sinclair T P

14. Unnormalized K-means Anne Brontë vs. Charlotte Brontë 95.7% 74.7% 25.3% 4.3% Anne B. T P Anne B. F P Charlotte B. F P Charlotte B. T P

15. Normalized K-means Anne Brontë vs. Upton Sinclair 53.3% 50.6% 49.4% 46.7% Anne B. T P Anne B. F P Upton Sinclair F P Upton Sinclair T P

16. Normalized K-means Anne Brontë vs. Charlotte Brontë 86.7% 84.2% 15.8% 13.3 % Anne B. T P Anne B. F P Charlotte B. F P Charlotte B. T P

17. Discriminant Analysis • Peformed discriminant analysis • Computed with equal covariance matrices • Used average Omega of class pairs • Computed with unequal covariance matrices • Quadratic discrimination fails because covariance matrices have 0 determinant (see equation below) • Computed theoretical misclassification probability • To perform quadratic discriminant analysis • Compute Equation 1 for each class • Choose class with minimum value (1)

18. Discriminant Analysis Anne Brontë vs. Upton Sinclair Empirical P(err) = 0.116 Theoretical P(err) = 0.149 96.2% 92.2% 3.8% 7.8% Anne B. T P Anne B. F P Upton Sinclair F P Upton Sinsclair T P

19. Discriminant Analysis Anne Brontë vs. Charlotte Brontë Empirical P(err) = 0.152 Theoretical P(err) = 0.181 92.7% 89.2% 10.8% 7.3% Anne B. T P Anne B. F P Charlotte B. F P Charlotte B. T P

20. Logistic Regression • Fit linear model to training data on all dimensions • Threw out singular dimensions • Left with ≈ 298 coefficients + intercept • Projected training data onto synthetic variable • Found threshold by minimizing error of misclassification • Projected testing data onto synthetic variable • Used threshold to classify points

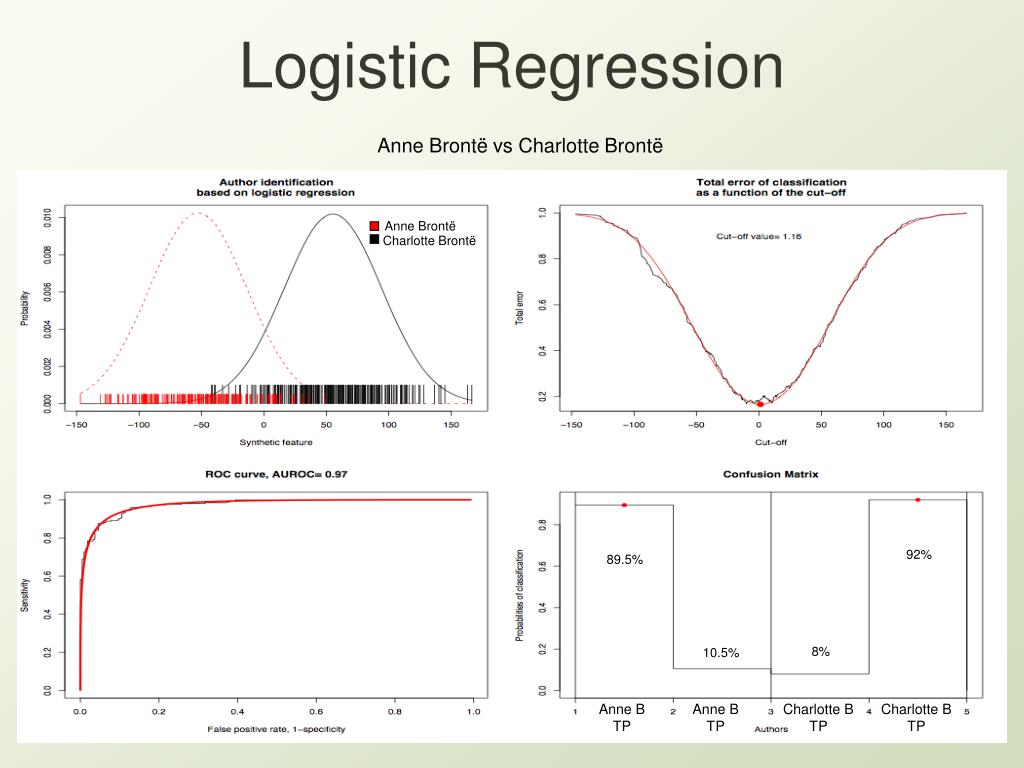

21. Logistic Regression Anne Brontë vs Charlotte Brontë Anne Brontë Charlotte Brontë 92% 89.5% 8% 10.5% Anne B TP Anne B TP Charlotte B TP Charlotte B TP

22. Logistic Regression Anne Brontë vs Upton Sinclair Anne Brontë Upton Sinclair 98% 99% 2% 2% Anne B TP Anne B FP Upton S TP Upton S FP

23. 4-Class Classification

24. 4-Class K-means • Used K-means to find patterns among all classes • Unnormalized • Normalized • Trained using a training set • Tested performance as in 2-class K-means • Performed cross-validation to estimate performance

25. Unnormalized K-Means 4-Class Confusion Matrix Anne Brontë Charles Dickens Charlotte Brontë Upton Sinclair 88% 87% 59% 54% 34% 22% CD FP AB FP CB TP US FP CD FP AB FP CB FP US FP US FP CD TP AB FP CB FP US FP CD FP AB TP CB FP

26. Normalized K-Means 4-Class Confusion Matrix Anne Brontë Charles Dickens Charlotte Brontë Upton Sinclair 70% 67% 67% 67% 27% 26% 20% CD FP AB FP CB TP US FP CD FP AB FP CB FP US FP CD TP AB FP CB FP US FP CD FP AB TP CB FP US FP

27. Additional K-means testing • Also tested K-means without word length • Recall that we had perfect classification with 1D word length (see plot below) • Is K-means using only 1 dimension to classify? Note: perfect classification only occurs between Anne B. and Sinclair Anne Brontë vs. Upton Sinclair

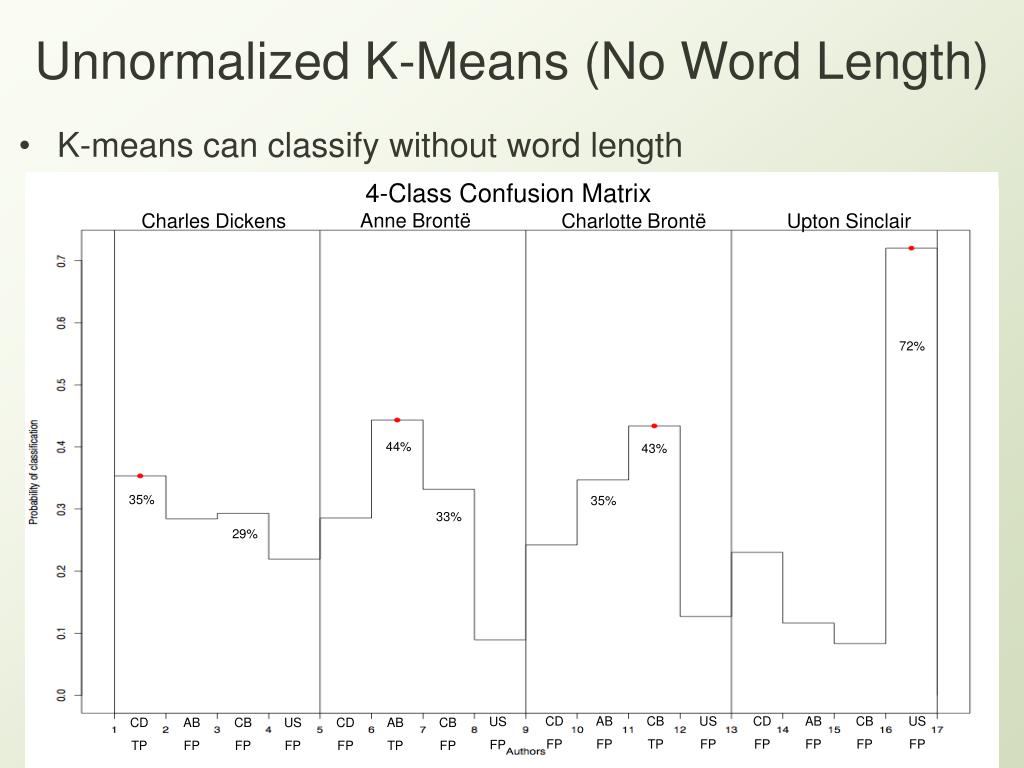

28. Unnormalized K-Means (No Word Length) • K-means can classify without word length 4-Class Confusion Matrix  Anne Brontë Charles Dickens Charlotte Brontë Upton Sinclair 72% 44% 43% 35% 35% 33% 29% CD FP AB FP CB TP US FP CD FP AB FP CB FP US FP US FP CD TP AB FP CB FP US FP CD FP AB TP CB FP

29. Multinomial Regression • Multinomial distribution • Extension of binomial distribution • Random variable is allowed to take on n values • Used multinom(…) to fit log-linear model for training • Used 248 dimensions (max limit on computer) • Returns 3 coefficients per dimension and 3 intercepts • Found probability that observations belongs to each class

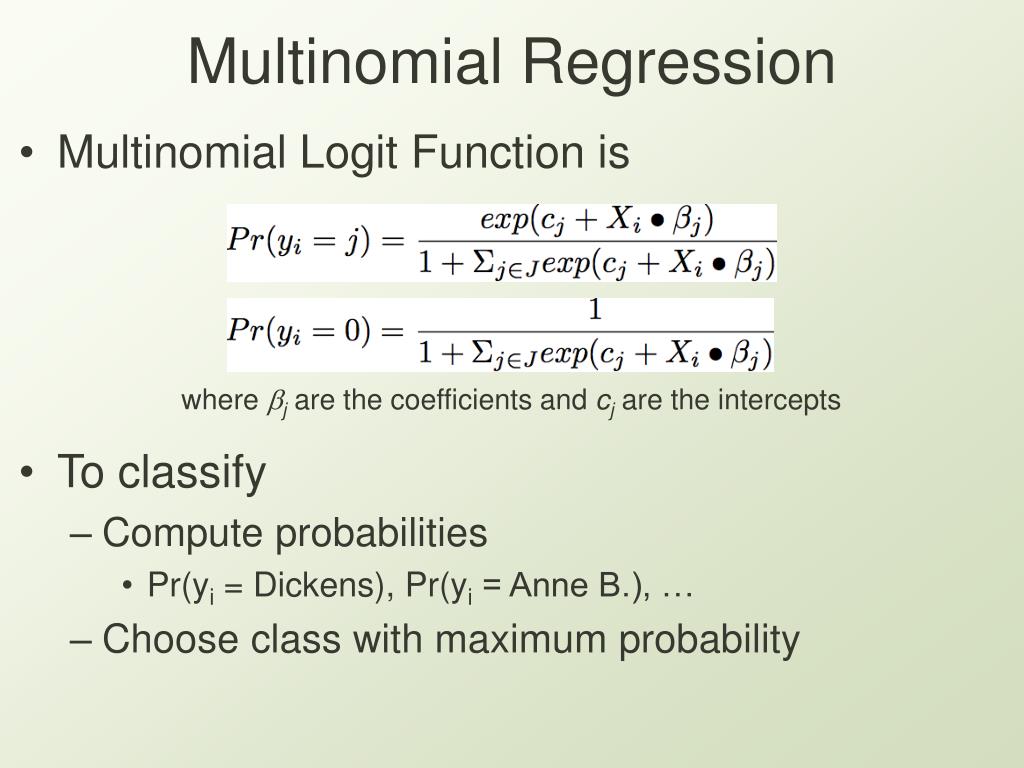

30. Multinomial Regression • Multinomial Logit Function is where jare the coefficients and cj are the intercepts • To classify • Compute probabilities • Pr(yi = Dickens), Pr(yi = Anne B.), … • Choose class with maximum probability

31. Multinomial Regression 4-Class Confusion Matrix Anne Brontë Charles Dickens Charlotte Brontë Upton Sinclair 86% 83% 93% 78% AB FP CD FP CD TP US FP AB TP CB FP CB FP CD FP AB FP CB TP US FP CD FP AB FP CB FP US FP CB FP

32. Multinomial Regression (Without Word Length) • Multinomial regression does not require word length 4-Class Confusion Matrix Anne Brontë Charles Dickens Charlotte Brontë Upton Sinclair 79% 79% 91% 76% AB FP CD FP CD TP US FP AB TP CB FP CB FP CD FP AB FP CB TP US FP CD FP AB FP CB FP US FP CB FP

33. Appendix A: Glue Words I a aboard about above across after again against ago ahead all almost along alongside already also although always am amid amidst among amongst an and another any anybody anyone anything anywhere apart are aren't around as aside at away back backward backwards be because been before beforehand behind being below between beyond both but by can can't cannot could couldn't dare daren't despite did didn't directly do does doesn't doing don't done down during each either else elsewhere enough even ever evermore every everybody everyone everything everywhere except fairly farther few fewer for forever forward from further furthermore had hadn't half hardly has hasn't have haven't having he hence her here hers herself him himself his how however if in indeed inner inside instead into is isn't it its itself just keep kept later least less lest like likewise little low lower many may mayn't me might mightn't mine minus more moreover most much must mustn't my myself near need needn't neither never nevertheless next no no-one nobody none nor not nothing notwithstanding now nowhere of off often on once one ones only onto opposite or other others otherwise ought oughtn't our ours ourselves out outside over own past per perhaps please plus provided quite rather really round same self selves several shall shan't she should shouldn't since so some somebody someday someone something sometimes somewhat still such than that the their theirs them themselves then there therefore these they thing things this those though through throughout thus till to together too towards under underneath undoing unless unlike until up upon upwards us versus very via was wasn't way we well were weren't what whatever when whence whenever where whereas whereby wherein wherever whether which whichever while whilst whither who whoever whom with whose within why without will won't would wouldn't yet you your yours yourself yourselves

34. Conclusions • Authors can be identified by their word usage frequencies • Word length may be used to distingush between the Brontë sisters • Word length does not, however, extend to all authors (See Appendix C) • The glue words describe genuine differences between all four authors • K-means distinguishes the same patterns that multinomial regression classifies • This indicates that supervised training finds legitimate patterns, rather than artifacts • The Brontë sisters are the most similar authors • Upton Sinclair is the most different author

35. Appendix B: Code • See Attached .R files

36. Appendix C: Single Dimension 4-Author Classification Classification using Multinomial Regression 4-Class Confusion Matrix  Anne Brontë Charles Dickens Charlotte Brontë Upton Sinclair 96% 94% 54% 46% 22% 11% 6% 3% CD FP AB FP CB TP US FP CD FP AB FP CB FP US FP US FP CD TP AB FP CB FP US FP CD FP AB TP CB FP

37. References [1] Argamon, Saric, Stein, “Style Mining of Electronic Messages for Multiple Authorship Discrimination: First Results,” SIGKDD 2003. [2] Mitton, “Spelling checkers, spelling correctors and the misspellings of poor spellers,” Information Processing and Management, 1987.
