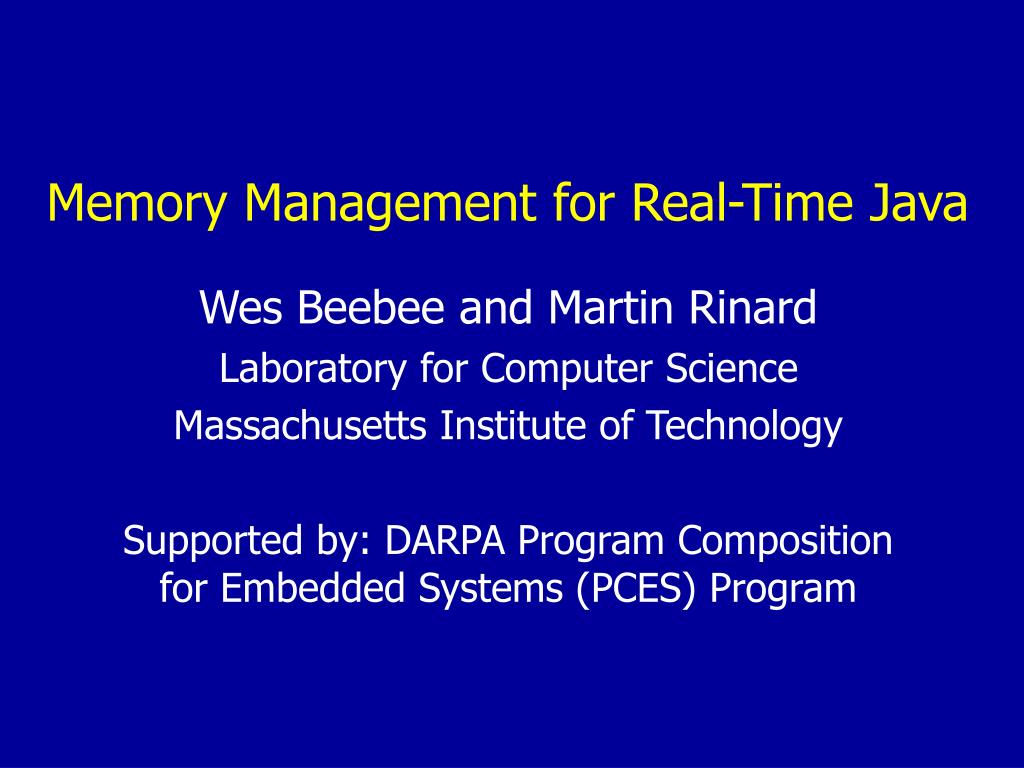

  1. Memory Management for Real-Time Java Wes Beebee and Martin Rinard Laboratory for Computer Science Massachusetts Institute of Technology Supported by: DARPA Program Composition for Embedded Systems (PCES) Program

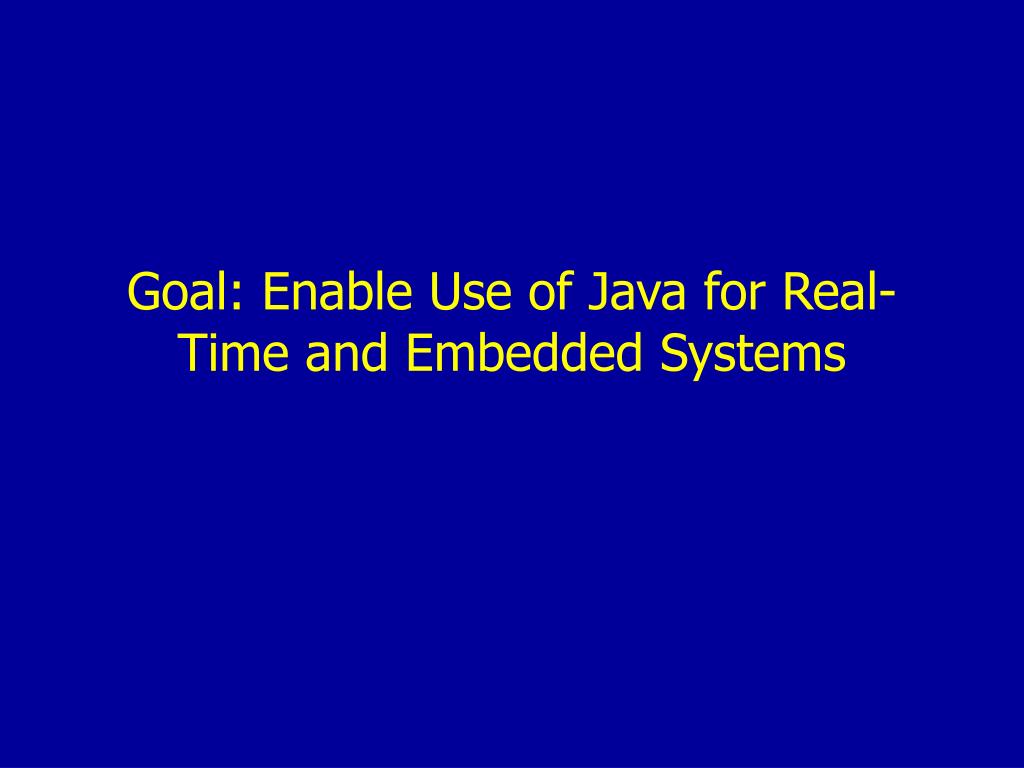

  2. Goal: Enable Use of Java for Real-Time and Embedded Systems

  3. Vision Standard Java Applications Real-Time Computation In Java Downloaded Java Applets Unified Language/Environment Facilitates Interaction

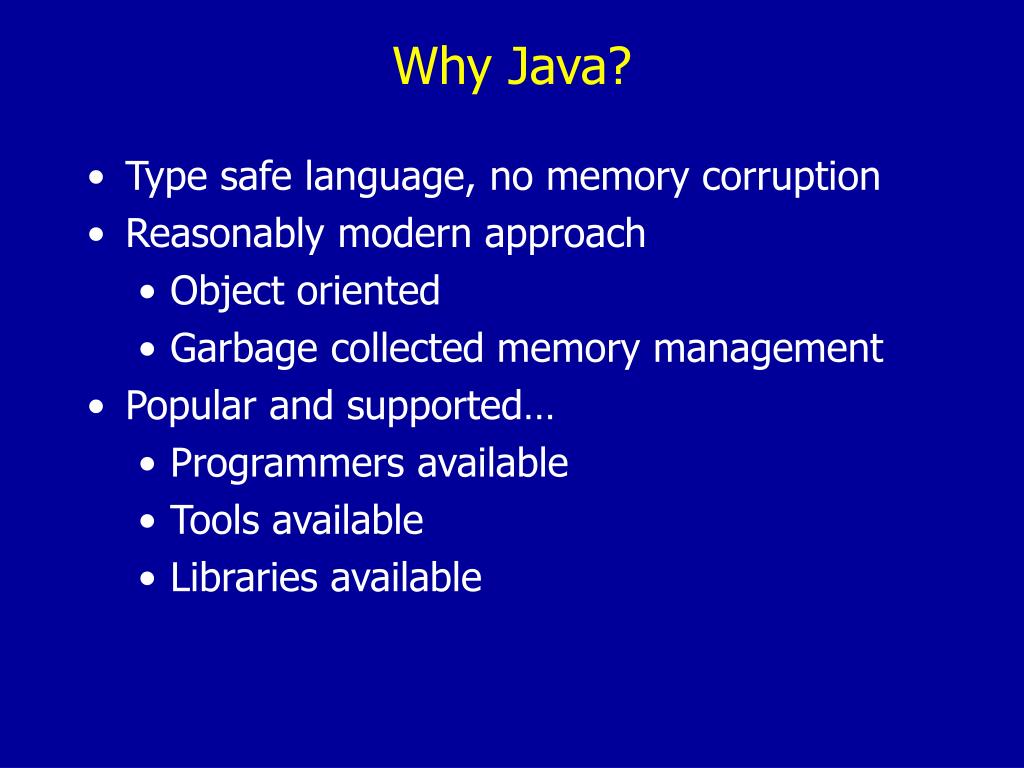

  4. Why Java? • Type safe language, no memory corruption • Reasonably modern approach • Object oriented • Garbage collected memory management • Popular and supported… • Programmers available • Tools available • Libraries available

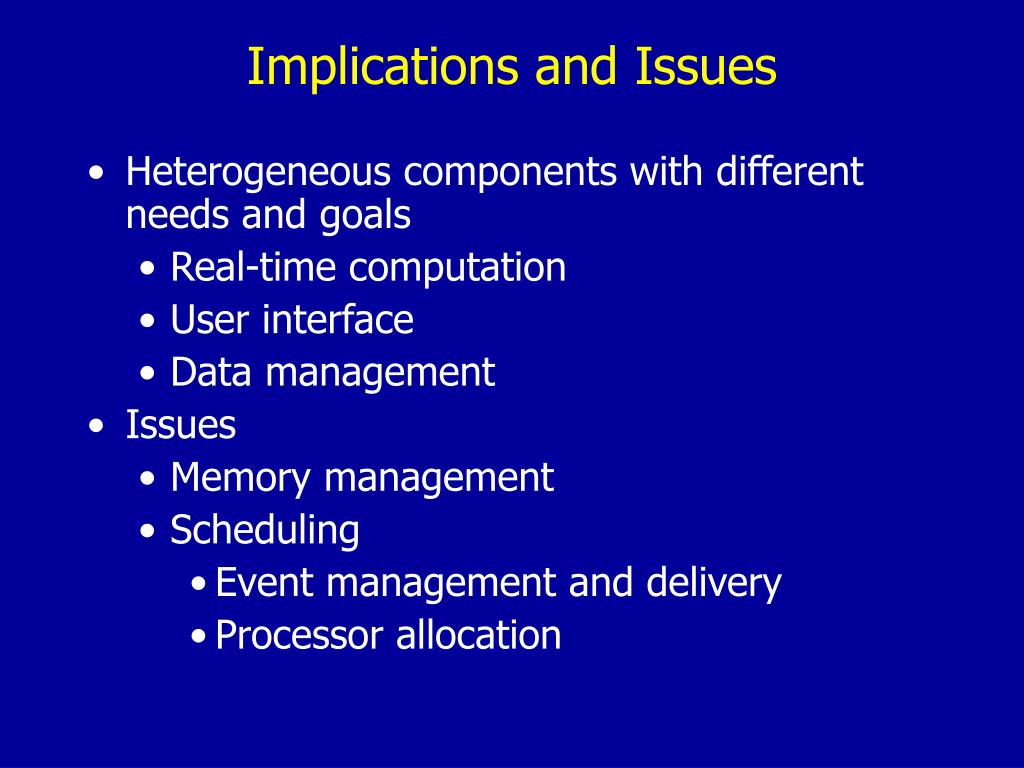

  5. Implications and Issues • Heterogeneous components with different needs and goals • Real-time computation • User interface • Data management • Issues • Memory management • Scheduling • Event management and delivery • Processor allocation

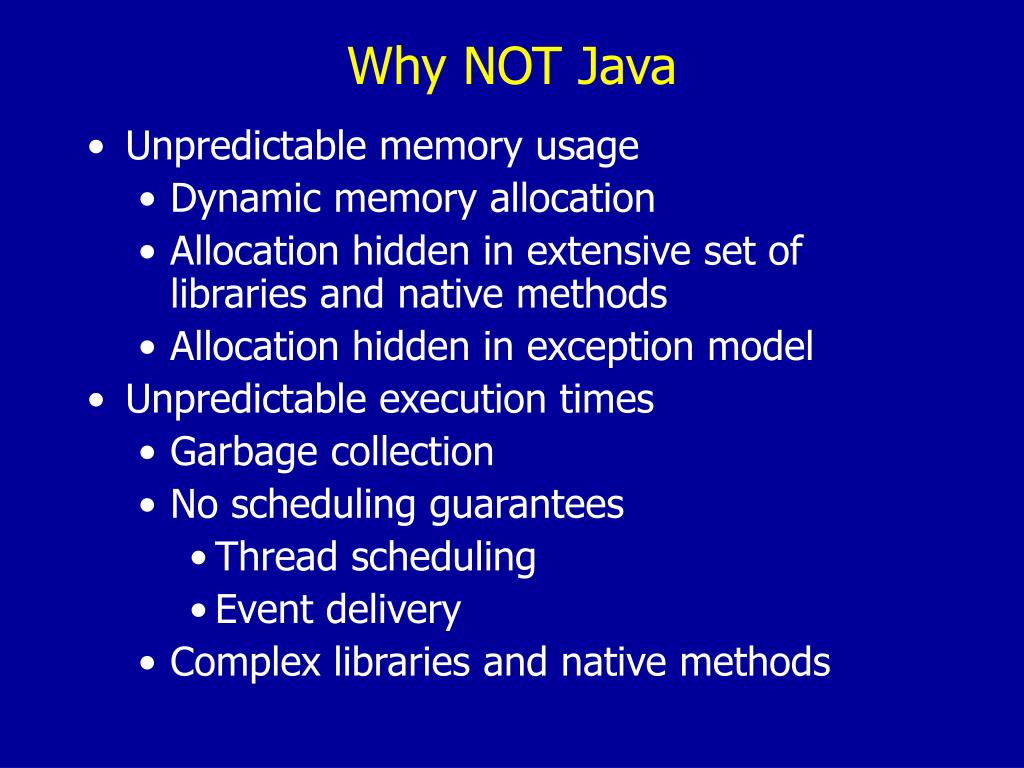

  6. Why NOT Java • Unpredictable memory usage • Dynamic memory allocation • Allocation hidden in extensive set of libraries and native methods • Allocation hidden in exception model • Unpredictable execution times • Garbage collection • No scheduling guarantees • Thread scheduling • Event delivery • Complex libraries and native methods

  7. Why NOT Java • Impoverished set of abstractions • Threads, mutex locks, signal and wait • No good way express relationship between • Events in system • Corresponding pieces of computation • No good way to express timing expectations • Real-Time Java Approach • Extend library • Native methods for new mechanisms

  8. Real-Time Java Standard Goal: Augment Java to better support real-time systems • Augment memory model to enable threads to avoid garbage collection pauses • Augment thread scheduling model to add more control over task scheduling • Augment synchronization model to include lightweight event delivery mechanism

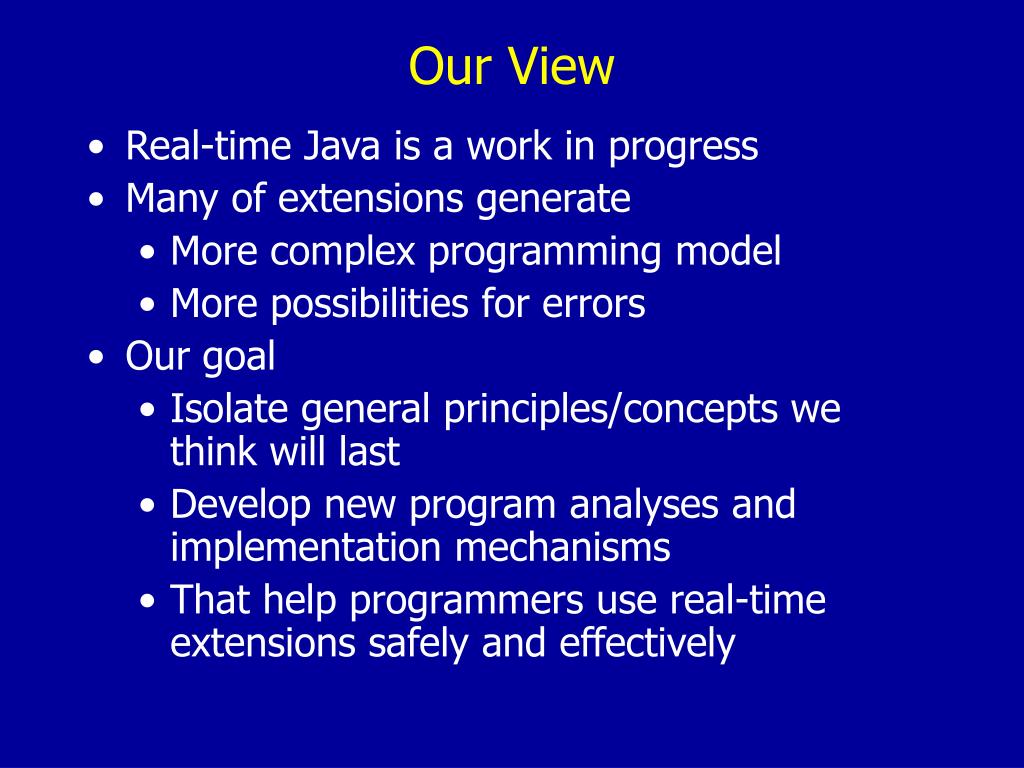

  9. Our View • Real-time Java is a work in progress • Many of extensions generate • More complex programming model • More possibilities for errors • Our goal • Isolate general principles/concepts we think will last • Develop new program analyses and implementation mechanisms • That help programmers use real-time extensions safely and effectively

  10. Java Memory Models • Java: single garbage-collected heap • Real-time Java: multiple kinds of memories • Garbage-collected heap memory • Immortal memory (live for full computation) • Scoped memories (live for specific subcomputations) • Linear-time allocation (LTMemory) • Variable-time allocation (VTMemory)

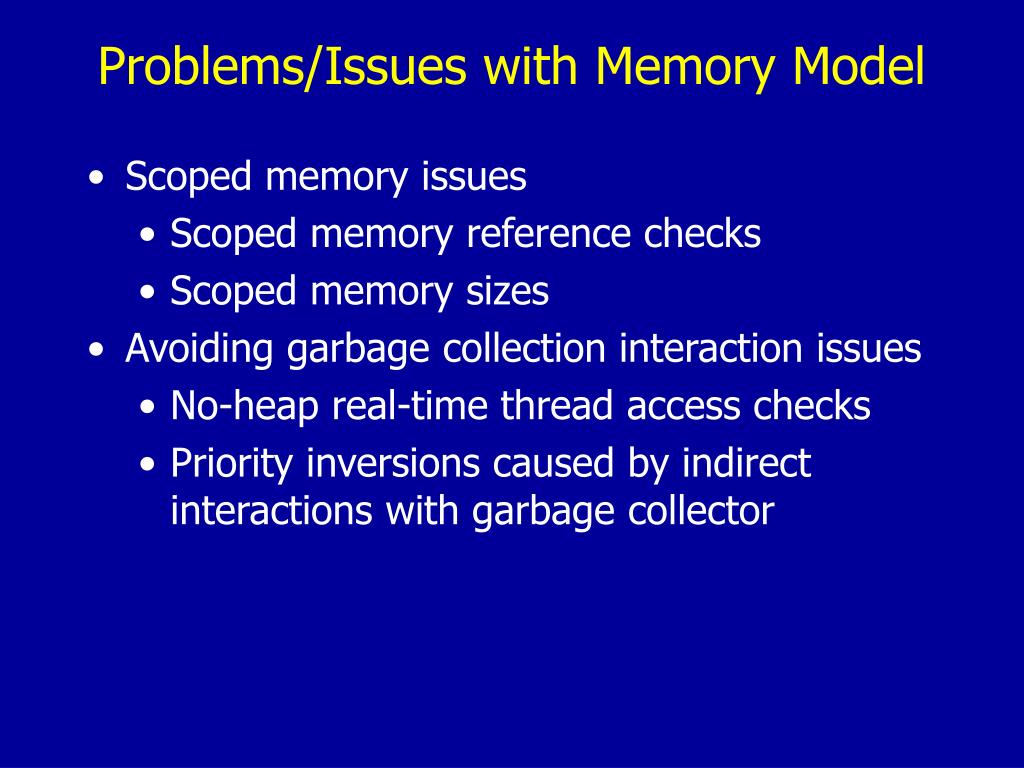

  11. Problems/Issues with Memory Model • Scoped memory issues • Scoped memory reference checks • Scoped memory sizes • Avoiding garbage collection interaction issues • No-heap real-time thread access checks • Priority inversions caused by indirect interactions with garbage collector

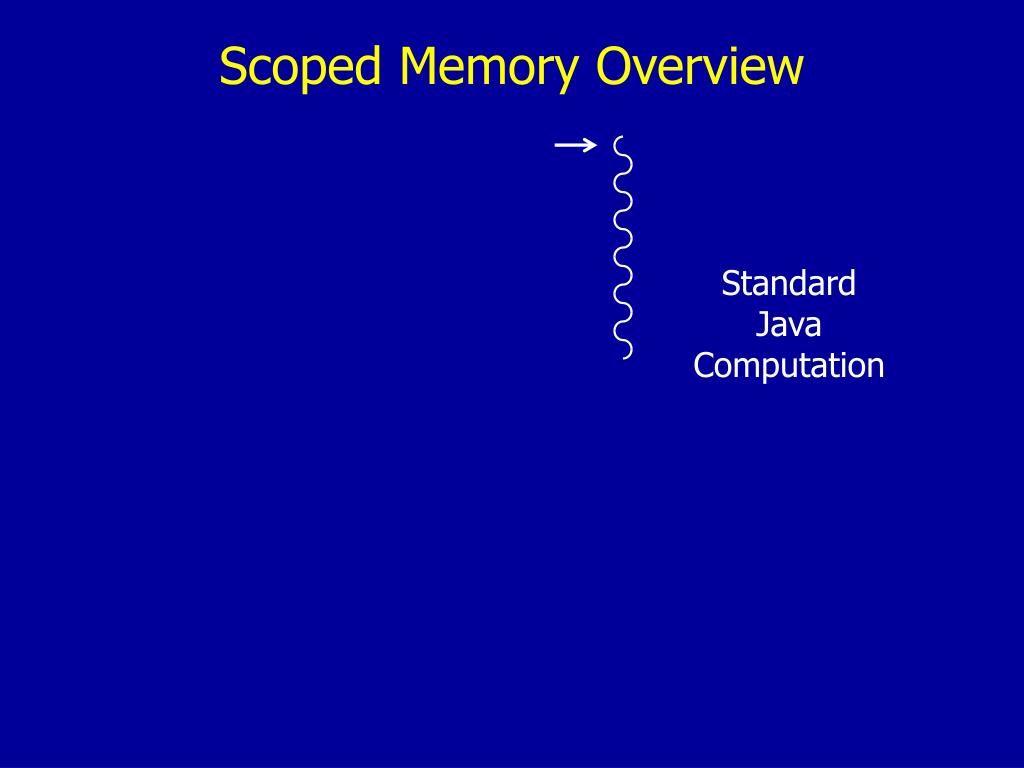

  12. Scoped Memory Overview Standard Java Computation

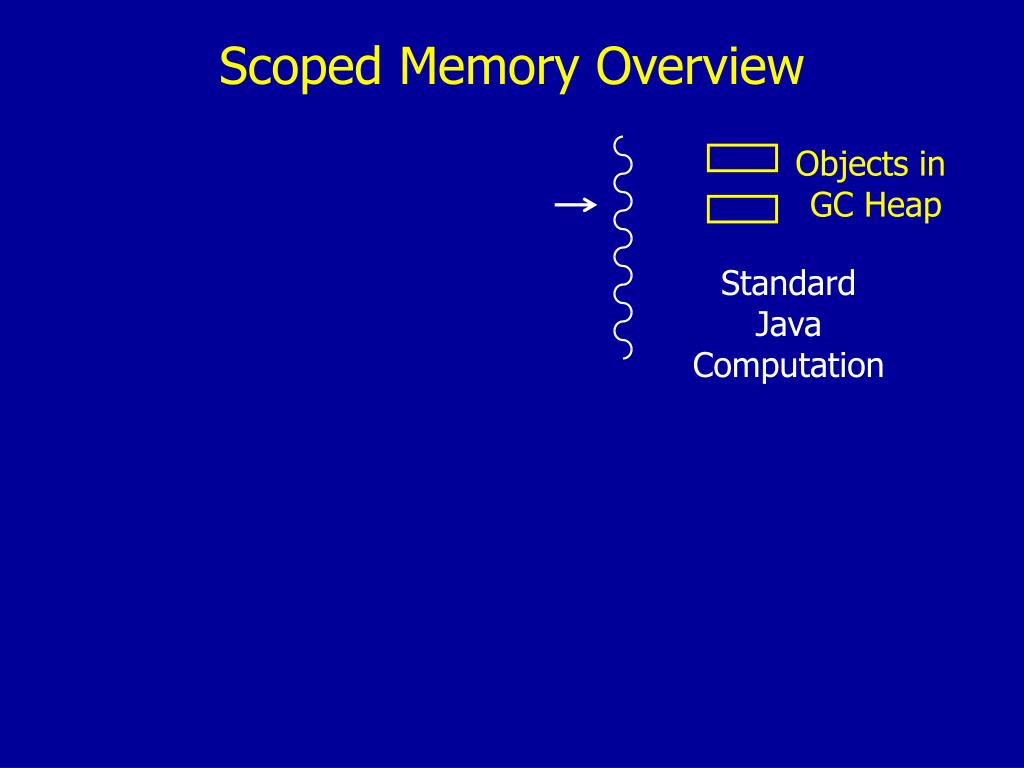

  13. Scoped Memory Overview Objects in GC Heap Standard Java Computation

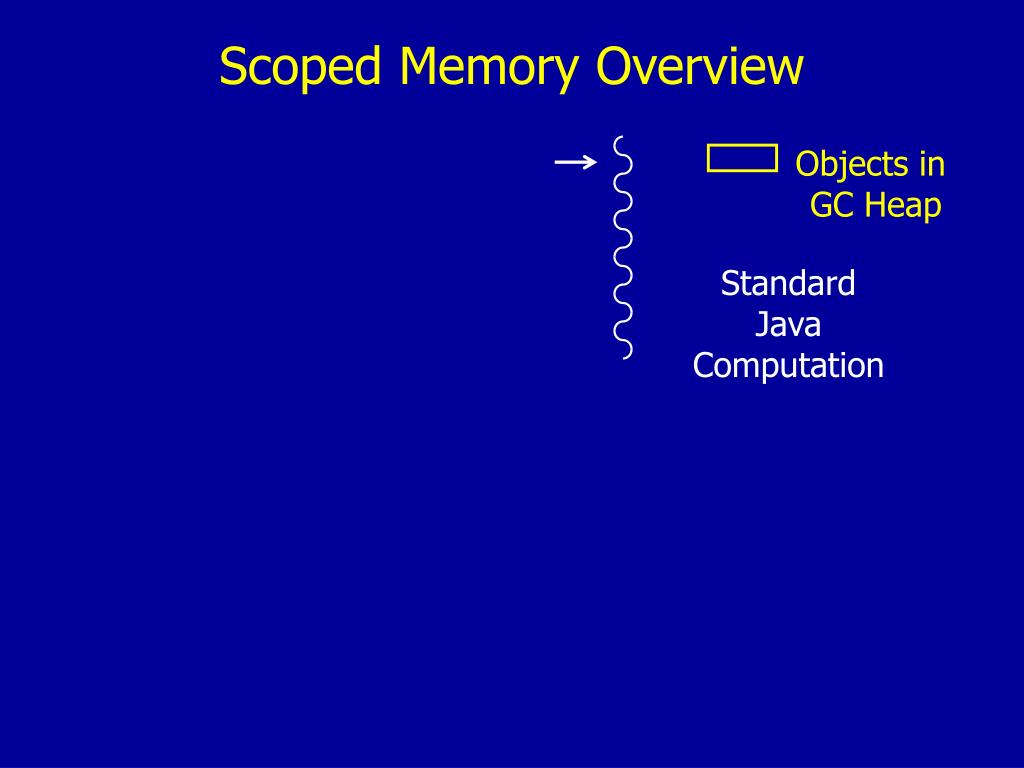

  14. Scoped Memory Overview Objects in GC Heap Standard Java Computation

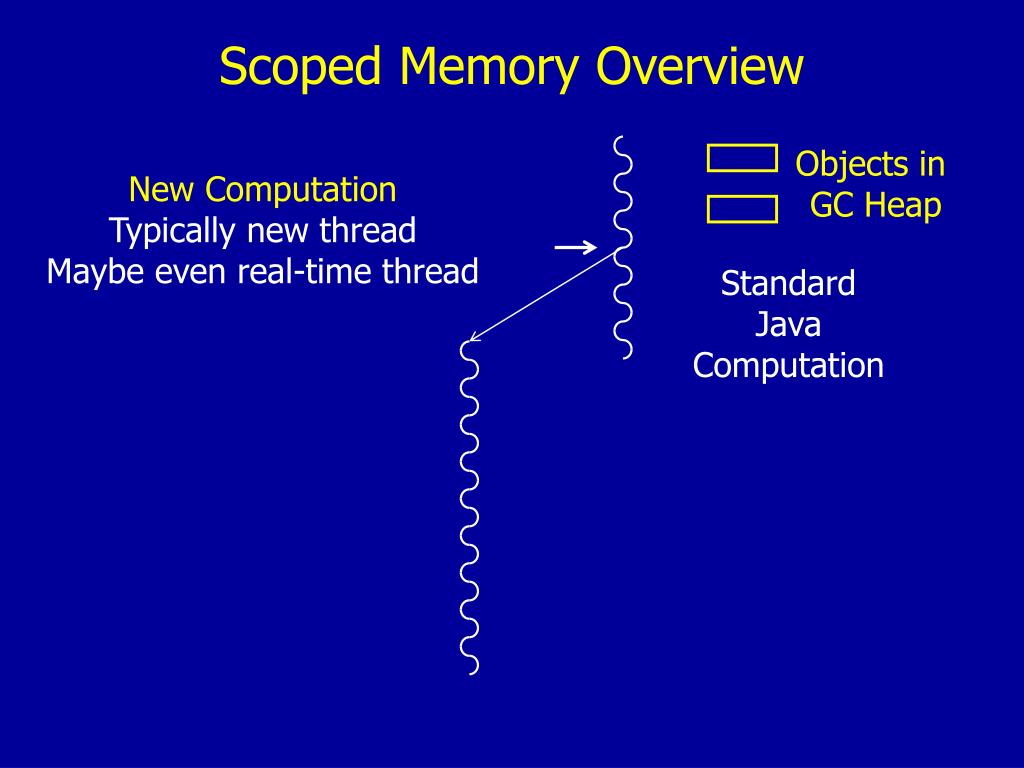

  15. Scoped Memory Overview Objects in GC Heap New Computation Typically new thread Maybe even real-time thread Standard Java Computation

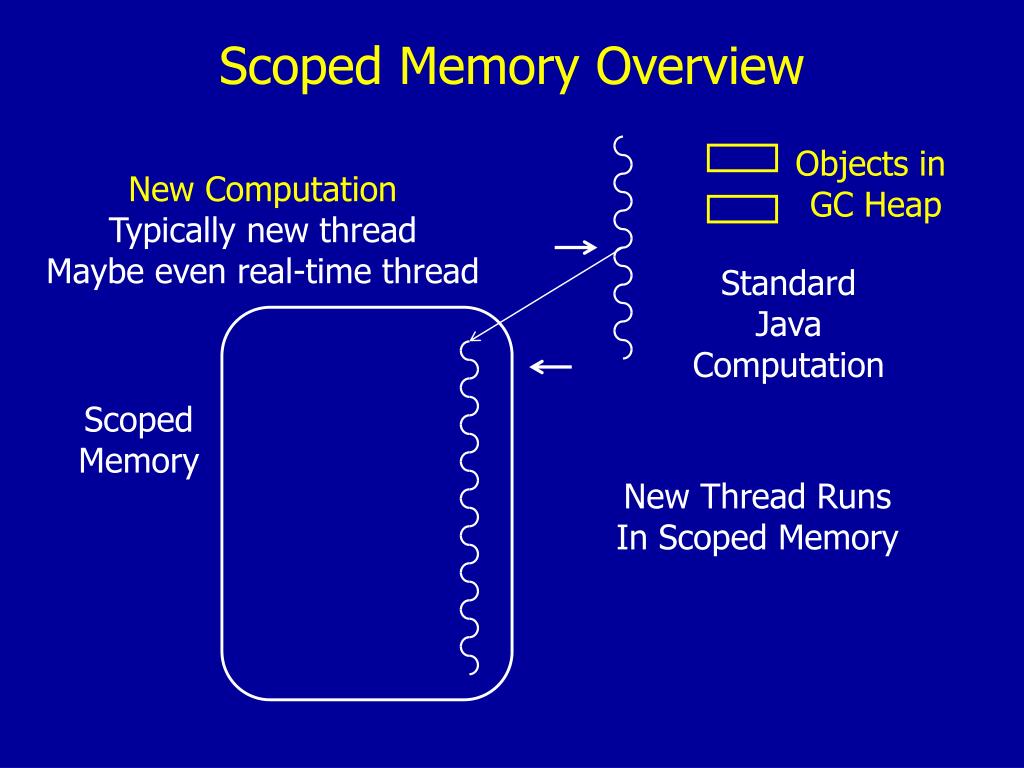

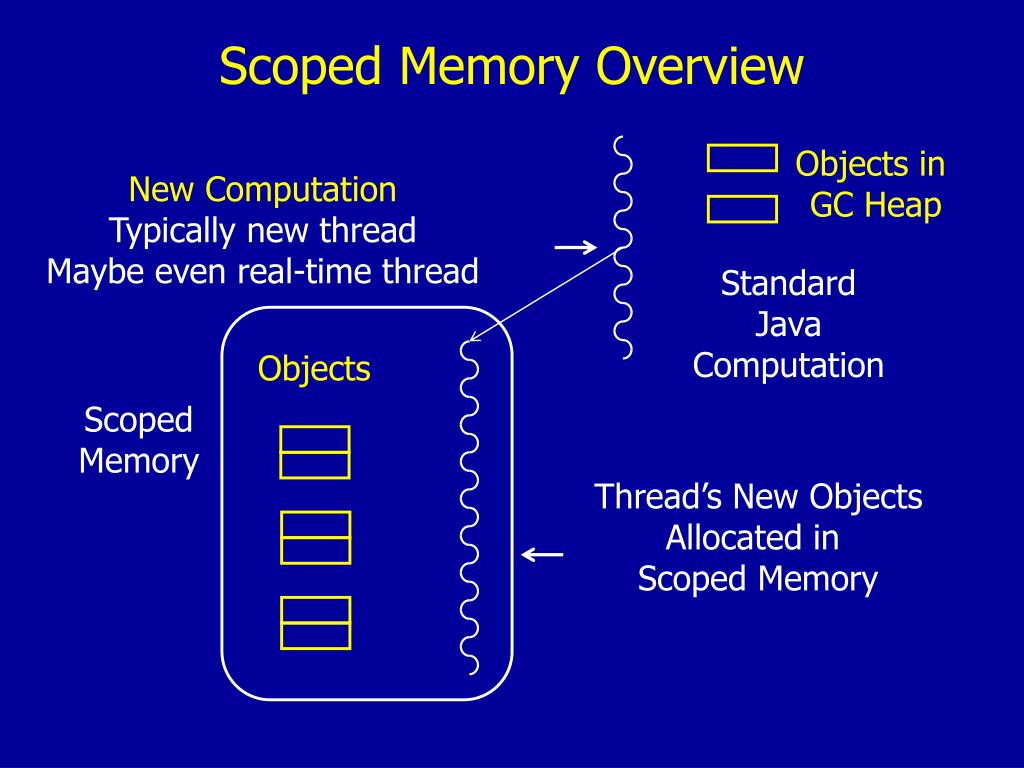

  16. Scoped Memory Overview Objects in GC Heap New Computation Typically new thread Maybe even real-time thread Standard Java Computation Scoped Memory New Thread Runs In Scoped Memory

  17. Scoped Memory Overview Objects in GC Heap New Computation Typically new thread Maybe even real-time thread Standard Java Computation Objects Scoped Memory Thread’s New Objects Allocated in Scoped Memory

  18. Scoped Memory Overview Objects in GC Heap New Computation Typically new thread Maybe even real-time thread Standard Java Computation Objects Scoped Memory Thread’s New Objects Allocated in Scoped Memory

  19. Scoped Memory Overview Objects in GC Heap New Computation Typically new thread Maybe even real-time thread Standard Java Computation Objects Scoped Memory Thread’s New Objects Allocated in Scoped Memory

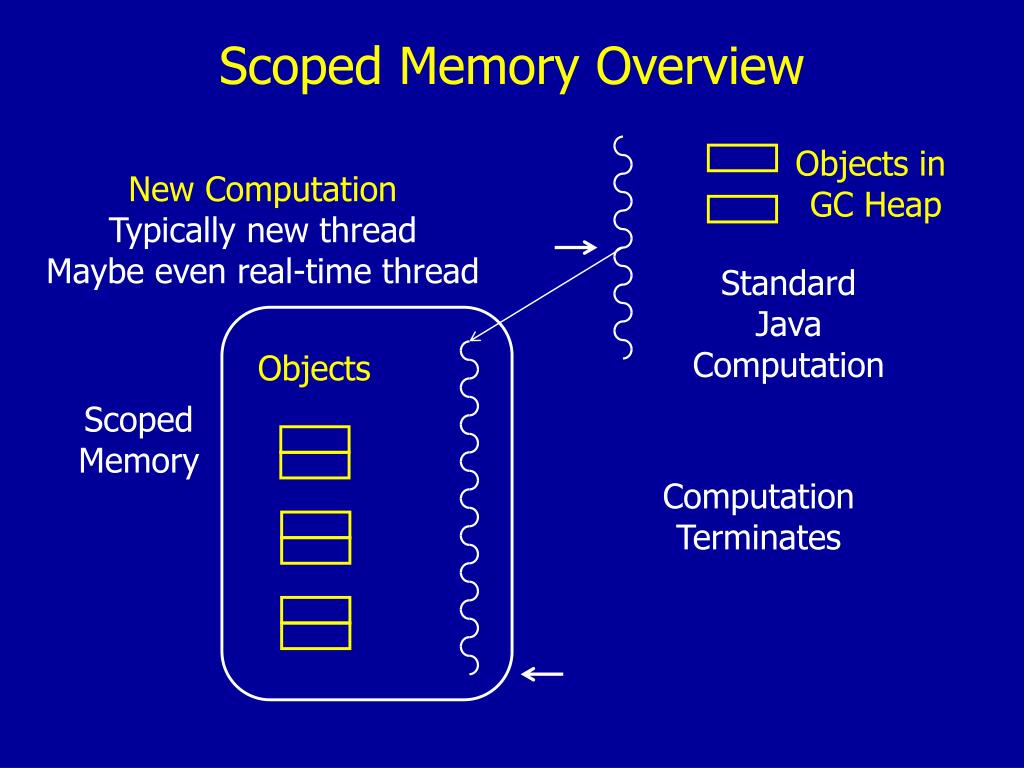

  20. Scoped Memory Overview Objects in GC Heap New Computation Typically new thread Maybe even real-time thread Standard Java Computation Objects Scoped Memory Computation Terminates

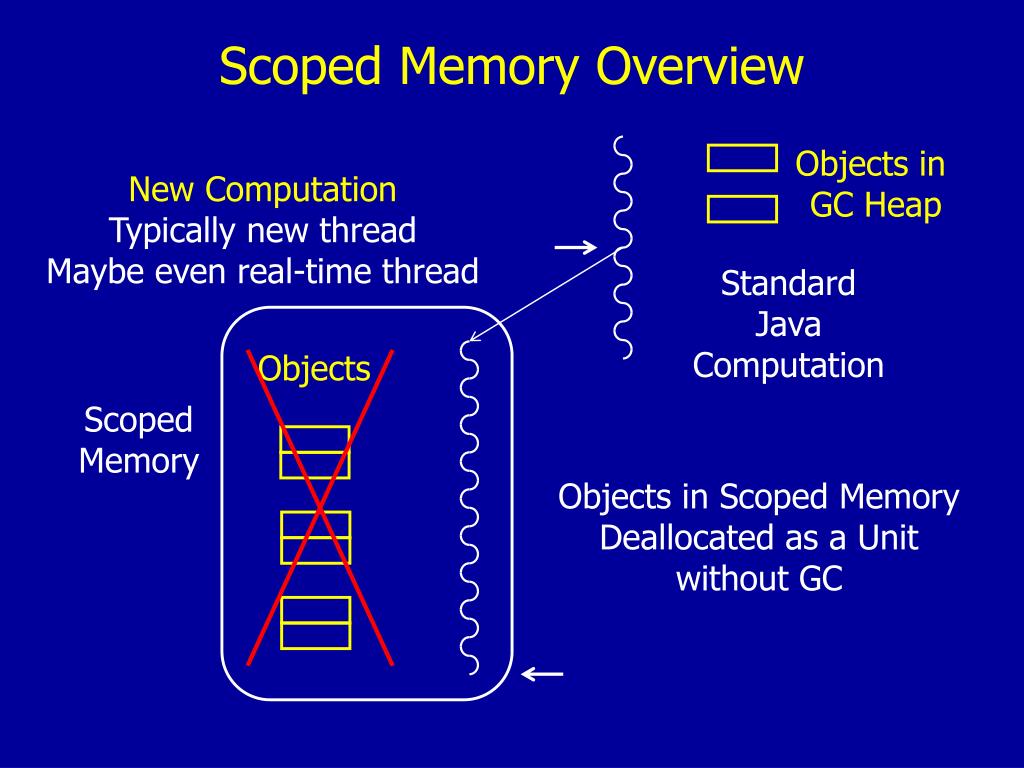

  21. Scoped Memory Overview Objects in GC Heap New Computation Typically new thread Maybe even real-time thread Standard Java Computation Objects Scoped Memory Objects in Scoped Memory Deallocated as a Unit without GC

  22. Scoped Memory Motivation • Dynamic memory allocation without GC • Tie object lifetimes to computation lifetimes • Eliminate need to dynamically trace out reachable objects • Warning: • Example illustrates primary intended use • Specification allows more behaviors • Scoped memories shared by multiple threads • Nested scoped memories • Scoped memories entered multiple times

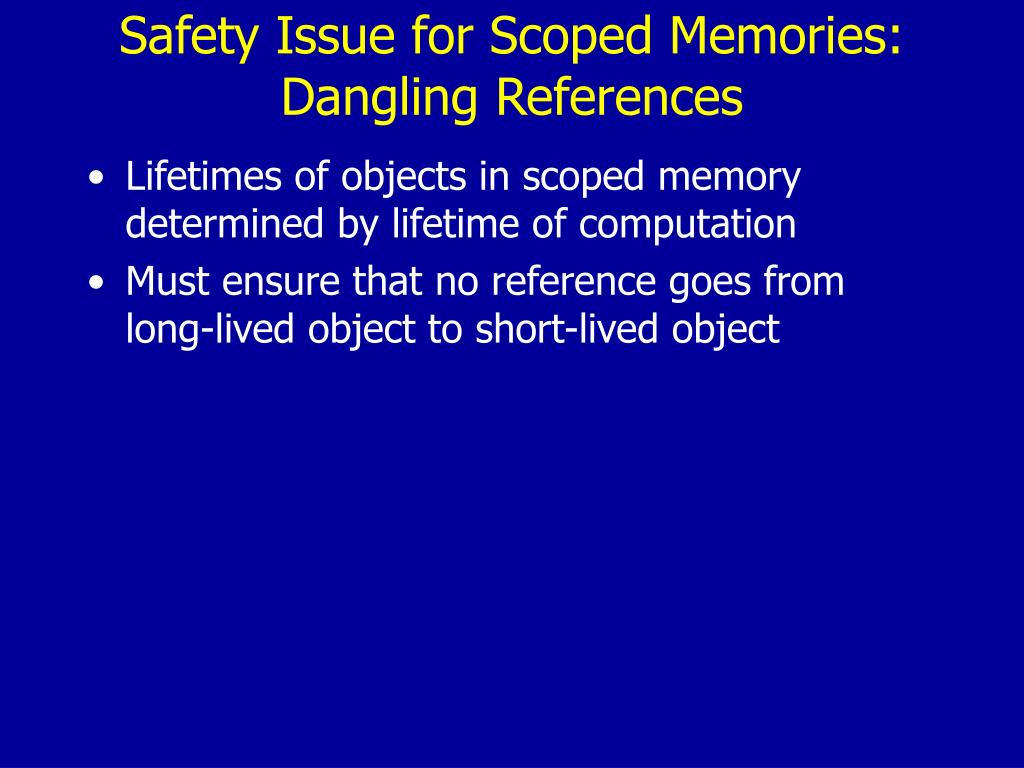

  23. Safety Issue for Scoped Memories:Dangling References • Lifetimes of objects in scoped memory determined by lifetime of computation • Must ensure that no reference goes from long-lived object to short-lived object

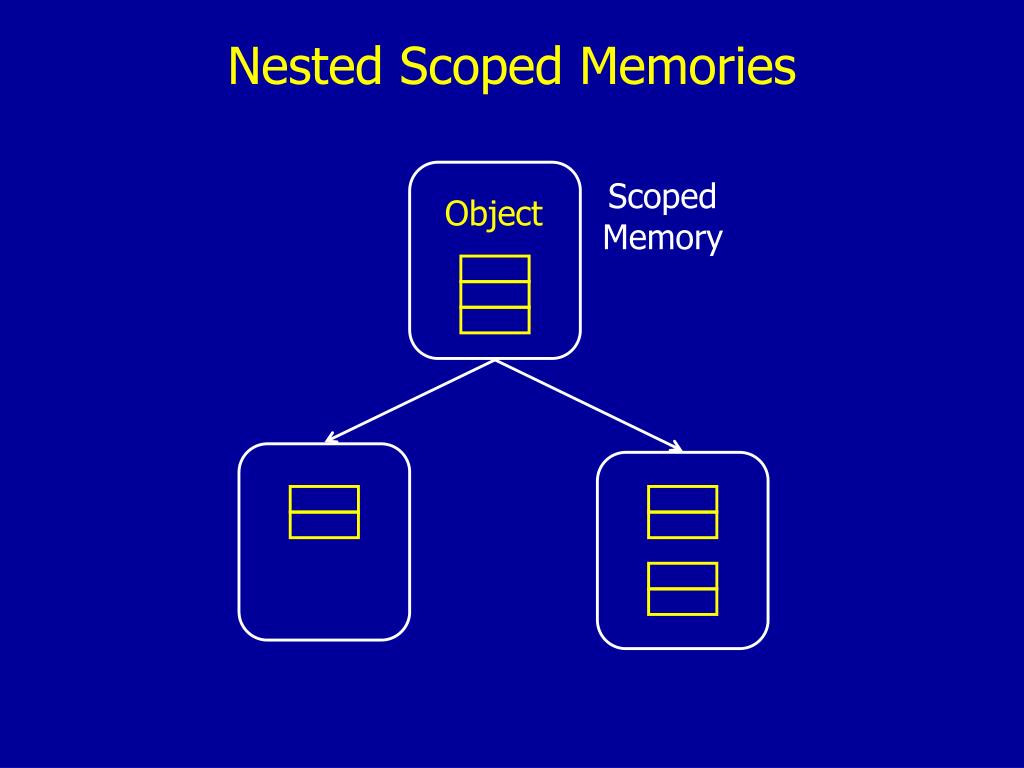

  24. Nested Scoped Memories Scoped Memory Object

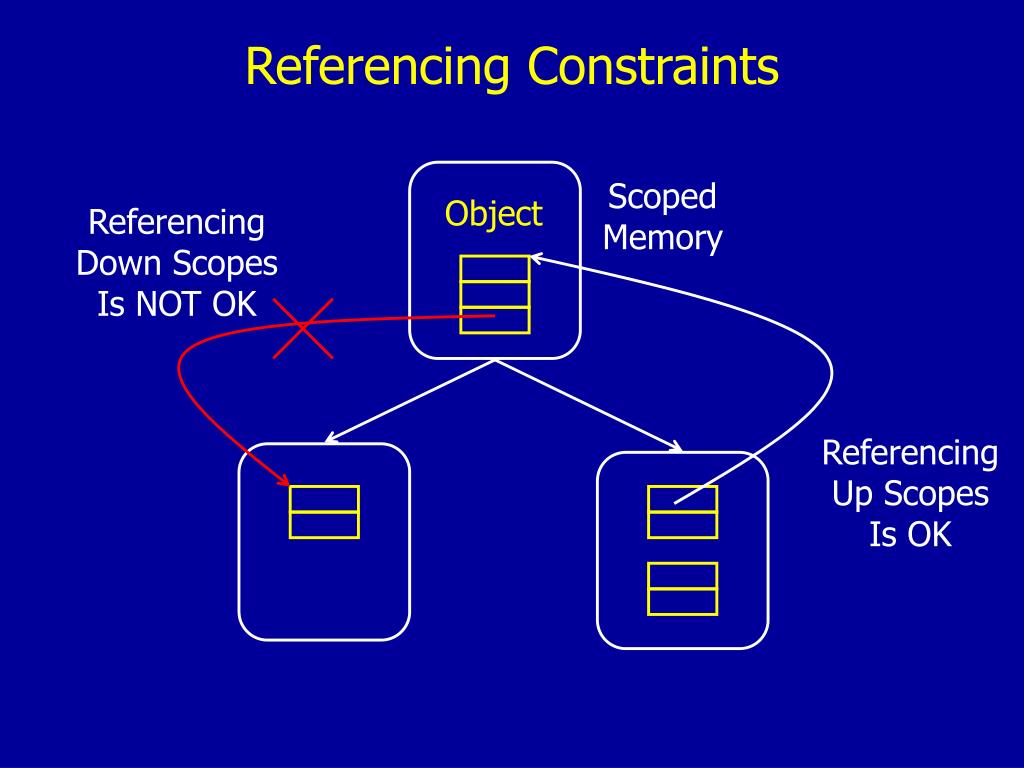

  25. Referencing Constraints Scoped Memory Object Referencing Down Scopes Is NOT OK Referencing Up Scopes Is OK

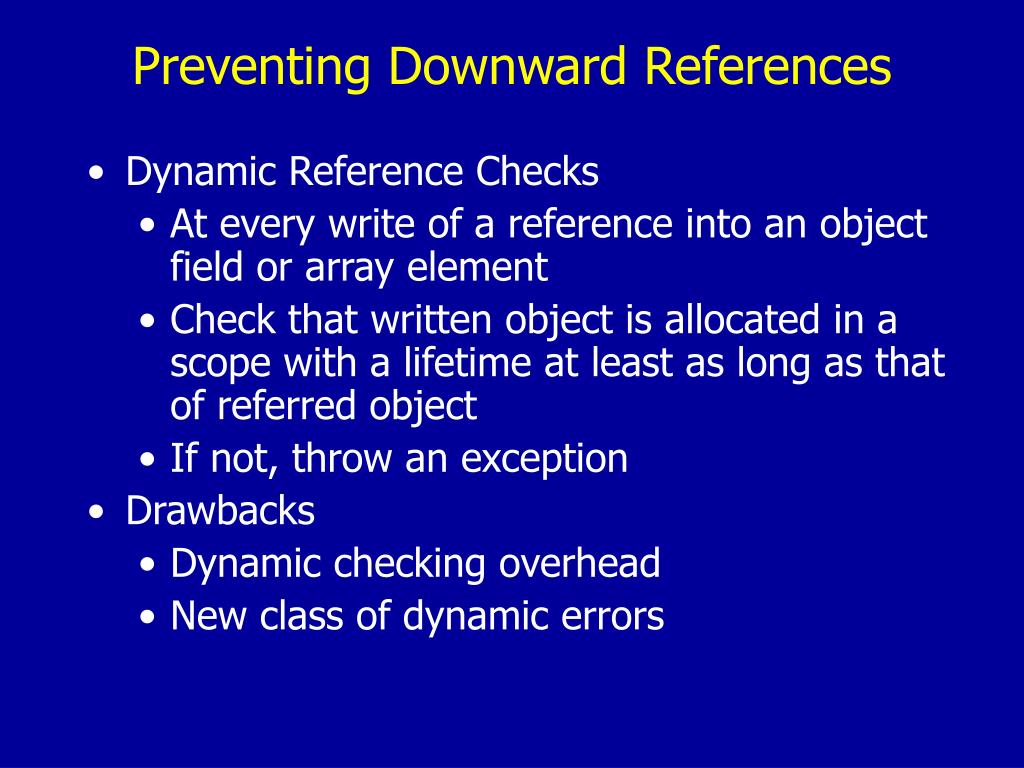

  26. Preventing Downward References • Dynamic Reference Checks • At every write of a reference into an object field or array element • Check that written object is allocated in a scope with a lifetime at least as long as that of referred object • If not, throw an exception • Drawbacks • Dynamic checking overhead • New class of dynamic errors

  27. Static Analysis • Goal • Eliminate need for dynamic checks by • Statically checking that program does not violate referencing constraints • Basic approach: escape analysis

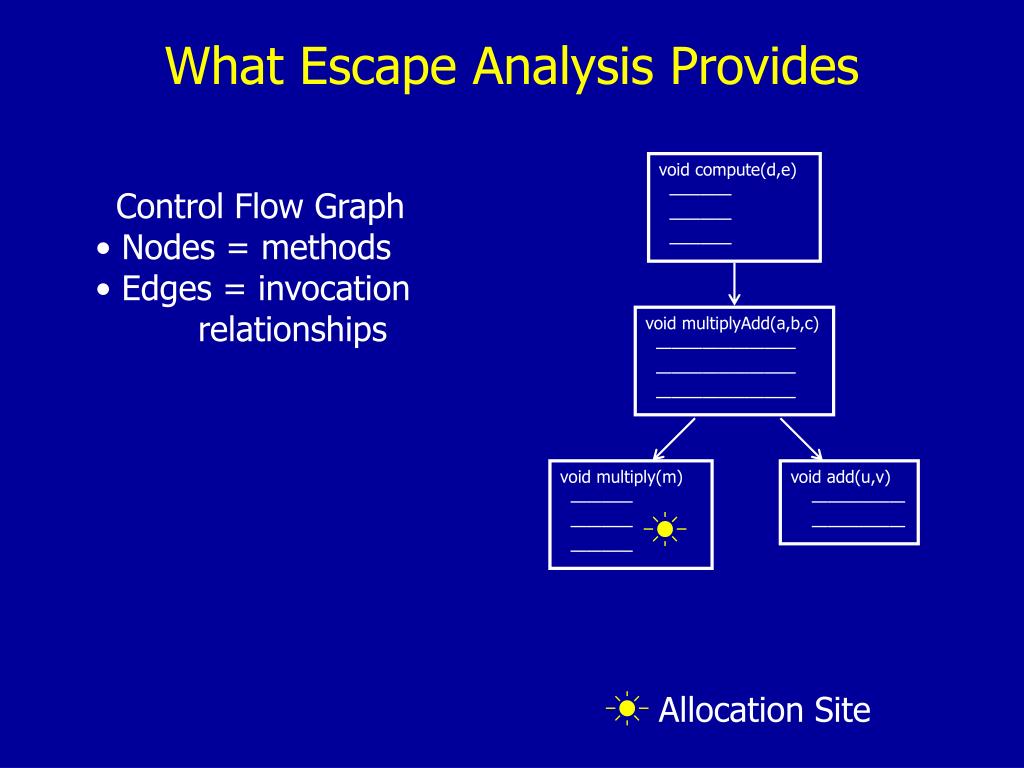

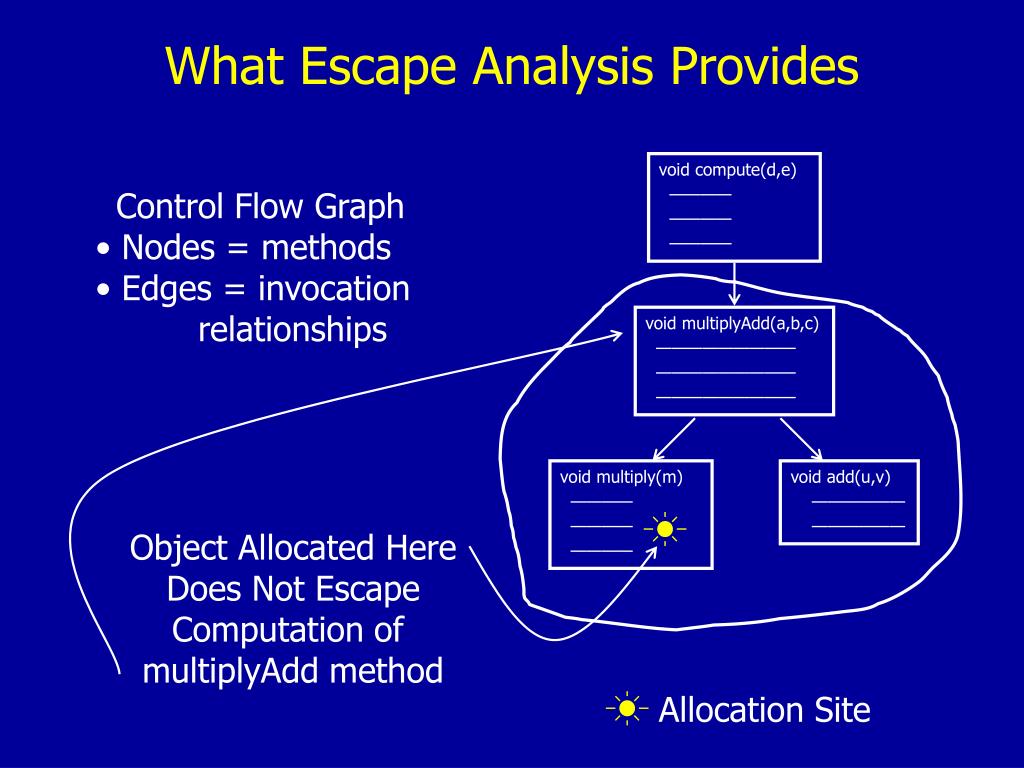

  28. What Escape Analysis Provides void compute(d,e) ———— ———— ———— Control Flow Graph • Nodes = methods • Edges = invocation relationships void multiplyAdd(a,b,c) ————————— ————————— ————————— void multiply(m) ———— ———— ———— void add(u,v) —————— ——————

  29. What Escape Analysis Provides void compute(d,e) ———— ———— ———— Control Flow Graph • Nodes = methods • Edges = invocation relationships void multiplyAdd(a,b,c) ————————— ————————— ————————— void multiply(m) ———— ———— ———— void add(u,v) —————— —————— Allocation Site

  30. What Escape Analysis Provides void compute(d,e) ———— ———— ———— Control Flow Graph • Nodes = methods • Edges = invocation relationships void multiplyAdd(a,b,c) ————————— ————————— ————————— void multiply(m) ———— ———— ———— void add(u,v) —————— —————— Object Allocated Here Does Not Escape Computation of multiplyAdd method Allocation Site

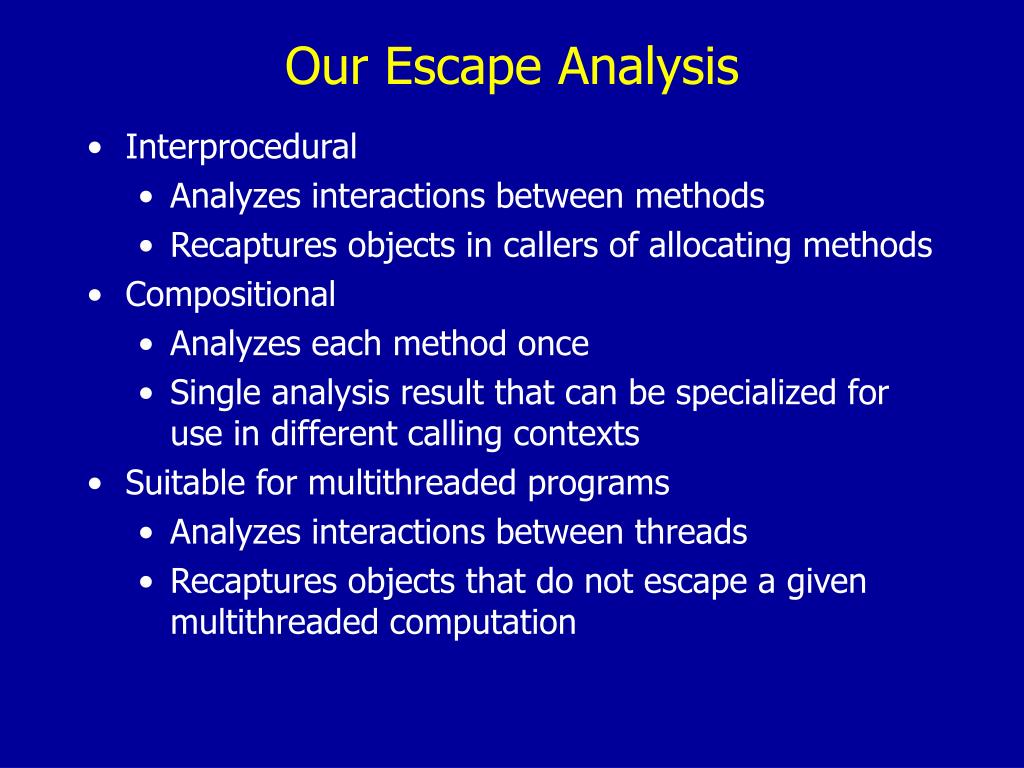

  31. Our Escape Analysis • Interprocedural • Analyzes interactions between methods • Recaptures objects in callers of allocating methods • Compositional • Analyzes each method once • Single analysis result that can be specialized for use in different calling contexts • Suitable for multithreaded programs • Analyzes interactions between threads • Recaptures objects that do not escape a given multithreaded computation

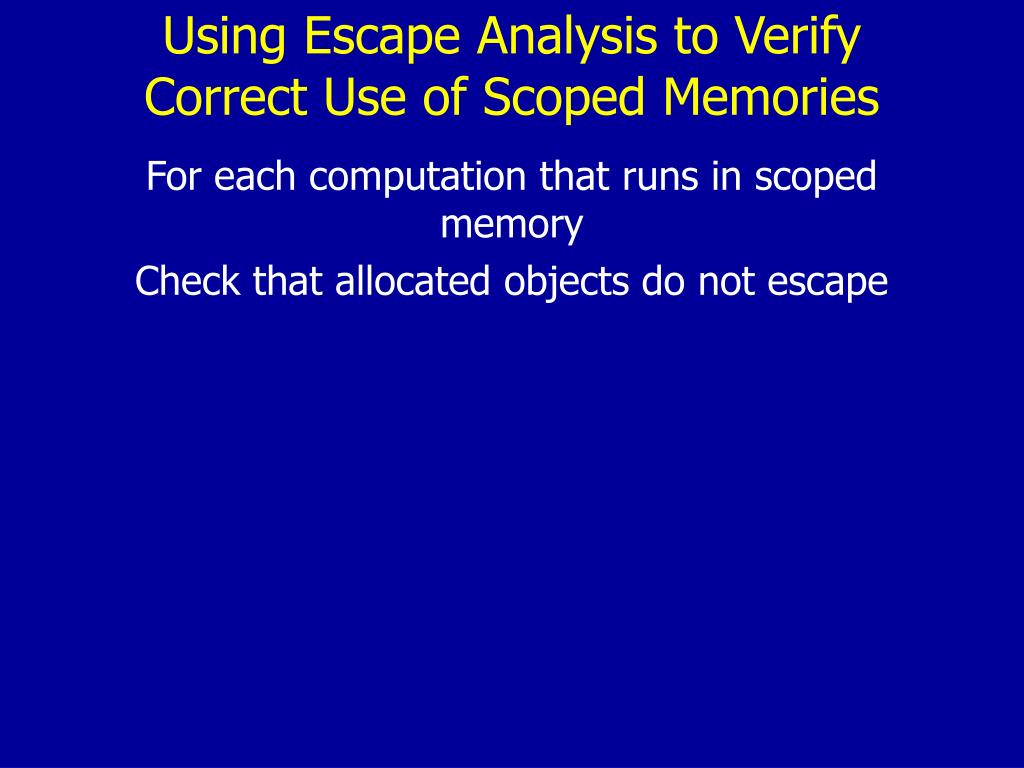

  32. Using Escape Analysis to Verify Correct Use of Scoped Memories For each computation that runs in scoped memory Check that allocated objects do not escape

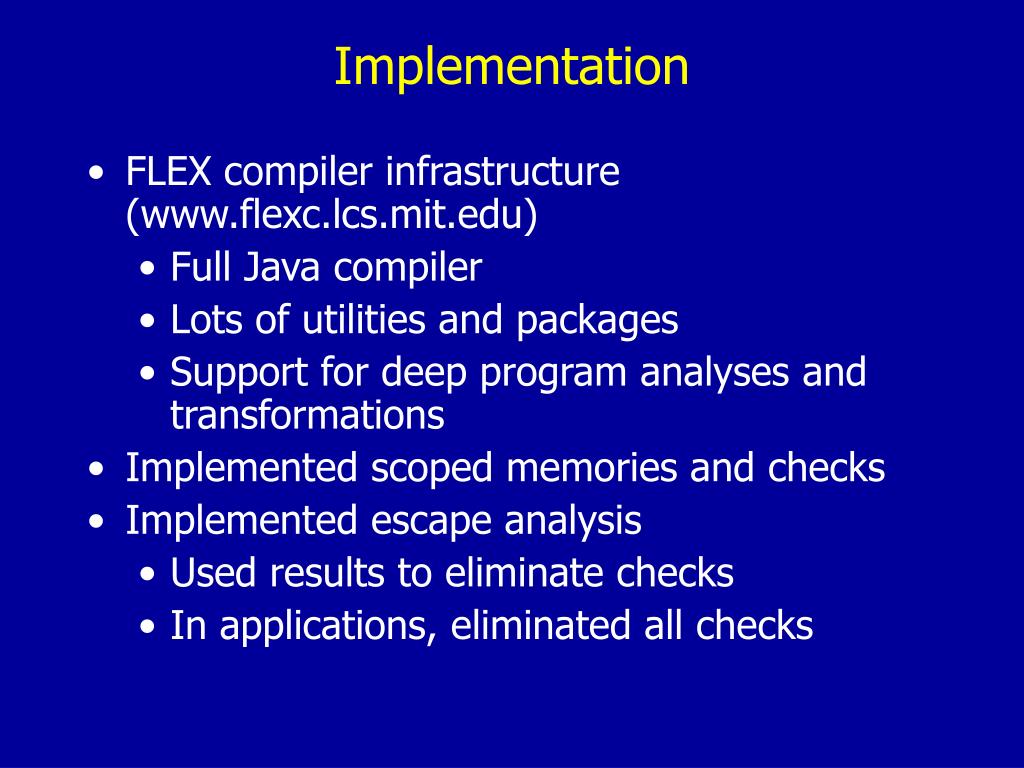

  33. Implementation • FLEX compiler infrastructure (www.flexc.lcs.mit.edu) • Full Java compiler • Lots of utilities and packages • Support for deep program analyses and transformations • Implemented scoped memories and checks • Implemented escape analysis • Used results to eliminate checks • In applications, eliminated all checks

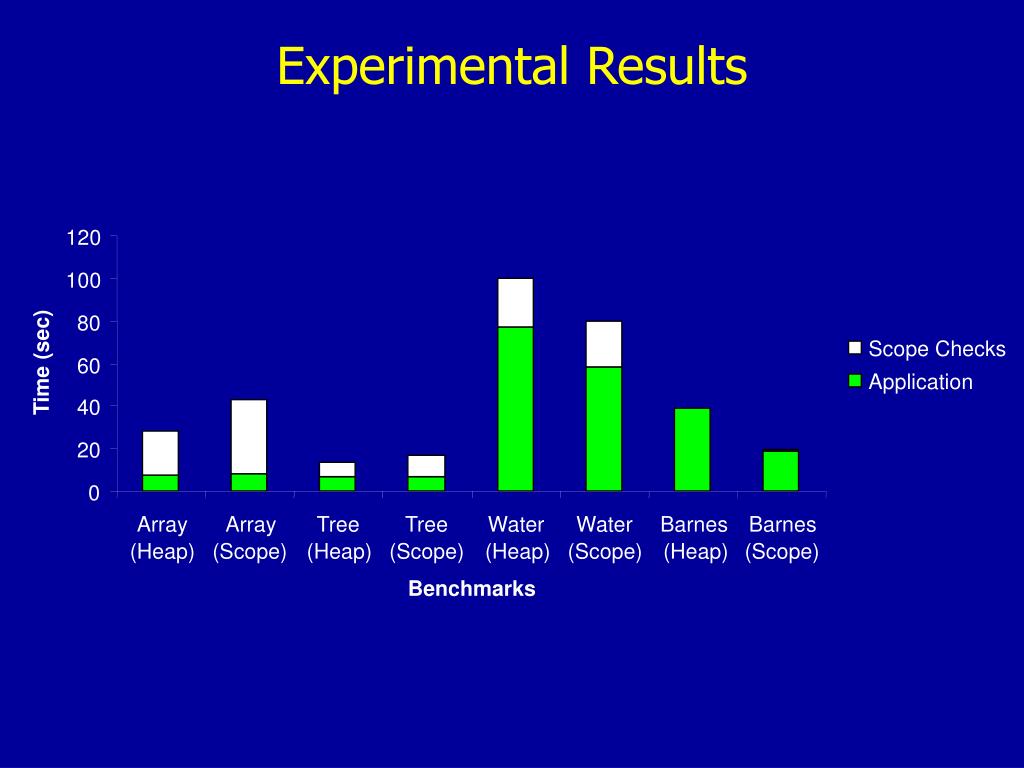

  34. Experimental Results 120 100 80 Scope Checks Time (sec) 60 Application 40 20 0 Array Array Tree Tree Water Water Barnes Barnes (Heap) (Scope) (Heap) (Scope) (Heap) (Scope) (Heap) (Scope) Benchmarks

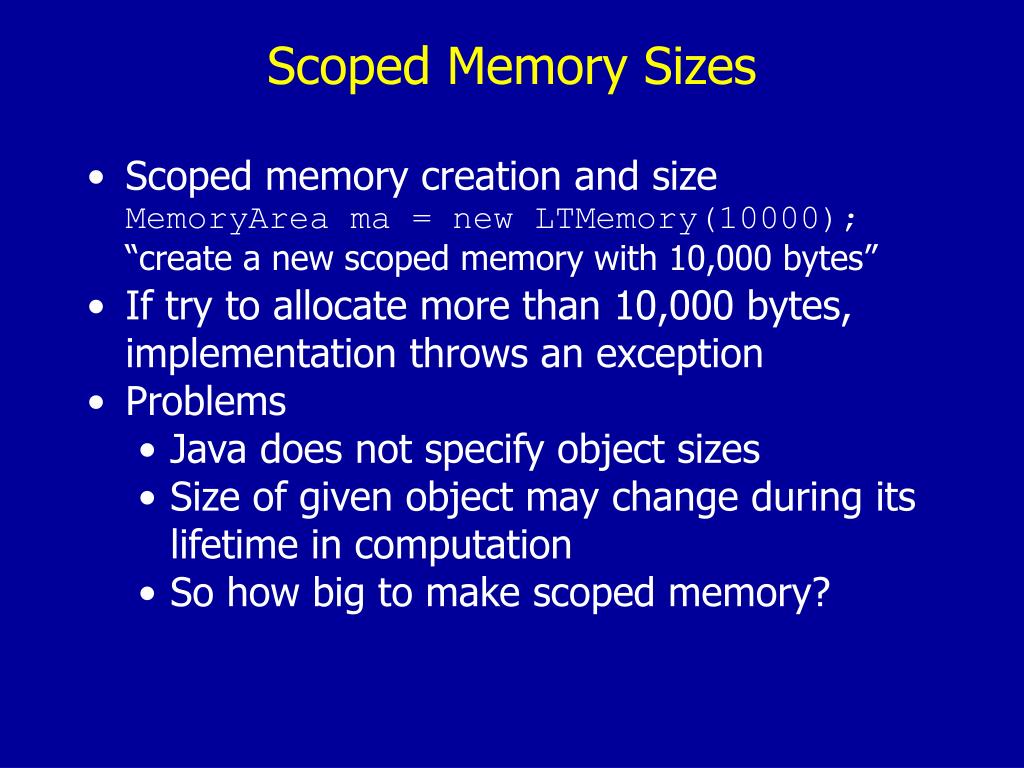

  35. Scoped Memory Sizes • Scoped memory creation and size MemoryArea ma = new LTMemory(10000); “create a new scoped memory with 10,000 bytes” • If try to allocate more than 10,000 bytes, implementation throws an exception • Problems • Java does not specify object sizes • Size of given object may change during its lifetime in computation • So how big to make scoped memory?

  36. Modularity Problems Objects in GC Heap Scoped Memory Size Determined Here Standard Java Computation Objects Scoped Memory Required Size Determined by Behavior of Code in this Computation

  37. Modularity Problems Objects in GC Heap Scoped Memory Size Determined Here Standard Java Computation Objects Scoped Memory If change program, size may need to change! Amount of allocated memory becomes part of interface!

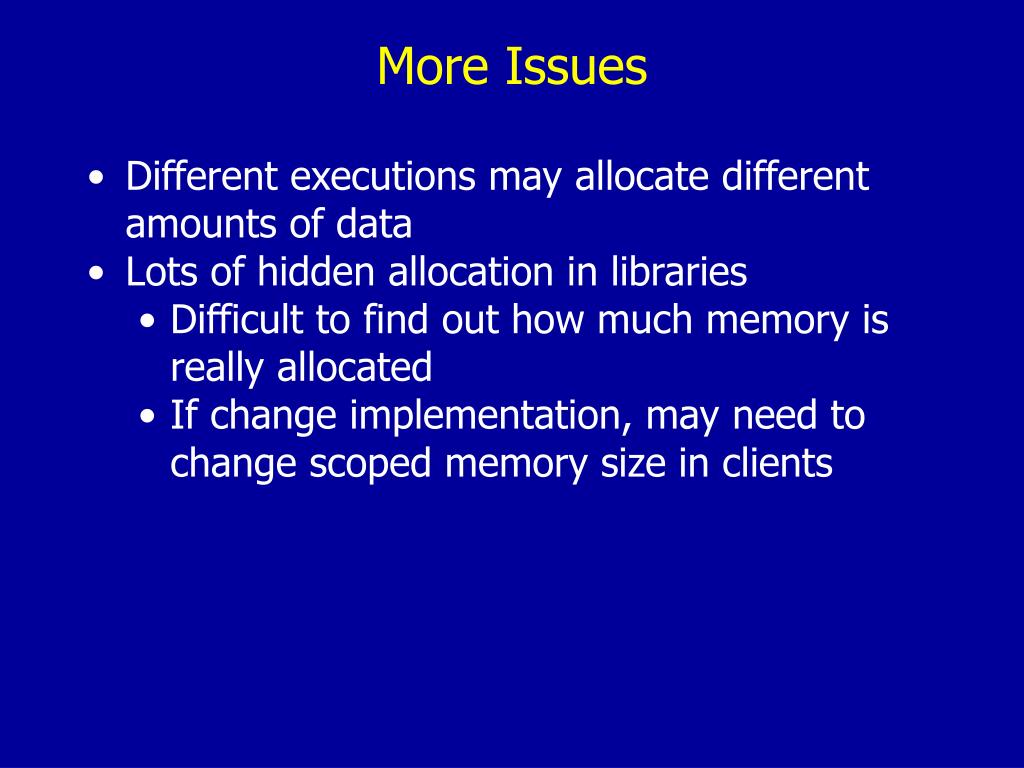

  38. More Issues • Different executions may allocate different amounts of data • Lots of hidden allocation in libraries • Difficult to find out how much memory is really allocated • If change implementation, may need to change scoped memory size in clients

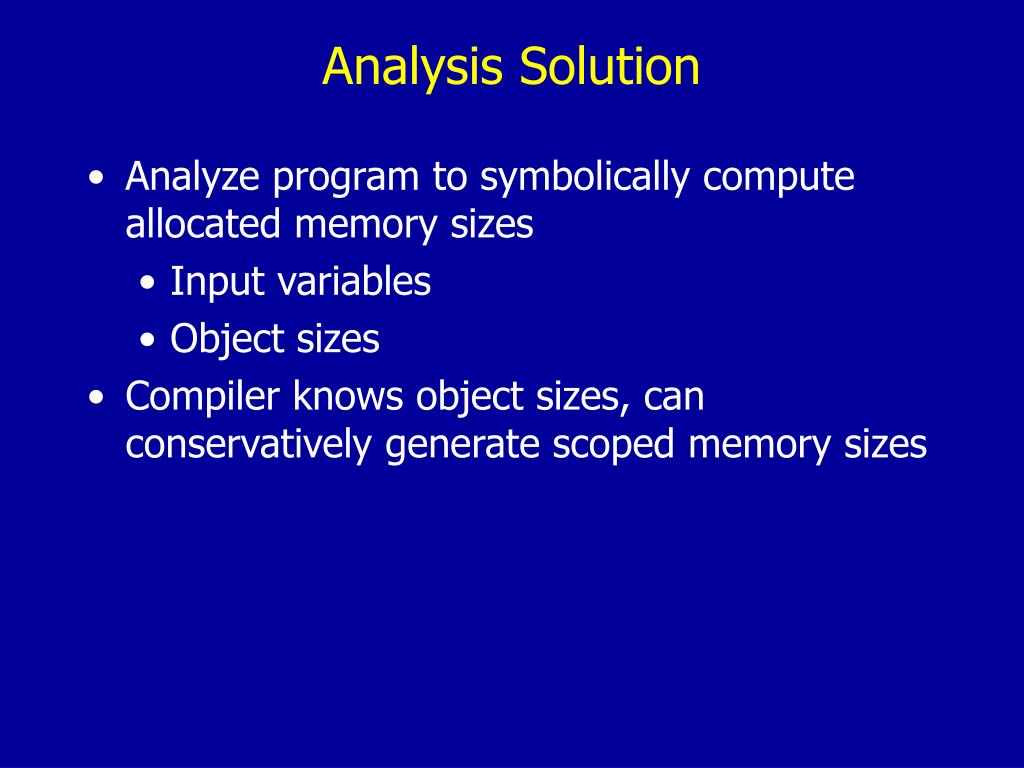

  39. Analysis Solution • Analyze program to symbolically compute allocated memory sizes • Input variables • Object sizes • Compiler knows object sizes, can conservatively generate scoped memory sizes

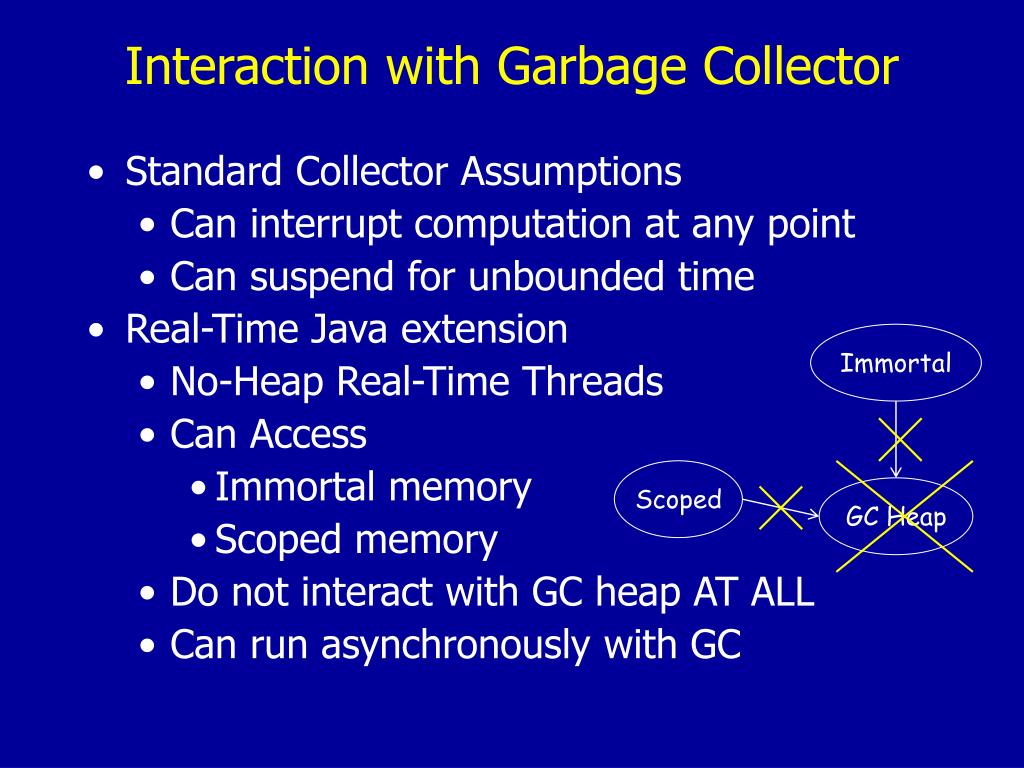

  40. Interaction with Garbage Collector • Standard Collector Assumptions • Can interrupt computation at any point • Can suspend for unbounded time • Real-Time Java extension • No-Heap Real-Time Threads • Can Access • Immortal memory • Scoped memory • Do not interact with GC heap AT ALL • Can run asynchronously with GC Immortal Scoped GC Heap

  41. No-Heap Real-Time Thread Checks • Dynamically check that no-heap real-time threads never access a location containing a reference into garbage-collected heap • At every read, check to make sure result does not point into garbage-collected heap • At every write, check to make sure not overwriting reference into GC heap • If check fails, throw exception • Drawbacks • Dynamic checking overhead • New class of dynamic errors

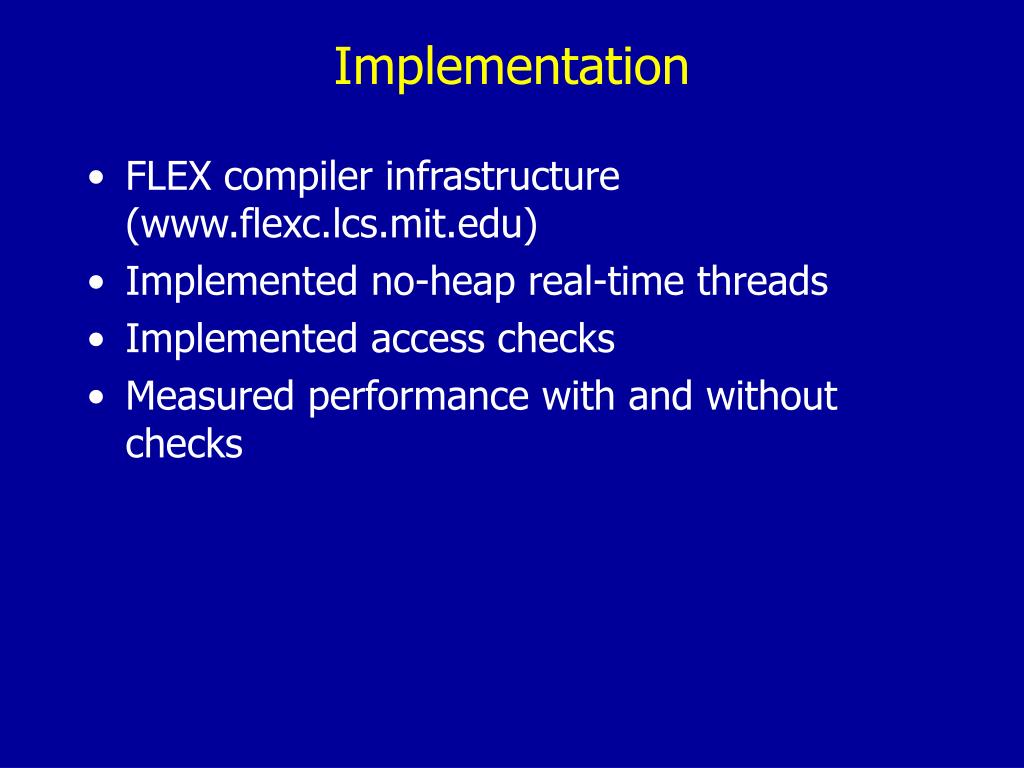

  42. Implementation FLEX compiler infrastructure (www.flexc.lcs.mit.edu) Implemented no-heap real-time threads Implemented access checks Measured performance with and without checks

  43. Experimental Results Scope Checks Heap Checks 300 Application 250 200 150 Time (sec) 100 50 0 Array Tree Water Benchmark

  44. Program Analysis for Eliminating Checks • Control-flow analysis to identify code that may execute in no-heap real-time thread • Global value-flow analysis • Tags each value that points to GC heap • Identifies all locations into which these values may flow • Combine results • Look at all no-heap real-time thread code • Check statically for access violations

  45. Indirect Priority Inversions Interaction Between Resource Sharing and Garbage Collection Lock Acquire No-heap Thread Garbage Collector Standard Java Thread Lock Acquire

  46. Indirect Priority Inversions Interaction Between Resource Sharing and Garbage Collection Lock Acquire No-heap Thread Blocks Garbage Collector Standard Java Thread Lock Acquire

  47. Indirect Priority Inversions No-heap thread must wait for standard Java thread to release lock Standard thread must wait for GC to finish (heap inconsistent until it finishes) No-heap thread must wait for GC! Lock Acquire No-heap Thread Garbage Collector Standard Java Thread Lock Acquire

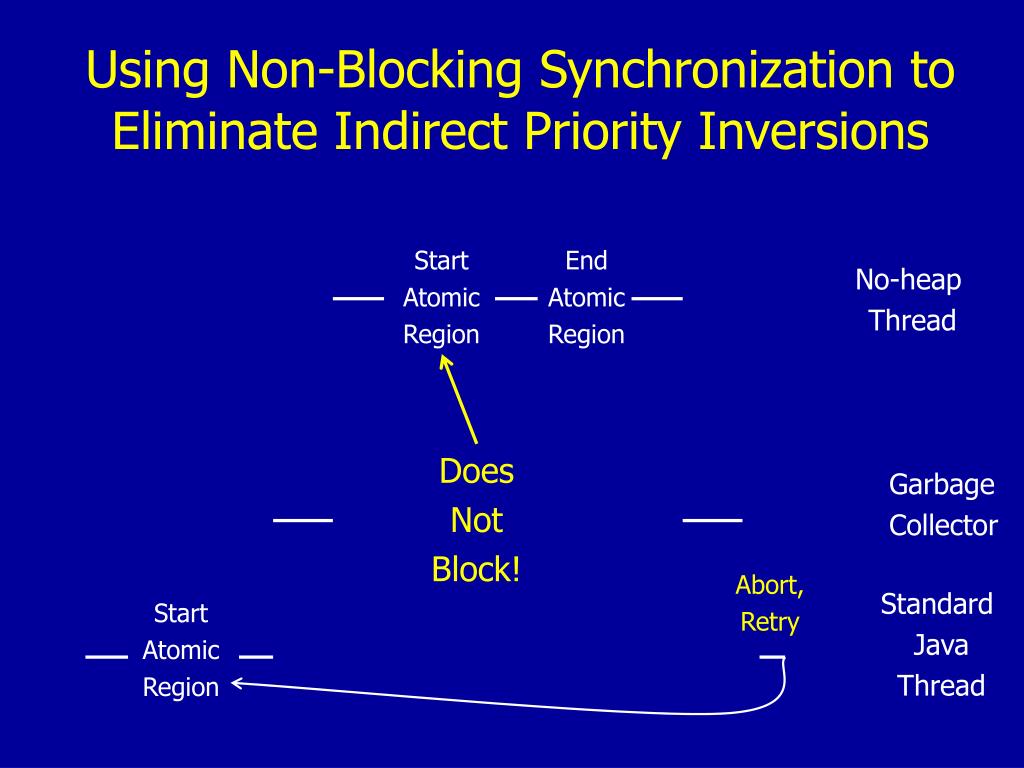

  48. Using Non-Blocking Synchronization to Eliminate Indirect Priority Inversions Start Atomic Region End Atomic Region No-heap Thread Does Not Block! Garbage Collector Abort, Retry Standard Java Thread Start Atomic Region

  49. Implementation Status • Non-blocking synchronization implemented for memory management primitives • Useful when threads share scoped memory • Uses non-blocking synchronization instructions from processor • Software implementation underway for general atomic regions

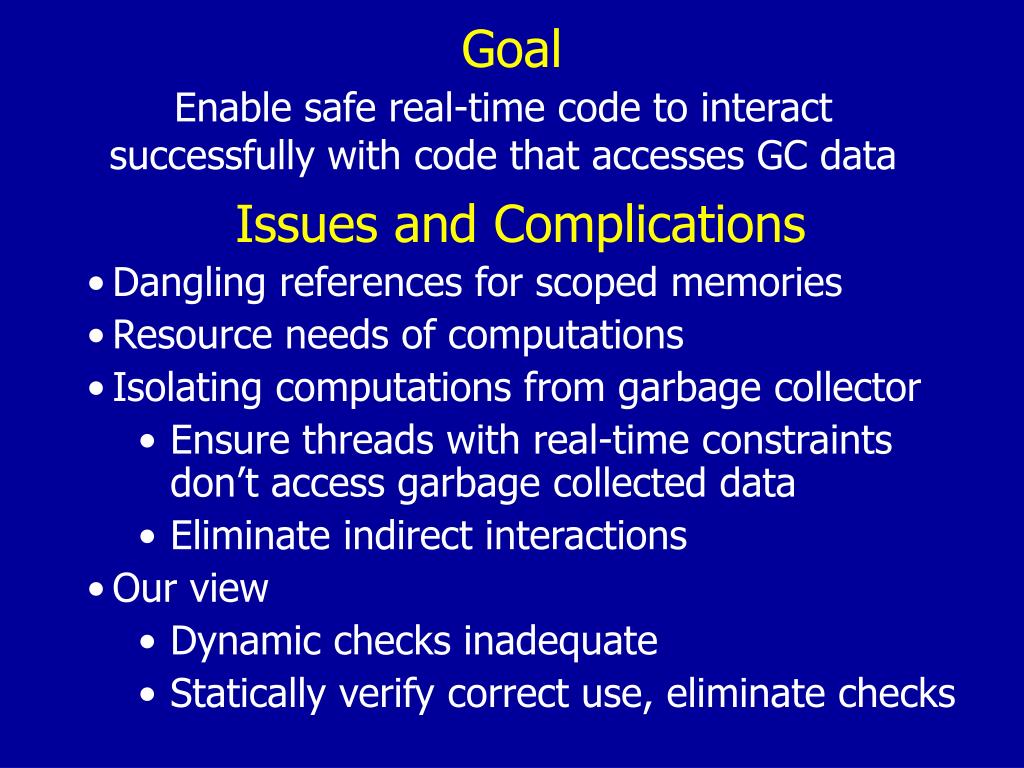

  50. Goal Enable safe real-time code to interact successfully with code that accesses GC data • Dangling references for scoped memories • Resource needs of computations • Isolating computations from garbage collector • Ensure threads with real-time constraints don’t access garbage collected data • Eliminate indirect interactions • Our view • Dynamic checks inadequate • Statically verify correct use, eliminate checks Issues and Complications
