  1. Session id: 40045 Accessing Oracle and Non-Oracle Data Sources from J2EE Applications: Introducing JCA Lars EweProduct Manager Oracle Corporation Itamar AnkorionProduct Manager Attunity

  2. Agenda • J2EE Connector Architecture (JCA) • Oracle Application Server and JCA • Customer Case Study – Lloyds • The future of JCA • Oracle Application Server 10g Integration • Q&A

  3. J2EE Connector Architecture – Introduction

  4. JDBC – a history of database integration • First – we built our own databases • Proprietary concepts, rocket-science • Then came along commercial databases • Some common concepts, difficult to integrate • Then SQL (ODBC, JDBC) came along • Standard access to any database • Today – database access is a non-issue • My kid brother can do it…

  5. JCA – the future of application integration • First – Application Integration hurt • Dissimilar technology, data, messaging... • Then came along XML • Standard, exchangeable data structure • Still need to know each disparate system • Then JCA came along • Standard access to any application • Starting today – application integration is becoming a non-issue

  6. What is the benefit of JCA? • The connector architecture reduces the integration effort from an (m * n) problem to an (m + n) problem, where ‘m’ is the number of application servers and ‘n’ the number of EISs to be integrated EIS EIS AppServer AppServer JCA m*n m+n

  7. J2EE Connector ArchitectureKey Components • J2EE Application Server (AS) • Container for resource adapter(s) • Enterprise Information System (EIS) • Resource Adapter (RA) • Connects EIS resource to the JCA infrastructure • Common Client Interface (CCI) • Provides a common programming interface model for interacting with EIS via resource adapters • Quality of Service (QoS) Facilities • Connection & transaction management and security

  8. J2EE Connector Architecture Container-Component Contract J2EE Application Component OC4J - J2EE Application Server Client API (e.g. CCI) System Contracts Resource Adapter Connection Manager Transaction Manager EIS specific contracts Security Manager Enterprise Information System

  9. Oracle Application Server 10g and JCA

  10. Oracle Application Server 10g(9.0.4) Containers for J2EE J2EE 1.3 APIs OC4J Support JSP 1.2 Servlet 2.3 EJB 2.0 JDBC 2.0 Extension JMS 1.0 JNDI 1.2 Connector Architecture 1.0 JTA 1.0 Java Mail 1.2 JAXP 1.1 JAAS 1.0

  11. Oracle Application Server AJP13 JNDI Oracle HTTP Server Web Container JMS HTTP AJP mod_oc4j JDBC JCA Web Client JTA EJB Container ORMI JAXP ORMI JAAS … EJB Client OC4J Server Process

  12. Oracle Application Server 10g(9.0.4) JCA – Quality of Service (QoS) Oracle’s JCA container implementation provides additional QoS • Connection Pooling • Container Managed Sign-On (CMSO) • Declarative CMSO • Programmatic CMSO

  13. Connection Pooling • Specify minimum number of connections to create at startup • Limit the size of the connection pool by setting the maximum number of connections • Choose between fixed, fixed_wait and dynamic schemes for handling overflow of connection requests • Pick a timeout for fixed wait scheme

  14. Connection Pooling Example <connection-pooling> <description> Pool with a minimum of one connection and a maximum of three, when all three connections are in use, a request for connection should wait 60 seconds for a connection to free up, else receive an exception </description> <property name="minConnections" value="1" /> <property name="maxConnections" value="3" /> <property name="scheme" value="fixed_wait" /> <property name="waitTimeout" value="60" /> </connection-pooling>

  15. Container Managed Sign-On (CMSO) • Configure container to take care of sign-on to EIS transparently • Choose between different schemes • Declarative • Programmatic

  16. CMSO Overview

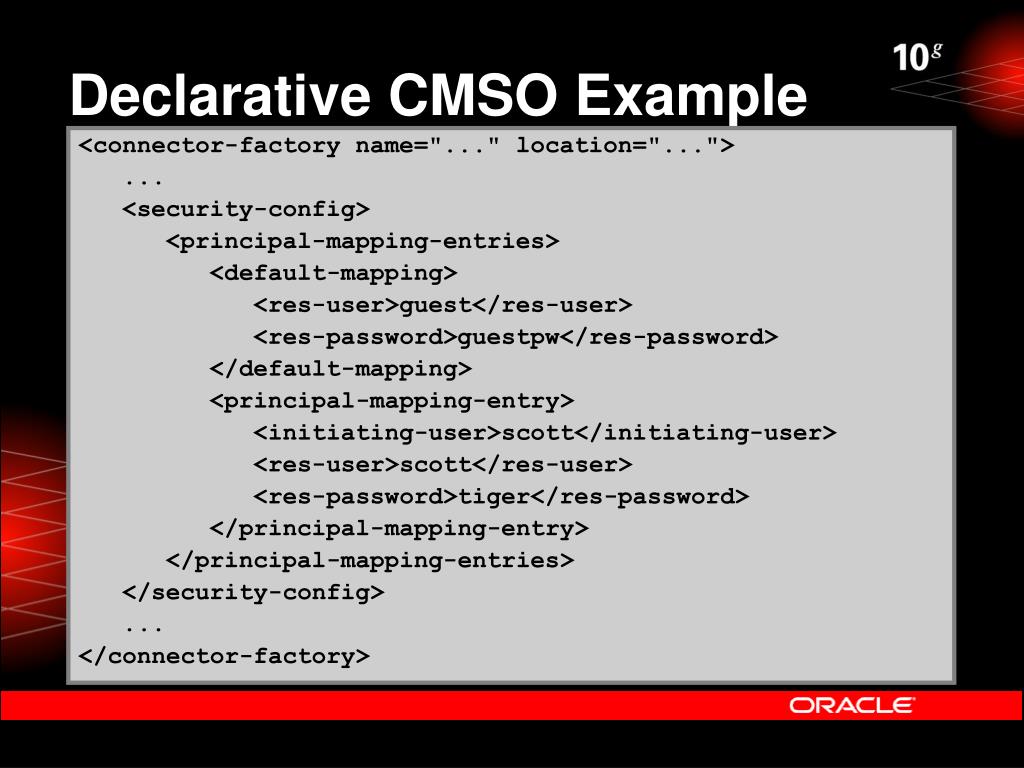

  17. Declarative CMSO Example <connector-factory name="..." location="..."> ... <security-config> <principal-mapping-entries> <default-mapping> <res-user>guest</res-user> <res-password>guestpw</res-password> </default-mapping> <principal-mapping-entry> <initiating-user>scott</initiating-user> <res-user>scott</res-user> <res-password>tiger</res-password> </principal-mapping-entry> </principal-mapping-entries> </security-config> ... </connector-factory>

  18. Programmatic CMSO • Provide custom authentication module • Plug-in JAAS modules or implement OC4J-specific interfaces • JAAS modules are portable as compared to the OC4J-specific alternative • Authentication modules that implement OC4J-specific interfaces are simpler to write and deploy compared to JAAS modules

  19. Customer Case Study Oracle Application Server integration with back-end Mainframe CICS

  20. The Players • The Lloyds Insurance Market (Lloyds) • International Underwriters Association (IUA) • Xchanging Ins-Sure Services (XIS) • Steria  System Integration • Oracle  OC4J • Attunity  CICS JCA Adapter

  21. Claim Convergence Project Business Goals: • Reduce TCO (operating and maintenance costs) by converging two CICS based Claim systems • Increase end-user productivity with web interfaces • Establish agile IT foundation to quickly introduce new capabilities in the future

  22. JCA Solution Architecture Web Browsers Oracle Application Server (Solaris) FixNAT Firewall JSP ? OS390 CICS

  23. The Technical Objectives(i.e., Challenges) • Standard integration of J2EE and CICS (JCA, XML) • Develop productivity (known skill sets and tools) • Isolate legacy from the Java developers • Turn legacy into reusable services (SOA) • Agile, reusable architecture foundation • Save on maintenance • Robust, Simple mainframe connectivity • Native data type mapping (into XML) • No changes to CICS applications • No coding per transactions

  24. CICS LogIn Program COMMAREA COMMAREA is Input/Output buffer for the CICS program 01 C002-COMMAREA. 03 C002-TRANS-ID PIC X(4) 03 C002-SESSION-NO PIC S9(9) COMP. 03 C002-PROG-STATUS PIC S9(4) COMP. 03 C002-ERROR-COUNT PIC S9(4) COMP. 03 C002-ERROR-TABLE OCCURS 10. 06 C002-ERROR-CODE PIC X(4). 06 C002-ERROR-TEXT PIC X(70). 03 C002-WARNING-COUNT PIC S9(4) COMP. 03 C002-WARNING-TABLE OCCURS 10. 06 C002-WARNING-CODE PIC X(4). 06 C002-WARNING-TEXT PIC X(70). 03 C002-ACCOUNT-CODE PIC X(4) 03 C002-NET-USER-ID PIC X(8) 03 C002-PASSWORD PIC X(8) 03 C002-SECTION-CODE PIC X(4). 03 C002-LOGIN-STATUS PIC X. The mapped Output parameter (‘LogInOut’) The mapped Input parameters (‘LogInIn’)

  25. CICS JCA Adapter Metadata Adapter Type = CICS <?xml version='1.0'?> <adapter name=‘CICS' version='1.0' type='acadmin'vendor='Attunity Ltd.'> <interaction name="logIn" mode="sync-send-receive" input="logInIn" output="logInOut"> <interactionSpec program="LC0010R0"/> </interaction> <interaction name="logOff" mode="sync-send-receive" input="logOffIn" output="logOffOut"> <interactionSpec program="LC0010R0"/> </interaction> <schema version='1.0'> <record name='logInIn'> <field name='C002_NET_USER_ID' type='string' nativeType='string‘ length='8' /> <field name='C002_PASSWORD' type='string' nativeType='string‘ length='8' /> </record> <record name='logInOut'> <field name='C002_TRANS_ID' type='string' nativeType='string'length='4' default='LY02'/> <field name='C002_SESSION_NO' type='int' nativeType='int4' /> <field name='C002_PROG_STATUS' type='int' nativeType='int2' /> <field name='C002_ERROR_COUNT' type='int' nativeType='int2' /> <field name='C002_ERROR_TABLE' type='C002_COMMAREA_C002_ERROR_TABLE‘ array='10'/> <field name='C002_LOGIN_STATUS' type='string' nativeType='string‘ length='1' /> </record> … </schema> </adapter> Adapter Interactions In/Out Message Definition (Schema) Native Data Type/Structure Mapping

  26. JCA Deployment Descriptor <?xml version="1.0"?> <!DOCTYPE oc4j-connector-factories PUBLIC "-//Oracle//DTD Oracle Connector 1.0//EN" "http://xmlns.oracle.com/ias/dtds/oc4j-connector-factories.dtd"> <oc4j-connector-factories> <connector-factory location="eis/attunityCICS" connector-name="Attunity Connect Legacy Adapter"> <config-property name="userName" value=""/> <config-property name="password" value=""/> <config-property name="eisName" value=“CICSClaimsSystem"/> <config-property name="serverName" value=“myMainframe"/> <config-property name="workspace" value="Navigator"/> <config-property name="portNumber" value="2551"/> <config-property name="persistentConnection" value=""/> <config-property name="keepAlive" value=""/> <connection-pooling> <property name="scheme" value="dynamic" /> <property name="maxConnections" value="10" /> <property name="minConnections" value="5" /> </connection-pooling> </connector-factory> … </oc4j-connector-factories> Define Connector Factory Specify a JNDI location for the JCA Adapter Adapter Connection Attributes Connection Pooling

  27. Using the JCA Adapter Lookup CICS JCA Adapter … Context ic = new InitialContext(); String name = "java:comp/env/eis/attunityCICS"; javax.resource.cci.ConnectionFactory cf = (ConnectionFactory) ic.lookup (name); try { javax.resource.cci.Connection con = cf.getConnection(); Interaction interaction = con.createInteraction(); AttuInteractionSpec iSpeq = new AttuInteractionSpec("logIn"); RecordFactory rf = cf.getRecordFactory(); MappedRecord queryRecord = rf.createMappedRecord("logInIn"); queryRecord.put("@C002_NET_USER_ID",event.getUsername()); queryRecord.put("@C002_PASSWORD",event.getPassword()); Record oRec = interaction.execute(iSpeq, queryRecord); Element outEl = ((DomRecord)oRec).getDom(); String session = (String)((MappedRecord)oRec).get("@C002_SESSION_NO"); System.out.println("SESSION IS " + session); interaction.close(); con.close(); } Get Connection and Create Interaction (‘LogIn’) Build interaction input document (‘LogInIn’) Execute the interaction Parse interaction response Close

  28. Other Integration Considerations • Coordinate transaction calls (transID) • Firewall • Support FIXNAT • Transparent to the App Server • Connection Pooling • Oracle side (OC4J) • Mainframe CICS side (Attunity Connect) • Performance • Pre-loaded adapter definitions and listeners

  29. What Have We Seen? • Standard Integration APIs • JCA CCI: getConnection, createInteraction, execute... • XML: manipulate in/out docs • Flexible Adapter Definition • Map Interactions to legacy Programs • Robust Native-data structure (e.g. COBOL) Mapping • Simple values, Arrays, Inner Structures, etc. • Powerful manipulation of interaction messages • Other Capabilities • Transactions (expose as XAResource), Batch interactions

  30. Bottom Line • It’s Standard (JCA CCI, XML) • It’s Easy (use Java APIs and Objects) • It’s Fast (proved architecture in a day) • It Works !

  31. The Results • “It’s pretty simple to introduce new transactions, so the team can expand the claims system in almost any direction” • “By making data entry more intuitive and user friendly, we can improve throughput... This will also increase our capacity for taking on potential new business…” Stuart Allan, XIS Convergence Program

  32. The future of JCA

  33. JCA 1.5 (JSR 112) • Release with J2EE 1.4 • Enable inbound communication • Transaction inflow • Message inflow • Provide JMS Provider pluggability • Enhanced/new QoS Contracts • Lifecycle management • Work management • Packaging model

  34. JCA 2.0? • Release after J2EE 1.4 • Provide CCI meta-data support • Add XML support to CCI • Other QoS enhancements

  35. Oracle Application Server 10g Integration

  36. Business Process Management B2BIntegration WebServiceIntegration EnterpriseApplicationIntegration Integrate Your Business Single Integration Tool Exchanges E-Business Suite 3rd Party Apps Any Data Source Custom Apps Messaging Systems • Improve efficiency using integrated business processes • Open, standards-based architecture • Single solution for A2A, B2B, and web services integration • Best solution pre-integrated with Oracle E-Business Suite

  37. Tools Design Monitor Analyze Metadata Design Metadata Run-Time Repository Run-Time / Common Services Adapters HTTP/S Trading Partner Management Oracle11i SMTP SAP R3 Business Process Management FTP Peoplesoft SOAP MQSeries Security Validation Transformation ebXML JMS JDBC RosettaNet Logging Monitoring TransactionManagement JCA EDI Oracle Application Server 10g Integration B2B Services • Improve efficiency using integrated business processes • Common view approach minimizes impact of adding applications • Pre-certified JCA based adapters • Business process intelligence

  38. Oracle Application Server Integration Fast Deployment via Packaged Adapters • Applications • Oracle 11.5.X • Oracle 10.7 • SAP R/3 • SAP R/4 • Peoplesoft • Ariba • Commerce One • JD Edwards • Siebel • Siebel 2000 • i2 • Any J2CA Application • Databases • Oracle7.3, 8.0, 8i, 9i • MS SQL-Server • IBM DB/2 UDB • Sybase • Informix • J2CA Datasources • Messaging • Oracle AQ • MQ-Series • TIBCO • Legacy • CICS • New EDI • Transports • SOAP • HTTP, HTTP-S • SMTP • FTP • CORBA/IIOP • COM/COM+ • Generic DB • Flat File

  39. Reminder – please complete the OracleWorld online session surveyThank you.

  40. Q & Q U E S T I O N S A N S W E R S A
