  1. 3. RDF and XML 인공지능 연구실 한기덕

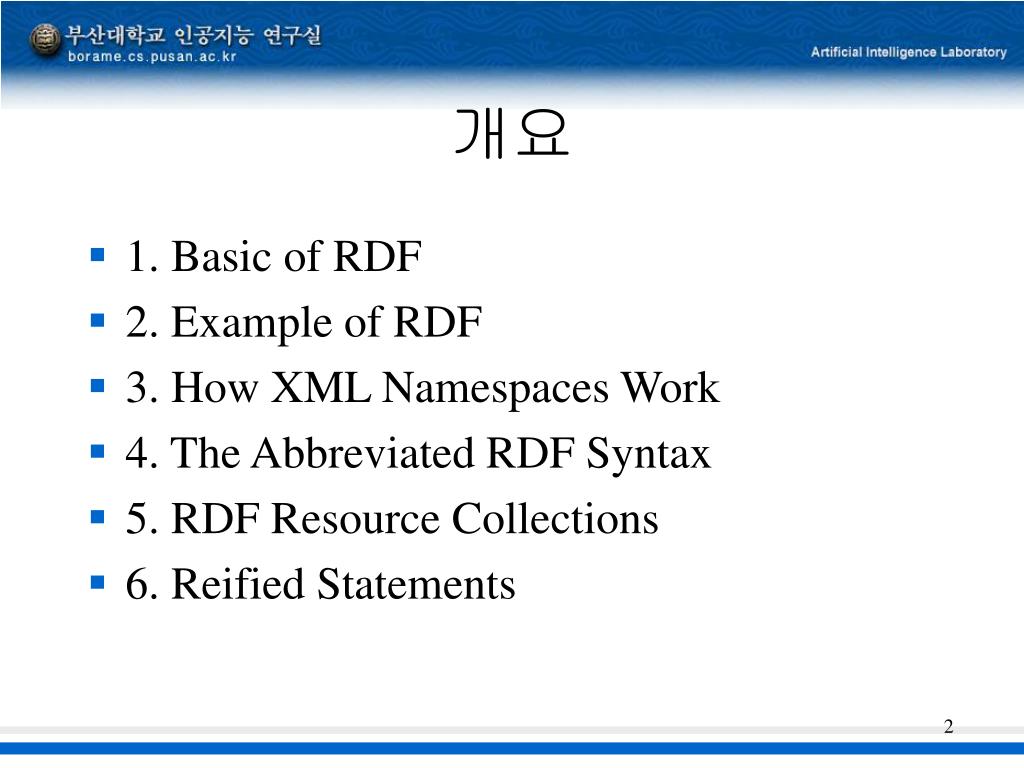

  2. 개요 • 1. Basic of RDF • 2. Example of RDF • 3. How XML Namespaces Work • 4. The Abbreviated RDF Syntax • 5. RDF Resource Collections • 6. Reified Statements

  3. Basic of RDF • The Triplesof RDF • resource, property, and property value. • Literals • Constants (String values) • A relationship between a resource and a literal is expressed by a statement, which connects a subject with an object via a predicate

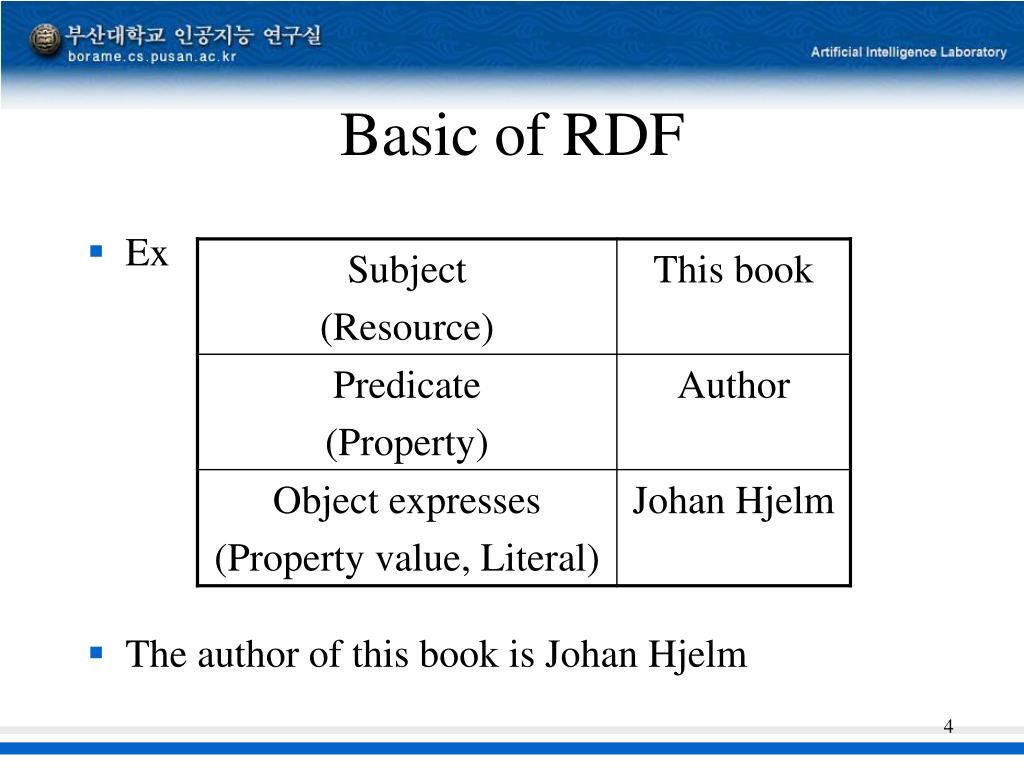

  4. Basic of RDF • Ex • The author of this book is Johan Hjelm

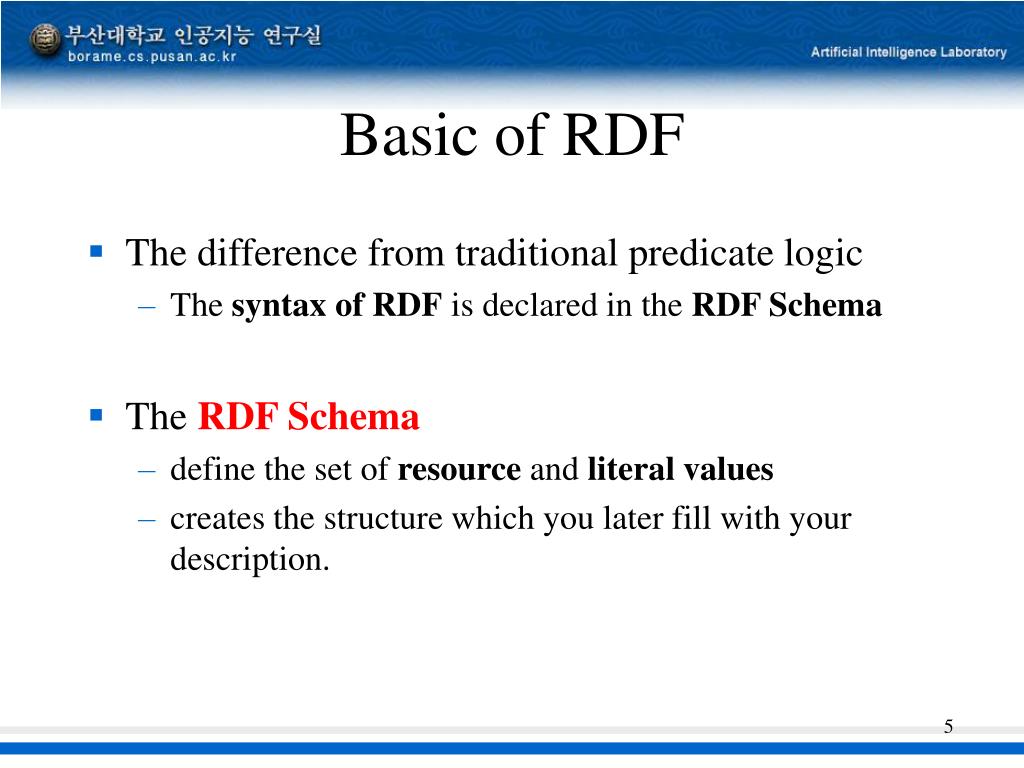

  5. Basic of RDF • The difference from traditional predicate logic • The syntax of RDF is declared in the RDF Schema • The RDF Schema • define the set of resource and literal values • creates the structure which you later fill with your description.

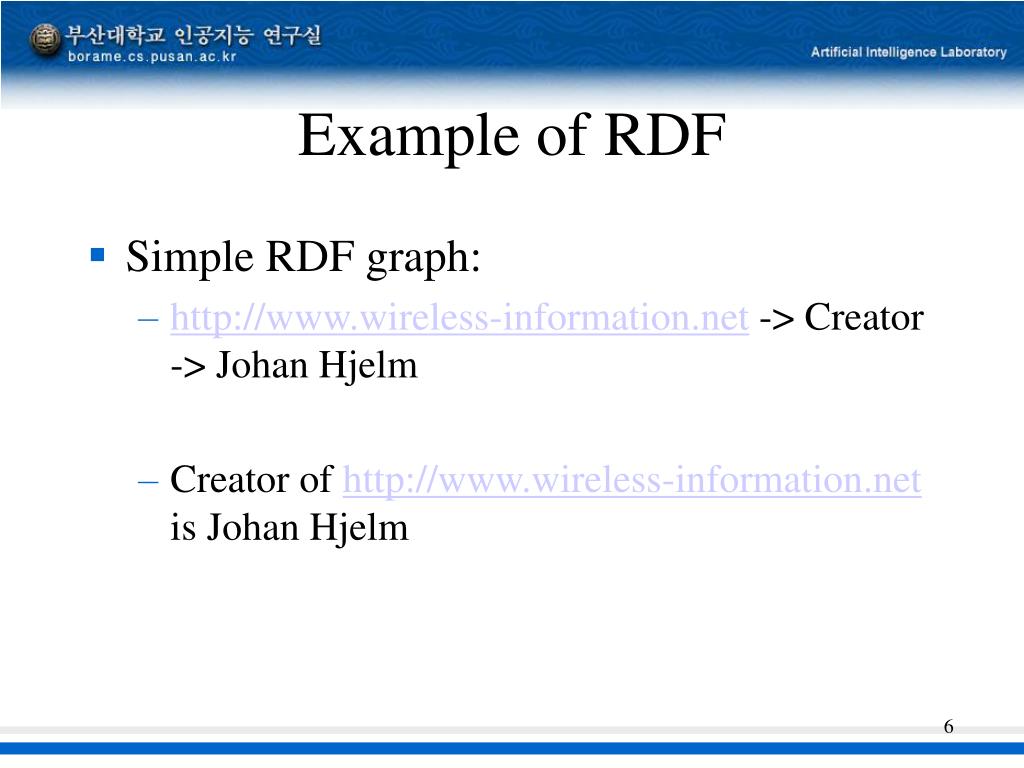

  6. Example of RDF • Simple RDF graph: • http://www.wireless-information.net -> Creator -> Johan Hjelm • Creator of http://www.wireless-information.net is Johan Hjelm

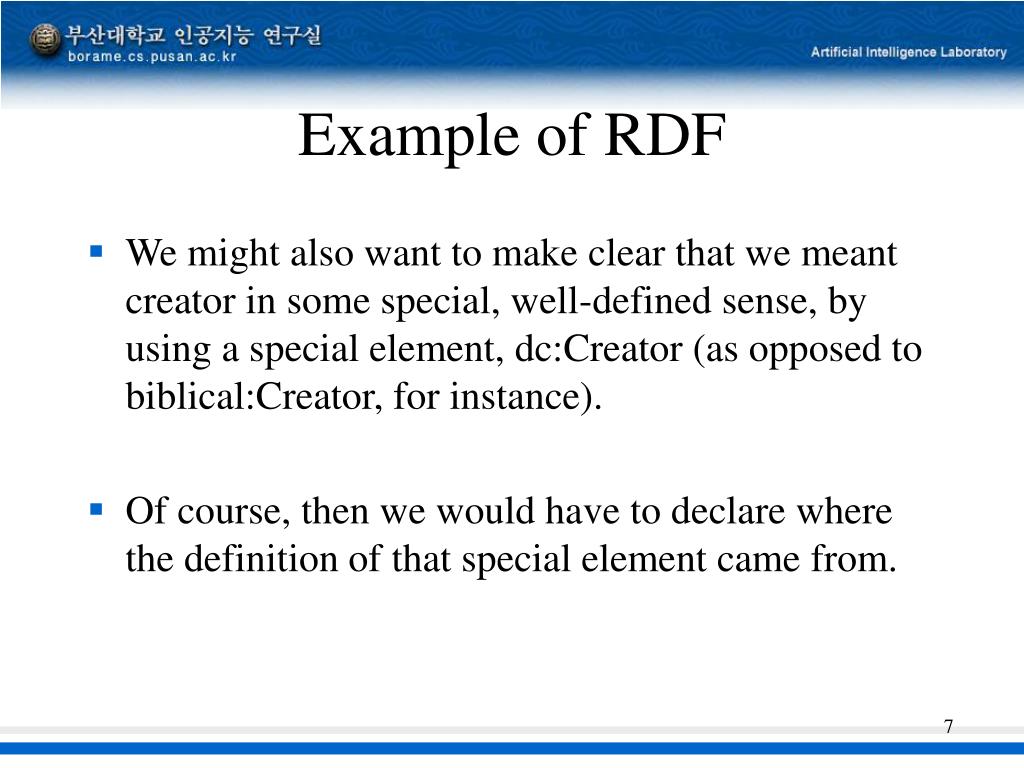

  7. Example of RDF • We might also want to make clear that we meant creator in some special, well-defined sense, by using a special element, dc:Creator (as opposed to biblical:Creator, for instance). • Of course, then we would have to declare where the definition of that special element came from.

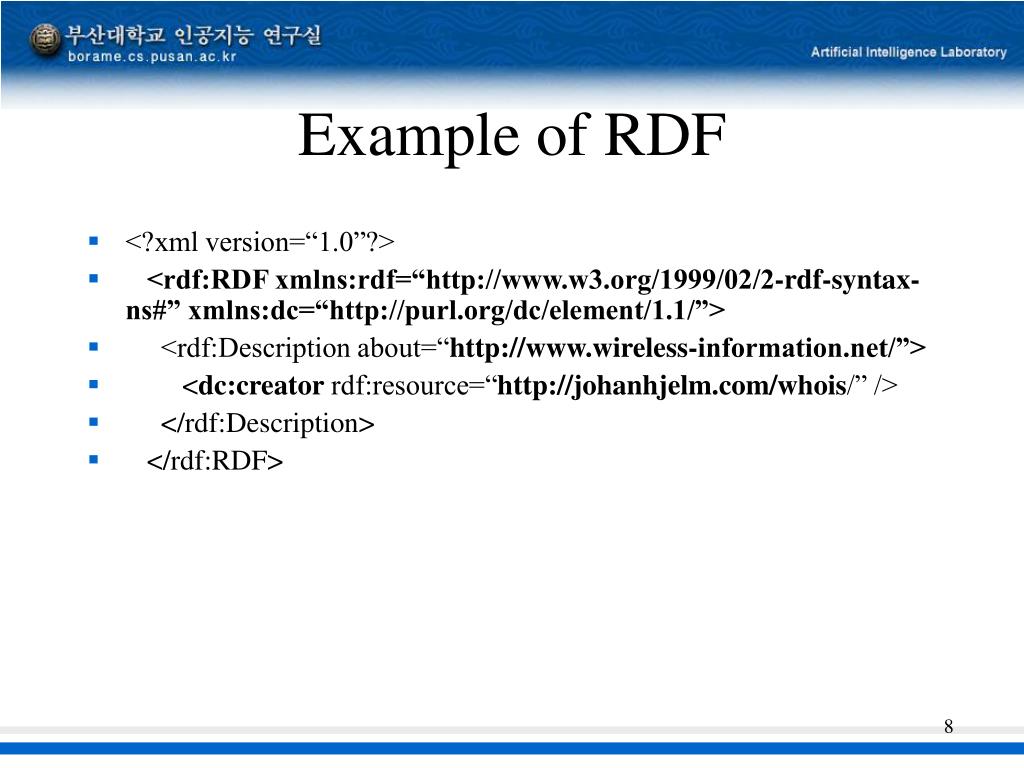

  8. Example of RDF • <?xml version=“1.0”?> • <rdf:RDF xmlns:rdf=“http://www.w3.org/1999/02/2-rdf-syntax-ns#” xmlns:dc=“http://purl.org/dc/element/1.1/”> • <rdf:Description about=“http://www.wireless-information.net/”> • <dc:creator rdf:resource=“http://johanhjelm.com/whois/” /> • </rdf:Description> • </rdf:RDF>

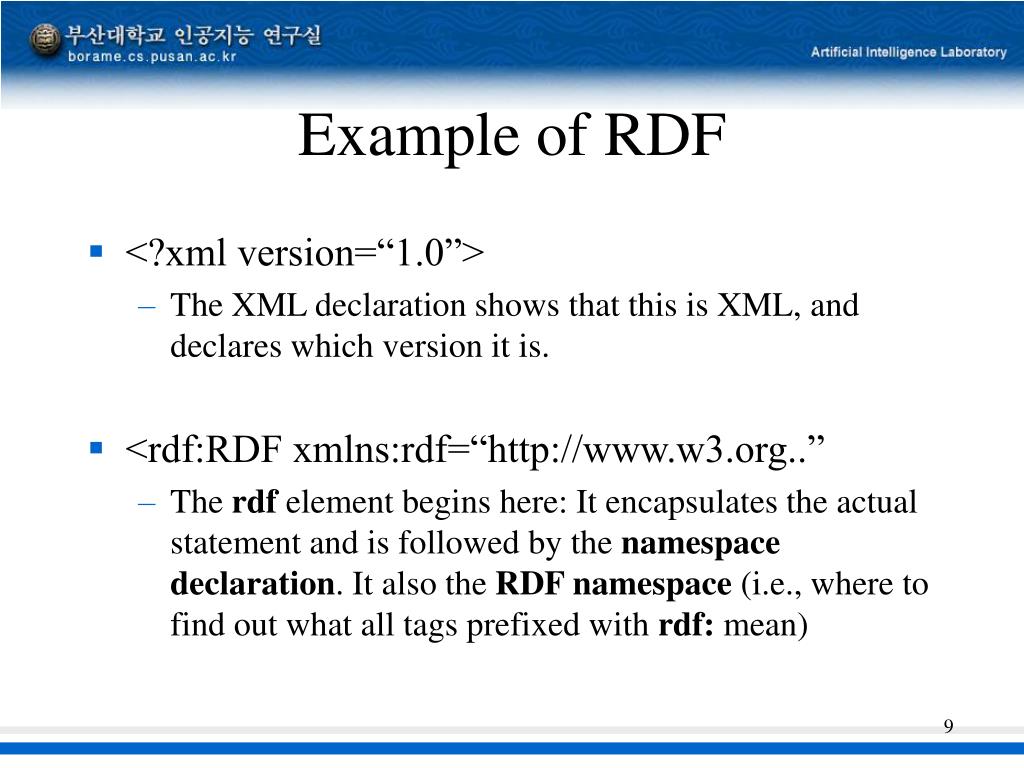

  9. Example of RDF • <?xml version=“1.0”> • The XML declaration shows that this is XML, and declares which version it is. • <rdf:RDF xmlns:rdf=“http://www.w3.org..” • The rdf element begins here: It encapsulates the actual statement and is followed by the namespace declaration. It also the RDF namespace (i.e., where to find out what all tags prefixed with rdf: mean)

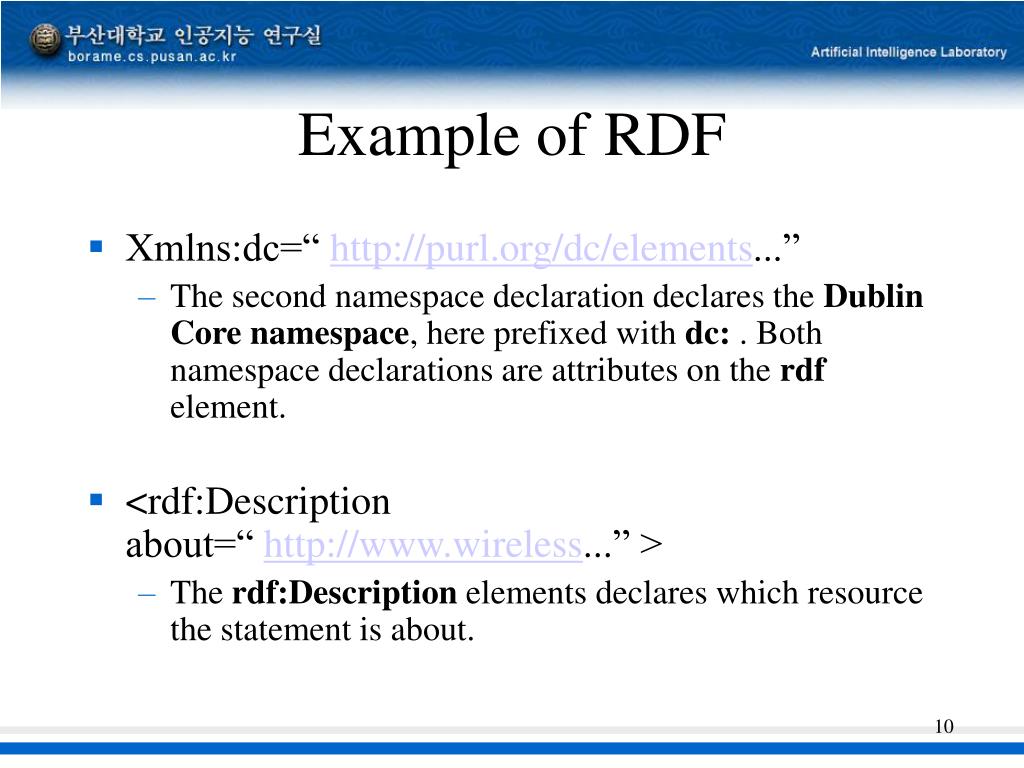

  10. Example of RDF • Xmlns:dc=“ http://purl.org/dc/elements...” • The second namespace declaration declares the Dublin Core namespace, here prefixed with dc: . Both namespace declarations are attributes on the rdf element. • <rdf:Description about=“ http://www.wireless...” > • The rdf:Description elements declares which resource the statement is about.

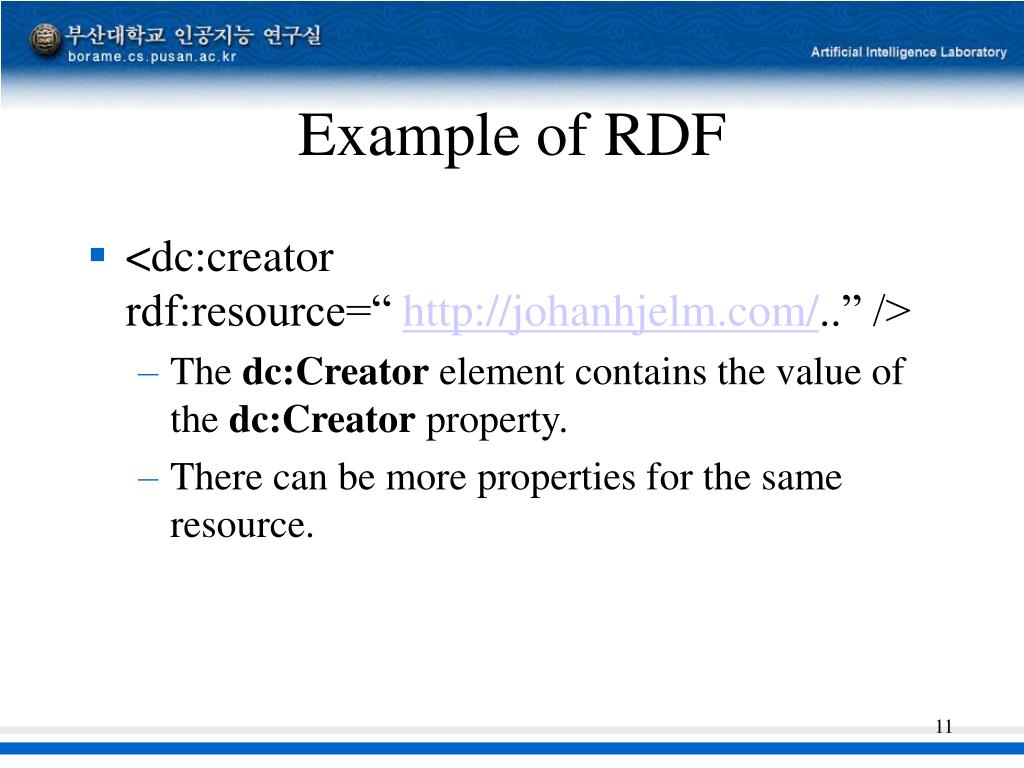

  11. Example of RDF • <dc:creator rdf:resource=“ http://johanhjelm.com/..” /> • The dc:Creator element contains the value of the dc:Creator property. • There can be more properties for the same resource.

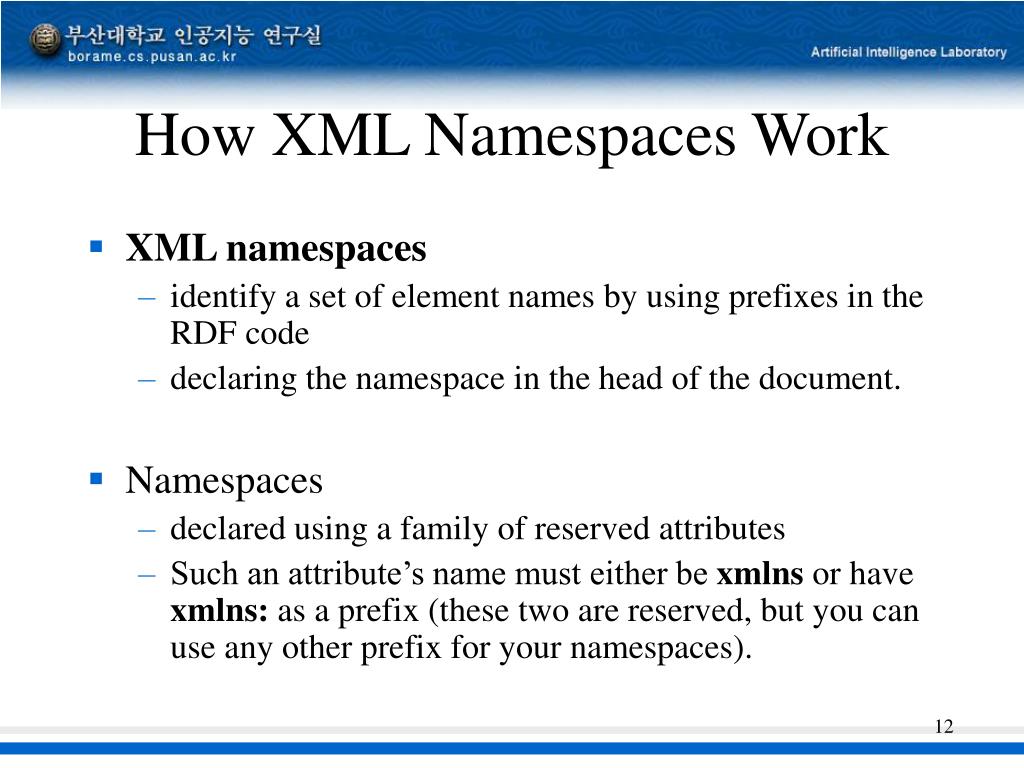

  12. How XML Namespaces Work • XML namespaces • identify a set of element names by using prefixes in the RDF code • declaring the namespace in the head of the document. • Namespaces • declared using a family of reserved attributes • Such an attribute’s name must either be xmlns or have xmlns: as a prefix (these two are reserved, but you can use any other prefix for your namespaces).

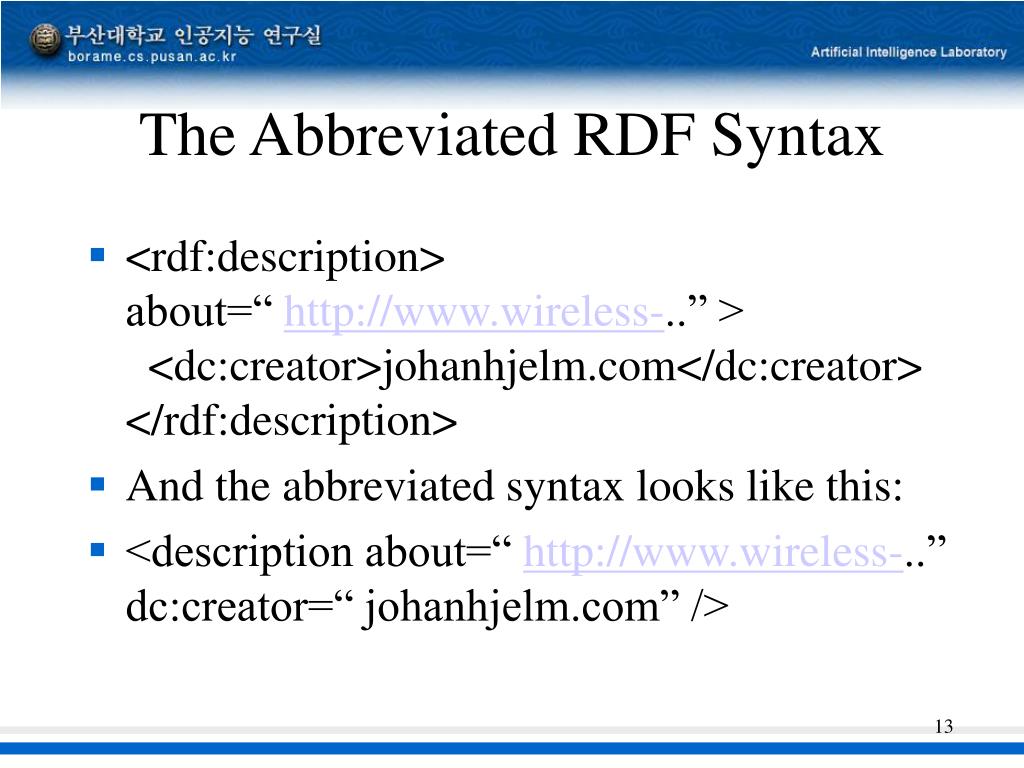

  13. The Abbreviated RDF Syntax • <rdf:description> about=“ http://www.wireless-..” > <dc:creator>johanhjelm.com</dc:creator></rdf:description> • And the abbreviated syntax looks like this: • <description about=“ http://www.wireless-..” dc:creator=“ johanhjelm.com” />

  14. RDF Resource Collections • Bag • Unordered list of resource (URIs) or atomic values (literals, i.e., strings). • Used to declare that a property has multiple values • The order of the values does not matter • There can be duplicates of resources and duplicate values in literals.

  15. RDF Resource Collections • Sequence • Ordered list of resources or atomic values (literals) • The order is significant • Possible to have duplicates of the same value • Used to declare that a property has multiple values.

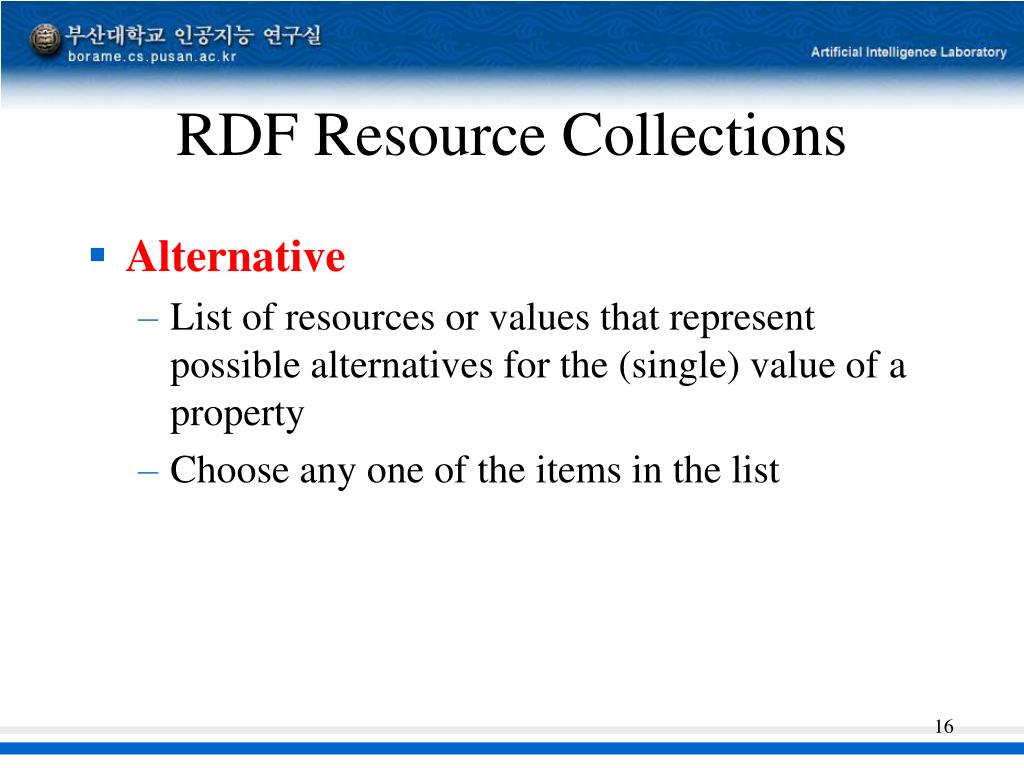

  16. RDF Resource Collections • Alternative • List of resources or values that represent possible alternatives for the (single) value of a property • Choose any one of the items in the list

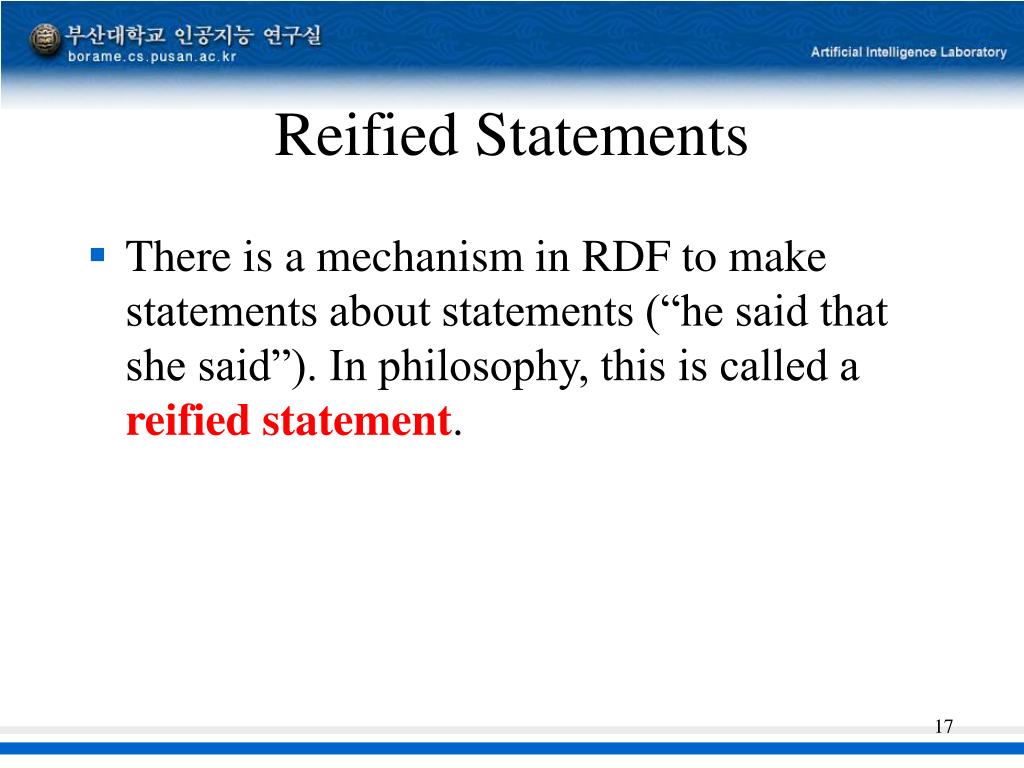

  17. Reified Statements • There is a mechanism in RDF to make statements about statements (“he said that she said”). In philosophy, this is called a reified statement.

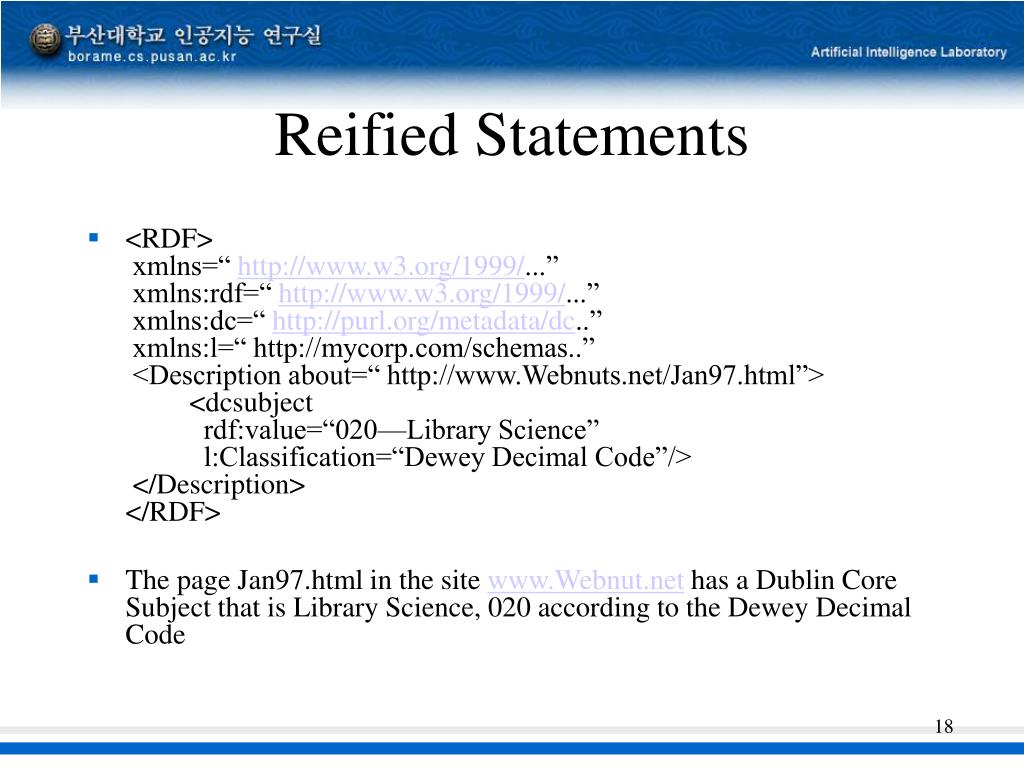

  18. Reified Statements • <RDF> xmlns=“ http://www.w3.org/1999/...” xmlns:rdf=“ http://www.w3.org/1999/...” xmlns:dc=“ http://purl.org/metadata/dc..” xmlns:l=“ http://mycorp.com/schemas..” <Description about=“ http://www.Webnuts.net/Jan97.html”> <dcsubject rdf:value=“020—Library Science” l:Classification=“Dewey Decimal Code”/> </Description></RDF> • The page Jan97.html in the site www.Webnut.net has a Dublin Core Subject that is Library Science, 020 according to the Dewey Decimal Code

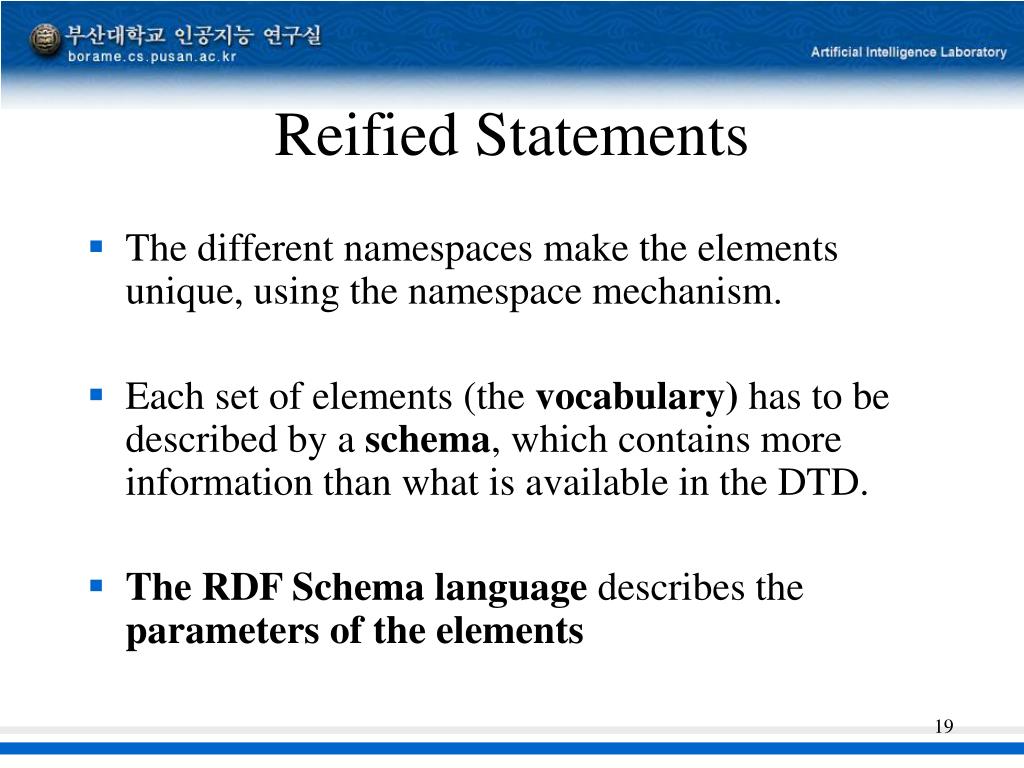

  19. Reified Statements • The different namespaces make the elements unique, using the namespace mechanism. • Each set of elements (the vocabulary) has to be described by a schema, which contains more information than what is available in the DTD. • The RDF Schema language describes the parameters of the elements

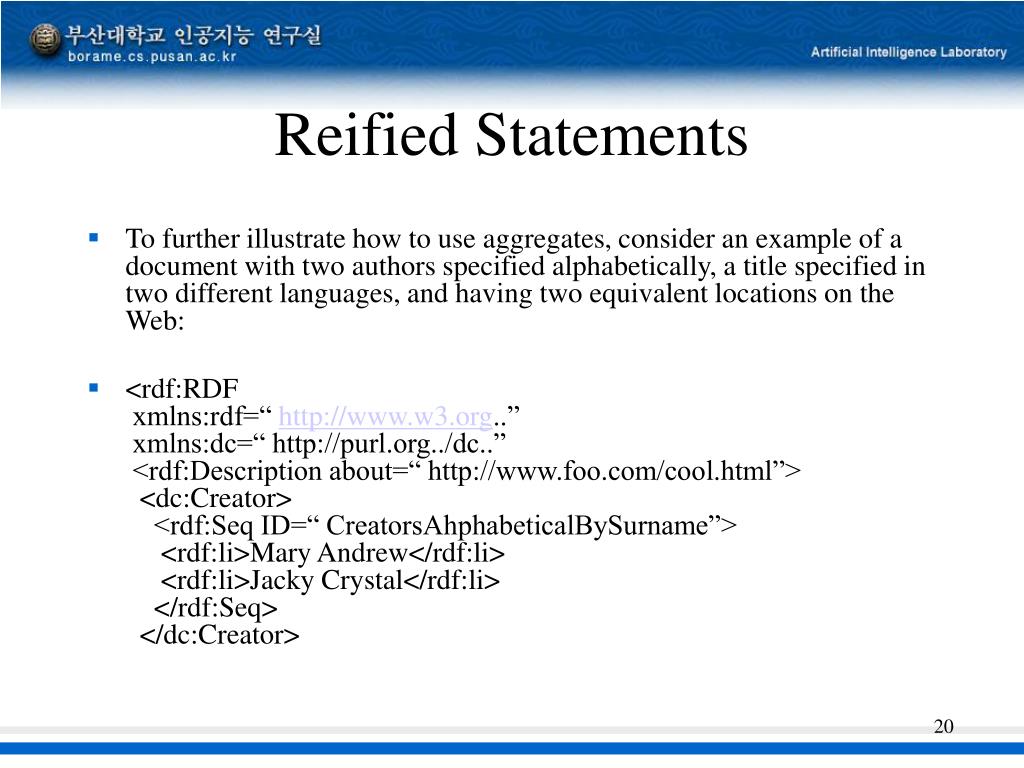

  20. Reified Statements • To further illustrate how to use aggregates, consider an example of a document with two authors specified alphabetically, a title specified in two different languages, and having two equivalent locations on the Web: • <rdf:RDF xmlns:rdf=“ http://www.w3.org..” xmlns:dc=“ http://purl.org../dc..” <rdf:Description about=“ http://www.foo.com/cool.html”> <dc:Creator> <rdf:Seq ID=“ CreatorsAhphabeticalBySurname”> <rdf:li>Mary Andrew</rdf:li> <rdf:li>Jacky Crystal</rdf:li> </rdf:Seq> </dc:Creator>

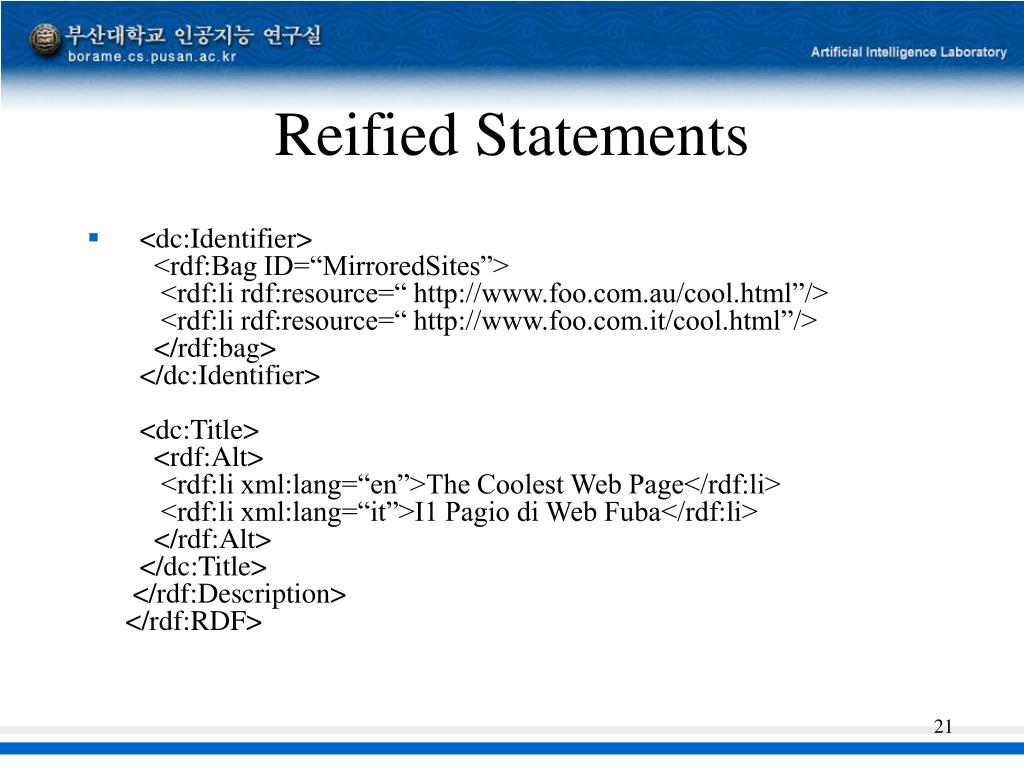

  21. Reified Statements • <dc:Identifier> <rdf:Bag ID=“MirroredSites”> <rdf:li rdf:resource=“ http://www.foo.com.au/cool.html”/> <rdf:li rdf:resource=“ http://www.foo.com.it/cool.html”/> </rdf:bag> </dc:Identifier> <dc:Title> <rdf:Alt> <rdf:li xml:lang=“en”>The Coolest Web Page</rdf:li> <rdf:li xml:lang=“it”>I1 Pagio di Web Fuba</rdf:li> </rdf:Alt> </dc:Title> </rdf:Description></rdf:RDF>
