  1. Zeppelin - A Third Generation Data Center Network Virtualization Technology based on SDN and MPLS James Kempf, Ying Zhang, Ramesh Mishra, Neda Beheshti Ericsson Research

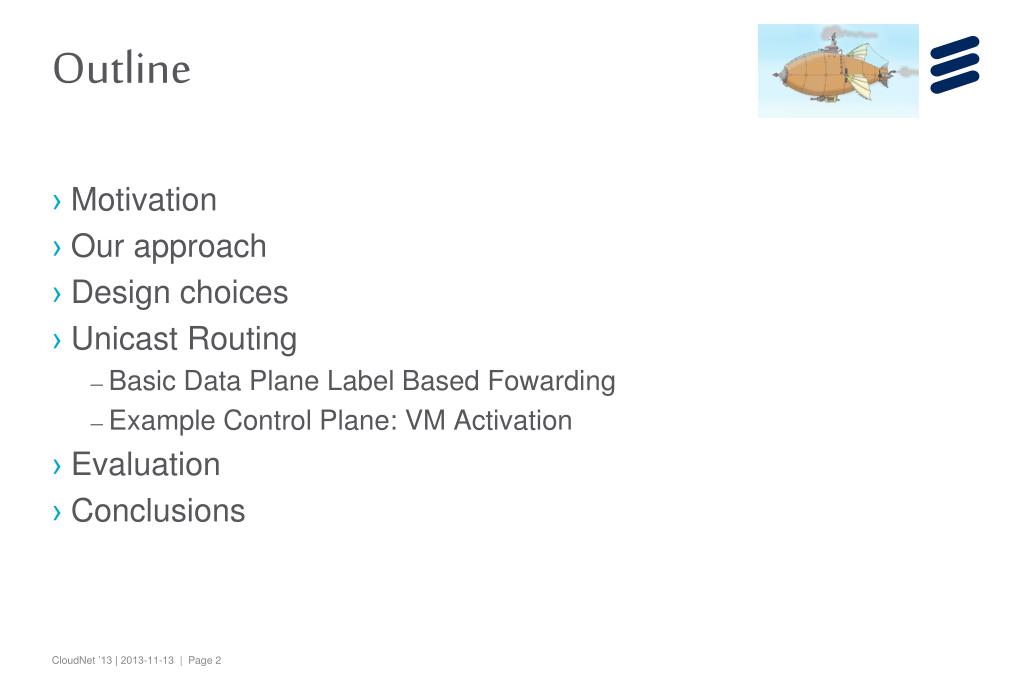

  2. Outline • Motivation • Our approach • Design choices • Unicast Routing • Basic Data Plane Label Based Fowarding • Example Control Plane: VM Activation • Evaluation • Conclusions

  3. Motivation: Drawbacks in Existing Network virtualization Technology • Lack of performance guarantees • No QoS or traffic engineering • Coupling with wide area network is weak • Cumbersome gateway/tunnel endpoints required • Efficient traffic isolation techniques are needed • Performance isolation • Disruptions minimization • DoS attack prevention • Existing solutions are insufficient or proprietary • VLANs, MAC address tunnels, and IP overlays are difficult to scale • IP overlay based approaches are difficult to manage • Proprietary versions of TRILL and MAC address tunneling • Flowvisor approach makes debugging difficult and requires the OpenFlow controller to handle multicast and broadcast

  4. Our approach • Zeppelin: an MPLS based network virtualization technology • SDN controller manages MPLS-based forwarding elements • Simple OpenFlow control plane • Labels for tenant and last hop link are used for forwarding between TORS and VMs • Hierarchical labels to improve scalability • Virtual network labels • Aggregation network labels

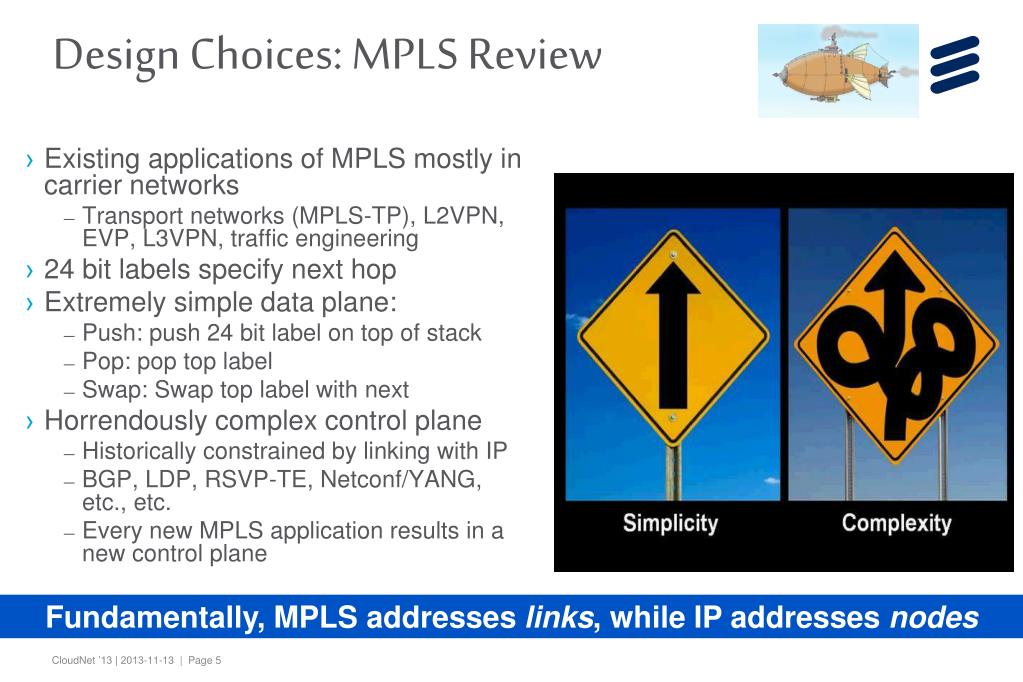

  5. Design Choices: MPLS Review • Existing applications of MPLS mostly in carrier networks • Transport networks (MPLS-TP), L2VPN, EVP, L3VPN, traffic engineering • 24 bit labels specify next hop • Extremely simple data plane: • Push: push 24 bit label on top of stack • Pop: pop top label • Swap: Swap top label with next • Horrendously complex control plane • Historically constrained by linking with IP • BGP, LDP, RSVP-TE, Netconf/YANG, etc., etc. • Every new MPLS application results in a new control plane Fundamentally, MPLS addresses links, while IP addresses nodes

  6. Design choices: Why MPLS? • Simple data plane, simple control plane • Replace control plane with OpenFlow • Available in most switches • New low cost OpenFlow enabled switches support it (Pica8,Centec) • And most moderate cost Ethernet switches do too • Widely used in wide area network VPNs • Simplifies gateway between WAN VPN and DC VPN

  7. Design choices: Why NOT mpls? • Ethernet is entrenched everywhere and in the data center in particular • Low cost hardware, management software • Merchant chip OpenFlow hardware has constrained flow scalability • TCAM is costly and consumes power • Network processors have good flow scalability but may not be cost competitive • IP overlay techniques like GRE/VXLAN are gaining favor • Only require changing software • Virtual switch at hypervisor and gateway to WAN • Easily managable IP routed network underlay for aggregation • Lots of tooling, sysadmin expertise in IP network management • Easy to switch out underlay network

  8. SourceTORS DestinationTORS Aggregation Aggregation Aggregation Aggregation Core Core 10.22.30.2 R1RM L-1 Ln Label GT Label GT ENet Ln Label Ln Label GT Label GT Label GT ENet BT ENet GT ENet Source Virtual Switch Dest Virtual Switch Rack 1 Green Tenant VM Green Tenant VM Blue Tenant VM Blue Tenant VM Unicast ROUTING: Data Plane label based forwarding … … R1Rm LSP-2 R1Rm LSP-1 10.22.30.2 Pop Inter-TORSLabel Push Inter-TORSLabel R1RM L-2 Ln Label BT Label … L1 BT ENet Ln 10.22.30.2 10.22.30.3 10.22.30.2 10.22.30.2 Ln Label Ln Label BT Label BT Label BT ENet Rack m 10.22.30.3 10.22.30.2 10.22.30.2 10.22.30.2 GT ENet BT ENet GT ENet BT ENet Pop Link and Tenant Label Push Tenant Labels Push Dest. Link Labels

  9. Unicast Routing: EXAMPLE Control Plane: VM Activation Cloud Execution Manager Cloud NetworkManager Server Virtual Switch New Green Tenant VM:<GT ID, GT MAC, Srvr MAC> Send OpenFlowFlowMod to VS on Srvrcausing tenant and link label on incomingpackets to pop and forward packet toTenant VM Inform CloudNetwork Manager about new VM Look up VS-TORS link label and TenantLabel using Tenant MAC and ID as key Record new tenantVM addresses in Cloud NetworkMapping Table • OpenFlow FlowMod

  10. EVALUATION: implementation • Use Mininet to emulate the data center network • Implement the control plane on NOX controller • Modify Mininet to store node metadata for switches and hosts

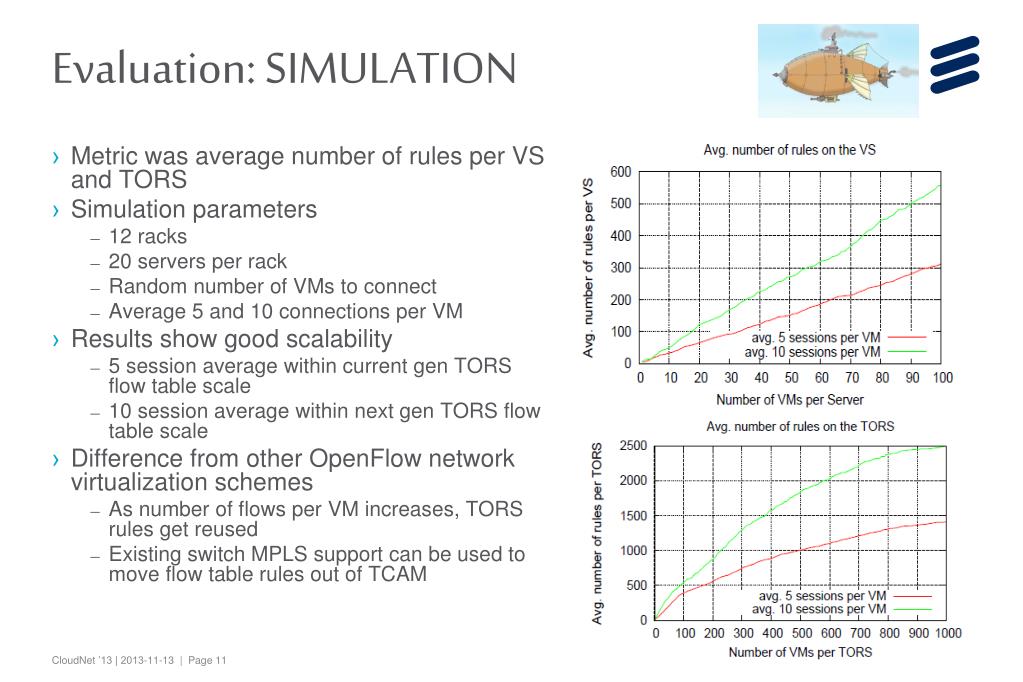

  11. Evaluation: SIMULATION • Metric was average number of rules per VS and TORS • Simulation parameters • 12 racks • 20 servers per rack • Random number of VMs to connect • Average 5 and 10 connections per VM • Results show good scalability • 5 session average within current gen TORS flow table scale • 10 session average within next gen TORS flow table scale • Difference from other OpenFlow network virtualization schemes • As number of flows per VM increases, TORS rules get reused • Existing switch MPLS support can be used to move flow table rules out of TCAM

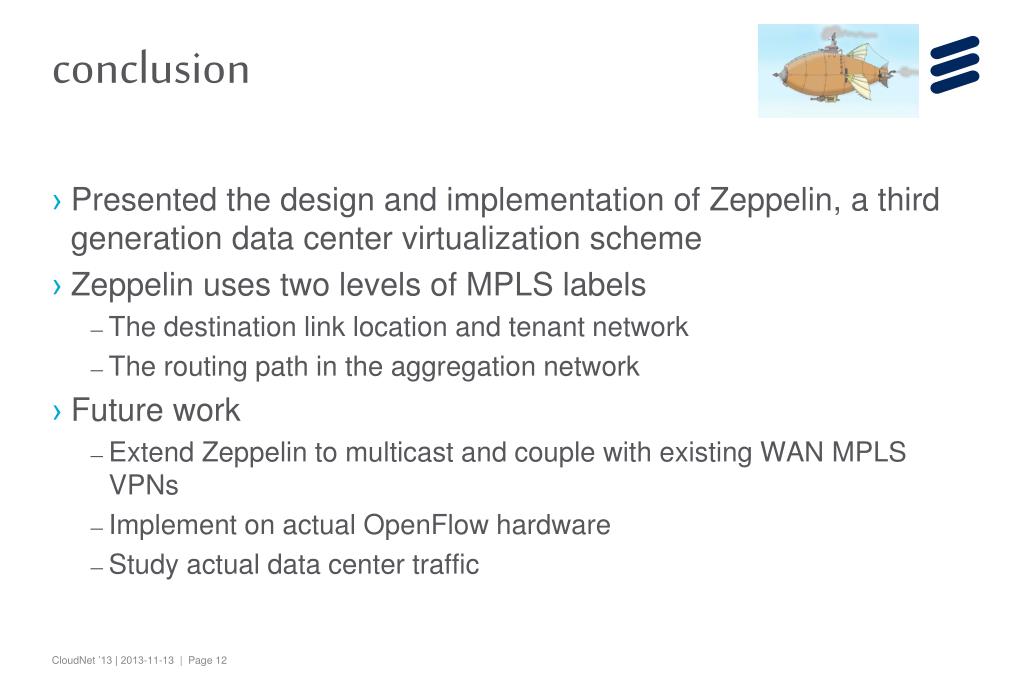

  12. conclusion • Presented the design and implementation of Zeppelin, a third generation data center virtualization scheme • Zeppelin uses two levels of MPLS labels • The destination link location and tenant network • The routing path in the aggregation network • Future work • Extend Zeppelin to multicast and couple with existing WAN MPLS VPNs • Implement on actual OpenFlow hardware • Study actual data center traffic

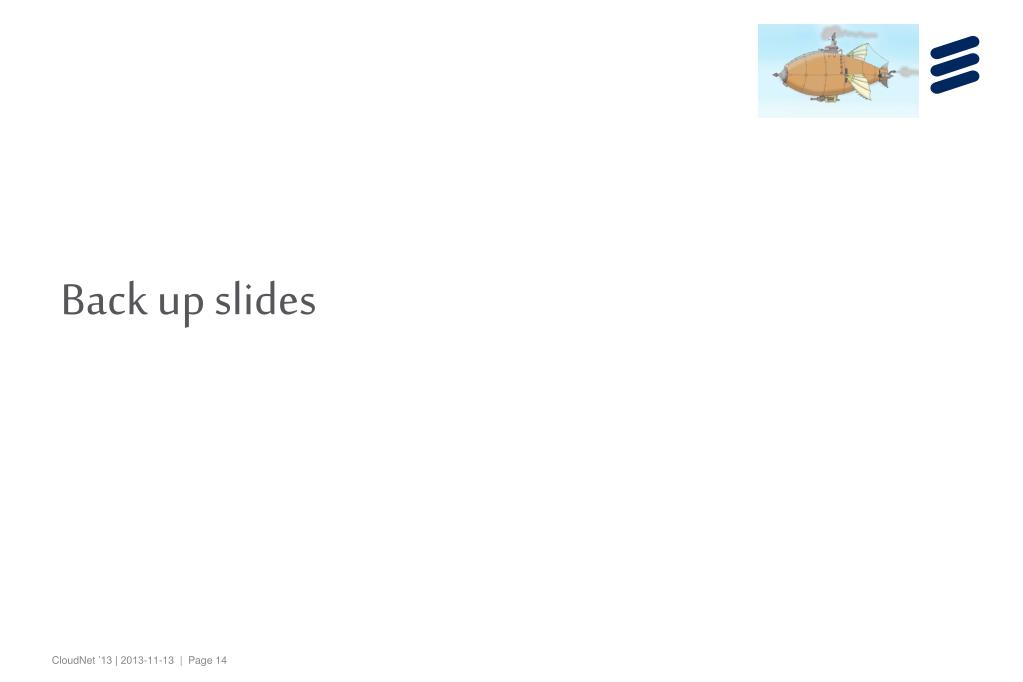

  13. Back up slides

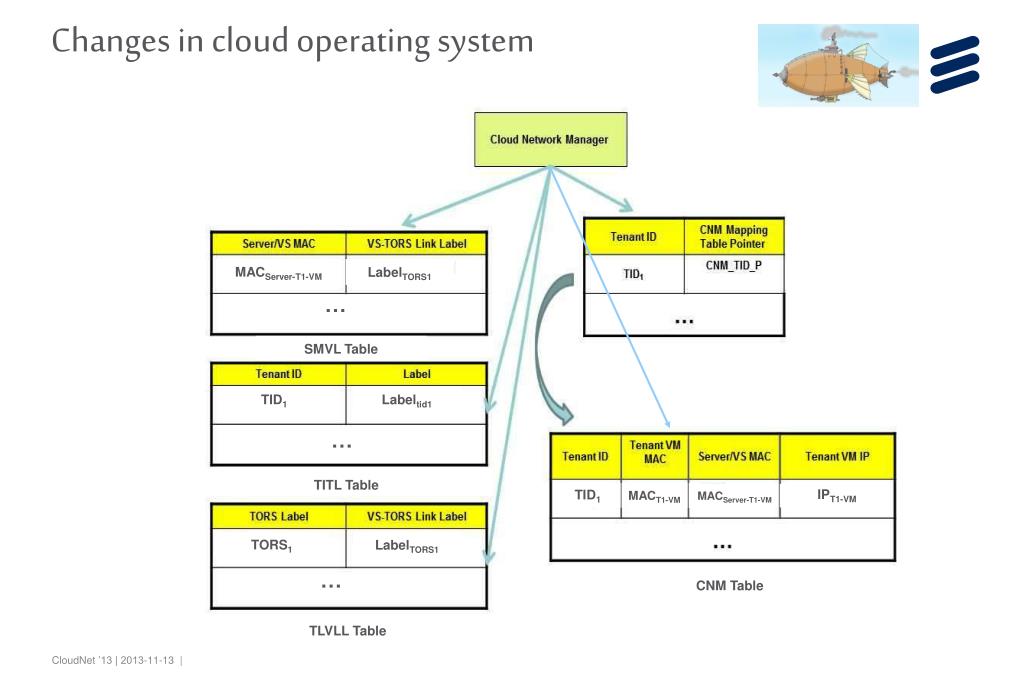

  14. Changes in cloud operating system MACServer-T1-VM LabelTORS1 … SMVL Table TID1 Labeltid1 … TITL Table IPT1-VM TID1 MACT1-VM MACServer-T1-VM TORS1 LabelTORS1 … CNM Table TLVLL Table

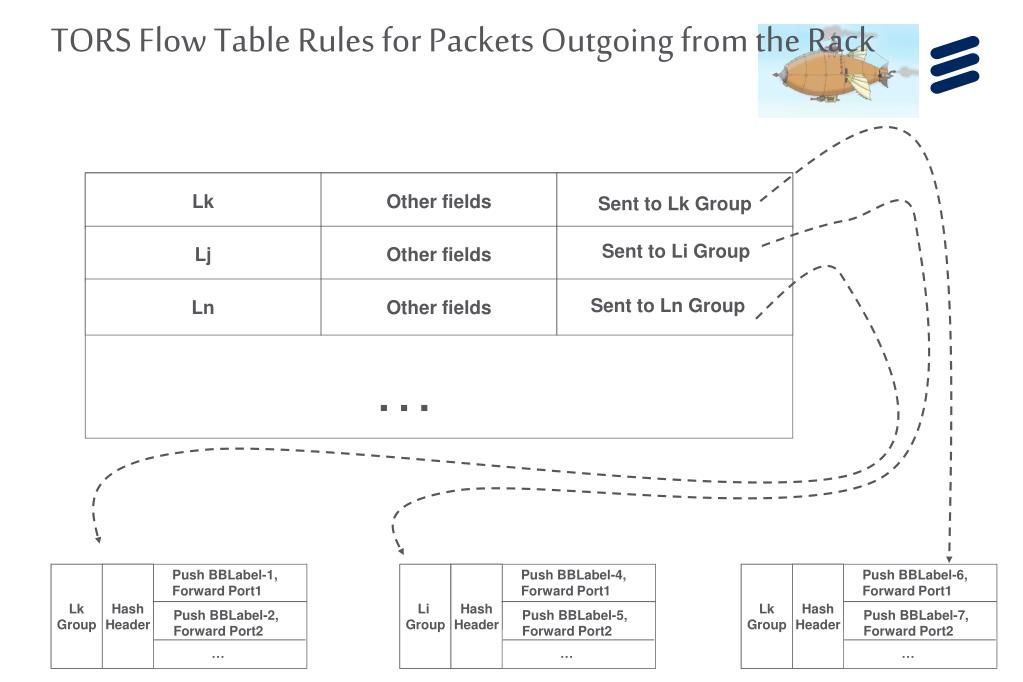

  15. Push BBLabel-6, Forward Port1 LkGroup HashHeader Push BBLabel-1, Forward Port1 LkGroup HashHeader Push BBLabel-4, Forward Port1 Li Group HashHeader MACT-VM Lj Ln Lk Other fields Other fields Other fields MACServer IPT-VM Push BBLabel-7, Forward Port2 Push BBLabel-2, Forward Port2 Push BBLabel-5, Forward Port2 … … … TORS Flow Table Rules for Packets Outgoing from the Rack Sent to Lk Group Sent to Li Group Sent to Ln Group …

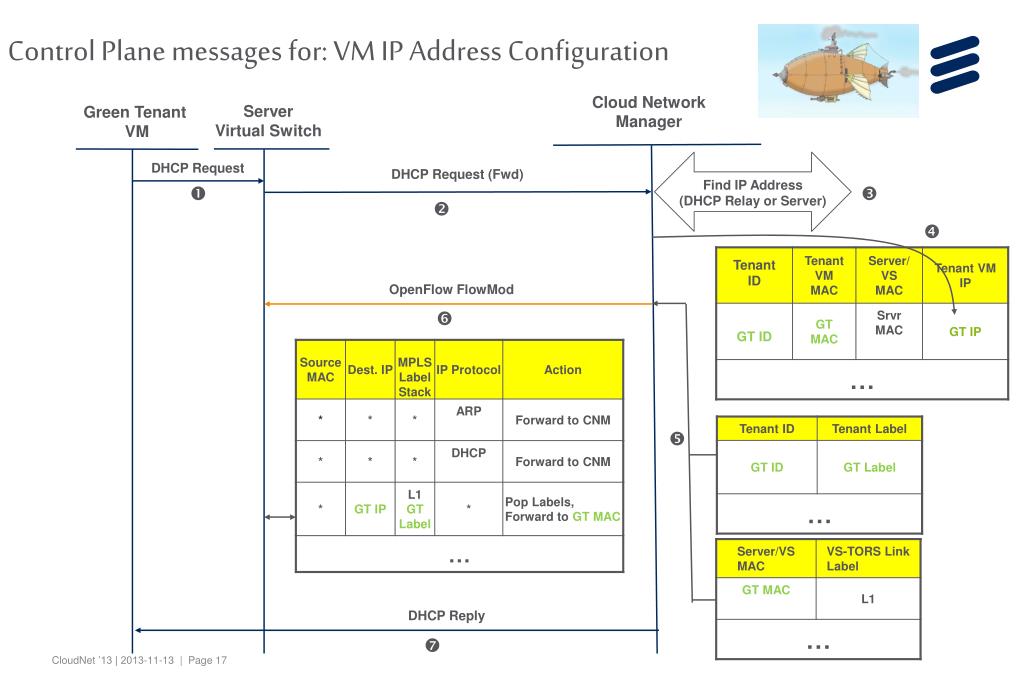

  16. Control Plane messages for: VM IP Address Configuration Cloud NetworkManager ServerVirtual Switch Green Tenant VM Find IP Address(DHCP Relay or Server) DHCP Request DHCP Request (Fwd)     • OpenFlow FlowMod   DHCP Reply 

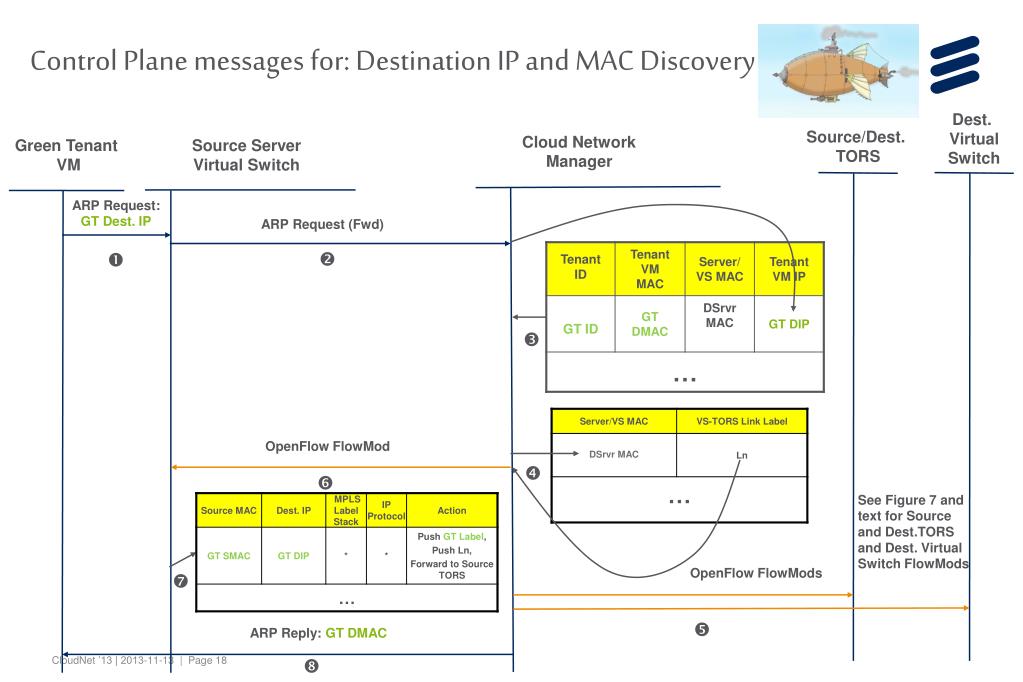

  17. Control Plane messages for: Destination IP and MAC Discovery Dest. VirtualSwitch Source/Dest. TORS Cloud NetworkManager Green Tenant VM Source ServerVirtual Switch ARP Request: GT Dest. IP ARP Request (Fwd)    OpenFlow FlowMod   See Figure 7 andtext for Source and Dest.TORS and Dest. VirtualSwitch FlowMods OpenFlow FlowMods   ARP Reply: GT DMAC 

  18. Control Plane messages for: VM movement   CNMMapping Table Cloud Network Manager Cloud Execution Manager  Packet Buffer  Source VS Flow Table  Destination VS Flow Table  Hyper-visor Hyper-visor Virtual Switch Virtual Switch  (data plane)  GT-VM Blade + NIC HW Blade + NIC HW VM GT-VM VM GT-VM Source Server Destination Server

  19. Inter-TORS LSP Configuration • When data center boots up or a new rack is added, each TORS is configured with labels for links in the rack in Table 2 • Rule: Match label against labels for rackAction: Forward on matched link to server • Only configure TORS for tunnels into rack • Number of table entries for servers in rack is limited

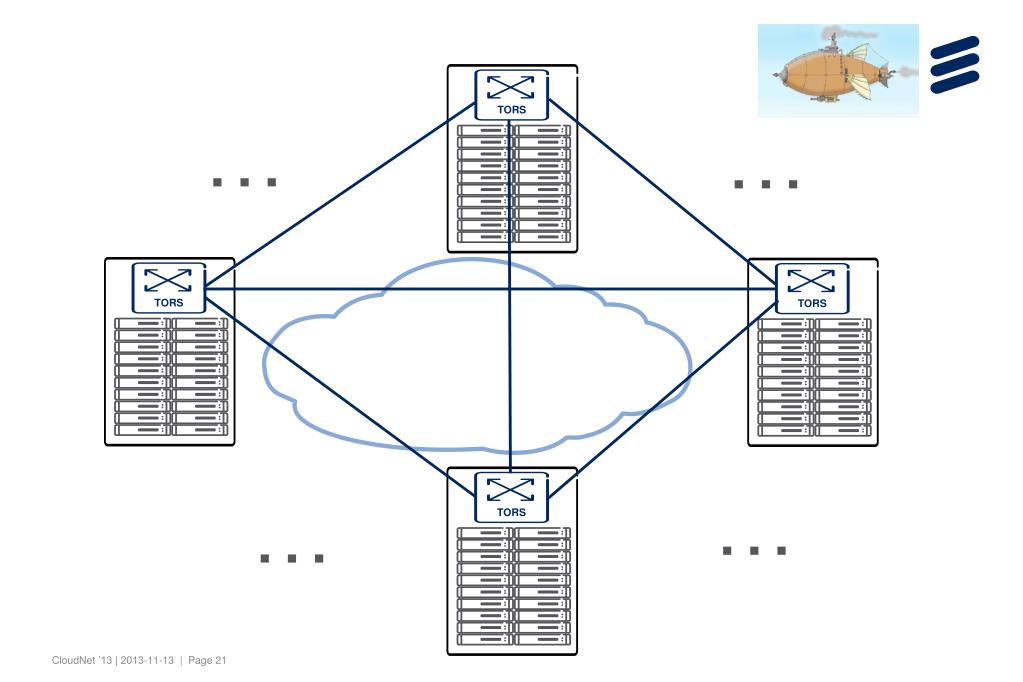

  20. TORS TORS TORS TORS … … … …
