  1. Lander CATIA Design Communications Group Trans Lunar Phase Group Space Ball Analysis Lander CATIA Design Joshua Elmshaeuser Communications 1

  2. Lander Interior Design STRUCTURES – Red POWER – Yellow COMMUNICATIONS – Green ATTITUDE – Orange PROPULSION – Blue SPACEBALLS – Transparent Tan 100g Lander 10kg Lander 1.0 meter 1.1 meters Joshua Elmshaeuser Communications 2

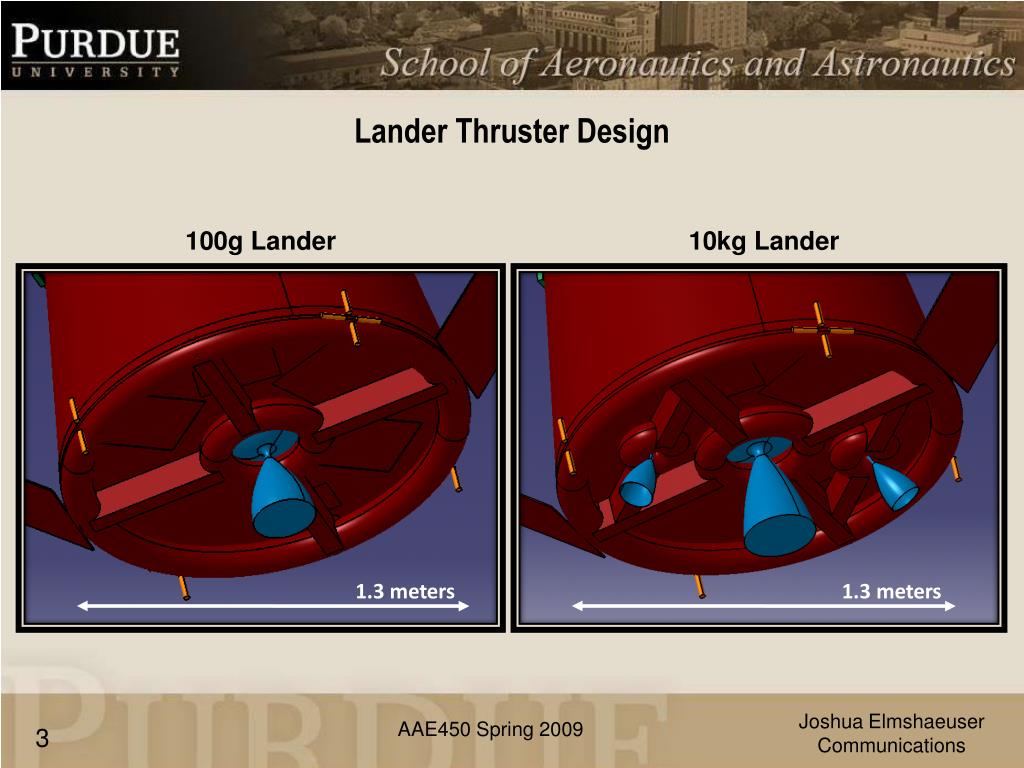

  3. Lander Thruster Design 100g Lander 10kg Lander 1.3meters 1.3meters Joshua Elmshaeuser Communications 3

  4. Lander Exterior Design 100g & 10kg Lander Joshua Elmshaeuser Communications 4

  5. Solar Panel Lander to Earth Antenna Attitude Thrusters Main Engine HD Camera Lander to Ball Antenna Outer Shell Heat Radiation Plates Joshua Elmshaeuser Communications 5

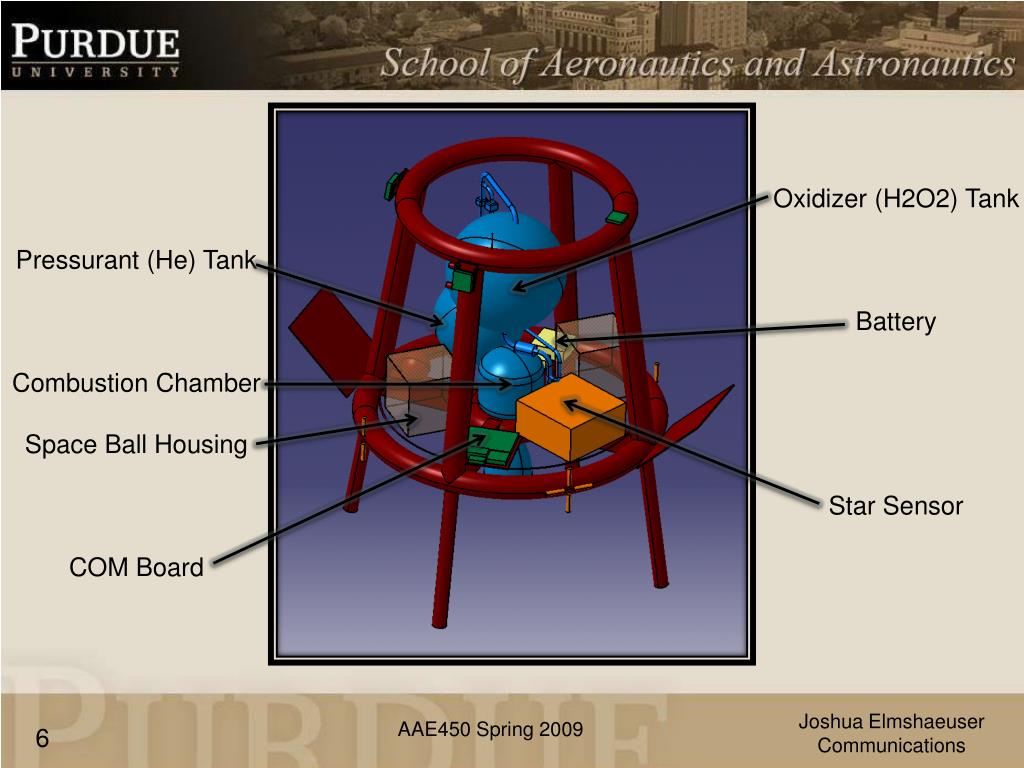

  6. Pressurant (He) Tank Combustion Chamber Space Ball Housing COM Board Oxidizer (H2O2) Tank Battery Star Sensor Joshua Elmshaeuser Communications 6

  7. Patch Antenna Orientation Visualization Lunar Transfer On the Moon Joshua Elmshaeuser Communications 7

  8. Earthrise background is public domain on NASA’s Earth Observatory website: http://earthobservatory.nasa.gov/IOTD/view.php?id=4882 JoshuaElmshaeuser Communications 8
