  1. Replication Demystified Arie D. Jones Senior Microsoft Consultant Perpetual Technologies, Inc. February 26th, 2008

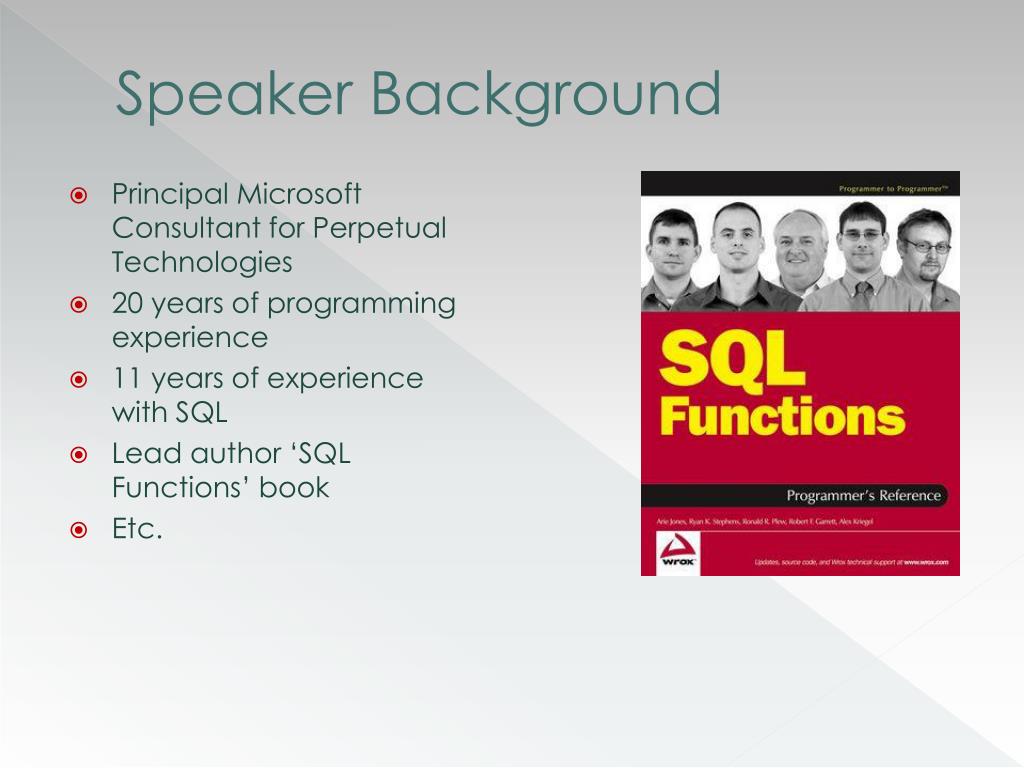

  2. Speaker Background • Principal Microsoft Consultant for Perpetual Technologies • 20 years of programming experience • 11 years of experience with SQL • Lead author ‘SQL Functions’ book • Etc.

  3. Types of Replication • 3 Types of Replication • Snapshot • Merge • Transactional • Non-Homogenous • Example: Oracle Publisher

  4. Replication Architecture • 3 main pieces • Publisher • Distributor • Subscriber

  5. Publication • Publication is the articles from the database that you are ‘publishing’ via replication • You can pick and chose which items you wish to replicate. • Publications can be modified in the future • Publications also allow horizontal partitioning of data

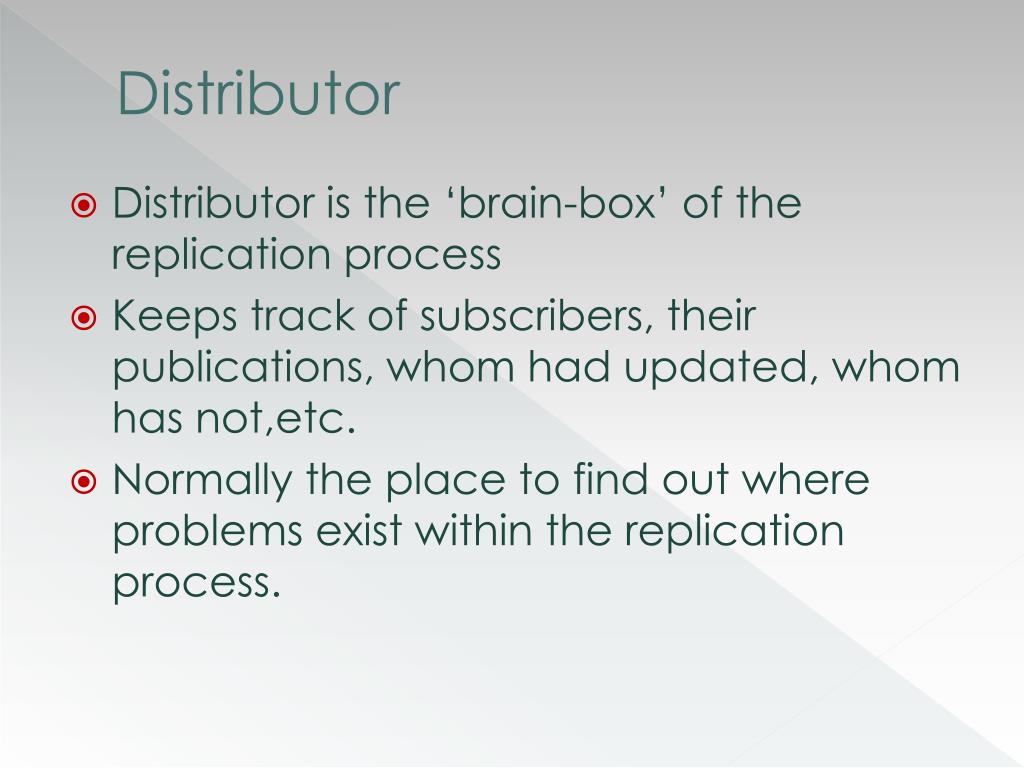

  6. Distributor • Distributor is the ‘brain-box’ of the replication process • Keeps track of subscribers, their publications, whom had updated, whom has not,etc. • Normally the place to find out where problems exist within the replication process.

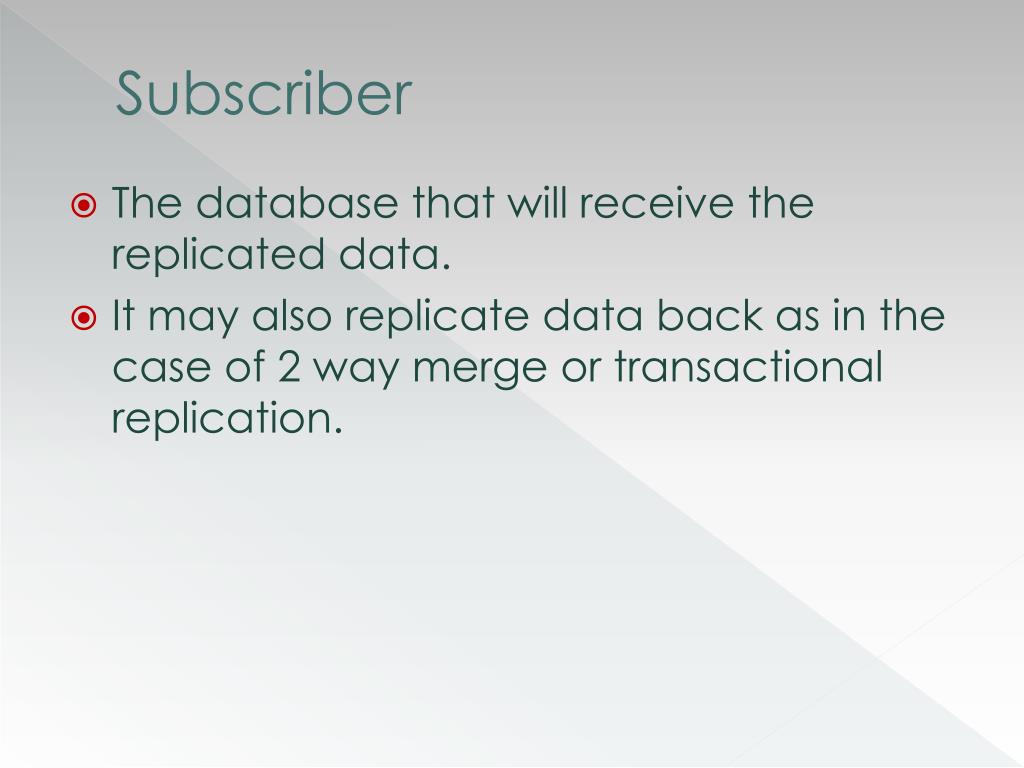

  7. Subscriber • The database that will receive the replicated data. • It may also replicate data back as in the case of 2 way merge or transactional replication.

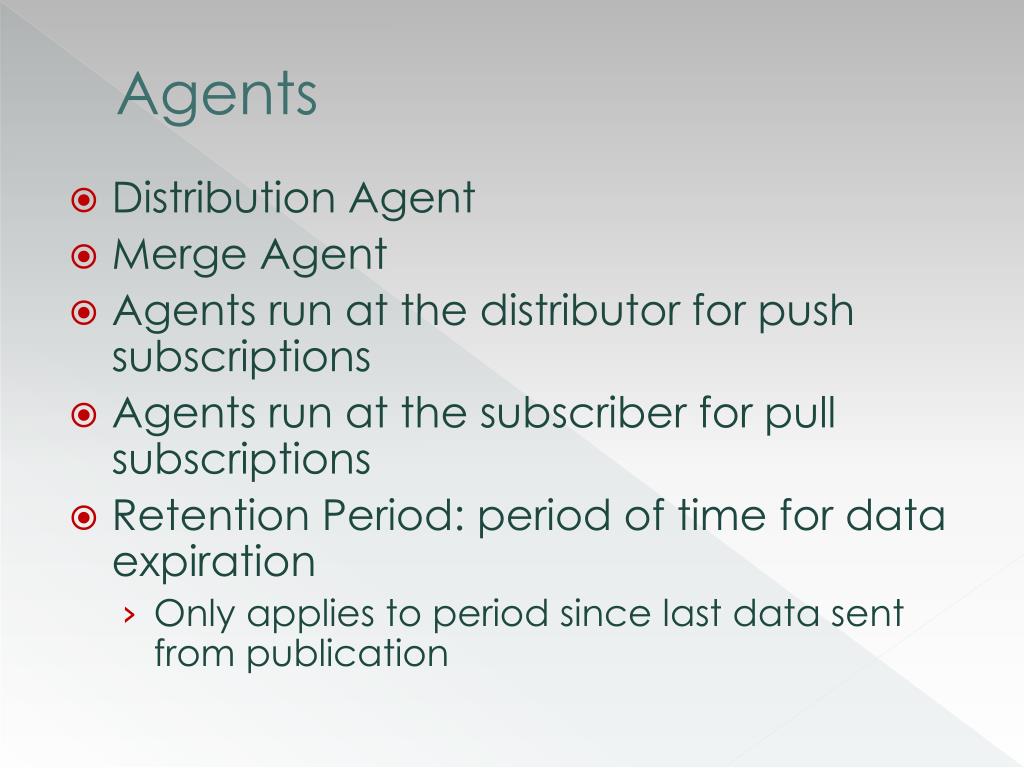

  8. Agents • Distribution Agent • Merge Agent • Agents run at the distributor for push subscriptions • Agents run at the subscriber for pull subscriptions • Retention Period: period of time for data expiration • Only applies to period since last data sent from publication

  9. Secondary Agents • Snapshot Agent • Executes on the distributor to extract snapshot • Log Reader Agent • Used with Transactional replication to extarct committed transactions • Queue Reader Agent • Used to queue the updates for transactional and snapshot replication • Distribution Agent • Does all the work of dispatching to subscribers

  10. Snapshot Replication • Possibly the easiest to implement and understand. • A snapshot of the database is taken and applied to subscribers at a regular interval • Good for database that do not change that often(data-wise) • Basically, replicating the whole database ‘image’

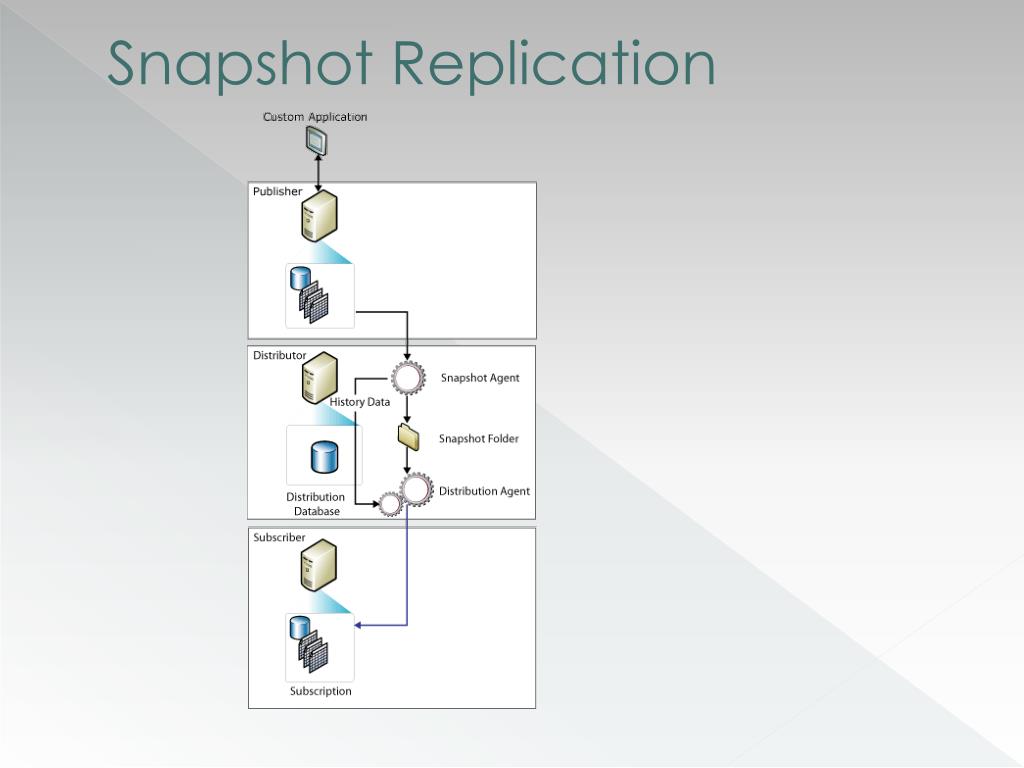

  11. Snapshot Replication

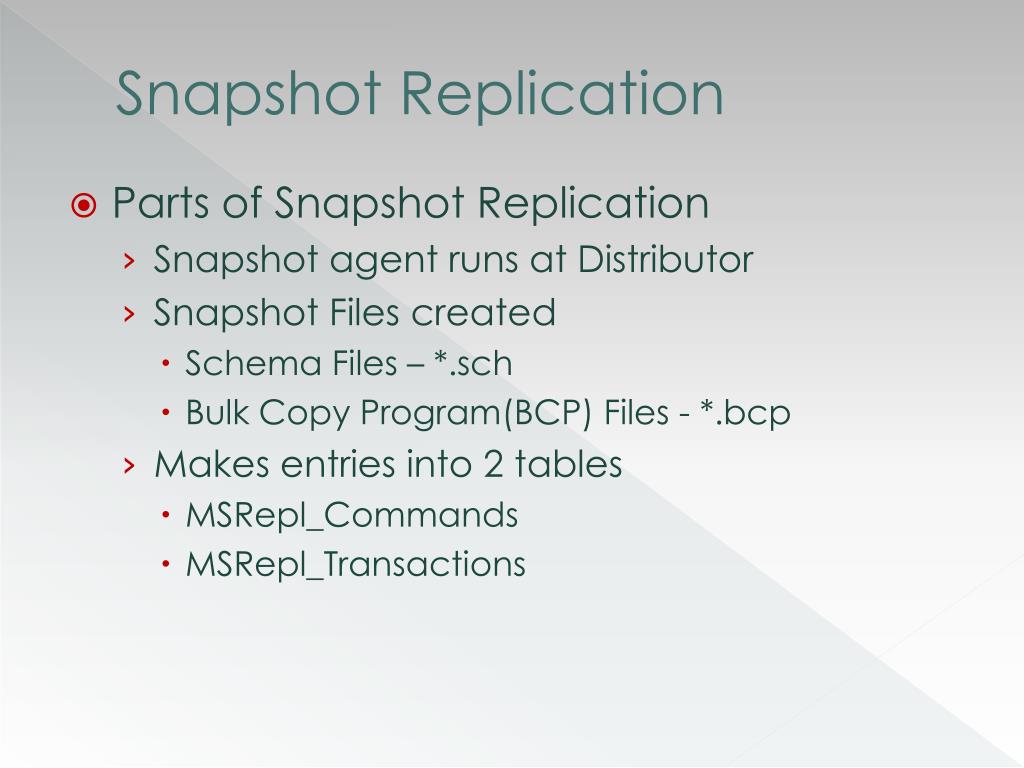

  12. Snapshot Replication • Parts of Snapshot Replication • Snapshot agent runs at Distributor • Snapshot Files created • Schema Files – *.sch • Bulk Copy Program(BCP) Files - *.bcp • Makes entries into 2 tables • MSRepl_Commands • MSRepl_Transactions

  13. Merge Replication • Possibly the most complex version of replication. • Used when data will be updated by the subscriber and ‘merged’ with the publisher • Uses a system of trigger to ‘log’ the change activity.

  14. Merge Replication

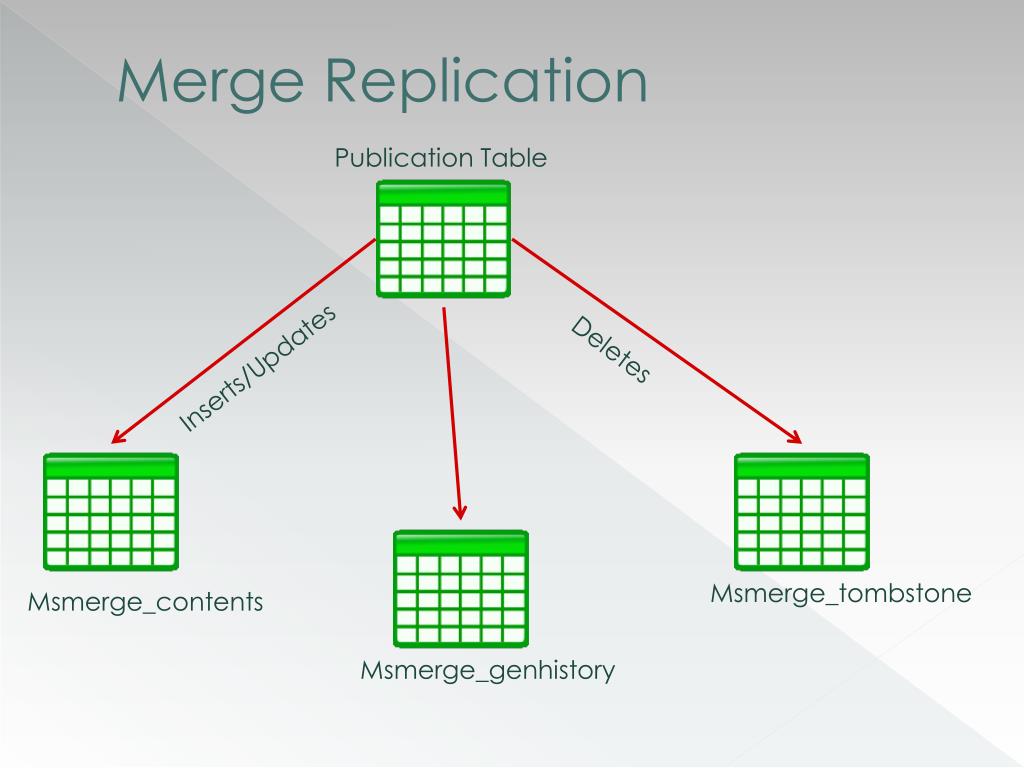

  15. Merge Replication Publication Table Deletes Inserts/Updates Msmerge_tombstone Msmerge_contents Msmerge_genhistory

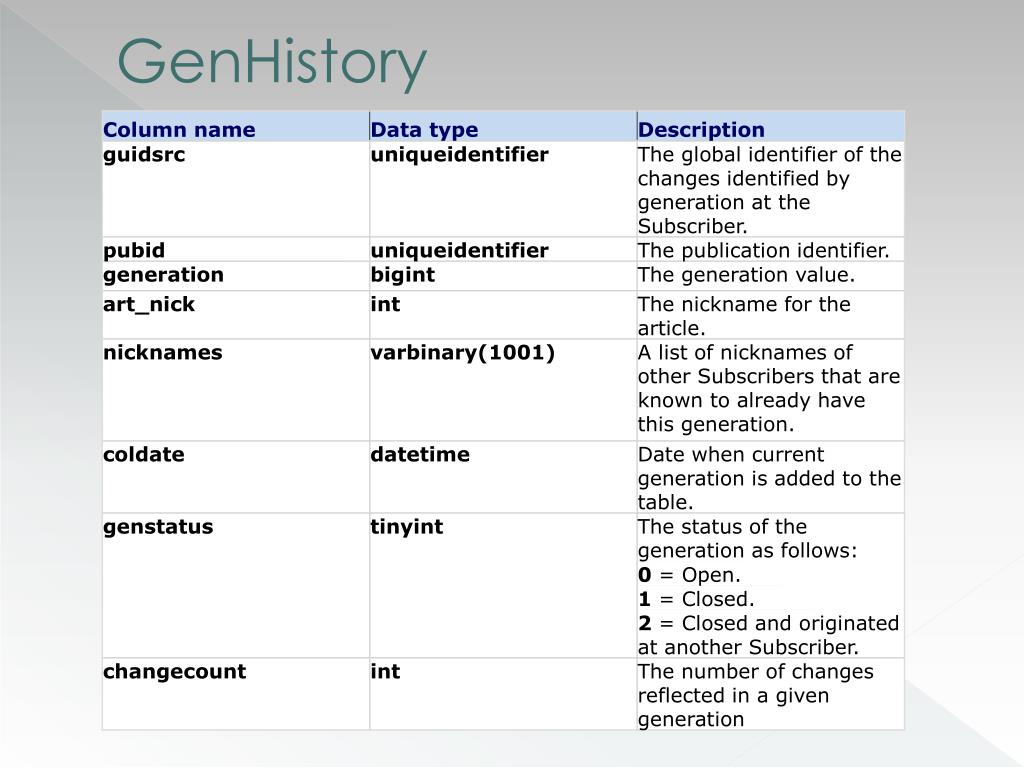

  16. GenHistory

  17. Merge Replication • Merge Agent handles the replication process • Conflicts are detected using lineage column of the MSmerge_contents table • Conflicts are resolved and the losing version of a row is logged • Msmerge_conflicts_info • Info is cleaned up based upon retention period

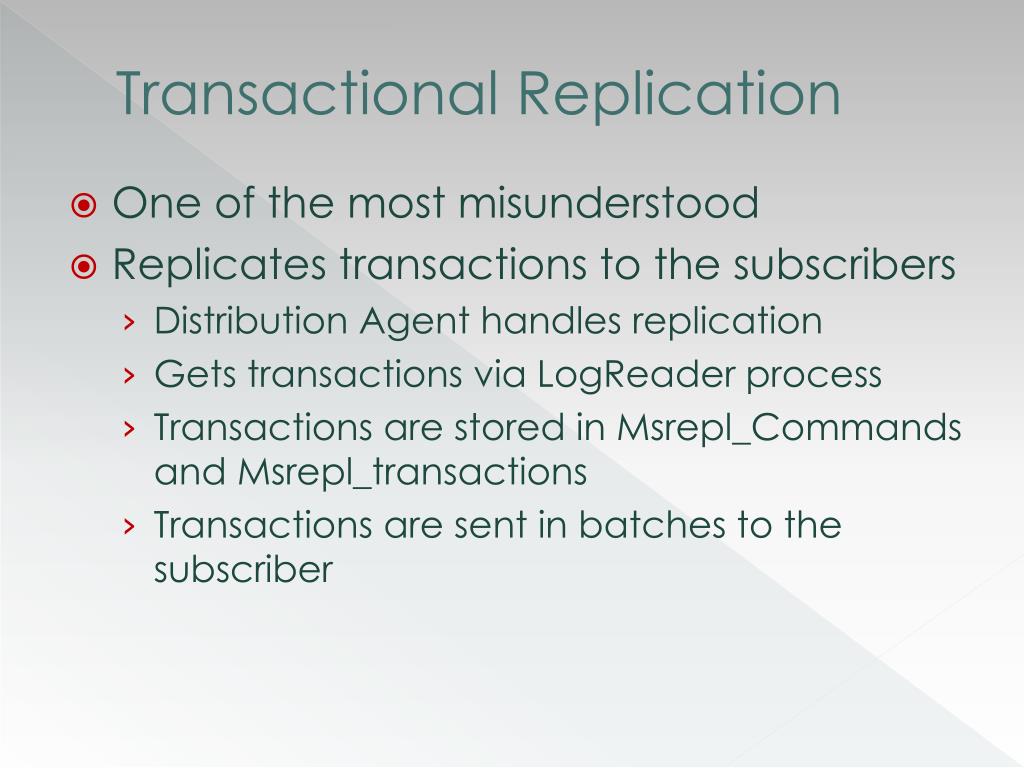

  18. Transactional Replication • One of the most misunderstood • Replicates transactions to the subscribers • Distribution Agent handles replication • Gets transactions via LogReader process • Transactions are stored in Msrepl_Commands and Msrepl_transactions • Transactions are sent in batches to the subscriber

  19. Transactional Replication

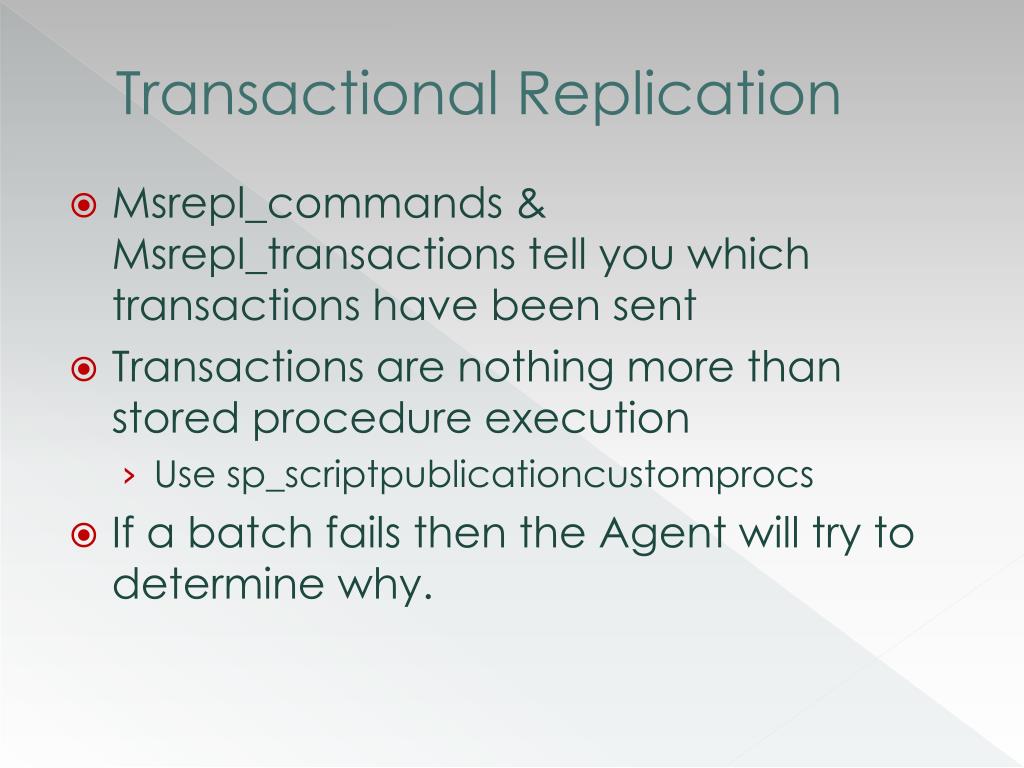

  20. Transactional Replication • Msrepl_commands & Msrepl_transactions tell you which transactions have been sent • Transactions are nothing more than stored procedure execution • Use sp_scriptpublicationcustomprocs • If a batch fails then the Agent will try to determine why.

  21. Oracle Publishers • Can support the following objects • Tables • Index-organized tables • Indexes • Materialized views(treated as tables) • These are not (even though the may be part of your tables) • Defaults • Check constraints • Foreign Keys • Function-based indexes

  22. Oracle Publishers • Occurs in a similar manner to Merge Replication • Row-level triggers installed on published tables • Sequences are maintained by the table HREPL_seq • Changes are then compiled from the article log tables and placed in the Msrepl_commands and Msrepl_transactions tables on the distributor

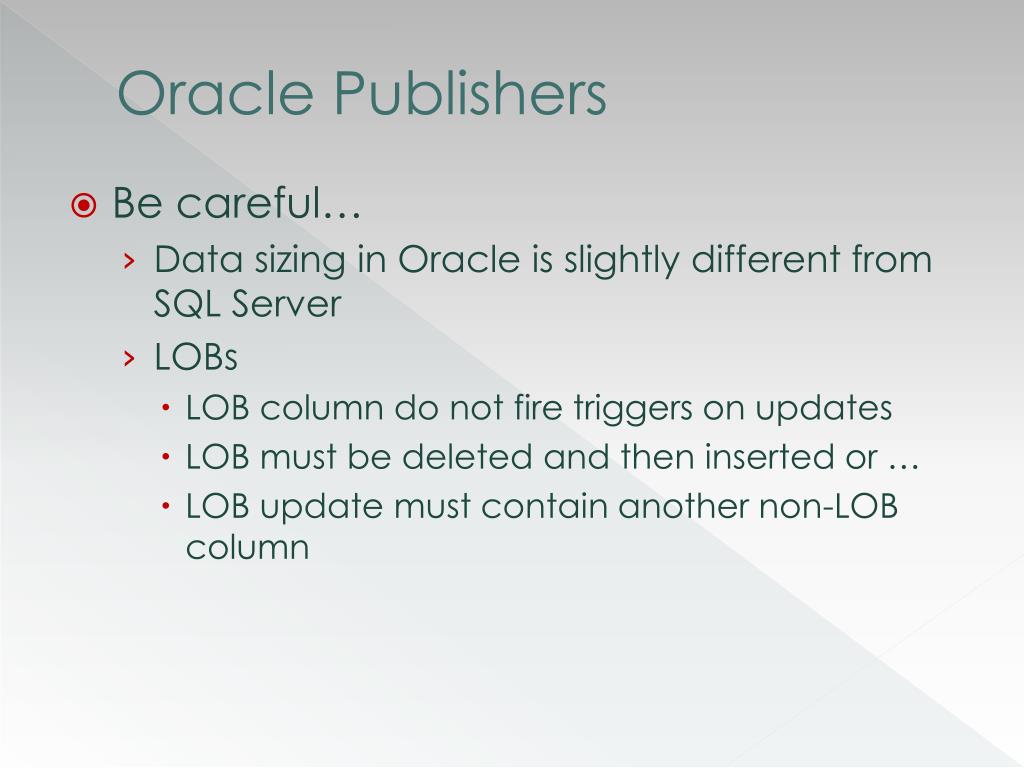

  23. Oracle Publishers • Be careful… • Data sizing in Oracle is slightly different from SQL Server • LOBs • LOB column do not fire triggers on updates • LOB must be deleted and then inserted or … • LOB update must contain another non-LOB column

  24. Monitoring Replication • 2 prudent ways • Write your own scripts • Use Replication Monitor

  25. Replication Monitor

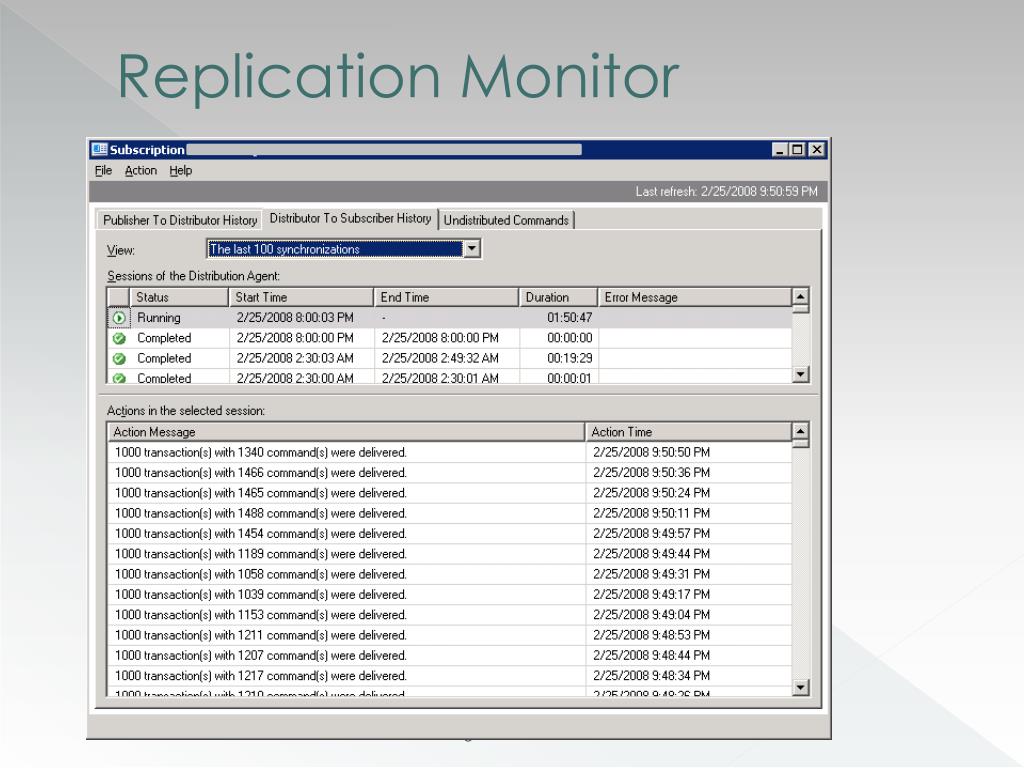

  26. Replication Monitor Your logo here

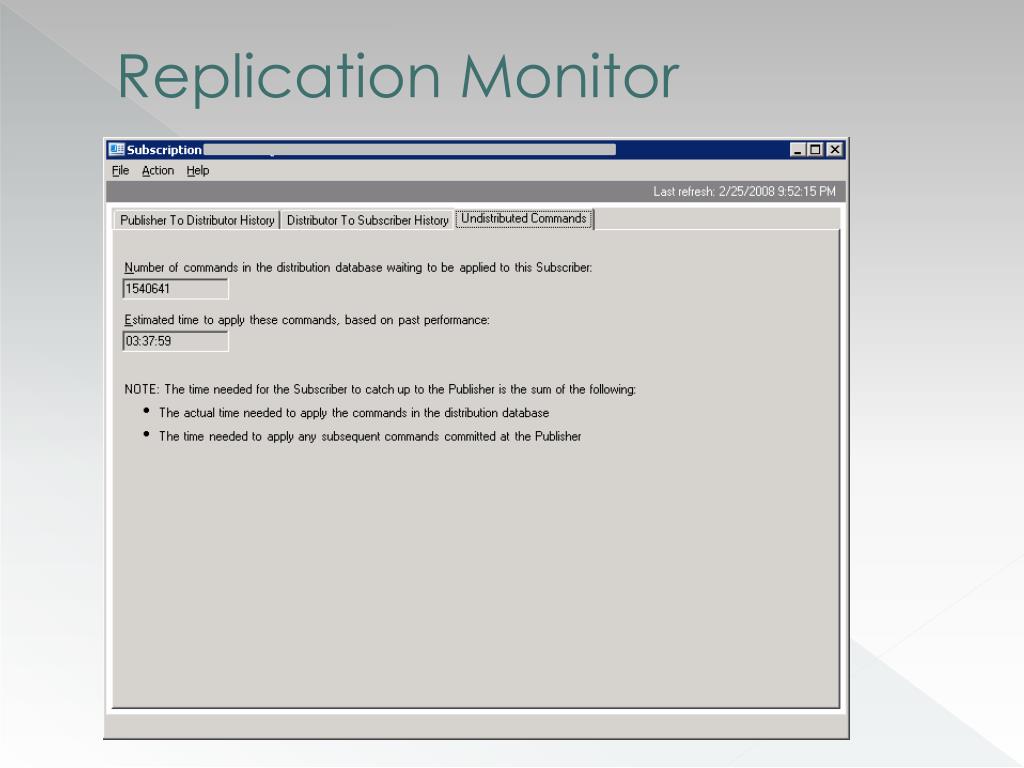

  27. Replication Monitor

  28. Replication Monitor • Things to remember • Throughput is not necessarily a hard-fast analysis • Agent properties can be changed • Agent changes take place the next time the particular agent is fired off • Alerts can be set but be careful!

  29. Troubleshooting Replication • Troubleshooting can be achieved via custom code and some stored procedures • sp_browsereplcmds • sp_replshowcmds • sp_replcmds • sp_replcounters • sp_repldone • Complete list can be found here • http://technet.microsoft.com/en-us/library/ms151869.aspx

  30. Thank You! • Slides can be found on my blog • http://www.programmersedge.com • Look at our other events • http://events.perptech.com • Email: arie.jones@perptech.com • Questions & Open Discussion
