  1. Chapter 07

  2. The four parts of a grammar • N, a nonterminal alphabet • T, a terminal alphabet • P, a set of rules of production • S, the start symbol, an element of N

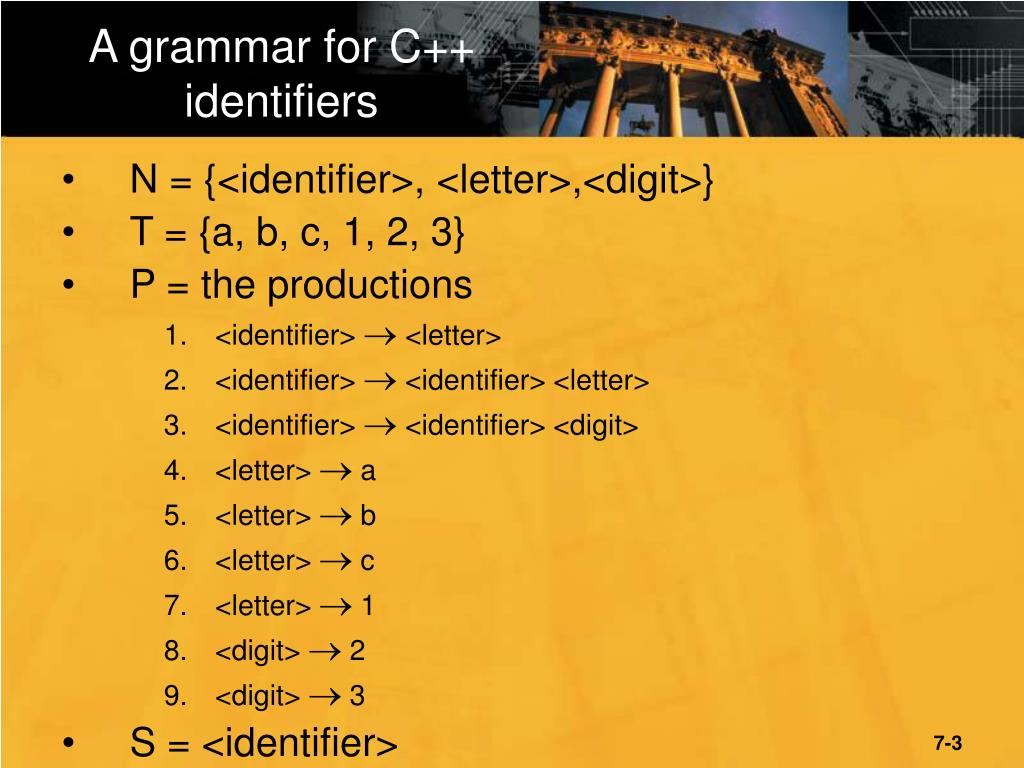

  3. A grammar for C++ identifiers • N = {<identifier>, <letter>,<digit>} • T = {a, b, c, 1, 2, 3} • P = the productions • <identifier>  <letter> • <identifier> <identifier> <letter> • <identifier> <identifier> <digit> • <letter> a • <letter>  b • <letter> c • <letter> 1 • <digit> 2 • <digit> 3 • S = <identifier>

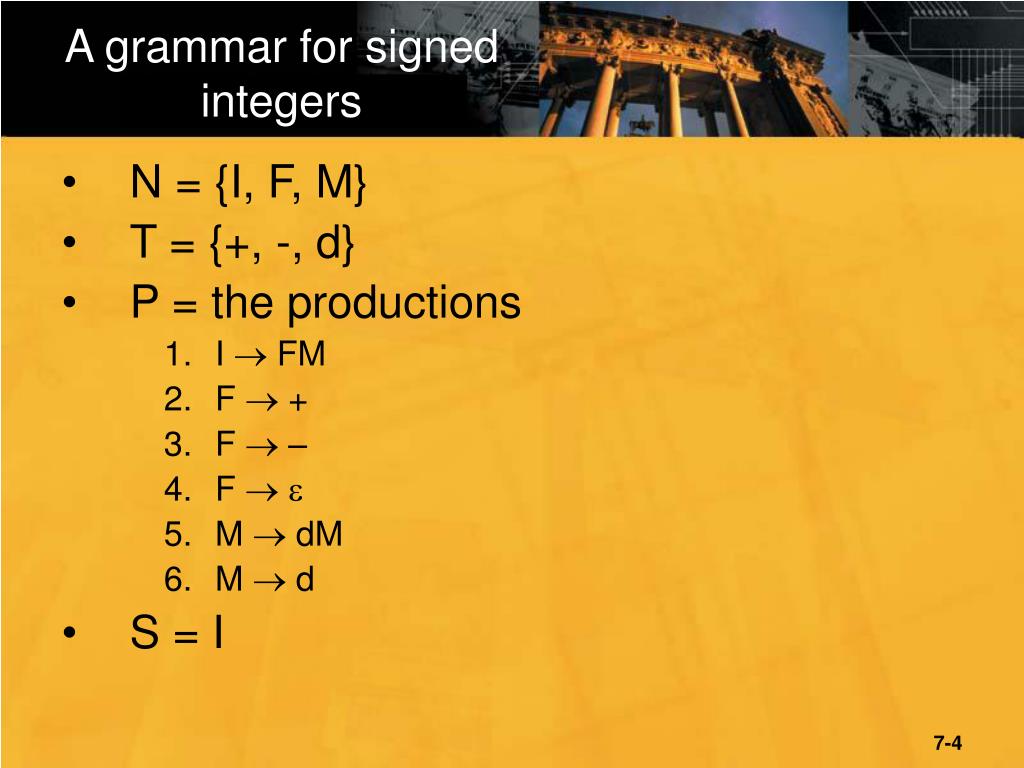

  4. A grammar for signed integers • N = {I, F, M} • T = {+, -, d} • P = the productions • I  FM • F  + • F  – • F  • M dM • M  d • S = I

  5. A context-sensitive grammar • N = {A, B, C} • T = {a, b, c} • P = the productions • A  aABC • A  abC • CB  BC • bB  bb • bC  bc • cC  cc • S = A

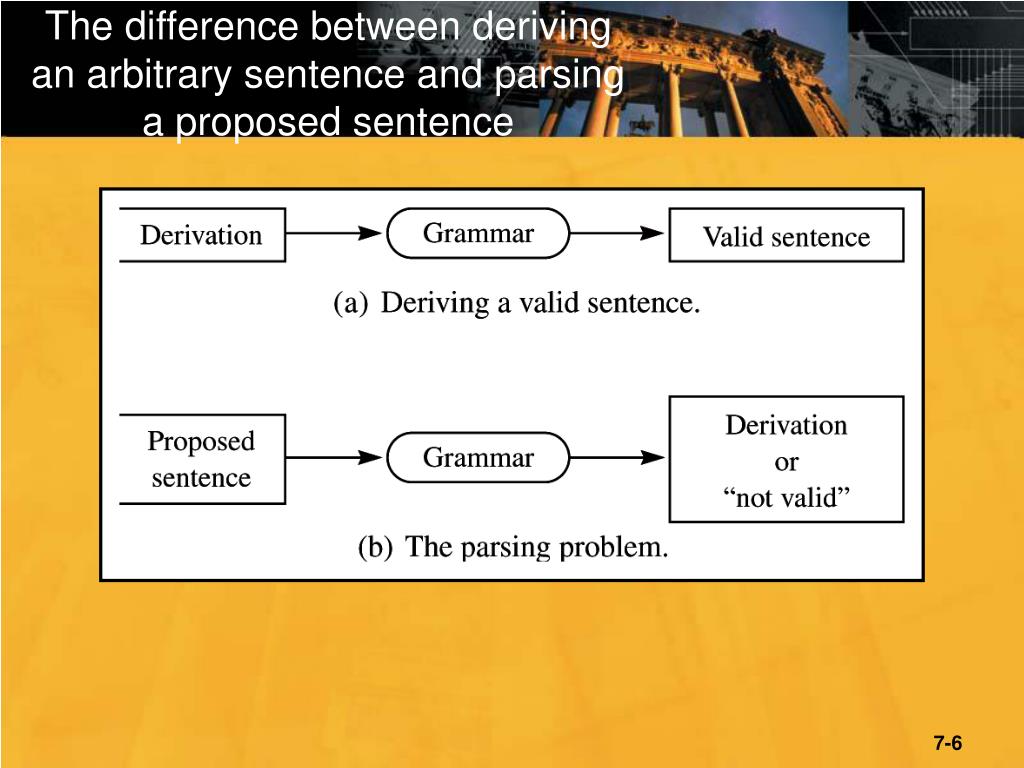

  6. The difference between deriving an arbitrary sentence and parsing a proposed sentence

  7. A grammar for expressions • N = {E, T, F} • T = {+, *, (, ), a} • P = the productions • E  E + T • E  T • T  T * F • T  F • F  (E) • F  a • S = E

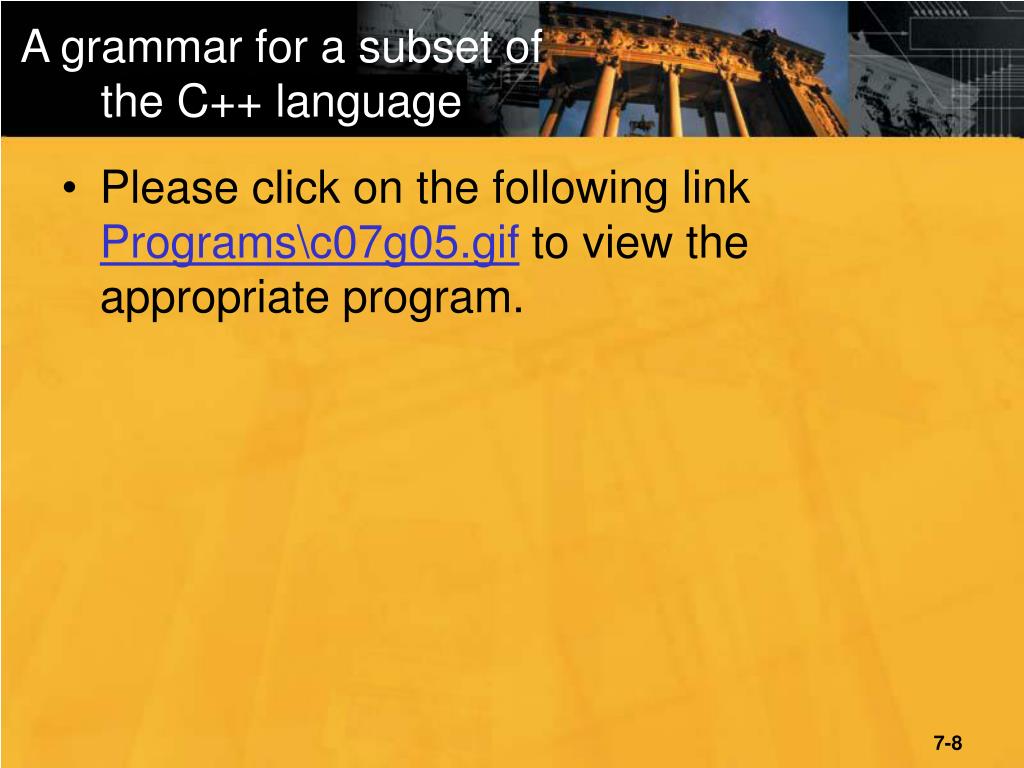

  8. A grammar for a subset of the C++ language • Please click on the following link Programs\c07g05.gif to view the appropriate program.

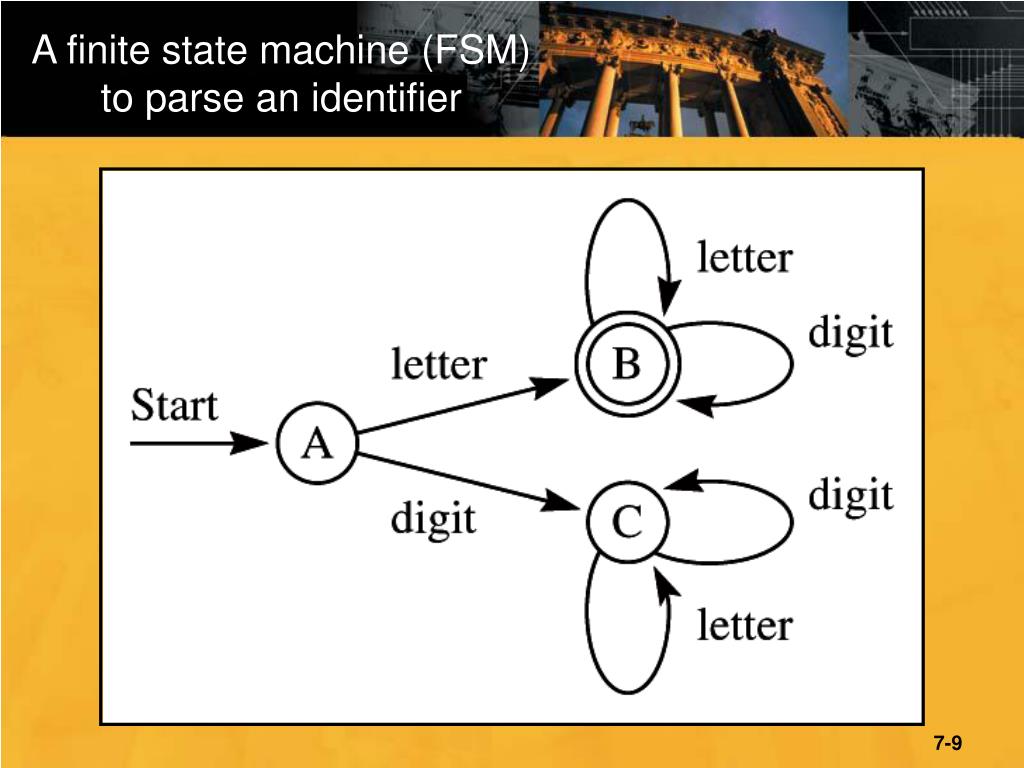

  9. A finite state machine (FSM) to parse an identifier

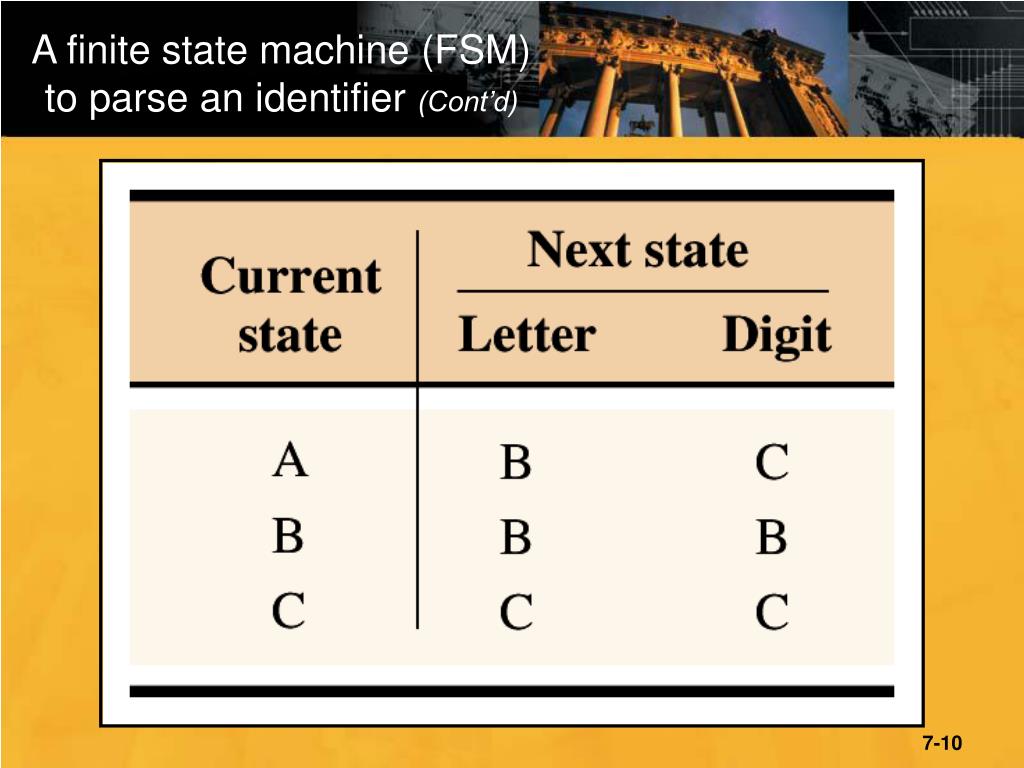

  10. A finite state machine (FSM) to parse an identifier (Cont’d)

  11. The FSM of Figure 7.5 without the failure state

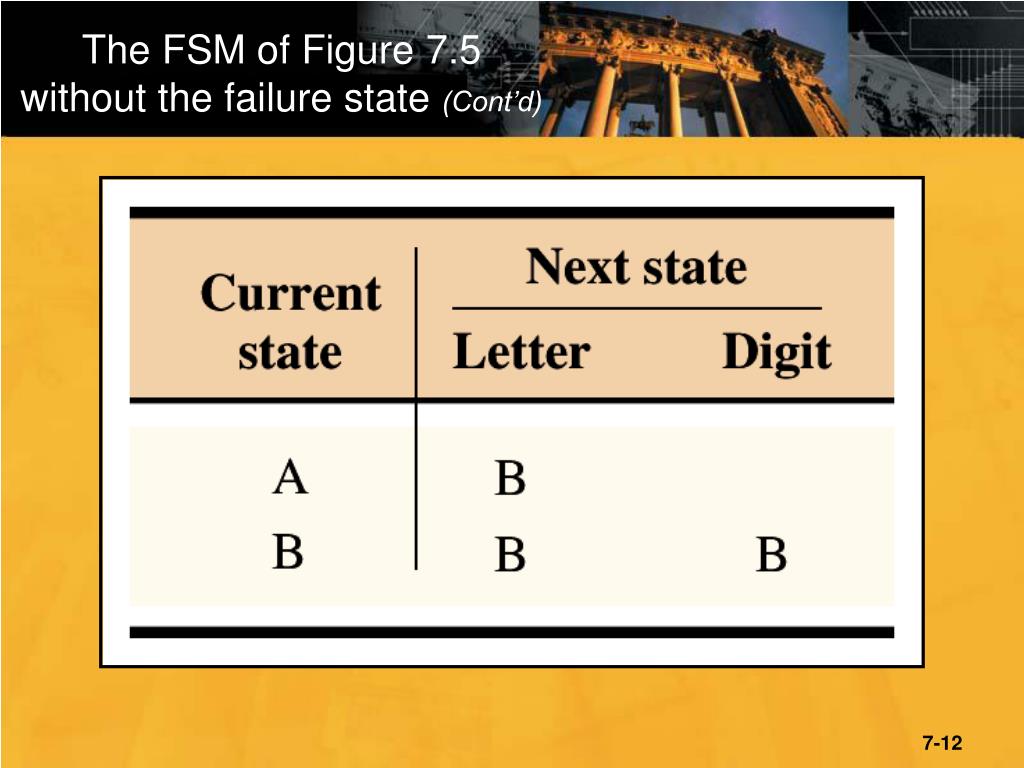

  12. The FSM of Figure 7.5 without the failure state (Cont’d)

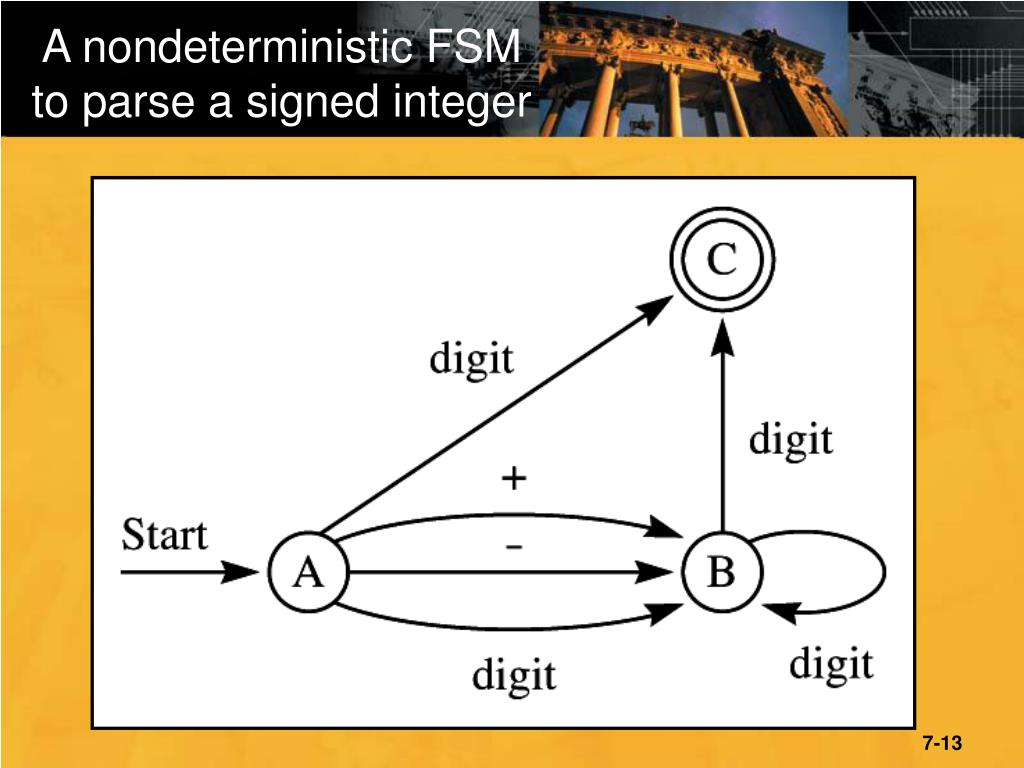

  13. A nondeterministic FSM to parse a signed integer

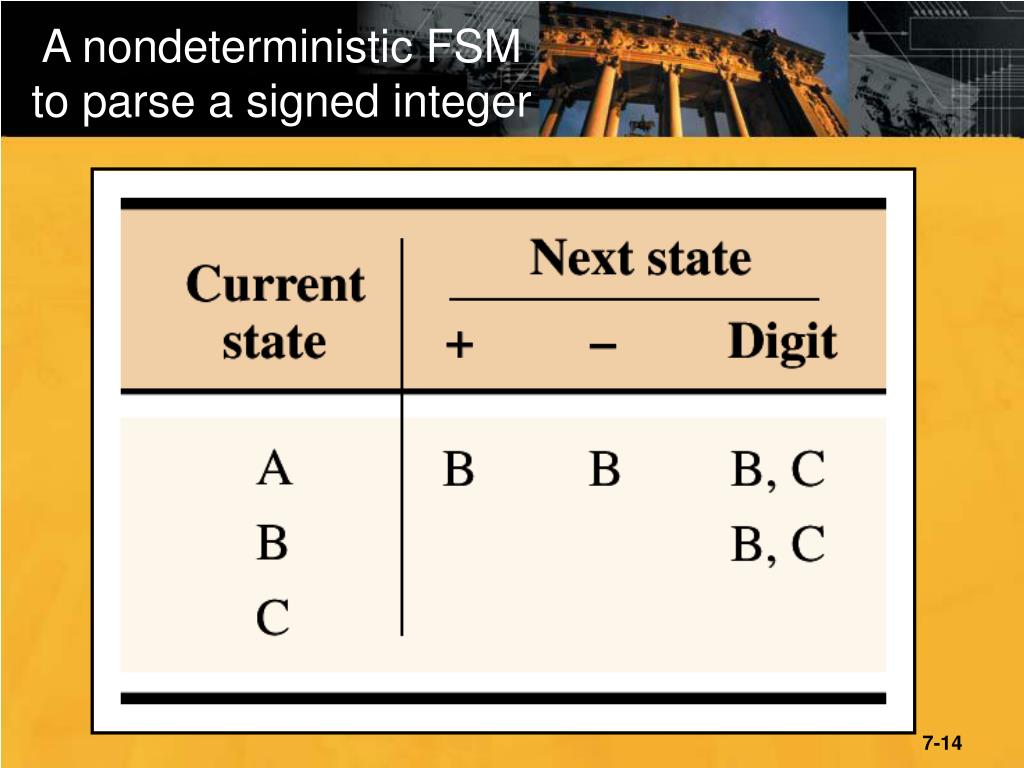

  14. A nondeterministic FSM to parse a signed integer

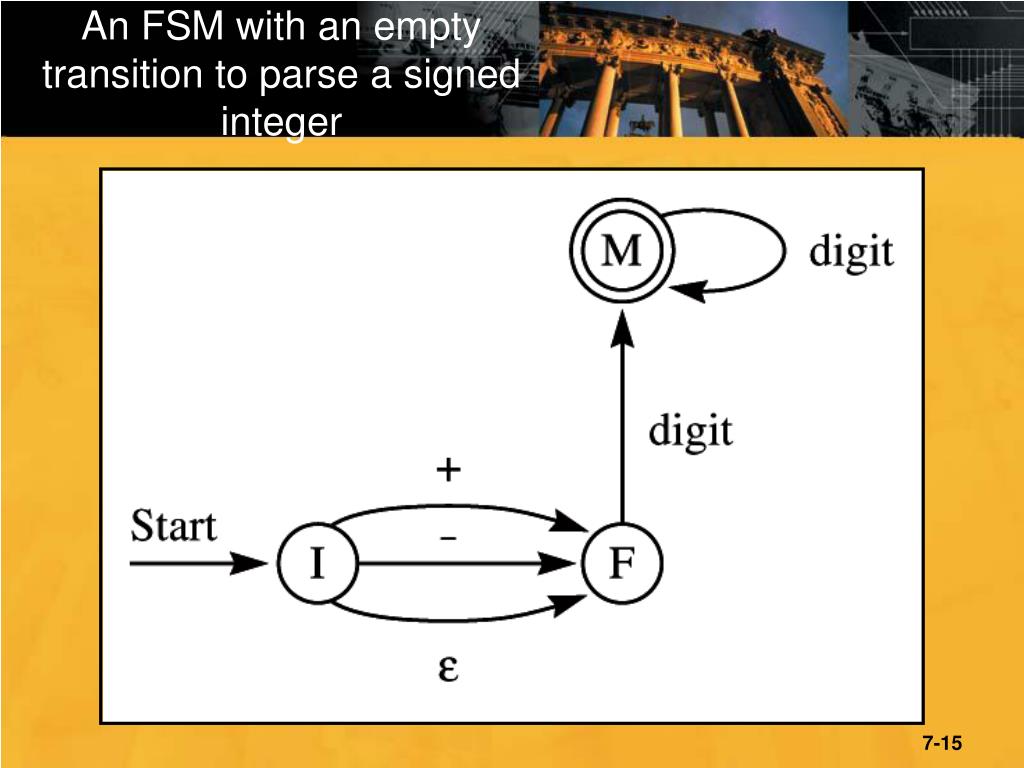

  15. An FSM with an empty transition to parse a signed integer

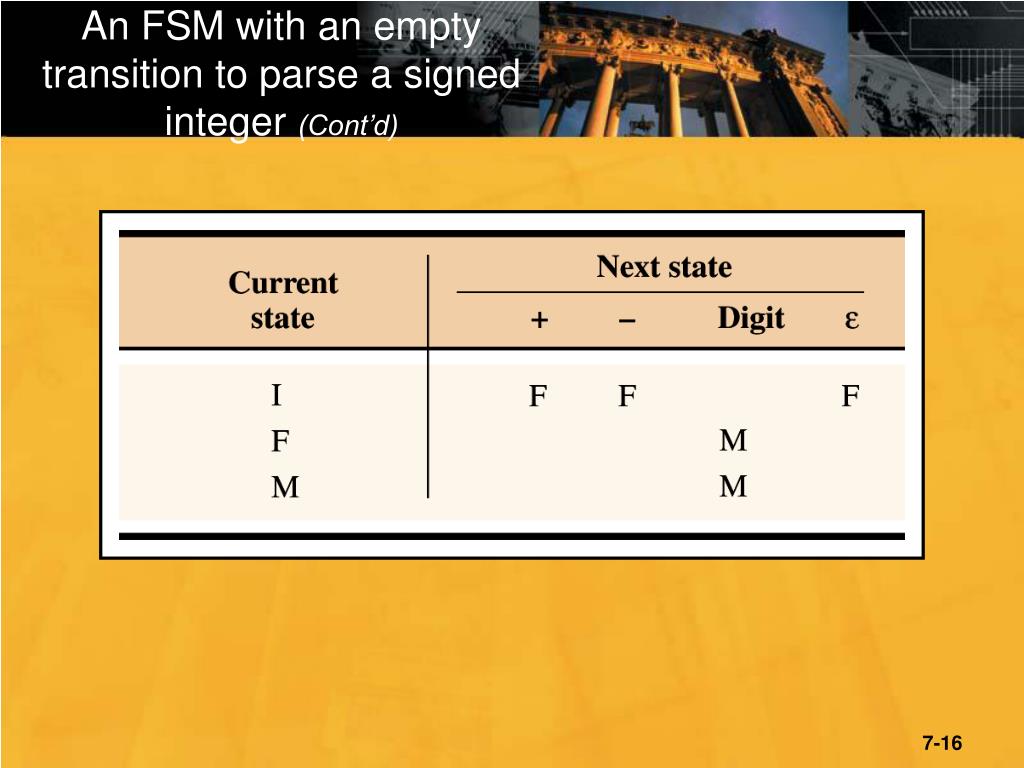

  16. An FSM with an empty transition to parse a signed integer (Cont’d)

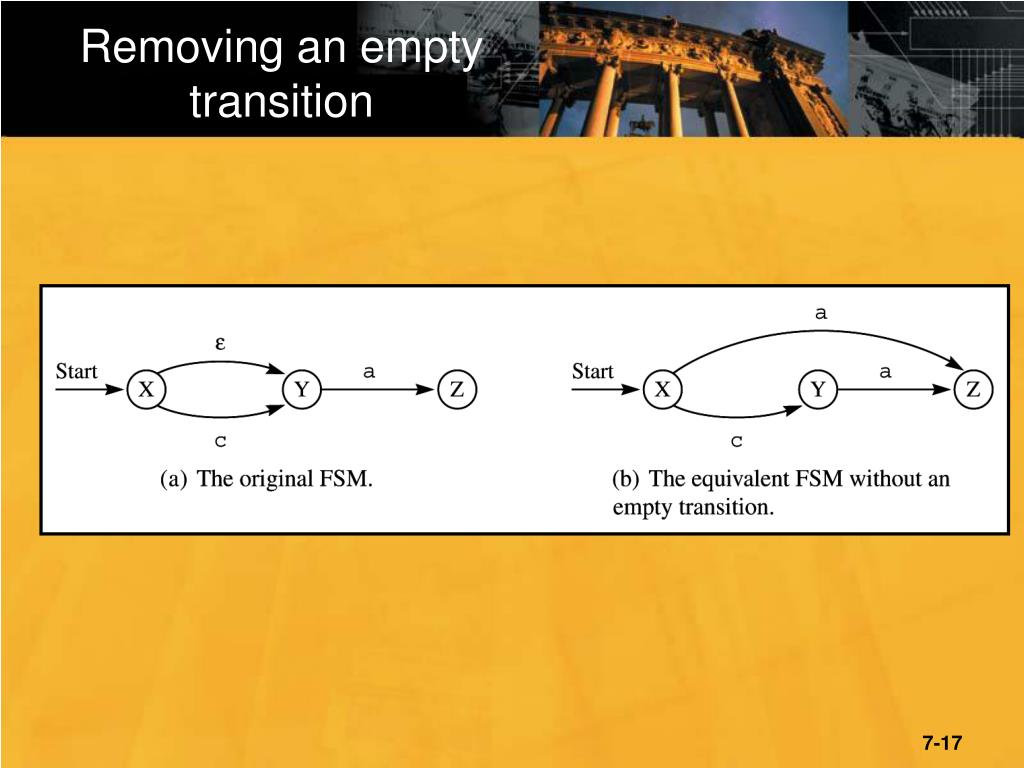

  17. Removing an empty transition

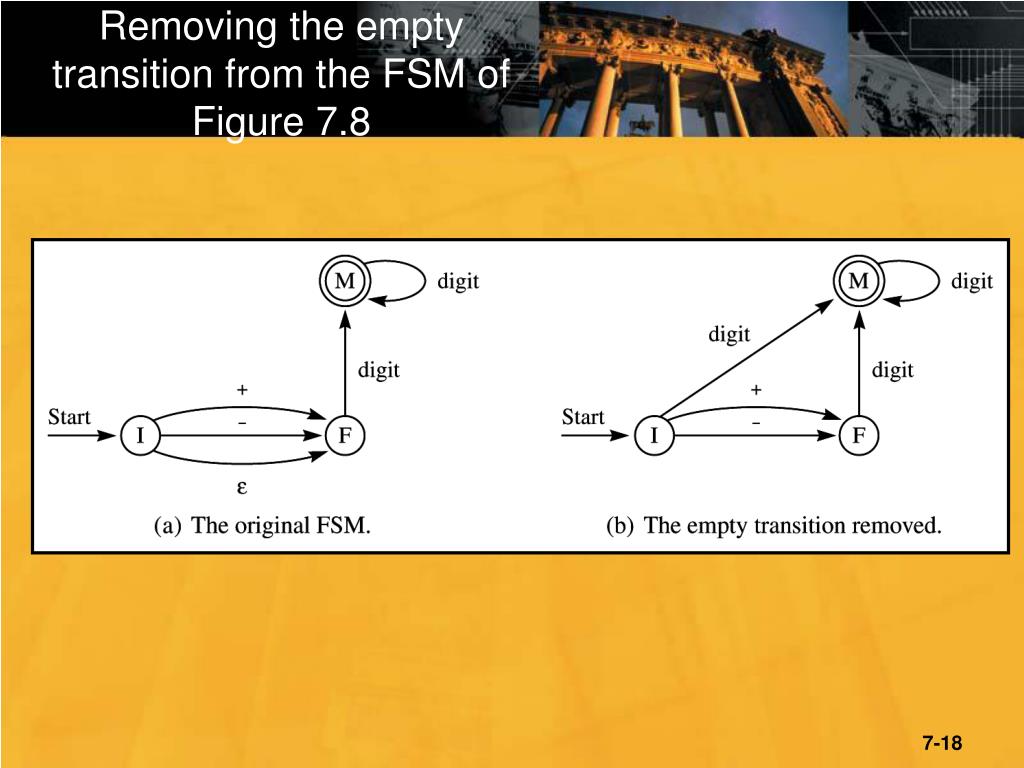

  18. Removing the empty transition from the FSM of Figure 7.8

  19. Removing an empty transition

  20. Combining two machines to construct one FSM that recognizes both tokens

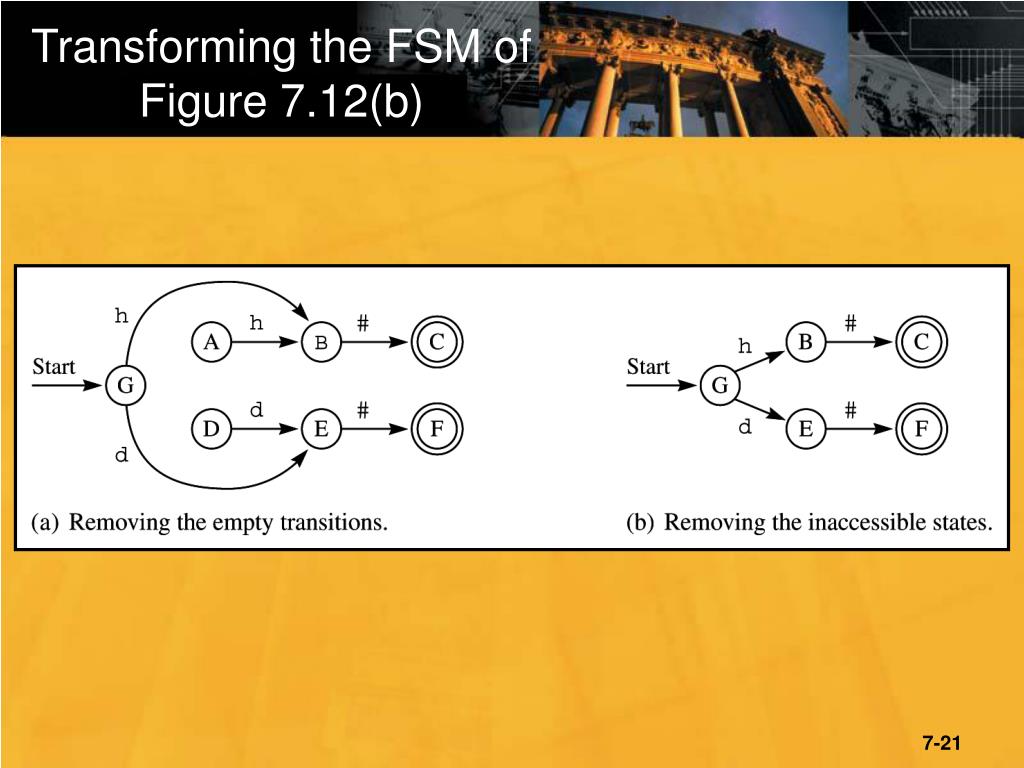

  21. Transforming the FSM of Figure 7.12(b)

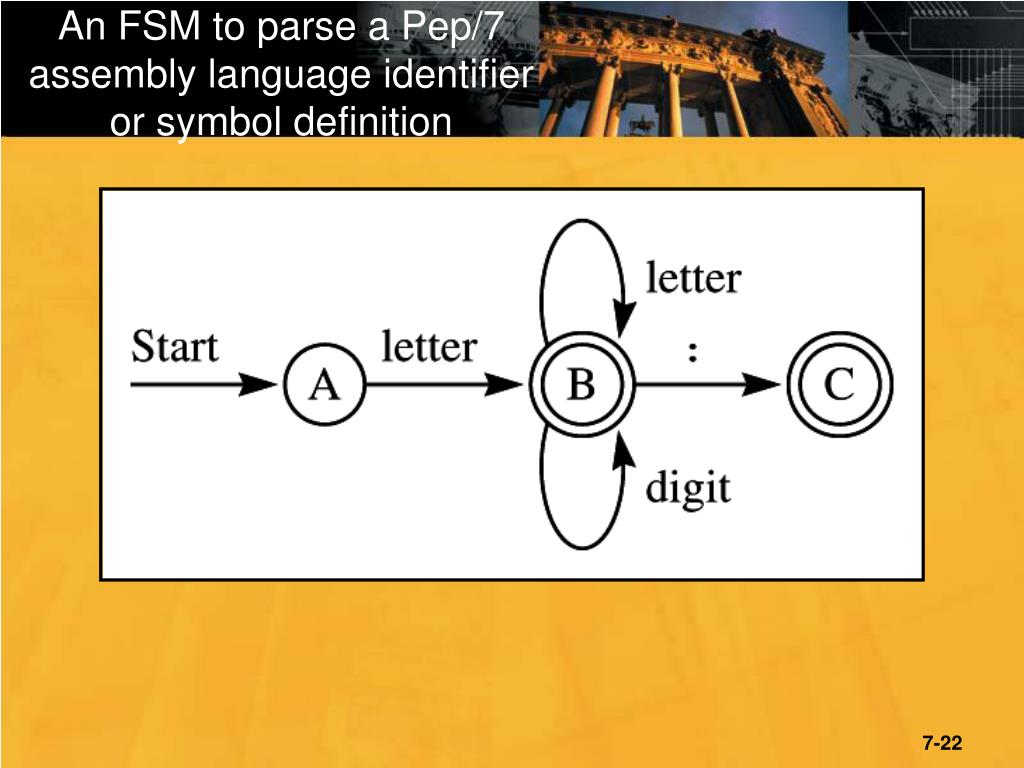

  22. An FSM to parse a Pep/7 assembly language identifier or symbol definition

  23. Steps in the compilation process

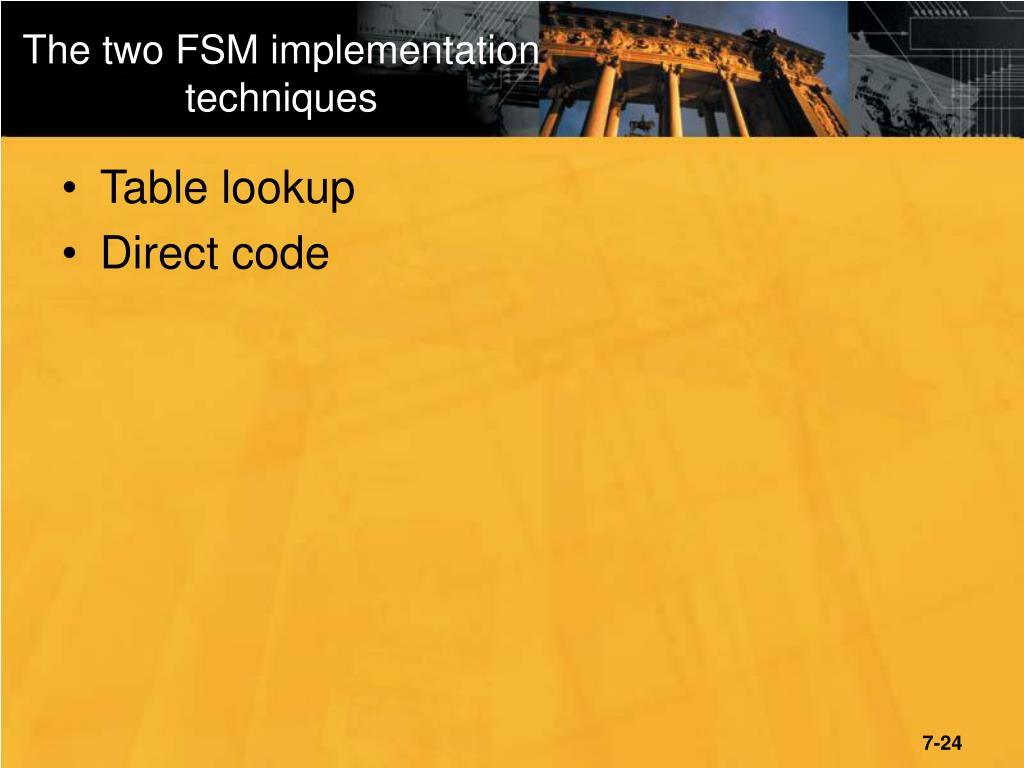

  24. The two FSM implementation techniques • Table lookup • Direct code

  25. Implementation of the FSM of Figure 7.5 with the table lookup technique • Please click on the following link Programs\c07p01_prog.GIF to view the appropriate program.

  26. A programmer-designed parse of an integer string • Please click on the following link Programs\c07p02_prog.gif to view the appropriate program.

  27. A finite machine that recognizes multiple tokens

  28. A finite machine that recognizes multiple tokens (Cont’d) • Please click on the following links, Programs\c07p03_prog.GIF and Programs\c07p03_io.GIF, to view the appropriate programs.

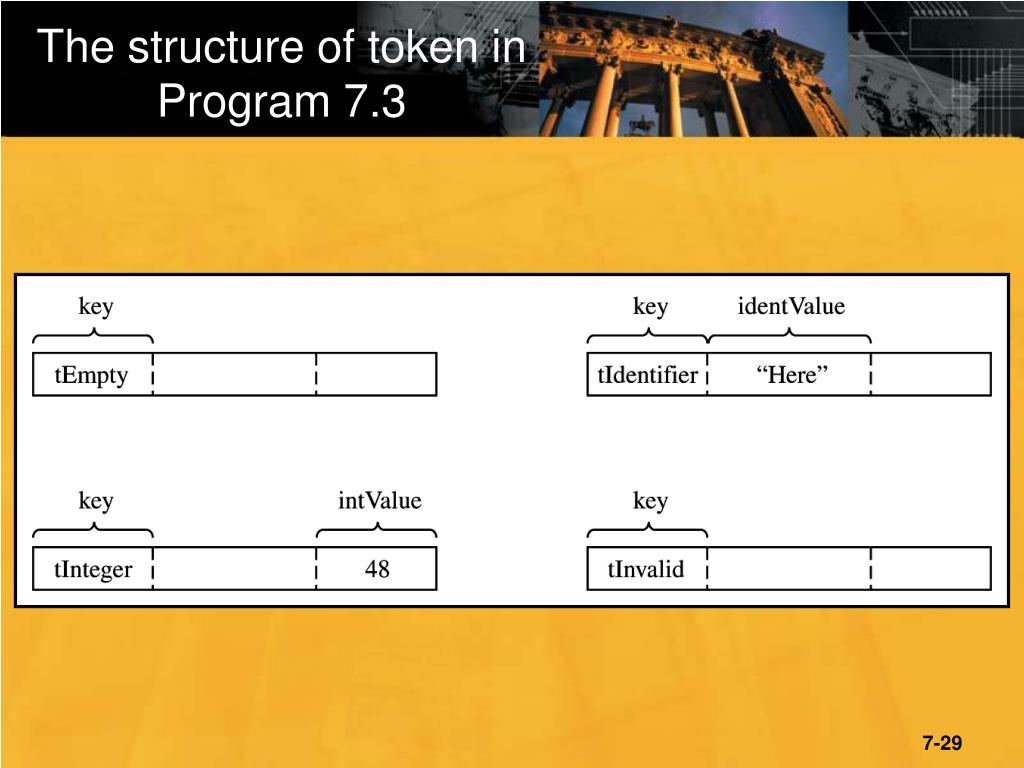

  29. The structure of token in Program 7.3

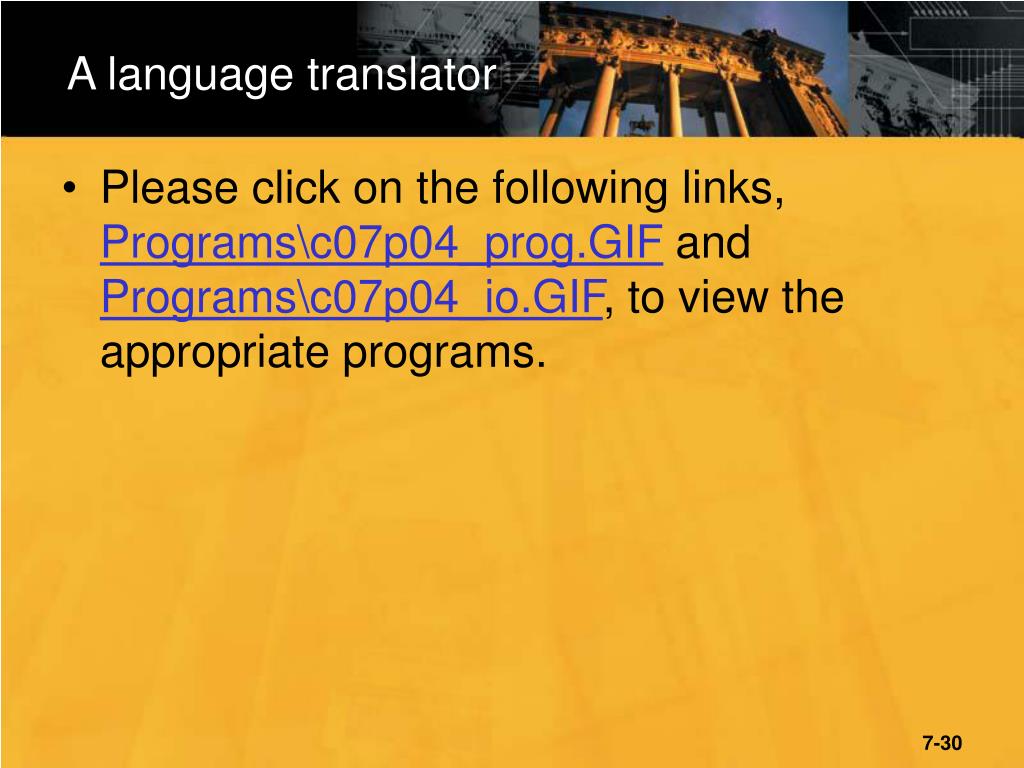

  30. A language translator • Please click on the following links, Programs\c07p04_prog.GIF and Programs\c07p04_io.GIF, to view the appropriate programs.

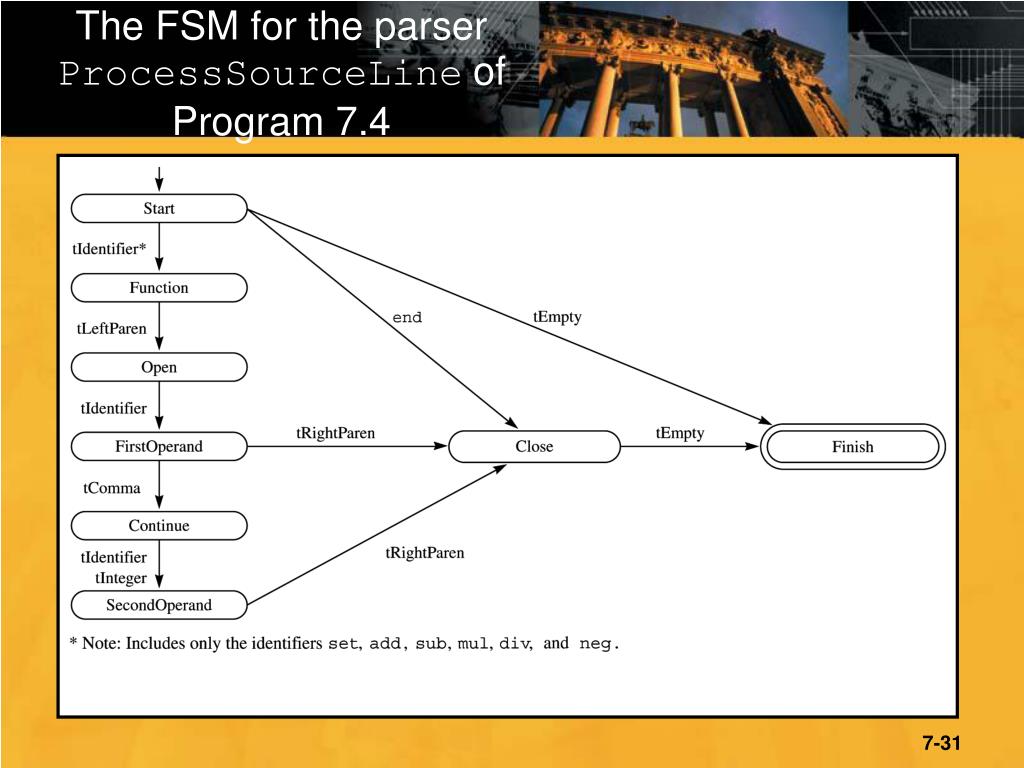

  31. The FSM for the parser ProcessSourceLine of Program 7.4

  32. The three translation phases of Program 7.4 • Lexical analyzer: getToken • Parser: processSourceLine • Code generator: generateCode

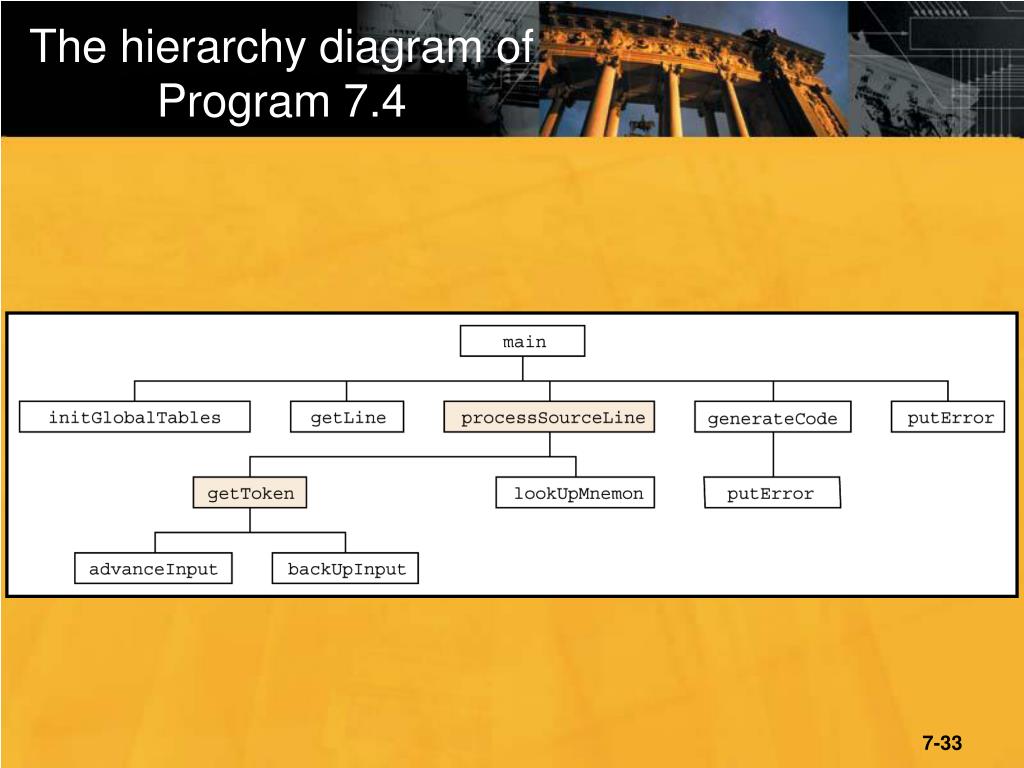

  33. The hierarchy diagram of Program 7.4
