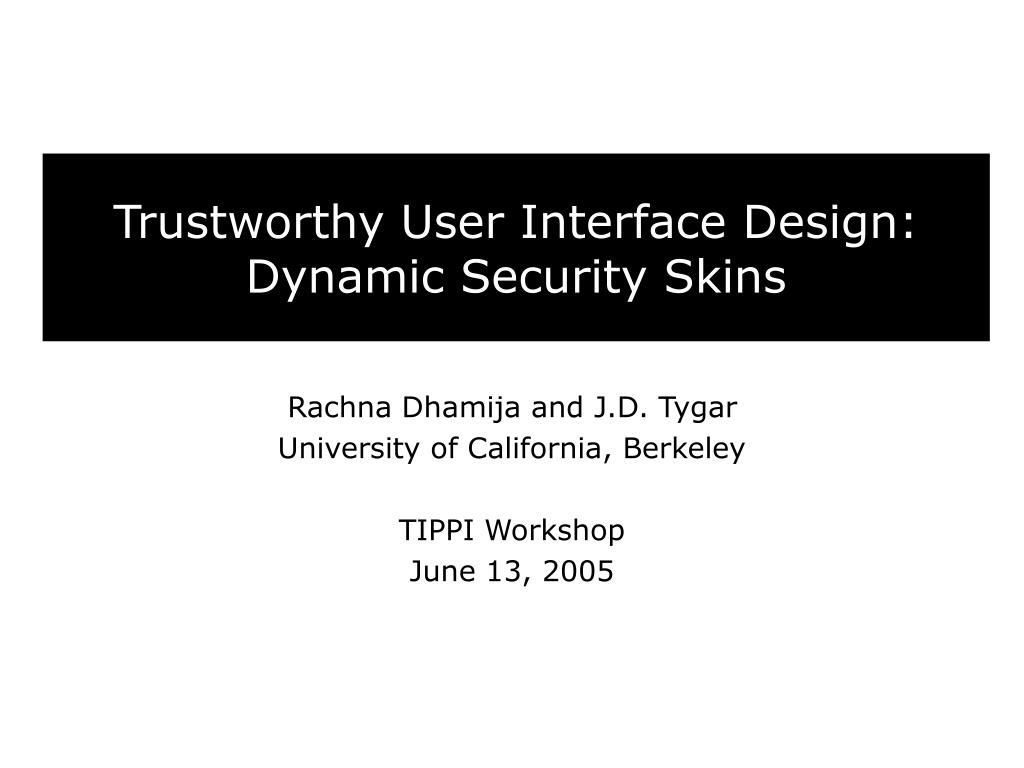

  1. Trustworthy User Interface Design:Dynamic Security Skins Rachna Dhamija and J.D. Tygar University of California, Berkeley TIPPI Workshop June 13, 2005

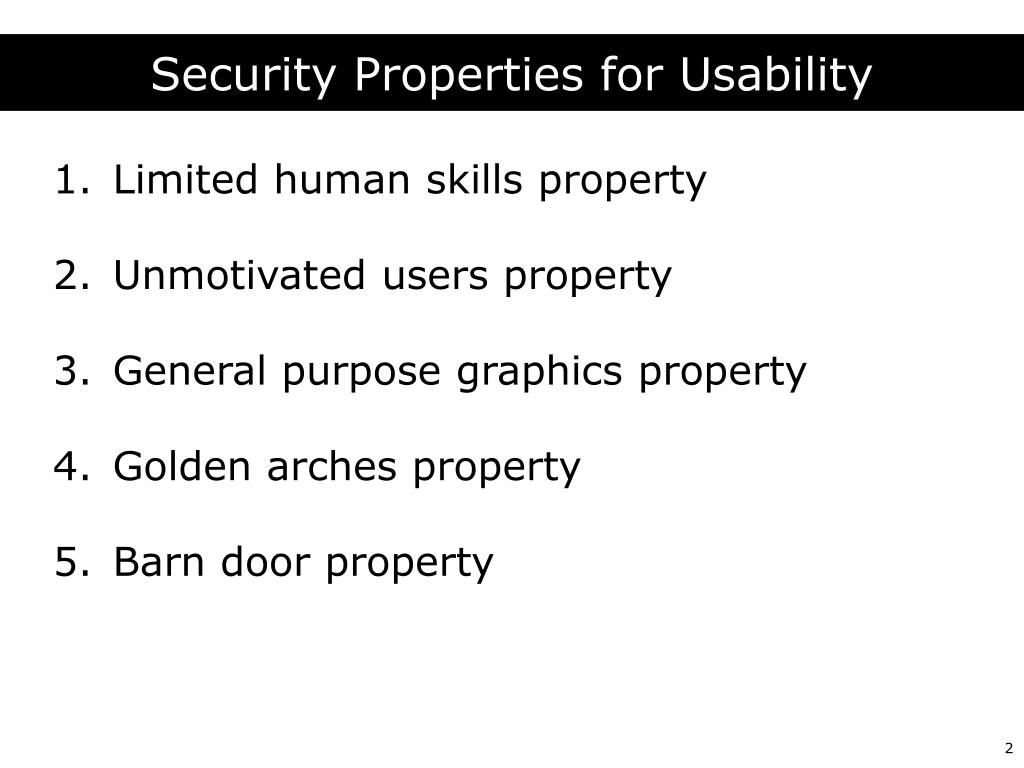

  2. Security Properties for Usability • Limited human skills property • Unmotivated users property • General purpose graphics property • Golden arches property • Barn door property

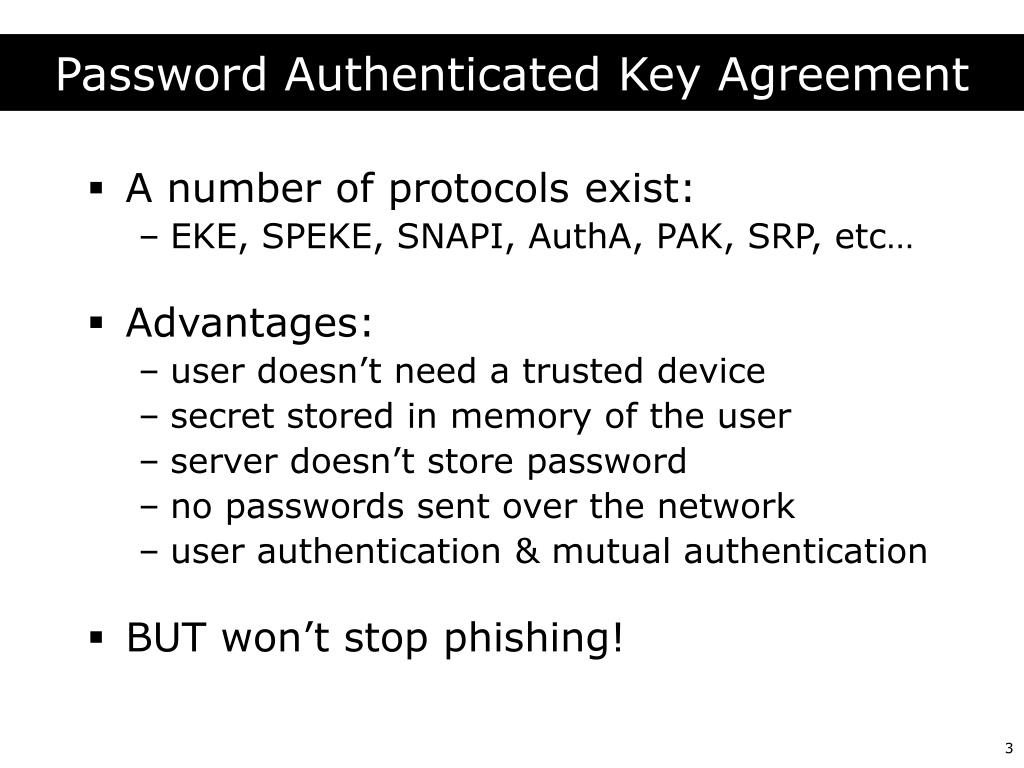

  3. Password Authenticated Key Agreement • A number of protocols exist: • EKE, SPEKE, SNAPI, AuthA, PAK, SRP, etc… • Advantages: • user doesn’t need a trusted device • secret stored in memory of the user • server doesn’t store password • no passwords sent over the network • user authentication & mutual authentication • BUT won’t stop phishing!

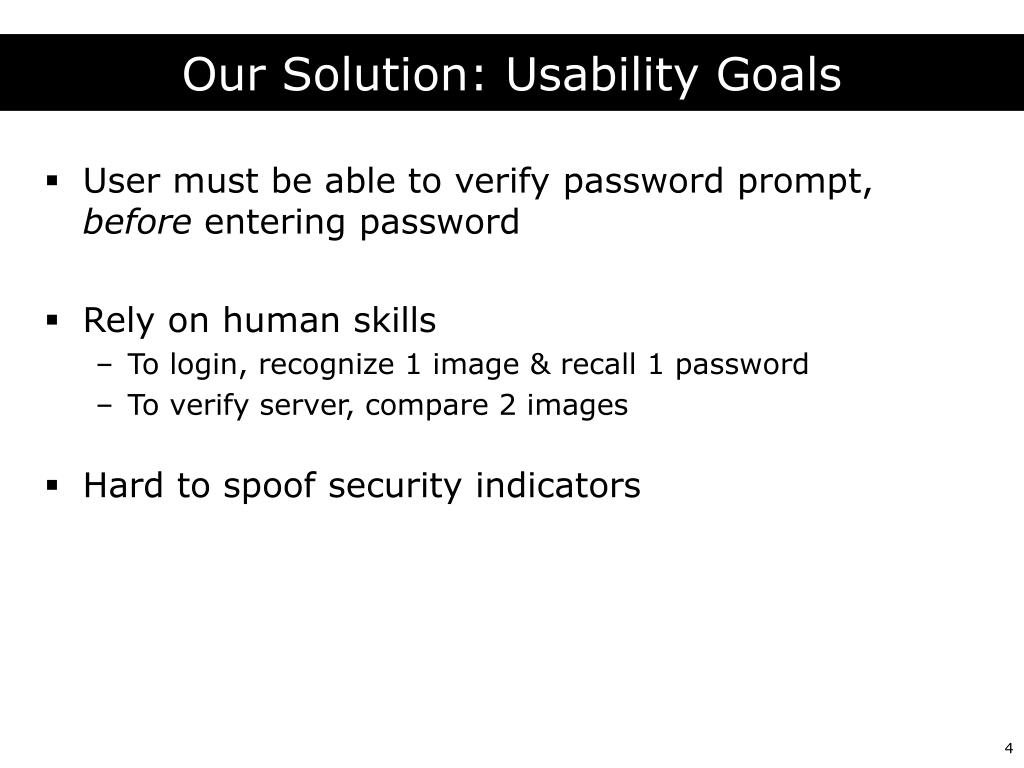

  4. Our Solution: Usability Goals • User must be able to verify password prompt, before entering password • Rely on human skills • To login, recognize 1 image & recall 1 password • To verify server, compare 2 images • Hard to spoof security indicators

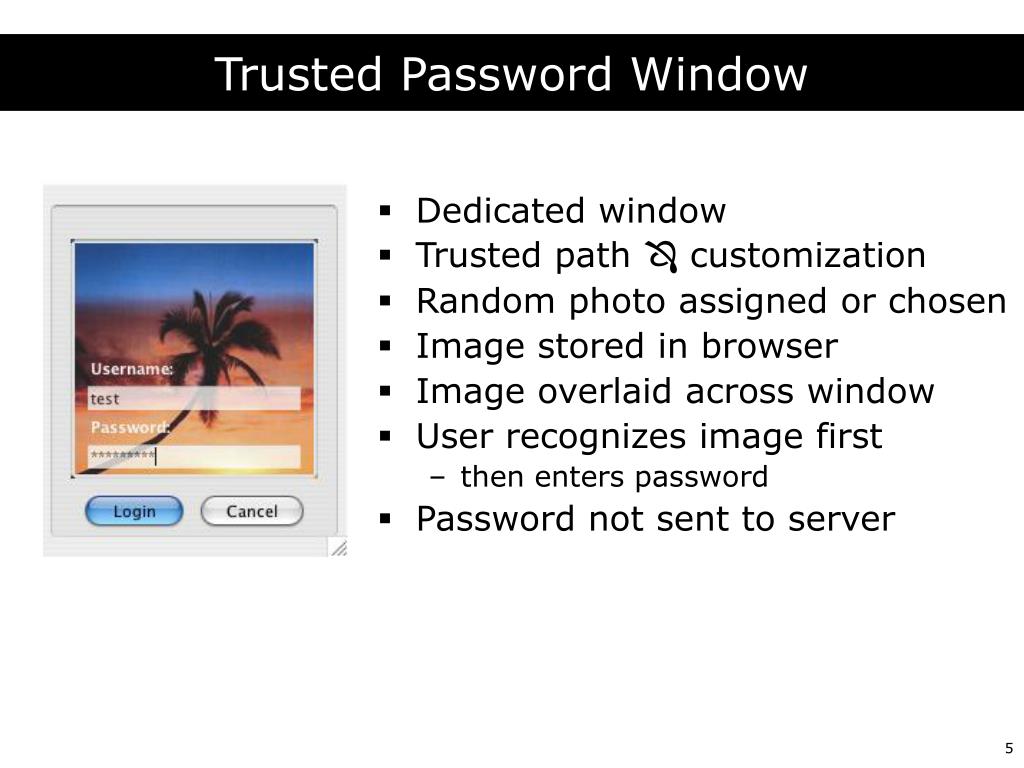

  5. Trusted Password Window • Dedicated window • Trusted path  customization • Random photo assigned or chosen • Image stored in browser • Image overlaid across window • User recognizes image first • then enters password • Password not sent to server

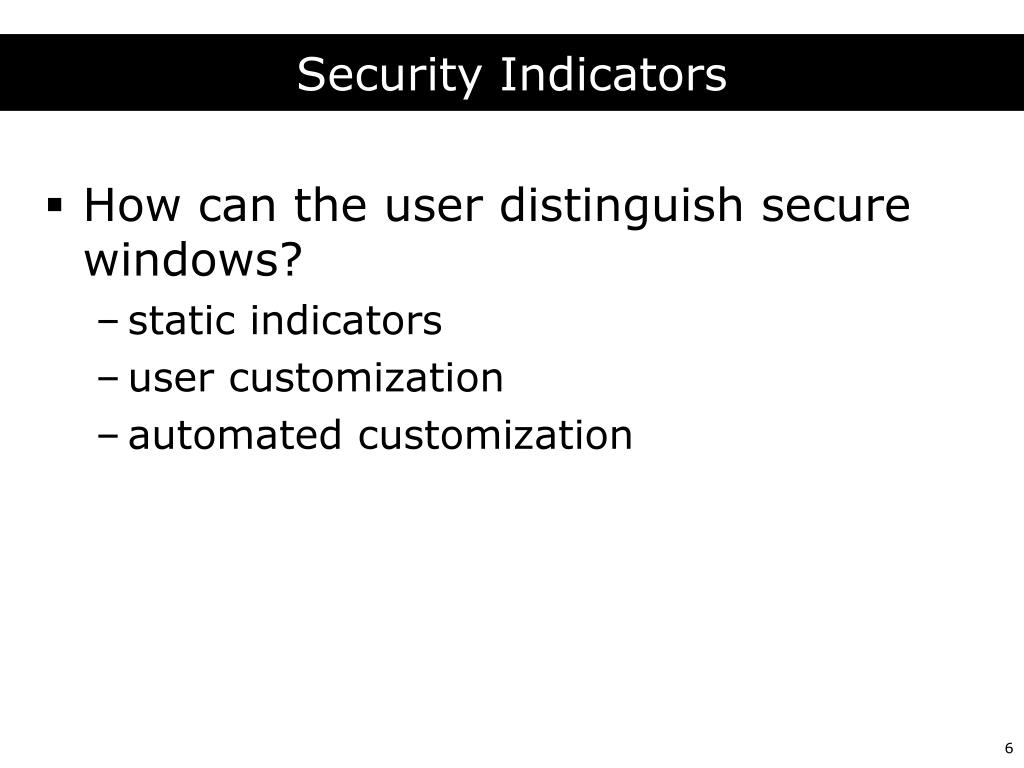

  6. Security Indicators • How can the user distinguish secure windows? • static indicators • user customization • automated customization

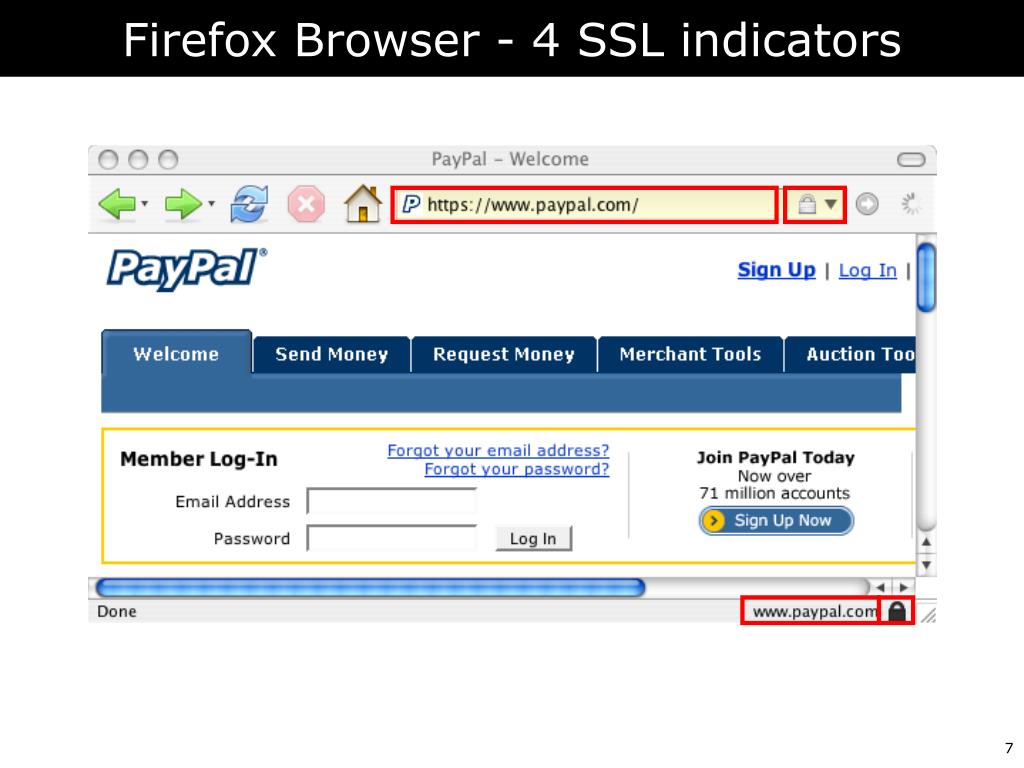

  7. Firefox Browser - 4 SSL indicators

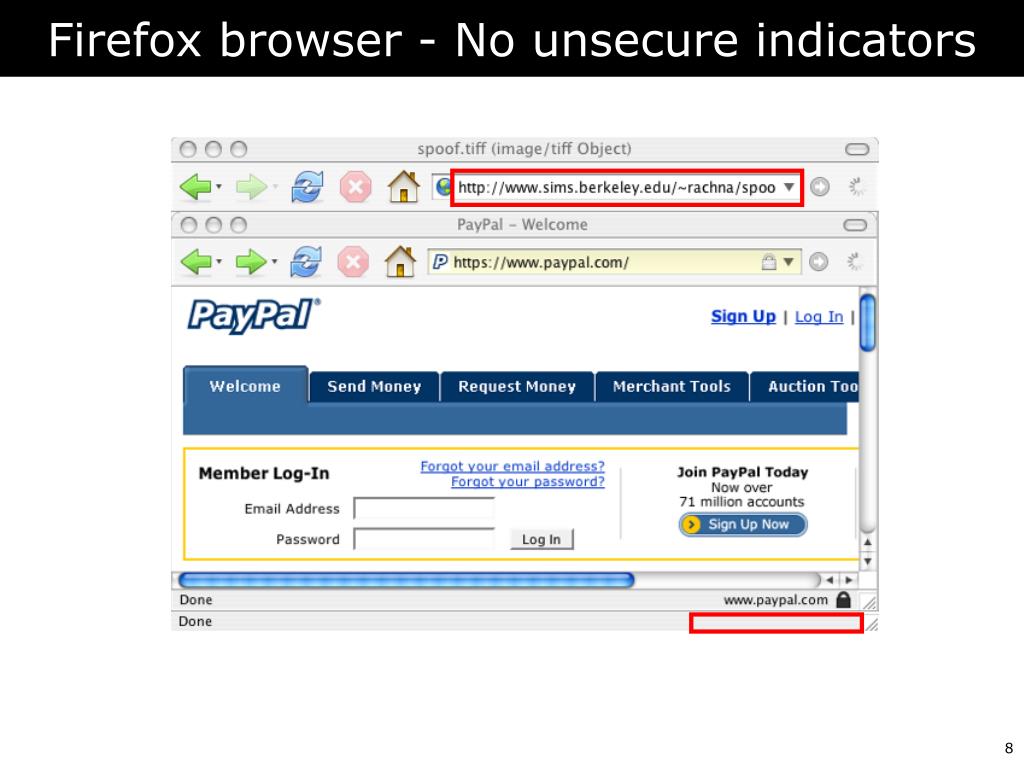

  8. Firefox browser - No unsecure indicators

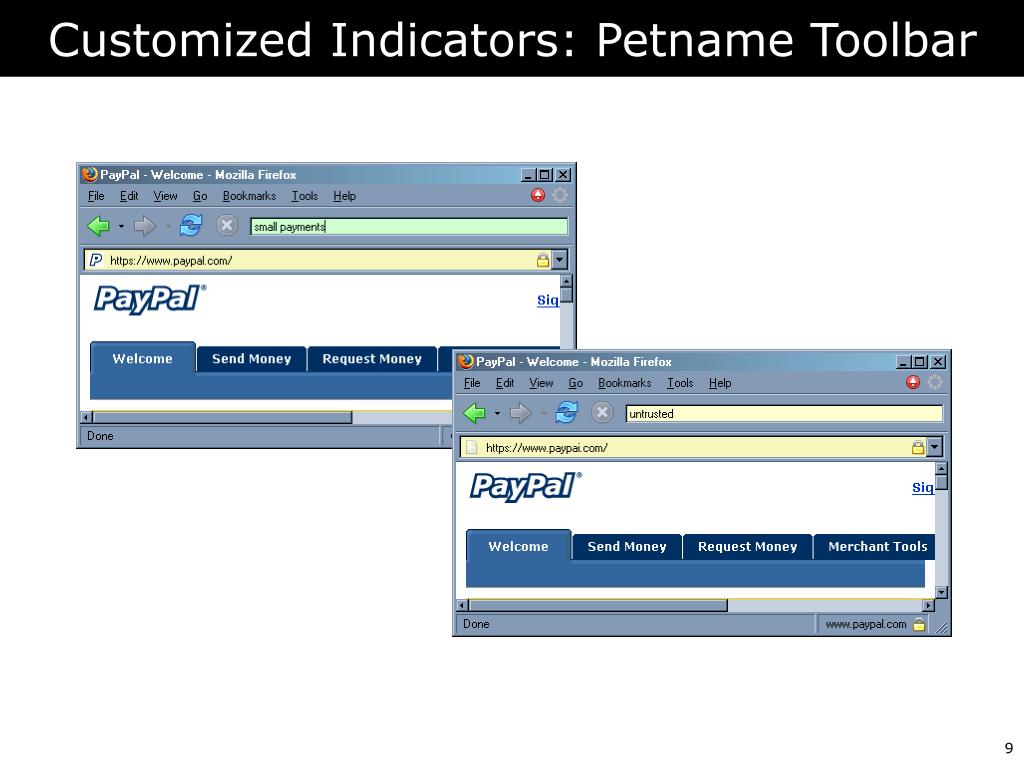

  9. Customized Indicators: Petname Toolbar

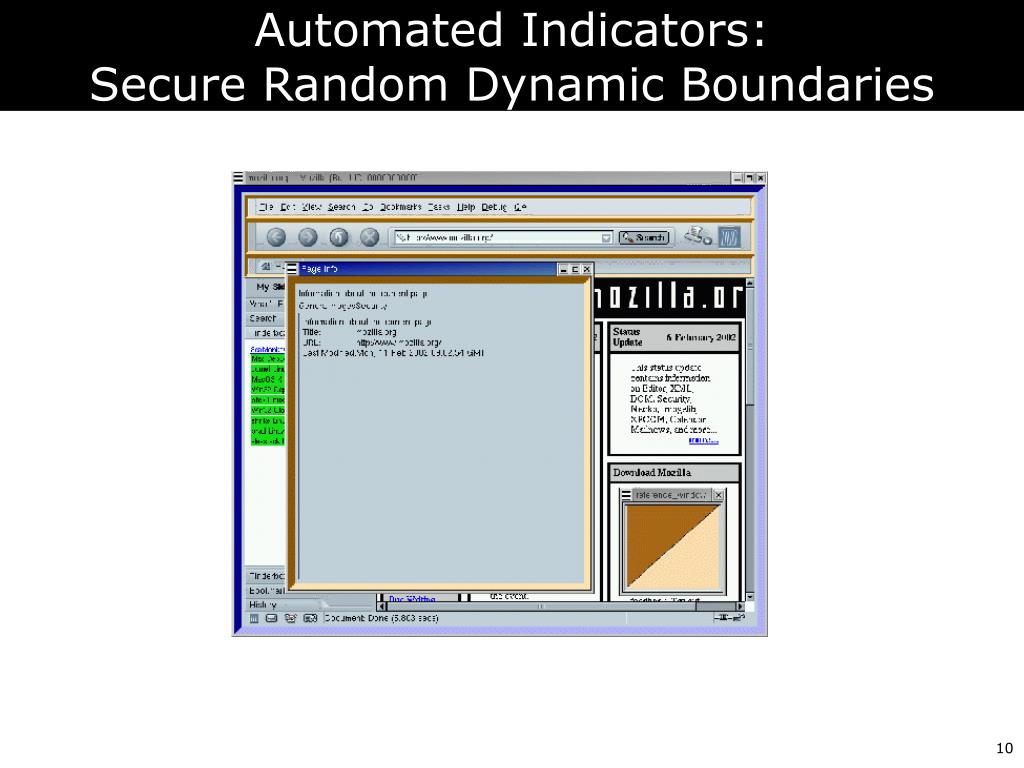

  10. Automated Indicators:Secure Random Dynamic Boundaries

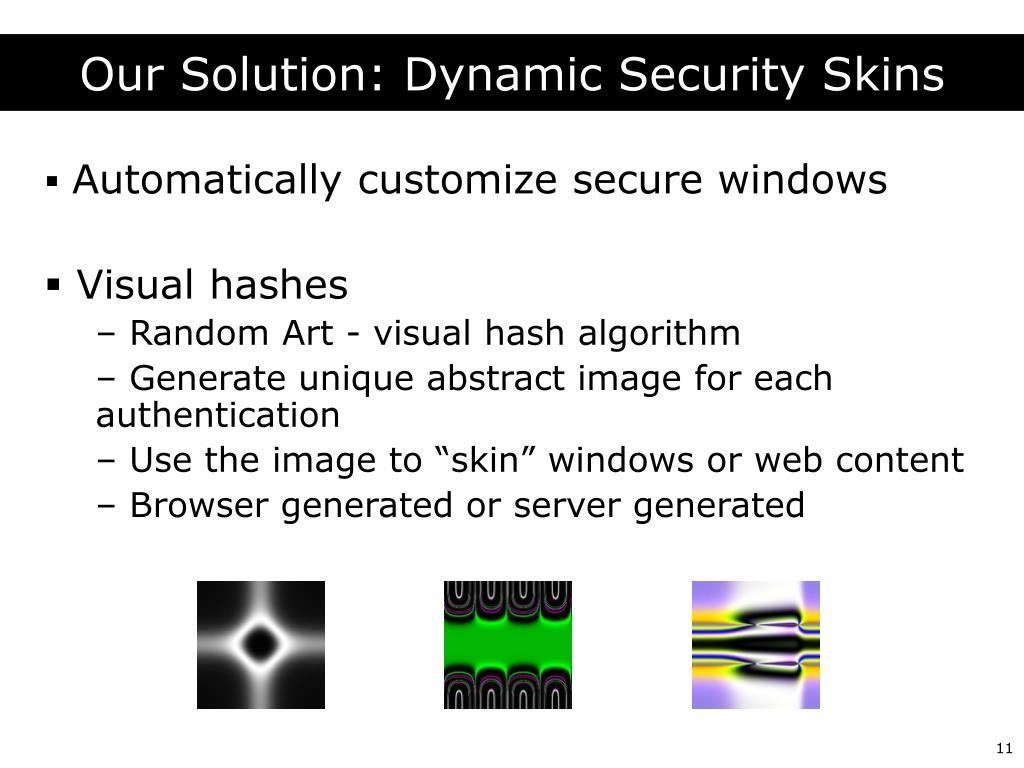

  11. Our Solution: Dynamic Security Skins • Automatically customize secure windows • Visual hashes • Random Art - visual hash algorithm • Generate unique abstract image for each authentication • Use the image to “skin” windows or web content • Browser generated or server generated

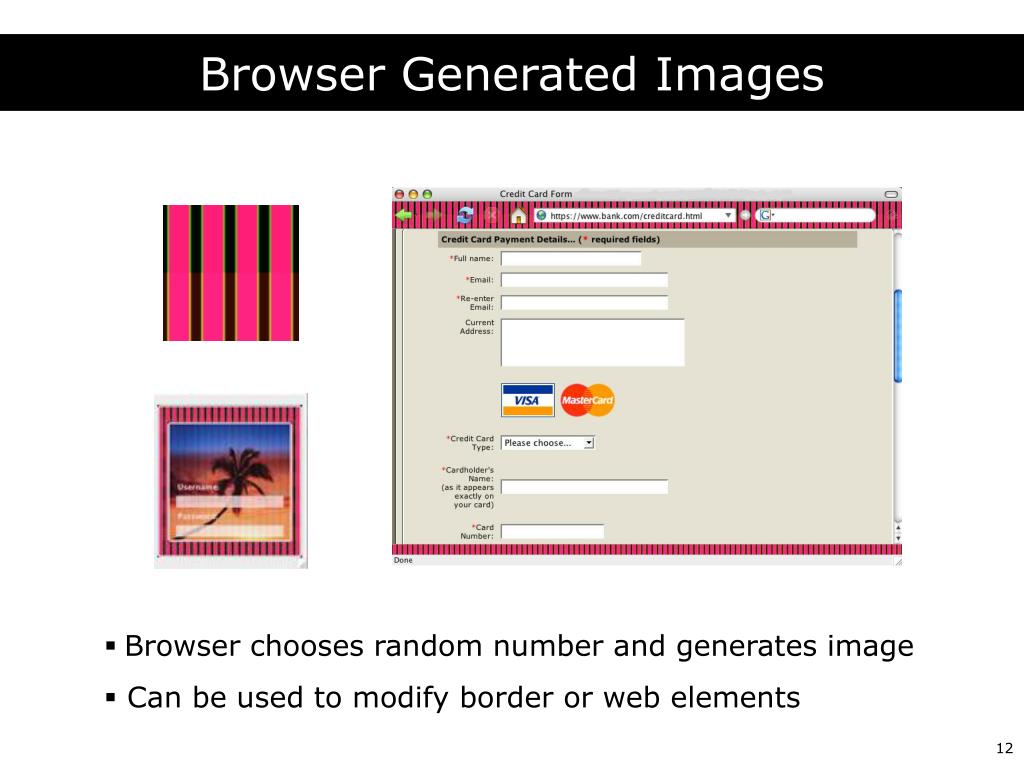

  12. Browser Generated Images • Browser chooses random number and generates image • Can be used to modify border or web elements

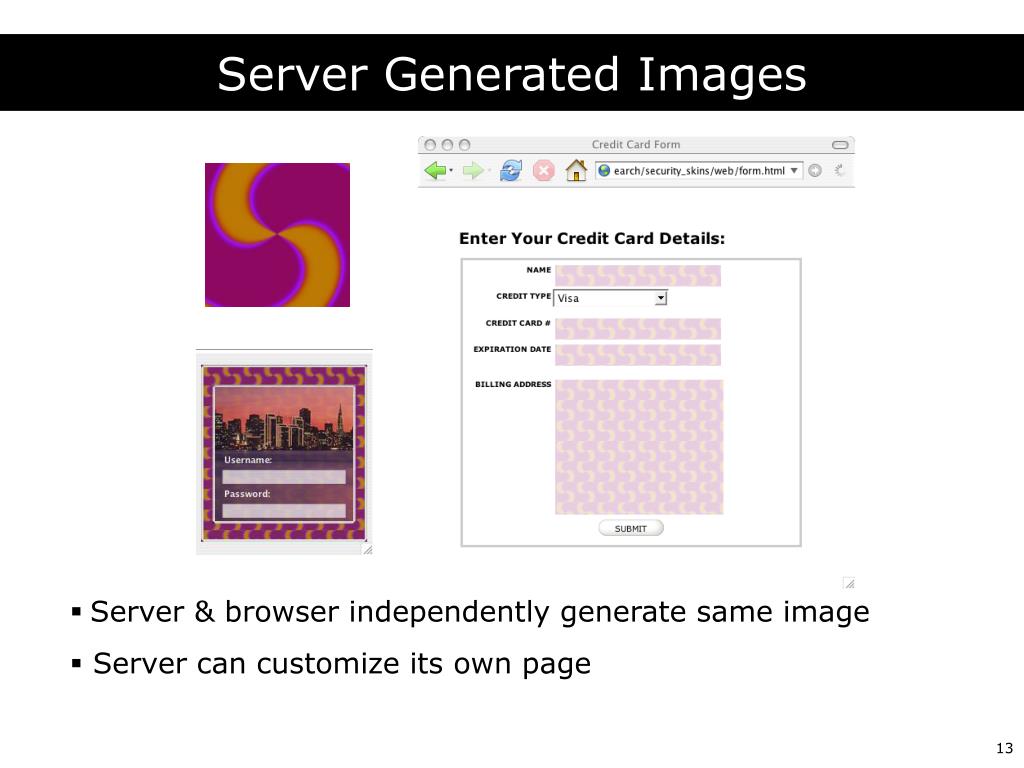

  13. Server Generated Images • Server & browser independently generate same image • Server can customize its own page

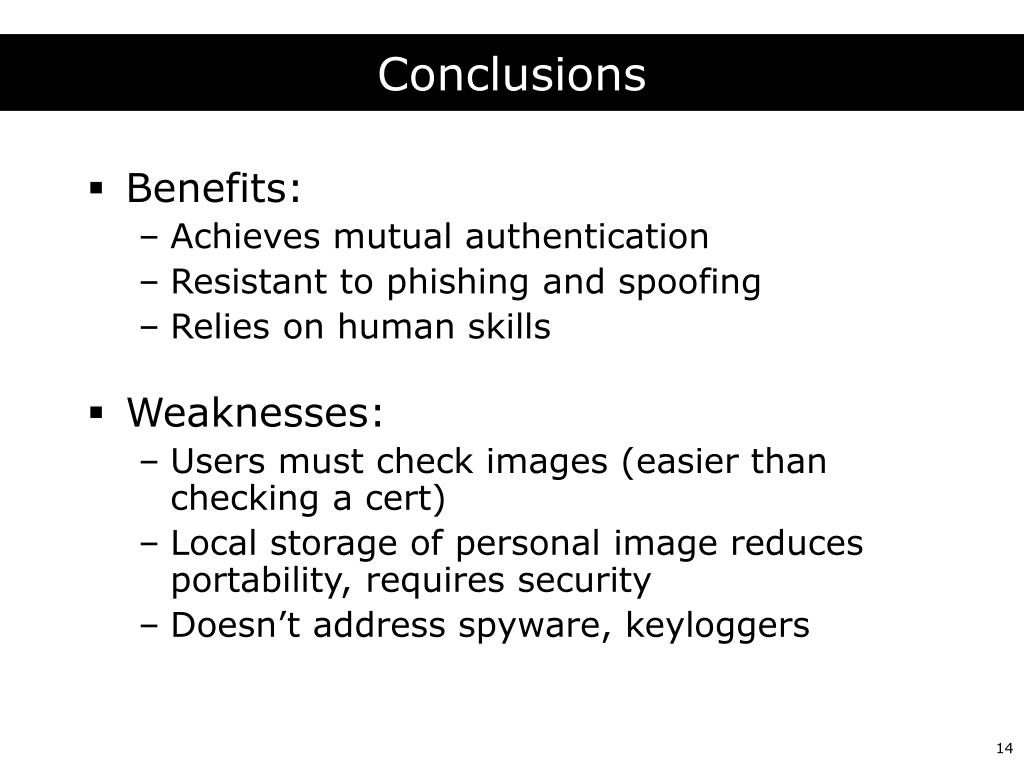

  14. Conclusions • Benefits: • Achieves mutual authentication • Resistant to phishing and spoofing • Relies on human skills • Weaknesses: • Users must check images (easier than checking a cert) • Local storage of personal image reduces portability, requires security • Doesn’t address spyware, keyloggers

  15. Status and Future Work • Iterative design & “lo-fi” testing of interface (Mozilla XUL and CSS) • Formal user study • DSS Mozilla extension • Published in SOUPS `05
