  1. Database Update • KavehRanjbar • Database Group Manager, RIPE NCC

  2. Outline • Short introduction to the Database Group • Status of APs and outstanding deliverables • Projects completed between RIPE 61 and 62 • RIPE Labs publication highlights • Q & A

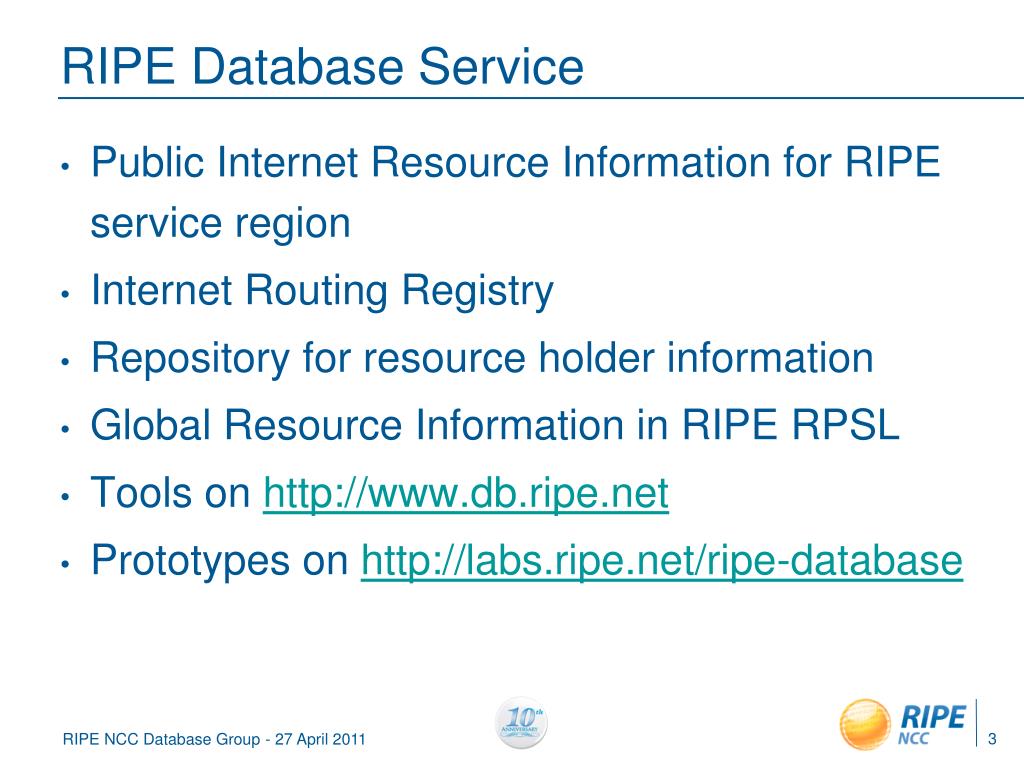

  3. RIPE Database Service • Public Internet Resource Information for RIPE service region • Internet Routing Registry • Repository for resource holder information • Global Resource Information in RIPE RPSL • Tools on http://www.db.ripe.net • Prototypes on http://labs.ripe.net/ripe-database

  4. The Database Group Benedetto Bogdan Denis Kaveh Agoston Erik

  5. RIPE Database statistics • Operational stats: http://www.ripe.net/info/stats/db/ripedb.html

  6. Action Points • Denis Walker • Database Business Analyst, RIPE NCC

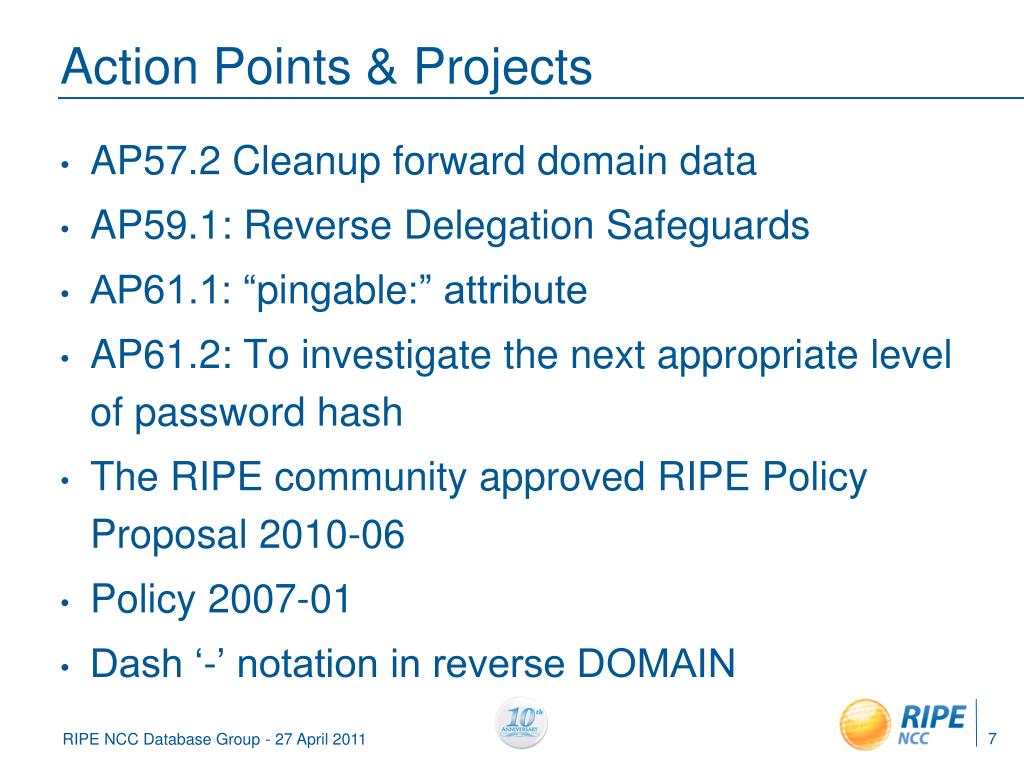

  7. Action Points & Projects • AP57.2 Cleanup forward domain data • AP59.1: Reverse Delegation Safeguards • AP61.1: “pingable:” attribute • AP61.2: To investigate the next appropriate level of password hash • The RIPE community approved RIPE Policy Proposal 2010-06 • Policy 2007-01 • Dash ‘-’ notation in reverse DOMAIN

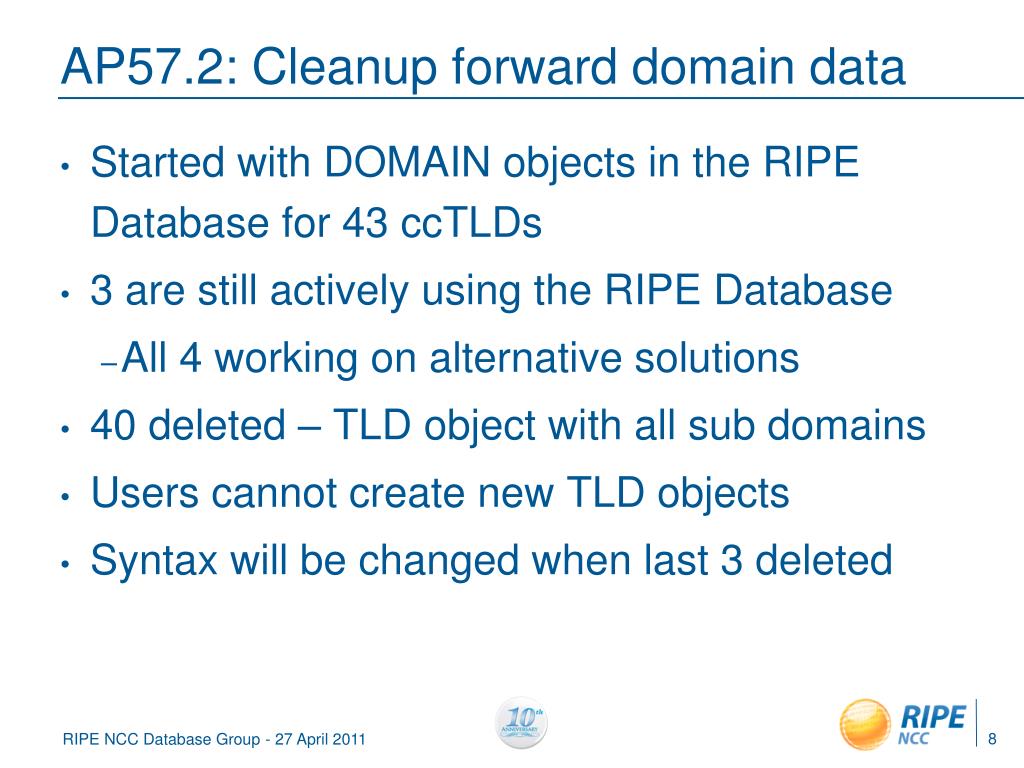

  8. AP57.2: Cleanup forward domain data • Started with DOMAIN objects in the RIPE Database for 43 ccTLDs • 3 are still actively using the RIPE Database • All 4 working on alternative solutions • 40 deleted – TLD object with all sub domains • Users cannot create new TLD objects • Syntax will be changed when last 3 deleted

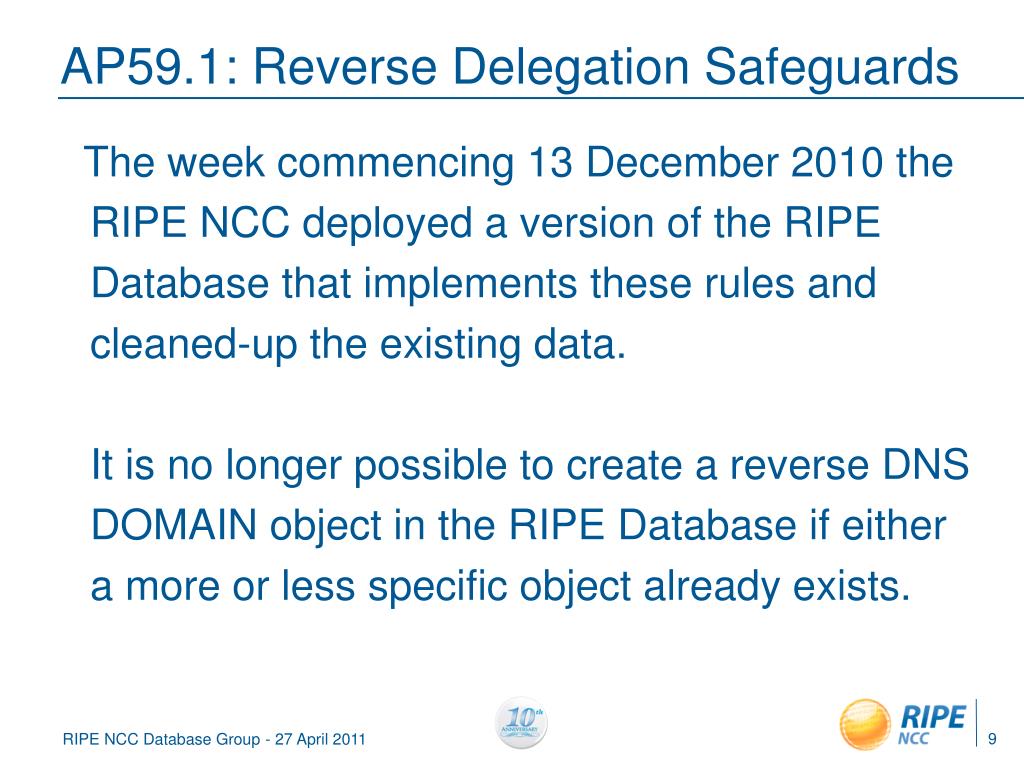

  9. AP59.1: Reverse Delegation Safeguards The week commencing 13 December 2010 the RIPE NCC deployed a version of the RIPE Database that implements these rules and cleaned-up the existing data. It is no longer possible to create a reverse DNS DOMAIN object in the RIPE Database if either a more or less specific object already exists.

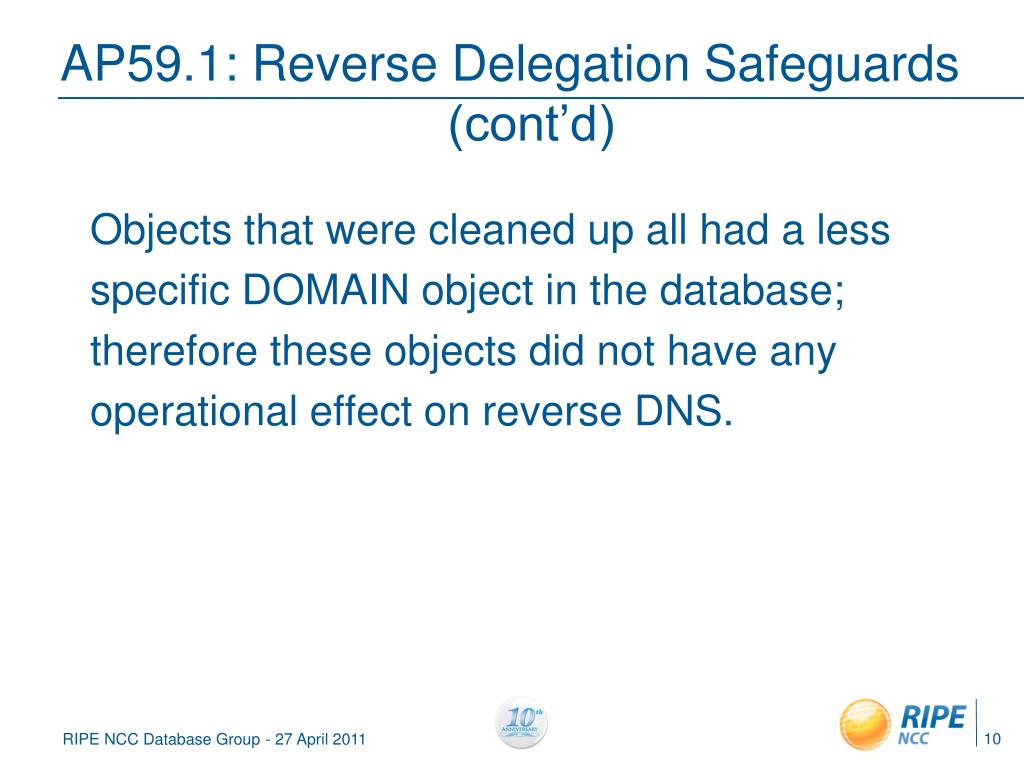

  10. AP59.1: Reverse Delegation Safeguards (cont’d) Objects that were cleaned up all had a less specific DOMAIN object in the database; therefore these objects did not have any operational effect on reverse DNS.

  11. AP61.1: “pingable:” attribute • On the 21st of February the RIPE NCC implemented the "pingable:" and "ping-hdl:" attributes according to the specification in RFC 5943. • They can now be used in ROUTE and ROUTE6 objects in the RIPE Database. • RFC 5943 describes the syntax and explains how to use them: http://tools.ietf.org/html/rfc5943

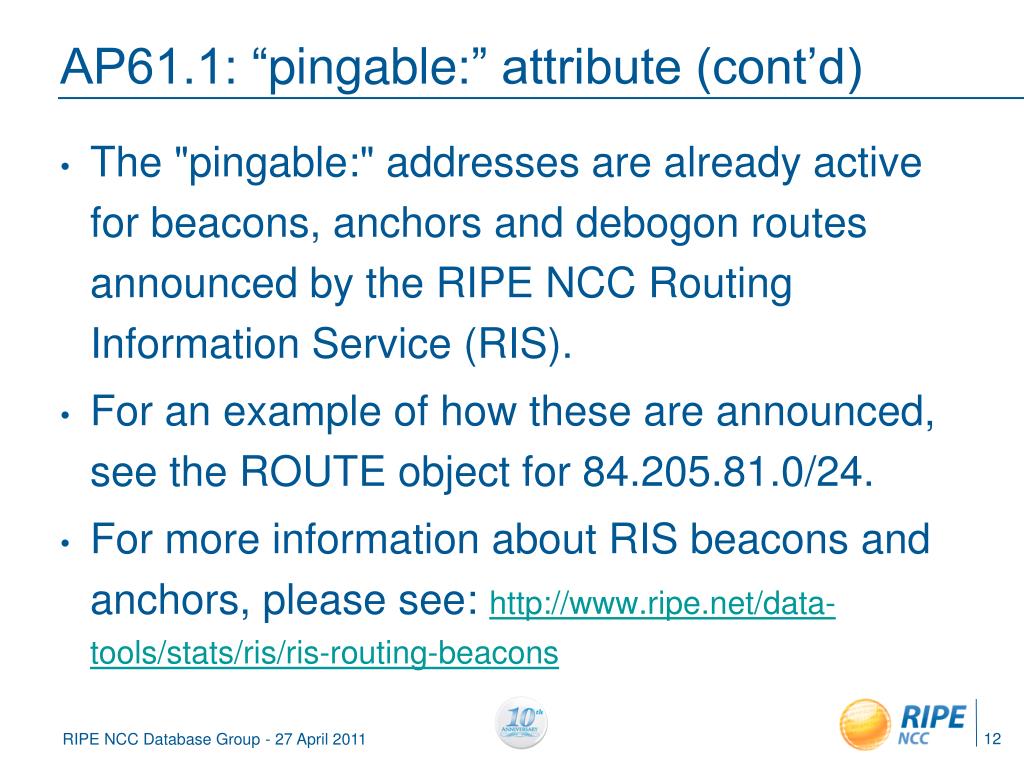

  12. AP61.1: “pingable:” attribute (cont’d) • The "pingable:" addresses are already active for beacons, anchors and debogon routes announced by the RIPE NCC Routing Information Service (RIS). • For an example of how these are announced, see the ROUTE object for 84.205.81.0/24. • For more information about RIS beacons and anchors, please see: http://www.ripe.net/data-tools/stats/ris/ris-routing-beacons

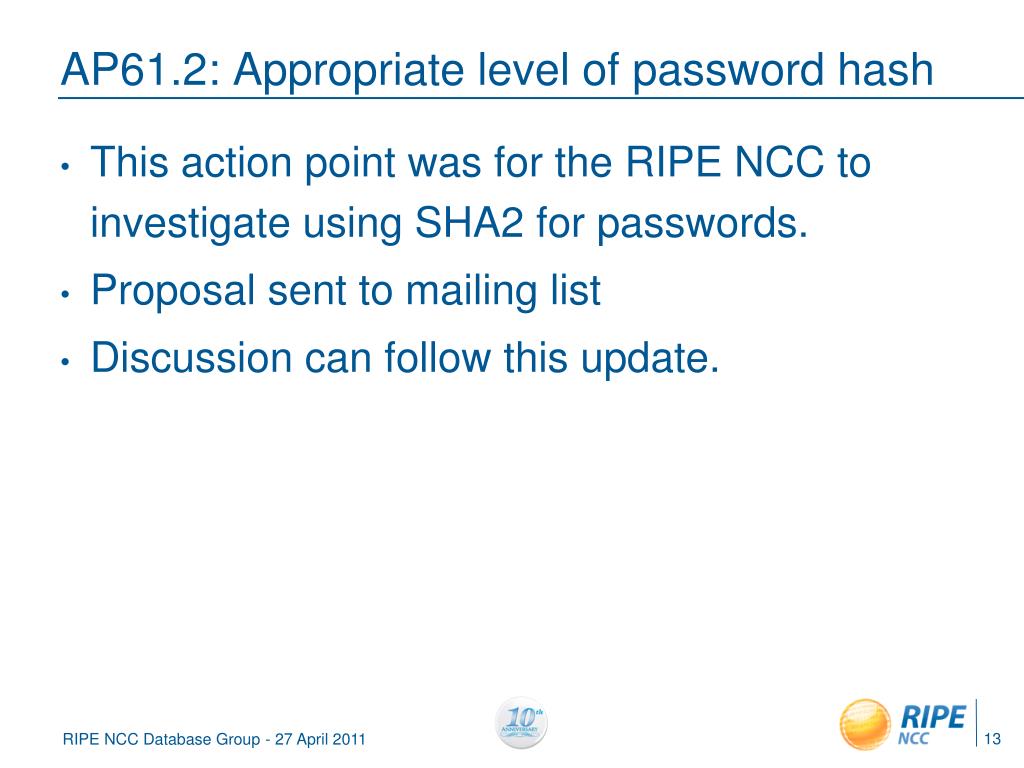

  13. AP61.2: Appropriate level of password hash • This action point was for the RIPE NCC to investigate using SHA2 for passwords. • Proposal sent to mailing list • Discussion can follow this update.

  14. Policy 2010-06 • The RIPE community approved RIPE Policy Proposal 2010-06, "Registration Requirements for IPv6 End User Assignments". • The proposal is available at: http://www.ripe.net/ripe/policies/proposals/2010-06

  15. Policy 2010-06 (cont’d) • On the 15th of February the RIPE NCC deployed a version of the RIPE Database that implements the policy in the RIPE Database and other RIPE NCC processes, where necessary. • Details of how to use the new aggregation feature of the RIPE Database can be found at: http://www.ripe.net/data-tools/support/documentation/ documenting-ipv6-assignments-in-the-ripe-database • Currently 53340 INET6NUM objects in RIPE Database • 75 have status AGGREGATED-BY-LIR

  16. Policy 2007-01 • 2007-01 is Contractual Requirements for Provider Independent Resource Holders in the RIPE NCC Service Region • As part of the 2007-01 policyimplementation the RIPE NCC has to: • Add RIPE-NCC-END-MNT to all AUT-NUM objects • Change RIPE-NCC-HM-PI-MNT to RIPE-NCC-END-MNT on PI assignment objects or add where necessary

  17. Dash notation in reverse DOMAIN • Proposal sent to mailing list • Drop current dash ‘-’ syntax and expansion from third octet (1-100.2.10.in-addr.arpa) • Causes problems with DNSSEC • Allow dash in fourth octet for classless delegations (6-25.1.2.10.in-addr.arpa) • Stored in RIPE Database with dash • Expansion done by DNS provisioning

  18. Geolocating • KavehRanjbar • Database Group Manager, RIPE NCC

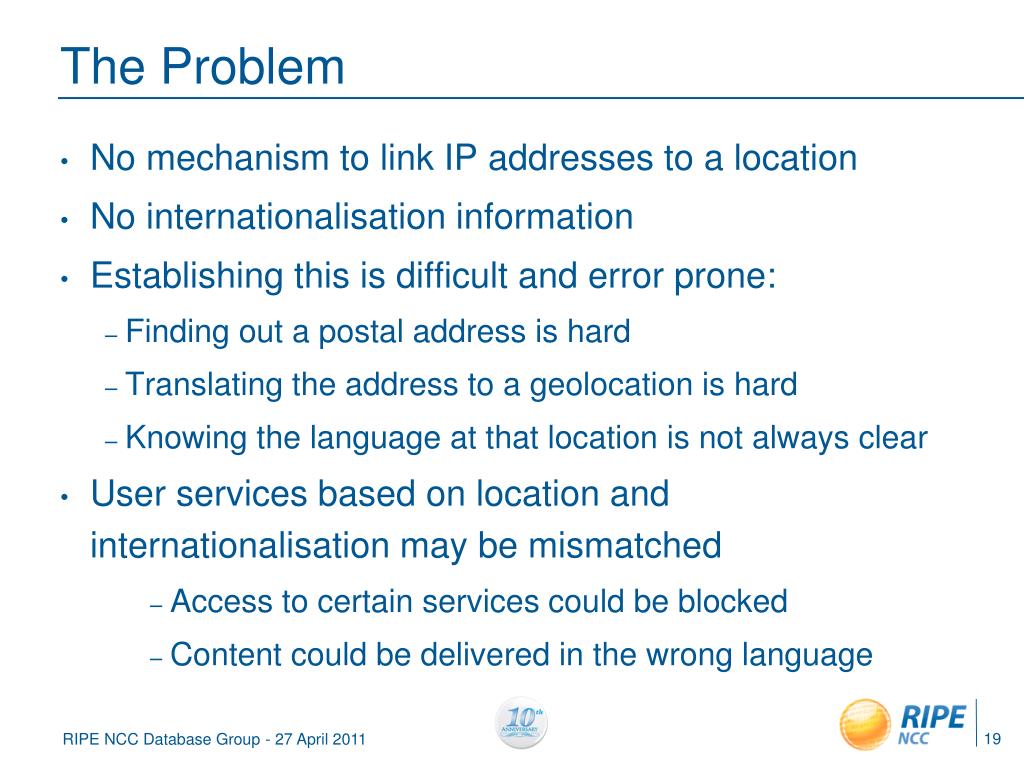

  19. The Problem • No mechanism to link IP addresses to a location • No internationalisation information • Establishing this is difficult and error prone: • Finding out a postal address is hard • Translating the address to a geolocation is hard • Knowing the language at that location is not always clear • User services based on location and internationalisation may be mismatched • Access to certain services could be blocked • Content could be delivered in the wrong language

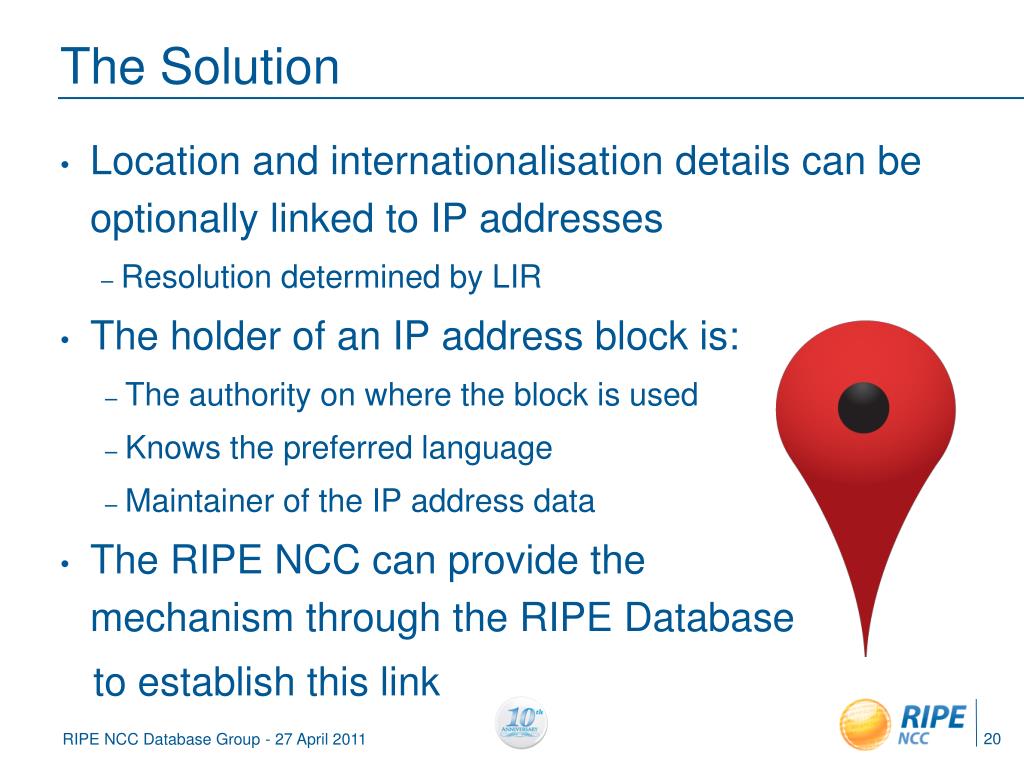

  20. The Solution • Location and internationalisation details can be optionally linked to IP addresses • Resolution determined by LIR • The holder of an IP address block is: • The authority on where the block is used • Knows the preferred language • Maintainer of the IP address data • The RIPE NCC can provide the mechanism through the RIPE Database to establish this link

  21. Everybody Benefits • End Users • Providers can serve content in the desired language • and related to the user’s location • LIRs • More control over location based services supplied • Less End User complaints • Content Providers • Easier to address their target audience • RIPE Database • Holds more accurate location data

  22. The Way Forward • Interest expressed from Google, MaxMind, IP2Location • If location data is added to your RIPE Database objects, it can be automatically included in their data sets • higher priority input, authoritative source • RIPE NCC will develop simple prototype on RIPE Labs

  23. Development & Innovation highlights • BogdanDumitrescu • Software Engineer

  24. Prototypes and new services on RIPE Labs • GRS Sources and the RIPE Database API • RIPE-GRS, APNIC-GRS, ARIN-GRS, LACNIC-GRS, RADB-GRS • No personal data, no query limits, data may include non RPSL attributes • RIPE Database REST API: Query + CRUD • New interfaces to the RIPE Database (HTTPS, XML, JSON, XLink, XPath, etc.) • Reusable building blocks for other services and tools • http://labs.ripe.net/Members/bfiorell/api-documentation • Search forms and tools – ready for production • Search, Lookup, Free-text Search, Abuse Finder • Work in progress • Update Forms, Crypt Utils, Change Maintainer Authorisation • REST CRUD API, new services for power users

  25. Demo • BogdanDumitrescu Software Engineer

  26. Questions?
