  1. Viewing essentials James Miller, Ph.D.‡. James Ross, M.Sc.‡, Xi Wang, Ph.D.‡, Steve Pieper, Ph.D.§, Wendy Plesniak, Ph.D.¥ ‡GE Research §Isomics ¥Surgical Planning Laboratory, Brigham and Women’s Hospital

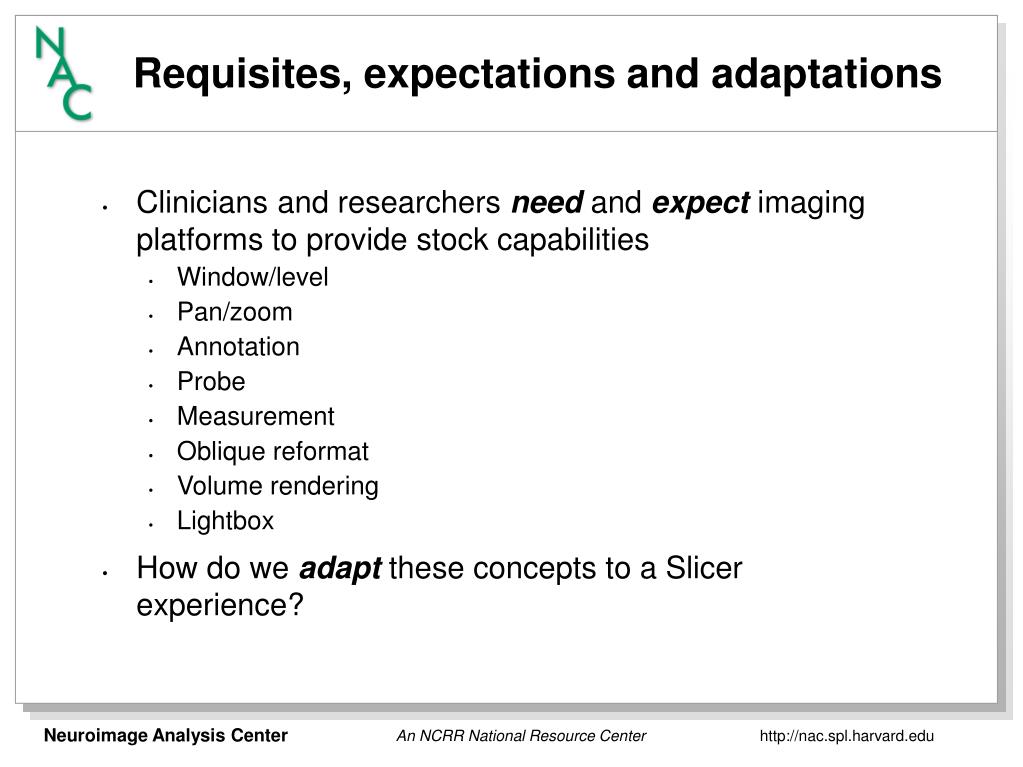

  2. Requisites, expectations and adaptations • Clinicians and researchers need and expect imaging platforms to provide stock capabilities • Window/level • Pan/zoom • Annotation • Probe • Measurement • Oblique reformat • Volume rendering • Lightbox • How do we adapt these concepts to a Slicer experience?

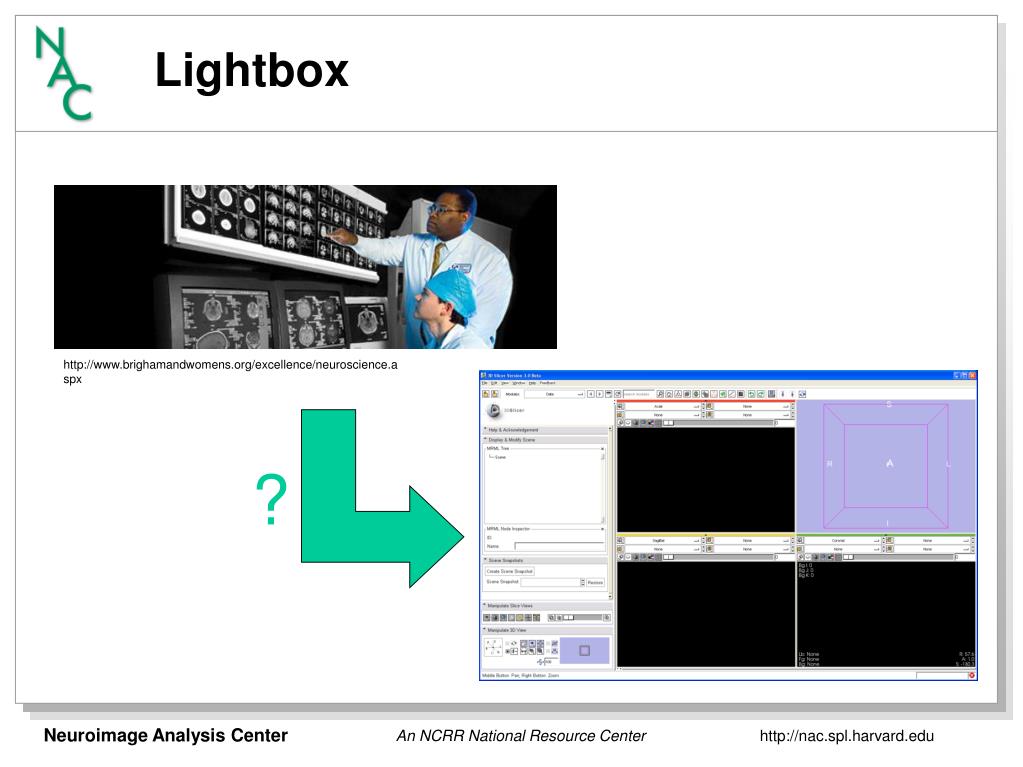

  3. Lightbox http://www.brighamandwomens.org/excellence/neuroscience.aspx ?

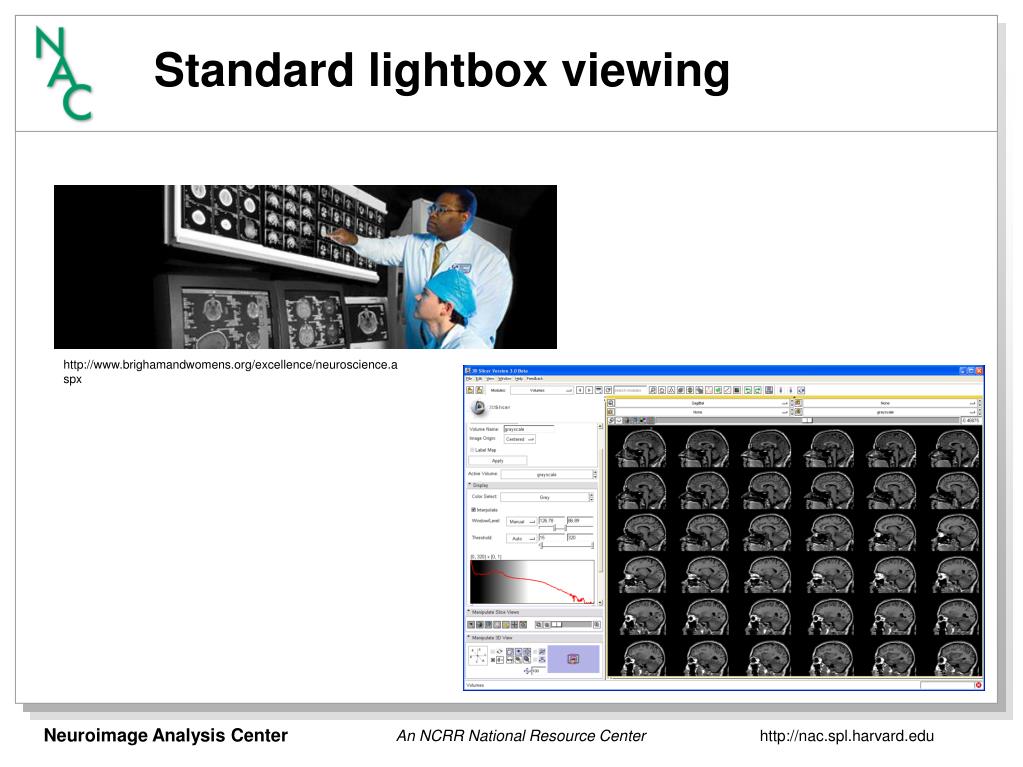

  4. Standard lightbox viewing http://www.brighamandwomens.org/excellence/neuroscience.aspx

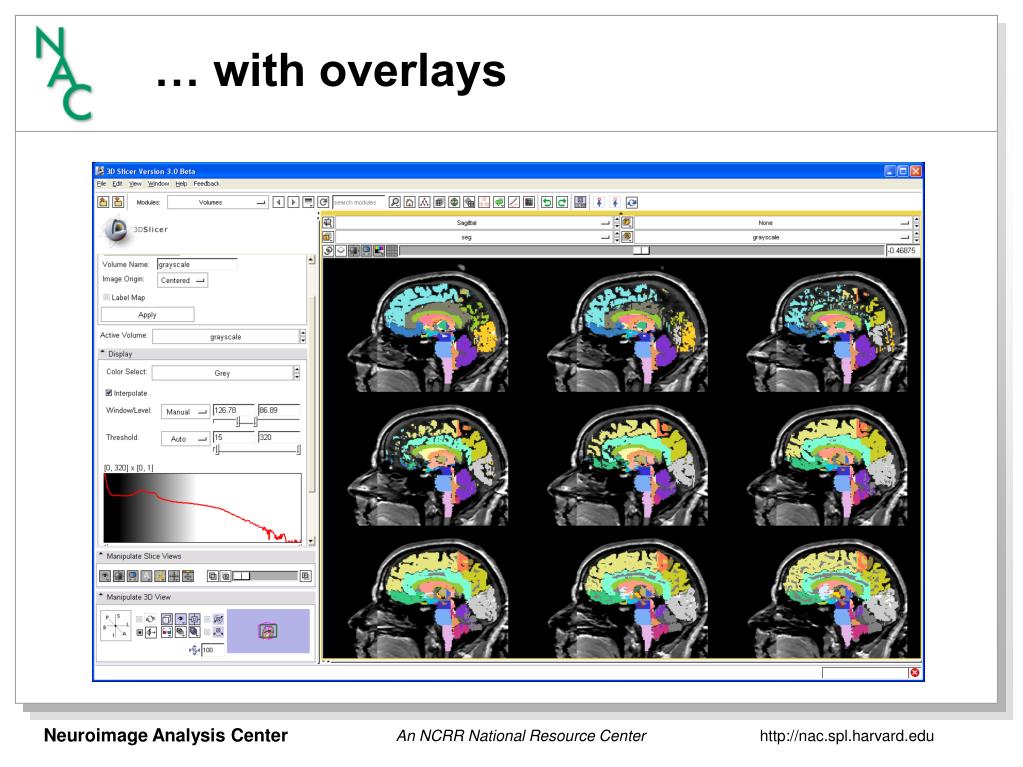

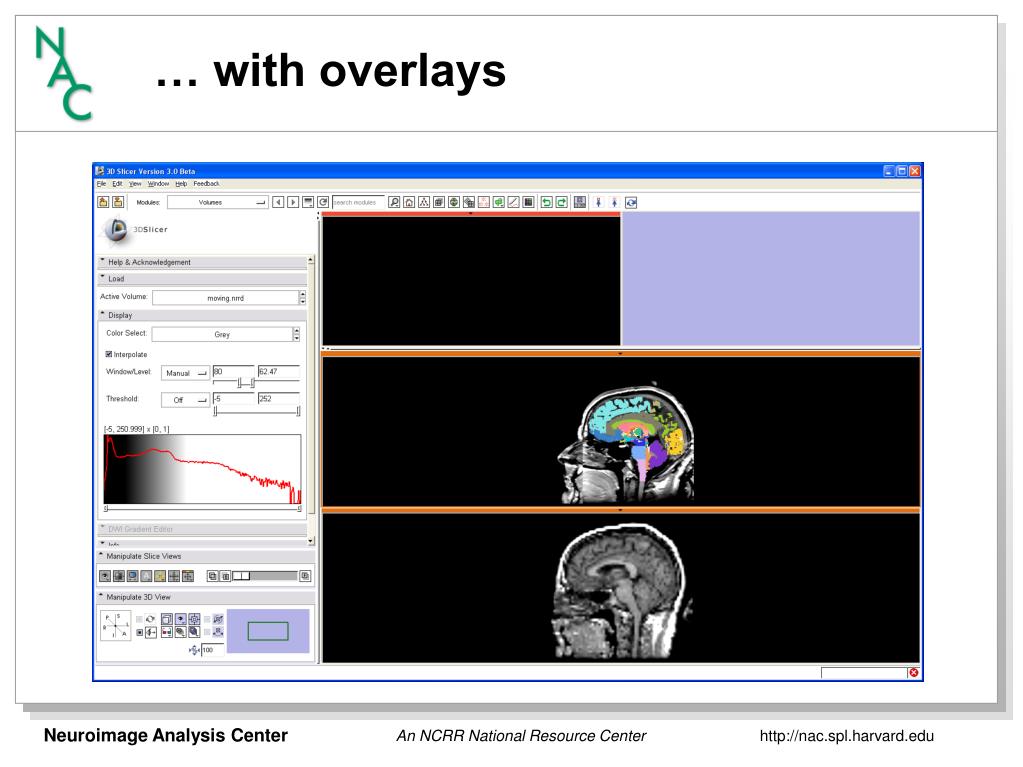

  5. … with overlays

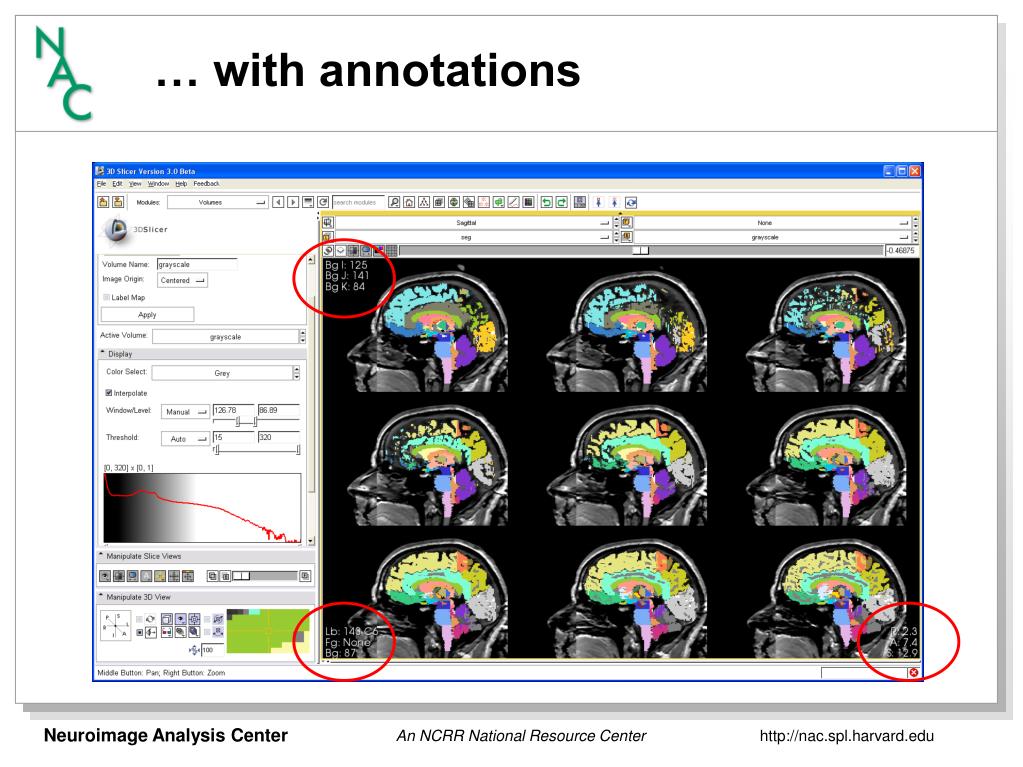

  6. … with annotations

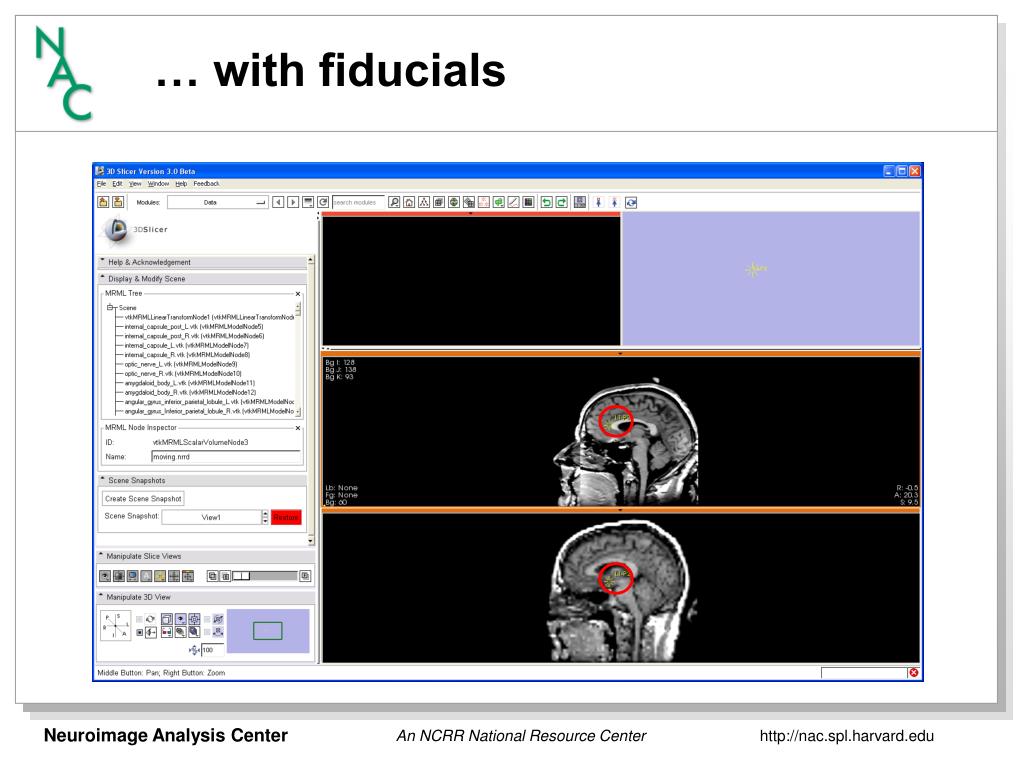

  7. … with fiducials

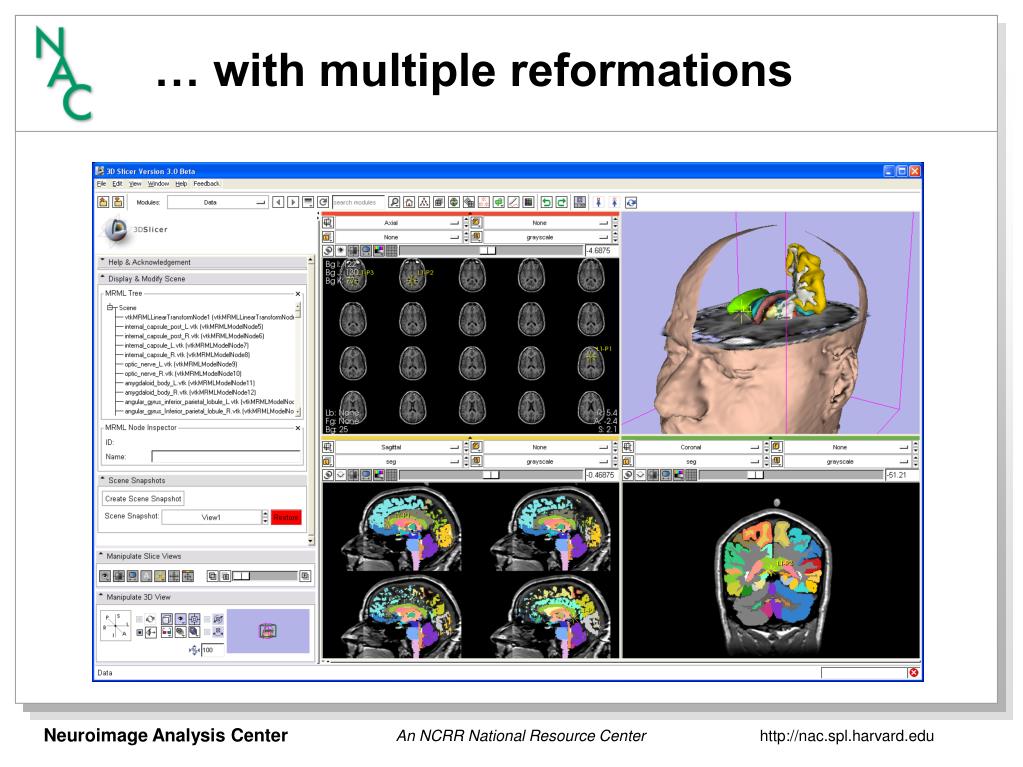

  8. … with multiple reformations

  9. … with an editor X

  10. Oblique reformat • Anatomy is rarely predominantly aligned axially, sagitally, or coronally • Oblique reformation allows image display planes to be aligned to an anatomy’s principal axes Axial Oblique

  11. Standard oblique reformat CTRL-Right Button to manipulate reformation

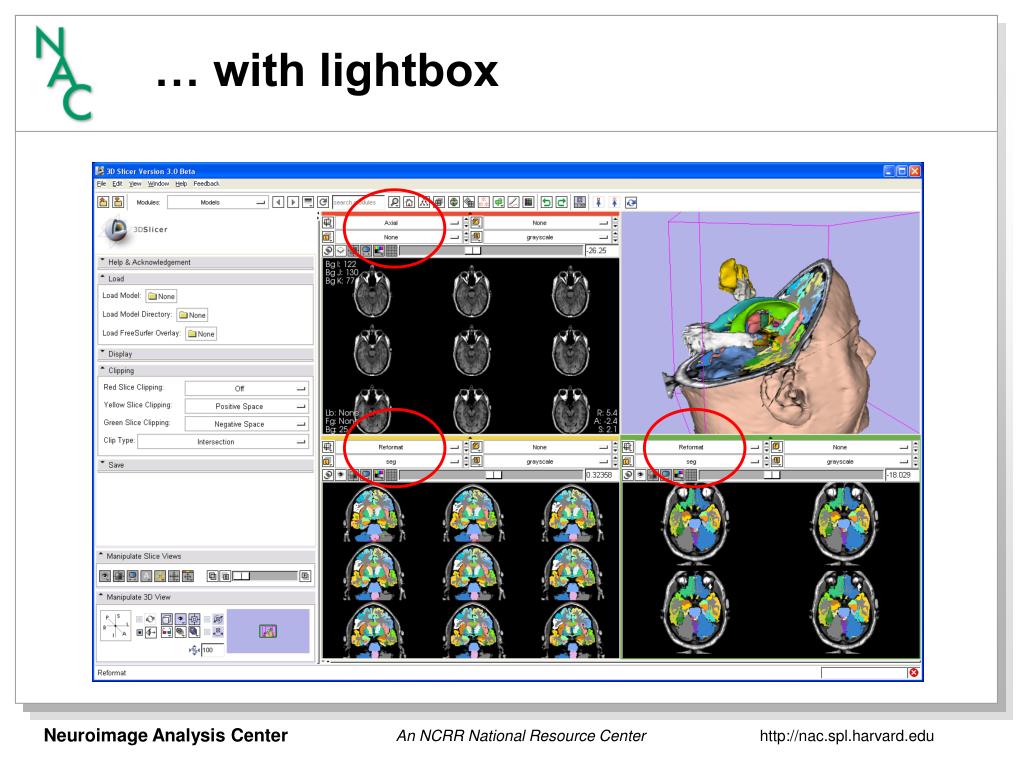

  12. … with lightbox

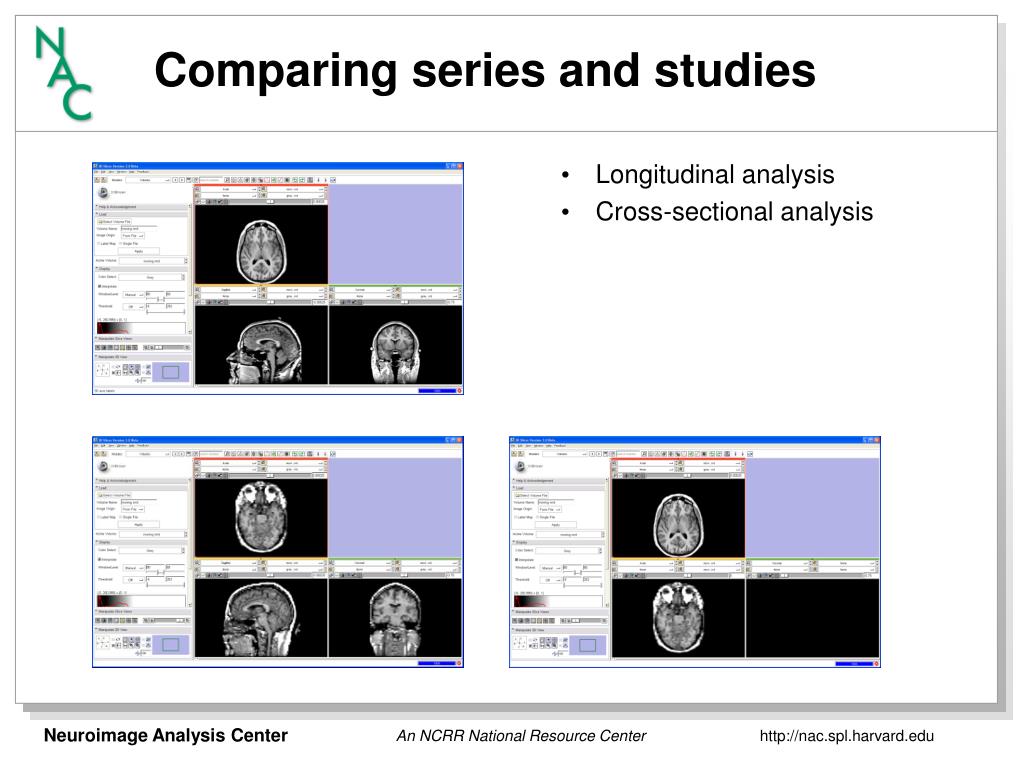

  13. Comparing series and studies • Longitudinal analysis • Cross-sectional analysis

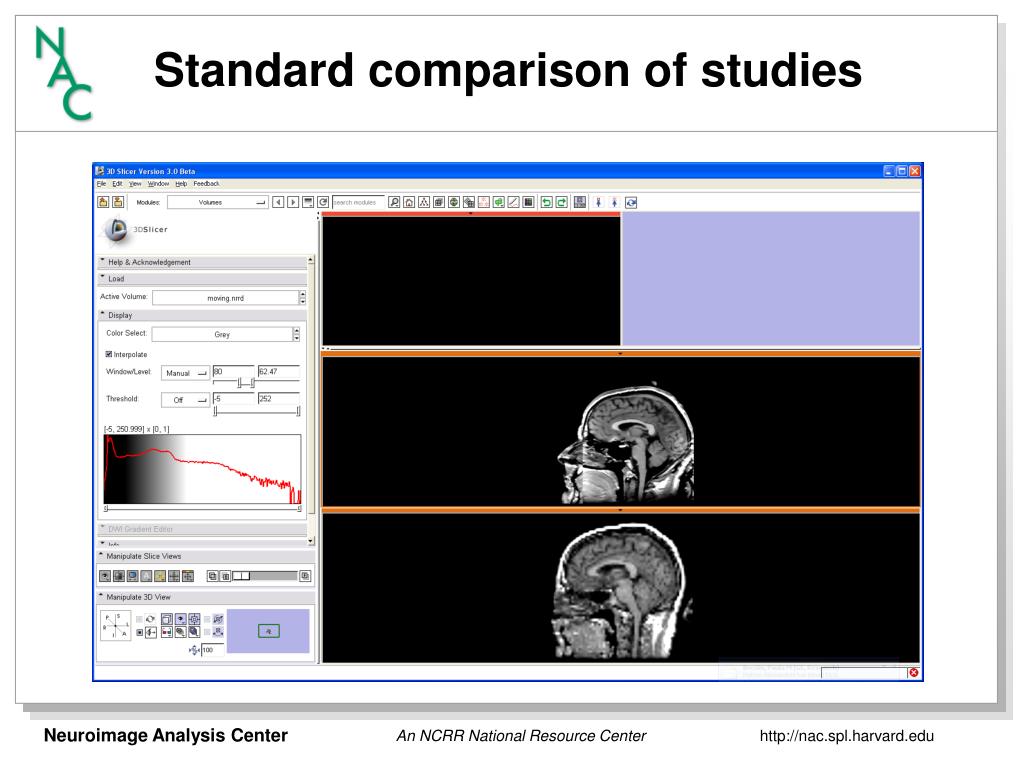

  14. Standard comparison of studies

  15. … with overlays

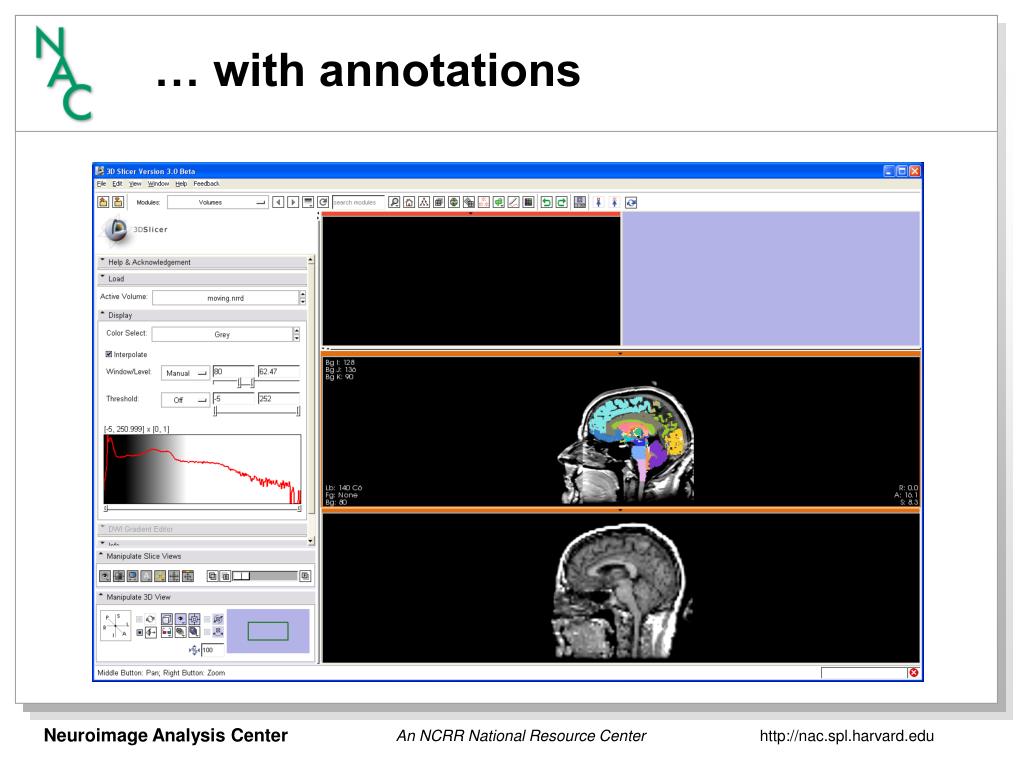

  16. … with annotations

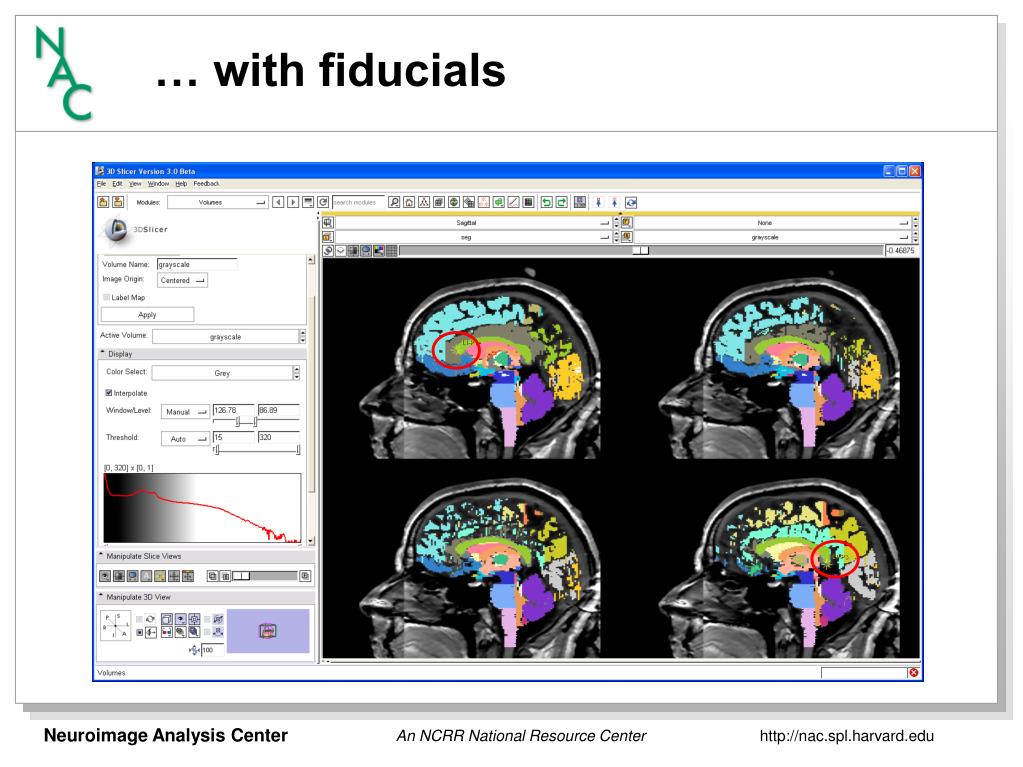

  17. … with fiducials

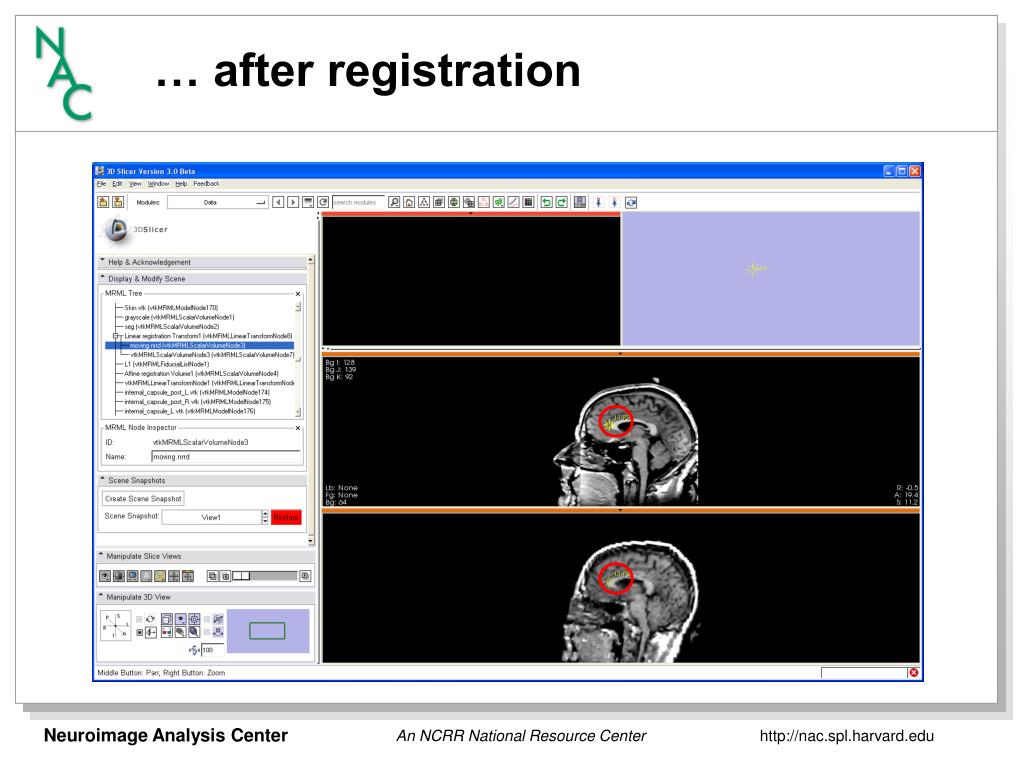

  18. … after registration

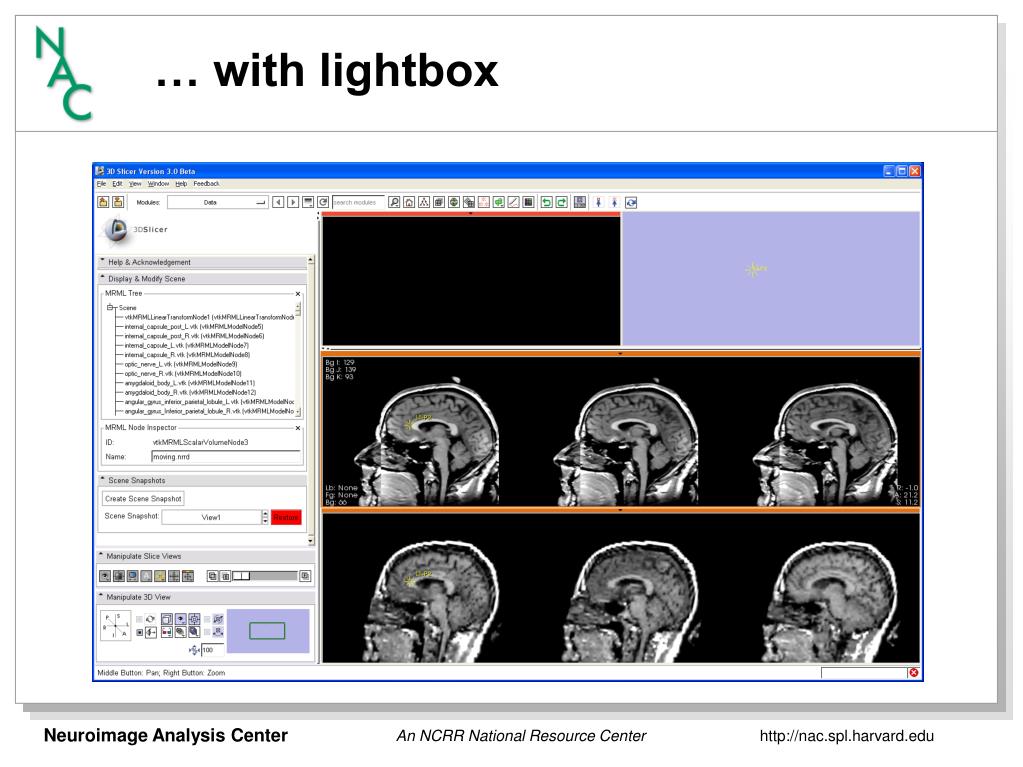

  19. … with lightbox

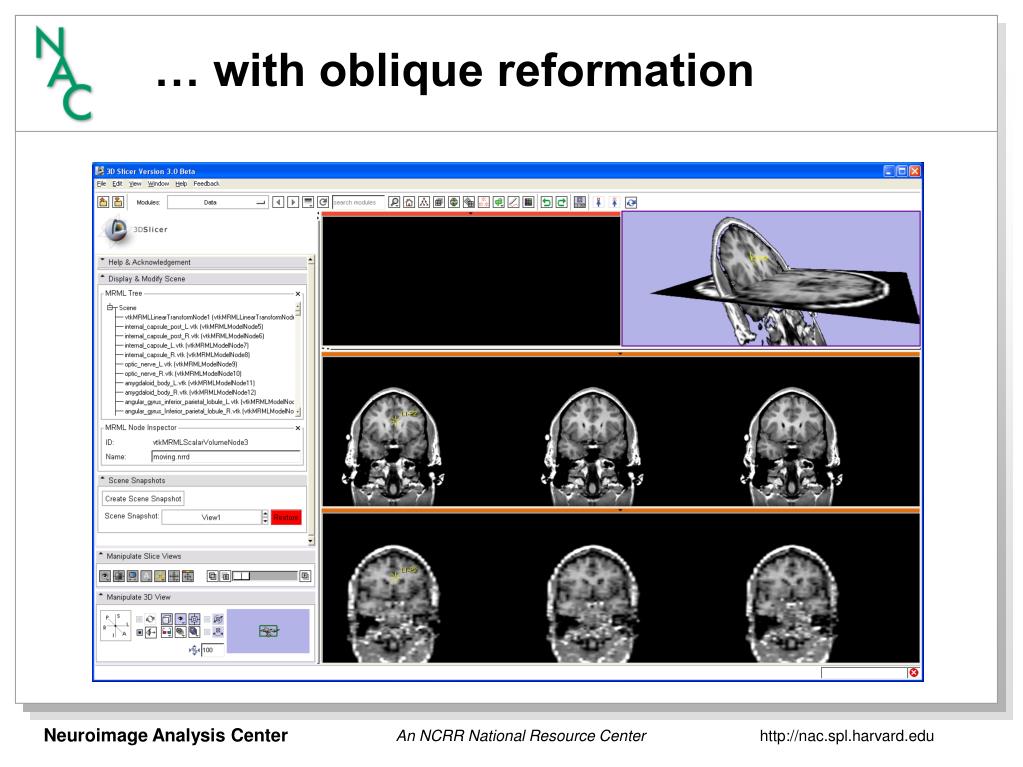

  20. … with oblique reformation

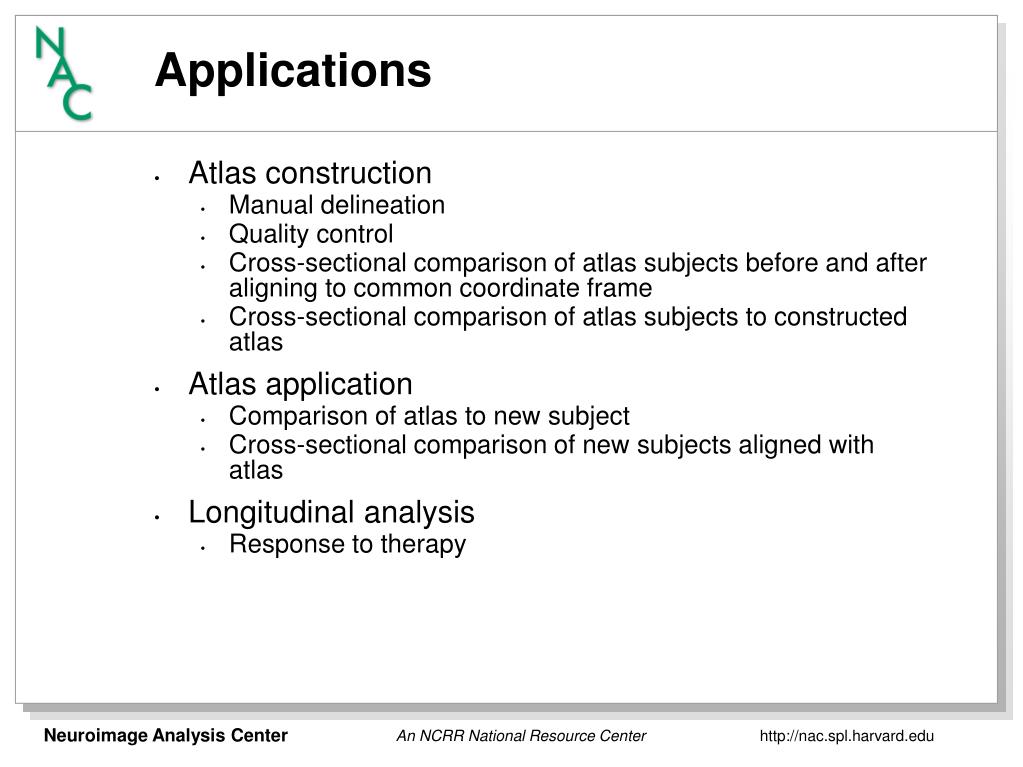

  21. Applications • Atlas construction • Manual delineation • Quality control • Cross-sectional comparison of atlas subjects before and after aligning to common coordinate frame • Cross-sectional comparison of atlas subjects to constructed atlas • Atlas application • Comparison of atlas to new subject • Cross-sectional comparison of new subjects aligned with atlas • Longitudinal analysis • Response to therapy

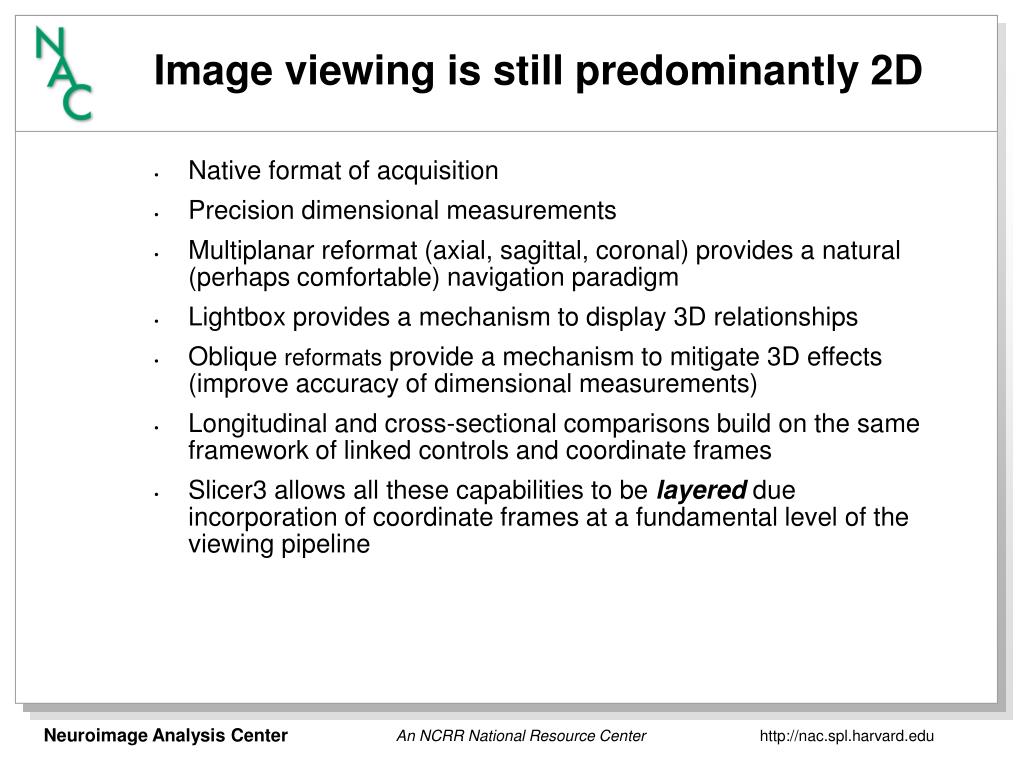

  22. Image viewing is still predominantly 2D • Native format of acquisition • Precision dimensional measurements • Multiplanar reformat (axial, sagittal, coronal) provides a natural (perhaps comfortable) navigation paradigm • Lightbox provides a mechanism to display 3D relationships • Oblique reformats provide a mechanism to mitigate 3D effects (improve accuracy of dimensional measurements) • Longitudinal and cross-sectional comparisons build on the same framework of linked controls and coordinate frames • Slicer3 allows all these capabilities to be layered due incorporation of coordinate frames at a fundamental level of the viewing pipeline
