FlexMove

FlexMove. FB SERIES. FBSB-40x40. Support Beam 40x40 – Aluminium Anodized. FB. 890 Kč <7 ks. UOM : 3 meter / length. FBSB-64x64. Support Beam 64x64 – Aluminium Anodized. 1 146 Kč <80 ks. UOM : 3 meter / length. FBSB-64x64C. Enclosure Support Beam – Aluminium Anodized.

afia
Télécharger la présentation

FlexMove

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

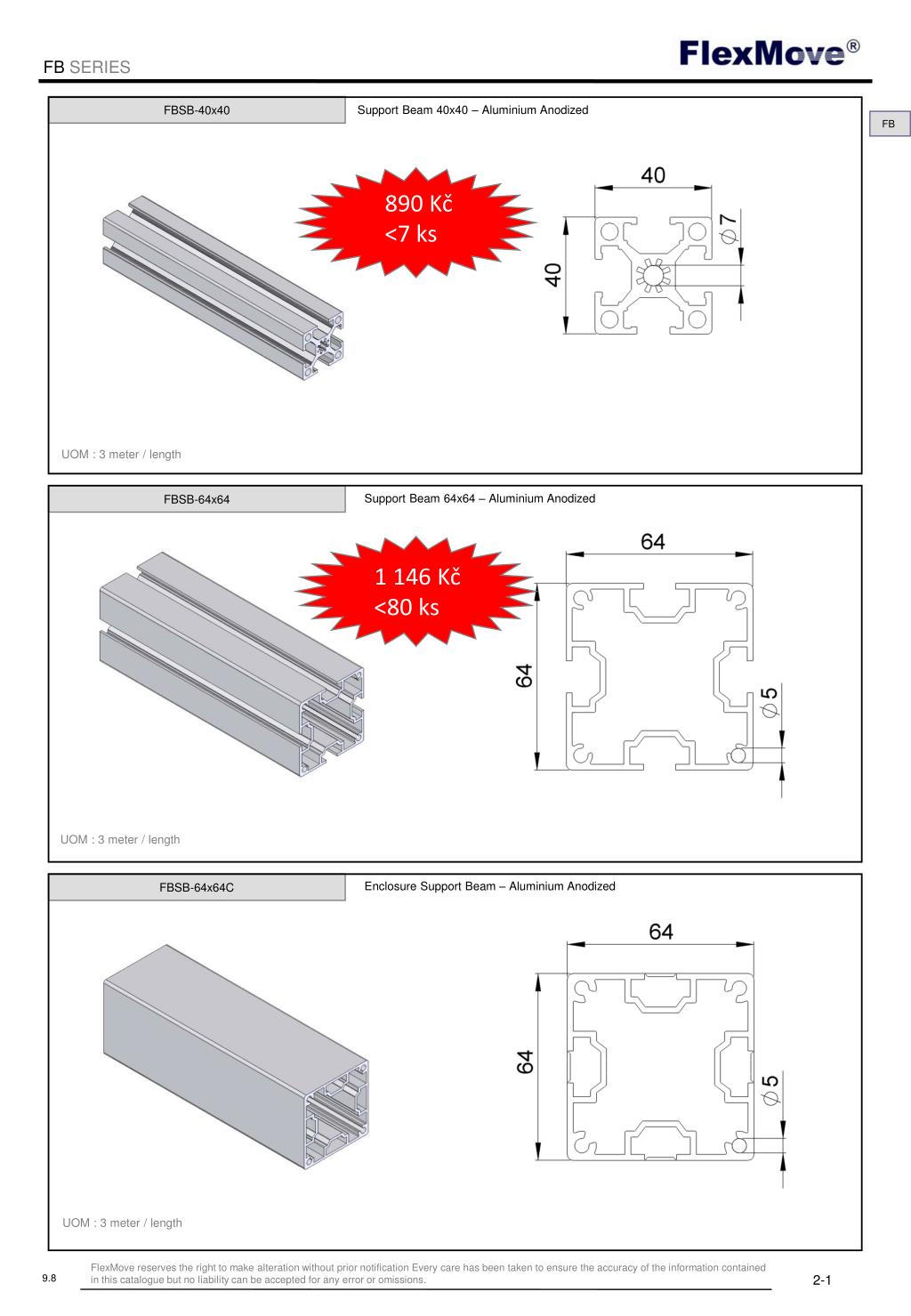

  1. FlexMove FB SERIES FBSB-40x40 Support Beam 40x40 – Aluminium Anodized FB 890 Kč <7 ks UOM : 3 meter / length FBSB-64x64 Support Beam 64x64 – Aluminium Anodized 1 146 Kč <80 ks UOM : 3 meter / length FBSB-64x64C Enclosure Support Beam – Aluminium Anodized UOM : 3 meter / length FlexMove reserves the right to make alteration without prior notificationEvery care has been taken to ensure the accuracy of the information contained in this catalogue but no liability can be accepted for any error or omissions. 9.8 2-1

  2. FlexMove FB SERIES FBSB-80x80 Support Beam 80x80 – Aluminium Anodized FB 1 574 Kč <40 ks UOM : 3 meter / length 9.8 2-2

  3. FlexMove FB SERIES FBEC-40 40x40mm Support Beam End Cap - Polyamide FB UOM : 10 pcs / pk FBEC-64 64x64mm Support Beam End Cap - Polyamide UOM : 10 pcs / pk FBEC-80 80x80mm Support Beam End Cap - Polyamide UOM : 10 pcs / pk 9.8 2-3

  4. FlexMove FB SERIES FBFT-64 Foot For Support Beam 64x64 – Aluminium Die Cast FB UOM : pc FBFT-64A Foot For Support Beam 64x64 – Steel, Powder Coating 316 Kč <50 ks UOM : pc 9.8 2-4

  5. FlexMove FB SERIES FBFT-64B Foot For Support Beam 64x64 – Aluminium FB UOM : pc FBCS-20x55 Connecting Strip For Foot – Steel, Electro Zinc Plated UOM : 10pcs / pk 9.8 2-5

  6. FlexMove FB SERIES FBFT-64xM8 End Plate for Support Beam 64x64- Aluminium & Adjustable stand - D=M8, L=50 – Zinc Plated FB FBFT-64xM10 End Plate for Support Beam 64x64- Aluminium & Adjustable stand - D=M10, L=75 – Zinc Plated FBFT-64xM12 End Plate for Support Beam 64x64- Aluminium & Adjustable stand - D=M12, L=75 – Zinc Plated FBFT-64xM8S End Plate for Support Beam 64x64- Aluminium & Adjustable stand - D=M8, L=50 – Stainless Steel FBFT-64xM10S End Plate for Support Beam 64x64- Aluminium & Adjustable stand - D=M10, L=75 – Stainless Steel FBFT-64xM12S End Plate for Support Beam 64x64- Aluminium & Adjustable stand - D=M12, L=75 – Stainless Steel UOM : pc FBFT-170 Floor Attachment Bracket – Steel, Zinc Plated FBFT-170S Floor Attachment Bracket – Stainless Steel UOM : pc 9.8 2-6

  7. FlexMove FB SERIES FBFT-80A Foot For Support Beam 80x80 – Steel, Powder Coating FB 354 Kč <30 ks UOM : pc FBFT-80B Foot For Support Beam 80x80 – Steel, Powder Coating UOM : pc 9.8 2-7

  8. FlexMove FB SERIES FBFT-80C Foot For Support Beam 80x80 – Steel, Powder coating FB UOM : pc FBFT-80D Foot For Support Beam 80x80 – Steel, Powder Coating UOM : pc 9.8 2-8

  9. FlexMove FB SERIES FBCP-40T T Connecting Plate for Support Beam 40x40- Steel, Zinc Plated FB UOM : pc FBCP-40L L Connecting Plate for Support Beam 40x40- Steel, Zinc Plated UOM : pc 9.8 2-9

  10. FlexMove FB SERIES FBCP-64T T connecting Plate for Support Beam 64x64 – Steel, Zinc Plated FB 292 Kč <10 ks UOM : pc FBCP-64L L Connecting Plate for Support Beam 64x64- Steel, Zinc Plated 292 Kč <10 ks UOM : pc 9.8 2-10

  11. FlexMove FB SERIES FBCP-80T T connecting Plate for Support Beam 80x80 – Steel, Zinc Plated FB 315 Kč <10 ks UOM : pc FBCP-80L L Connecting Plate for Support Beam 80x80- Steel, Zinc Plated 315 Kč <10 ks UOM : pc 9.8 2-11

  12. FlexMove FB SERIES FBCP-40V 45 ° connecting Plate for Support Beam 40x40 – Steel, Zinc Plated FB UOM : pc FBCP-64V 45 ° connecting Plate for Support Beam 64x64 – Steel, Zinc Plated UOM : pc FBCP-80V 45 ° connecting Plate for Support Beam 80x80 – Steel, Zinc Plated UOM : pc 9.8 2-12

  13. FlexMove FB SERIES FBRX-20A 90° Inner Joint Strip – Steel, Zinc Plated FB UOM : 10 pcs / pk FBRX-20B 90° Outer Joint Strip – Steel, Zinc Plated UOM : 10 pcs / pk FBRX-20C 90° Inner Joint Strip – Steel, Zinc Plated UOM : 10 pcs / pk 9.8 2-13

  14. FlexMove FB SERIES FBAB-32x40 Angle Bracket for Support Beam 40x40 - Aluminium FB UOM : pc FBAB-32x60 Angle Bracket for Support Beam 64x64 - Aluminium UOM : pc FBAB-32x80 Angle Bracket for Support Beam 80x80 - Aluminium UOM : pc 9.8 2-14

  15. FlexMove FB SERIES FBAB-40x60 Angle bracket for Support Beam 40x40 – Aluminium FB UOM : pc FBAB-40L Angle Bracket for Support Beam 40x40 - Aluminium UOM : pc 9.8 2-15

  16. FlexMove FB SERIES FBAB-60x60 Angle bracket for Support Beam 64x64 – Aluminium FB UOM : pc FBAB-60L Angle Bracket for Support Beam 64x64 - Aluminium UOM : pc 9.8 2-16

  17. FlexMove FB SERIES FBAB-80x60 Angle bracket for Support Beam 80x80 – Aluminium FB UOM : each FBAB-80L Angle Bracket for Support Beam 80x80 - Aluminium UOM : each 9.6 2-17

  18. FlexMove Conveyor Support Structure Single Support Structure with enclosure beam FK, FS, FM, FC FB Double Lane Support Structure FK, FS, FM, FC, FL 9.8

  19. FlexMove Conveyor Support Structure Single Support Structure FL FB Alpine Support Structure FK, FS, FM, FC, FL 9.8

  20. FlexMove Conveyor Support Structure Double Support Structure FK, FS, FM, FC FB Multi Lane Support Structure FK, FS, FM, FC, FL 9.8

  21. FlexMove Conveyor Support Structure Double Support Structure FK, FS, FM, FC FB Multi Lane Double Layer Support Structure FK, FS, FM, FC, FL 9.8

  22. FlexMove Conveyor Support Structure Ceiling Hanger Support Structure FK, FS, FM, FC, FL FB Wall Mount Support Structure FK, FS, FM, FC 9.8
