  1. Differential 2R Crosspoint RRAM for Memory system in Mobile Electronics with Zero Standby Current Pi-Feng Chiu, Pengpeng Lu, Zeying XinEECS, UC Berkeley 05/06/2013

  2. Outline • Introduction • Memory Hierarchy • RRAM switching mechanism • Issues of Crosspoint Array • Proposed Differential 2R cell • Cell Characteristics • Differential 2R cell and array design • Circuit Implementation • Divided WL and Sense-before • Simulation Results • Comparison • Conclusion

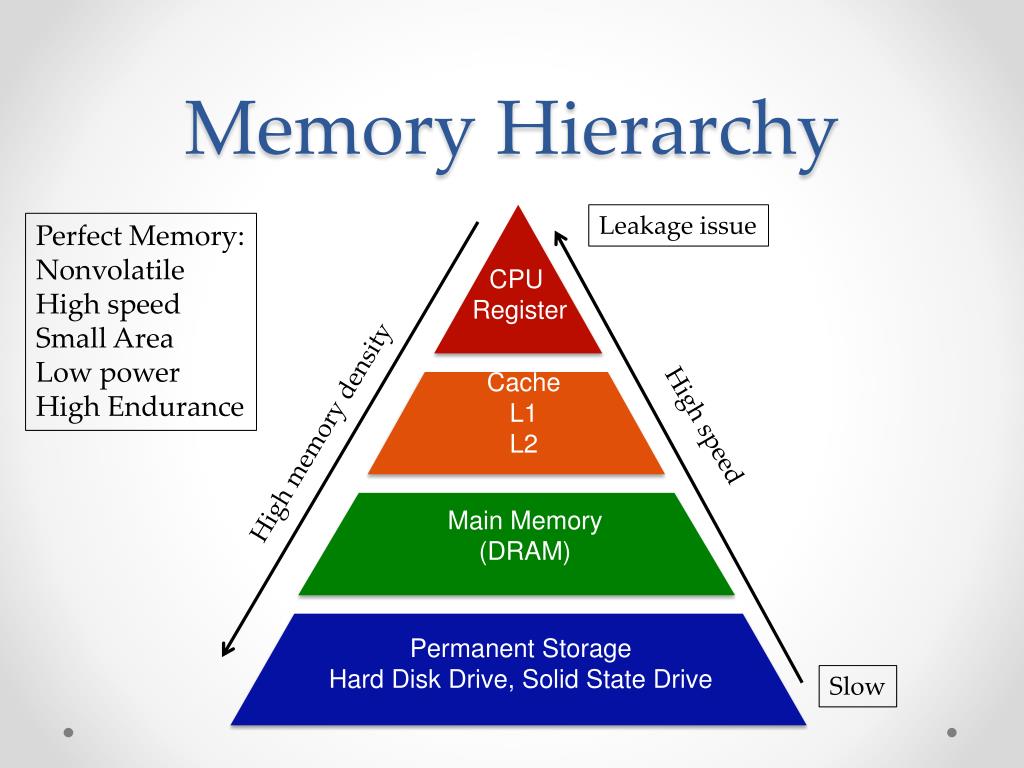

  3. Memory Hierarchy CPU Register Leakage issue Perfect Memory: Nonvolatile High speed Small Area Low power High Endurance CacheL1L2 Main Memory(DRAM) High speed High memory density Permanent StorageHard Disk Drive, Solid State Drive Slow

  4. RRAM switching mechanism • RRAM: Resistive Random Access Memory • Sandwiched cell structure • SET: Switching to Low Resistance State (LRS) • RESET: Switching to High Resistance State (HRS)

  5. Crosspoint Issues 1T1R Crosspoint structure Leakage issues: Write – write energy efficiency Read –read margin Write Disturbance n: BL number, m: WL number (a) (b) (c)

  6. Cell Characteristics • Tradeoffs • RLow vs. write energy • Write time vs. Write voltage • Write energy vs. Write voltage • Read margin vs. Rlow • Sensitivity to Write time

  7. Differential 2R cell 1 cell BL0 BL1 BL2 WLa[1] In read operation, WLa=Vread, WLb=0Voltage-sensing VBL + Ra - + VBL=Vread*Rb/(Ra+Rb) Rb - WLb[1] WLa[0] Assumption:VSET=VRESET=Vwrite WLb[0]

  8. Divided WL • To constrain overall write current to 100~200uA, WL length need to be set to 4-cell wide • Divided WL: decouple local WLs and connect to global WL by switches. • Tradeoff between leakage current and area penalty GWLb BEOL process enables stack ability GWLa … LWLa Ra Rb LWLb BL SWa SWb

  9. Sense-before-Write • Resistance value drops if a SET pulse repeatedly access to the cell. • Solution: Lowest resistance value Targeted resistance value I(cell) DIN If DIN=DOUT ? Write? Read Yes Pass DOUT No Write

  10. Block diagram

  11. Write-0to cell01 Write-1to cell11 WLa[0] 0 WLb[0] WLa[1] ~Vwrite/2 WLb[1] Vref BL[1] ~Vwrite DOUT R1 R0 SET I(cell01b) RESET I(cell01a) Write operation Read operation

  12. Features

  13. Comparison *: assume metal width and space are 50nm, area = (0.05*4)2 Fit for L2/L3 cache in mobile electronics to save battery life

  14. Conclusion • Differential 2R crosspoint RRAM design • 64KB RRAM circuit • Divided WL and Sense-before-Write approach • 28/32nm PTM, RRAM cell model, Eldo simulator • Crosspoint RRAM  Cache? • Area: yes • Power: depending on application • Endurance • Future Work: • Cell characterization • Leakage reduction, Cell distribution ?

  15. Thanks!

  16. Reference • ITRS Roadmap (http://www.itri.net) • Yan Li, et al., “128Gb 3b/cell NAND Flash Memory in 19nm Technology with 18MB/s Write Rate and 400Mb/s Toggle Mode,” in IEEE Int. Solid-State Circuits Conf. (ISSCC) Dig. Tech. Papers, Feb. 2012, pp. 436-437. • T. Takashima, et al., “A 100MHz Ladder FeRAM Design With Capacitance-Coupled-Bitline (CCB) Cell,” IEEE Journal of Solid-State Circuits, Vol. 46, No. 3, March 2011. • T. Shigibayashi, et al., “A 16-Mb Toggle MRAM With Burst Modes,” IEEE Journal of Solid-State Circuits, Vol. 42, No. 11, Nov. 2007. • D. C. Ralph and M. D. Stiles, “Spin Transfer Torques,” Journal of Magnetism and Magnetic Materials, vol. 320, issue 7, pp. 1190-1216, April 2008. • R. E. Simpson, et al., “Toward the Ultimate Limit of Phase Change in Ge2Sb2Te5,” Nano Letter, pp. 414-419, 2010. • Elaine Ou and S. Simon Wong, “Array Architecture for a Nonvolatile 3-Dimensional Cross-Point Resistance-Change Memory,” IEEE J. Solid-State Circuits, vol. 46, no. 9, pp. 2158-2170, Sep. 2011. • R. Stanley Williams, “How we found the missing memristor,” IEEE Spectrum, vol. 45, no. 12, pp. 28-35, 2008. • A. Kawahara, et al., “An 8Mb Multi-Layered Cross-Point ReRAM Macro With 443MB/s Write Throughput,” IEEE Journal of Solid-State Circuits, Vol. 48, No. 1, January 2013. • D. Niu, C. Xu, N. Muralimanohar, N. P. Jouppi, Y. Xie, “Design Trade-Offs for High Density Cross-Point Resistive Memory,” ISLPED, 2012, pp. 209-214. • M. Yoshimoto, et al., “A Divided Word-line Structure in the Static SRAM and Its Application to a 64K Full CMOS RAM” IEEE Journal of Solid-State Circuits, Vol. 18, No. 5, Oct. 1983. • P. Packan, et al., “High Performance 32nm logic technology featuring 2nd generation high-k + metal gate transistors,” in Int. Electron Devices Meeting (IEDM) Tech. Dig. Papers, Dec. 2009, pp. 659-662.
