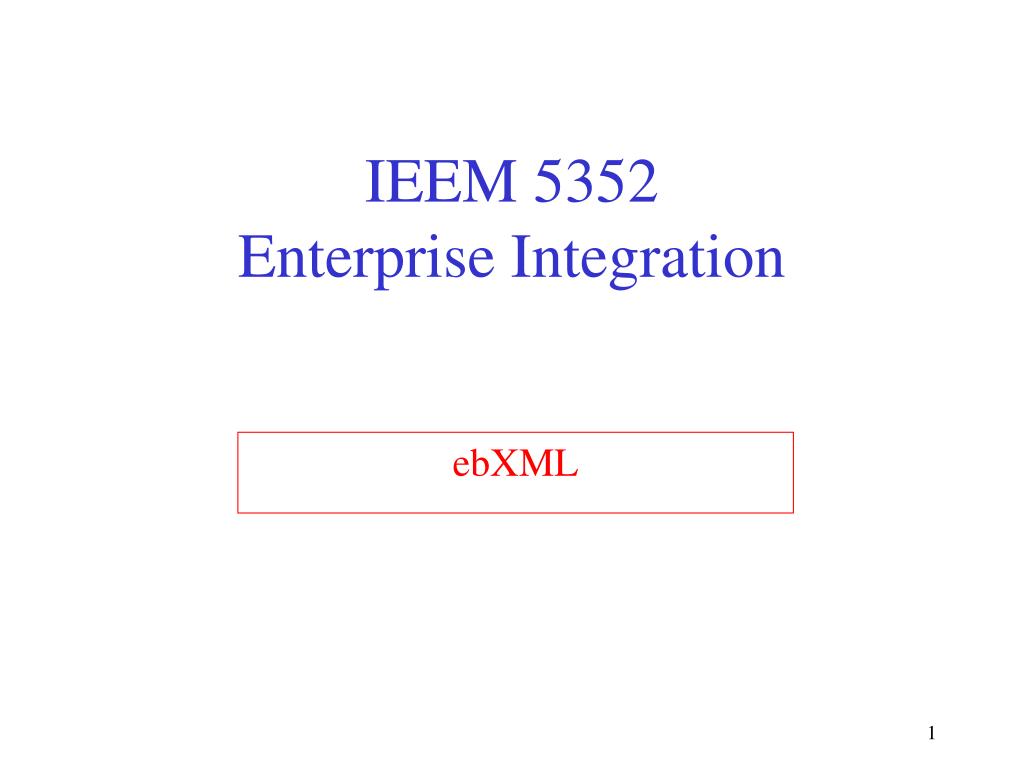

  1. IEEM 5352Enterprise Integration ebXML

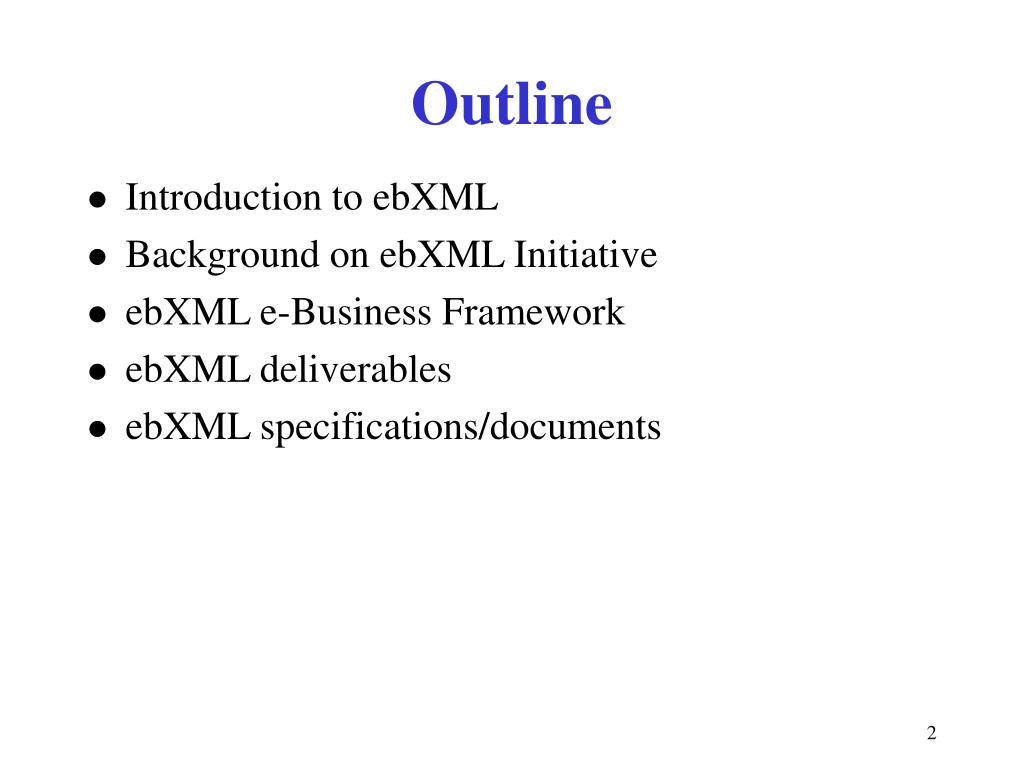

  2. Outline • Introduction to ebXML • Background on ebXML Initiative • ebXML e-Business Framework • ebXML deliverables • ebXML specifications/documents

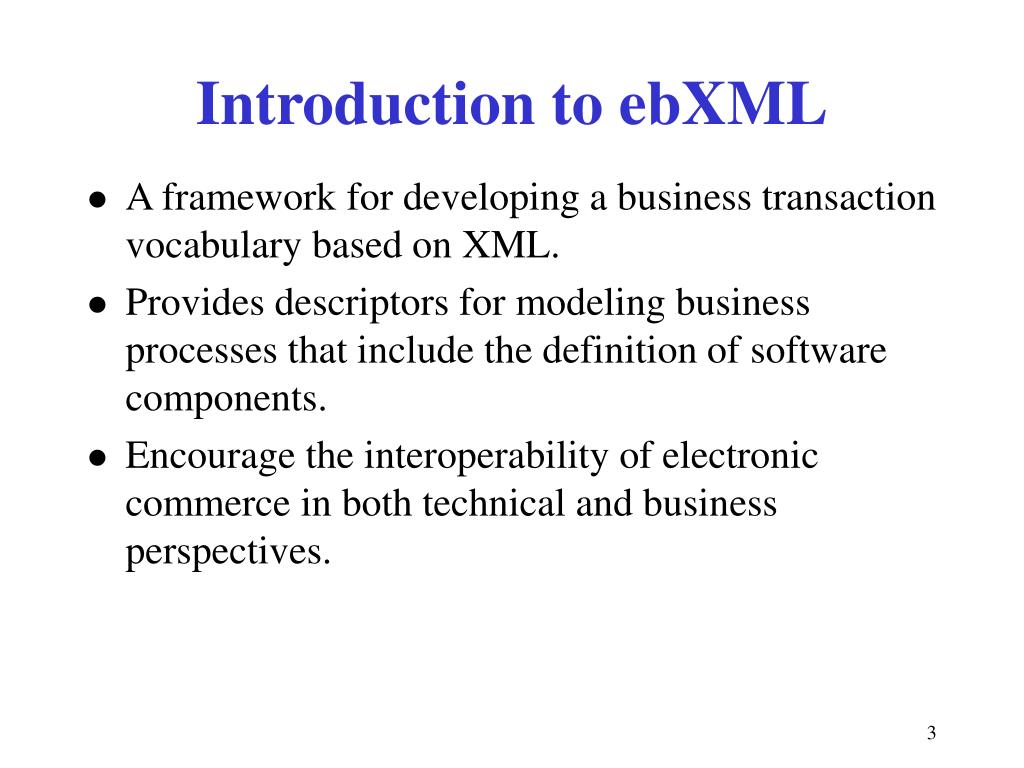

  3. Introduction to ebXML • A framework for developing a business transaction vocabulary based on XML. • Provides descriptors for modeling business processes that include the definition of software components. • Encourage the interoperability of electronic commerce in both technical and business perspectives.

  4. ebXML mission • Provide an open XML-based infrastructure enabling the global use of electronic business information in an interoperable, secure and consistent manner by all parties • Bring benefits of traditional EDI to SMEs (small and medium-sized enterprises) – social agenda • Royalty-free (vs. RAND) availability

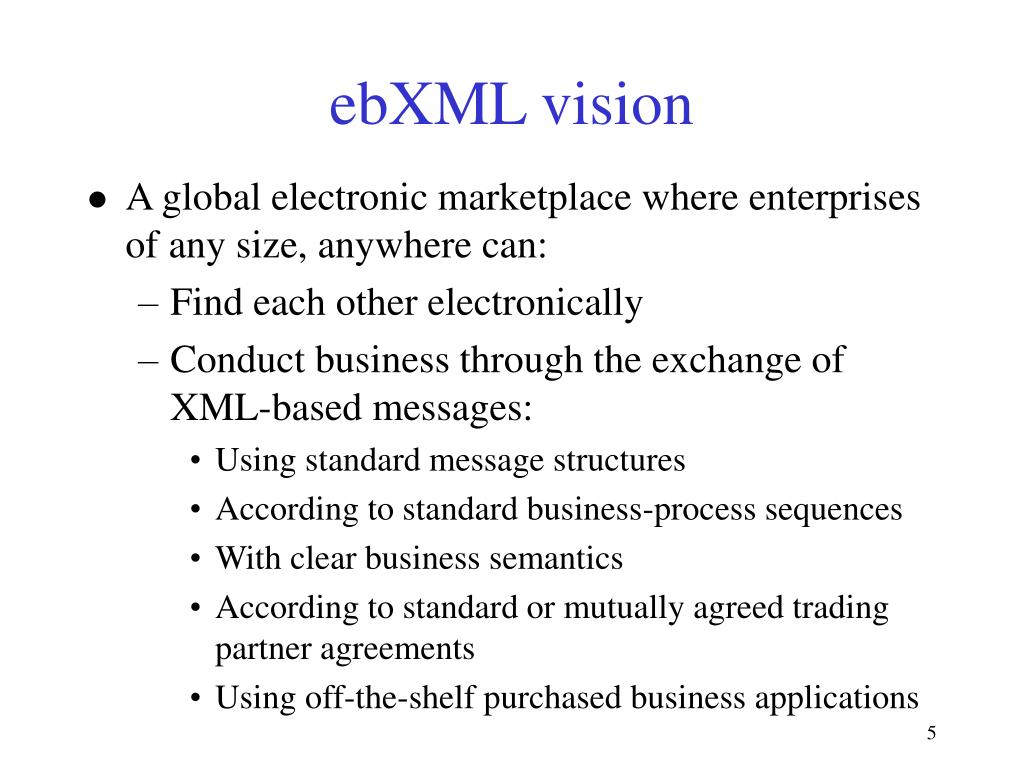

  5. ebXML vision • A global electronic marketplace where enterprises of any size, anywhere can: • Find each other electronically • Conduct business through the exchange of XML-based messages: • Using standard message structures • According to standard business-process sequences • With clear business semantics • According to standard or mutually agreed trading partner agreements • Using off-the-shelf purchased business applications

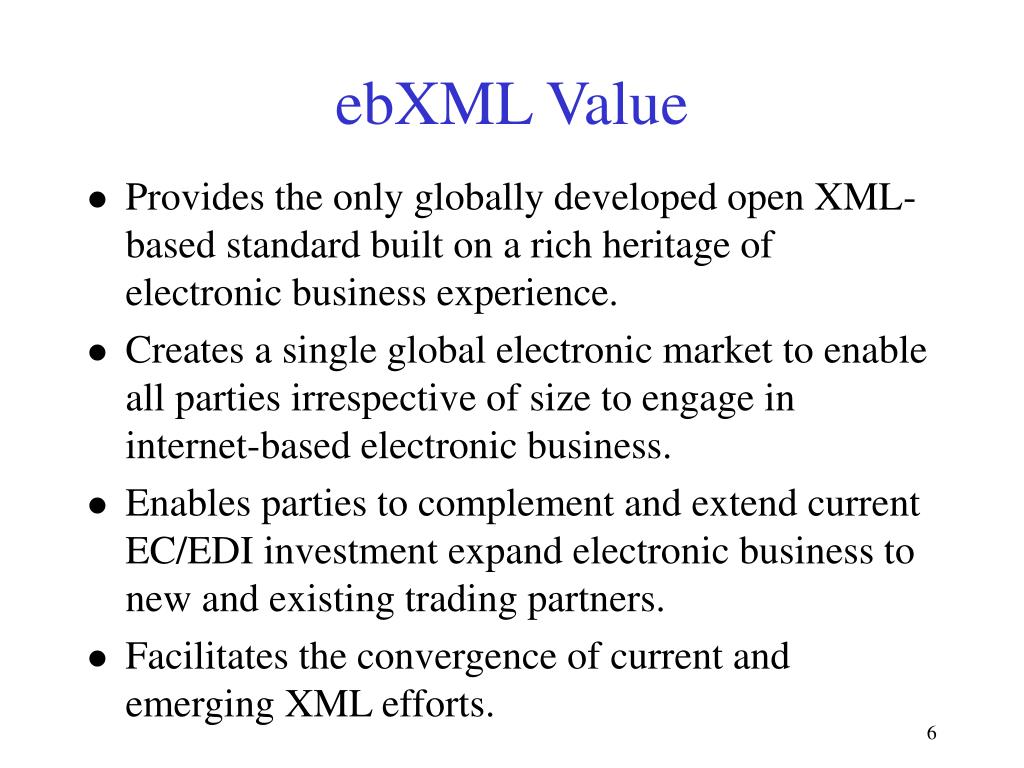

  6. ebXML Value • Provides the only globally developed open XML-based standard built on a rich heritage of electronic business experience. • Creates a single global electronic market to enable all parties irrespective of size to engage in internet-based electronic business. • Enables parties to complement and extend current EC/EDI investment expand electronic business to new and existing trading partners. • Facilitates the convergence of current and emerging XML efforts.

  7. Guidelines to deliver ebXML value • Using the strengths of OASIS and UN/CEFACT to ensure a global open process. • Developing technical specifications for the open ebXML infrastructure. • Creating the technical specifications with the world’s best experts. • Collaborating with other initiatives and standards development organizations. • Building on the experience and strengths of existing EDI knowledge.

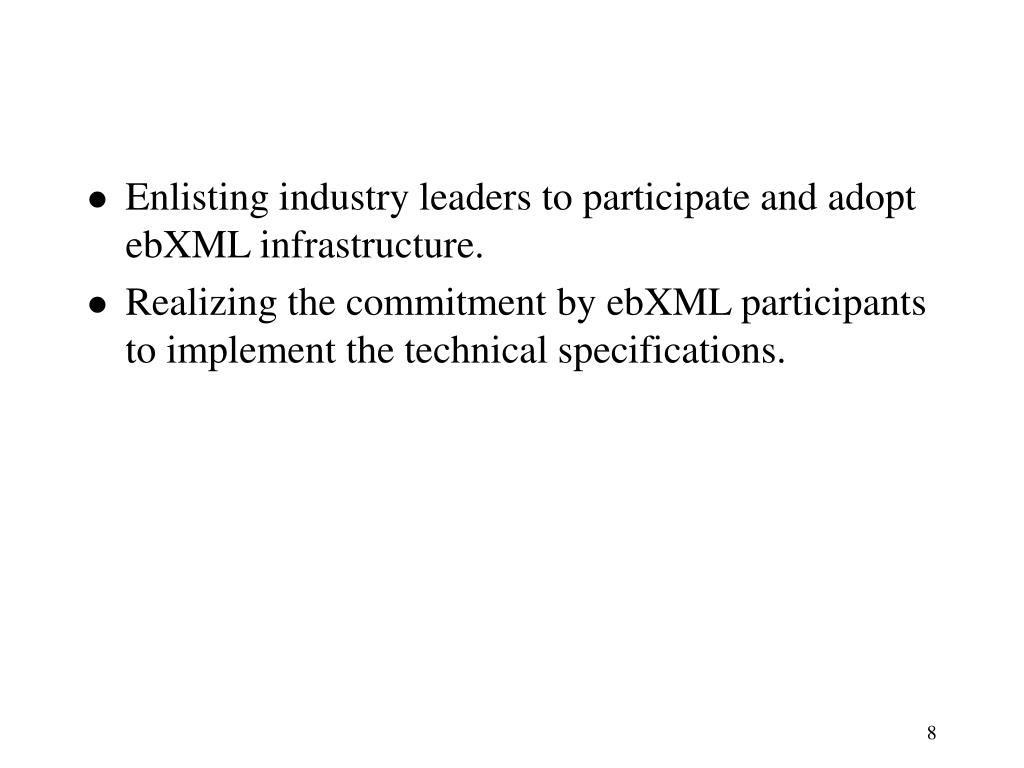

  8. Enlisting industry leaders to participate and adopt ebXML infrastructure. • Realizing the commitment by ebXML participants to implement the technical specifications.

  9. ebXML guide

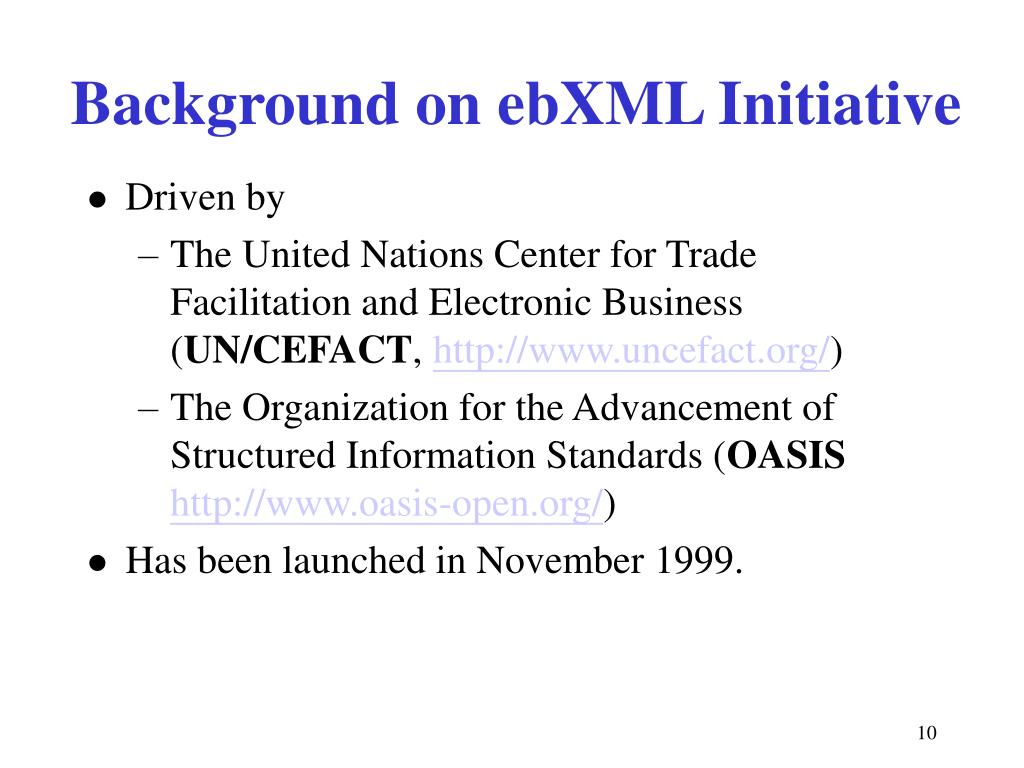

  10. Background on ebXML Initiative • Driven by • The United Nations Center for Trade Facilitation and Electronic Business (UN/CEFACT, http://www.uncefact.org/) • The Organization for the Advancement of Structured Information Standards (OASIShttp://www.oasis-open.org/) • Has been launched in November 1999.

  11. The ebXML project • Phase 1: November 1999 to May 2001 to develop family of specifications to Version 1.0 • Phase 2: • OASIS TCs take over Message Service, Reg/Rep, and CPP/CPA in May 2001 • UN/CEFACT takes over Business Process and Core Components in May 2001, creates eBusiness Transition Working Group (eBTWG)

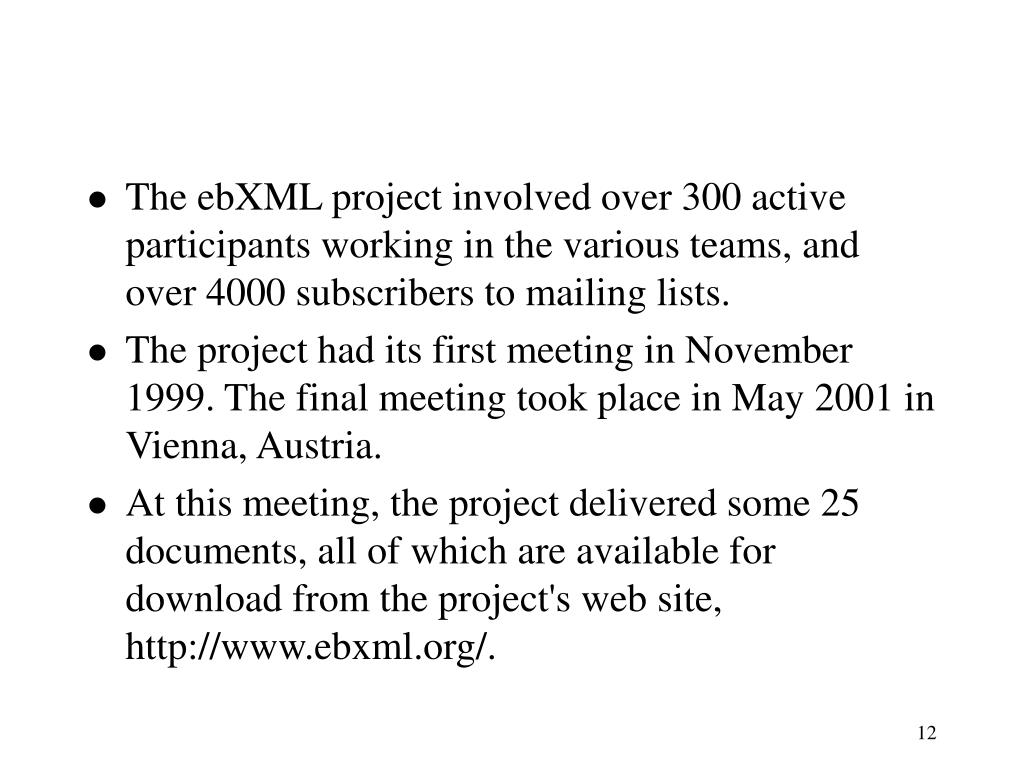

  12. The ebXML project involved over 300 active participants working in the various teams, and over 4000 subscribers to mailing lists. • The project had its first meeting in November 1999. The final meeting took place in May 2001 in Vienna, Austria. • At this meeting, the project delivered some 25 documents, all of which are available for download from the project's web site, http://www.ebxml.org/.

  13. International Court of Justice Trusteeship Council Security Council Economic & Social Council Secretariat General Assembly ICAO UPU ITU WMO IMO WTO WIPO UNCTAD UNCITRAL Regional Economic Commission ECA (Economic Commission for Africa) ECE (Economic Commission for Europe) ECLAC (Economic Commission for Latin America and Caribbean Sea) ESCAP (Economic and Social Commission for Asia and Pacific) ESCWA (Economic and Social Commission for West Asia) Functional Committee Sessional, Permanent, Adhoc Committee UN Organization Structure

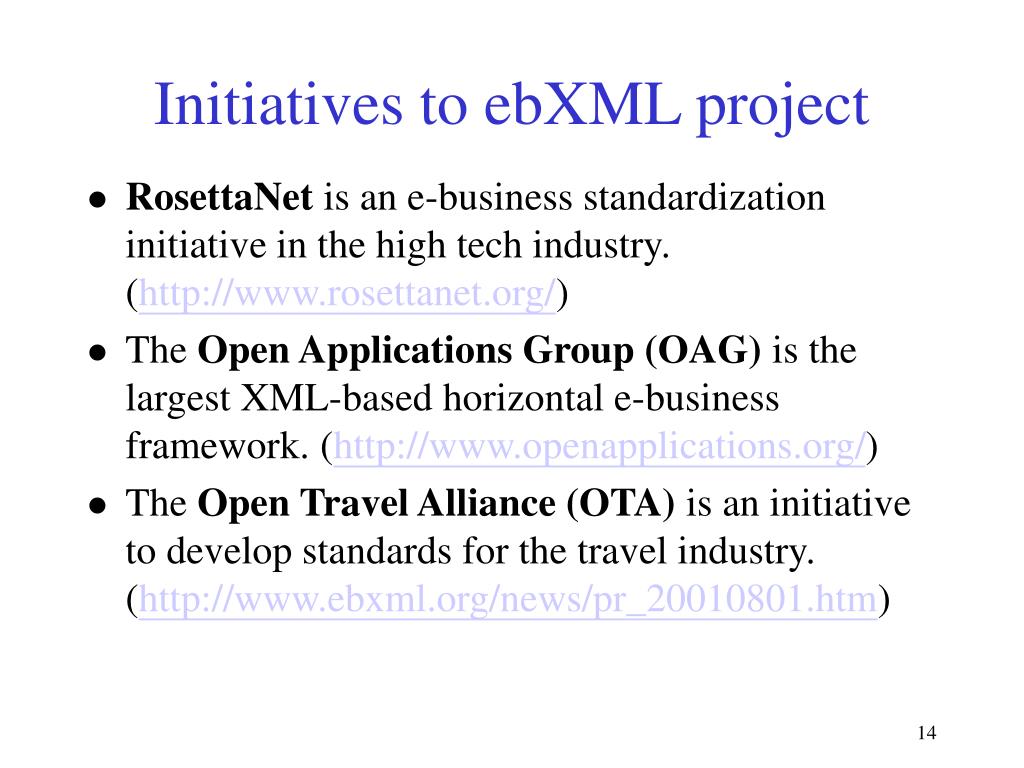

  14. Initiatives to ebXML project • RosettaNet is an e-business standardization initiative in the high tech industry. (http://www.rosettanet.org/) • The Open Applications Group (OAG) is the largest XML-based horizontal e-business framework. (http://www.openapplications.org/) • The Open Travel Alliance (OTA) is an initiative to develop standards for the travel industry. (http://www.ebxml.org/news/pr_20010801.htm)

  15. Covisint is one of the best-known and successful digital marketplaces in the world. (http://www.covisint.com/) • The Global Commerce Initiative (GCI) is an international standardization consortium for companies in the consumer goods industry, supported by the major players in this industry (http://www.globalcommerceinitiative.org/)

  16. Industry Groups Support ebXML The Open Healthcare Group

  17. OASIS Members Support ebXML

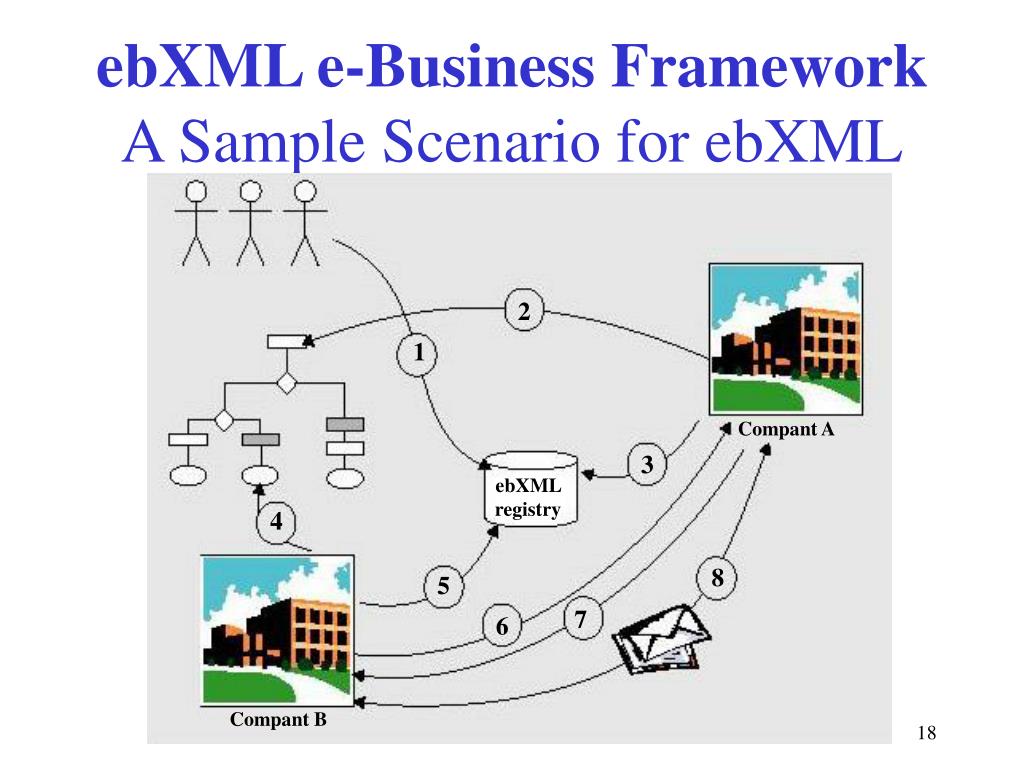

  18. 2 1 Compant A 3 ebXML registry 4 8 5 7 6 Compant B ebXML e-Business FrameworkA Sample Scenario for ebXML

  19. 1. Project team analyze a particular B2B process to engage in e-business interactions • an e-business methodology (UN/CEFACT Modeling Methodology, UMM) to analyze • a formal description of the process (ebXML Business Process Specification Schema, BPSS). • business information to be exchanged (ebXML Core Components framework) • use ebXML-compliant repository to implement, and make it available through an ebXML registry

  20. 2.A particular company should • use the ebXML registry's search functionality to find business processes. • see what kind of ebXML message interactions it needs to support to perform the 'Insurer' role in this process. • make sure it can support this process.

  21. 3.The insurance company • state its capability to fulfill a document known as a collaboration protocol profile (CPP). • encode information – such as message payload packing information, and digital signatures. 4.Other companies • browse the registry to find relevant business processes. • is similar to Step 2.

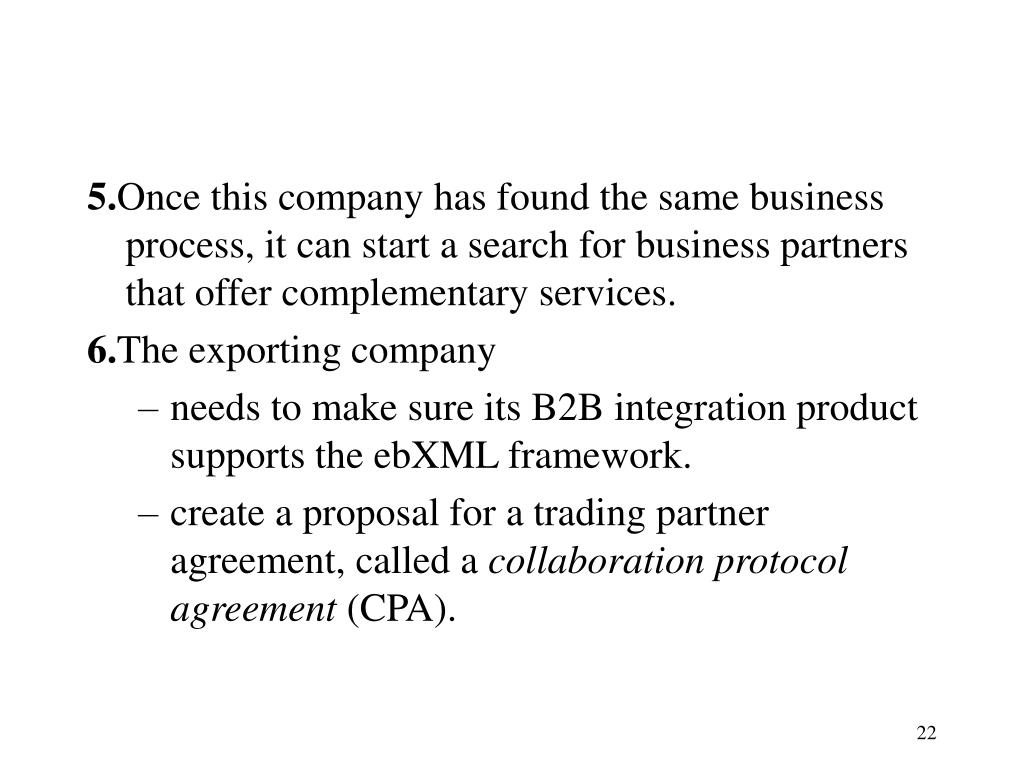

  22. 5.Once this company has found the same business process, it can start a search for business partners that offer complementary services. 6.The exporting company • needs to make sure its B2B integration product supports the ebXML framework. • create a proposal for a trading partner agreement, called a collaboration protocol agreement (CPA).

  23. 7.The insurance company • can agree with this proposal or reply to it with a counter- proposal. • needed to support the business interactions controlled by the CPA. 8. Business collaboration • be started as long as the CPA remains valid. • messages exchanged can use the facilities of the ebXML messaging services

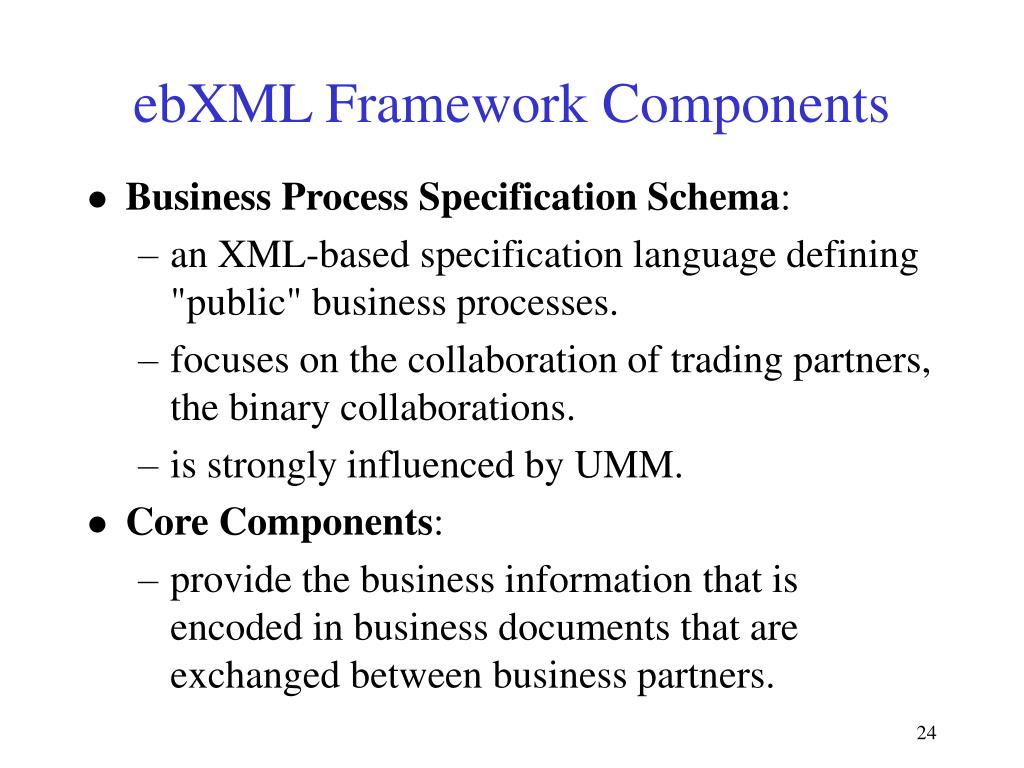

  24. ebXML Framework Components • Business Process Specification Schema: • an XML-based specification language defining "public" business processes. • focuses on the collaboration of trading partners, the binary collaborations. • is strongly influenced by UMM. • Core Components: • provide the business information that is encoded in business documents that are exchanged between business partners.

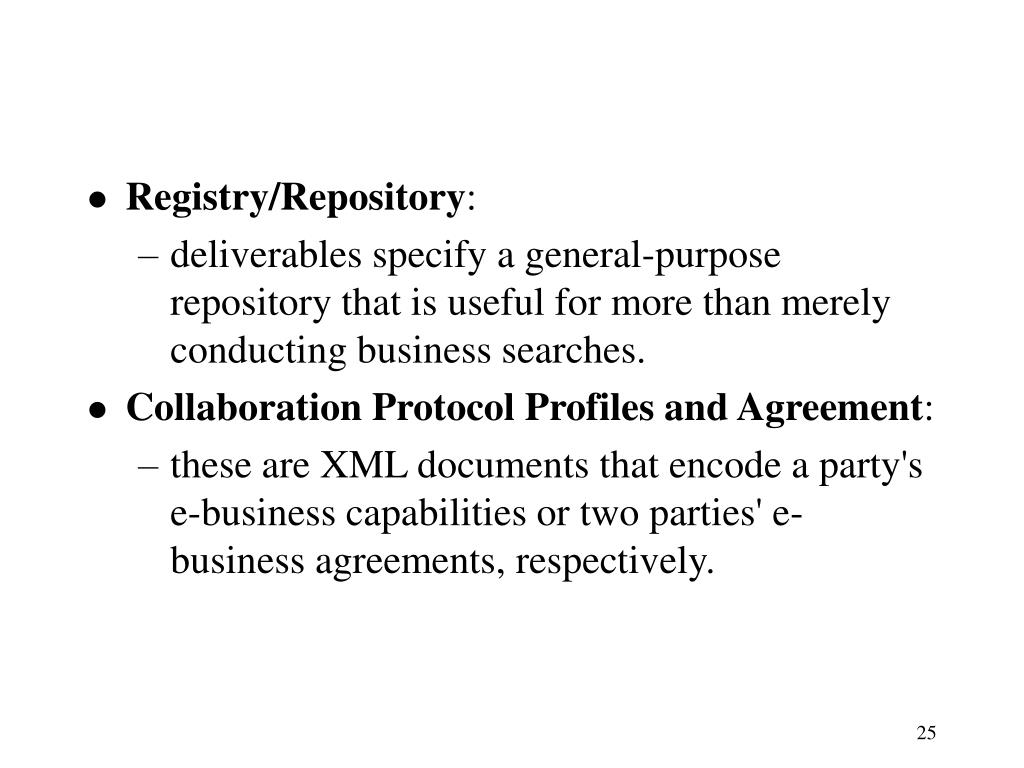

  25. Registry/Repository: • deliverables specify a general-purpose repository that is useful for more than merely conducting business searches. • Collaboration Protocol Profiles and Agreement: • these are XML documents that encode a party's e-business capabilities or two parties' e-business agreements, respectively.

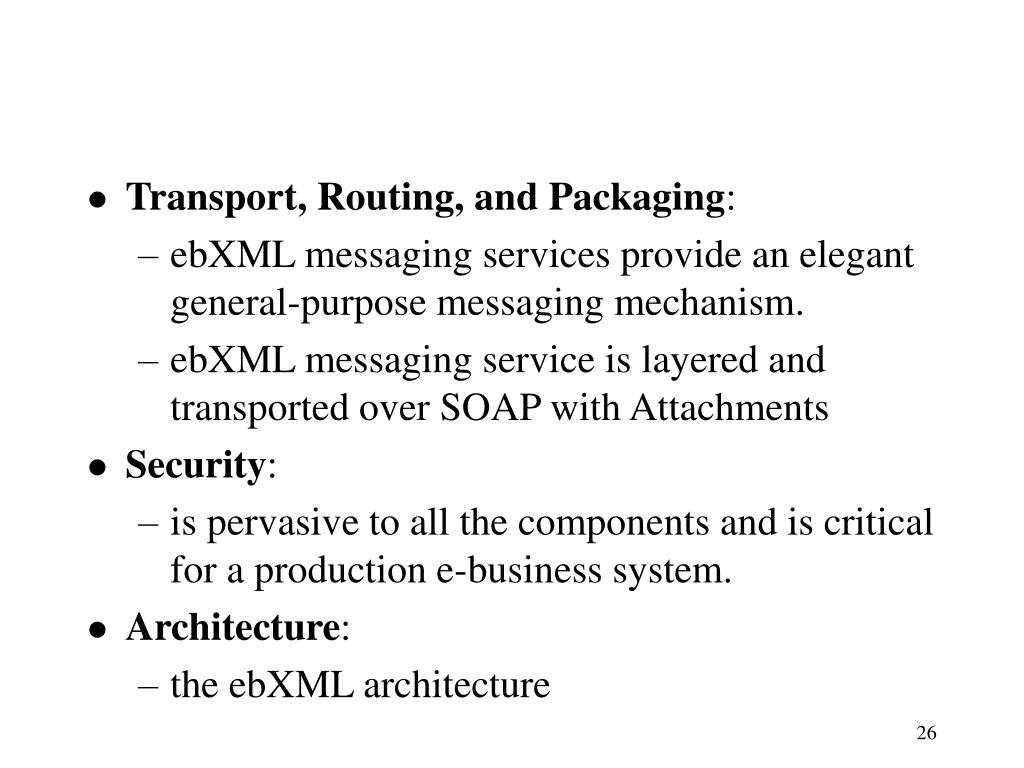

  26. Transport, Routing, and Packaging: • ebXML messaging services provide an elegant general-purpose messaging mechanism. • ebXML messaging service is layered and transported over SOAP with Attachments • Security: • is pervasive to all the components and is critical for a production e-business system. • Architecture: • the ebXML architecture

  27. ebXML functional architecture

  28. Main ebXML concepts • Business messages - expressed in XML • Business processes - defined in UML, expressed in XML • Business service interface -handles one role in a business process . expressed in XML • Trading partner agreement - specifies protocol properties required for two specific business service interfaces to talk to each other . expressed in XML • Transport and routing layer - moves the actual XML data between business service interfaces

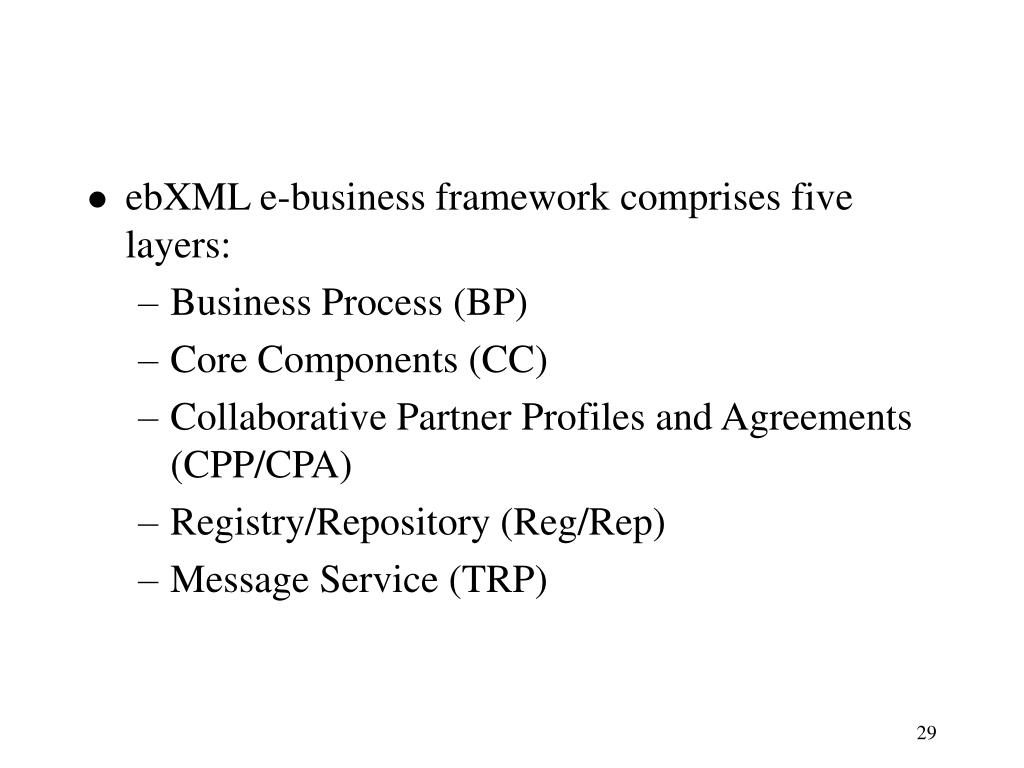

  29. ebXML e-business framework comprises five layers: • Business Process (BP) • Core Components (CC) • Collaborative Partner Profiles and Agreements (CPP/CPA) • Registry/Repository (Reg/Rep) • Message Service (TRP)

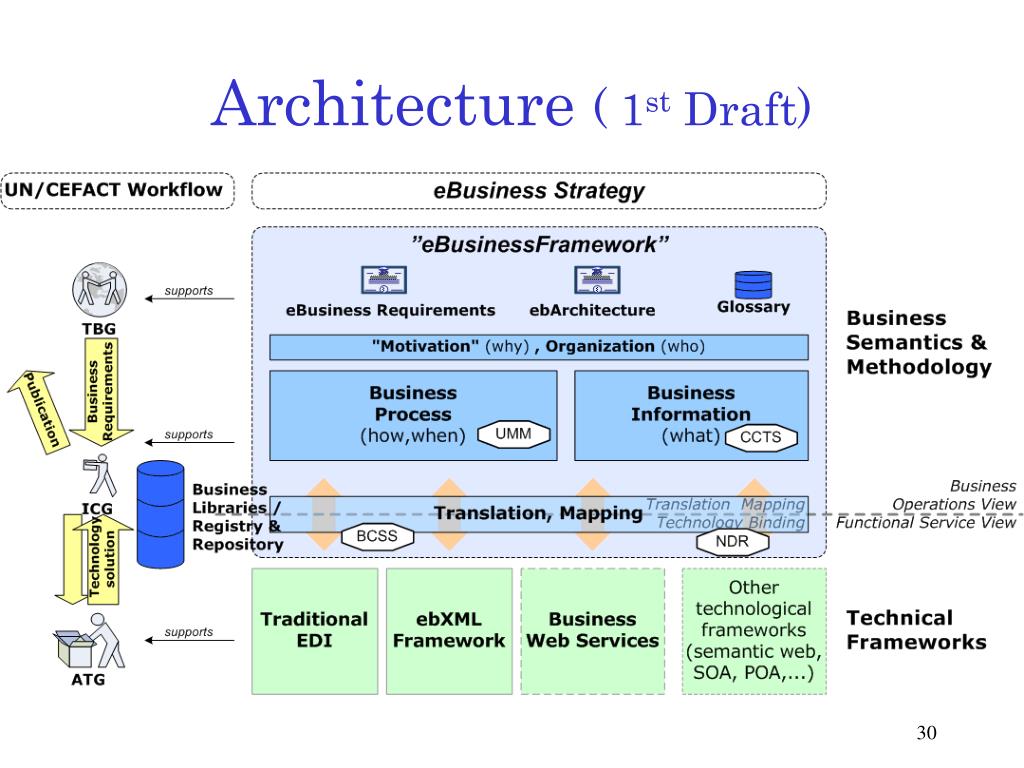

  30. Architecture( 1st Draft)

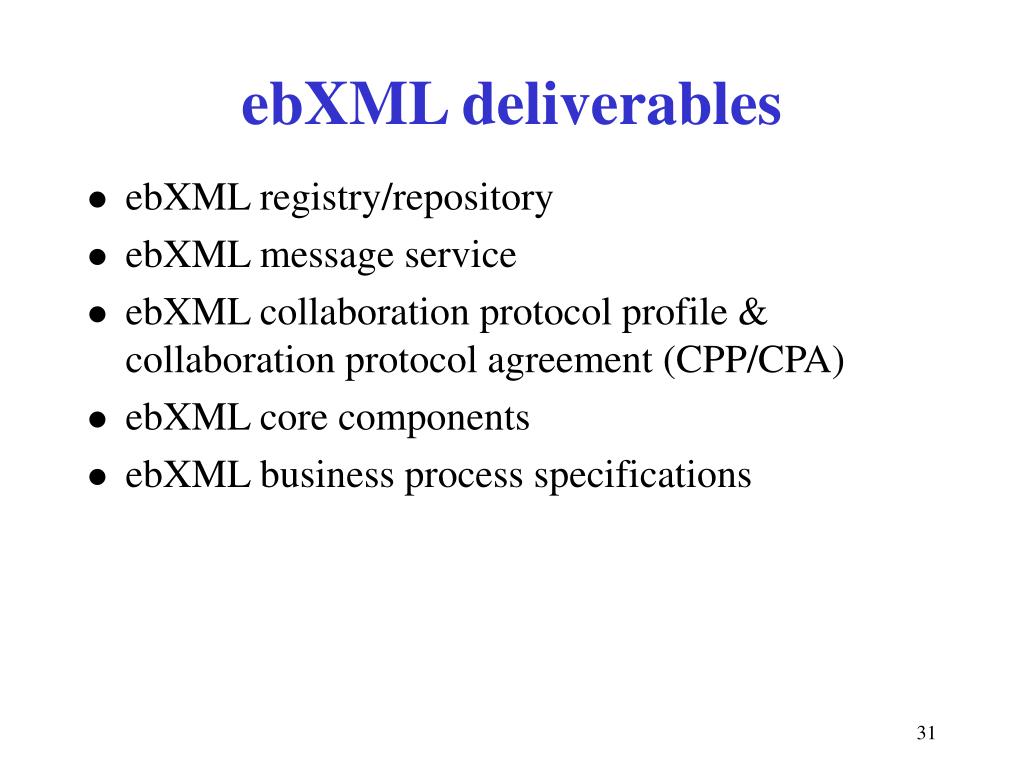

  31. ebXML deliverables • ebXML registry/repository • ebXML message service • ebXML collaboration protocol profile & collaboration protocol agreement (CPP/CPA) • ebXML core components • ebXML business process specifications

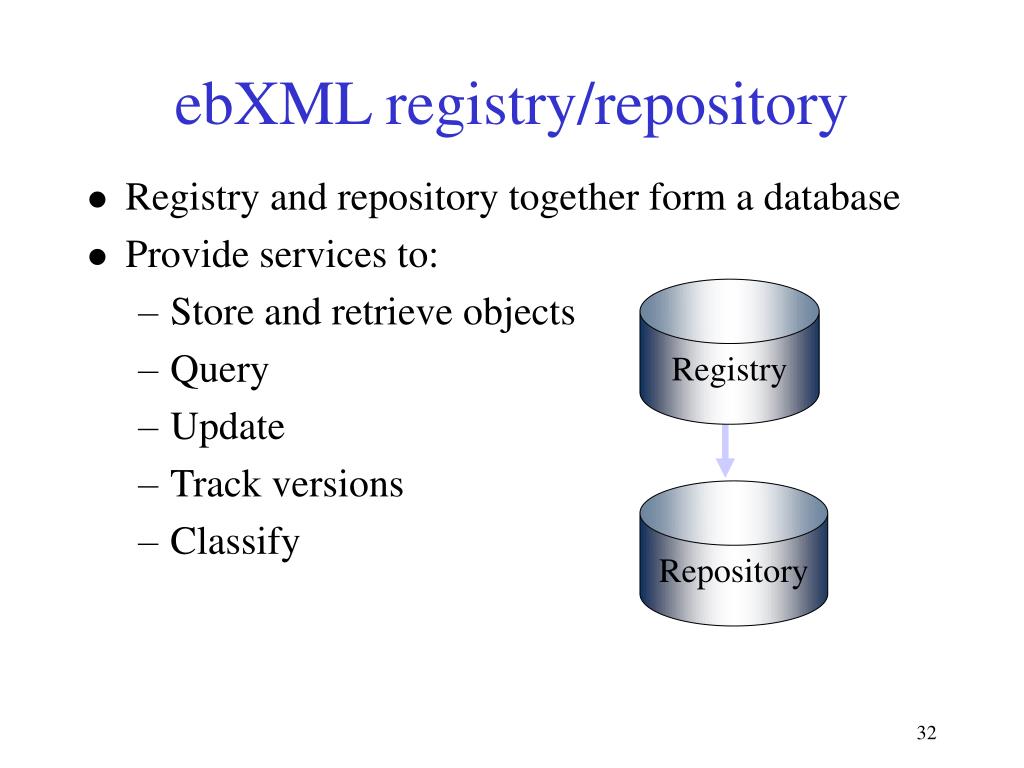

  32. Registry Repository ebXML registry/repository • Registry and repository together form a database • Provide services to: • Store and retrieve objects • Query • Update • Track versions • Classify

  33. Registry represent data objects • XML schemas, • business process descriptions, • ebXML Core Components, • UML models, • generic trading partner information, and • software components. • Two ways to look at the ebXML registry: • from the outside looking in, or • from the information model looking outward.

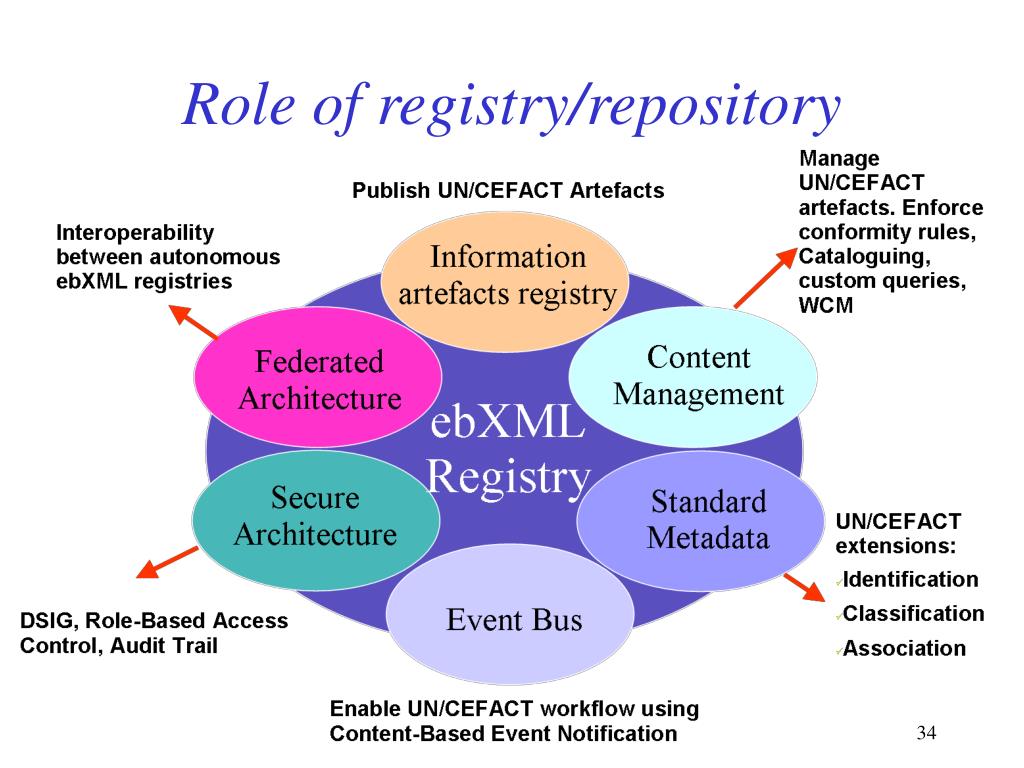

  34. Role of registry/repository

  35. UN/CEFACT registryarchitecture

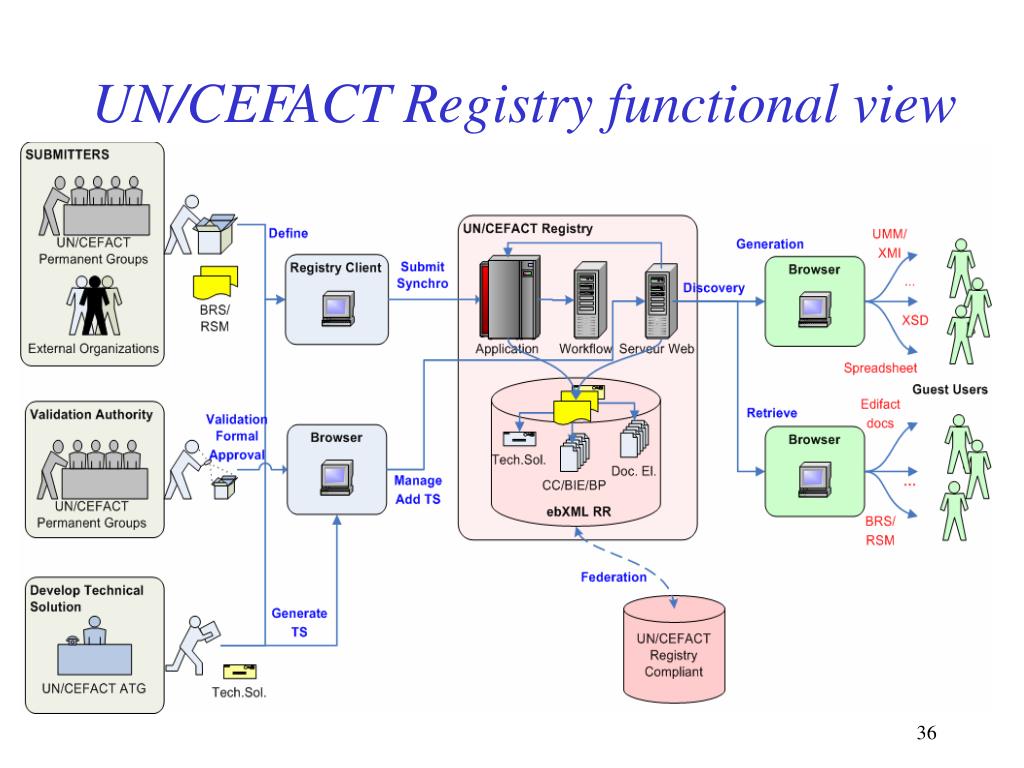

  36. UN/CEFACT Registry functional view

  37. UN/CEFACT artefact submission

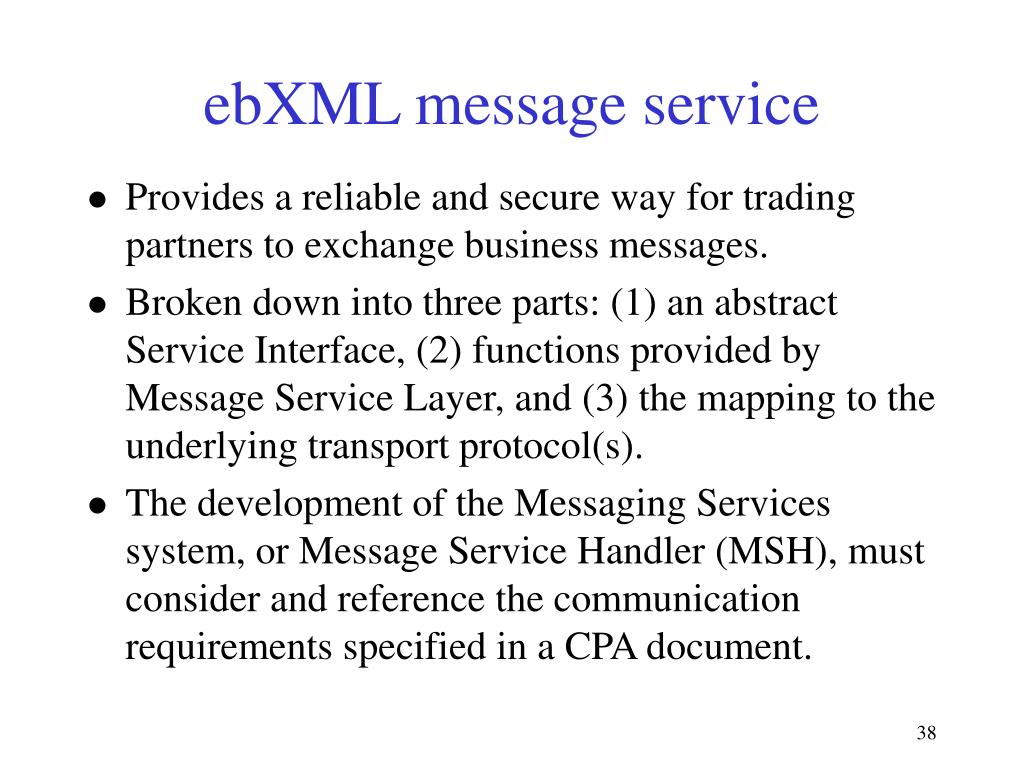

  38. ebXML message service • Provides a reliable and secure way for trading partners to exchange business messages. • Broken down into three parts: (1) an abstract Service Interface, (2) functions provided by Message Service Layer, and (3) the mapping to the underlying transport protocol(s). • The development of the Messaging Services system, or Message Service Handler (MSH), must consider and reference the communication requirements specified in a CPA document.

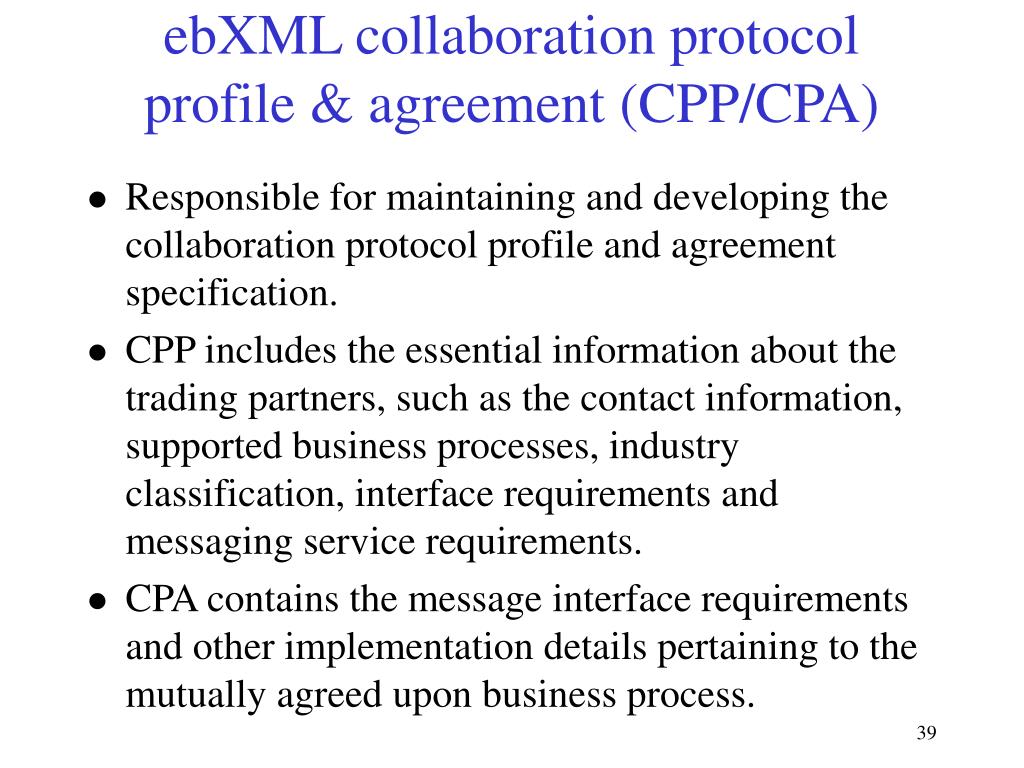

  39. ebXML collaboration protocol profile & agreement (CPP/CPA) • Responsible for maintaining and developing the collaboration protocol profile and agreement specification. • CPP includes the essential information about the trading partners, such as the contact information, supported business processes, industry classification, interface requirements and messaging service requirements. • CPA contains the message interface requirements and other implementation details pertaining to the mutually agreed upon business process.

  40. ebXML core components • Building blocks for XML schemas, etc. • “Syntax neutral”, with unique IDs • Similar to “common business objects” but with context • Naming conventions follow ISO 11179 • Description of context drivers • Approach for extending core components into context dependent domain components

  41. Related documents • Core component overview • Core component discovery and analysis • Context and re-usability of core components • Guide to the core components dictionary • Naming convention for core components • Core component dictionary • Core component structure

  42. ebXML business process specifications • Primary methodology is UN/CEFACT’s Modeling Methodology (UMM) • Defines process and the types of information required from the analysis • Business process document’s information: • Choreography for the exchange of business document instances • References to business process and information meta model • Definition of the roles for each participant in a business process

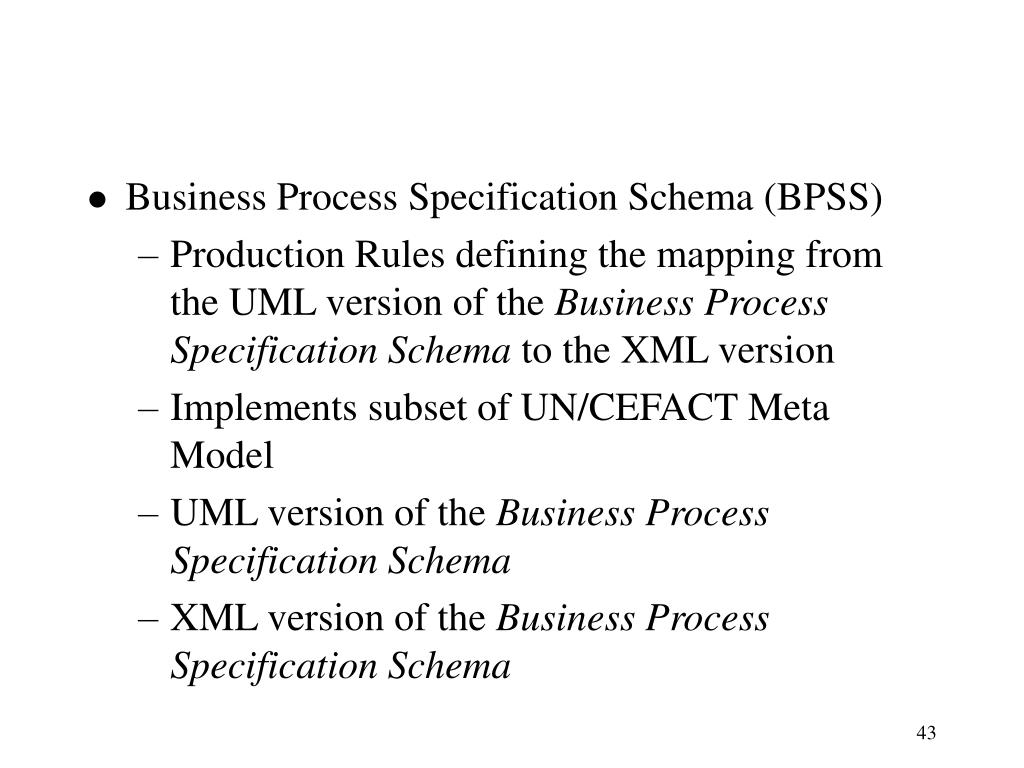

  43. Business Process Specification Schema (BPSS) • Production Rules defining the mapping from the UML version of the Business Process Specification Schema to the XML version • Implements subset of UN/CEFACT Meta Model • UML version of the Business Process Specification Schema • XML version of the Business Process Specification Schema

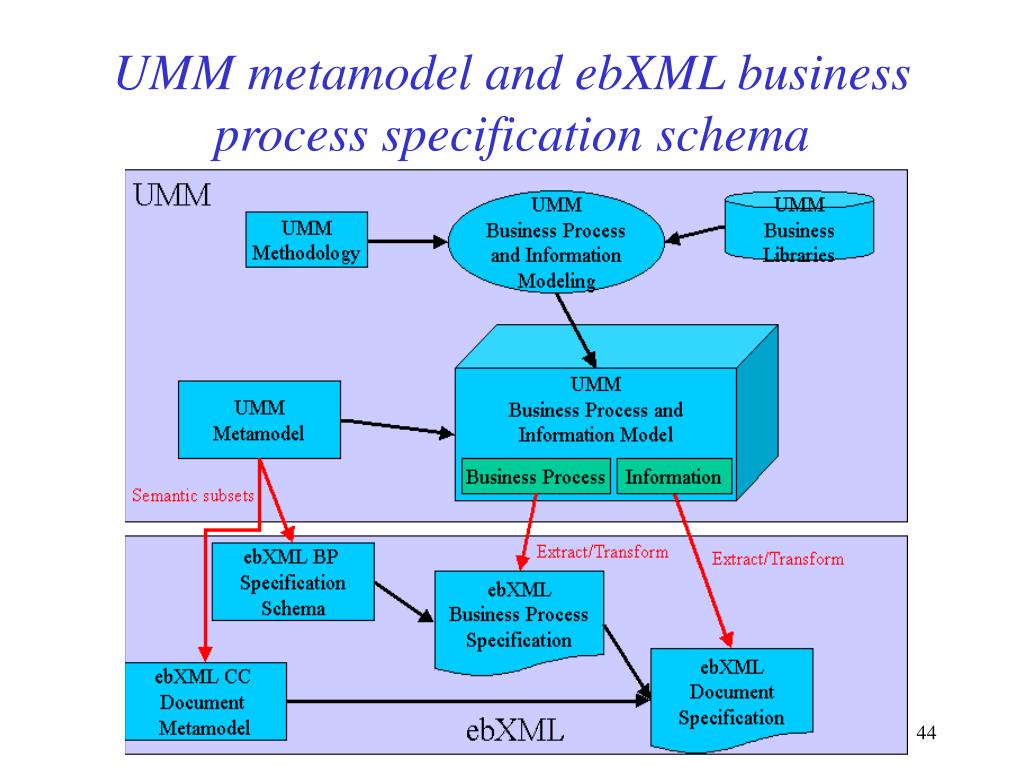

  44. UMM metamodel and ebXML business process specification schema

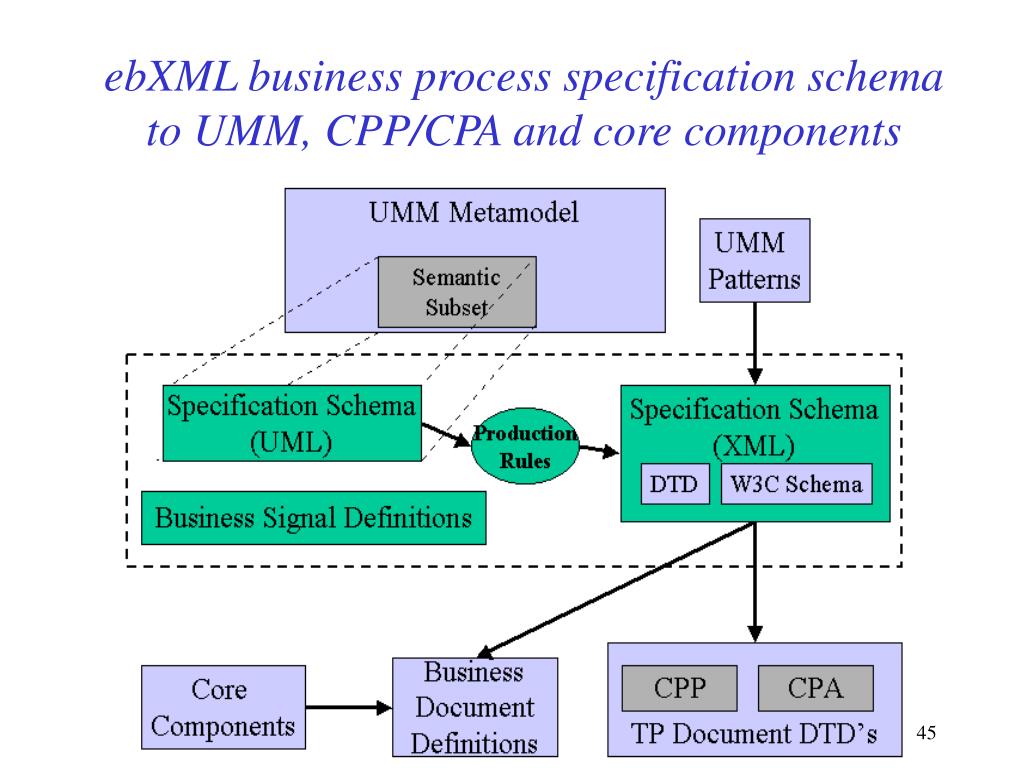

  45. ebXML business process specification schema to UMM, CPP/CPA and core components

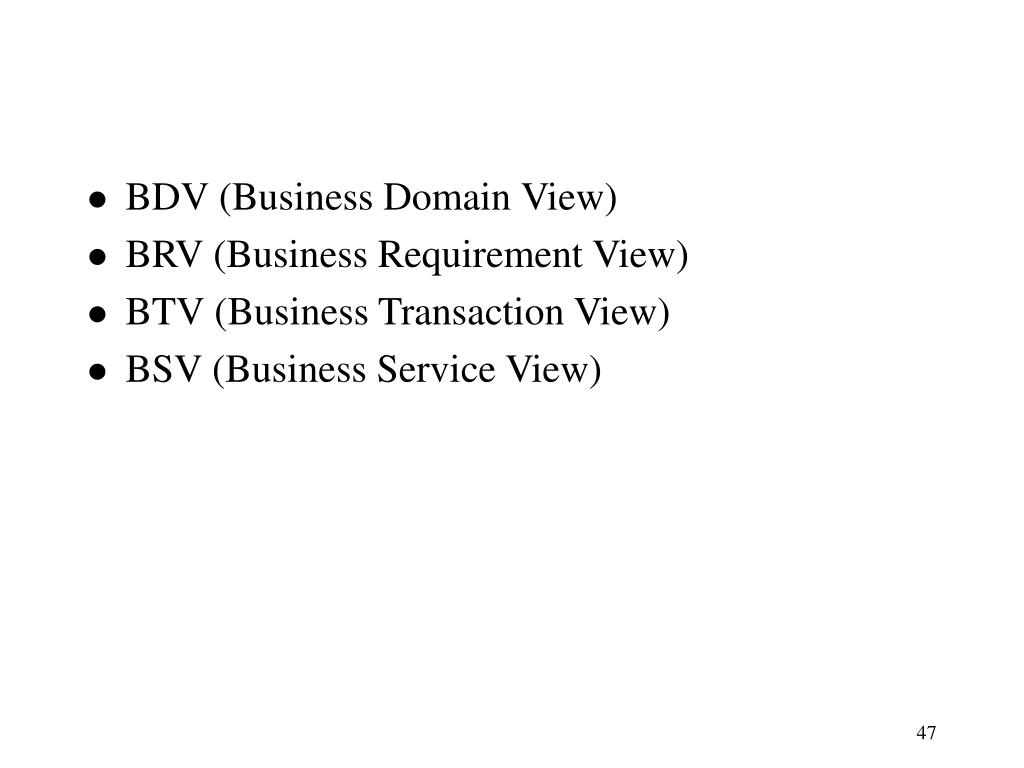

  46. BDV (Business Domain View) • BRV (Business Requirement View) • BTV (Business Transaction View) • BSV (Business Service View)

  47. ebXML business process specification schema and other ebXML specifications

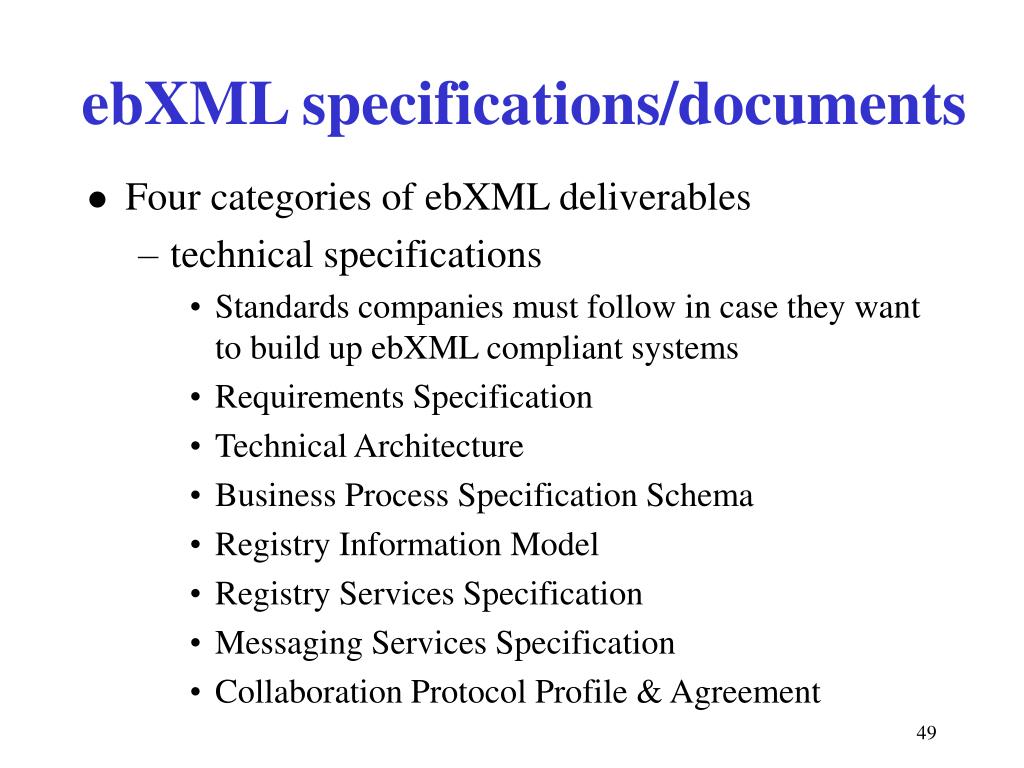

  48. ebXML specifications/documents • Four categories of ebXML deliverables • technical specifications • Standards companies must follow in case they want to build up ebXML compliant systems • Requirements Specification • Technical Architecture • Business Process Specification Schema • Registry Information Model • Registry Services Specification • Messaging Services Specification • Collaboration Protocol Profile & Agreement

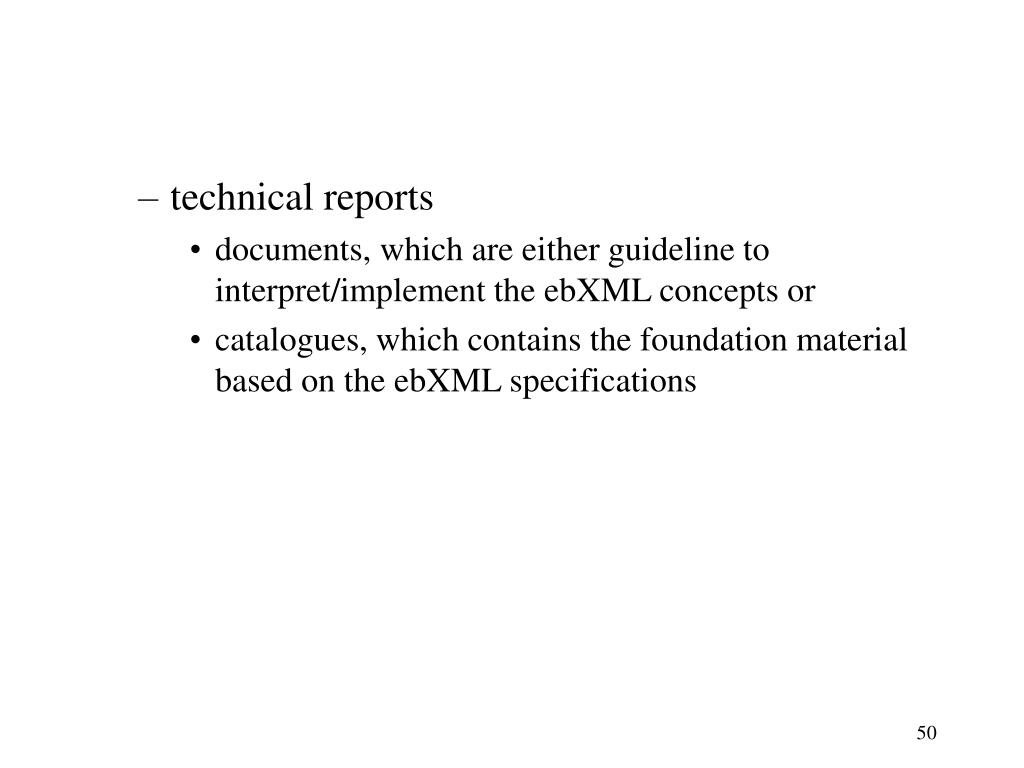

  49. technical reports • documents, which are either guideline to interpret/implement the ebXML concepts or • catalogues, which contains the foundation material based on the ebXML specifications
