  1. Victorian Tech Another random production from Inferno Studios

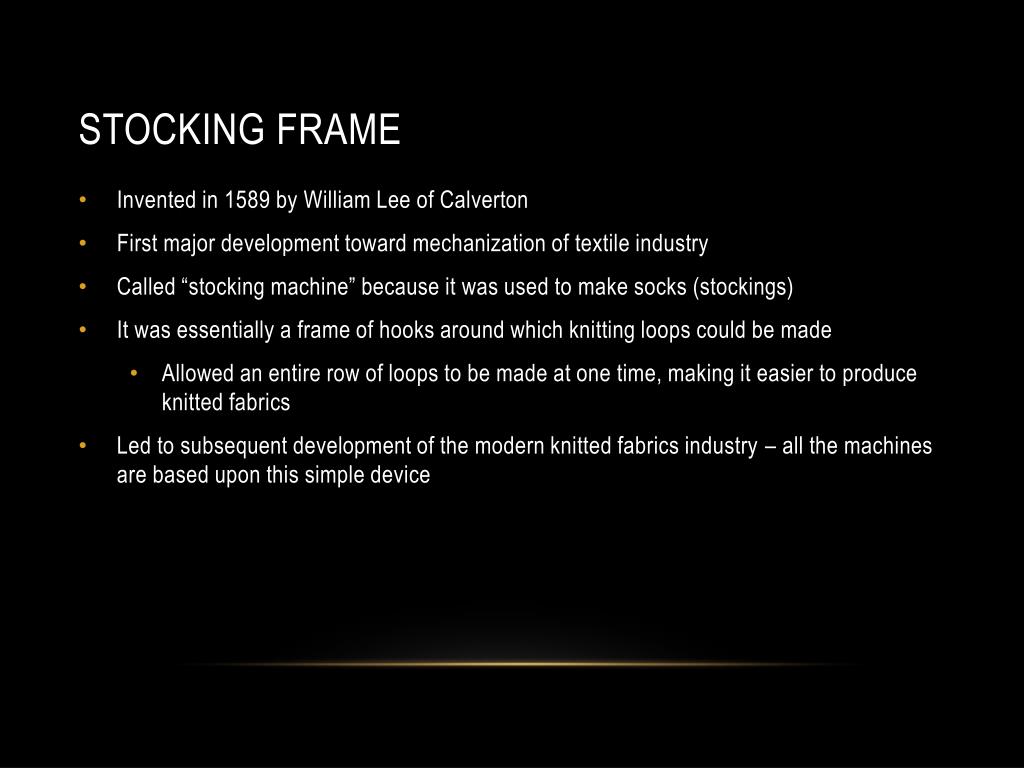

  2. Stocking Frame • Invented in 1589 by William Lee of Calverton • First major development toward mechanization of textile industry • Called “stocking machine” because it was used to make socks (stockings) • It was essentially a frame of hooks around which knitting loops could be made • Allowed an entire row of loops to be made at one time, making it easier to produce knitted fabrics • Led to subsequent development of the modern knitted fabrics industry – all the machines are based upon this simple device

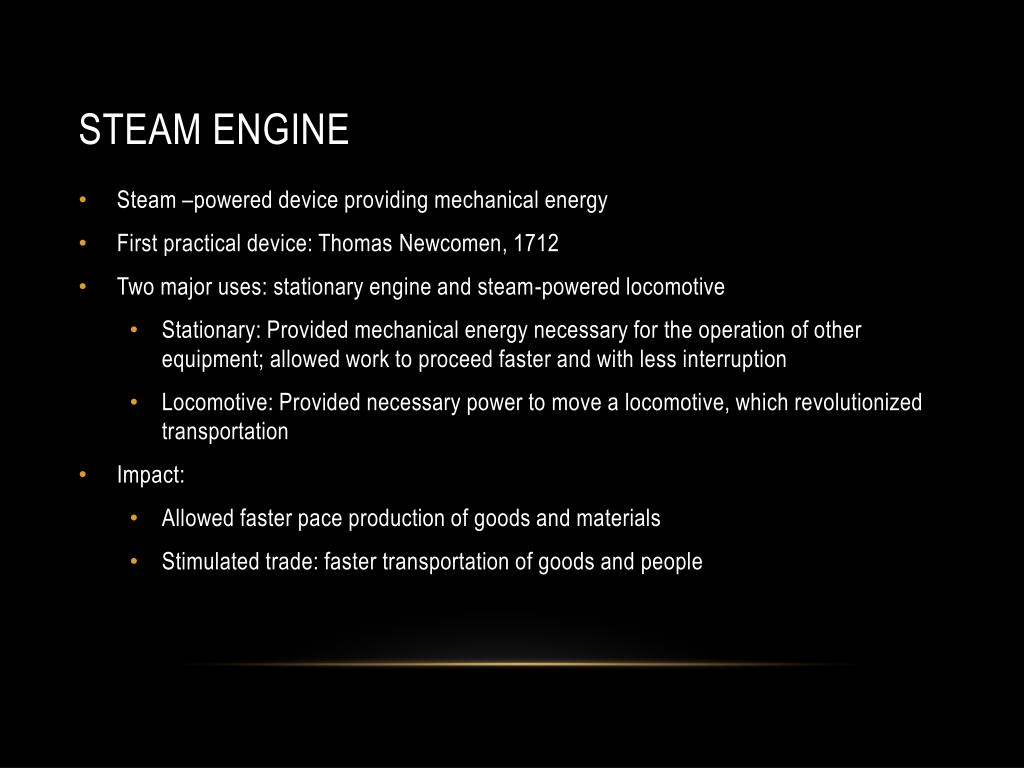

  3. Steam Engine • Steam –powered device providing mechanical energy • First practical device: Thomas Newcomen, 1712 • Two major uses: stationary engine and steam-powered locomotive • Stationary: Provided mechanical energy necessary for the operation of other equipment; allowed work to proceed faster and with less interruption • Locomotive: Provided necessary power to move a locomotive, which revolutionized transportation • Impact: • Allowed faster pace production of goods and materials • Stimulated trade: faster transportation of goods and people

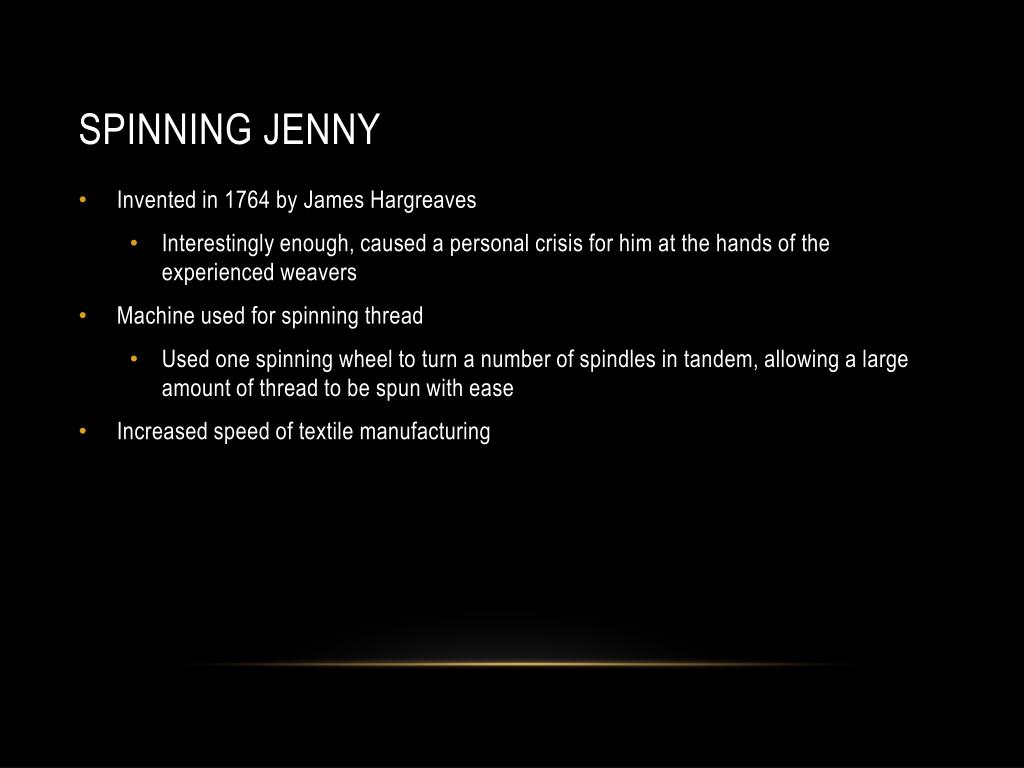

  4. Spinning Jenny • Invented in 1764 by James Hargreaves • Interestingly enough, caused a personal crisis for him at the hands of the experienced weavers • Machine used for spinning thread • Used one spinning wheel to turn a number of spindles in tandem, allowing a large amount of thread to be spun with ease • Increased speed of textile manufacturing

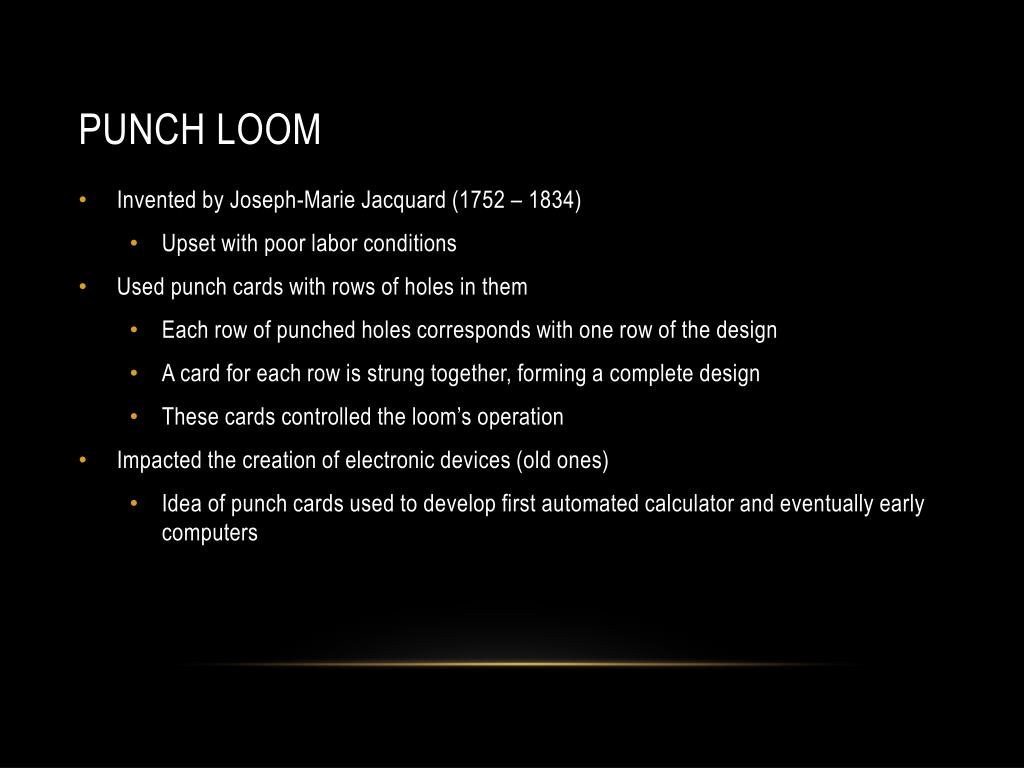

  5. Punch Loom • Invented by Joseph-Marie Jacquard (1752 – 1834) • Upset with poor labor conditions • Used punch cards with rows of holes in them • Each row of punched holes corresponds with one row of the design • A card for each row is strung together, forming a complete design • These cards controlled the loom’s operation • Impacted the creation of electronic devices (old ones) • Idea of punch cards used to develop first automated calculator and eventually early computers

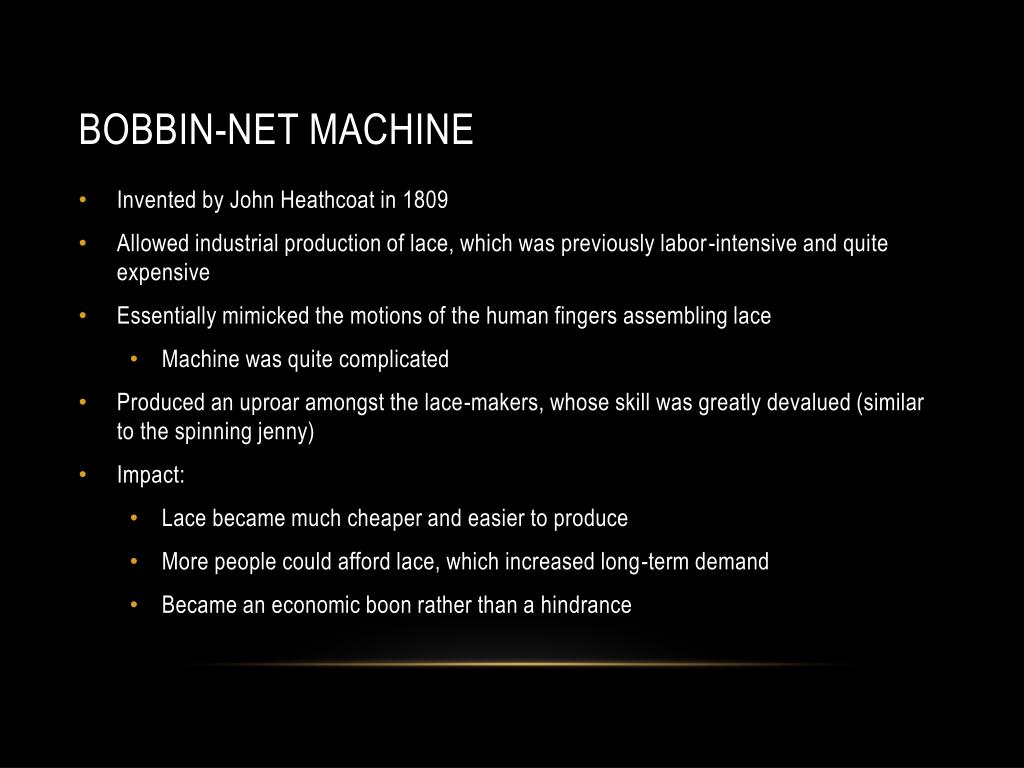

  6. Bobbin-net Machine • Invented by John Heathcoat in 1809 • Allowed industrial production of lace, which was previously labor-intensive and quite expensive • Essentially mimicked the motions of the human fingers assembling lace • Machine was quite complicated • Produced an uproar amongst the lace-makers, whose skill was greatly devalued (similar to the spinning jenny) • Impact: • Lace became much cheaper and easier to produce • More people could afford lace, which increased long-term demand • Became an economic boon rather than a hindrance

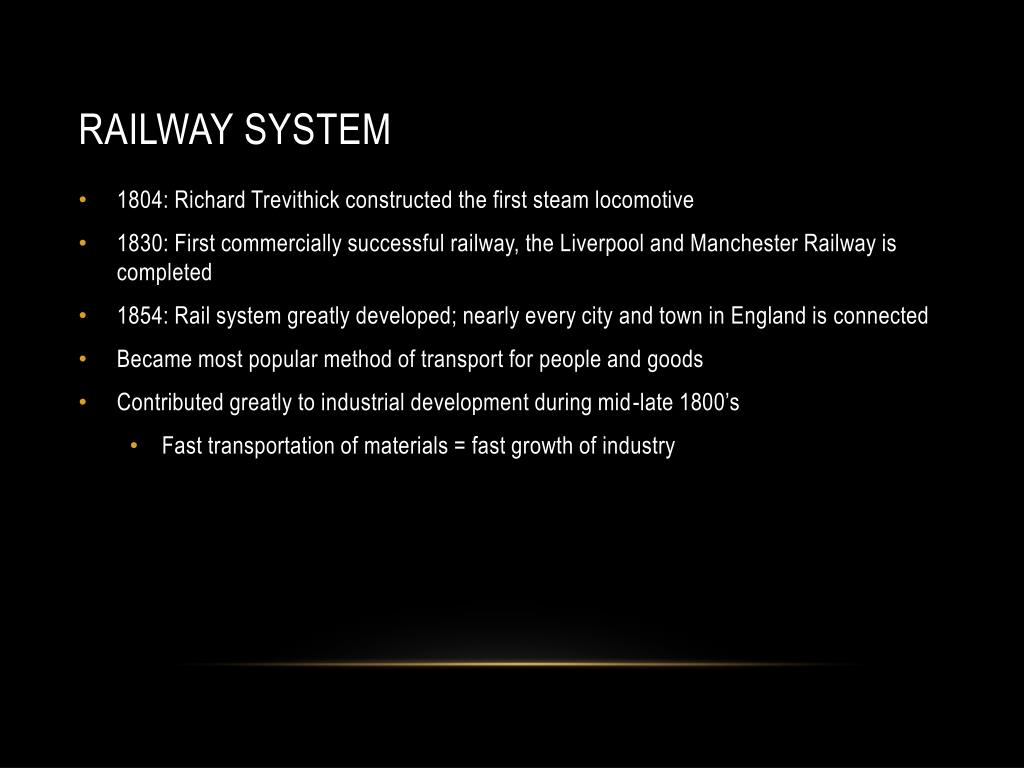

  7. Railway System • 1804: Richard Trevithick constructed the first steam locomotive • 1830: First commercially successful railway, the Liverpool and Manchester Railway is completed • 1854: Rail system greatly developed; nearly every city and town in England is connected • Became most popular method of transport for people and goods • Contributed greatly to industrial development during mid-late 1800’s • Fast transportation of materials = fast growth of industry

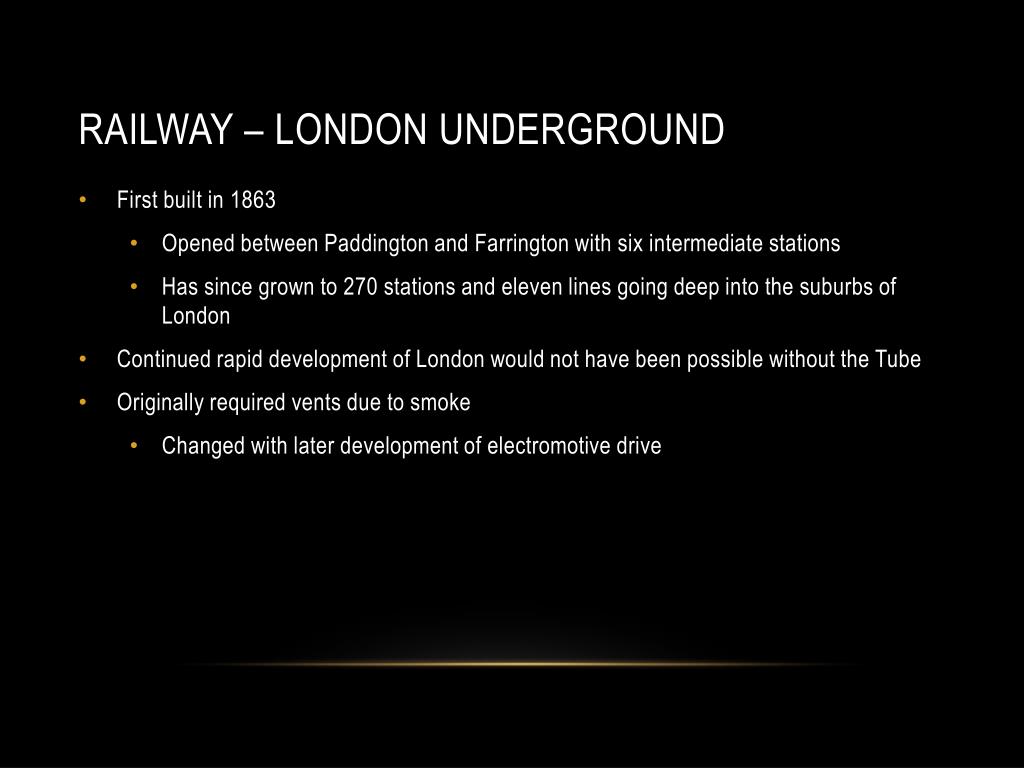

  8. Railway – London Underground • First built in 1863 • Opened between Paddington and Farrington with six intermediate stations • Has since grown to 270 stations and eleven lines going deep into the suburbs of London • Continued rapid development of London would not have been possible without the Tube • Originally required vents due to smoke • Changed with later development of electromotive drive

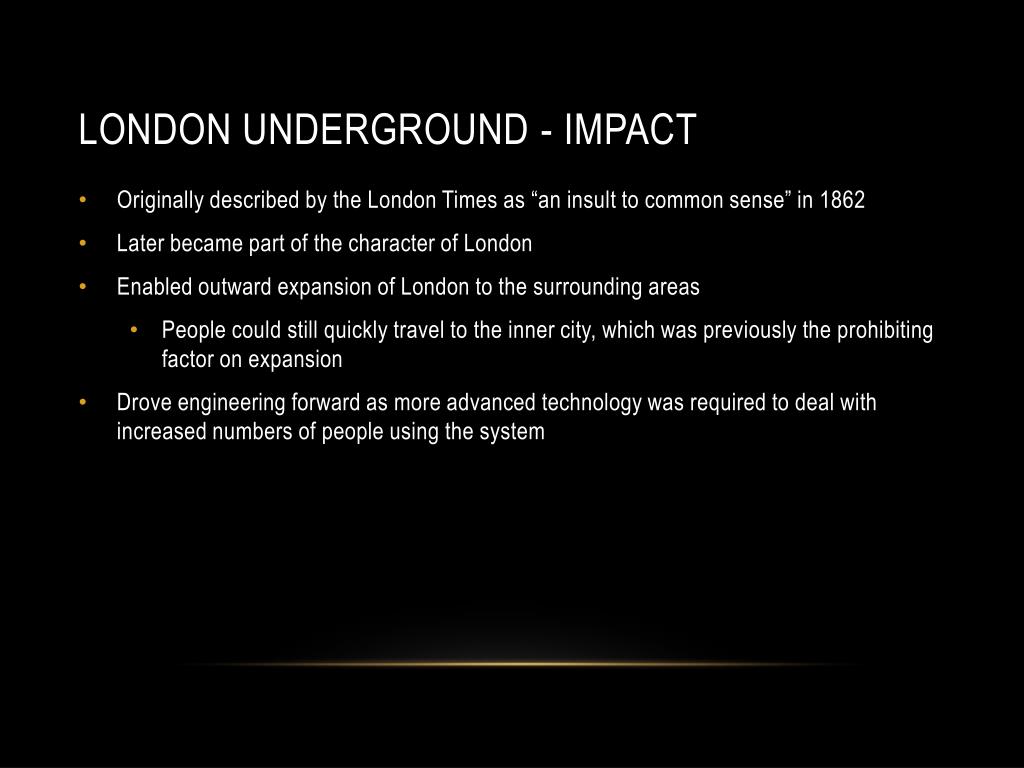

  9. London Underground - Impact • Originally described by the London Times as “an insult to common sense” in 1862 • Later became part of the character of London • Enabled outward expansion of London to the surrounding areas • People could still quickly travel to the inner city, which was previously the prohibiting factor on expansion • Drove engineering forward as more advanced technology was required to deal with increased numbers of people using the system

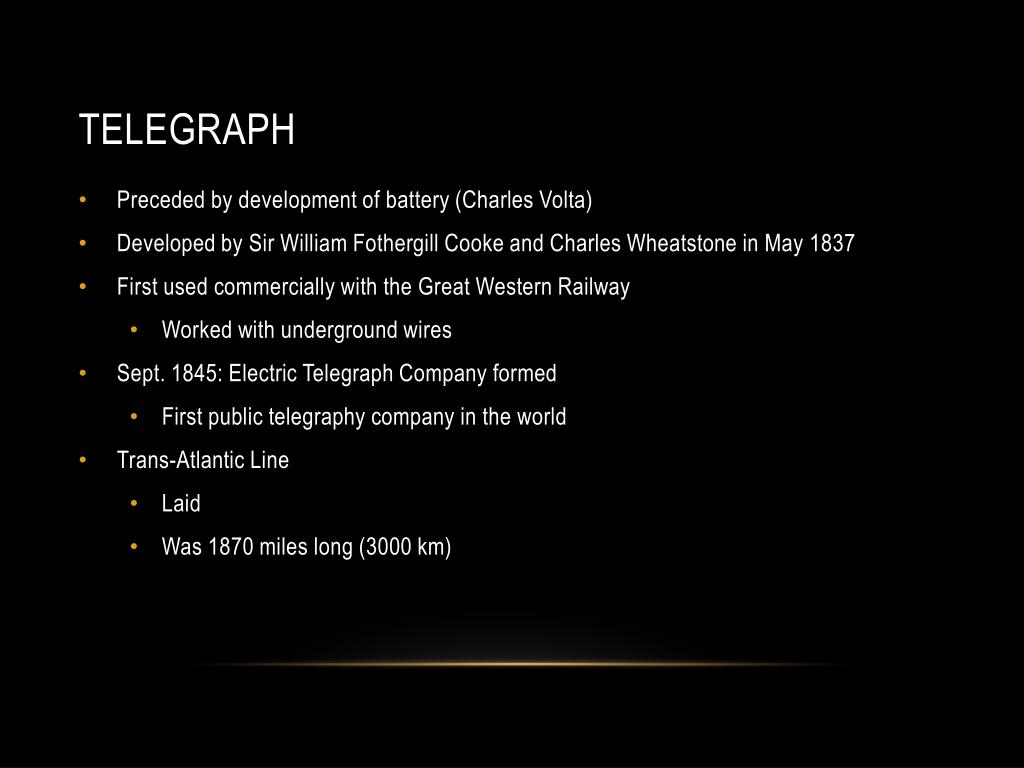

  10. Telegraph • Preceded by development of battery (Charles Volta) • Developed by Sir William Fothergill Cooke and Charles Wheatstone in May 1837 • First used commercially with the Great Western Railway • Worked with underground wires • Sept. 1845: Electric Telegraph Company formed • First public telegraphy company in the world • Trans-Atlantic Line • Laid • Was 1870 miles long (3000 km)

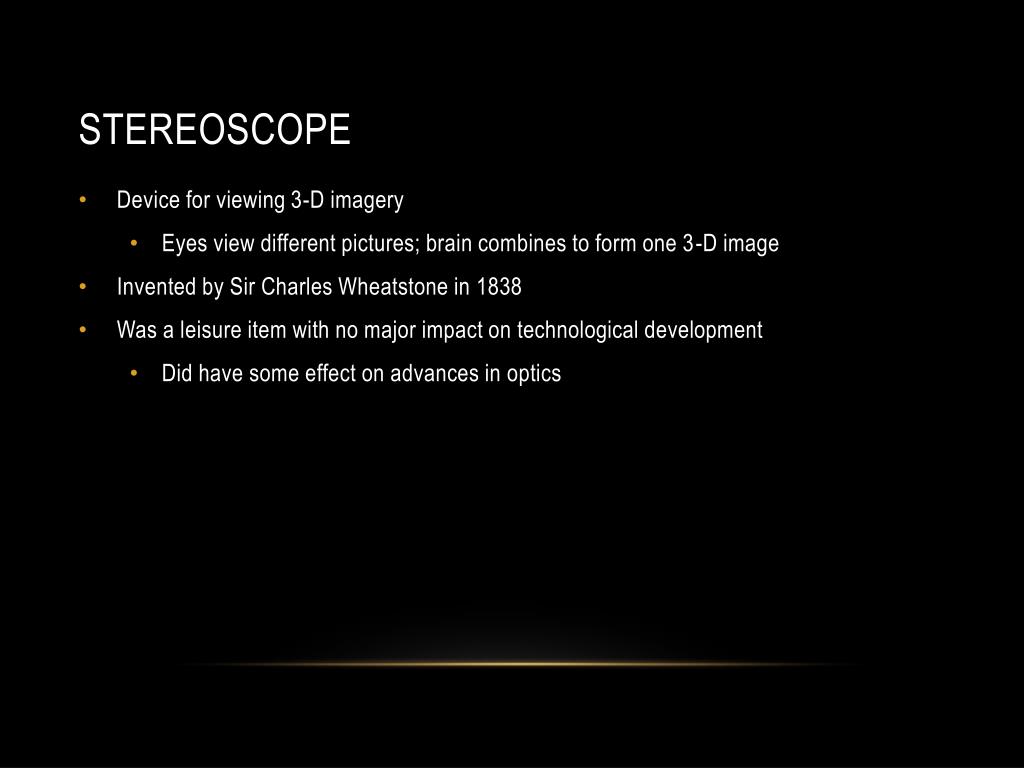

  11. Stereoscope • Device for viewing 3-D imagery • Eyes view different pictures; brain combines to form one 3-D image • Invented by Sir Charles Wheatstone in 1838 • Was a leisure item with no major impact on technological development • Did have some effect on advances in optics

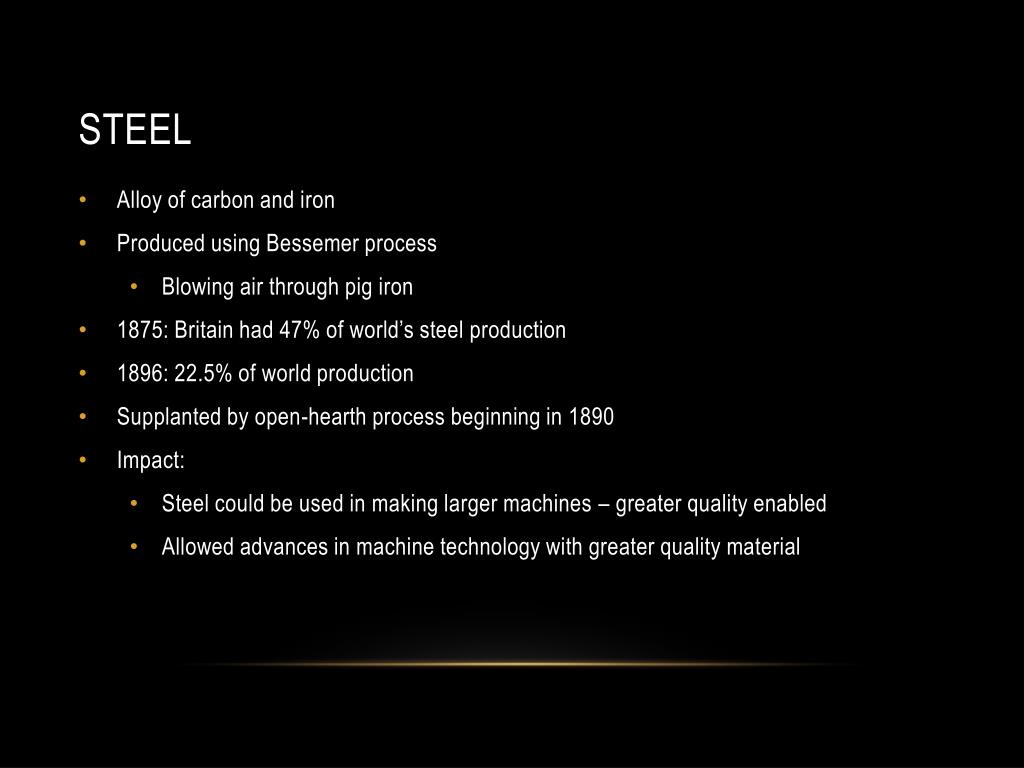

  12. Steel • Alloy of carbon and iron • Produced using Bessemer process • Blowing air through pig iron • 1875: Britain had 47% of world’s steel production • 1896: 22.5% of world production • Supplanted by open-hearth process beginning in 1890 • Impact: • Steel could be used in making larger machines – greater quality enabled • Allowed advances in machine technology with greater quality material

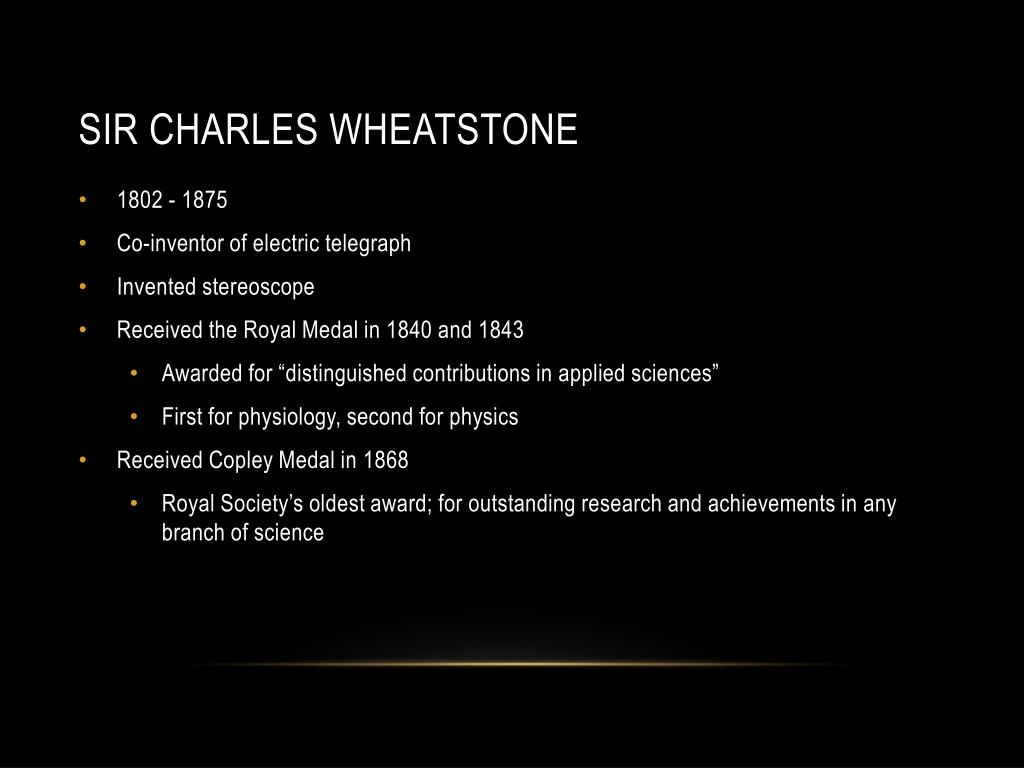

  13. Sir Charles Wheatstone • 1802 - 1875 • Co-inventor of electric telegraph • Invented stereoscope • Received the Royal Medal in 1840 and 1843 • Awarded for “distinguished contributions in applied sciences” • First for physiology, second for physics • Received Copley Medal in 1868 • Royal Society’s oldest award; for outstanding research and achievements in any branch of science

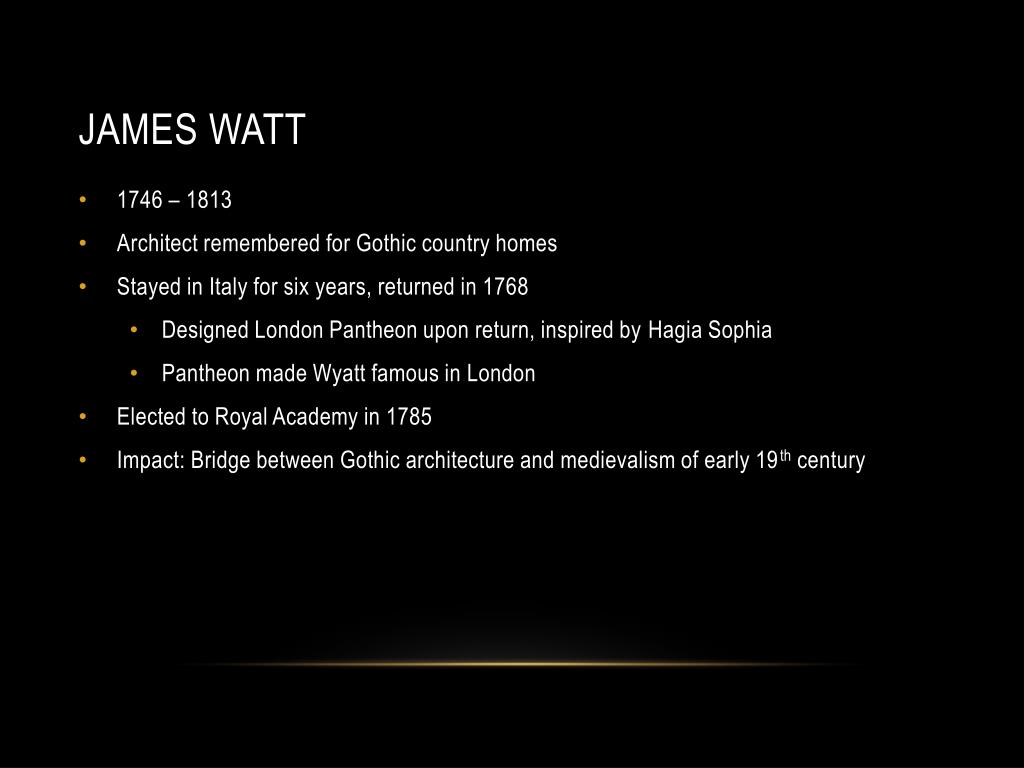

  14. James Watt • 1746 – 1813 • Architect remembered for Gothic country homes • Stayed in Italy for six years, returned in 1768 • Designed London Pantheon upon return, inspired by Hagia Sophia • Pantheon made Wyatt famous in London • Elected to Royal Academy in 1785 • Impact: Bridge between Gothic architecture and medievalism of early 19th century

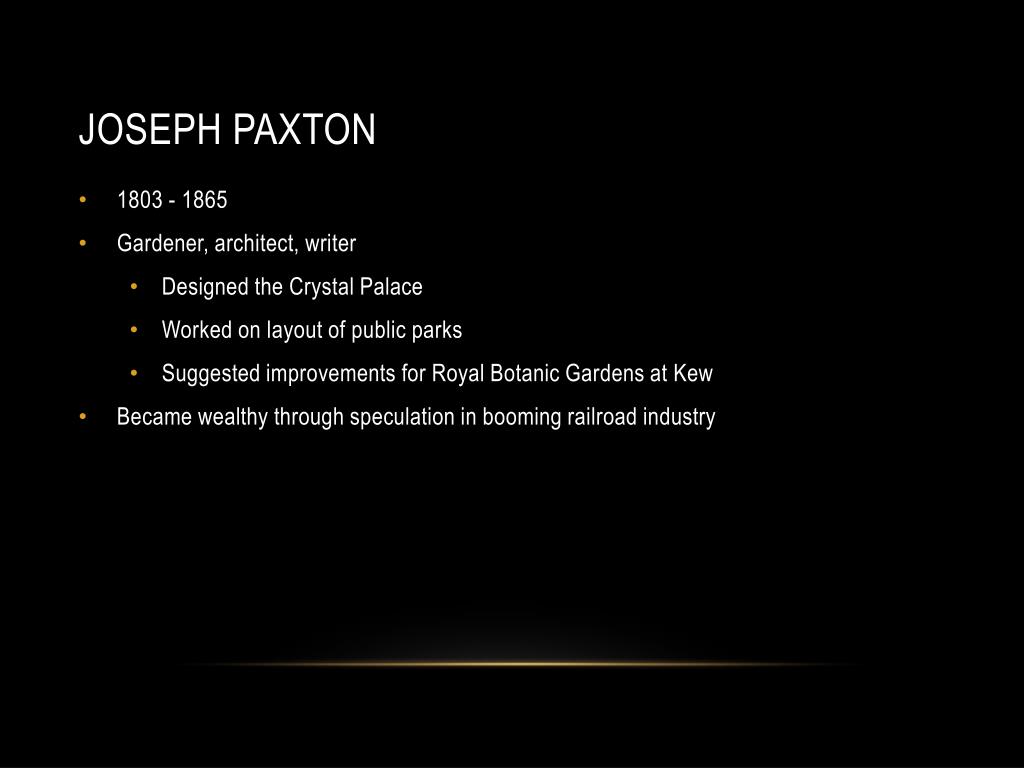

  15. Joseph Paxton • 1803 - 1865 • Gardener, architect, writer • Designed the Crystal Palace • Worked on layout of public parks • Suggested improvements for Royal Botanic Gardens at Kew • Became wealthy through speculation in booming railroad industry

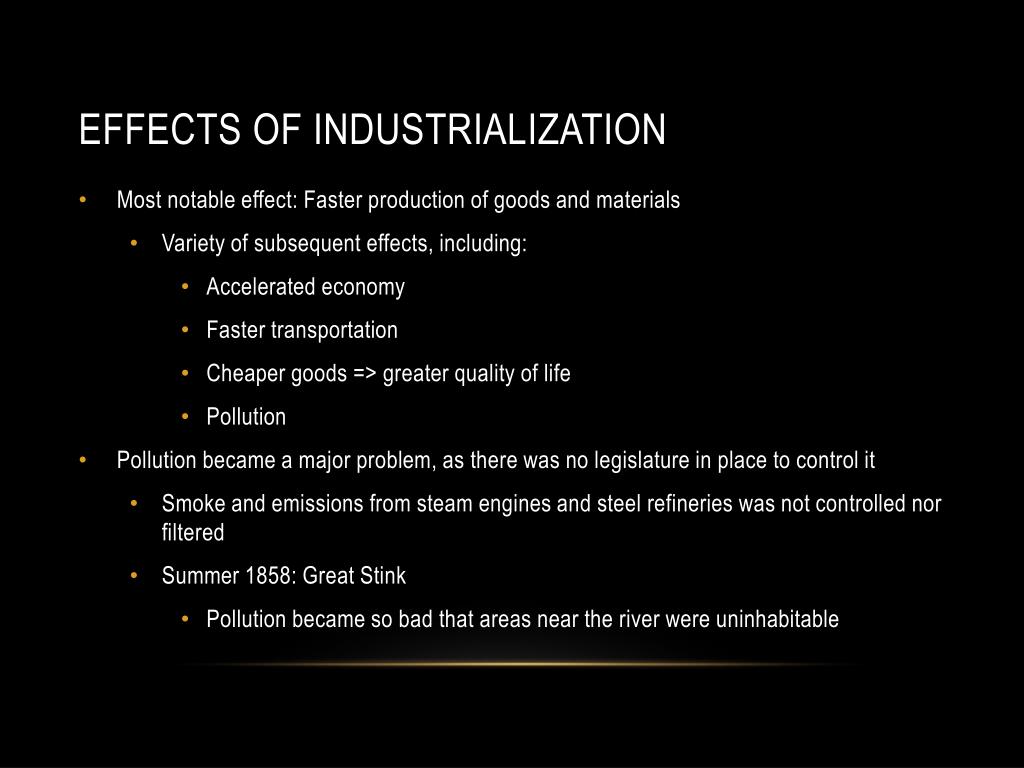

  16. Effects of Industrialization • Most notable effect: Faster production of goods and materials • Variety of subsequent effects, including: • Accelerated economy • Faster transportation • Cheaper goods => greater quality of life • Pollution • Pollution became a major problem, as there was no legislature in place to control it • Smoke and emissions from steam engines and steel refineries was not controlled nor filtered • Summer 1858: Great Stink • Pollution became so bad that areas near the river were uninhabitable
