  1. Scientific Computing Linear Systems – Gaussian Elimination

  2. Linear Systems

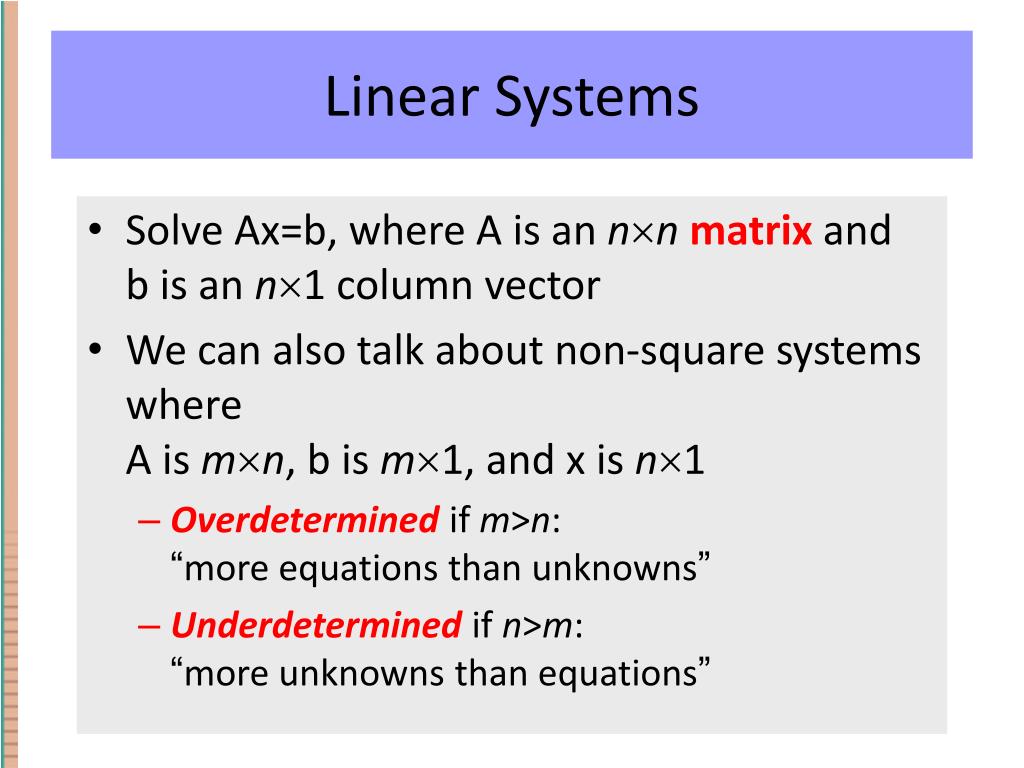

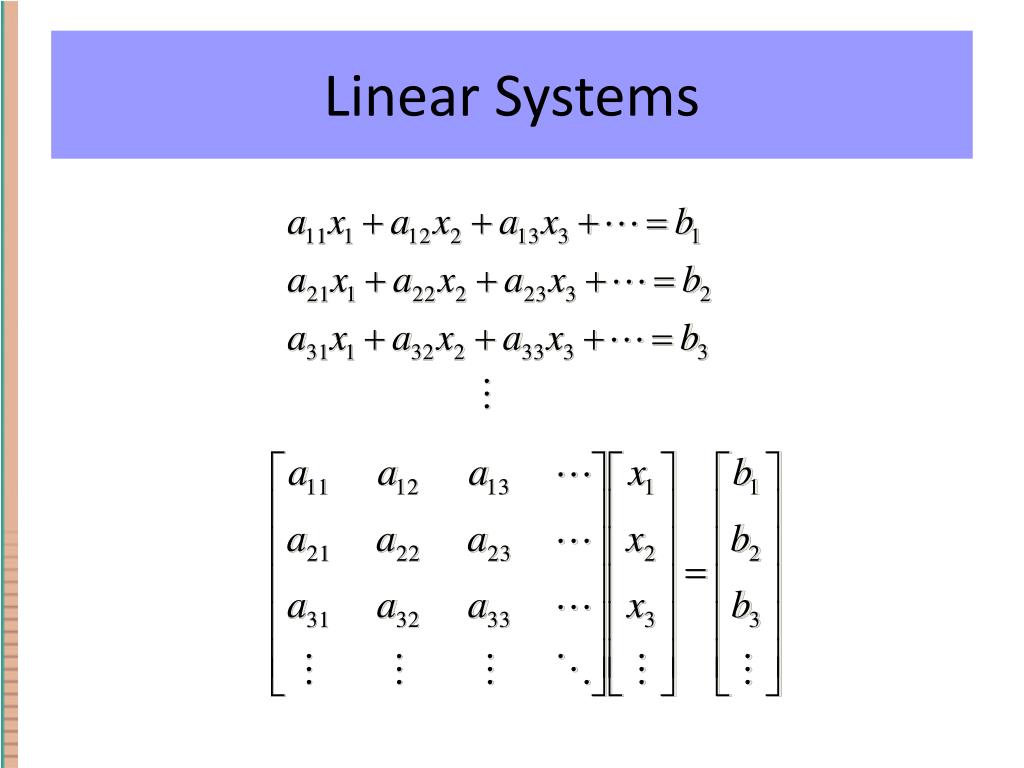

  3. Linear Systems • Solve Ax=b, where A is an nnmatrix andb is an n1 column vector • We can also talk about non-square systems whereA is mn, b is m1, and x is n1 • Overdetermined if m>n:“more equations than unknowns” • Underdetermined if n>m:“more unknowns than equations”

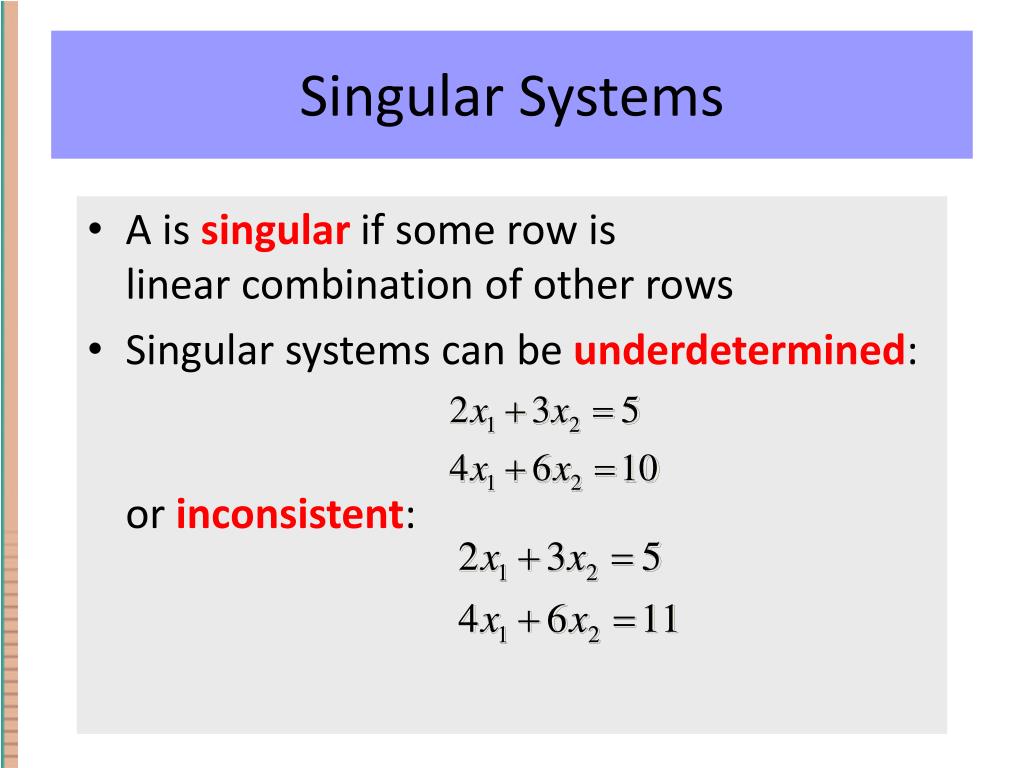

  4. Singular Systems • A is singular if some row islinear combination of other rows • Singular systems can be underdetermined:or inconsistent:

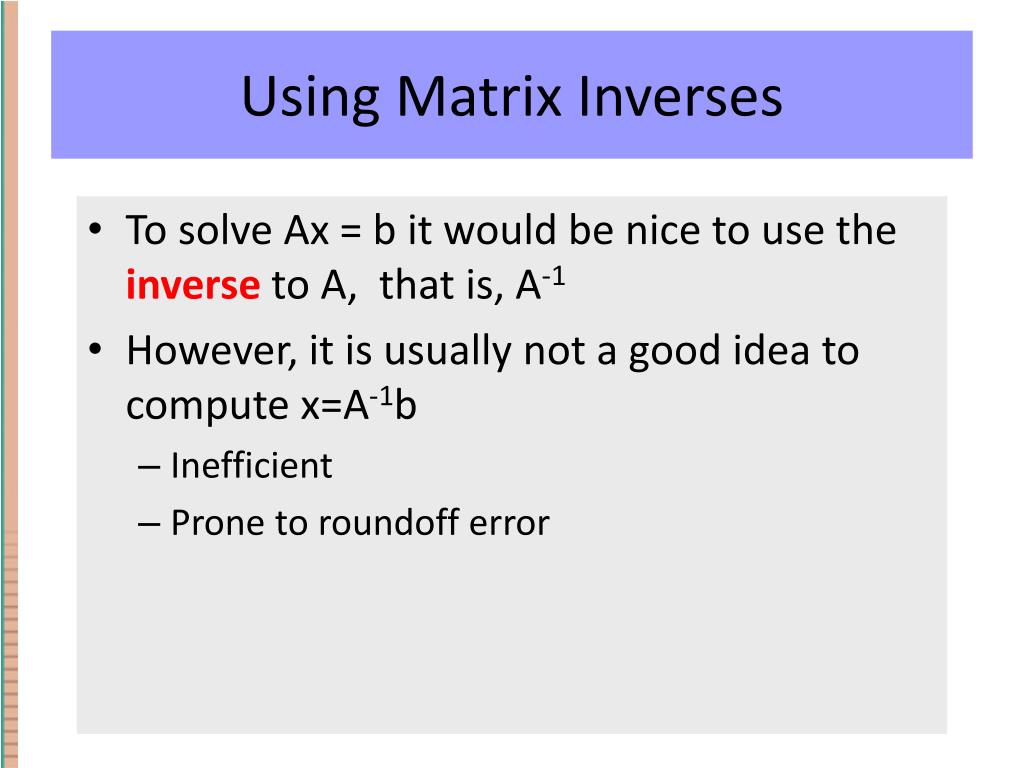

  5. Using Matrix Inverses • To solve Ax = b it would be nice to use the inverse to A, that is, A-1 • However, it is usually not a good idea to compute x=A-1b • Inefficient • Prone to roundoff error

  6. Gaussian Elimination • Fundamental operations: • Replace one equation with linear combinationof other equations • Interchange two equations • Multiply one equation by a scalar • These are called elementary row operations. • Do these operations again and again to reduce the system to a “trivial” system

  7. Triangular Form • Two special forms of matrices are especially nice for solving Ax=b: • In both cases, successive substitution leads to a solution

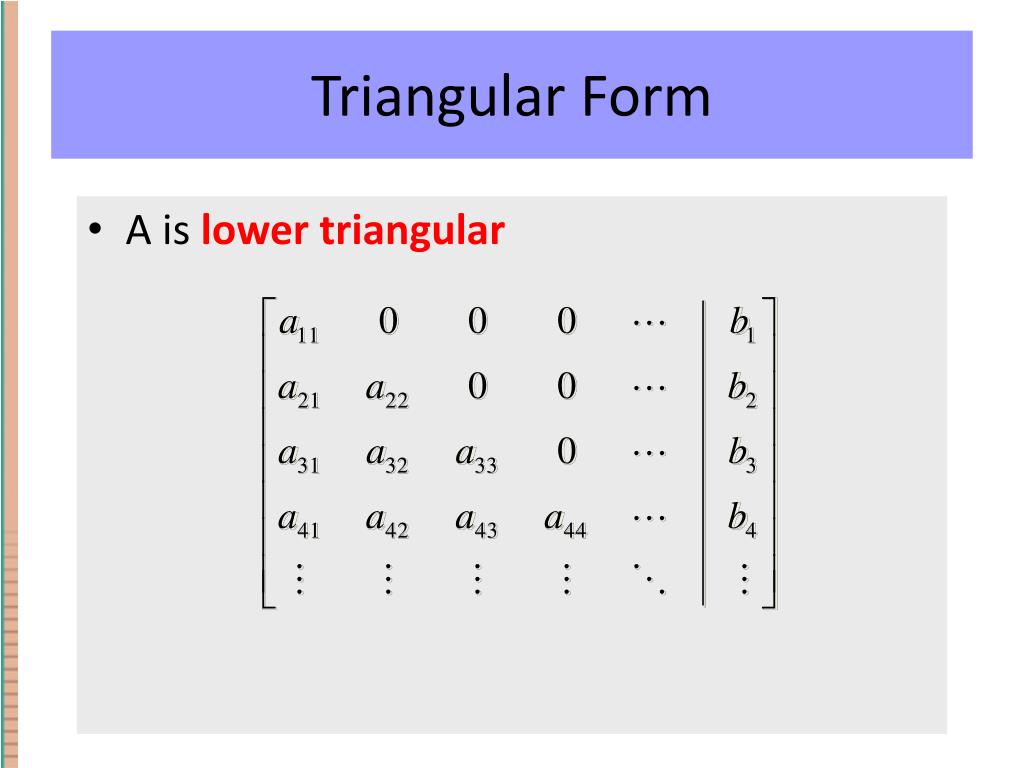

  8. Triangular Form • A is lower triangular

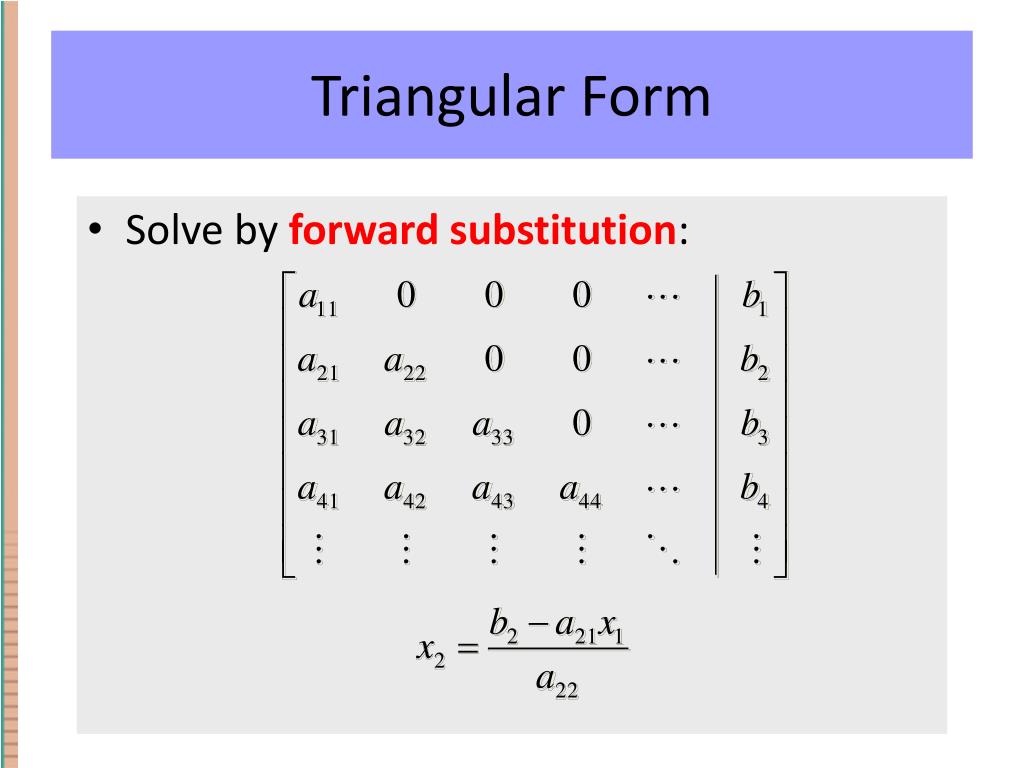

  9. Triangular Form • Solve by forward substitution:

  10. Triangular Form • Solve by forward substitution:

  11. Triangular Form • Solve by forward substitution: Etc

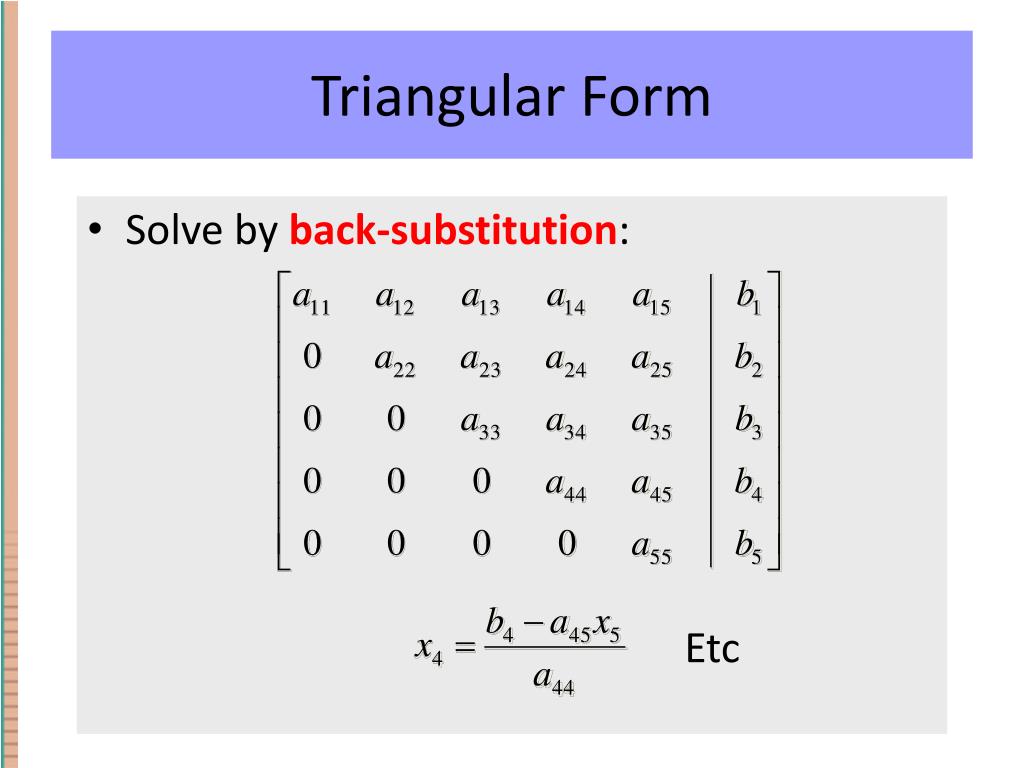

  12. Triangular Form • If A is upper triangular, solve by back-substitution:

  13. Triangular Form • Solve by back-substitution: Etc

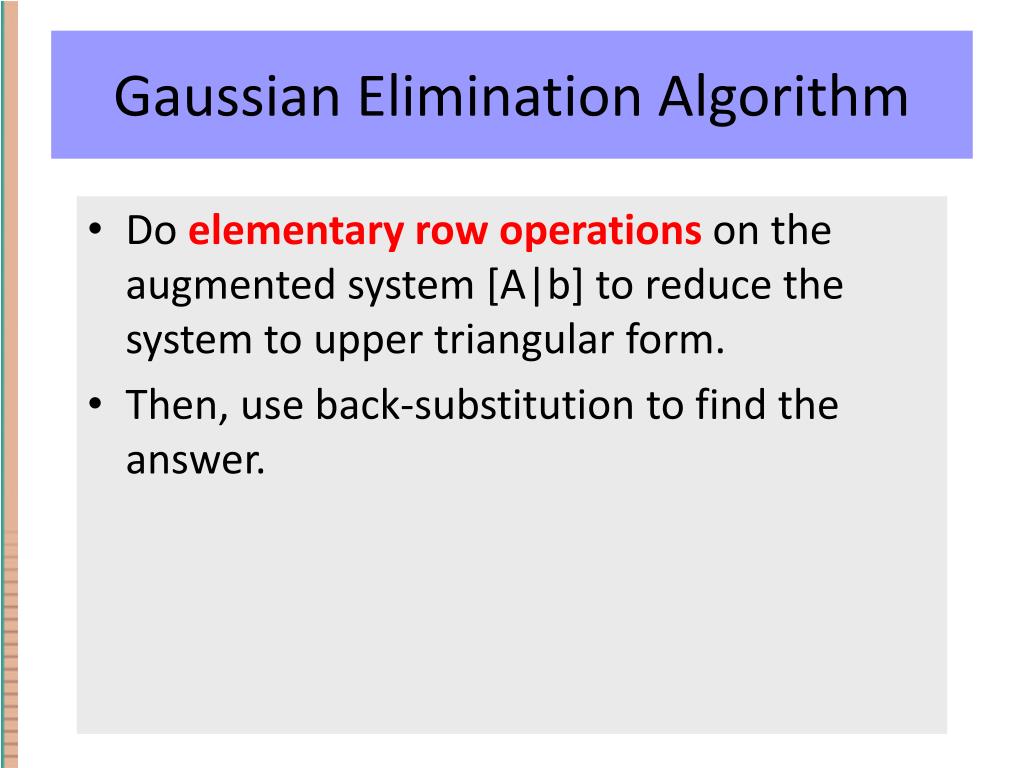

  14. Gaussian Elimination Algorithm • Do elementary row operations on the augmented system [A|b] to reduce the system to upper triangular form. • Then, use back-substitution to find the answer.

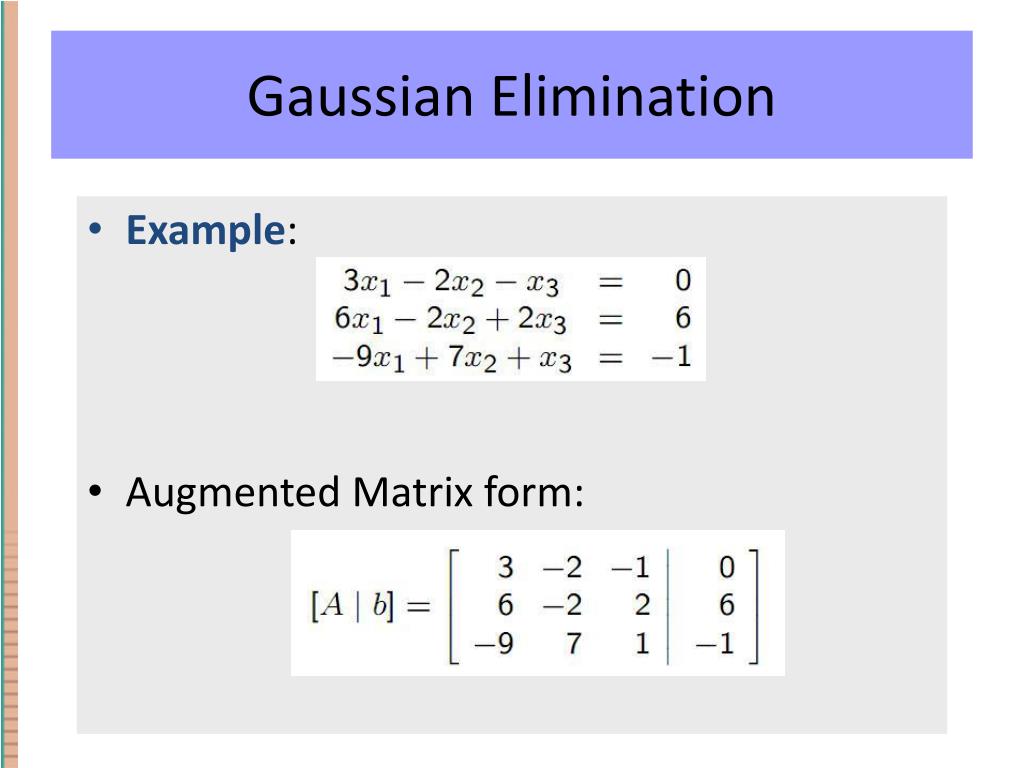

  15. Gaussian Elimination • Example: • Augmented Matrix form:

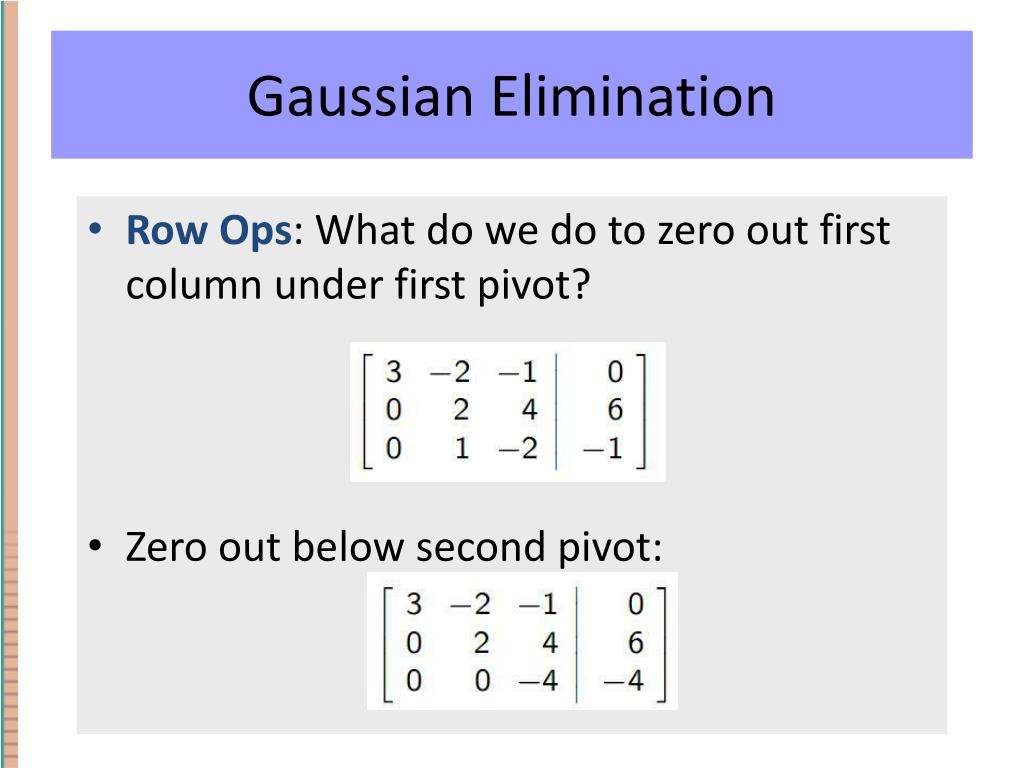

  16. Gaussian Elimination • Row Ops: What do we do to zero out first column under first pivot? • Zero out below second pivot:

  17. Gaussian Elimination • Back-substitute

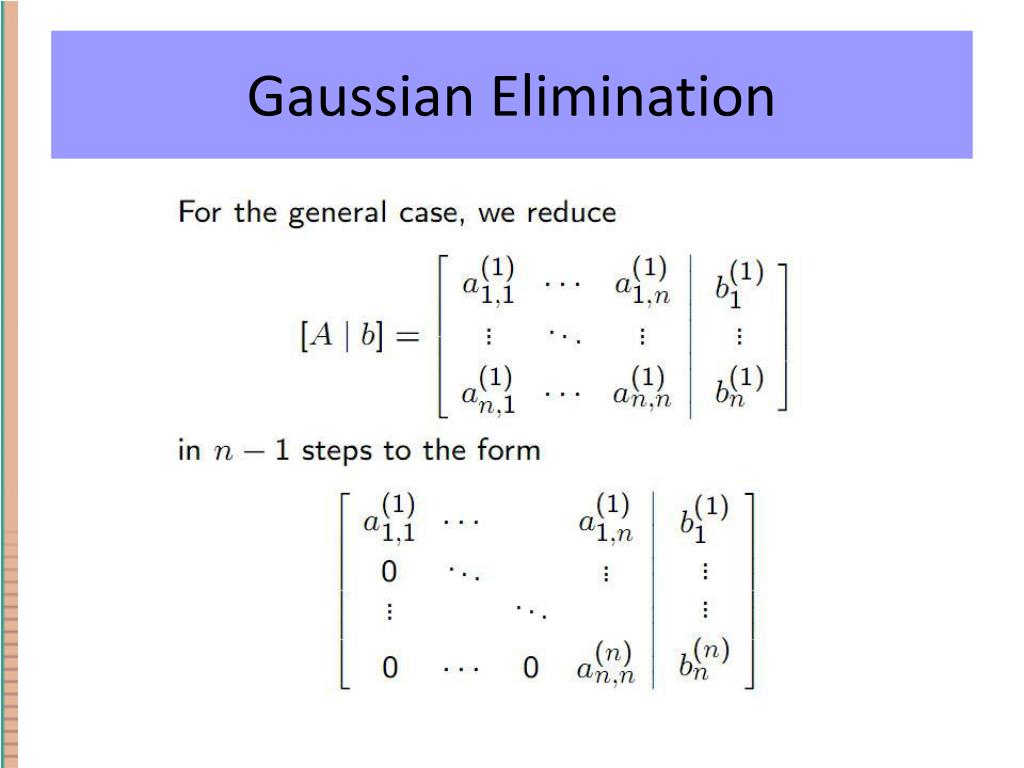

  18. Gaussian Elimination

  19. Matlab Implementation • Task: Implement Gaussian Elimination (without pivoting) in a Matlab M-file. • Notes • Input = Coefficient matrix A, rhs b • Output = solution vector x

  20. Matlab Implementation • Class Exercise: We will go through this code line by line, using the example in Pav section 3.3.2 to see how the code works.

  21. Matlab Implementation • Matlab: • >> A=[2 1 1 3; 4 4 0 7; 6 5 4 17; 2 -1 0 7] • A = • 2 1 1 3 • 4 4 0 7 • 6 5 4 17 • 2 -1 0 7 • >> b = [7 11 31 15]' • b = • 7 • 11 • 31 • 15 >> gauss_no_pivot(A,b) ans = 1.5417 -1.4167 0.8333 1.5000

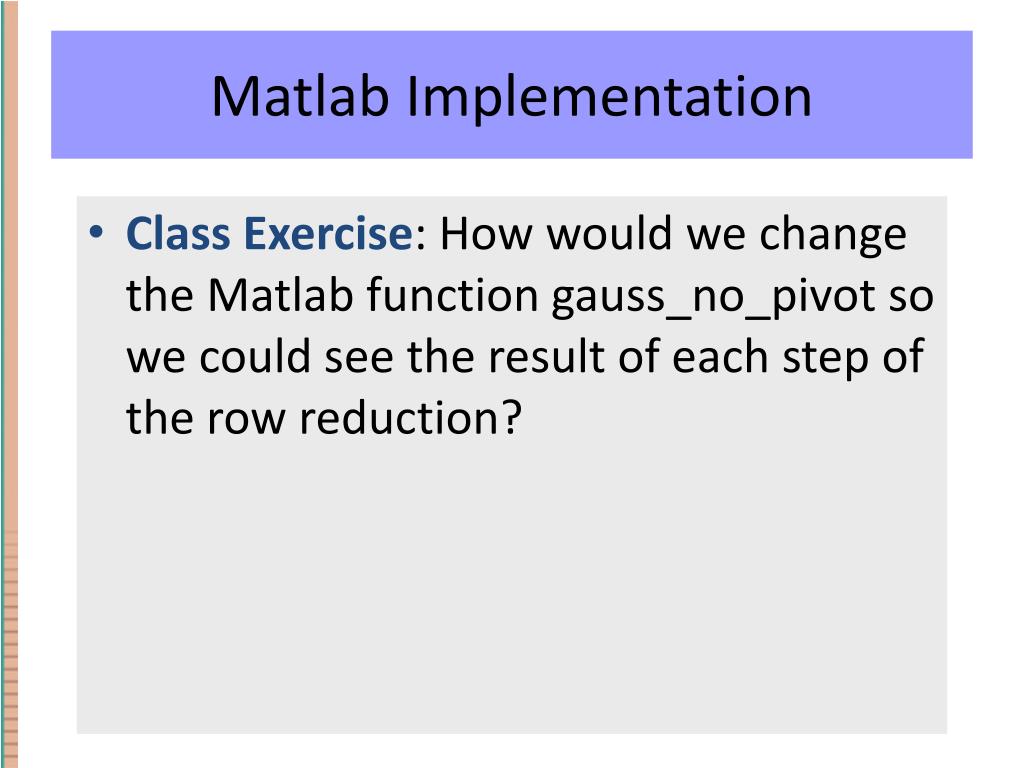

  22. Matlab Implementation • Class Exercise: How would we change the Matlab function gauss_no_pivot so we could see the result of each step of the row reduction?

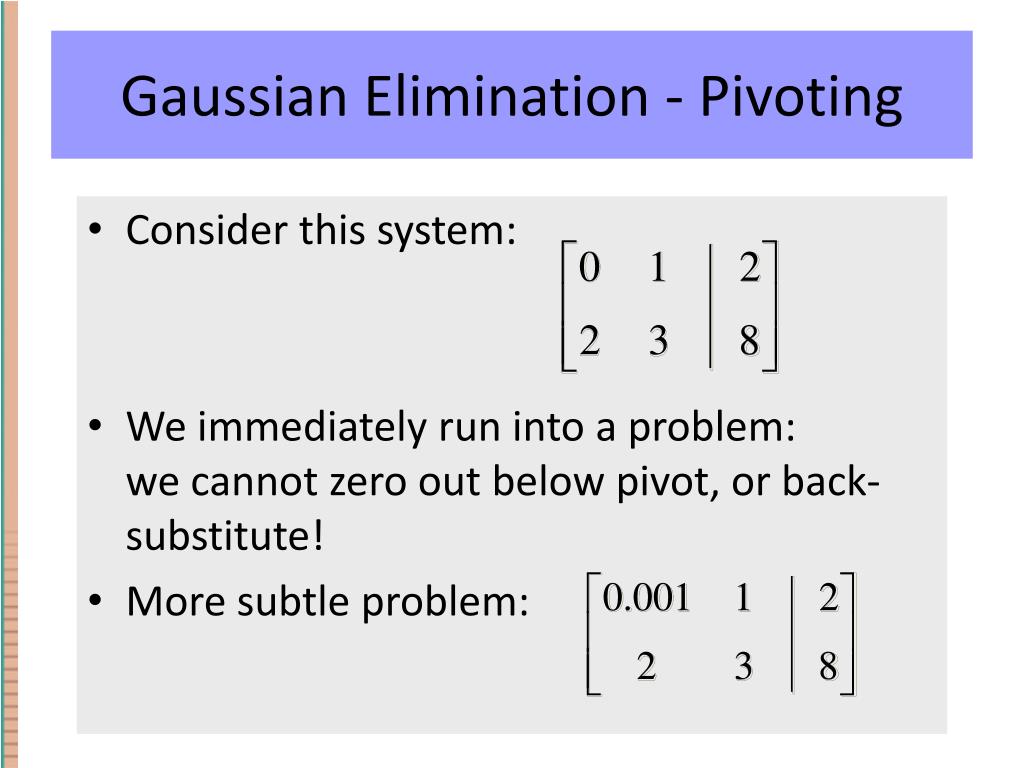

  23. Gaussian Elimination - Pivoting • Consider this system: • We immediately run into a problem:we cannot zero out below pivot, or back-substitute! • More subtle problem:

  24. Gaussian Elimination - Pivoting • Conclusion: small diagonal elements are bad! • Remedy: swap the row with the small diagonal element with a row below, this is called pivoting

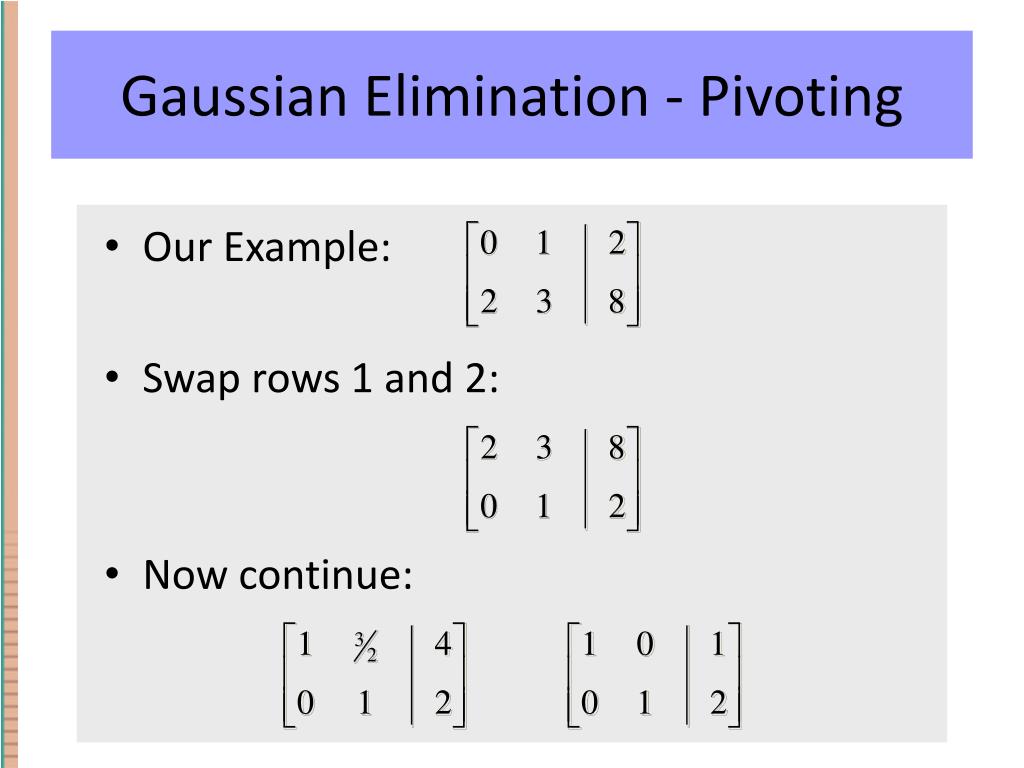

  25. Gaussian Elimination - Pivoting • Our Example: • Swap rows 1 and 2: • Now continue:

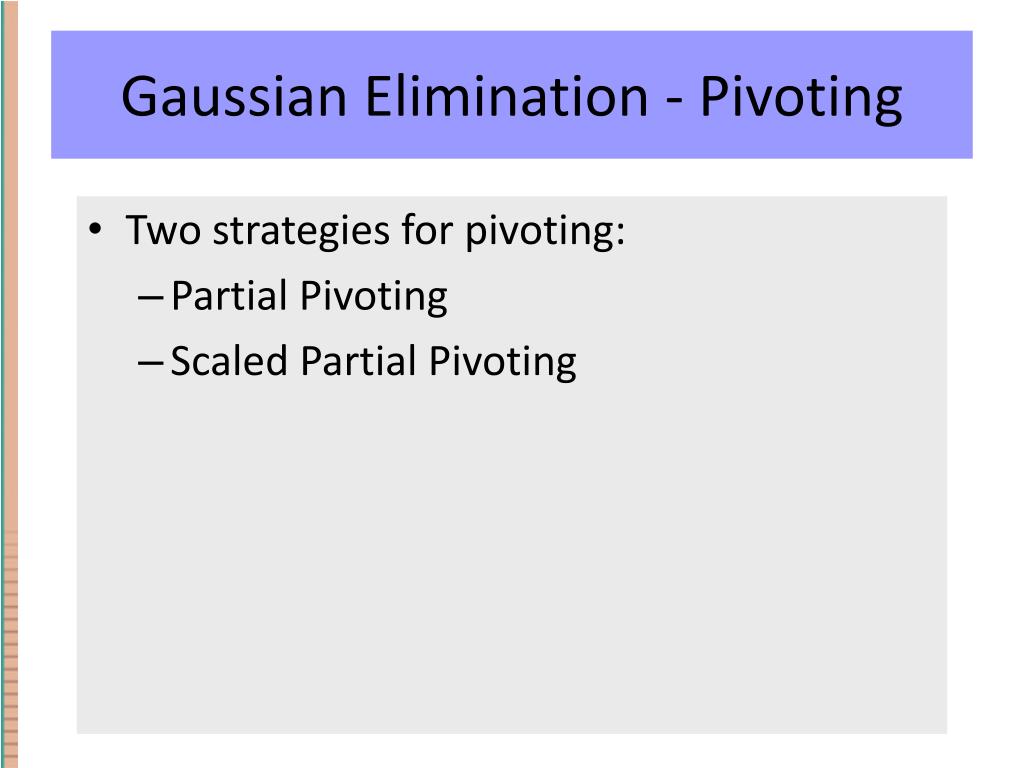

  26. Gaussian Elimination - Pivoting • Two strategies for pivoting: • Partial Pivoting • Scaled Partial Pivoting

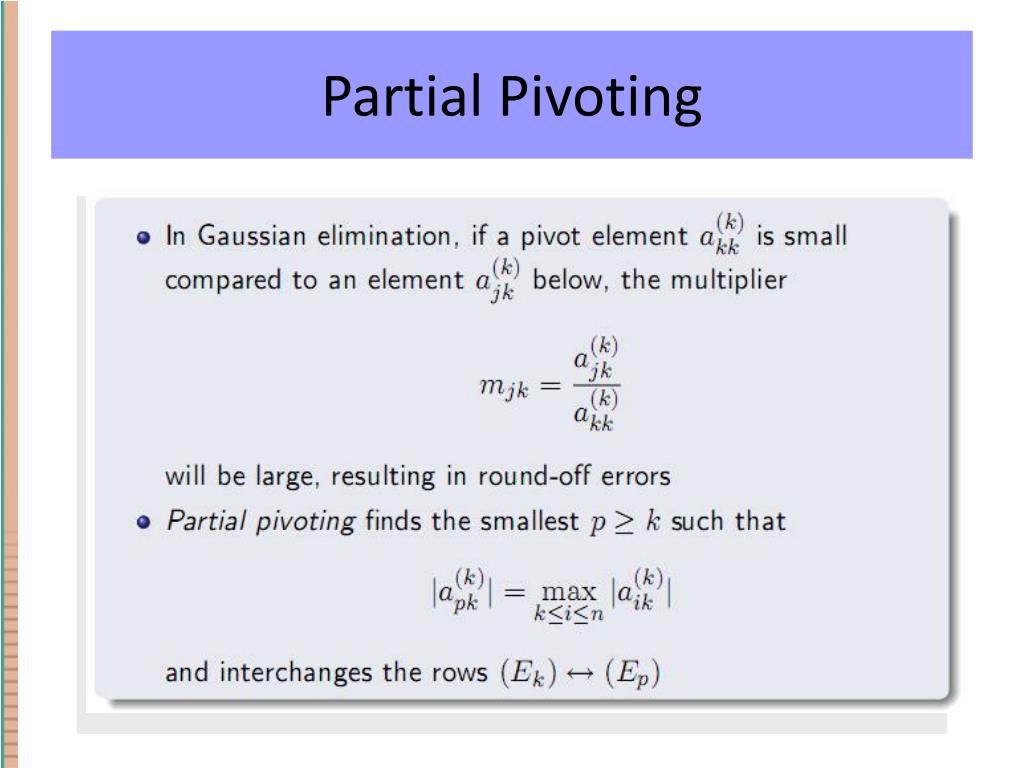

  27. Partial Pivoting

  28. Matlab – Partial Pivoting • Partial Pivoting: • At step k, we are working on kth row, pivot = Akk . Search for largest Aik in kth column below (and including) Akk . Let p = index of row containing largest entry. • If p ≠ k, swap rows p and k. • Continue with Gaussian Elimination.

  29. Matlab – Partial Pivoting • Finding largest entry in a column: • >> A • A = • 2 1 1 3 • 4 4 0 7 • 6 5 4 17 • 2 -1 0 7 • >> [r,m] = max(A(2:4,2)) • r = • 5 • m = • 2 • Why isn’t m = 3?

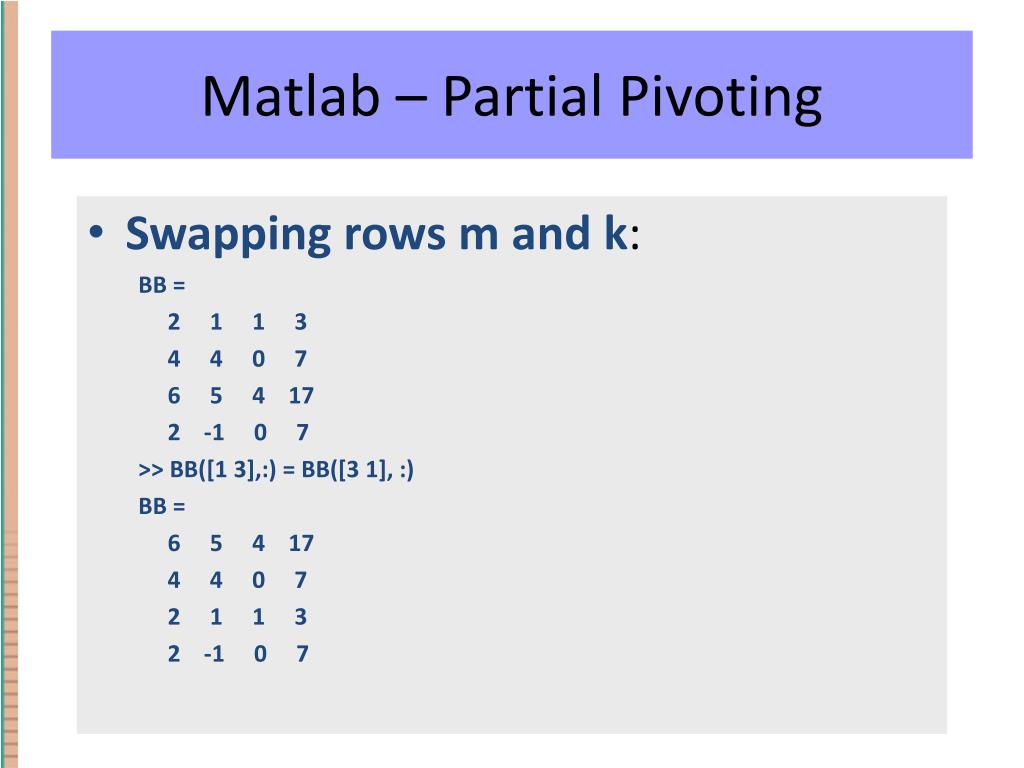

  30. Matlab – Partial Pivoting • Swapping rows m and k: • BB = • 2 1 1 3 • 4 4 0 7 • 6 5 4 17 • 2 -1 0 7 • >> BB([1 3],:) = BB([3 1], :) • BB = • 6 5 4 17 • 4 4 0 7 • 2 1 1 3 • 2 -1 0 7

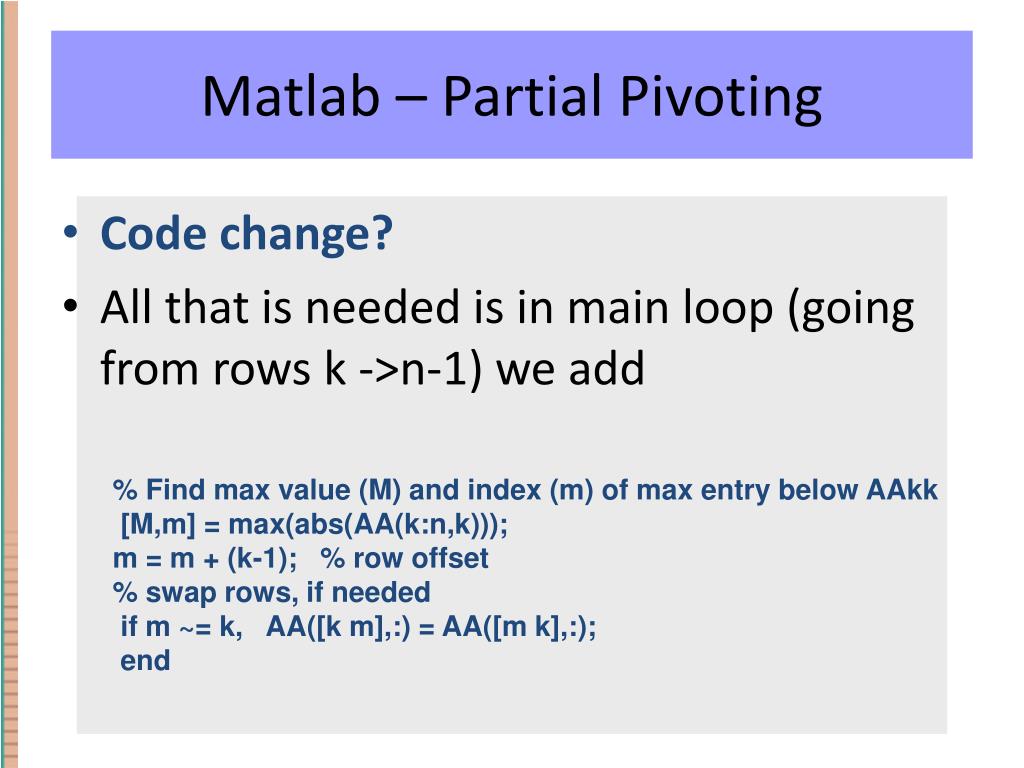

  31. Matlab – Partial Pivoting • Code change? • All that is needed is in main loop (going from rows k ->n-1) we add • % Find max value (M) and index (m) of max entry below AAkk • [M,m] = max(abs(AA(k:n,k))); • m = m + (k-1); % row offset • % swap rows, if needed • if m ~= k, AA([k m],:) = AA([m k],:); • end

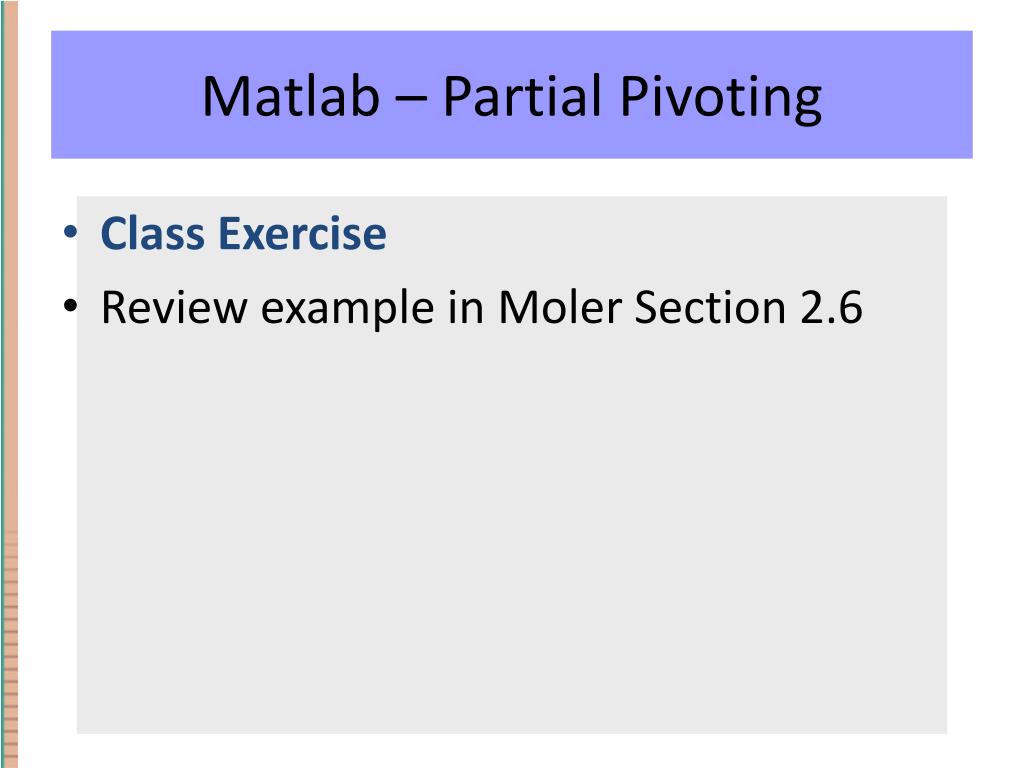

  32. Matlab – Partial Pivoting • Class Exercise • Review example in Moler Section 2.6

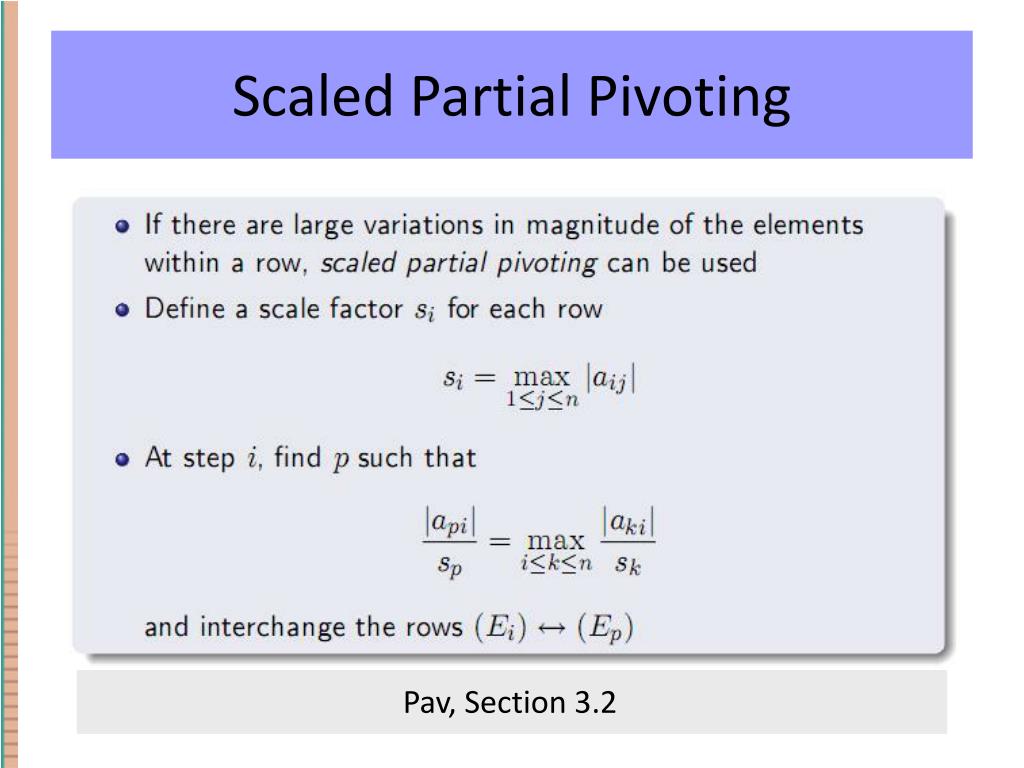

  33. Scaled Partial Pivoting Pav, Section 3.2

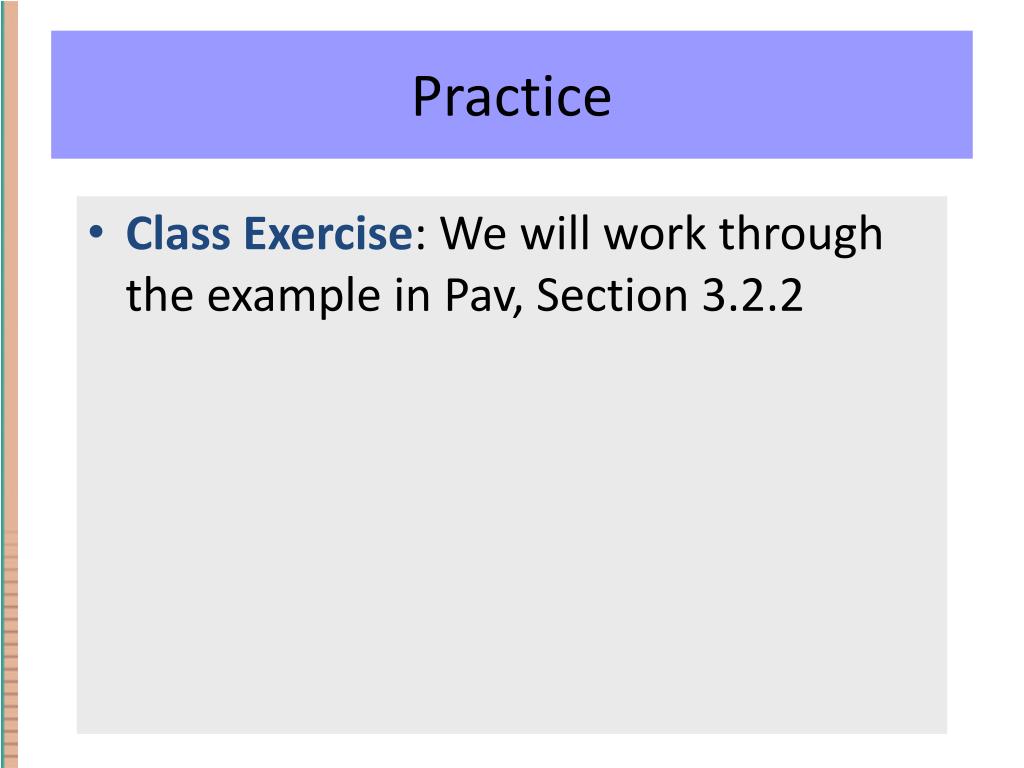

  34. Practice • Class Exercise: We will work through the example in Pav, Section 3.2.2

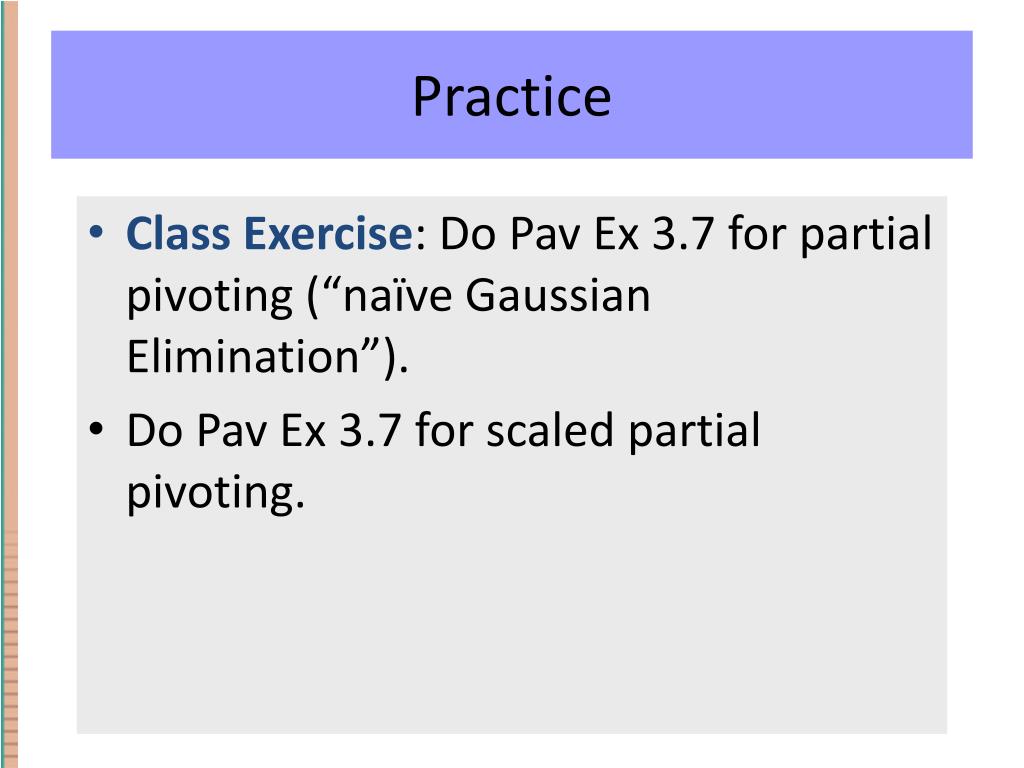

  35. Practice • Class Exercise: Do Pav Ex 3.7 for partial pivoting (“naïve Gaussian Elimination”). • Do Pav Ex 3.7 for scaled partial pivoting.
