  1. Steven Emory CS 575 Human Computation

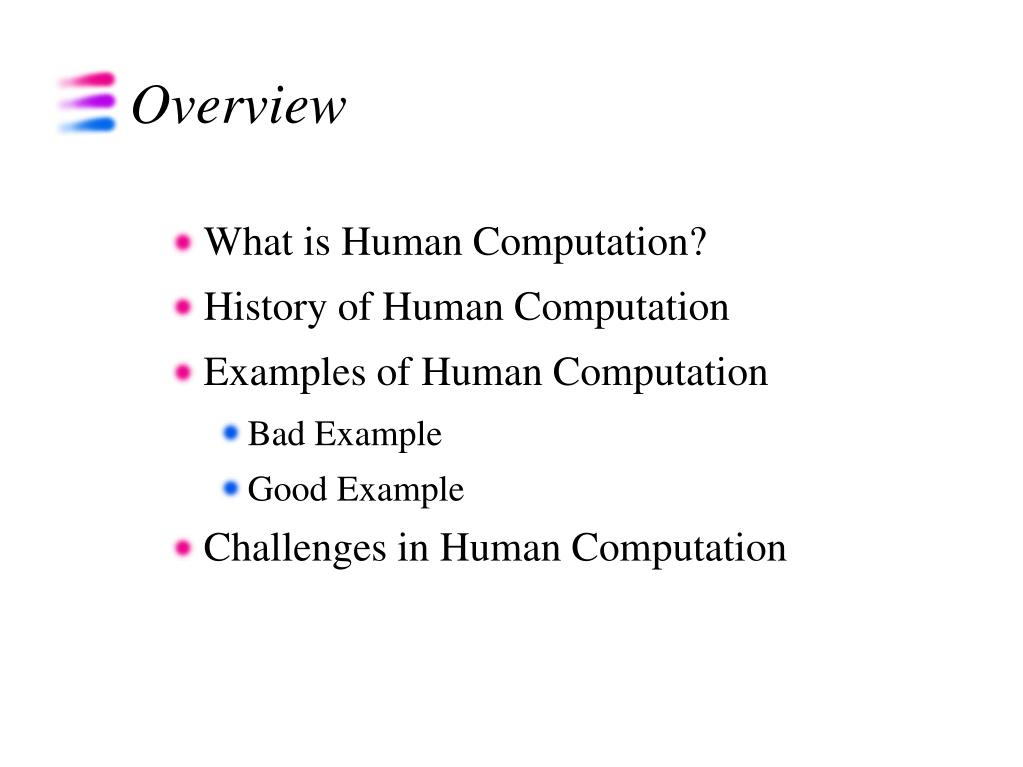

  2. Overview • What is Human Computation? • History of Human Computation • Examples of Human Computation • Bad Example • Good Example • Challenges in Human Computation

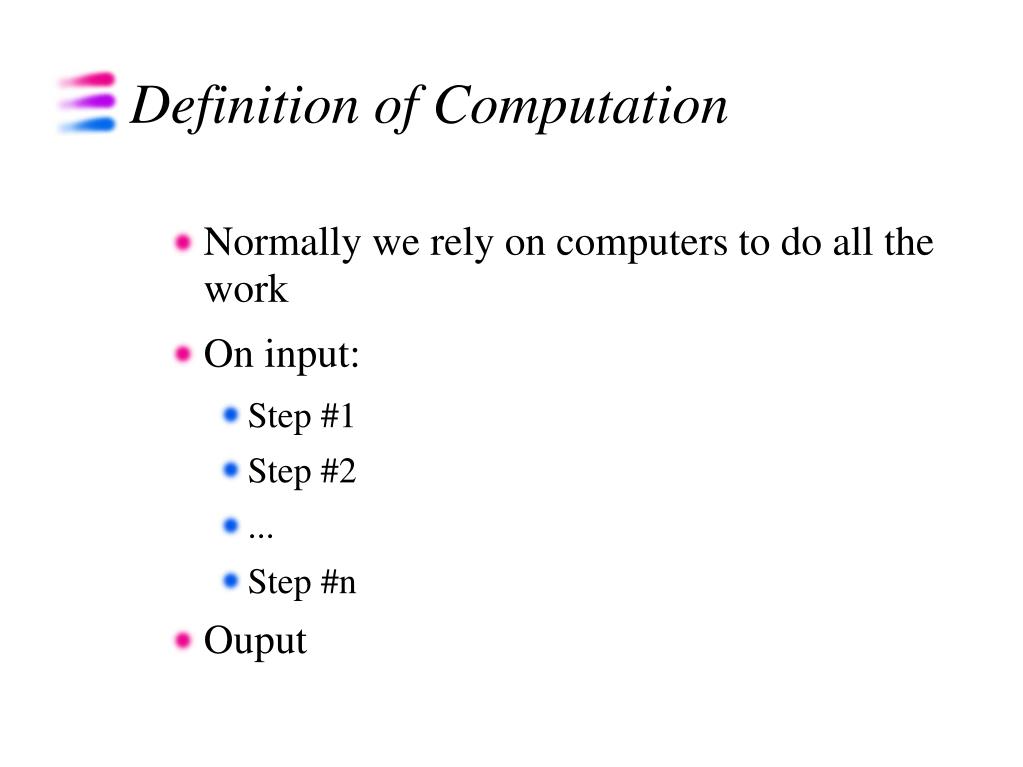

  3. Definition of Computation • Normally we rely on computers to do all the work • On input: • Step #1 • Step #2 • ... • Step #n • Ouput

  4. Definition of Human Computation • Some or all steps are solved by human(s)‏ • On input: • Step #1 • Step #2 (ask a human)‏ • Step #3 (ask a human)‏ • ... • Step #n • Ouput

  5. History of Human Computation • 1980's: Interactive Genetic Algorithms • 2000's: Human-Based Genetic Algorithms • 2000's: Outsourced Human Spam • 2000's: Interactive Guessing Games

  6. Quicksort Example • Bad Example: Quicksort • Input: Unsorted array • Select a pivot (human selection)‏ • Swap last element with pivot element • Partition array using pivot element • Insert pivot element into correct position • Repeat above steps for left/right side partitions • Output: Sorted array

  7. Quicksort Problems • Solved faster by computer alone • Not rewarding • Boring • Painful

  8. Photomosaic Example • Photomosaic Algorithm • Can be solved by computer alone. • On input “image gallery,” “source image”1.) Tile source image.2.) From left-to-right, top-to-bottom, compare each image in the image gallery to each tile in the source image, inserting the gallery image with the lowest error.3.) Output photomosaic.

  9. Photomosaic Problems • Noticable visual artifacts • Could use a randomized algorithm instead • Can we do better using Human Computation? • Of course!

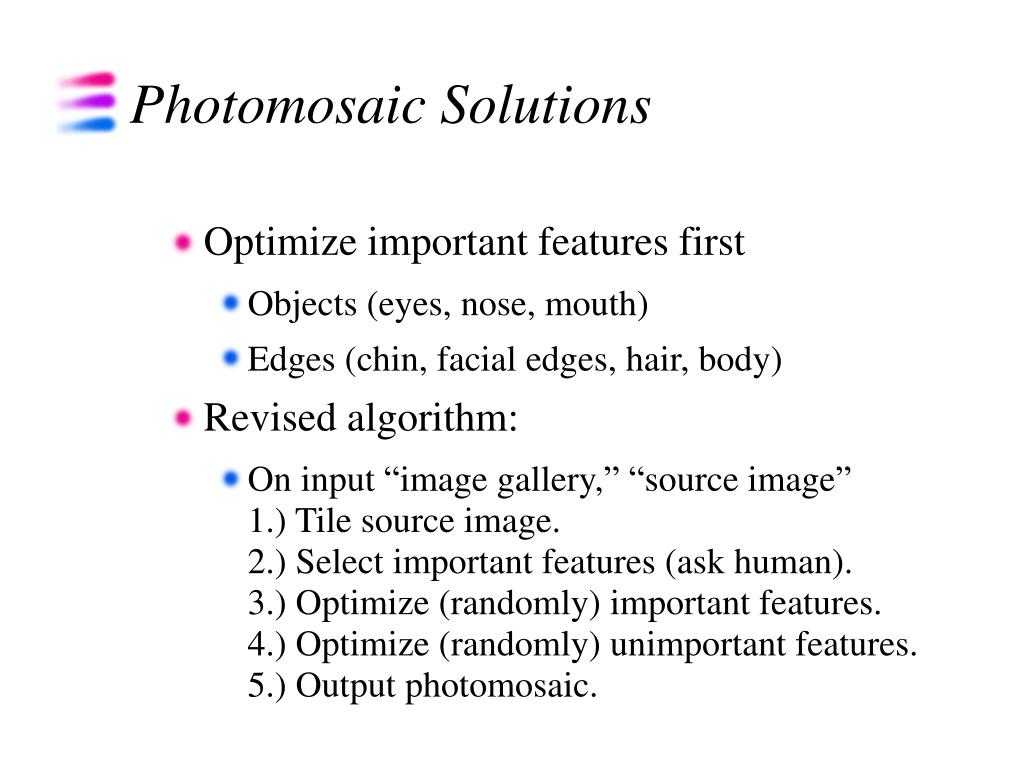

  10. Photomosaic Solutions • Optimize important features first • Objects (eyes, nose, mouth)‏ • Edges (chin, facial edges, hair, body)‏ • Revised algorithm: • On input “image gallery,” “source image”1.) Tile source image.2.) Select important features (ask human).3.) Optimize (randomly) important features.4.) Optimize (randomly) unimportant features.5.) Output photomosaic.

  11. When to Use • When the problem: • is hard for a computer, but easy for a human • can be done better by a human • needs a human-like (artistic/creative) solution • is not boring to a human (music, art, games)‏ • is rewarding (financially or emotionally)‏ • is one and done

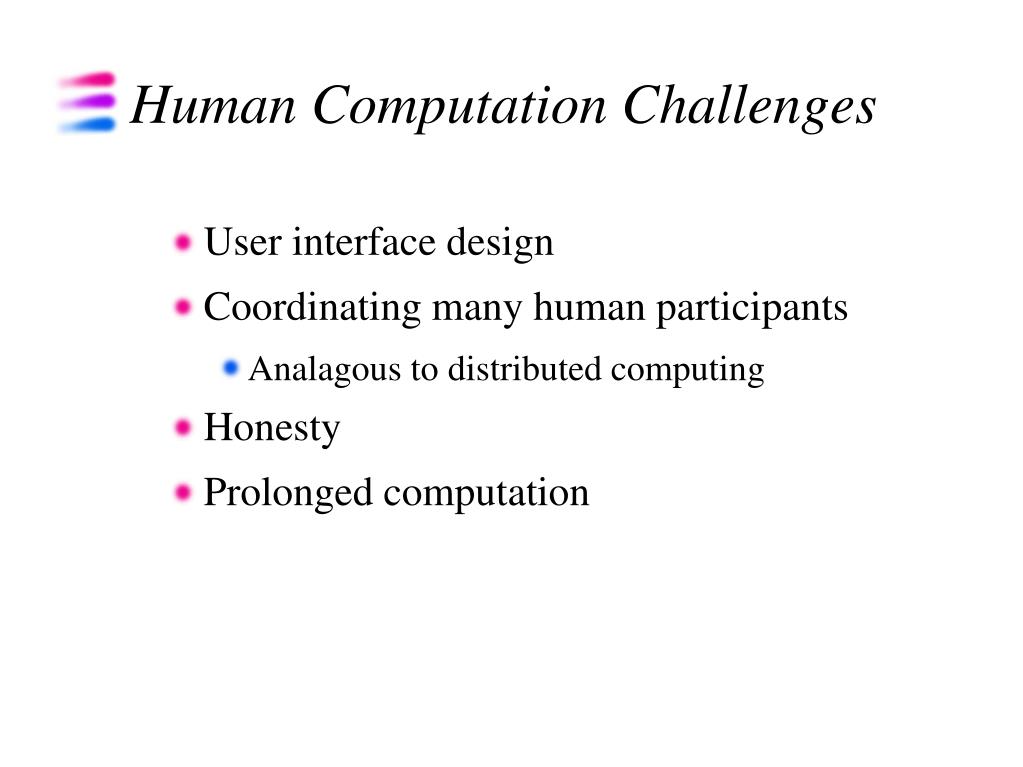

  12. Human Computation Challenges • User interface design • Coordinating many human participants • Analagous to distributed computing • Honesty • Prolonged computation

  13. reCAPTCHA Example • Used to digitize old books (make e-books)‏ • OCR normally works 99% of the time • OCR accuracy drops for older books • Old paper • Old printing techniques • Solution: Ask humans to determine words OCR fails to classify • When enough humans agree, consider it solved

  14. reCAPTCHA Example

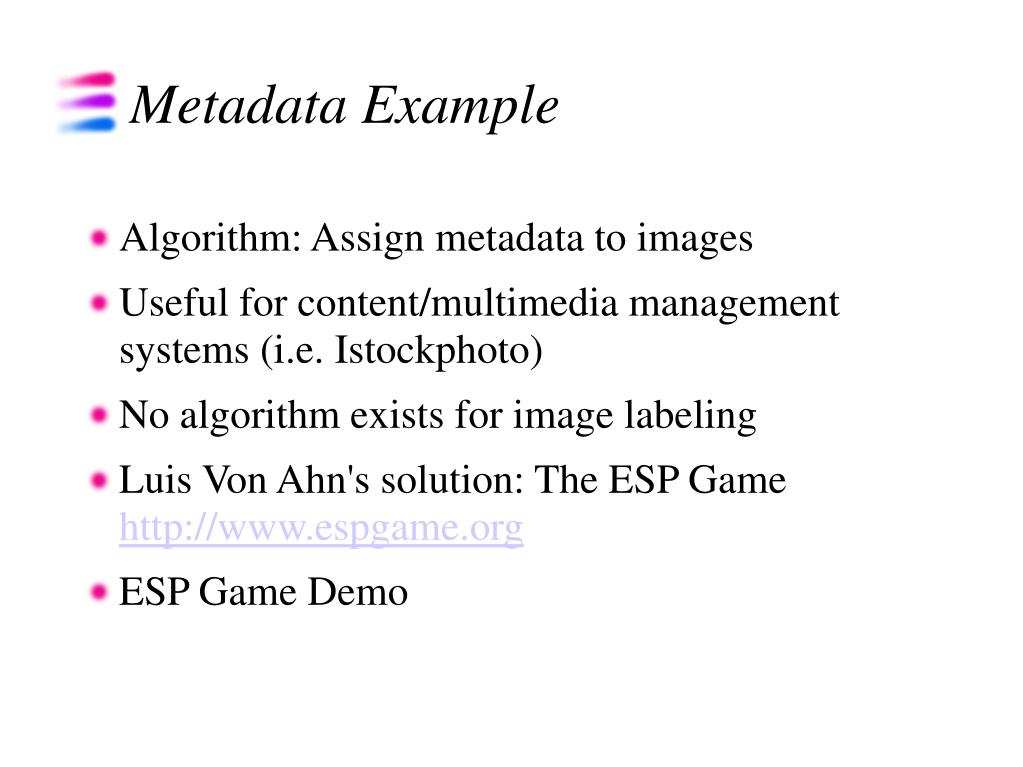

  15. Metadata Example • Algorithm: Assign metadata to images • Useful for content/multimedia management systems (i.e. Istockphoto)‏ • No algorithm exists for image labeling • Luis Von Ahn's solution: The ESP Gamehttp://www.espgame.org • ESP Game Demo

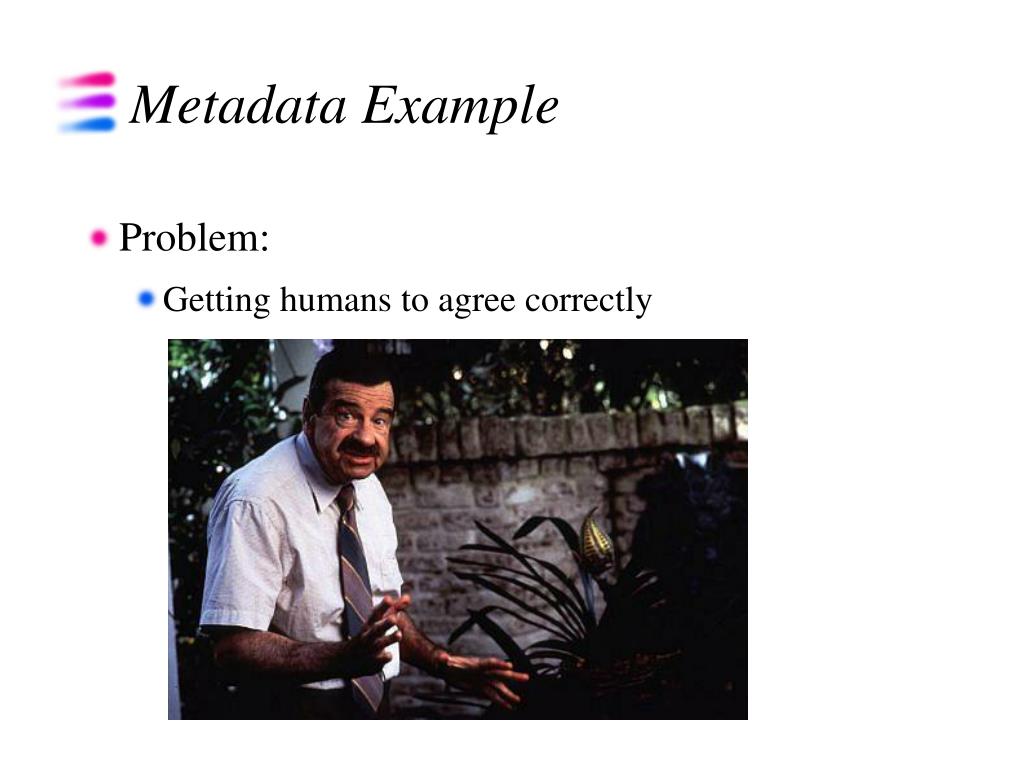

  16. Metadata Example • Problem: • Getting humans to agree correctly

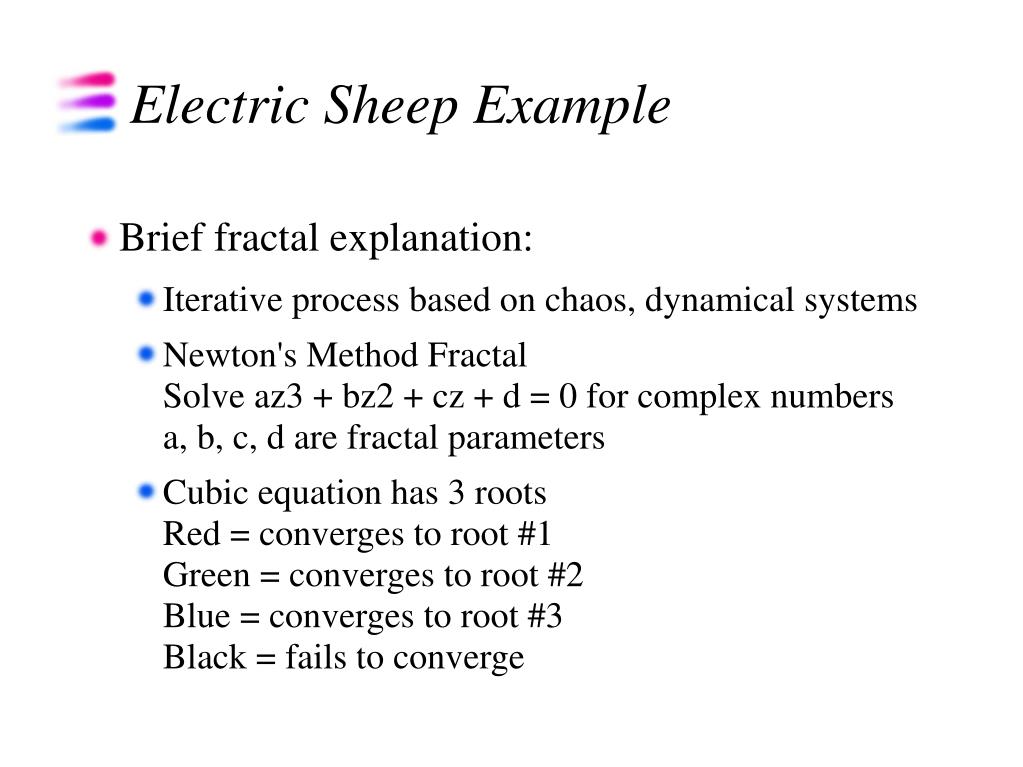

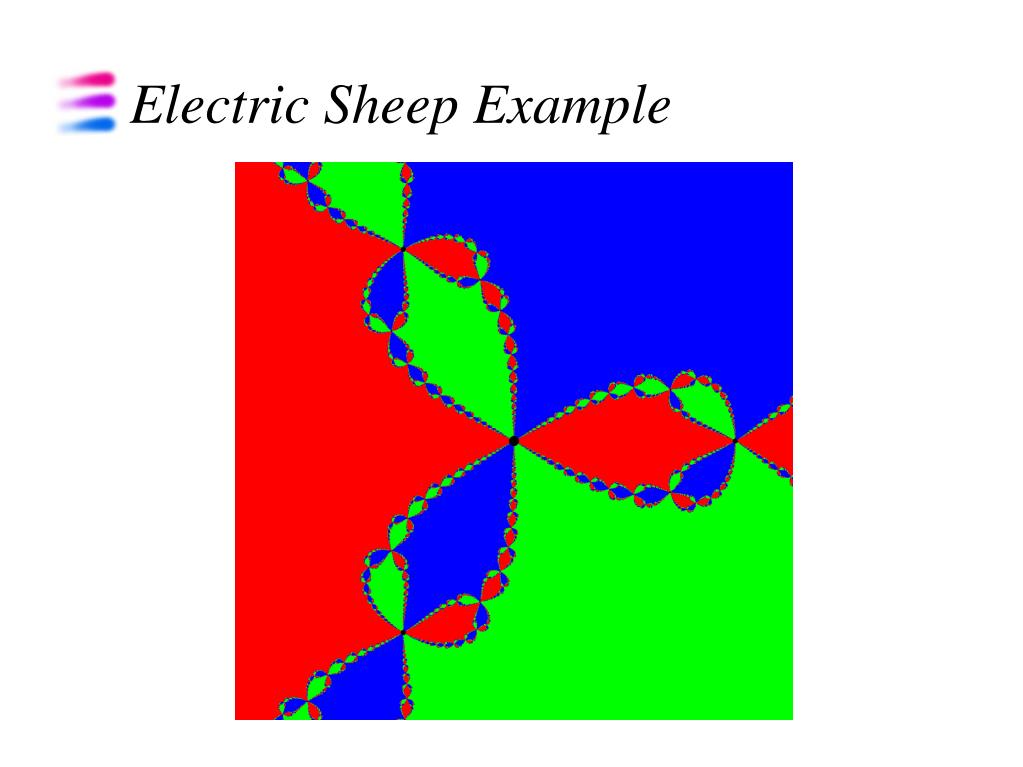

  17. Electric Sheep Example • Brief fractal explanation: • Iterative process based on chaos, dynamical systems • Newton's Method FractalSolve az3 + bz2 + cz + d = 0 for complex numbersa, b, c, d are fractal parameters • Cubic equation has 3 rootsRed = converges to root #1Green = converges to root #2Blue = converges to root #3Black = fails to converge

  18. Electric Sheep Example

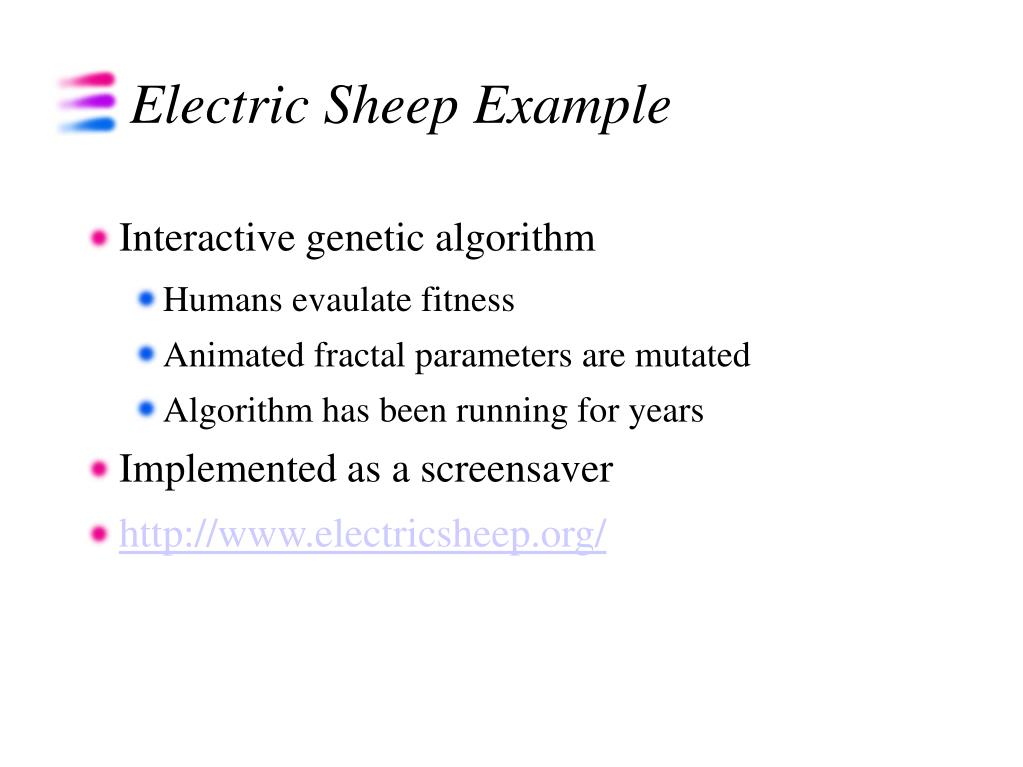

  19. Electric Sheep Example • Interactive genetic algorithm • Humans evaulate fitness • Animated fractal parameters are mutated • Algorithm has been running for years • Implemented as a screensaver • http://www.electricsheep.org/

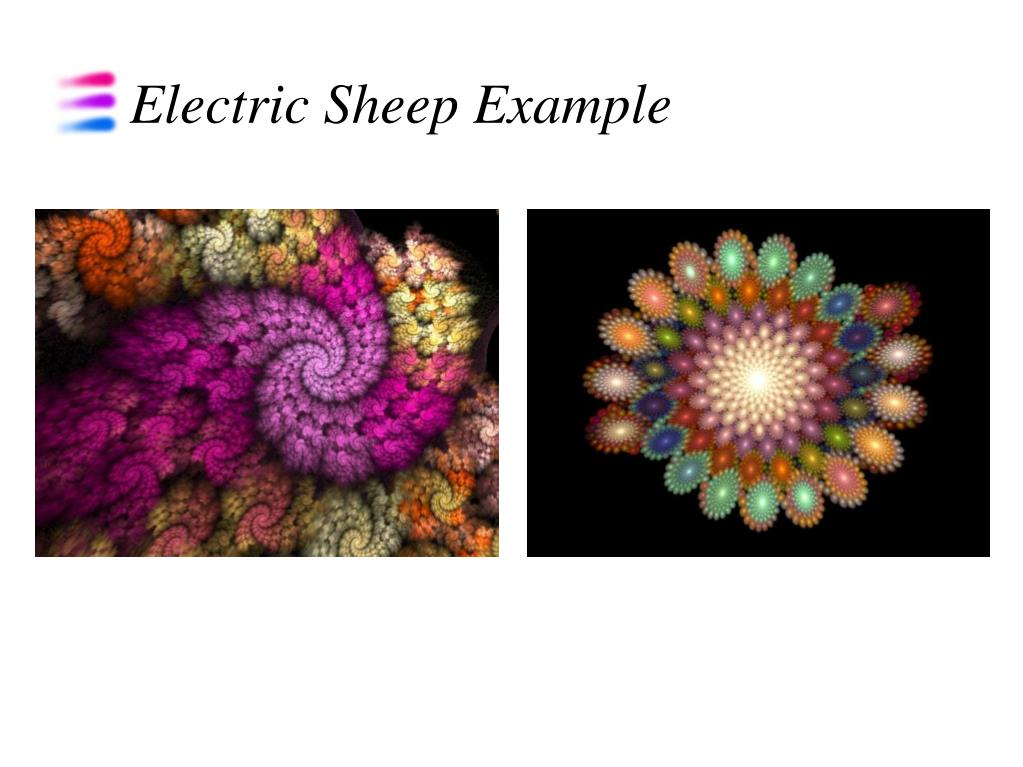

  20. Electric Sheep Example

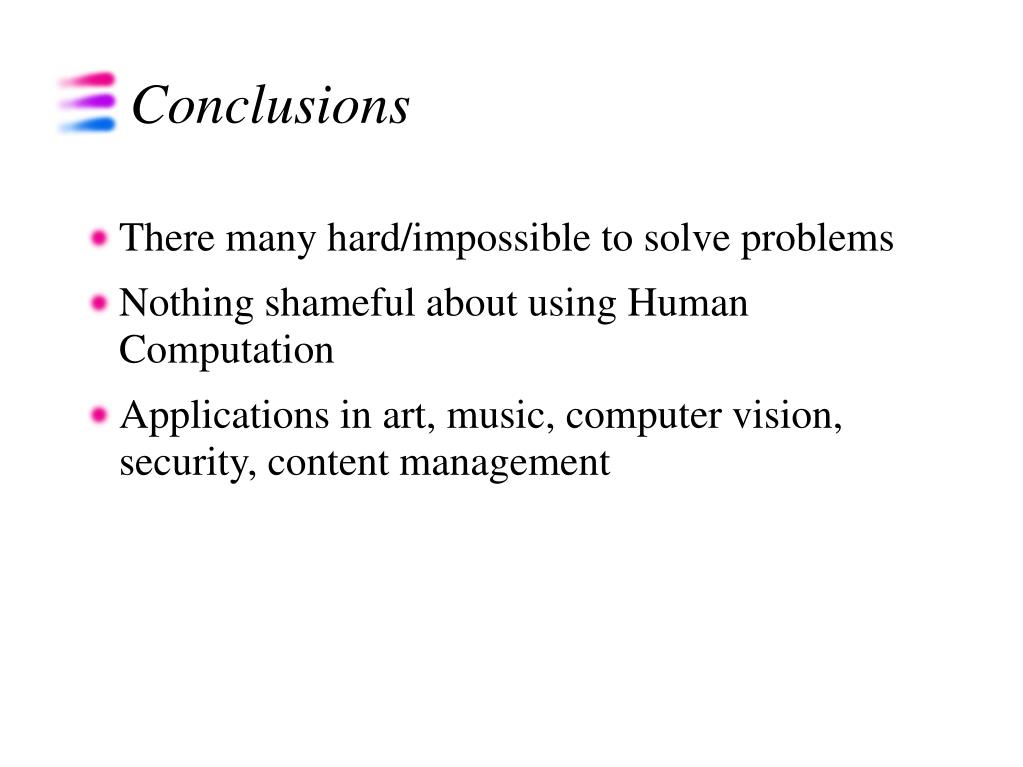

  21. Conclusions • There many hard/impossible to solve problems • Nothing shameful about using Human Computation • Applications in art, music, computer vision, security, content management

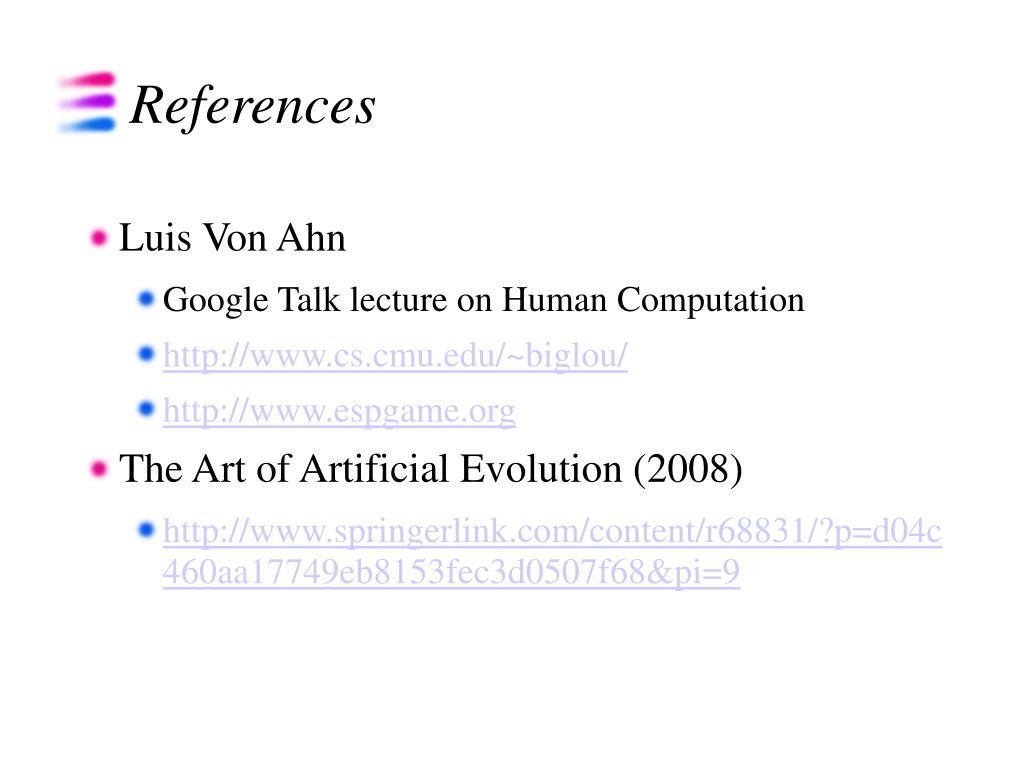

  22. References • Luis Von Ahn • Google Talk lecture on Human Computation • http://www.cs.cmu.edu/~biglou/ • http://www.espgame.org • The Art of Artificial Evolution (2008)‏ • http://www.springerlink.com/content/r68831/?p=d04c460aa17749eb8153fec3d0507f68&pi=9
