Cloning Genes

Cloning Genes. Gene cloning: amplifying a specific piece of DNA via a bacteria cell Cloning vector: a replicating DNA molecule attached with a foreign DNA fragment to be introduced into a cell Has features that make it easier to insert DNA and select for presence of vector in cell.

albert
Télécharger la présentation

Cloning Genes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

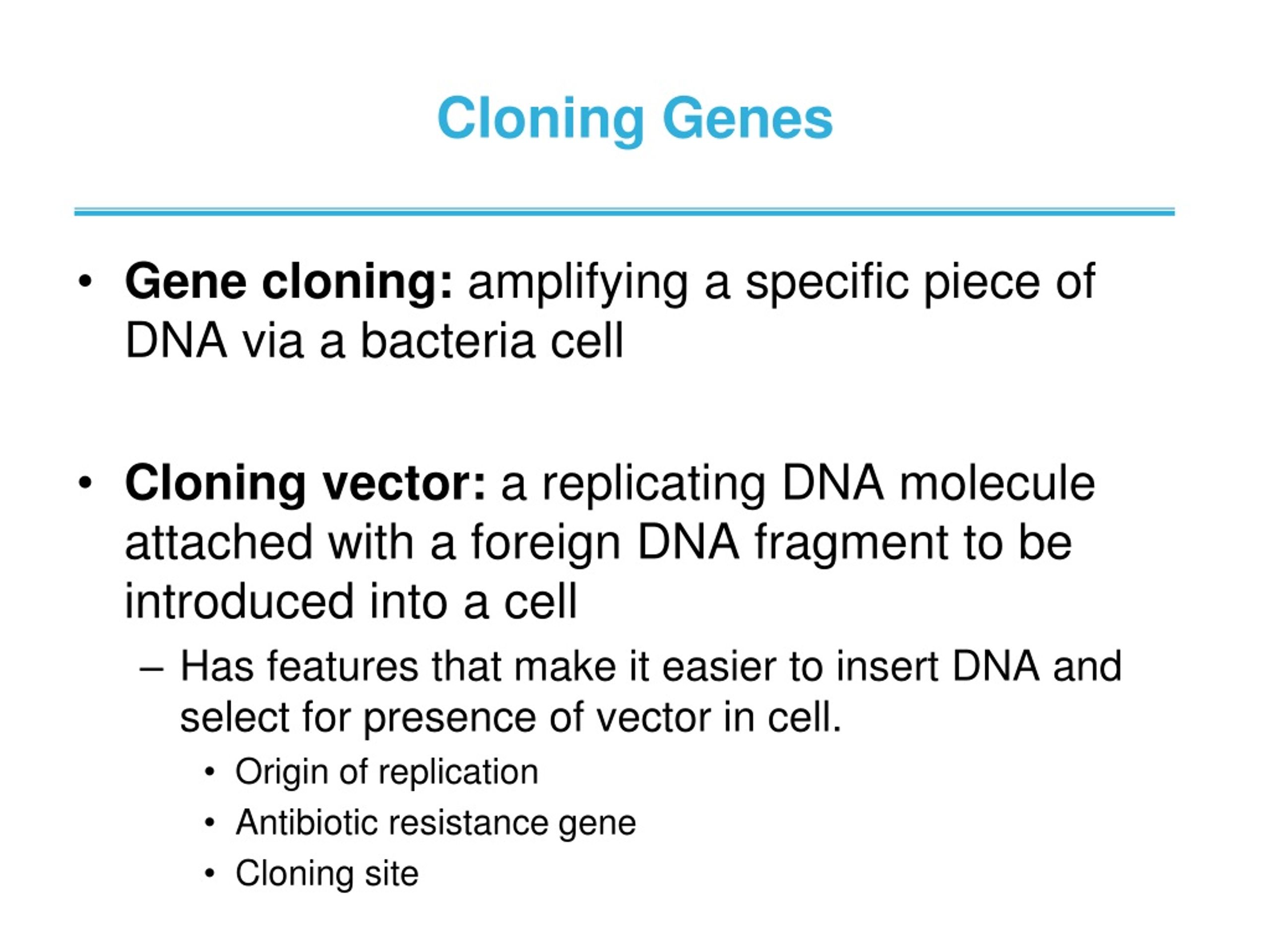

  1. Cloning Genes • Gene cloning: amplifying a specific piece of DNA via a bacteria cell • Cloning vector: a replicating DNA molecule attached with a foreign DNA fragment to be introduced into a cell • Has features that make it easier to insert DNA and select for presence of vector in cell. • Origin of replication • Antibiotic resistance gene • Cloning site

  2. Cloning Genes • Plasmid vectors • Linkers: synthetic DNA fragments containing restriction sites • Transformation of host cells with plasmids • Selectable markers are used to confirm whether the cells have been transformed or not.

  3. TA cloning of PCR product

  4. Bacterial transformation • Use modified strain of E. coli • Restriction system knocked out • Recombination system limited • LPS is truncated Pores are made in cell membrane by treatment with calcium chloride. Cells must be kept cold to prevent pores from closing

  5. Bacterial transformation • DNA added to cells forms intimate interaction with membrane • Briefly moved to 42° C to heat shock cells • Stresses them and causes them to take up DNA
