Triangle Sum Theorem

Triangle Sum Theorem. Draw a Triangle. Make sure your lines are dark!. Tear off two vertices…. Line up the 3 angles (all vertices touching). What do they make?. A straight line = 180°. Angle sum of a Triangle. 180 ° <1 + <2 + <3 = 180 °. 2. ALWAYS!!!. 1. 3. Consider a Quadrilateral.

alden-gallagher
Télécharger la présentation

Triangle Sum Theorem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

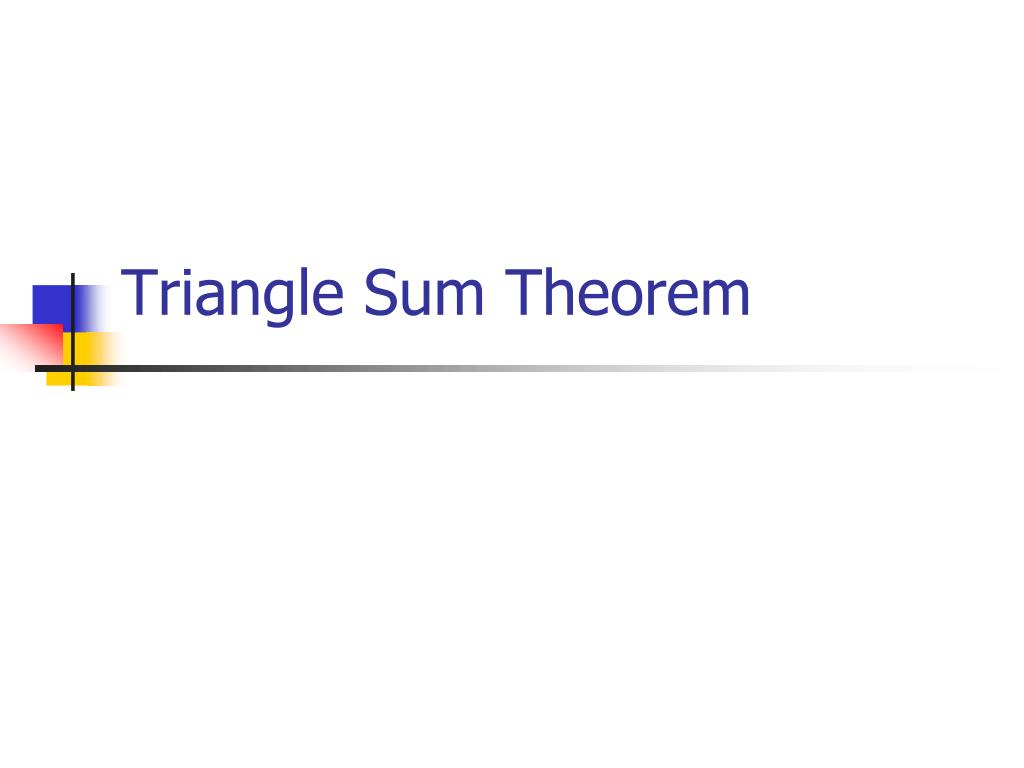

  1. Triangle Sum Theorem

  2. Draw a Triangle

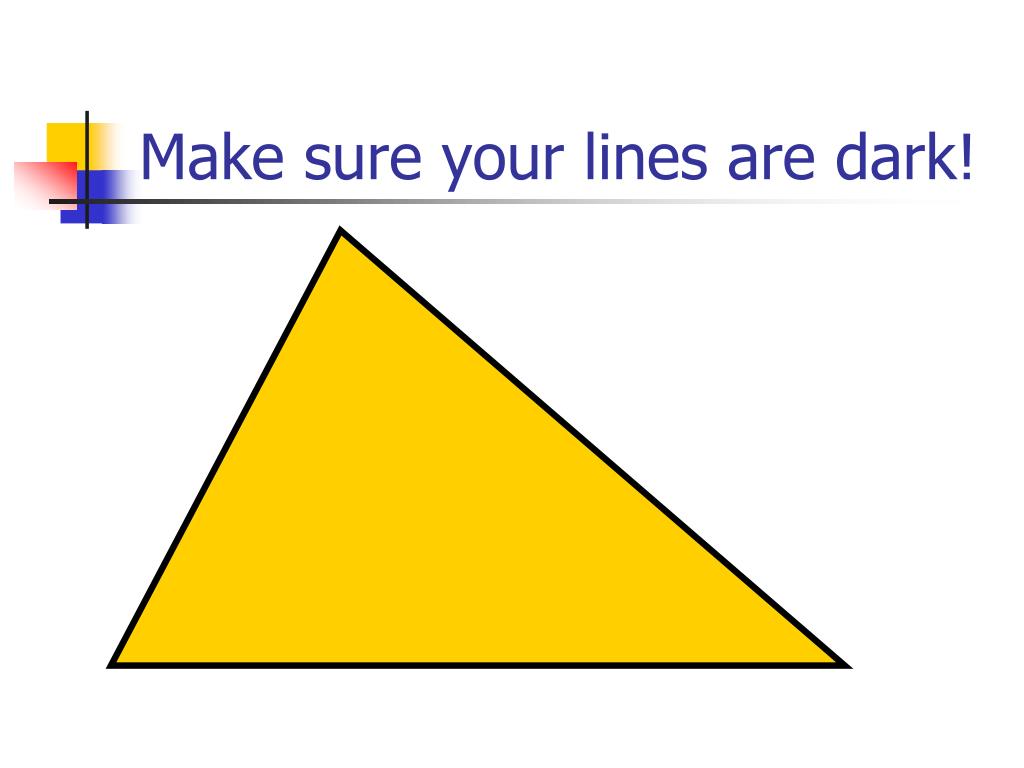

  3. Make sure your lines are dark!

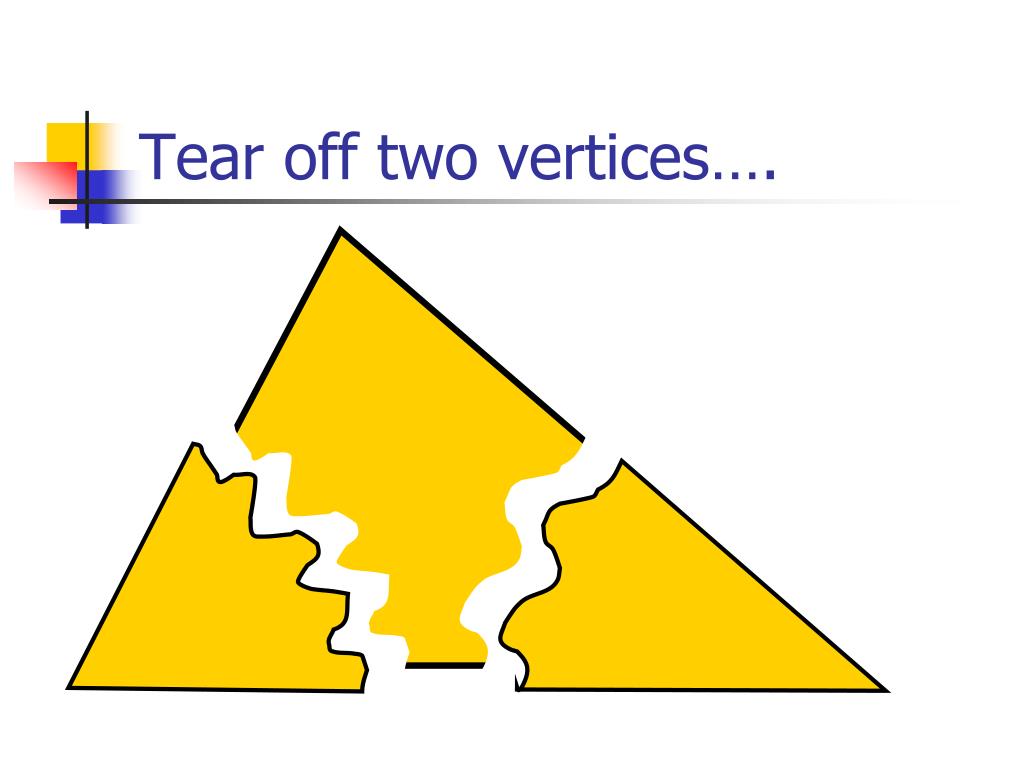

  4. Tear off two vertices….

  5. Line up the 3 angles (all vertices touching)

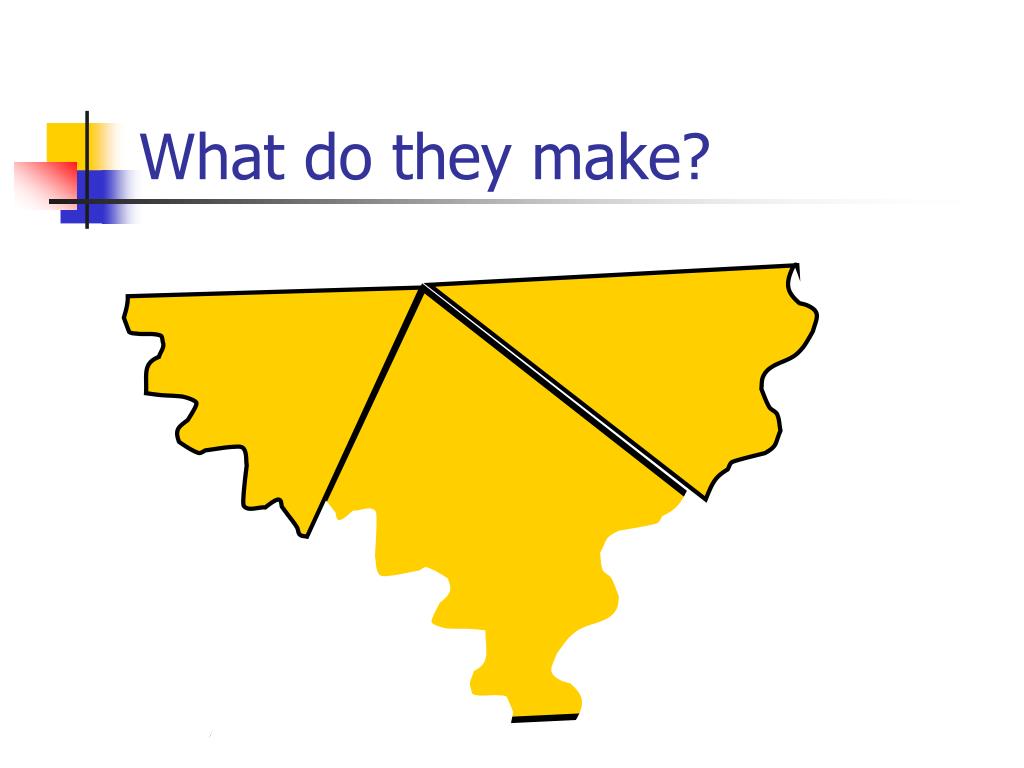

  6. What do they make?

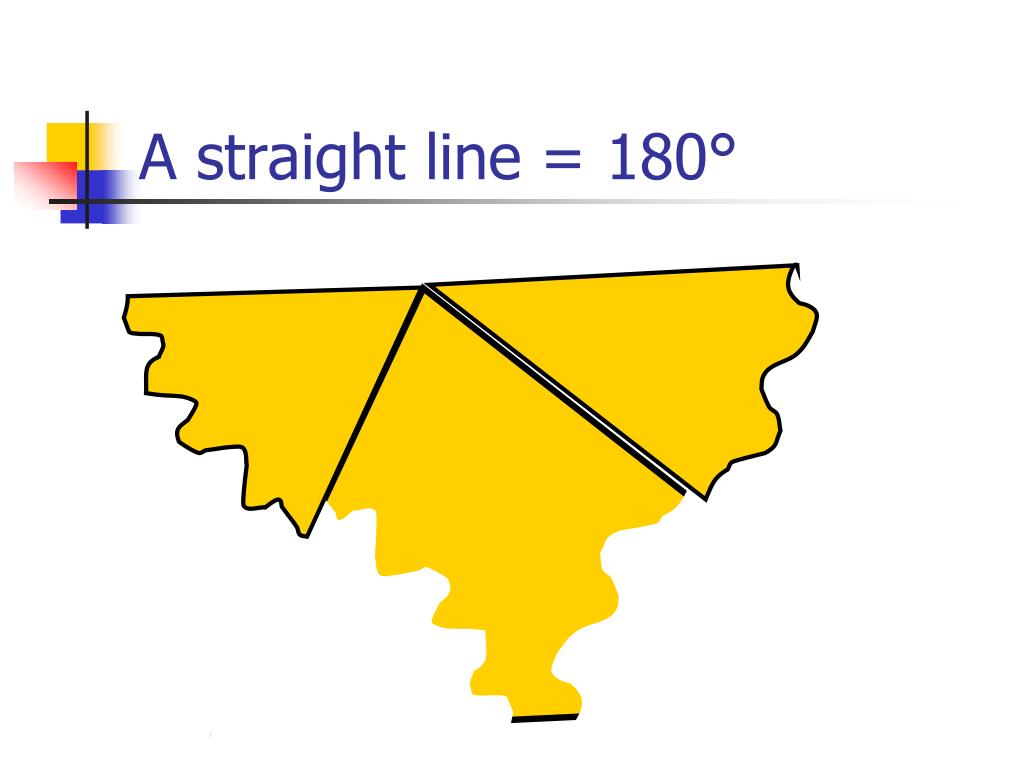

  7. A straight line = 180°

  8. Angle sum of a Triangle • 180° • <1 + <2 + <3 = 180° 2 ALWAYS!!! 1 3

  9. Consider a Quadrilateral • What is the angle sum? <1 + <2 + <3 + <4 = ?

  10. Quadrilateral • Draw a diagonal…what do you get? 2 3 5 1 4 Two triangles 6

  11. Quadrilateral • Each triangle = 180° 2 3 5 180° 180° 1 4 Therefore the two triangles together = 360° 6

  12. Angle sum of a Quadrilateral • 180° + 180° = 360°

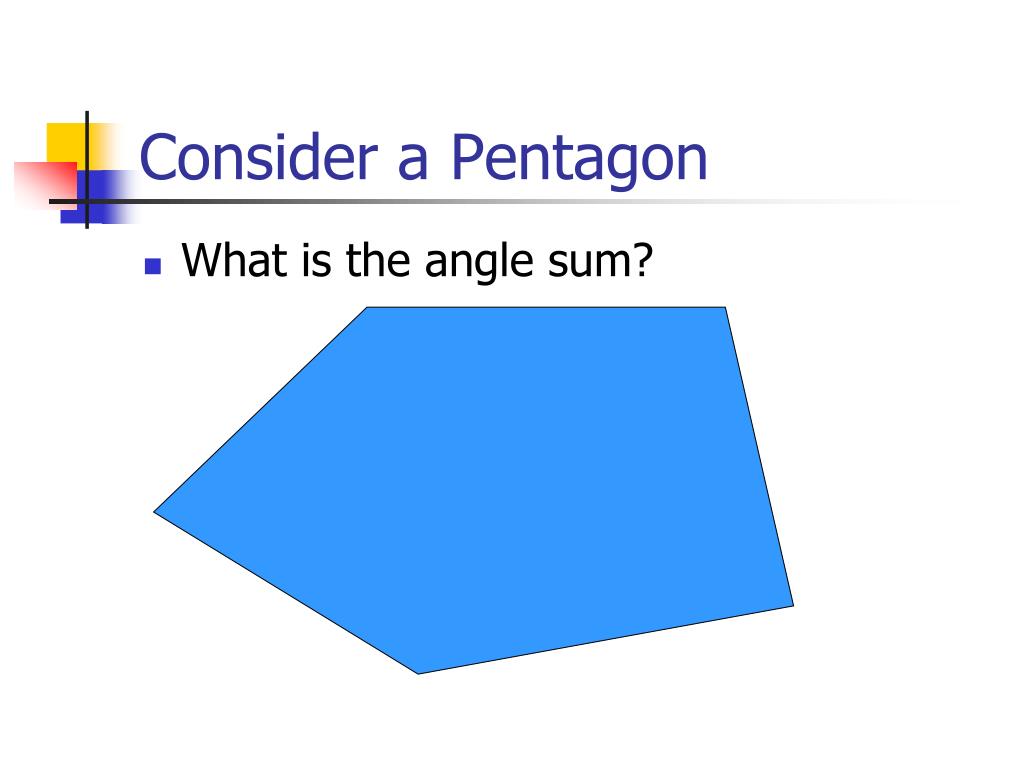

  13. Consider a Pentagon • What is the angle sum?

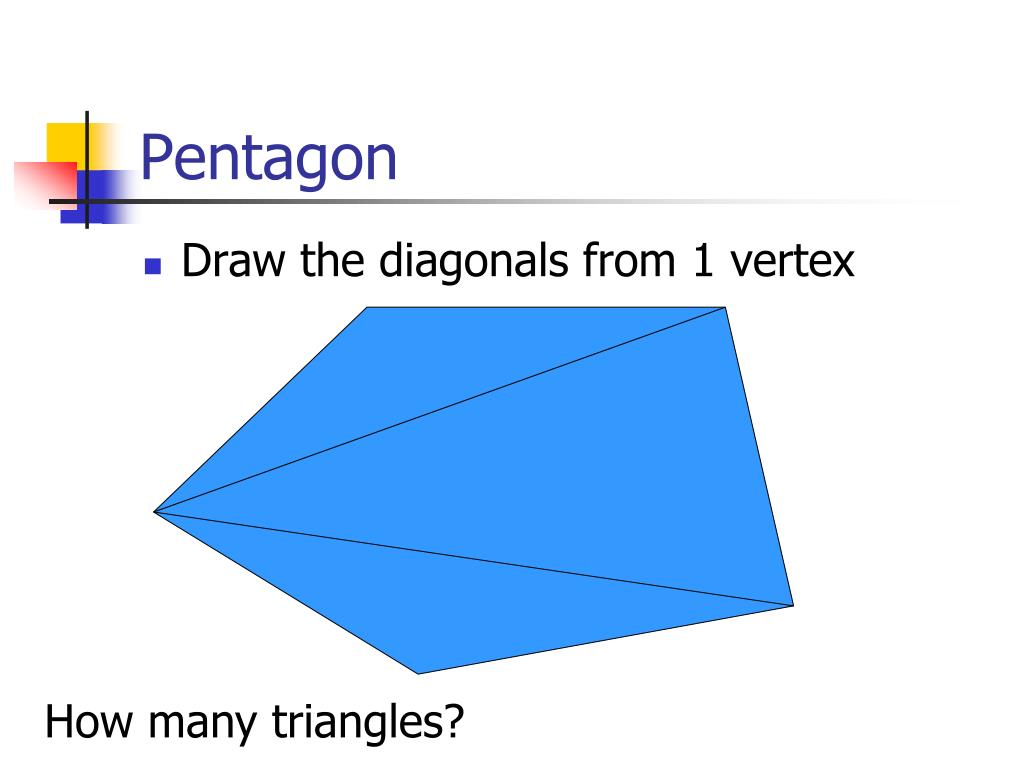

  14. Pentagon • Draw the diagonals from 1 vertex How many triangles?

  15. Angle sum of a Pentagon • Draw the diagonals from 1 vertex 180° 180° 180°

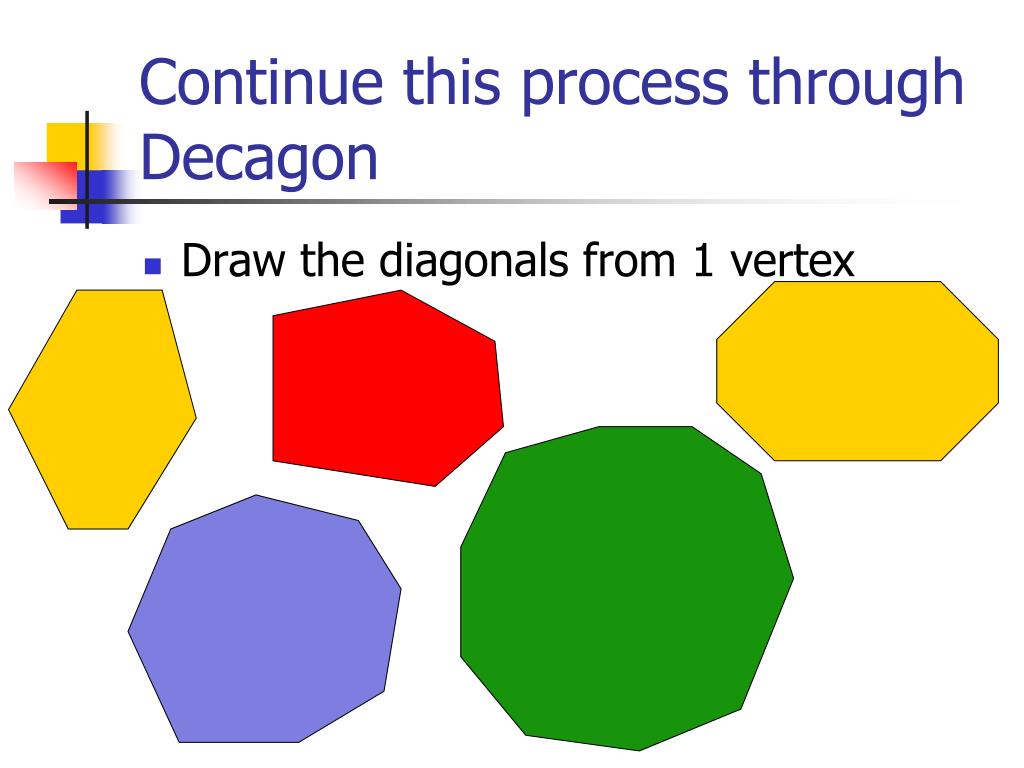

  16. Continue this process through Decagon • Draw the diagonals from 1 vertex

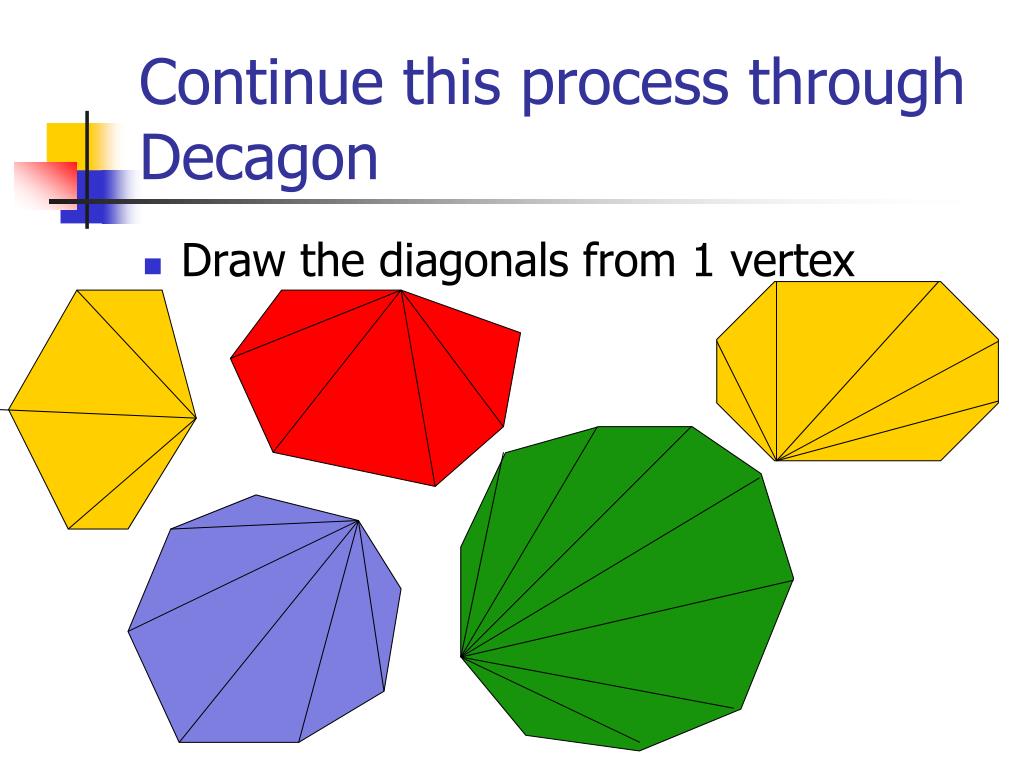

  17. Continue this process through Decagon • Draw the diagonals from 1 vertex

  18. What about a 52-gon? • What is the angle sum? Sorry I can’t draw it. • Can you find the pattern?

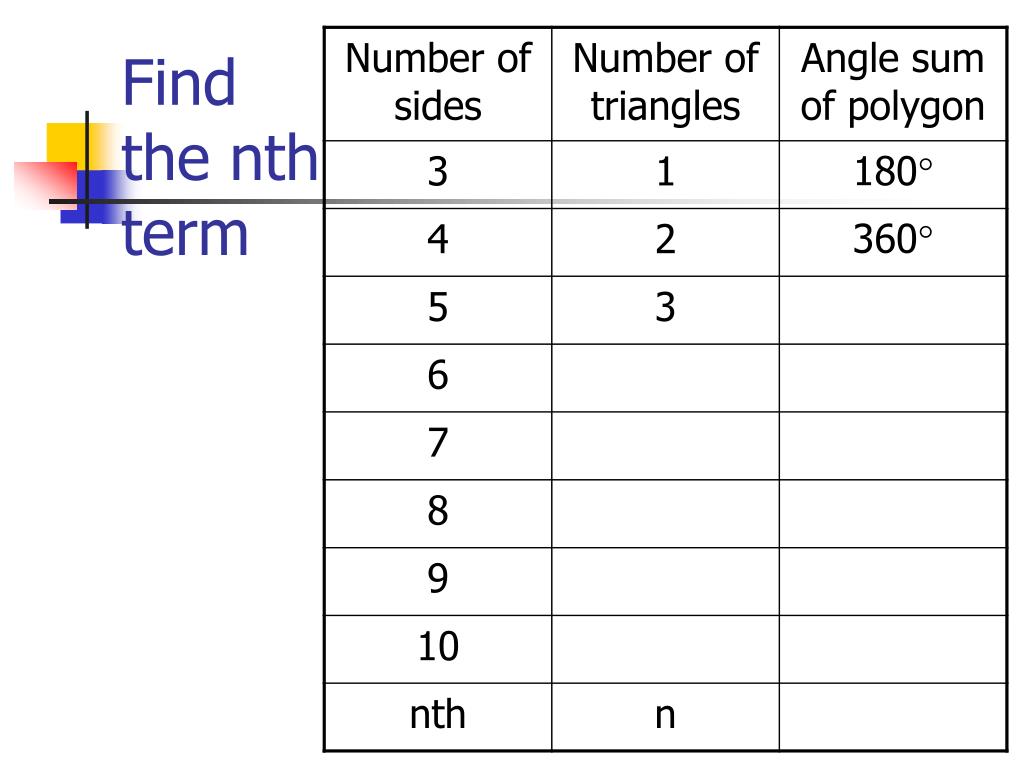

  19. Find the nth term

  20. Exterior angle sum • Now that you can find the angle sum of a polygon, what about the exterior angle sum? 35° 80° 65°

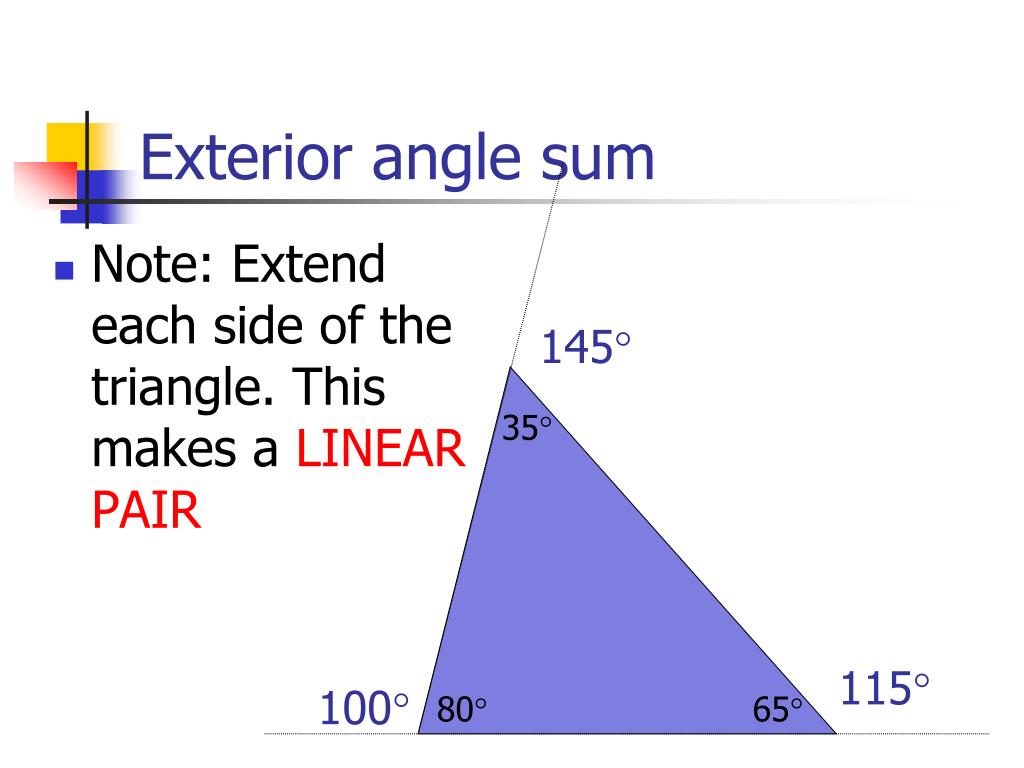

  21. Exterior angle sum • Note: Extend each side of the triangle. This makes a LINEAR PAIR 145° 35° 115° 100° 80° 65°

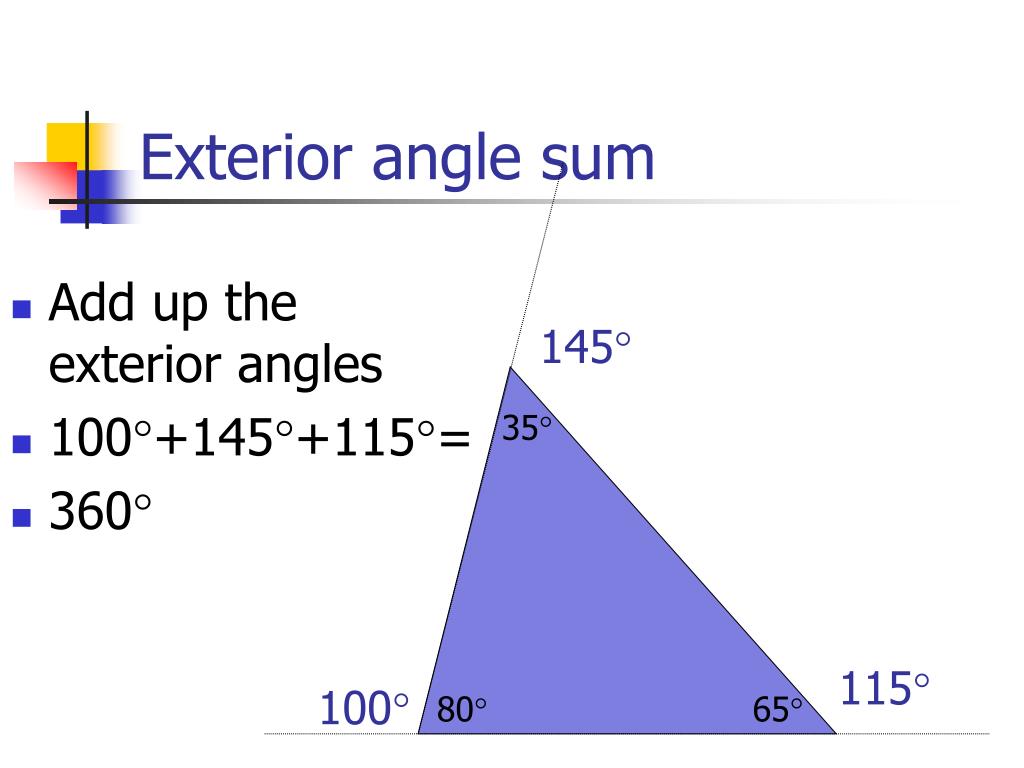

  22. Exterior angle sum • Add up the exterior angles • 100°+145°+115°= • 360° 145° 35° 115° 100° 80° 65°

  23. Quadrilateral • 100°+80°+55°+125° = 360° 125° 100° 80° 55° 55° 100° 125° 80°

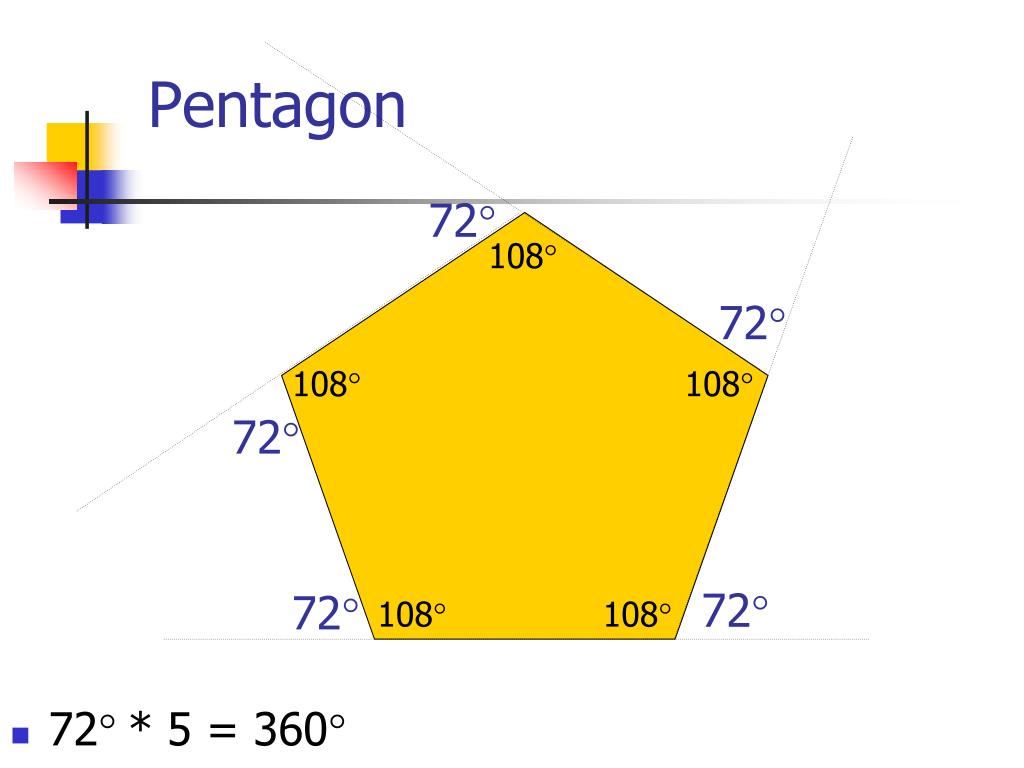

  24. Pentagon 72° • 72° * 5 = 360° 108° 72° 108° 108° 72° 72° 72° 108° 108°

  25. What conclusion can you come up with regarding the exterior angle sum of a CONVEX polygon??

  26. The exterior angle sum of a CONVEX polygon = 360°

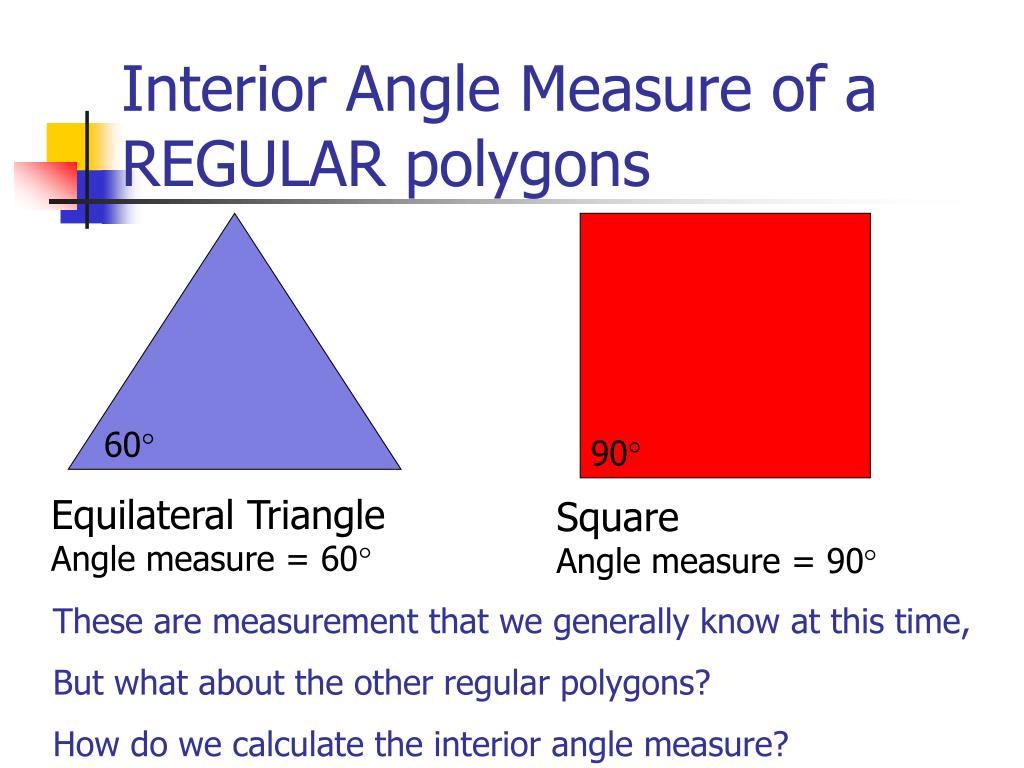

  27. Interior Angle Measure of a REGULAR polygons 60° 90° Equilateral Triangle Angle measure = 60° Square Angle measure = 90° These are measurement that we generally know at this time, But what about the other regular polygons? How do we calculate the interior angle measure?

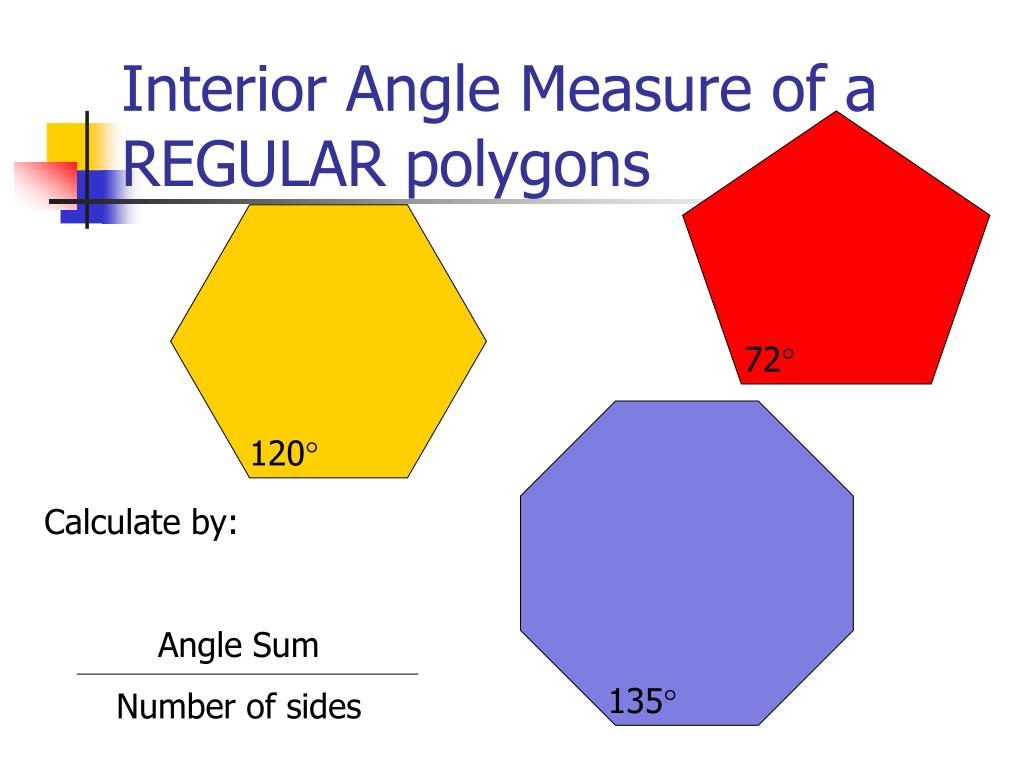

  28. Interior Angle Measure of a REGULAR polygons 72° 120° Calculate by: Angle Sum Number of sides 135°
