  1. Area of a regular polygon 11-4

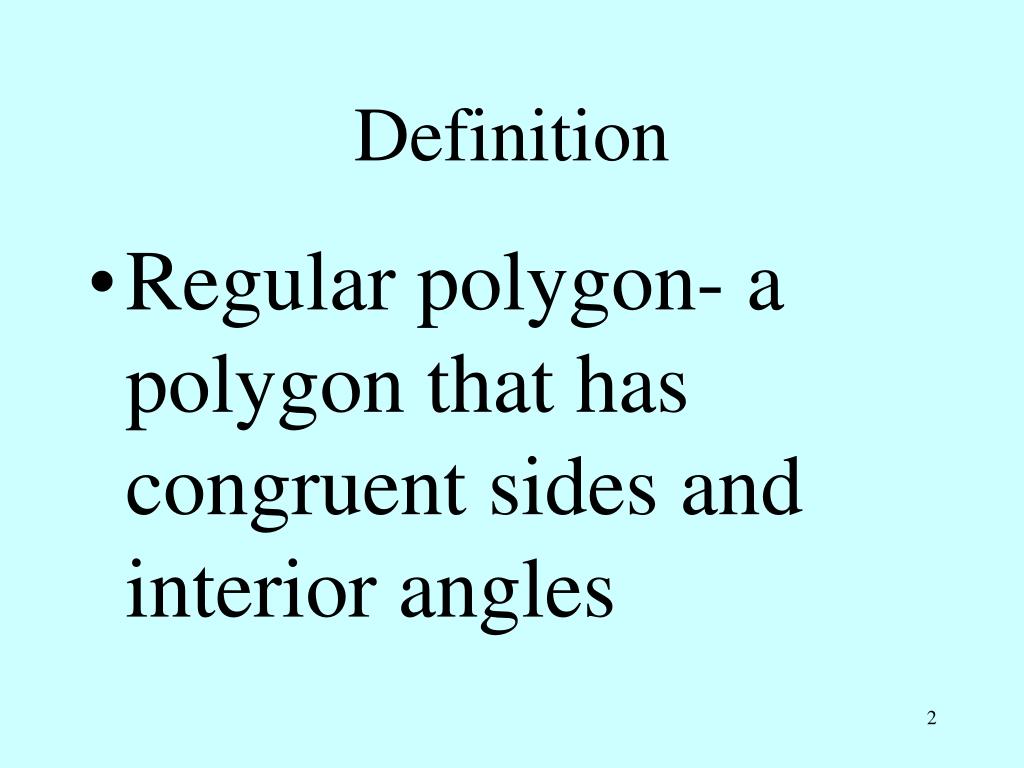

  2. Definition • Regular polygon- a polygon that has congruent sides and interior angles

  3. Center of a regular polygon • The center of the circle that can be circumscribed about the polygon.

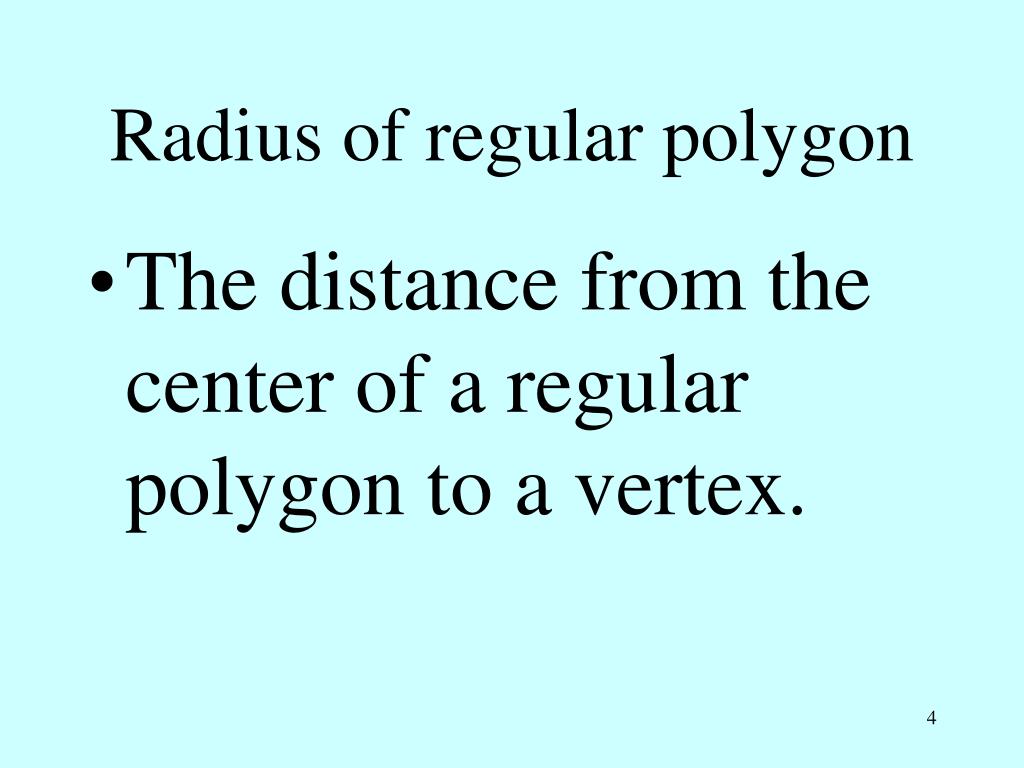

  4. Radius of regular polygon • The distance from the center of a regular polygon to a vertex.

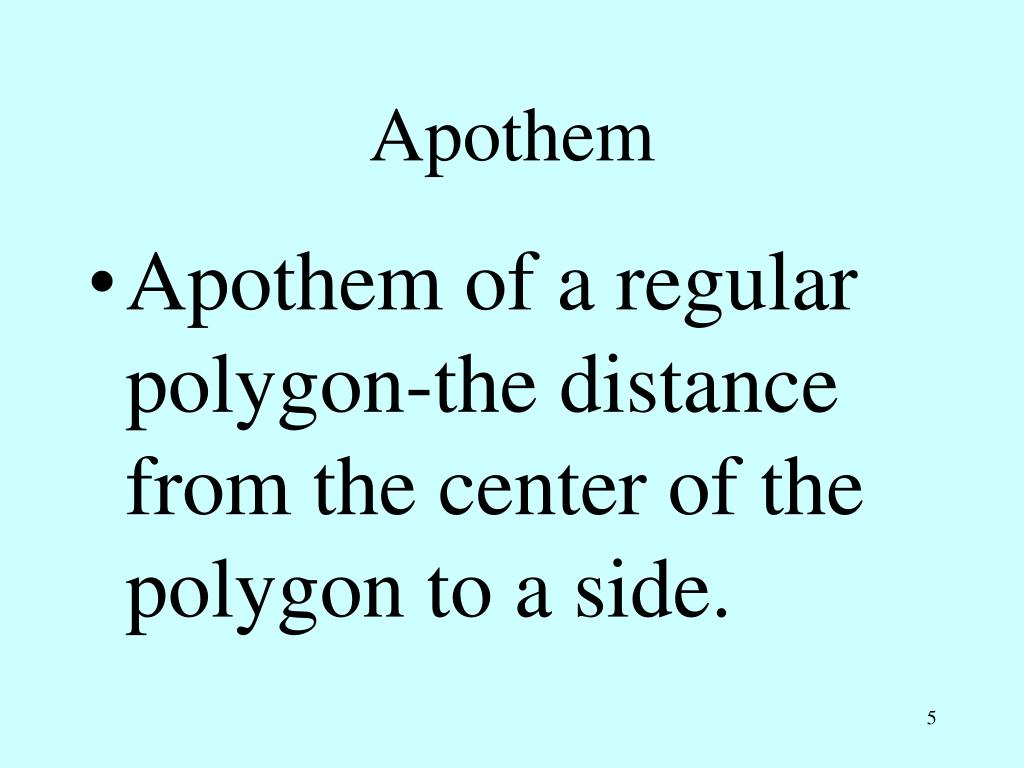

  5. Apothem • Apothem of a regular polygon-the distance from the center of the polygon to a side.

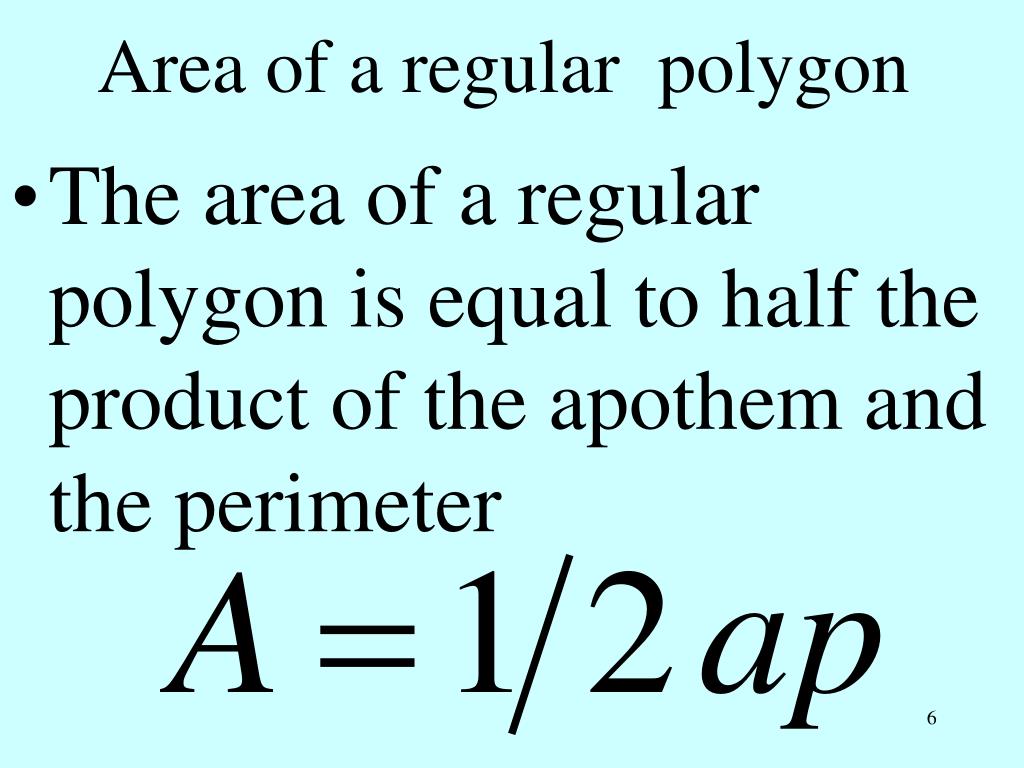

  6. Area of a regular polygon • The area of a regular polygon is equal to half the product of the apothem and the perimeter

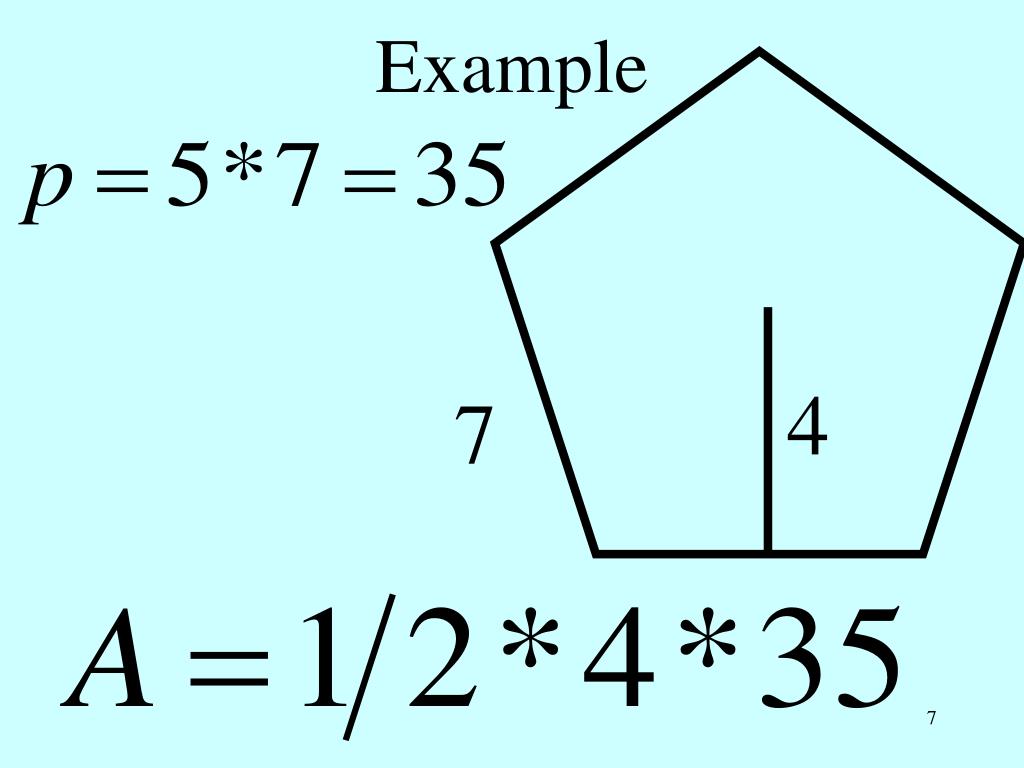

  7. Example 4 7

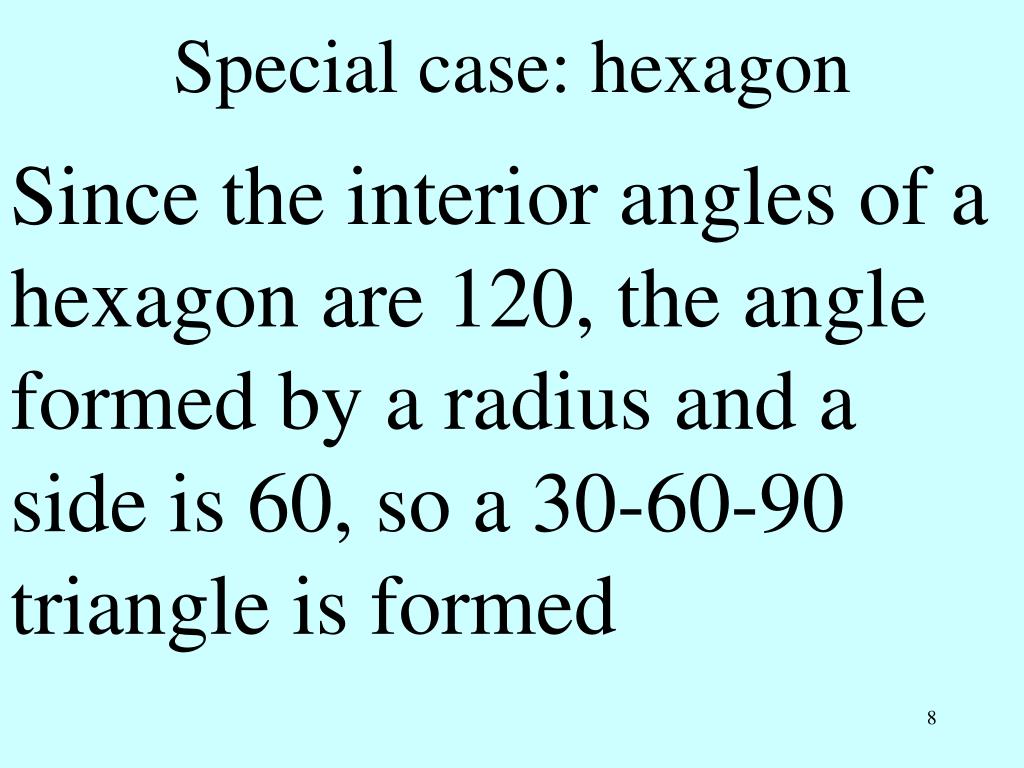

  8. Special case: hexagon Since the interior angles of a hexagon are 120, the angle formed by a radius and a side is 60, so a 30-60-90 triangle is formed

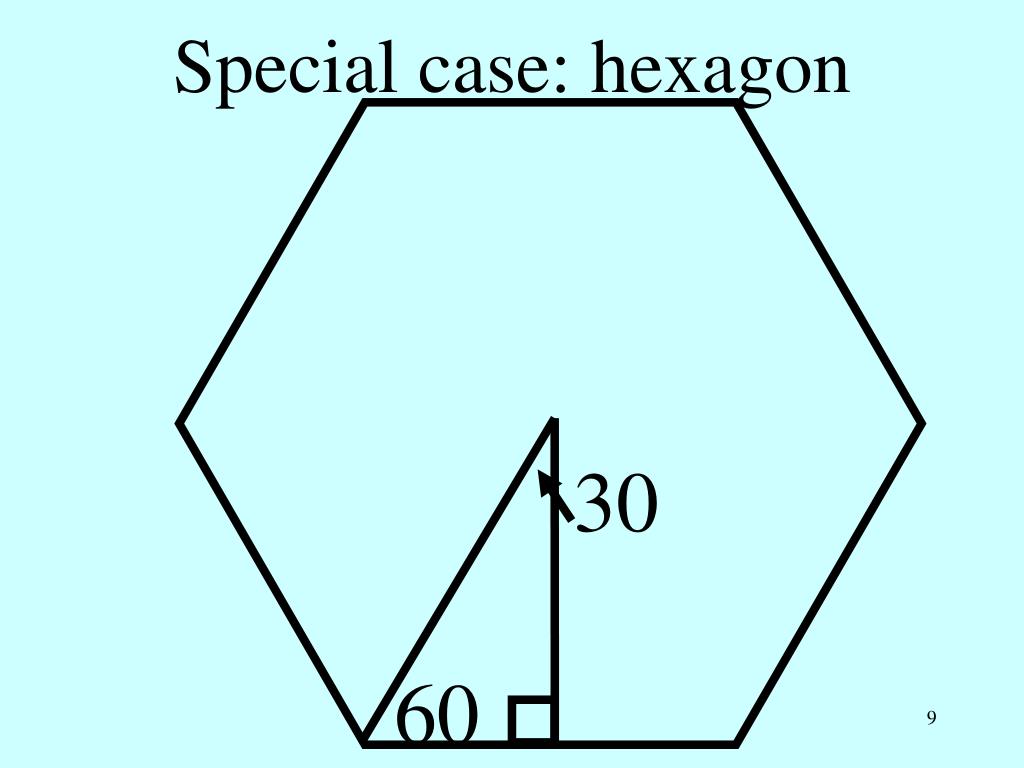

  9. Special case: hexagon 30 60

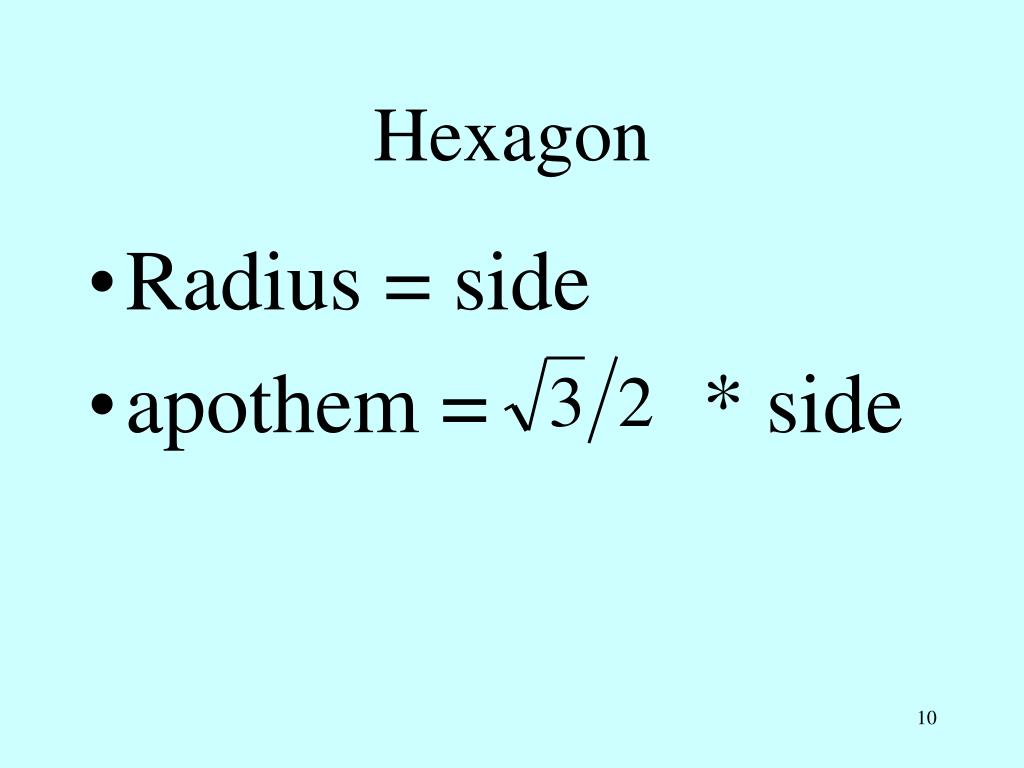

  10. Hexagon • Radius = side • apothem = * side

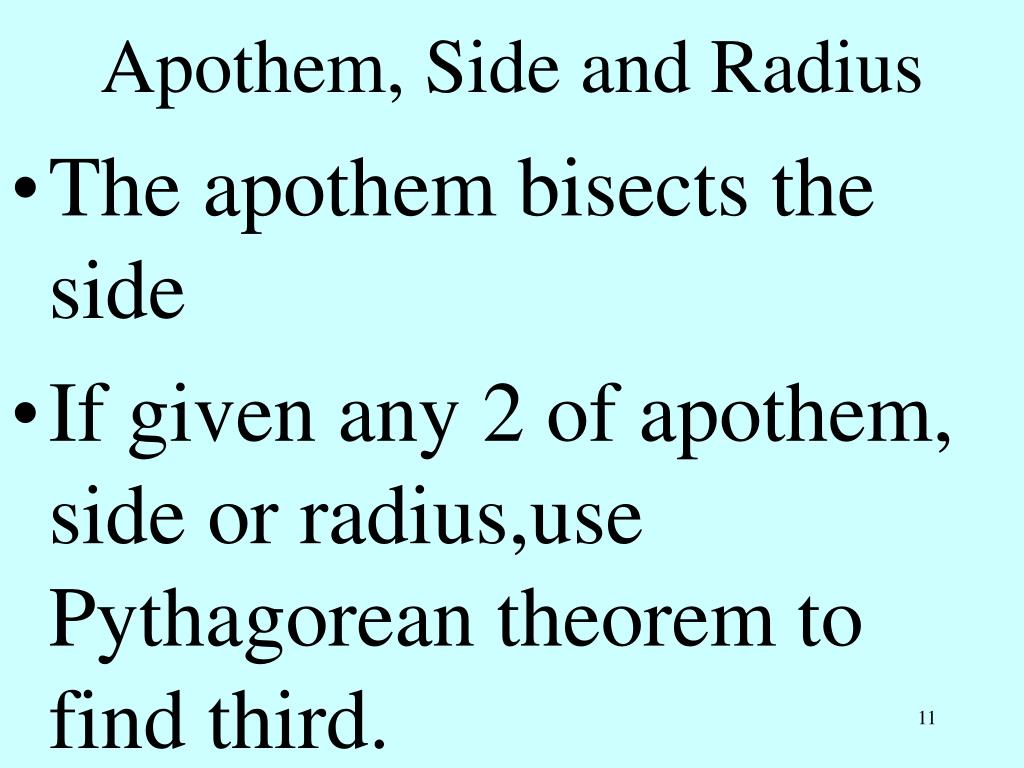

  11. Apothem, Side and Radius • The apothem bisects the side • If given any 2 of apothem, side or radius,use Pythagorean theorem to find third.

  12. Example 13 10

  13. Example cont..
