  1. Hardware Integration of the Prototype Wes Grammer NRAO EOVSA Prototype Review

  2. Outline • Hardware integration flow chart • Integration steps and associated tests • Proposed schedule EOVSA Prototype Review

  3. Hardware Integration Flowchart EOVSA Prototype Review

  4. Timing Subsystem Integration • Install modules in Timing/LO rack, cables per subsystem diagram • Power up and initialize PRD-16 via RS-232 port (script file on ACC, or standalone Labview GUI) • Power up TGD module: • Check 10 MHz output ports w/spectrum analyzer • Check 50 Hz and 1PPS outputs with digital oscope • Measure 1PPS optical power at patch panel (16) • At cRIO in antenna servo cabinet: • Measure 1PPS pulse output width and amplitude • Measure pulse latency at each antenna (necessary?) EOVSA Prototype Review

  5. LO Subsystem Integration(1 of 2) • Install modules in Timing/LO rack, all cables per subsystem diagram • LO1-A synthesizer tests: • Verify basic monitor and control interface functions, using spectrum analyzer. • Test list tuning mode with spectrum analyzer or counter at lower switching rate. • Verify frequency switching and output power settling at 50 Hz rate (how to do this?) EOVSA Prototype Review

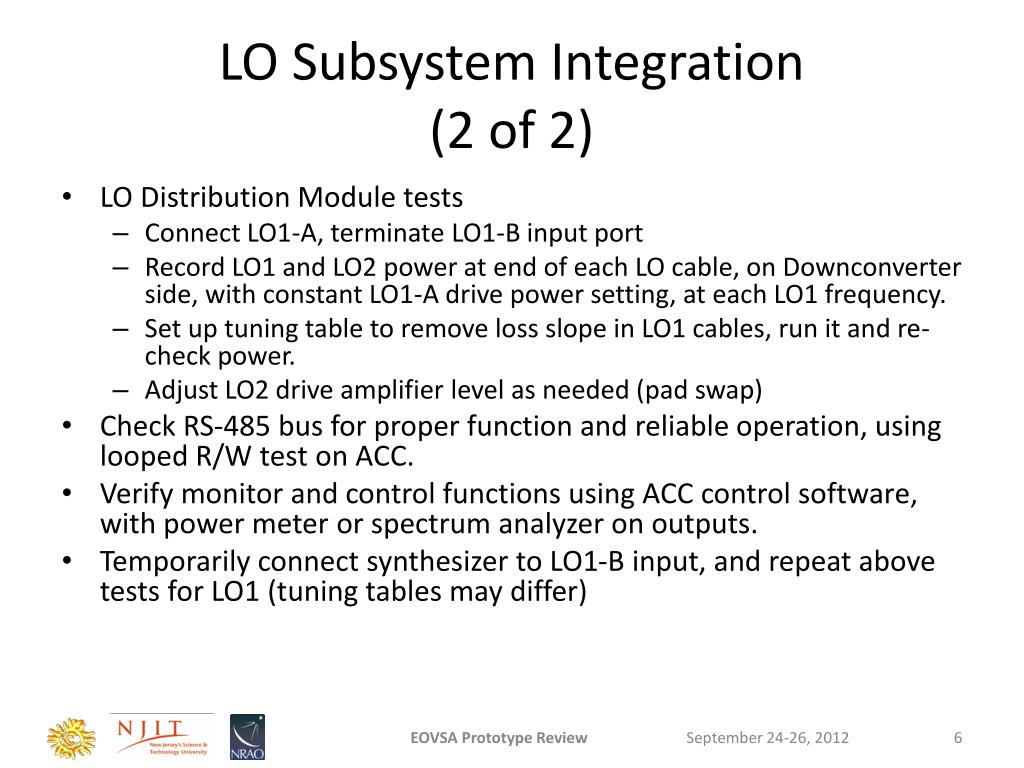

  6. LO Subsystem Integration(2 of 2) • LO Distribution Module tests • Connect LO1-A, terminate LO1-B input port • Record LO1 and LO2 power at end of each LO cable, on Downconverter side, with constant LO1-A drive power setting, at each LO1 frequency. • Set up tuning table to remove loss slope in LO1 cables, run it and re-check power. • Adjust LO2 drive amplifier level as needed (pad swap) • Check RS-485 bus for proper function and reliable operation, using looped R/W test on ACC. • Verify monitor and control functions using ACC control software, with power meter or spectrum analyzer on outputs. • Temporarily connect synthesizer to LO1-B input, and repeat above tests for LO1 (tuning tables may differ) EOVSA Prototype Review

  7. Downconverter Integration • Install power supply panel • Install subracks and cooling fans • Install Downconverter and all associated cables, including M&C bus termination. • Attach a loopback jumper to spare fiber in Auxiliary cabinet at the corresponding antenna. Use RF synthesizer w/laser transmitters + diplexer to provide test source. • Verify all basic monitor and control functions with ACC over RS-485 bus • Measure bus trigger latency, verify if < 10 us. • Add detector calibration formula to control software, to obtain correct dB scale readout of 1st mixer input power. • Vary input power, and check that ACC software is adjusting attenuator to level output power to Correlator EOVSA Prototype Review

  8. Front End Assembly Integration(1 of 2) • Recheck voltages on Front End power cables • Install Front End module and apex mounting plate, connect all cables; DC power is off. • Connect laptop to TE controller in Auxiliary chassis, run monitoring software • Power the TE +24V and +12V, verify correct temperature control system operation at several setpoints. • Power up the remaining supplies, and verify stable internal temperature. • Verify basic function of Ethernet M&C interface with cRIO EOVSA Prototype Review

  9. Front End Assembly Integration(2 of 2) • Check for cable stresses, module clearance over range of telescope movement • Point at a strong fixed in-band sources (L-band RFI, Ku-band, verify signal presence at IF output with spectrum analyzer. • Verify proper focal point position for feed, adjust • Test monitor and control functions, trigger signal, using IF output level • Move dish off-source: • Check detected power in Downconverter, at nominal Front End attenuator settings, to verify expected system gain. • Measure Tsys on both polarizations • Use attenuators to verify correct polarization correspondance EOVSA Prototype Review

  10. Proposed Integration Schedule • Timing subsystem: end of October 2012, or after racks arrive and outfitted for AC power • LO subsystem: end of November 2012. Assumes LO rack is ready for module install. • Downconverter #1 and #2: early December 2012 • Front Ends 1-3, Downconverter #3: January 2013 EOVSA Prototype Review
