SMS Watchdog: Profiling Social Behaviors of SMS Users for Anomaly Detection

SMS Watchdog: Profiling Social Behaviors of SMS Users for Anomaly Detection Authors: Guanhua Yan, Stephan Eidenbenz, EmannueleGalli Presented by: Ishtiaq Rouf

Overview of presentation • Introduction to Short Message System (SMS) • SMS architecture, tracing SMSs, SMS proxy • Common threats to SMS systems, existing solutions • Behavior analysis • Statistically accurate metrics • SMS Watchdog • Detection types • Performance analysis • Accuracy and usefulness of protocol

Short Message System An overview of the SMS architecture, SMS proxies, and common threats on SMS systems.

Short message system (SMS) • SMSs were introduced in 1980s and have become a fabric of our lives since. • Uses the signal paths necessary to control the telephony traffic. • Not an intended use! • Designed for emergency only. • More than 1 trillion SMSs are delivered each year. • Lucrative target for attackers.

Threats to SMS systems • Common network attacks launched against SMS: • Spamming • Sending unsolicited messages • Spoofing • Falsely pretending to be a sender • Phishing • Trying to steal device information

Previously attempted solutions • IP-based solutions: • Signature-based detection schemes to examine mobile network traffic • Power usage of mobile applications • Machine-learning based approach to discriminate at the level of APIs • Information-theoretical solutions: • Analysis of message size, distribution, service time distribution • User clique analysis, similar to email spam protection

Limitation of traditional methods • No determination of mobility • Mobility of malicious device is not considered • One-size-fits-all solutions • Attempting to use solutions that are not scaled for SMS • Power requirements • Solutions are not suitable for battery-operated devices • Computational complexity • Cellular phones have less computational ability compared to servers and workstations

Features of proposed solutions • Apply a protection mechanism at the SMS Center • Implemented at the server, where most control and information are available • Collect usage data over five months to create a trace of usage • Used to train a pattern recognition script • An SMS proxy in Italy was used to collect data. • Four unique schemes used in combination • Combination of four systems will work better than one “silver bullet” solution

SMS Architecture • Alphabet soup: • BSS – Base Station System • SGSN – Serving GPRS Support Node • GGSN – Gateway GPRS Support Node • MSC – Mobile Switching Center • SMSC – SMS Center Protection applied here

Behavior analysis An overview of statistical methods that can be useful in analyzing the trace of SMS users.

Trace analysis • “Trace” of users was collected from the SMS proxy • Interested in statistically time-invariant metrics • Various statistical operations displayed different strengths • Coefficient of variation (COV) is deemed to be a better metric compared to basic functions • The ratio of standard deviation to the mean • Entropy of the distributions was computed • p is the fraction of SMSs sent to the i-th unique user

Usage analysis (1/4) • Number of messages and unique sender/receiver per day over 5 months • Increased usage as users increase with time

Usage analysis (2/4) • Average number of messages for persistent users (daily/weekly) • Anomalous spikes make the system unreliable

Usage analysis (3/4) • Average number of receivers per persistent user (daily/weekly) • Similar spike in usage observed

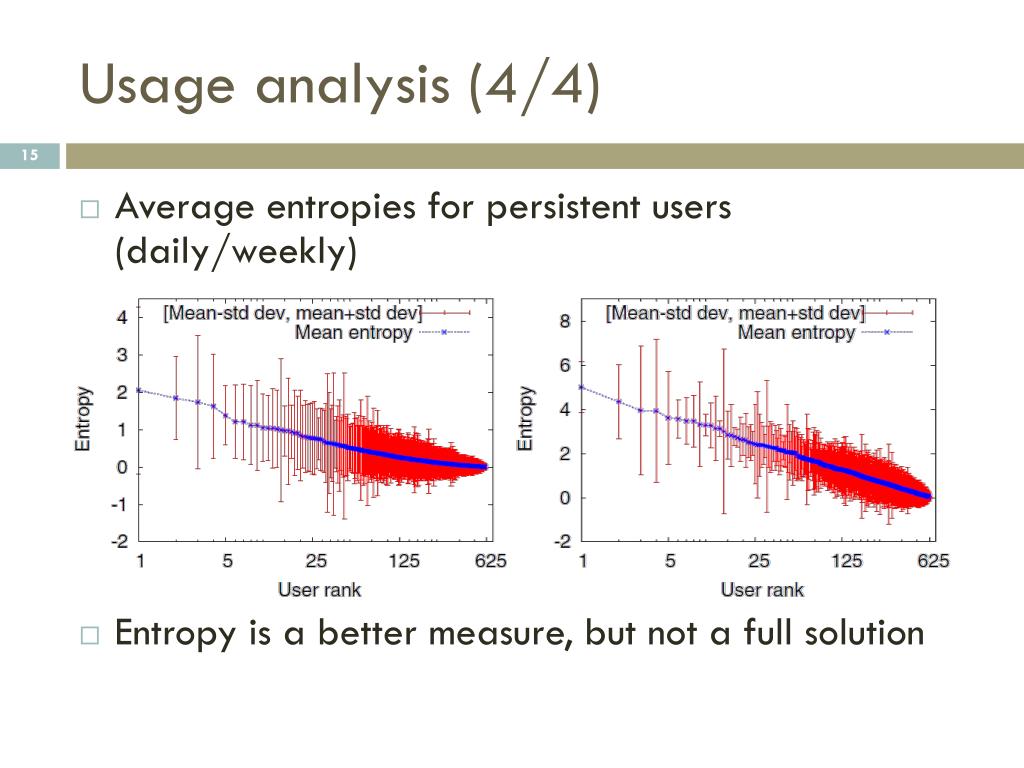

Usage analysis (4/4) • Average entropies for persistent users (daily/weekly) • Entropy is a better measure, but not a full solution

Window-based analysis • High variation is inherent in many SMS users’ behaviors on a temporally periodic basis. • A window-based approach can mitigate issues and help bound the parameters better. • Two parameters are selected, in particular: • : number of blocks created in the dataset • 10 or 20 blocks created • : minimum number of SMSs sent by users considered • 100 or 200 SMSs considered

COV > 1 for window-based behaviors • Window-based behaviors of SMS users bear lower variation than their temporally periodic behaviors. • “COV > 1” means “high variation” • Not useful for anomaly detection

Similarity measure • The following equation is used to get the recipient similarity metric: • Relative entropy is used as a comparison of distributions to determine similarity: • Jensen-Shannon (JS) divergence used • Provides relative symmetry

COV > 1 for similarity measure • Divergence analysis shows better performance compared to previous metrics.

SMS Watchdog An overview of how SMS Watchdog is designed to make use of statistical analyses of behavioral patterns.

Threat models • Two families of threats were considered: • Blending attacks • Occurs when an SMS user’s account is used to send messaged for a different person. • Trojan horse • Spoofing • SMS proxy • Broadcast attacks • Mirrors the behaviors of mobile malware that send out phishing or spamming messages

Workflow of SMS Watchdog • The proposed solution works in three steps: • Monitoring • Maintains a window size, h, for each user that has subscribed for this service • Also keeps a count, k, of number of SMSs sent • Anomaly detection • Watches for anomalous behaviors (explained later) • Alert handling • Sends an alert to the SMS user using a different medium

Anomaly detection • Anomaly detection is done in multiple steps: • Decision on detection window size • Minimize the COV of the JS-divergence after grouping recipients (to maximize the level of similarity) • Mean-based anomaly detection • Leverages average number of unique recipients and average entropy within each block (both show low variation) • Checks if the mean of these two metrics vary radically • Similarity-based anomaly detection • In a light-weight version, it is proposed that historic information be condensed into a set of recipients and a distributional function

Threat determination metric • denotes a block or the test sequence • Mean-based detection: • : Number of unique recipients in • : Entropy of • Similarity-based detection: • : Set of top recipients • S-type detection • : Normalized distribution of the number of SMSs sent to the top recipients within sequence • D-type detection

Performance analysis Evaluation of experimental performance observed by the authors.

False positive rates • Detector parameters • 70% of data used for training, 30% for testing • = 10, , n = # of SMSs • = Upper bound • Low false-positive rate observed for all metrics:

Detecting blending attacks • Entire dataset was divided into pairs of two • Observations: • Similarity-based (S- and D-type) schemes detect better • Contains more information in the detection metrics • H- and D-type perform better than R- and S-type • Consider not only the set of unique recipients, but also the distribution of the number of SMSs send to each recipient

Detecting broadcast attacks • Test dataset of each user is intermingled with maliciously sent messages • malicious messages sent (“broadcast threshold”) • Unlike before, R-type is good at detecting the threat • Considers message number only

Hybrid detection • Two hybrid schemes proposed: • R/H/S/D • Any flag is treated as anomalous • S/D • Only S- and D-type flags are treated as anomalous • Performance of hybrid detections schemes:

Self-reported limitations • SMS Watchdog fails to detect the following cases: • SMS faking attacks • Transient accounts that are set up for phishing • Behavioral training that is not covered

Questions?

SMS Watchdog: Profiling Social Behaviors of SMS Users for Anomaly Detection
