Internet pricing and Voice over IP (VoIP)

Internet pricing and Voice over IP (VoIP). Dr Tim Kelly, ITU “Workshop on international settlement reform and the costing and pricing of telecom services”, Hanoi, 11-13 December 2000.

alida
Télécharger la présentation

Internet pricing and Voice over IP (VoIP)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

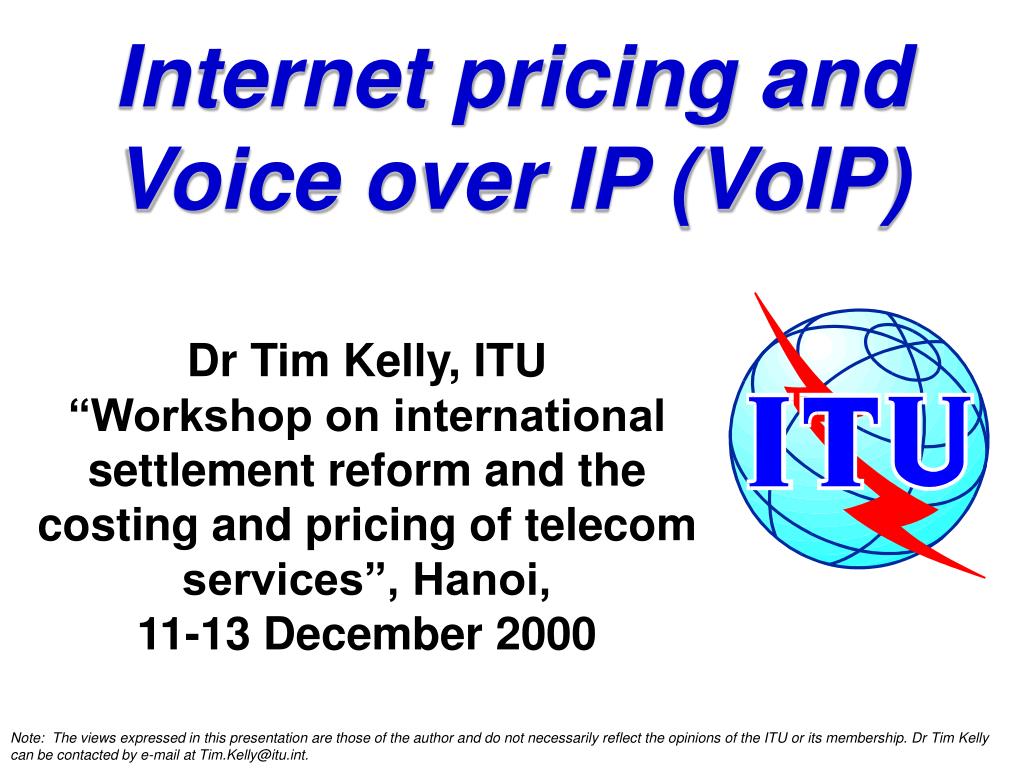

  1. Internet pricing and Voice over IP (VoIP) Dr Tim Kelly, ITU “Workshop on international settlement reform and the costing and pricing of telecom services”, Hanoi, 11-13 December 2000 Note: The views expressed in this presentation are those of the author and do not necessarily reflect the opinions of the ITU or its membership. Dr Tim Kelly can be contacted by e-mail at Tim.Kelly@itu.int.

  2. Agenda • Internet in the Asia-Pacific • Why is Internet more expensive in developing countries? • Internet tariff comparisons • Wholesale IP connectivity and leased line pricing • What will be the impact of IP Telephony? • In the Asia-Pacific region • In high, medium and low-priced markets • World Telecom Policy Forum 2001: IP Telephony

  3. Internet growth story: Asia-Pacific 36.3 27.7 Internet host density, Asia-Pacificper 10'000 inhabitantsCAGR (1993-99) = 91% 13.2 9.6 5.6 2.6 1.2 0.6 1993 1994 1995 1996 1997 1998 1999 July 00 Source: ITU Internet Reports 2001: IP Telephony

  4. Top 10 Internet economies Worldwide, June 2000, millions Note: Ranked by total number of users. Source: ITU “Asia-Pacific Telecommunication Indicators, 2000”. 6.4 Taiwan-China 6.4 Australia 8.7 Germany 10.6 UK 11.1 Italy 11.9 Canada 15.8 Korea (Rep.) 16.9 China 26.3 Japan 83.8 USA

  5. 1'500 1'250 Dial-up Internet 1'000 (via PSTN) 750 500 250 International voice (incoming and outgoing) 0 4 6 8 10 12 2 4 6 8 10 12 02 98 98 98 98 98 99 99 99 99 99 99 00 Minutes of use by month, Hongkong SAR ('000s) Source: OFTA (www.ofta.gov.hk)

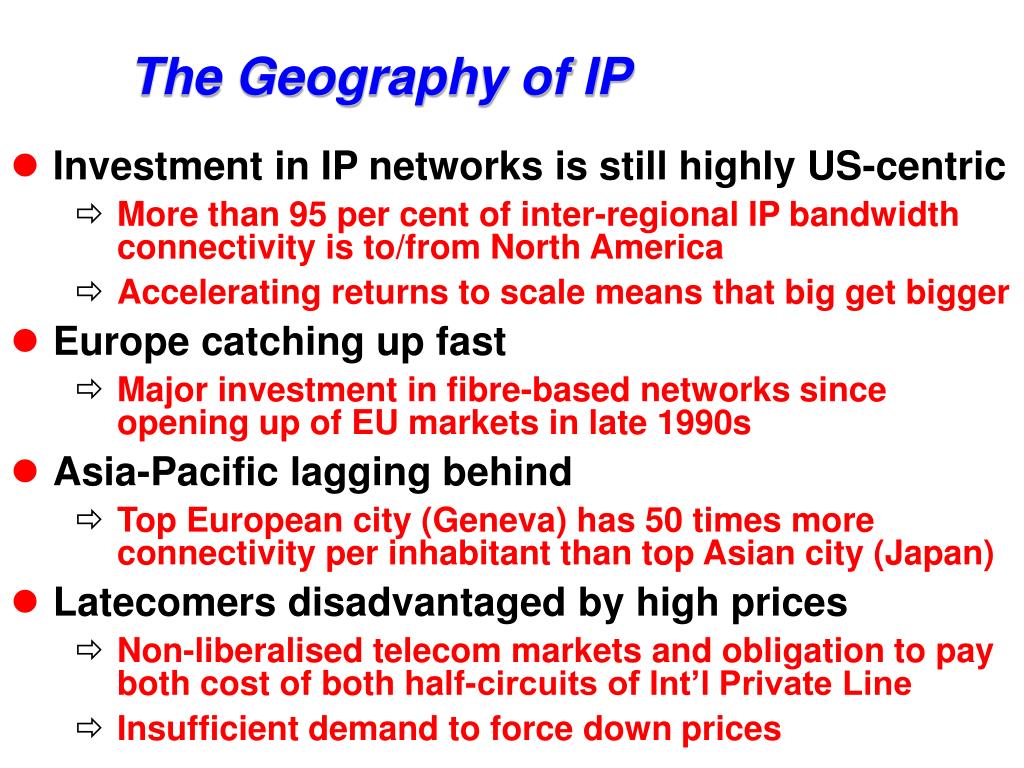

  6. The Geography of IP • Investment in IP networks is still highly US-centric • More than 95 per cent of inter-regional IP bandwidth connectivity is to/from North America • Accelerating returns to scale means that big get bigger • Europe catching up fast • Major investment in fibre-based networks since opening up of EU markets in late 1990s • Asia-Pacific lagging behind • Top European city (Geneva) has 50 times more connectivity per inhabitant than top Asian city (Japan) • Latecomers disadvantaged by high prices • Non-liberalised telecom markets and obligation to pay both cost of both half-circuits of Int’l Private Line • Insufficient demand to force down prices

  7. 357 Mbit/s USA &Canada 56’241 Mbit/s 19’716 Mbit/s Asia-Pacific Europe 2’638 Mbit/s 468 Mbit/s 171 Mbit/s LatinAmerica & Caribbean Arab States, Africa 127 Mbit/s Inter-regional Internet backbone Source: TeleGeography Inc., Global Backbone Database. Data valid for Sept. 2000.

  8. Top Internet cities,Ranked by Int’l IP bandwidth (Mbit/s) available per 1’000 inhabitants World Asia-Pacific Source: ITU, adapted from TeleGeography Inc. Global Backbone Database. Data valid for Sept. 1999.

  9. Number of int’l circuits in use, worldwide, and by region 1998(in thousands) Western Europe 300 PSTN, 32% IPL, 250 68% Asia 200 PSTN circuits PSTN, 150 IPL, 41% 59% 100 Caribbean International Private Lines 50 IPL, (Internet) 18% PSTN, 0 82% 1995 1996 1997 1998 Source: FCC. Applies to US carriers only.

  10. Alternative retail pricing models • Flat-rate per month • e.g., InfoCom in Uganda charges a flat-rate US$50 per month for unlimited Internet Access. To this must be added line usage and rental charges. • Usage-based • e.g., Telecom Egypt offers a “premium rate 900” dial-up service, without subscription or pre-payment, with revenues shared 50/50 with ISPs; • e.g., Energis in UK splits local call charge with ISP, freeserve, which advertises “free” Internet • Advertising-based • e.g., Hotmail offers “free” advertising-funded web-based e-mail service

  11. Asia-Pacific, comparative prices,In US$, based on 30 hours off-peak use per month Singapore Malaysia Thailand ISP charge China PSTN charge India Philippines Lao PDR Viet Nam Cambodia 0 50 100 150 Source: ITU Asia-Pacific Telecommunication Indicators, 2001. Data valid for July 2000.

  12. Why does Internet access tend to be more expensive in developing countries? • A few exceptions … • In Asia-Pacific, Malaysia is cheap but Japan expensive • But across world as a whole, US & Europe cheapest • Where there is competition … • … leased line prices are generally lower • … incentives to create national local call ISP access • … incentives for tariff innovation (e.g. “free” Internet) • But problems remain … • Peering and transit model of Internet is very different from settlements-based model of PSTN

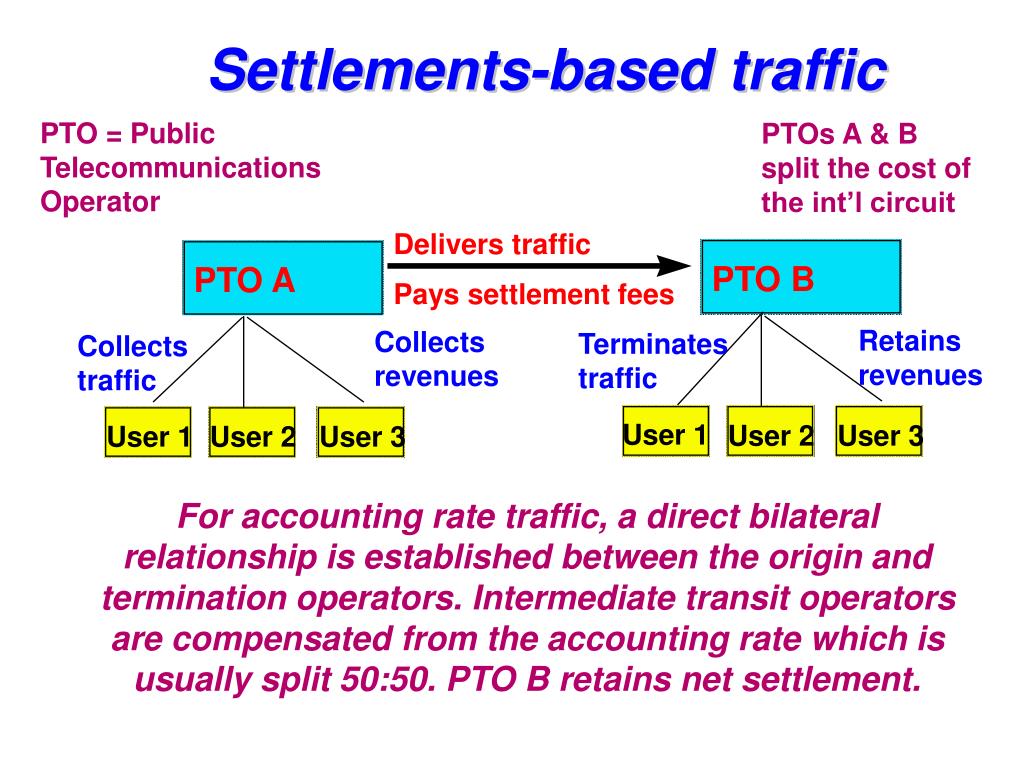

  13. Settlements-based traffic Settlements-based traffic PTO = Public PTOs A & Bsplit the cost ofthe int’l circuit Telecommunications Operator Delivers traffic PTO B PTO A Pays settlement fees Retains Collects Terminates Collects revenues revenues traffic traffic User 1 User 2 User 3 User 1 User 2 User 3 For accounting rate traffic, a direct bilateral relationship is established between the origin and termination operators. Intermediate transit operators are compensated from the accounting rate which is usually split 50:50. PTO B retains net settlement. ……...

  14. Internet Peering traffic (Web) ISP = Internet PTO B pays the full cost ofthe int’l circuit Services Provider One-way (thick pipe) ISP A ISP B Two-way (thin pipe) Requestsand terminates traffic Collects Exchanges revenues traffic Web 1 Web 1 Web 1 User 1 User 2 User 3 For Internet Peering traffic, ISP B pays for both halves of the International circuit(s) which are used for peering with ISP A. ISP B also pays for traffic exchange. ISP B may pay for the circuit directly, or in conjunction with one or more PTOs.

  15. Developing country concerns • Developing countries receive no international settlement payments for IP traffic • Increasingly, incoming IP traffic includes IP telephony and fax traffic which they must terminate • They must pay to peer with US/EU backbone • Peering costs are rising as IP traffic continues to grow exponentially • They must pay both half-circuits of the International Private Line to the foreign ISP • Even though traffic flows in both directions over the circuit, once it is established • Telephone and fax traffic shifting to the Internet • What will replace the US$7 bn from settlements?

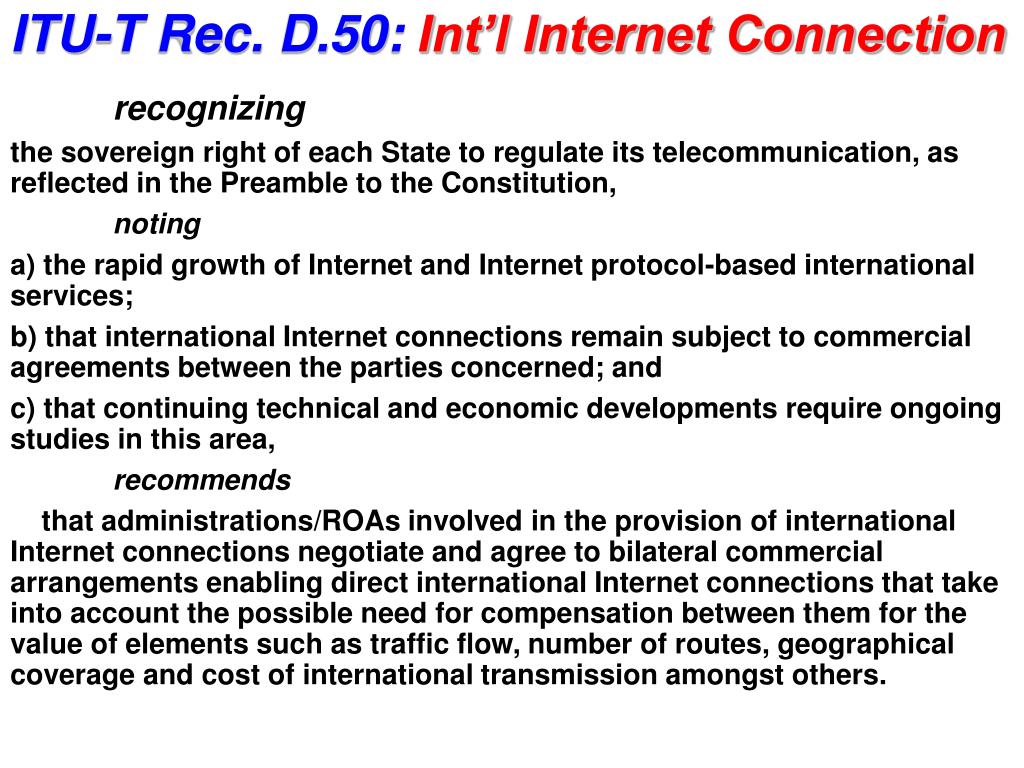

  16. ITU-T Rec. D.50: Int’l Internet Connection recognizing the sovereign right of each State to regulate its telecommunication, as reflected in the Preamble to the Constitution, noting a) the rapid growth of Internet and Internet protocol-based international services; b) that international Internet connections remain subject to commercial agreements between the parties concerned; and c) that continuing technical and economic developments require ongoing studies in this area, recommends that administrations/ROAs involved in the provision of international Internet connections negotiate and agree to bilateral commercial arrangements enabling direct international Internet connections that take into account the possible need for compensation between them for the value of elements such as traffic flow, number of routes, geographical coverage and cost of international transmission amongst others.

  17. Pricing IP for voice services • In competitive, low-price markets • Main market opportunity for IP Telephony is for value-added services, e.g., unified messaging • In markets in transition to competition • IP Telephony offers a route towards early introduction of competition and creates downward pressure on prices • In high-price, monopoly markets • Where permitted, IP Telephony creates opportunities for low-cost calls • Even if not permitted, IP Telephony is widely used to reduce costs of international call termination

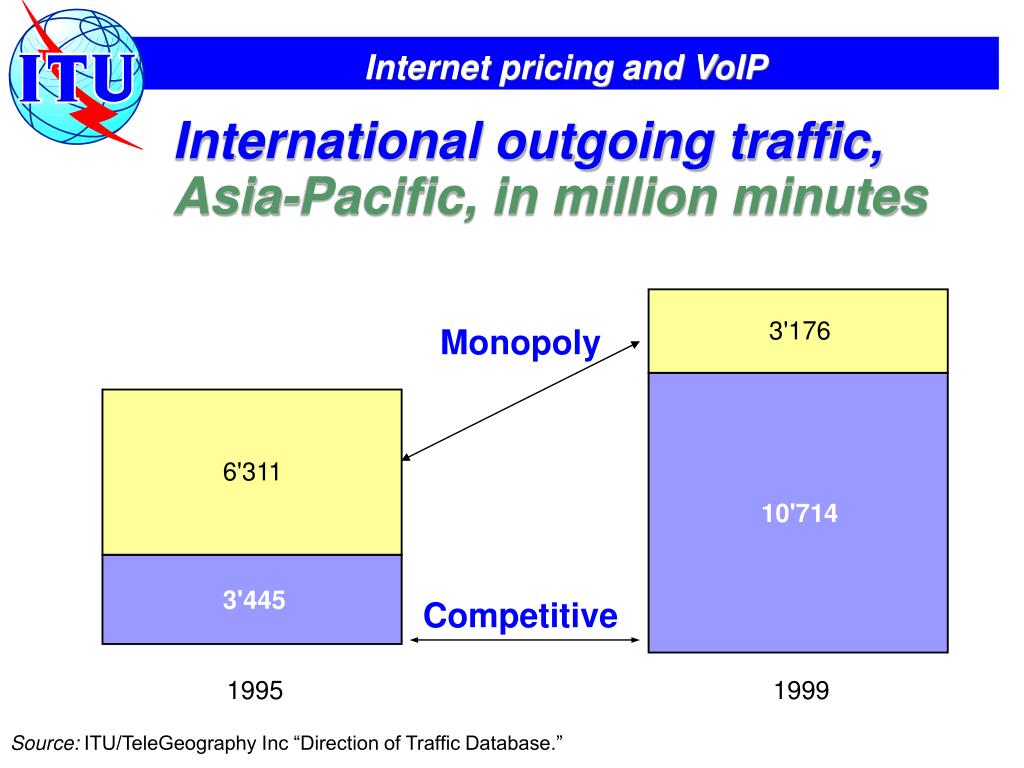

  18. 3'176 10'714 1999 International outgoing traffic,Asia-Pacific, in million minutes Monopoly 6'311 3'445 Competitive 1995 Source: ITU/TeleGeography Inc “Direction of Traffic Database.”

  19. Comparative PSTN telecom costs and retail tariff US to Hongkong SAR US to India Int'l circuit, Int'l 1.9¢ Origination, 2.1¢ circuit, Origination, 1.7¢ 0.2¢ Settlement, 6.5¢ Settlement, 54¢ Margin, Margin, 29.6¢ 74¢ Retail tariff: 22 US cents Retail tariff: 132 US cents Source: ITU/TeleGeography Inc.

  20. Comparative PSTN and IP Telephony retail tariffs per minute from US $0.66 $0.59 $0.55 PSTN IP Telephony $0.26 $0.21 $0.17 $0.08 $0.08 Australia Japan China India Source: PSTN rate = WorldCom One; IP Telephony rates = deltathree,com PC-to-phone. Rates valid at September 2000.

  21. IP Telephony: Four main stages of evolution • PC-to-PC (since 1994) • Connects multimedia PC users, simultaneously online • Cheap, good for chat, but inconvenient and low quality • PC-to-Phone (since 1996) • PC users make domestic and int’l calls via gateway • Increasingly services are“free” (e.g., Dialpad.com) • Phone-to-Phone (since 1997) • Accounting rate bypass • Low-cost market entry (e.g., using calling cards) • Voice/Web integration (since 1998) • Calls to website/call centres and freephone numbers • Enhanced voice services (e.g., integrated messaging)

  22. IP Telephony wants to be “free” Cumulative number of Dialpad users & call minutes Since launch on 18 Oct. 1999 6 350 300 Users 5 250 minutes 4 200 Registered users (million) Call minutes (million) 3 150 2 100 1 50 0 0 18-Oct- 22-Nov- 10-Dec- 12-Jan- 04-Apr- 99 99 99 99 00 Source: ITU, adapted from DialPad.com press releases.

  23. “Web Talk” revenues, US$bn Source: IDC. The influence of Voice over IP • IDC forecasts that “Web Talk” revenues will reach US$16.5 bn by 2004 with 135 billion mins of traffic • Gartner Group forecast that voice over IP and competition in Europe will reduce prices by 75% by 2002 • IP Telephony as % of all int’l calls in 2004 • Tarifica forecast 40% • Analysys forecast 25% • In developing countries, the majority of IP Telephony calls are incoming

  24. Total international VoIP traffic,In millions of minutes 7'000 5.5% 6'000 As percentage of int'l 5'000 outgoing traffic 3.2% 4'000 3'000 1.6% 2'000 1'000 0.2% 0.0% 0 1997 1998 1999 2000 2001 Source: ITU Internet Report 2001: IP Telephony

  25. Implications of IP Telephony for public telecom operators (PTOs) • Prices • To what extent has competition already reduced prices for international traffic? • Competition • Does the PTO provide IP Telephony services? • Are competitors allowed to provide IP Telephony? • What percentage of incoming int’l traffic comes in as IP Telephony traffic? What loss of settlements? • Costs • Can the incumbent PTO deploy IP-based networks to reduce costs? What savings can be expected?

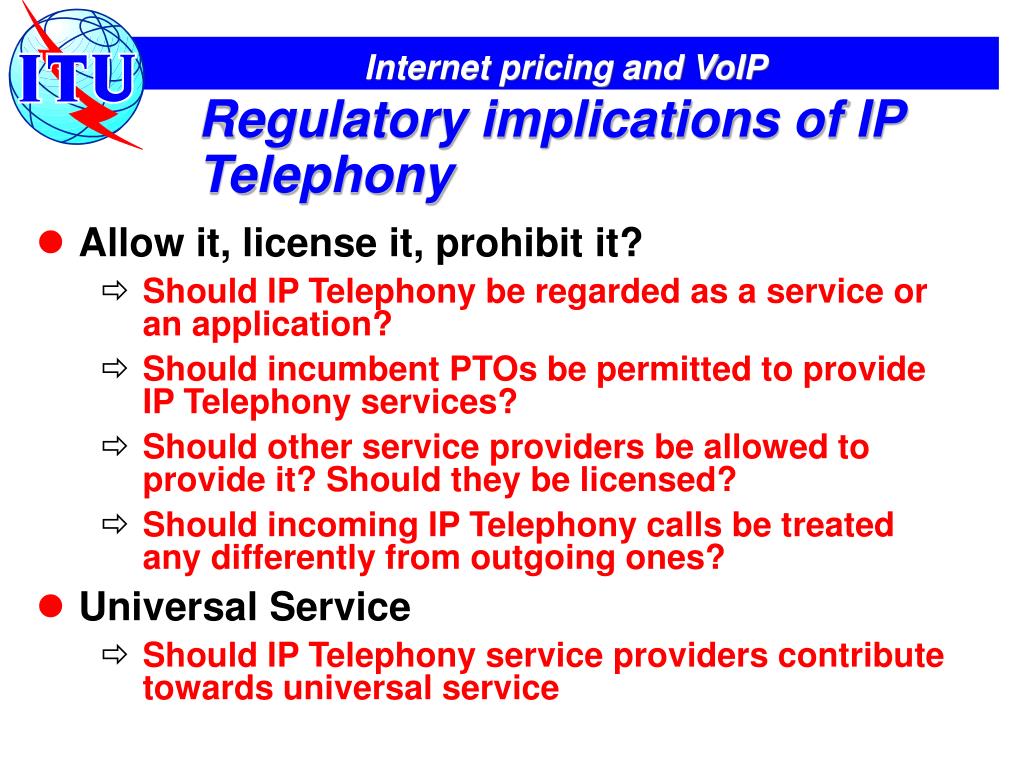

  26. Regulatory implications of IP Telephony • Allow it, license it, prohibit it? • Should IP Telephony be regarded as a service or an application? • Should incumbent PTOs be permitted to provide IP Telephony services? • Should other service providers be allowed to provide it? Should they be licensed? • Should incoming IP Telephony calls be treated any differently from outgoing ones? • Universal Service • Should IP Telephony service providers contribute towards universal service

  27. Conclusions • IP is overtaking voice • For PTOs, IP Telephony offers a chance to reduce operating costs and develop future-proof networks • If PTO does not adopt IP, its competitors will • ISP pricing highly competitive • Price innovation is essential • Price comparisons can help in setting prices • IP Telephony is here to stay • Incumbent carriers cannot hope to retain monopoly • IP Telephony will be used to terminate incoming calls as well as for outgoing calls

  28. World Telecommunication Policy Forum 2001: IP Telephony • To be held, 7-9 March 2001, Geneva • Agenda established by Council Decision 498 • Information session, 6 March 2001 • To participate: • Visit the website (www.itu.int/wtpf) and register • Read and comment on the Secretary-General’s Report (on website) • Join the informal expert group to prepare • Co-ordinate national and regional positions
