  1. Two Approaches of Showing Program Equivalence Borys Bradel

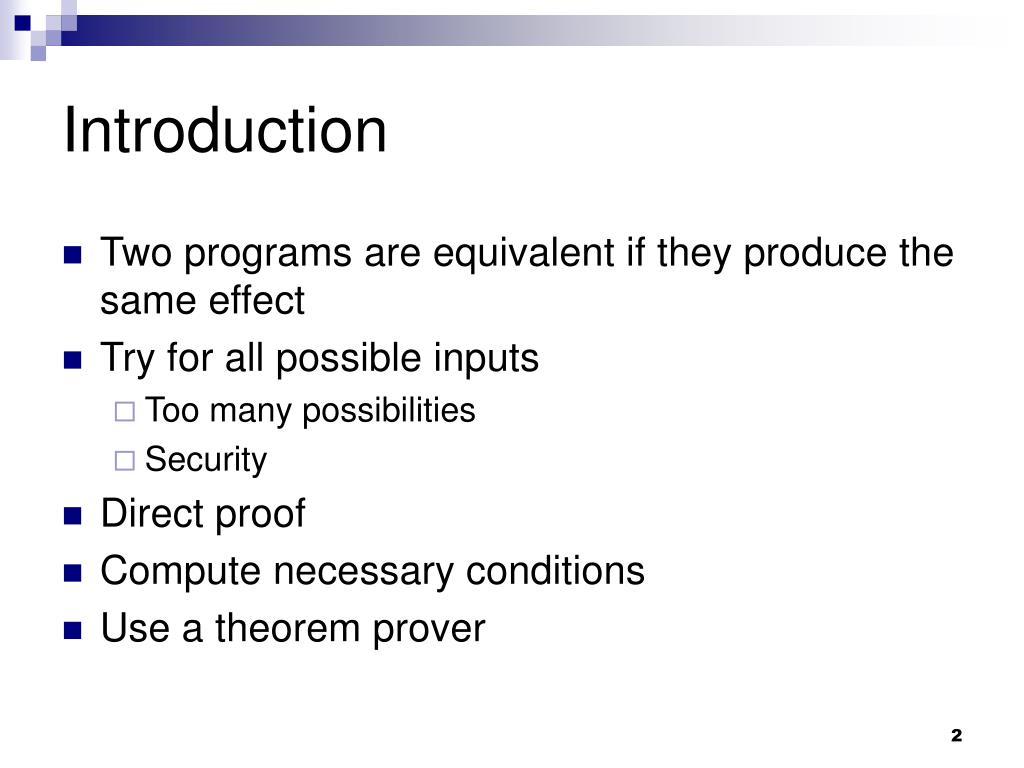

  2. Introduction • Two programs are equivalent if they produce the same effect • Try for all possible inputs • Too many possibilities • Security • Direct proof • Compute necessary conditions • Use a theorem prover

  3. Motivation - Verification • Non-optimizing compilers • Optimizing compilers • Local optimizations • Global optimizations are not verifiable • Still want to verify • Compare to non-optimized

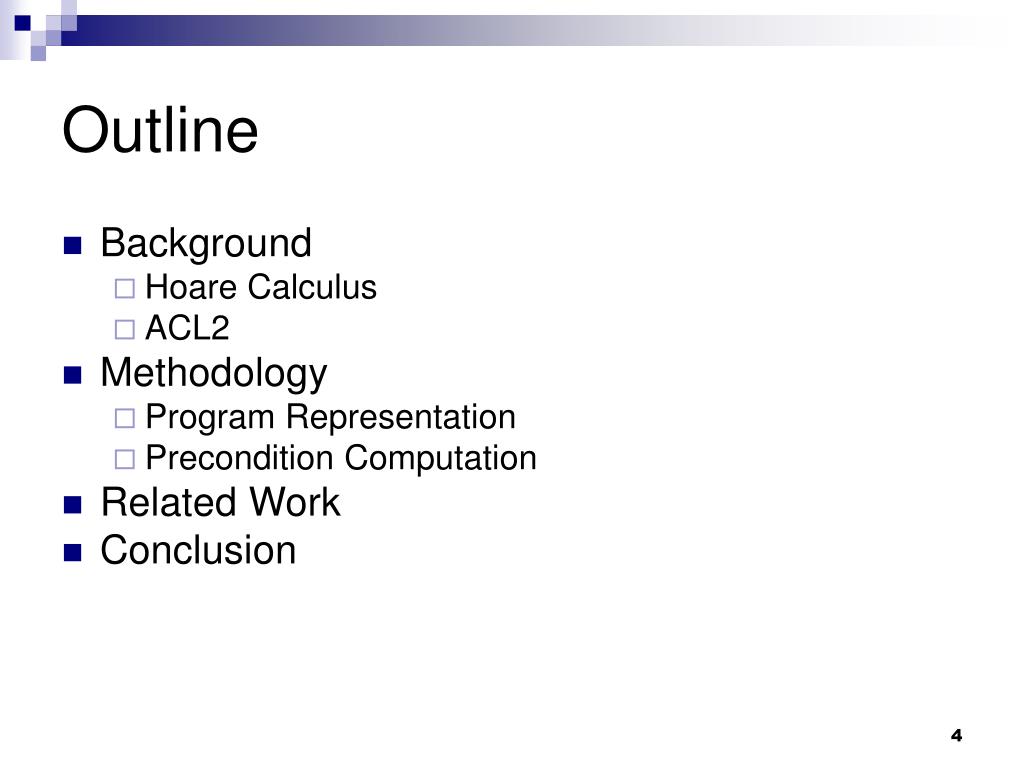

  4. Outline • Background • Hoare Calculus • ACL2 • Methodology • Program Representation • Precondition Computation • Related Work • Conclusion

  5. Hoare Calculus • {P} v:=u {Q} = P  Q[v/u] • {P} C1 ; C2 {Q} = {P} C1 {R}, {R} C2 {Q} • {P} if B then C1 else C2 {Q} = {P and B} C1 {Q}, {P and not B} C2 {Q} • wlp(u:=v,Q) = Q[v/u] • wlp(C1 ; C2, Q) = wlp (C1, wlp(C2, Q)) • wlp(if B then C1 else C2, Q) = (B and wlp (C1, Q)) or (not B and wlp (C2, Q)) • y:=2+3 ; x:=5+y {x=10} • y:=2+3 {10=5+y} • {10=5+(2+3)}

  6. ACL2 • Proofs on recursively defined functions • Subset of Common Lisp • Information is stored in books • (defun our-add (x y) (+ x y)) • (defthm our-add-is-commutative (equal (our-add a b) (our-add b a)))

  7. Program Representation Return: r1 Instructions: '((add r1 4 3) (add r3 r1 5) (ble r1 r3 ((add r2 5 4) (add r5 6 5)) ((add r2 6 2) (add r6 6 3))) (add r4 r1 r2))) R1:=4+3 R3:=R1+5 if R1 ≤ R3 F T R2:=5+4 R5:=6+5 R2:=6+2 R6:=6+3 R4:=R1+R2 return R1

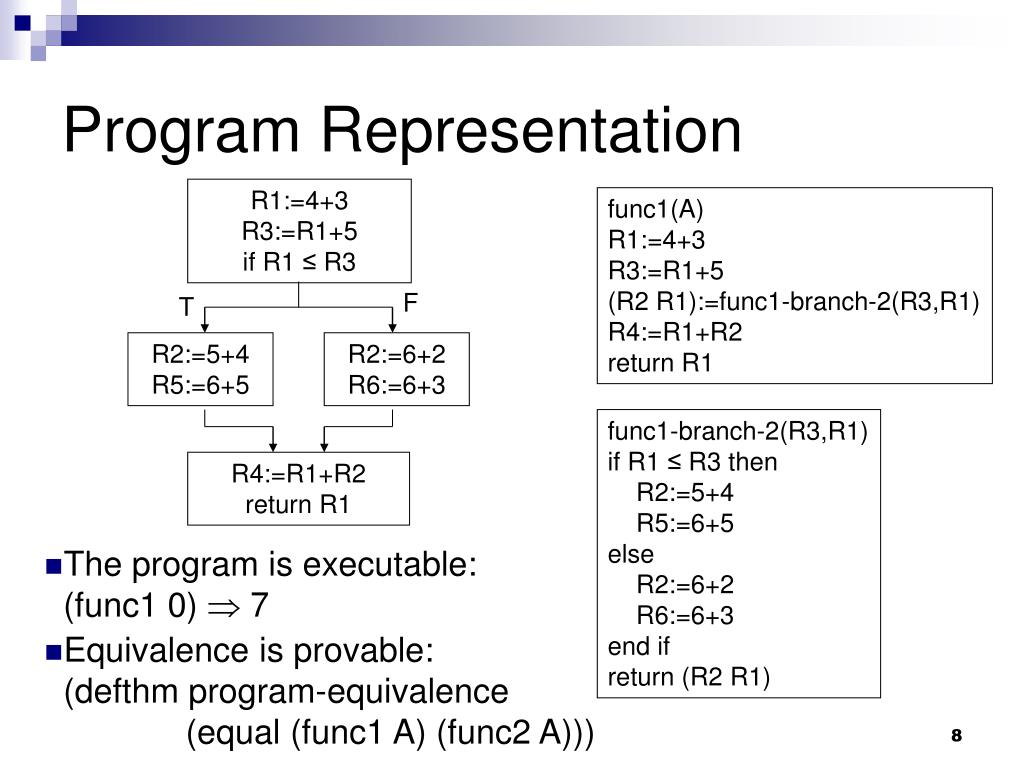

  8. Program Representation R1:=4+3 R3:=R1+5 if R1 ≤ R3 func1(A) R1:=4+3 R3:=R1+5 (R2 R1):=func1-branch-2(R3,R1) R4:=R1+R2 return R1 F T R2:=5+4 R5:=6+5 R2:=6+2 R6:=6+3 func1-branch-2(R3,R1) if R1 ≤ R3 then R2:=5+4 R5:=6+5 else R2:=6+2 R6:=6+3 end if return (R2 R1) R4:=R1+R2 return R1 • The program is executable: • (func1 0)  7 • Equivalence is provable: • (defthm program-equivalence • (equal (func1 A) (func2 A)))

  9. R1:=4+3 R3:=R1+5 if R1 ≤ R3 R11:=4+3 R13:=R11+5 if R11 ≤ R13 F F T T R2:=5+4 R5:=6+5 R2:=6+2 R6:=6+3 R12:=5+4 R15:=6+5 R12:=6+2 R16:=6+3 R4:=R1+R2 return R1 R14:=R11+R12 return R11 Precondition Computation

  10. Precondition Computation R1:=4+3 R3:=R1+5 if R1 ≤ R3 R11:=4+3 R13:=R11+5 if R11 ≤ R13 (R1=R11  R1≤R3  R11≤R13)  (R1=R11  R1>R3  R11>R13) R1=R11 T,T F,F R2:=5+4 R5:=6+5 R12:=5+4 R15:=6+5 R2:=6+2 R6:=6+3 R12:=6+2 R16:=6+3 R1=R11 R1=R11 R4:=R1+R2 return R1 R14:=R11+R12 return R11 R1=R11

  11. Precondition Computation • Precondition for branches: • (R1=R11  R1≤R3  R11≤R13)  (R1=R11  R1>R3  R11>R13) • Precondition for: R3:=R1+5, R13:=R11+5 • (R1=R11  R1≤(R1+5)  R11≤(R11+5))  (R1=R11  R1>(R1+5)  R11>(R11+5)) • Precondition for R1:=4+3, R11:=4+3 • ((3+4)=(3+4)  (3+4)≤((3+4)+5)  (3+4)≤((3+4)+5))  ((3+4)=(3+4)  (3+4)>((3+4)+5)  (3+4)>((3+4)+5)) • (TTT)(TFF) = T

  12. Related Work • Robert van Engelen, David Whalley, and Xin Yuan. "Automatic Validation of Code-Improving Transformations" • George C. Necula, “Translation Validation for an Optimizing Compiler” • Many more, although less so.

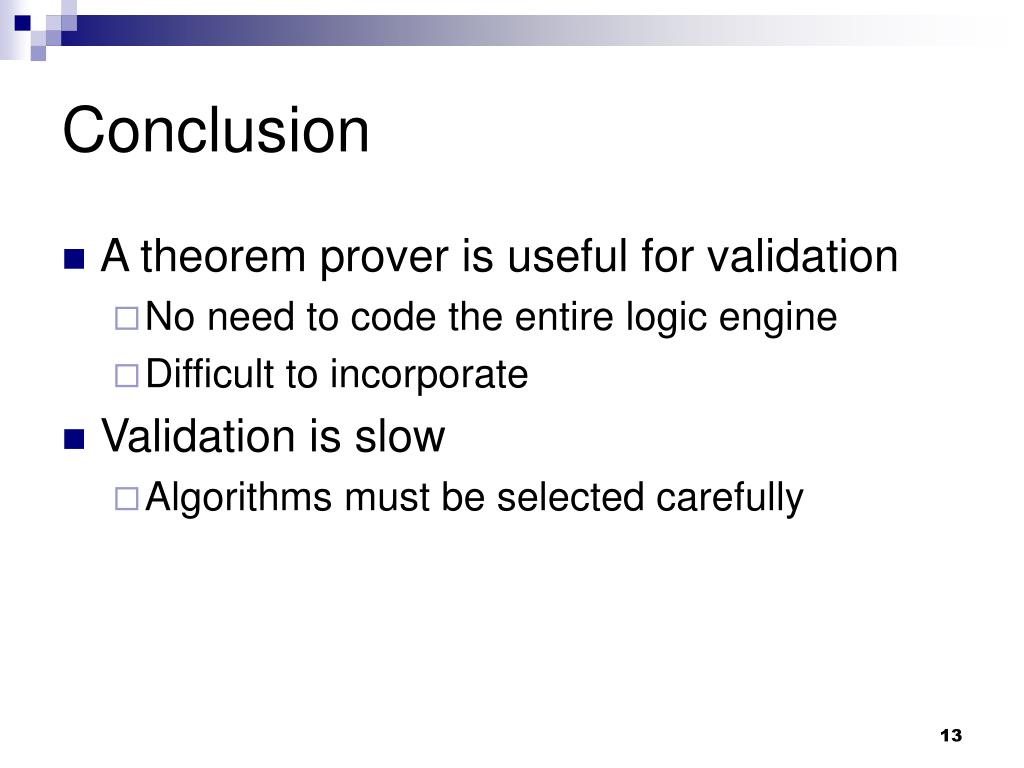

  13. Conclusion • A theorem prover is useful for validation • No need to code the entire logic engine • Difficult to incorporate • Validation is slow • Algorithms must be selected carefully

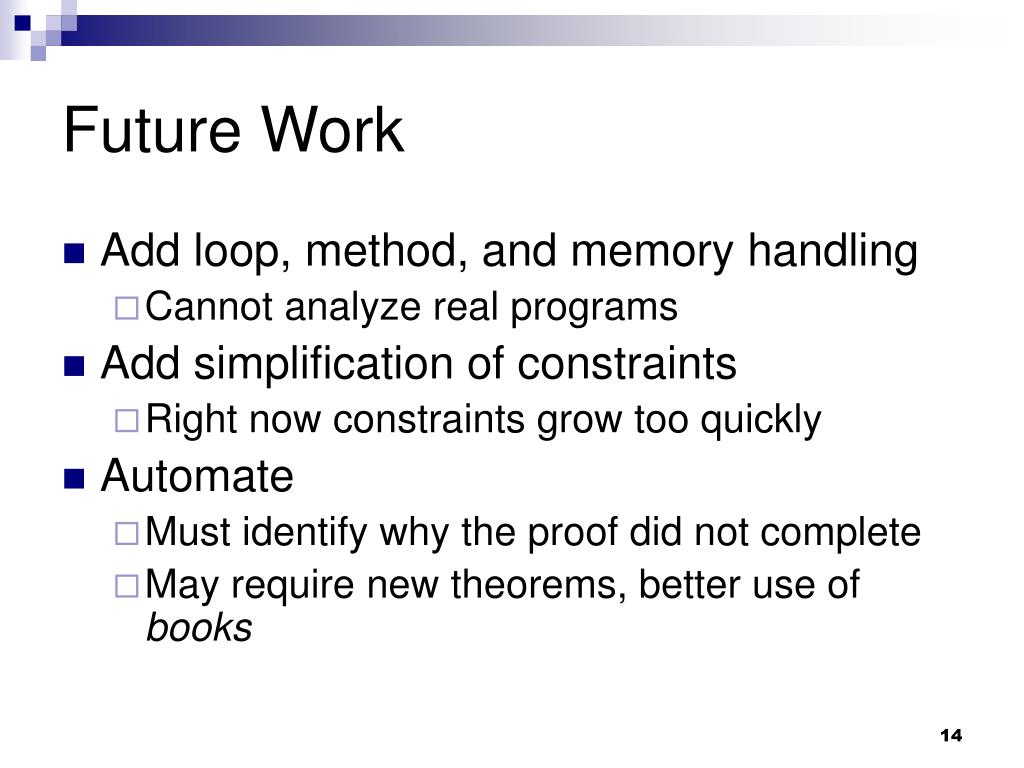

  14. Future Work • Add loop, method, and memory handling • Cannot analyze real programs • Add simplification of constraints • Right now constraints grow too quickly • Automate • Must identify why the proof did not complete • May require new theorems, better use of books
