1. CS 21A • Beginning JavaScript Programming Project 4 Cookies, Arrays, and Frames Sonny Huang

2. Project 4 Cookies, Arrays, and Frames Outline l       Create a cookie l       Use a cookie to store information from a Web page l       Set the expiration date on a cookie l       Read a cookie l       Explain the use of the escape() and unescape() functions l       Delete a cookie l       Determine the contents of a cookie

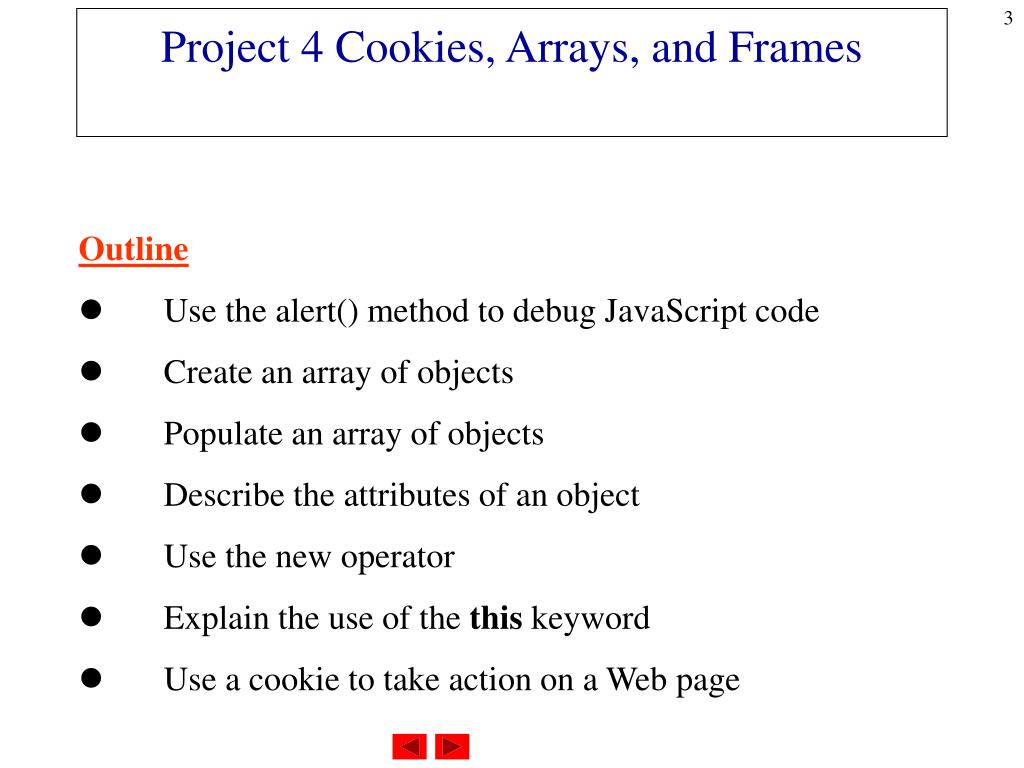

3. Project 4 Cookies, Arrays, and Frames Outline l       Use the alert() method to debug JavaScript code l       Create an array of objects l       Populate an array of objects l       Describe the attributes of an object l       Use the new operator l       Explain the use of the this keyword l       Use a cookie to take action on a Web page

4. Project 4 Cookies, Arrays, and Frames Outline l       Set a flag in a cookie l  Write information to a frame using JavaScript

5. Introduction • This project introduces creating and reading cookies using various JavaScript methods. • We will learn about creating and using special arrays called objects using the new and this keywords. • We ,also, will learn how to use JavaScript to communicate with frames using the TARGET keyword and top object. • The project illustrates how to use the alert() method to debug their JavaScript code. • Finally, we will use the escape() and unescape() functions to store information correctly in a cookie.

6. Introduction

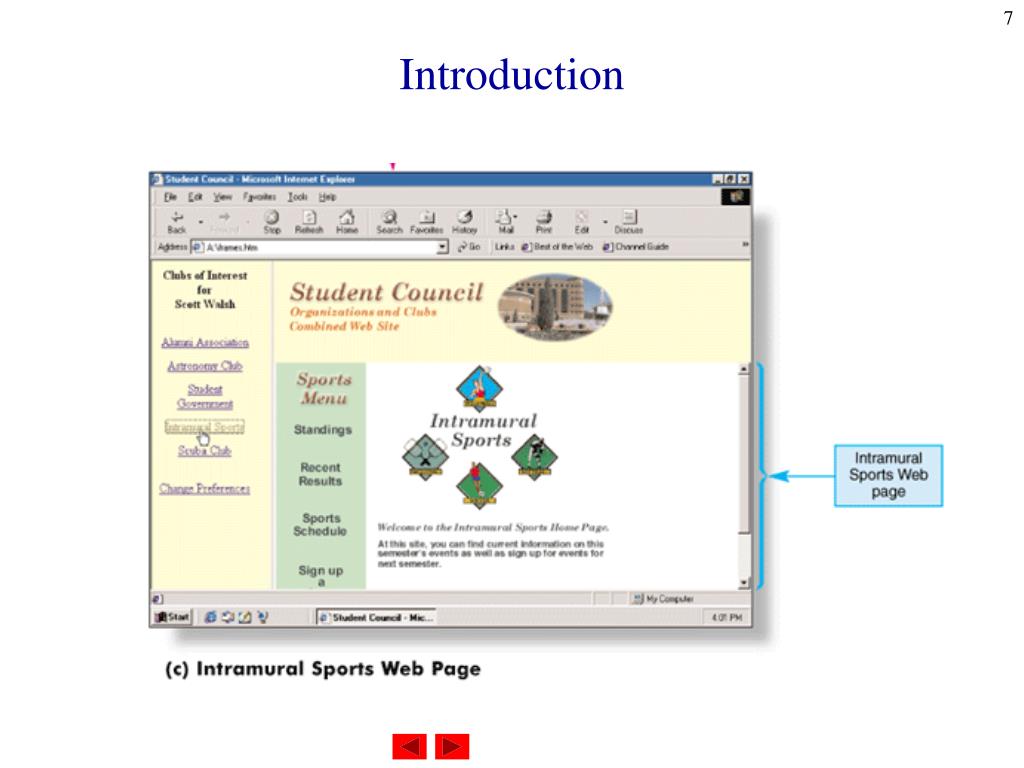

7. Introduction

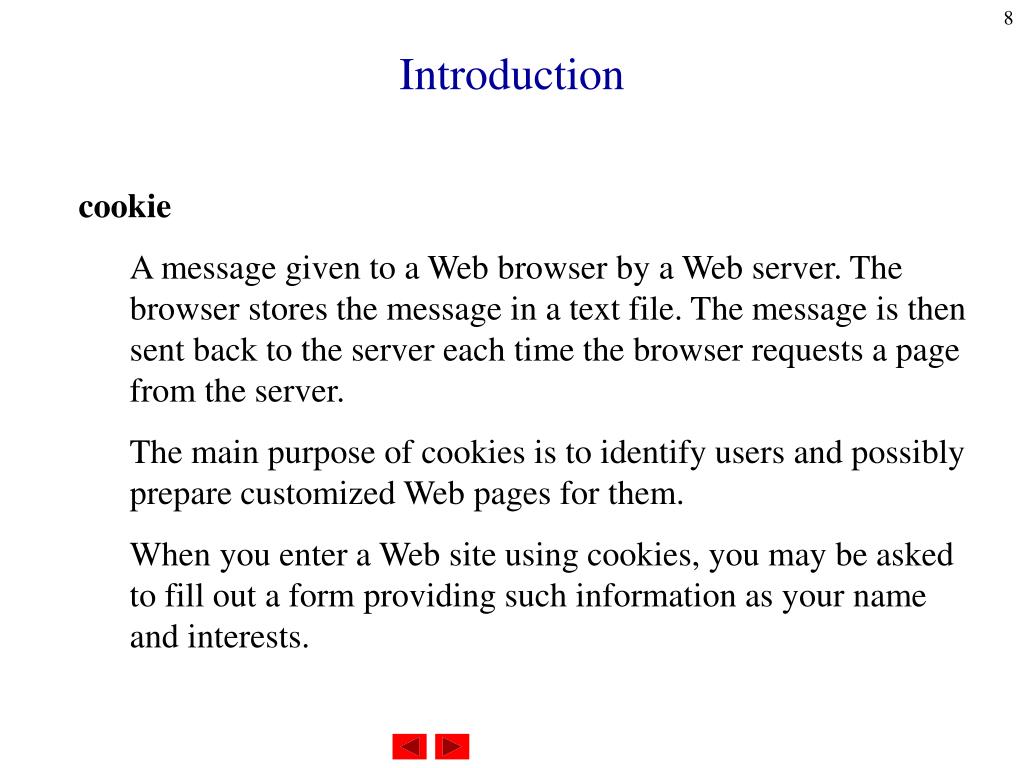

8. Introduction cookie A message given to a Web browser by a Web server. The browser stores the message in a text file. The message is then sent back to the server each time the browser requests a page from the server. The main purpose of cookies is to identify users and possibly prepare customized Web pages for them. When you enter a Web site using cookies, you may be asked to fill out a form providing such information as your name and interests.

9. Introduction This information is packaged into a cookie and sent to your Web browser which stores it for later use. The next time you go to the same Web site, your browser will send the cookie to the Web server. The server can use this information to present you with custom Web pages. So, for example, instead of seeing just a generic welcome page you might see a welcome page with your name on it. The name cookie derives from UNIX objects called magic cookies. These are tokens that are attached to a user or program and change depending on the areas entered by the user or program.

10. Introduction This information is packaged into a cookie and sent to your Web browser which stores it for later use. The next time you go to the same Web site, your browser will send the cookie to the Web server. The server can use this information to present you with custom Web pages. So, for example, instead of seeing just a generic welcome page you might see a welcome page with your name on it. The name cookie derives from UNIX objects called magic cookies. These are tokens that are attached to a user or program and change depending on the areas entered by the user or program.

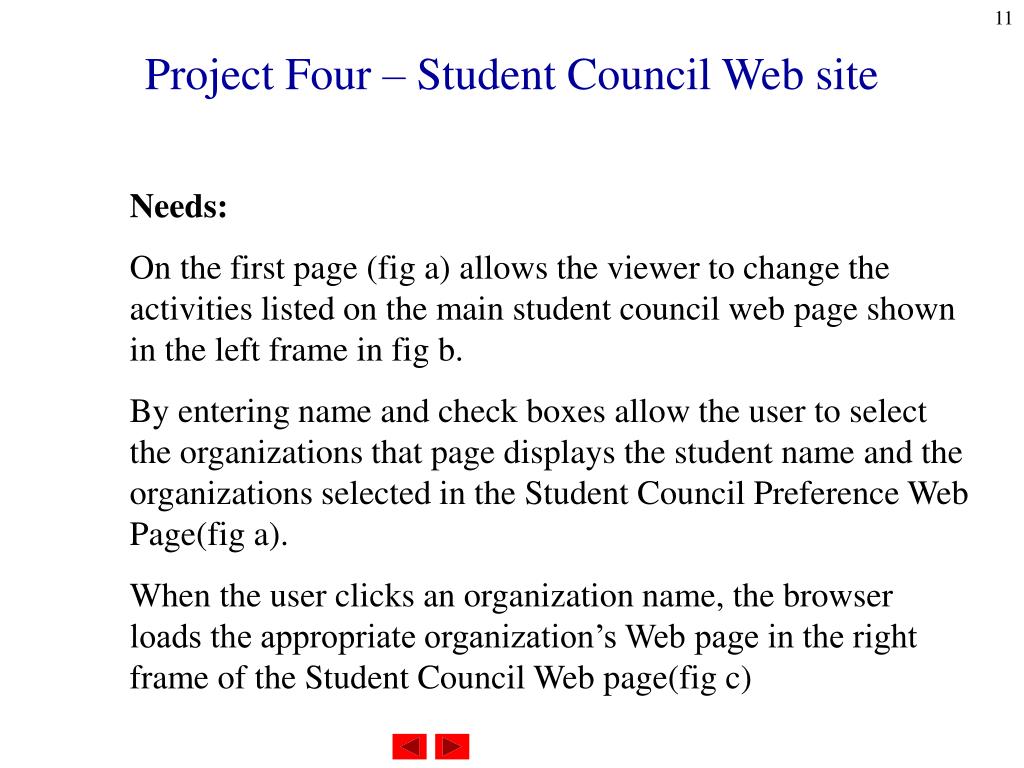

11. Project Four – Student Council Web site Needs: On the first page (fig a) allows the viewer to change the activities listed on the main student council web page shown in the left frame in fig b. By entering name and check boxes allow the user to select the organizations that page displays the student name and the organizations selected in the Student Council Preference Web Page(fig a). When the user clicks an organization name, the browser loads the appropriate organization’s Web page in the right frame of the Student Council Web page(fig c)

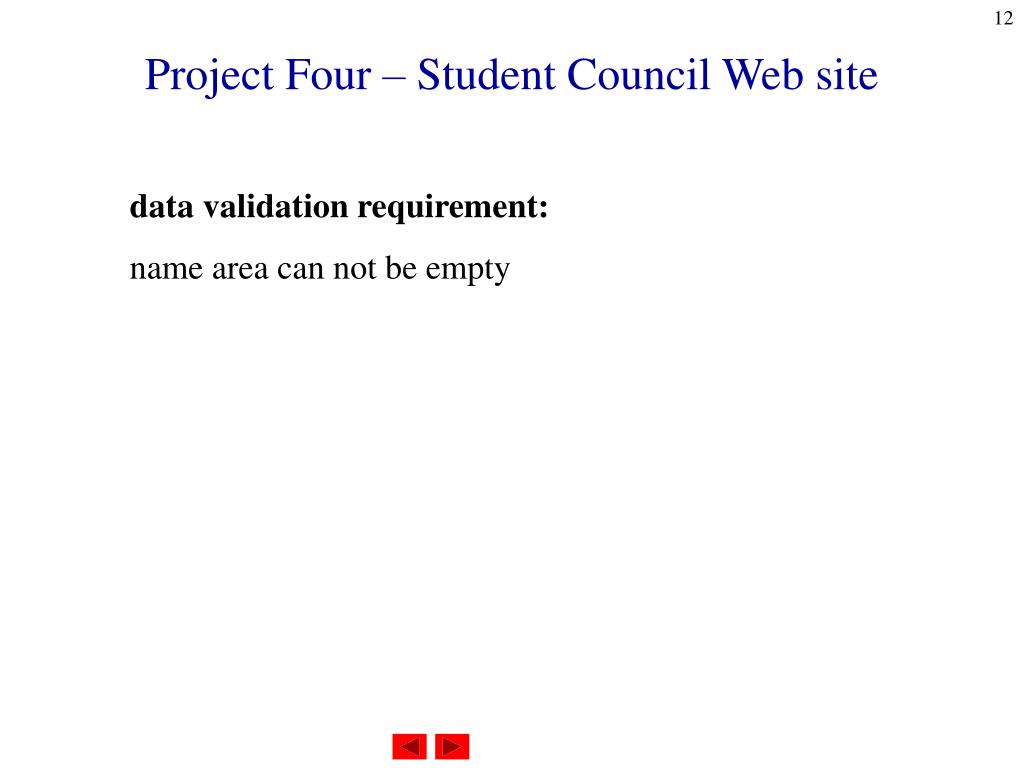

12. Project Four – Student Council Web site data validation requirement: name area can not be empty

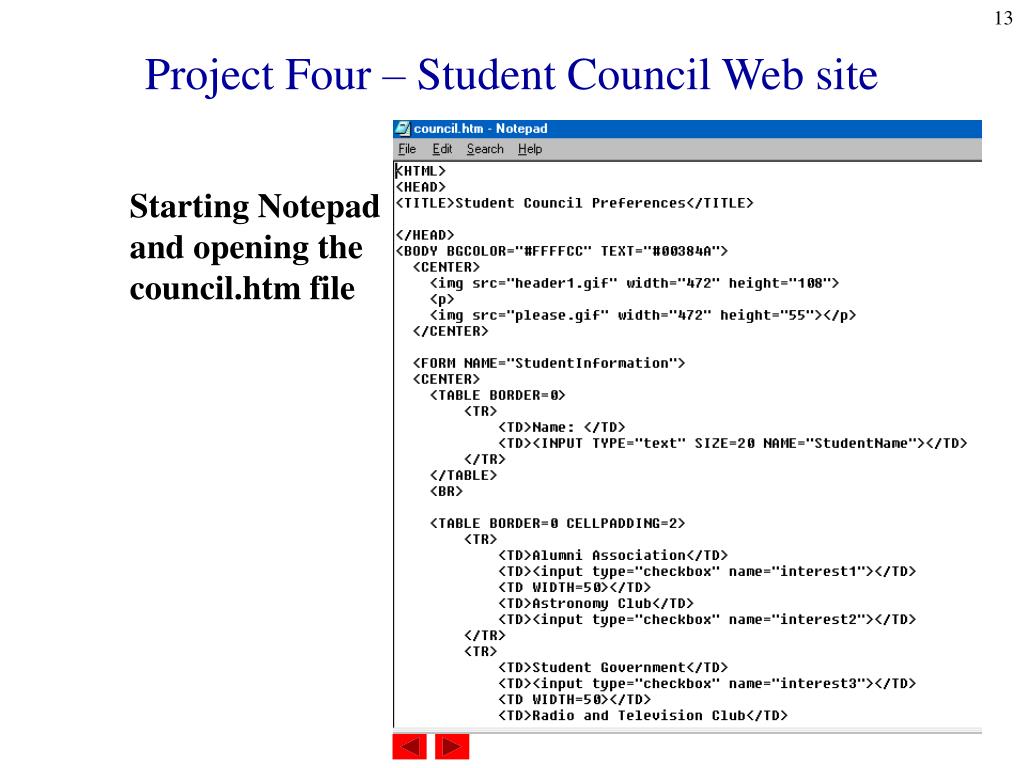

13. Project Four – Student Council Web site Starting Notepad and opening the council.htm file

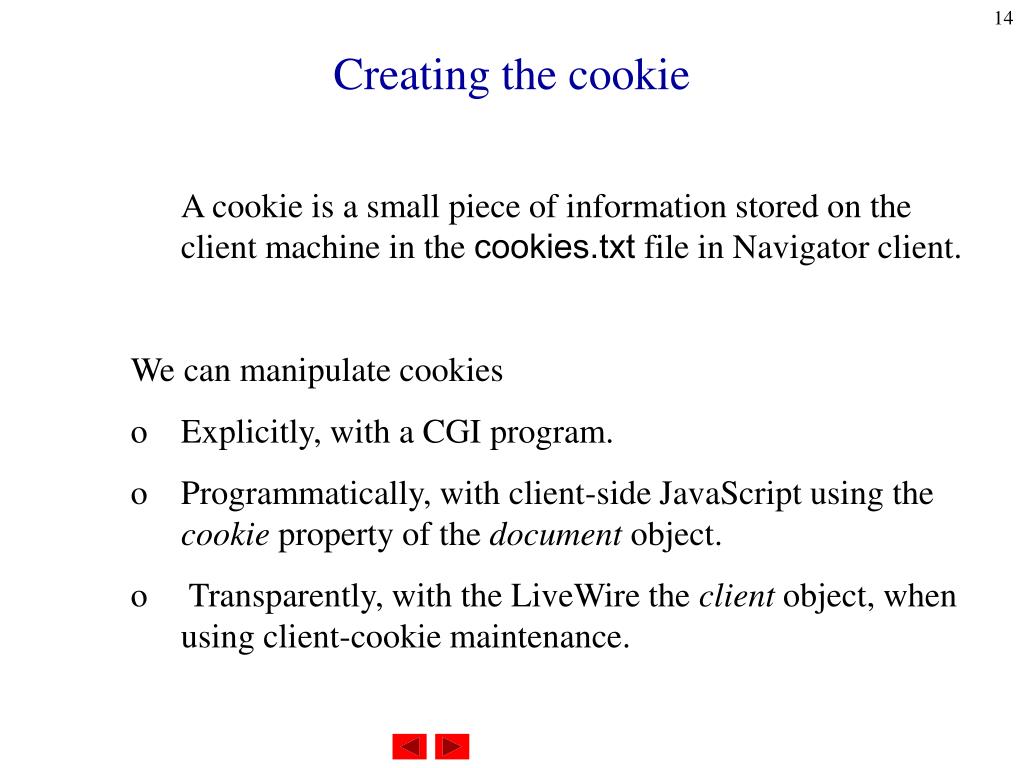

14. Creating the cookie • A cookie is a small piece of information stored on the client machine in the cookies.txt file in Navigator client. • We can manipulate cookies • Explicitly, with a CGI program. • Programmatically, with client-side JavaScript using the cookie property of the document object. • Transparently, with the LiveWire the client object, when using client-cookie maintenance.

15. Creating the cookie We will concentrate on using JavaScript to manipulate cookies. Each cookie is a small item of information with an optional expiration date and is added to the cookie file in the following format: name=value;expires=expDate; name is the name of the datum being stored, and value is its value. expDate is the expiration date, in GMT date format: Wdy, DD-Mon-YY HH:MM:SS

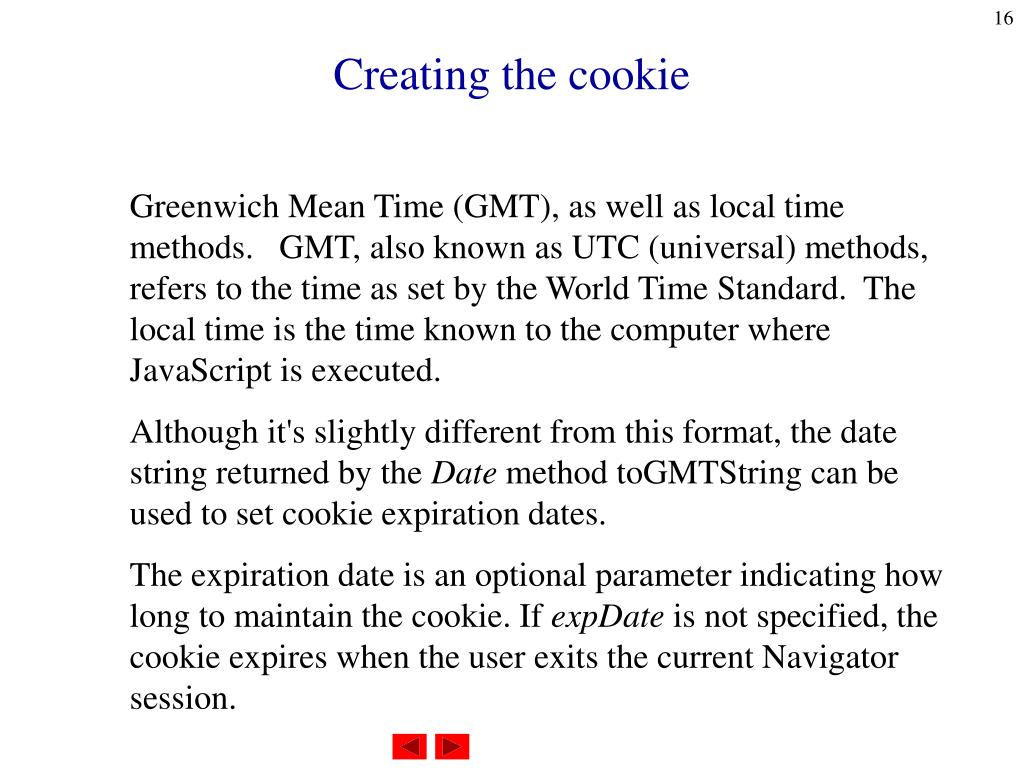

16. Creating the cookie Greenwich Mean Time (GMT), as well as local time methods. GMT, also known as UTC (universal) methods, refers to the time as set by the World Time Standard. The local time is the time known to the computer where JavaScript is executed. Although it's slightly different from this format, the date string returned by the Date method toGMTString can be used to set cookie expiration dates. The expiration date is an optional parameter indicating how long to maintain the cookie. If expDate is not specified, the cookie expires when the user exits the current Navigator session.

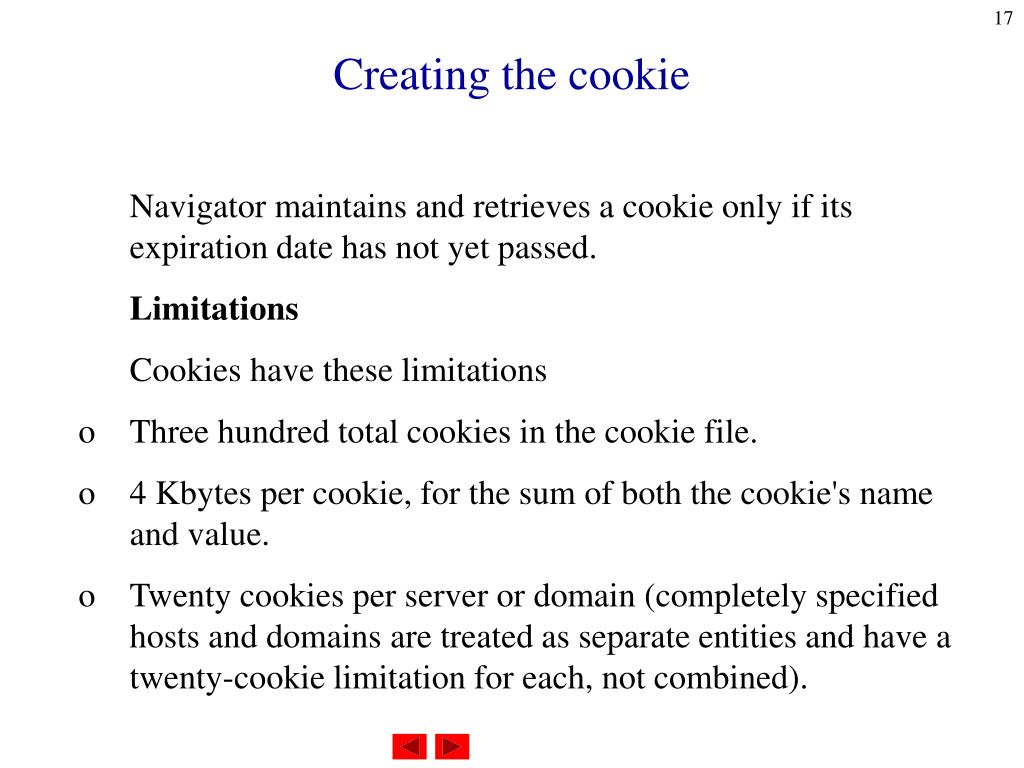

17. Creating the cookie • Navigator maintains and retrieves a cookie only if its expiration date has not yet passed. • Limitations • Cookies have these limitations • Three hundred total cookies in the cookie file. • 4 Kbytes per cookie, for the sum of both the cookie's name and value. • Twenty cookies per server or domain (completely specified hosts and domains are treated as separate entities and have a twenty-cookie limitation for each, not combined).

18. Creating the cookie Cookies can be associated with one or more directories. If your files are all in one directory, then you need not worry about this. If your files are in multiple directories, you may need to use an additional path parameter for each cookie. Using cookies with JavaScript The document.cookie property is a string that contains all the names and values of Navigator cookies. You can use this property to work with cookies in JavaScript.

19. Creating the cookie • Here are some basic things you can do with cookies: • Set a cookie value, optionally specifying an expiration date. • Get a cookie value, given the cookie name. • It is convenient to define functions to perform these tasks. Here, for example, is a function that sets cookie values and expiration:

20. Creating the cookie // Sets cookie values. Expiration date is optional//function setCookie(name, value, expire) {          document.cookie = name + "=" + escape(value)          + ((expire == null) ? "" : ("; expires=" + expire.toGMTString()))}Notice the use of escape to encode special characters (semicolons, commas, spaces) in the value string. This function assumes that cookie names do not have any special characters.

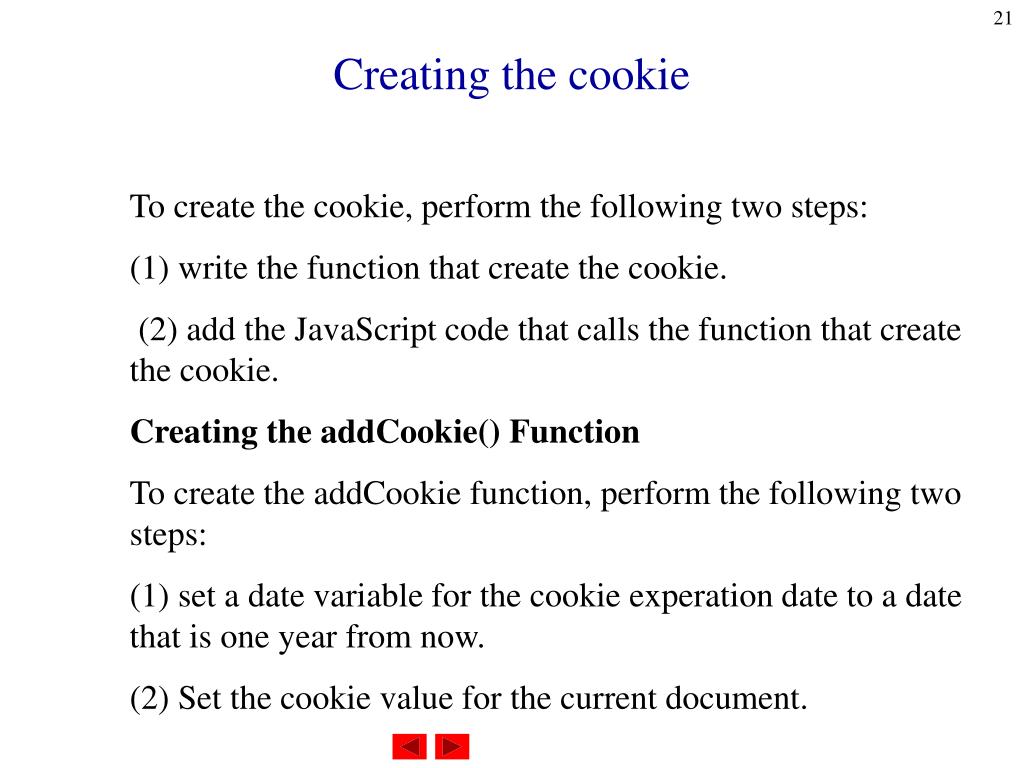

21. Creating the cookie To create the cookie, perform the following two steps: (1) write the function that create the cookie. (2) add the JavaScript code that calls the function that create the cookie. Creating the addCookie() Function To create the addCookie function, perform the following two steps: (1) set a date variable for the cookie experation date to a date that is one year from now. (2) Set the cookie value for the current document.

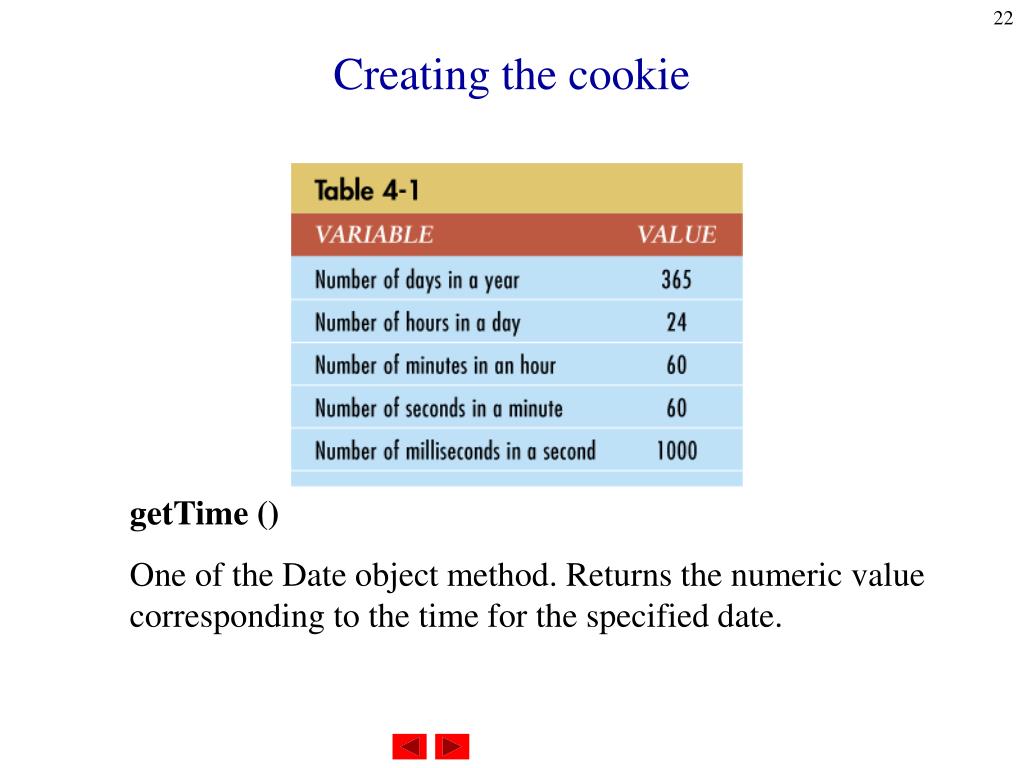

22. Creating the cookie getTime () One of the Date object method. Returns the numeric value corresponding to the time for the specified date.

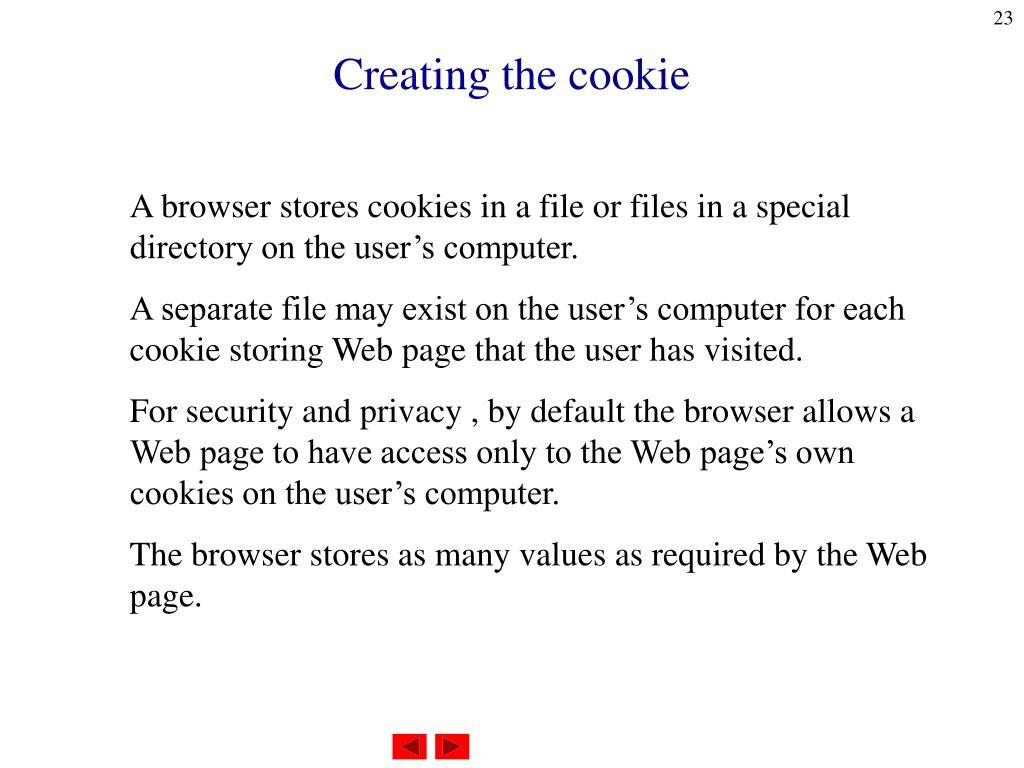

23. Creating the cookie A browser stores cookies in a file or files in a special directory on the user’s computer. A separate file may exist on the user’s computer for each cookie storing Web page that the user has visited. For security and privacy , by default the browser allows a Web page to have access only to the Web page’s own cookies on the user’s computer. The browser stores as many values as required by the Web page.

24. Creating the cookie The browser stores these values as name and value pairs.

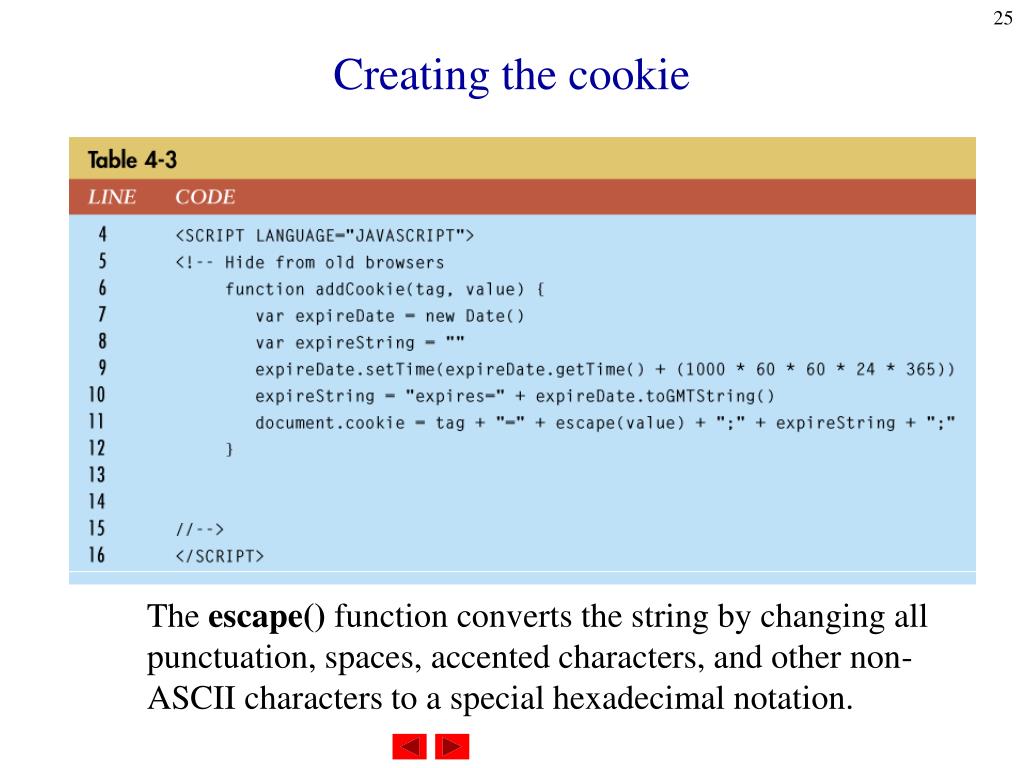

25. Creating the cookie The escape() function converts the string by changing all punctuation, spaces, accented characters, and other non-ASCII characters to a special hexadecimal notation.

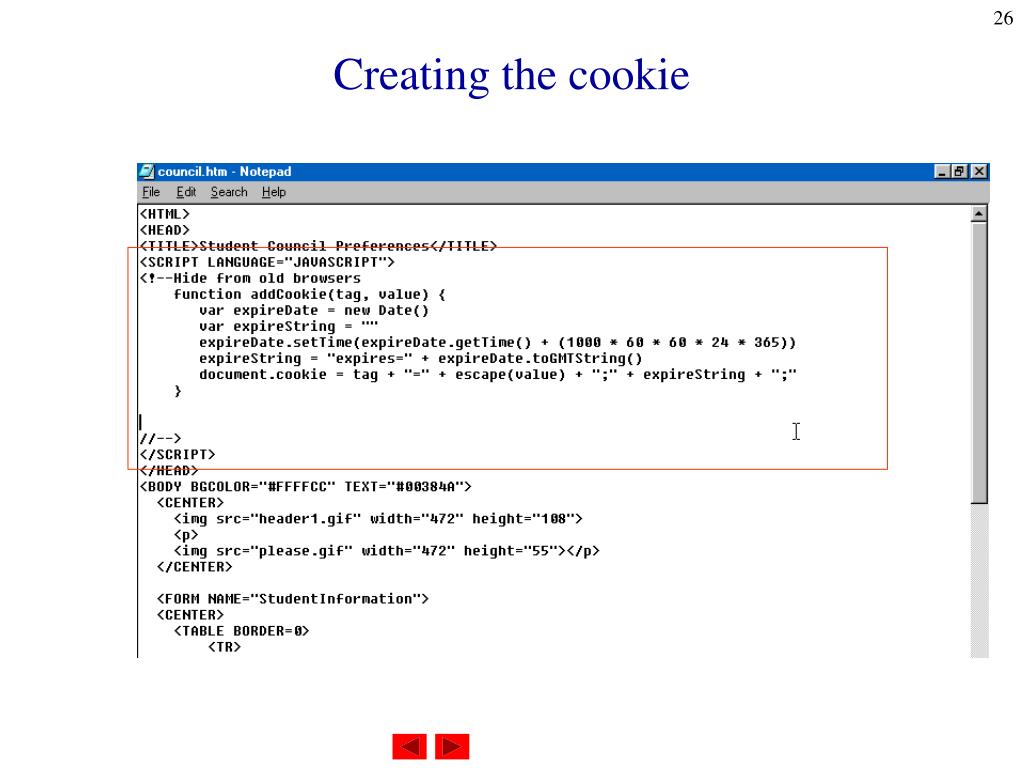

26. Creating the cookie

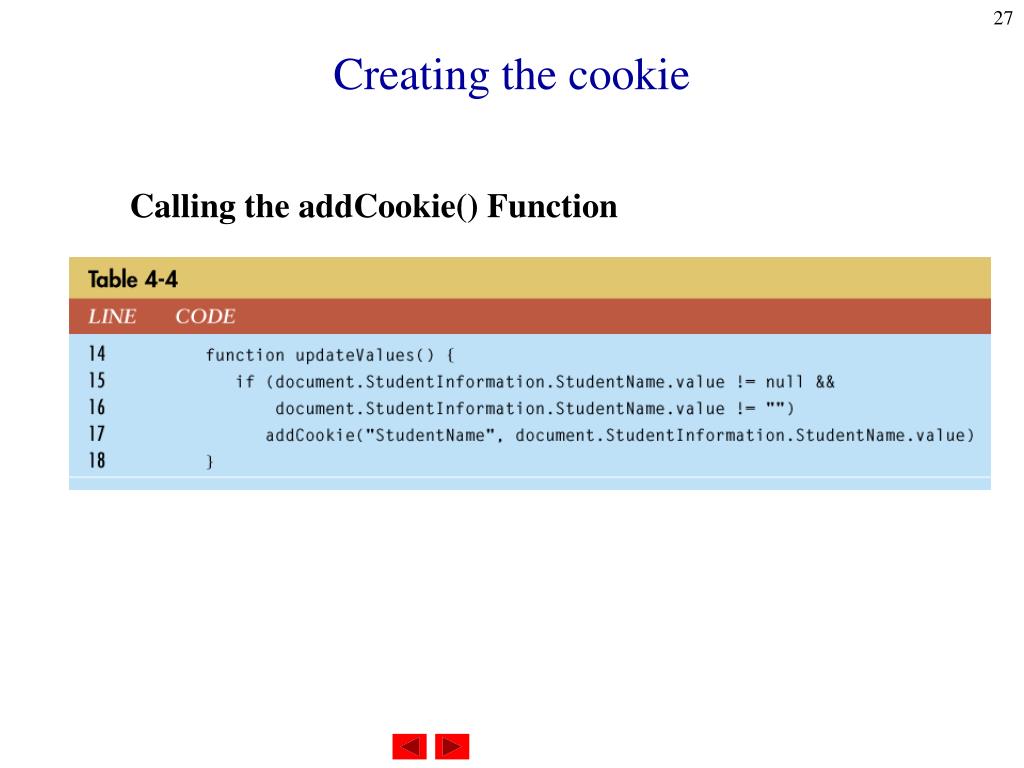

27. Creating the cookie Calling the addCookie() Function

28. Creating the cookie

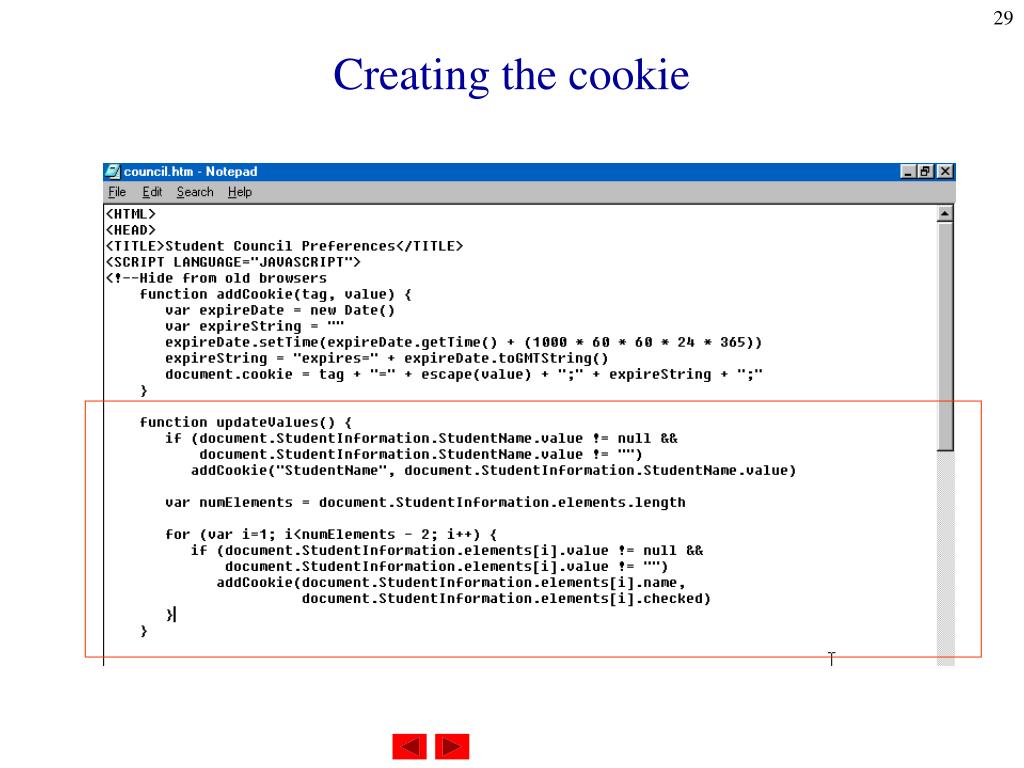

29. Creating the cookie

30. Creating the cookie Calling the addCookie() Function

31. Reading the Cookie Generic functions Programmers refer to functions, such as addCookie() and getCookie(), which can be used again and again without any modification. The steps to read the cookie: 1). Read the cookie that was created with the updateValues() function 2). Test to make sure that the browser property saved the cookie by displaying the value using the JavaScript alert() function.

32. Reading the Cookie Creating the getCookie() function

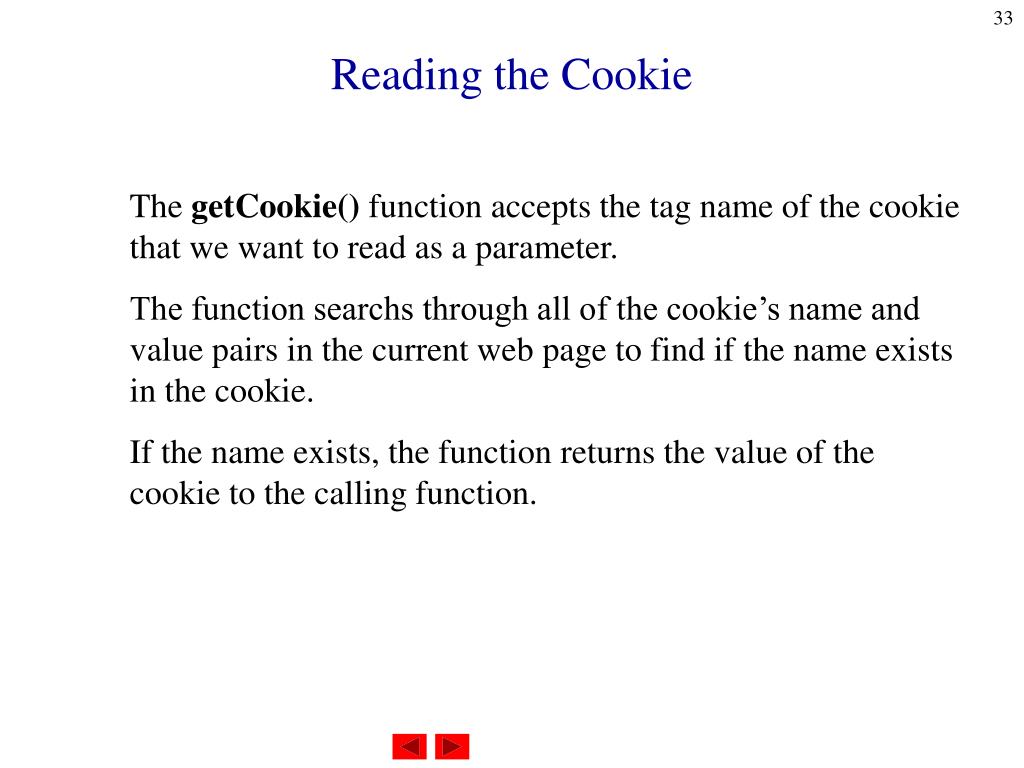

33. Reading the Cookie The getCookie() function accepts the tag name of the cookie that we want to read as a parameter. The function searchs through all of the cookie’s name and value pairs in the current web page to find if the name exists in the cookie. If the name exists, the function returns the value of the cookie to the calling function.

34. Reading the Cookie • escape • Function. Returns the ASCII encoding of an argument in the ISO Latin-1 character set. • Syntax • escape("string") • Parameters • string is a nonalphanumeric string in the ISO Latin-1 character set, or a property of an existing object.

35. Reading the Cookie • Description • The value returned by the escape function is a string of the form "%xx," where xx is the ASCII encoding of a character in the argument. • If you pass the escape function an alphanumeric character, the escape function returns the same character. • escape is a top-level function not associated with any object.

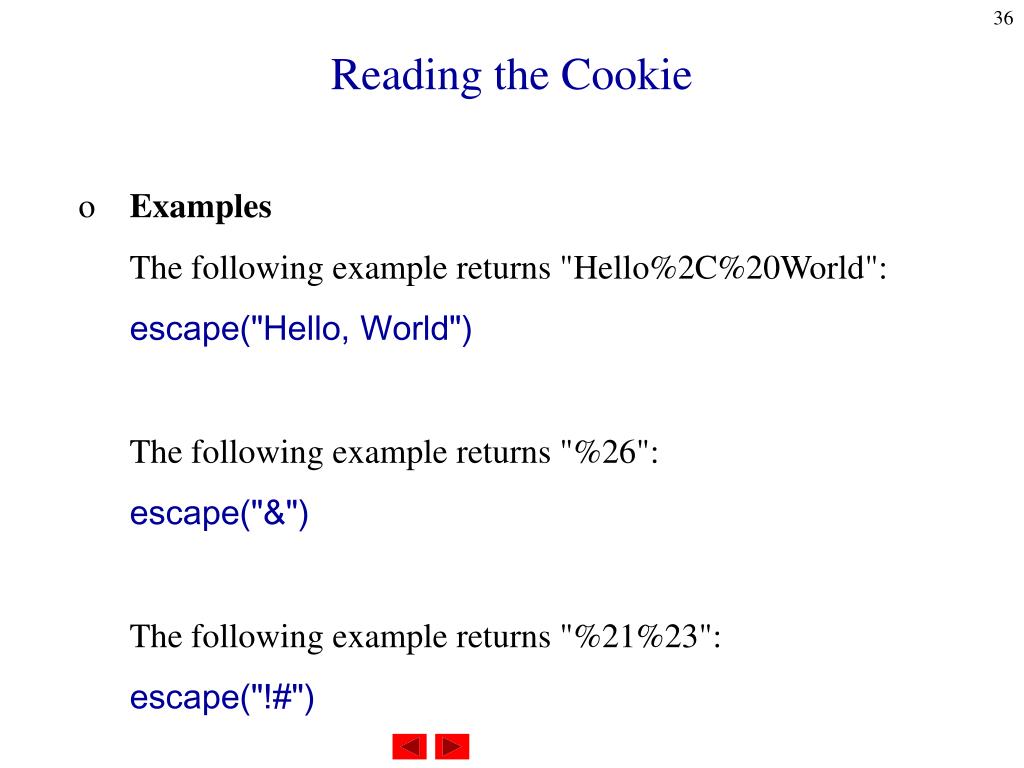

36. Reading the Cookie • Examples • The following example returns "Hello%2C%20World": • escape("Hello, World") • The following example returns "%26": • escape("&") • The following example returns "%21%23": • escape("!#")

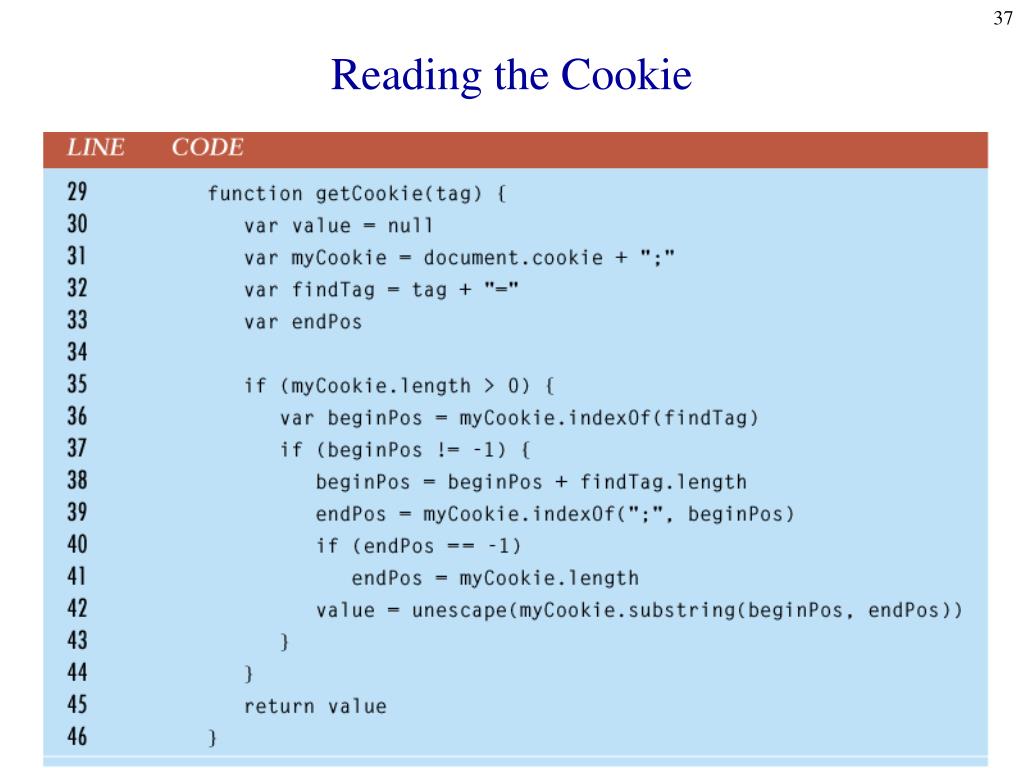

37. Reading the Cookie The getCookie() function accepts the tag name of the cookie that we want to read as a parameter. The function searchs through all of the cookie’s name and value pairs in the current web page to find if the name exists in the cookie. If the name exists, the function returns the value of the cookie to the calling function.

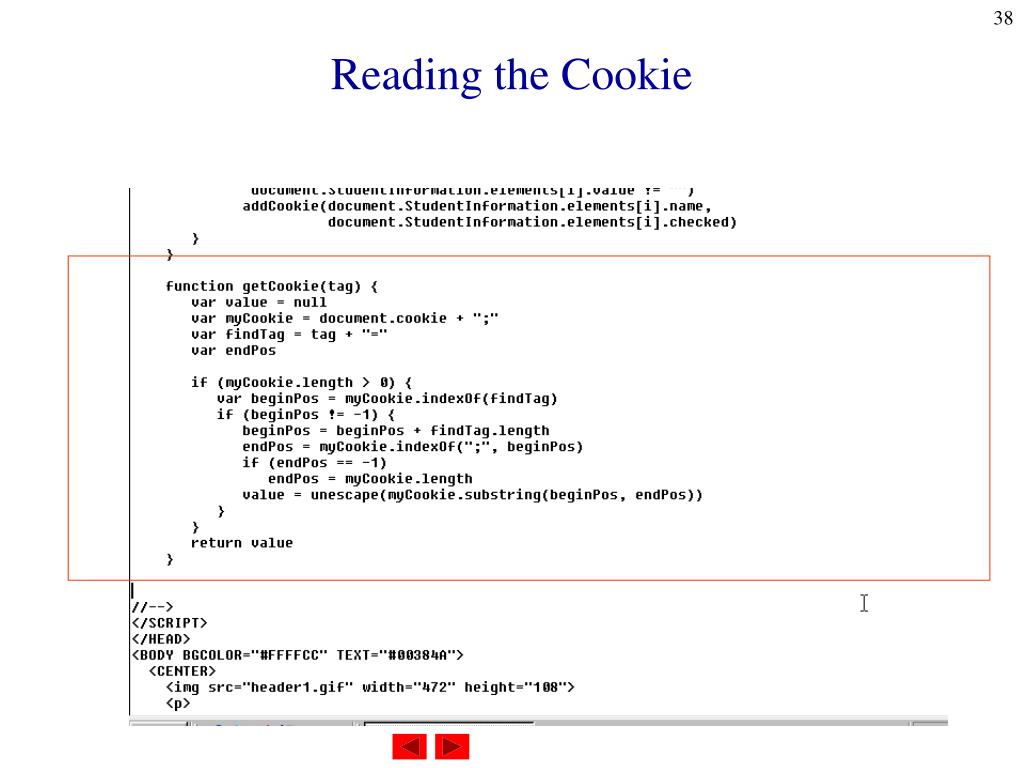

38. Reading the Cookie

39. Reading the Cookie Calling the getcookie() function

40. Reading the Cookie Calling the getcookie() function

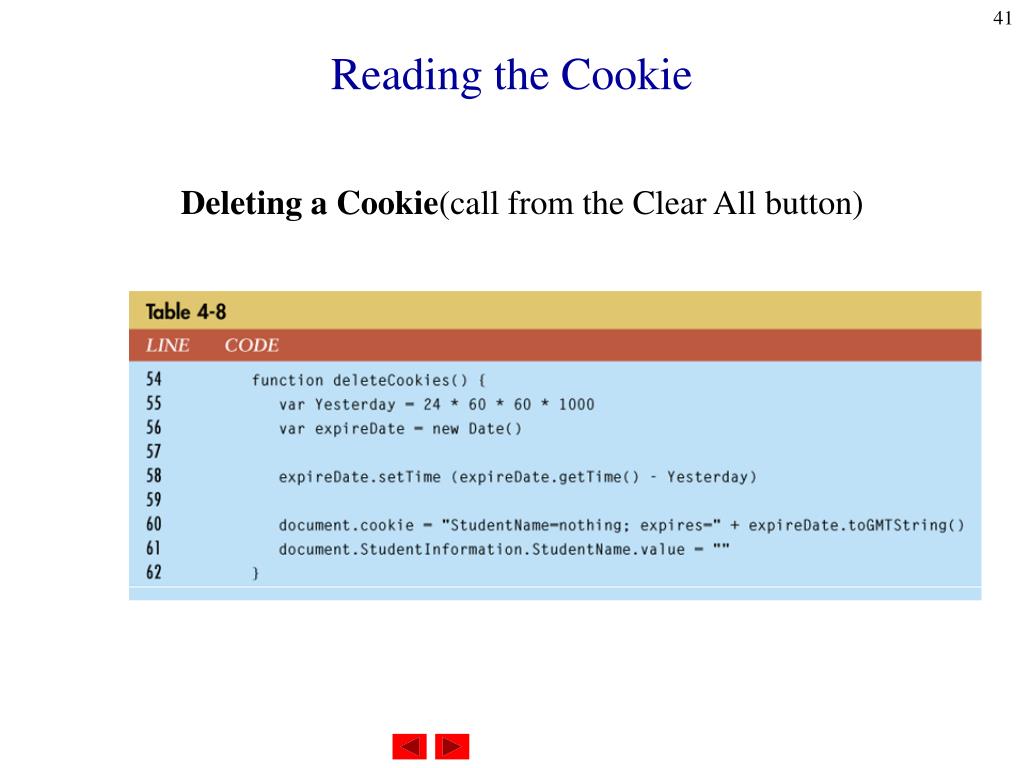

41. Reading the Cookie Deleting a Cookie(call from the Clear All button)

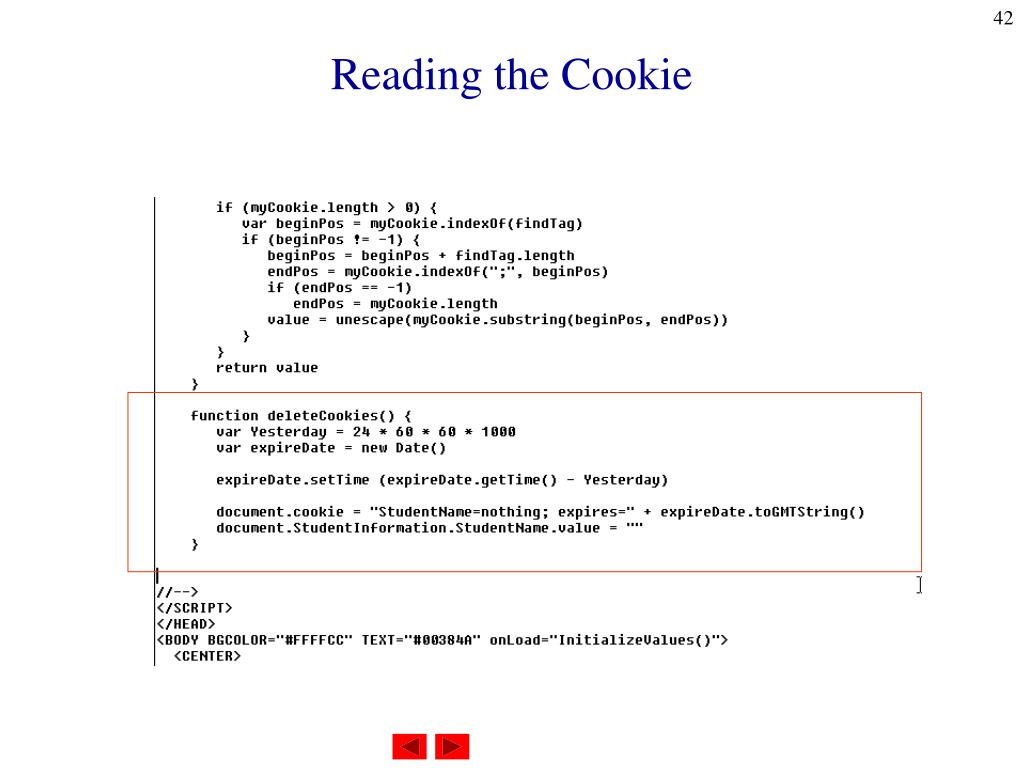

42. Reading the Cookie

43. Reading the Cookie Deleting a Cookie(call from the Clear All button)

44. Reading the Cookie

45. Creating the Array Using array to store each organization’s web page information. The array contains the information about a user’s selected list of organization. The array’s information will be used to update the lower-right frame in the following figure.

46. Creating the Array Initializing the Array We will use the cookie’s information, which is created in the Student Council Preferences Web page, and populate the array in sidebar.htm file.

47. Creating the Array this keyword Use the this keyword to refer to the current object. In general, this refers to the calling object in a method. Use this as follows: this[.propertyName]

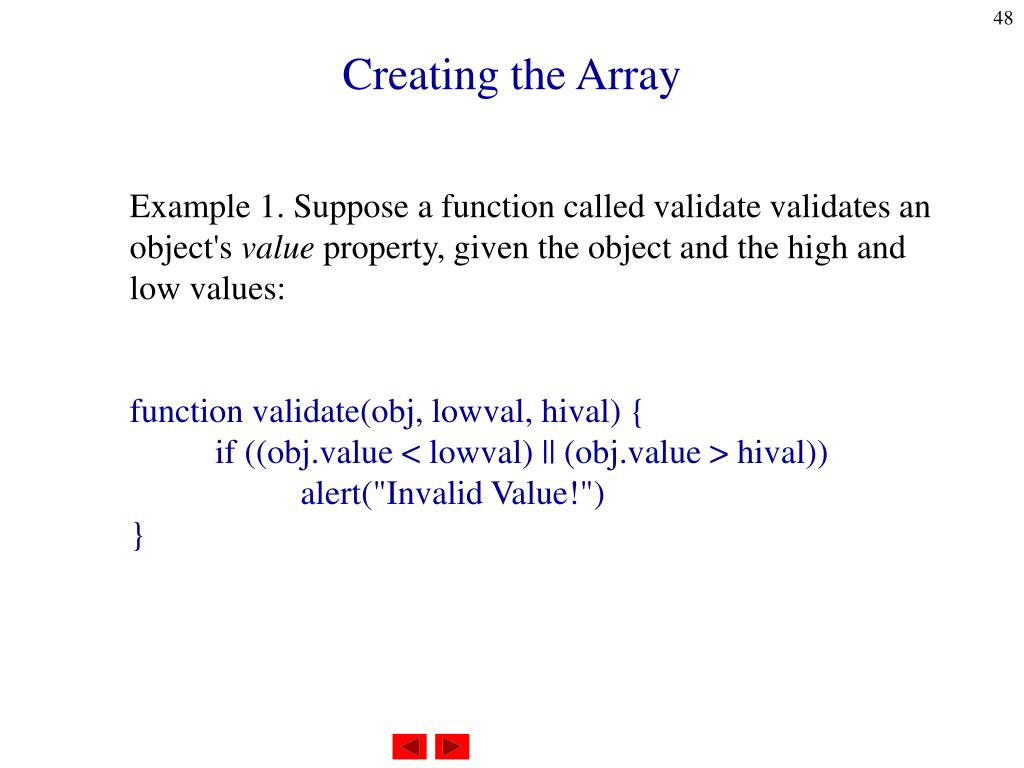

48. Creating the Array Example 1. Suppose a function called validate validates an object's value property, given the object and the high and low values: function validate(obj, lowval, hival) {          if ((obj.value < lowval) || (obj.value > hival))                    alert("Invalid Value!")}

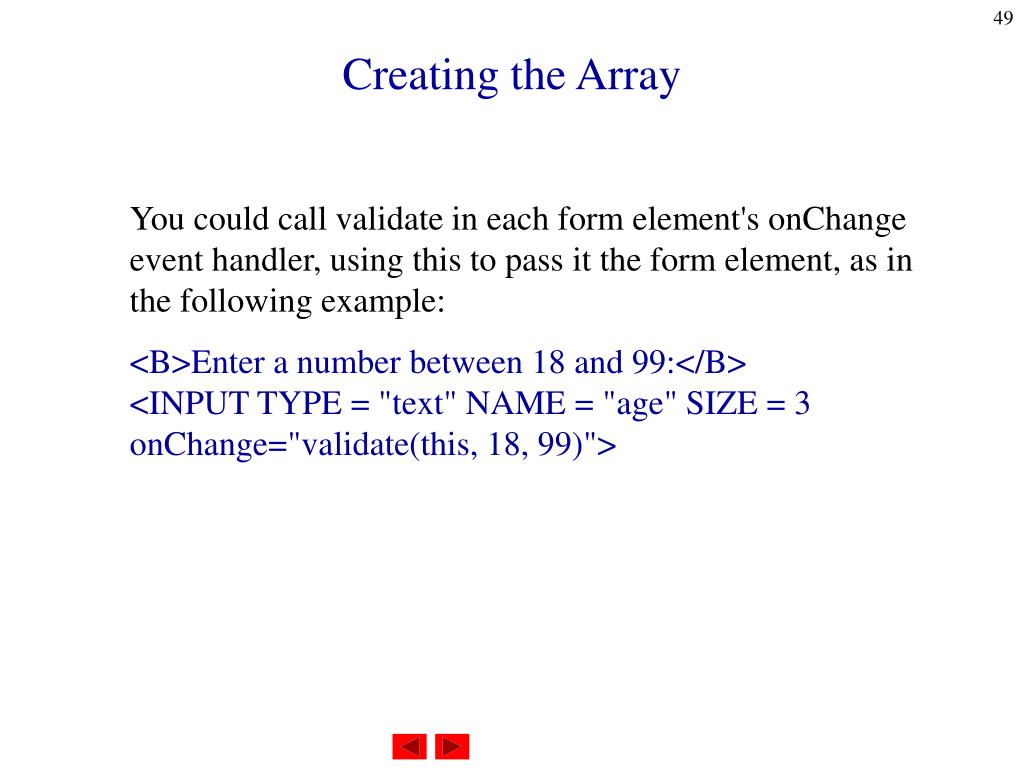

49. Creating the Array You could call validate in each form element's onChange event handler, using this to pass it the form element, as in the following example: <B>Enter a number between 18 and 99:</B><INPUT TYPE = "text" NAME = "age" SIZE = 3onChange="validate(this, 18, 99)">

50. Creating the Array Example 2. When combined with the form property, this can refer to the current object's parent form. In the following example, the form myForm contains a Text object and a button. When the user clicks the button, the value of the Text object is set to the form's name. The button's onClick event handler uses this.form to refer to the parent form, myForm.
