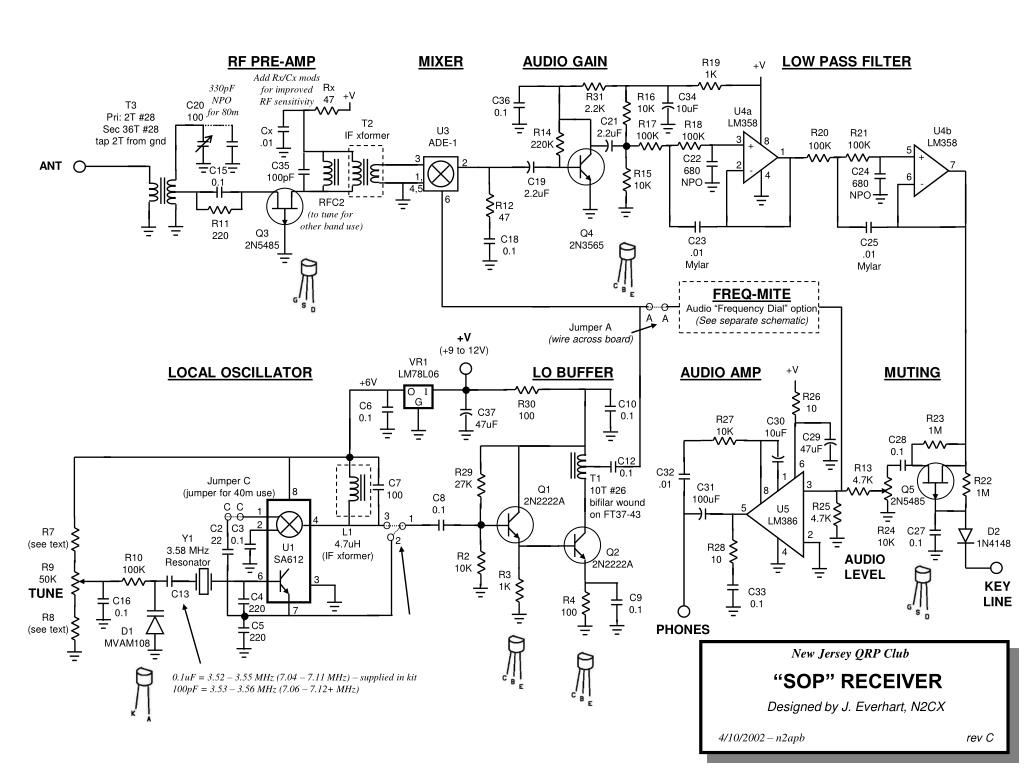

FREQ-MITE Audio “Frequency Dial” option (See separate schematic). O. O. RF PRE-AMP. MIXER. AUDIO GAIN. LOW PASS FILTER. R19 1K. +V. Add Rx/Cx mods for improved RF sensitivity. Rx 47. 330pF NPO for 80m. +V. R31 2.2K. R16 10K. C34 10uF. C36 0.1. T3 Pri: 2T #28
