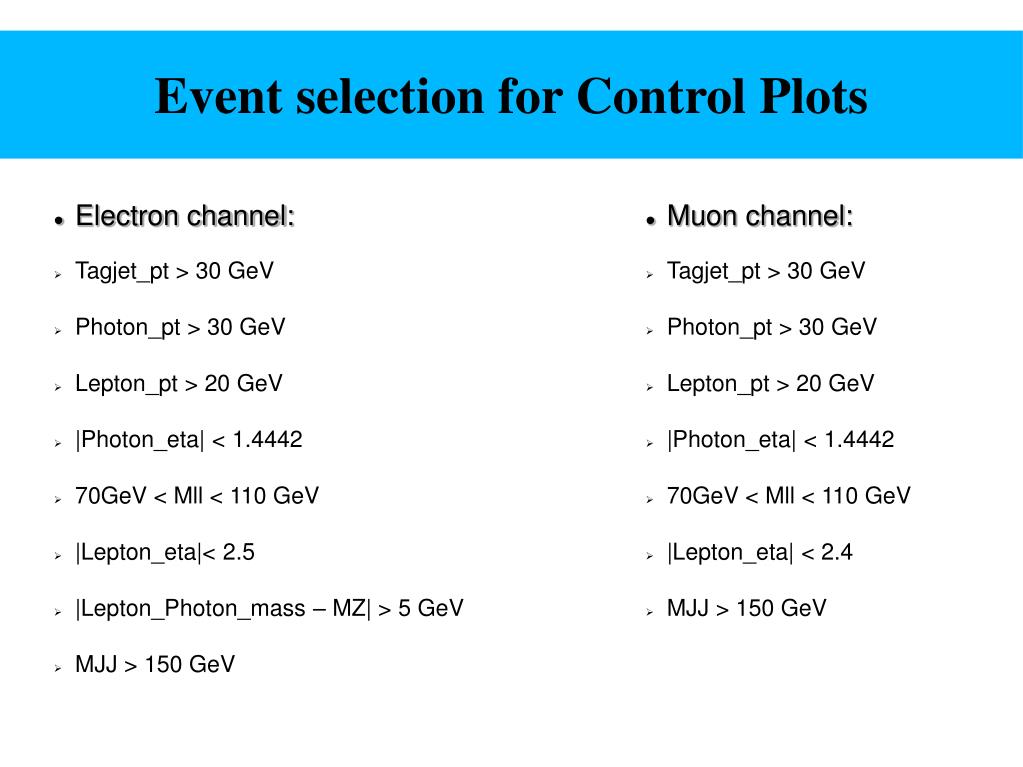

  1. Event selection for Control Plots • Electron channel: • Tagjet_pt > 30 GeV • Photon_pt > 30 GeV • Lepton_pt > 20 GeV • |Photon_eta| < 1.4442 • 70GeV < Mll < 110 GeV • |Lepton_eta|< 2.5 • |Lepton_Photon_mass – MZ| > 5 GeV • MJJ > 150 GeV • Muon channel: • Tagjet_pt > 30 GeV • Photon_pt > 30 GeV • Lepton_pt > 20 GeV • |Photon_eta| < 1.4442 • 70GeV < Mll < 110 GeV • |Lepton_eta| < 2.4 • MJJ > 150 GeV

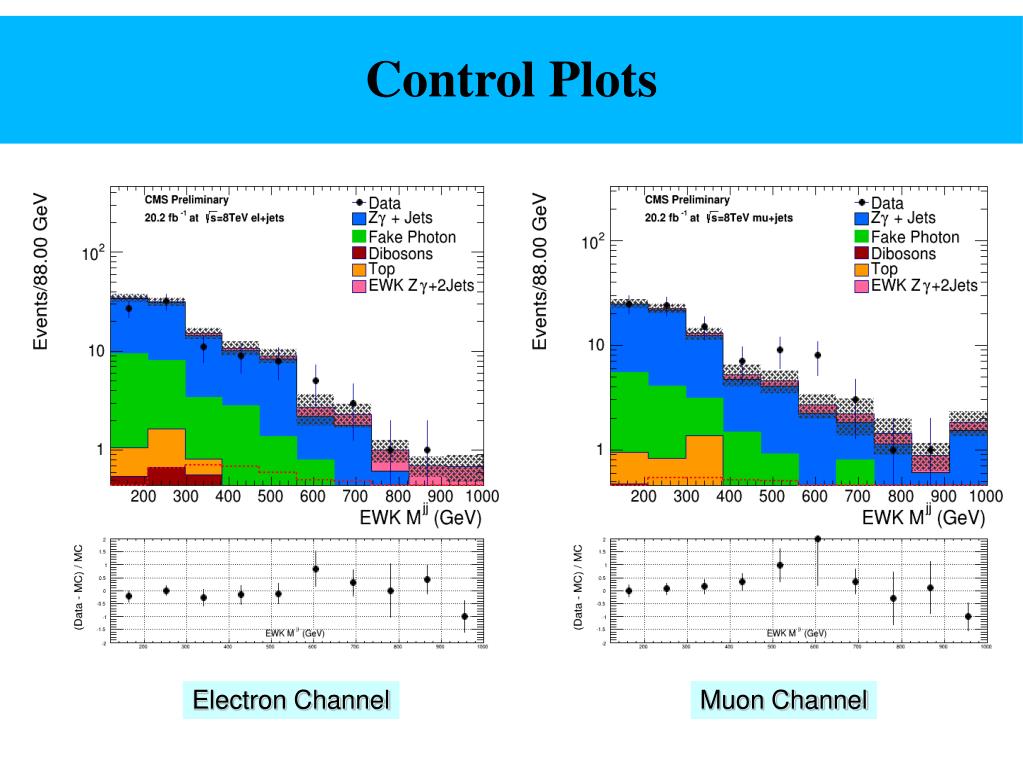

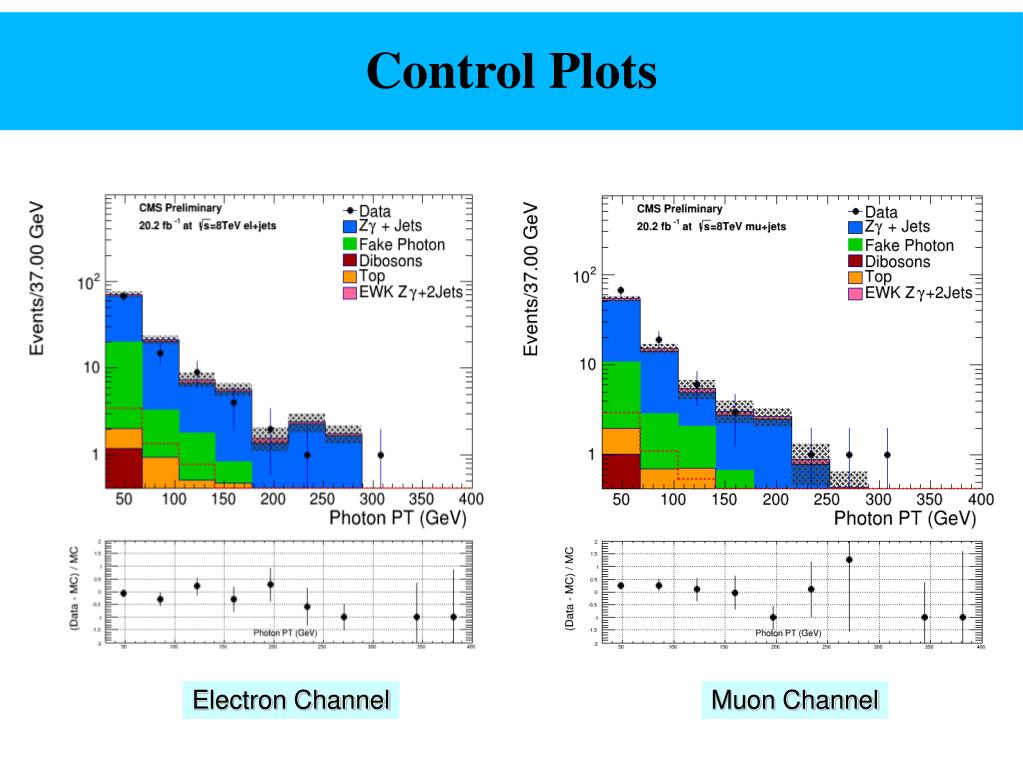

  2. Control Plots Electron Channel Muon Channel

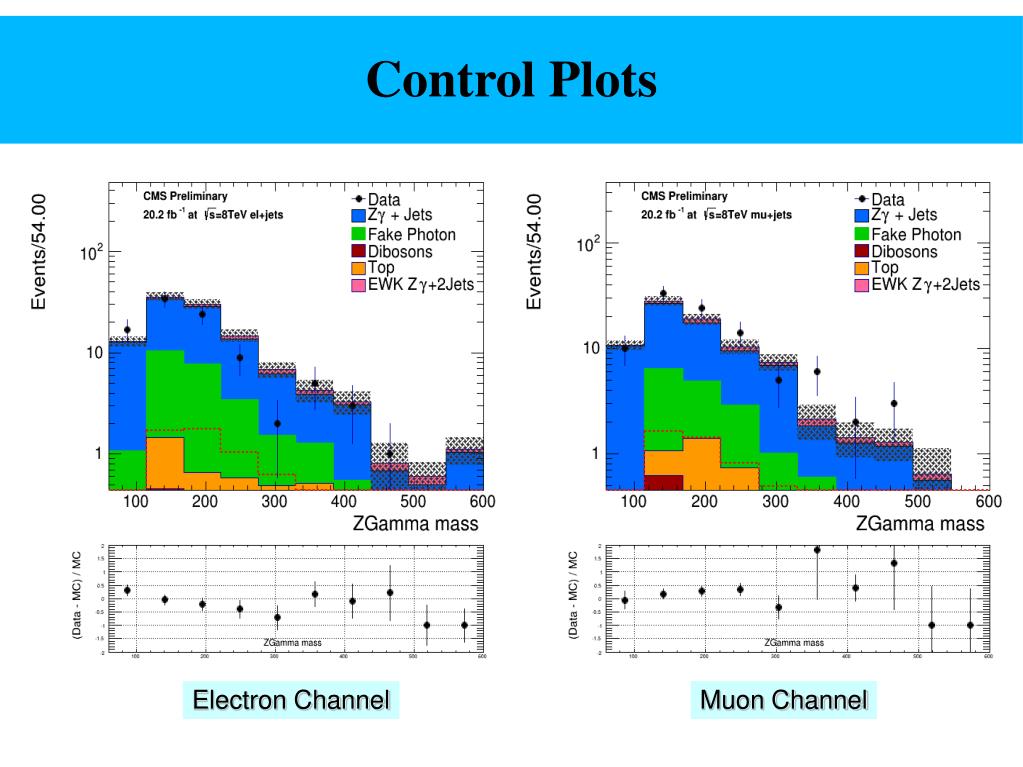

  3. Control Plots Electron Channel Muon Channel

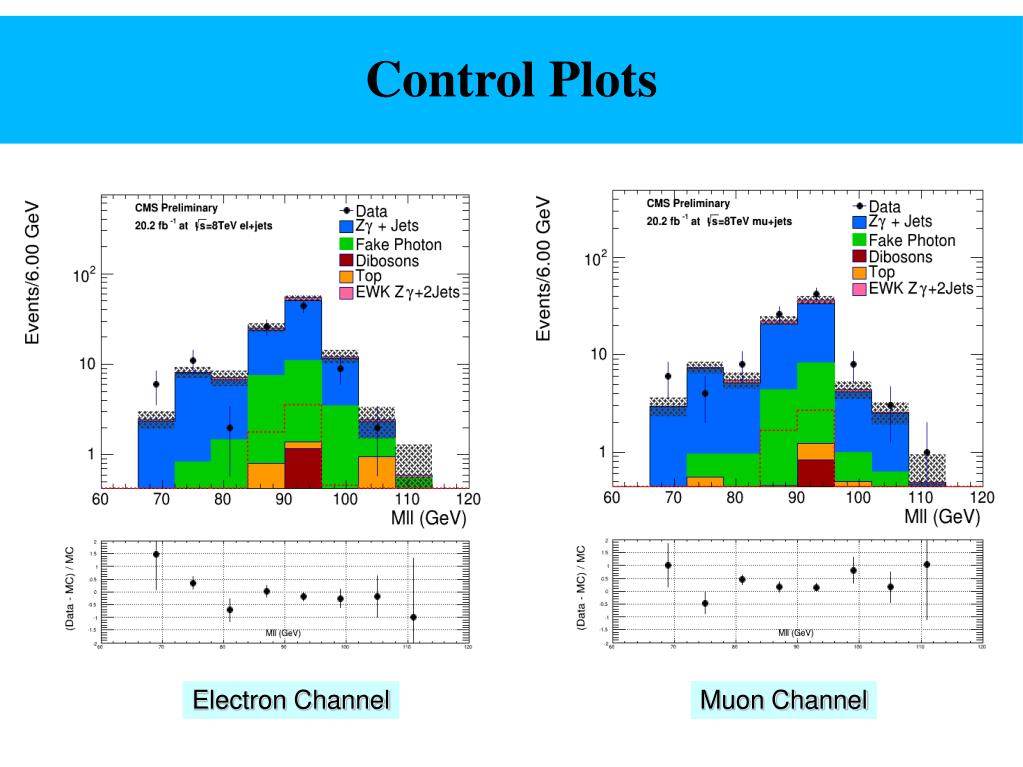

  4. Control Plots Electron Channel Muon Channel

  5. Control Plots Electron Channel Muon Channel

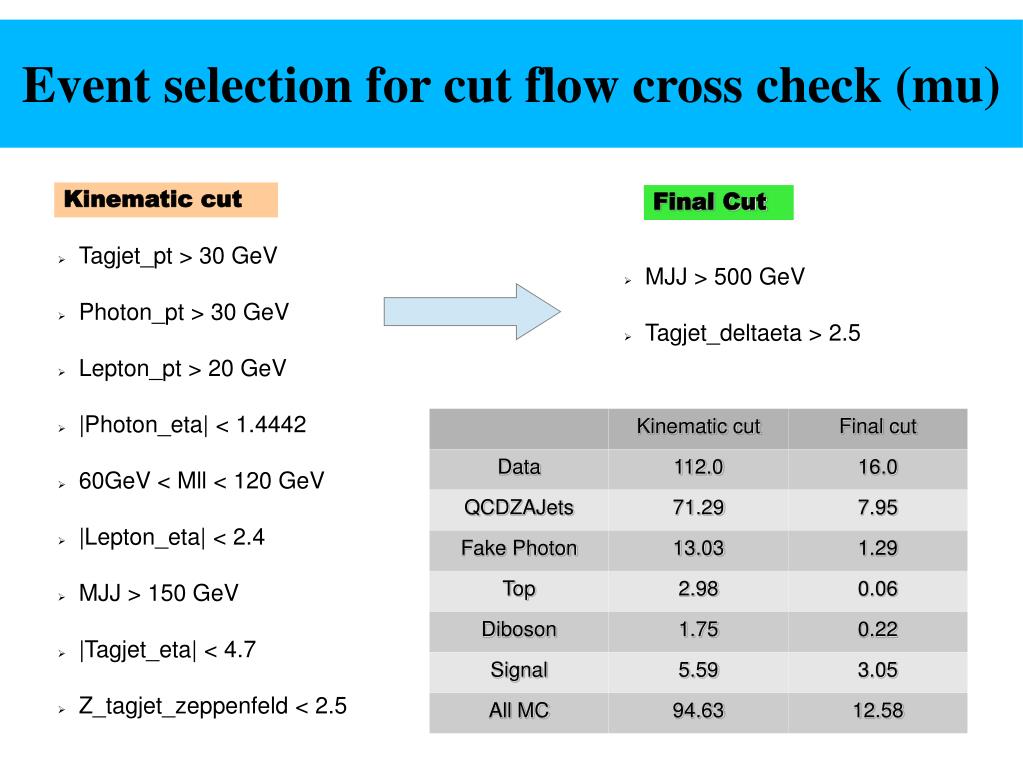

  6. Event selection for cut flow cross check (mu) Kinematic cut Final Cut • Tagjet_pt > 30 GeV • Photon_pt > 30 GeV • Lepton_pt > 20 GeV • |Photon_eta| < 1.4442 • 60GeV < Mll < 120 GeV • |Lepton_eta| < 2.4 • MJJ > 150 GeV • |Tagjet_eta| < 4.7 • Z_tagjet_zeppenfeld < 2.5 • MJJ > 500 GeV • Tagjet_deltaeta > 2.5

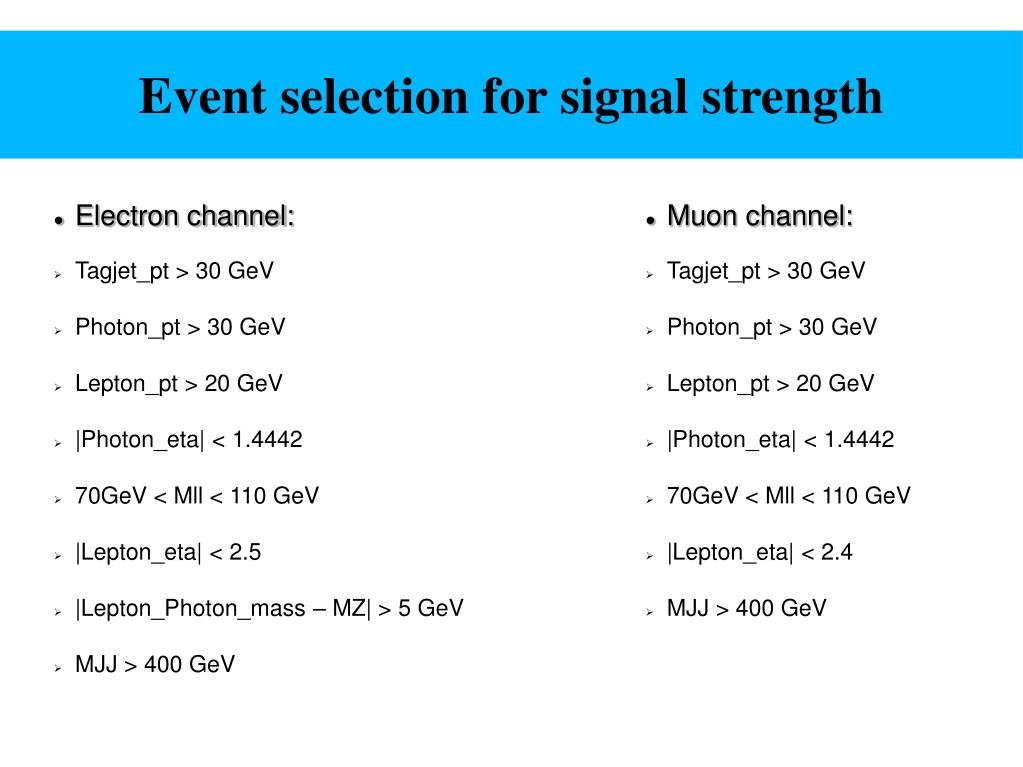

  7. Event selection for signal strength • Electron channel: • Tagjet_pt > 30 GeV • Photon_pt > 30 GeV • Lepton_pt > 20 GeV • |Photon_eta| < 1.4442 • 70GeV < Mll < 110 GeV • |Lepton_eta| < 2.5 • |Lepton_Photon_mass – MZ| > 5 GeV • MJJ > 400 GeV • Muon channel: • Tagjet_pt > 30 GeV • Photon_pt > 30 GeV • Lepton_pt > 20 GeV • |Photon_eta| < 1.4442 • 70GeV < Mll < 110 GeV • |Lepton_eta| < 2.4 • MJJ > 400 GeV

  8. Systematic Uncertainty • Reference CMS Note: A. CMS AN -2013/091 B. CMS AN AN-12-479

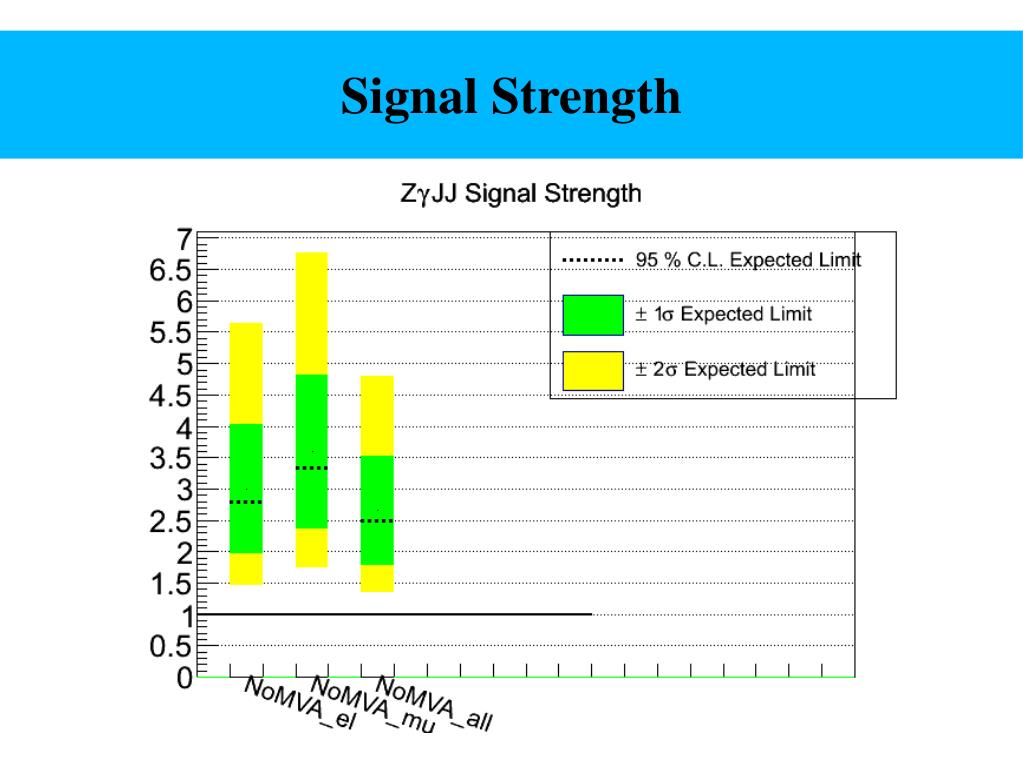

  9. Signal Strength

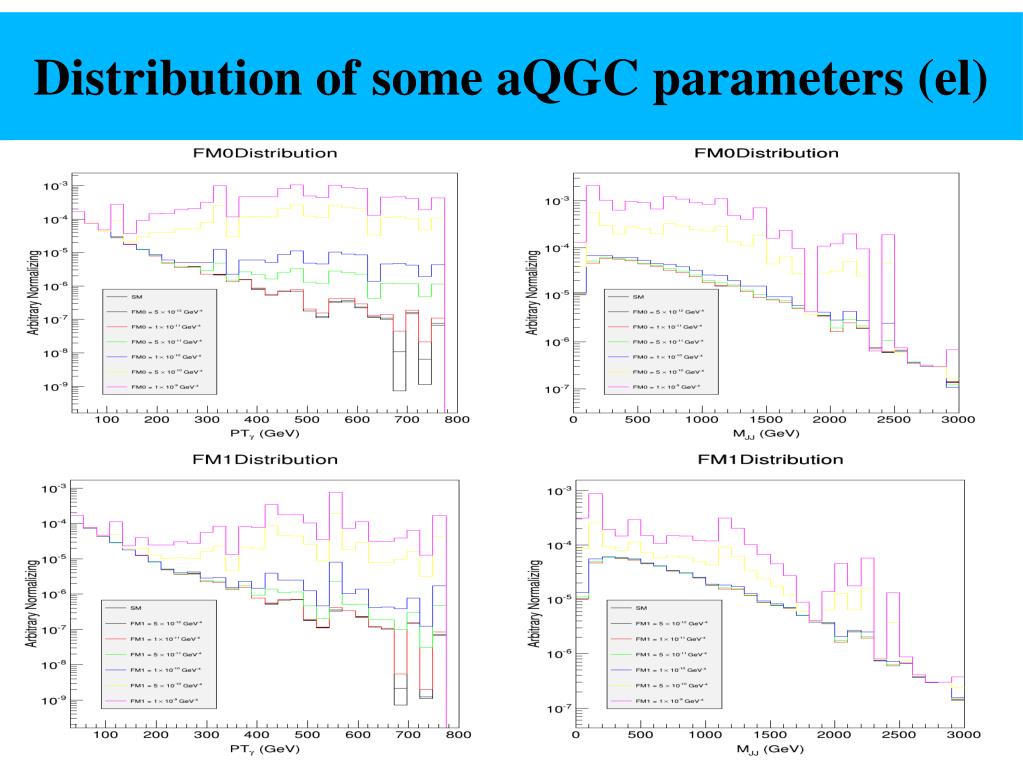

  10. Distribution of some aQGC parameters (el)

  11. Distribution of some aQGC parameters (mu)
