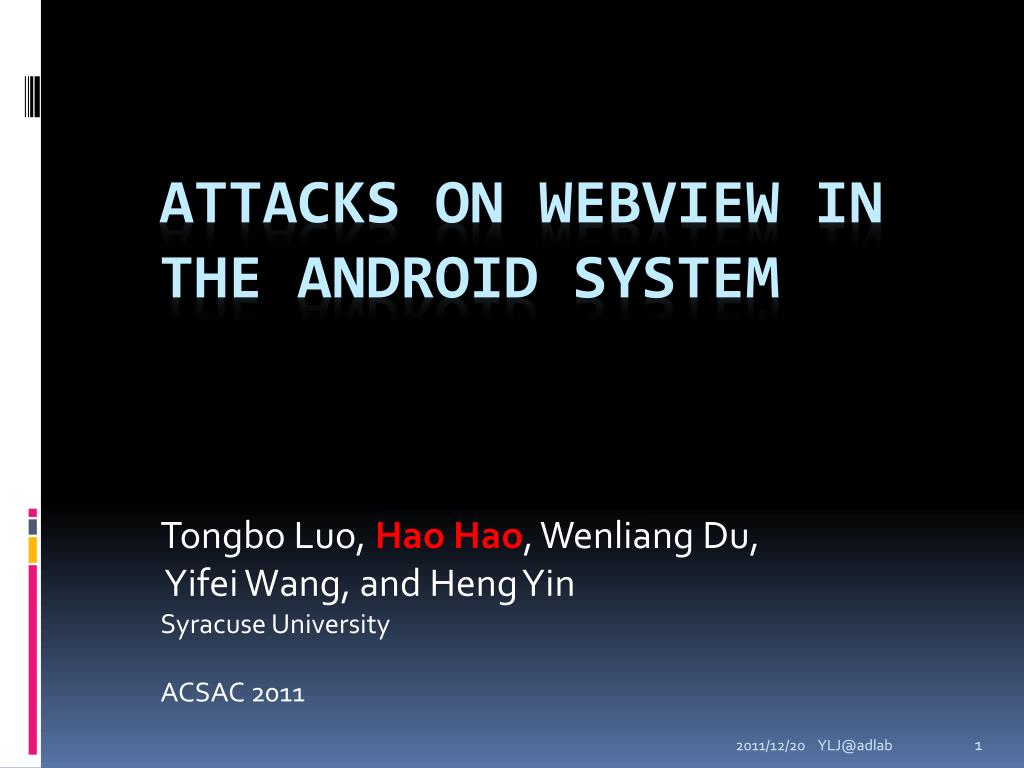

  1. TongboLuo, HaoHao, Wenliang Du, Yifei Wang, and HengYin Syracuse University ACSAC2011 Attacks on WebView in the Android System

  2. Agenda • Introduction • WebView • Threat Models • Attacks from Web Pages • Attack from Malicious Apps • Case Studies • Conclusion

  3. Introduction • WebView - enabling smartphone and tablet (both in Android & iOS)apps to embed a simple but powerful browser inside them • Two Web's security infrastructure are weakened • Trusted Computing Base (TCB) at the client side • Sandbox protection implemented by browsers

  4. Introduction • Two objectives of Sandbox: • Same-Origin Policy(SOP) • Isolate web pages from the system and isolate the web pages of one origin from those of another

  5. WebView(1/4) • WebView is a subclass of View, and it is used to display web pages • It enables apps to interact with the web content through its APIs • From apps to web pages • From web pages to apps • three types of interactions • Event monitoring • Invoke Java from JavaScript • Invoke JavaScript from Java

  6. WebView(2/4) • Event monitoring

  7. WebView(3/4) • Invoke Java from JavaScript

  8. WebView(4/4) • Invoke JavaScript from Java

  9. Threat Models • Attacks from Malicious Web Pages

  10. Threat Models • Attacks from Malicious Apps

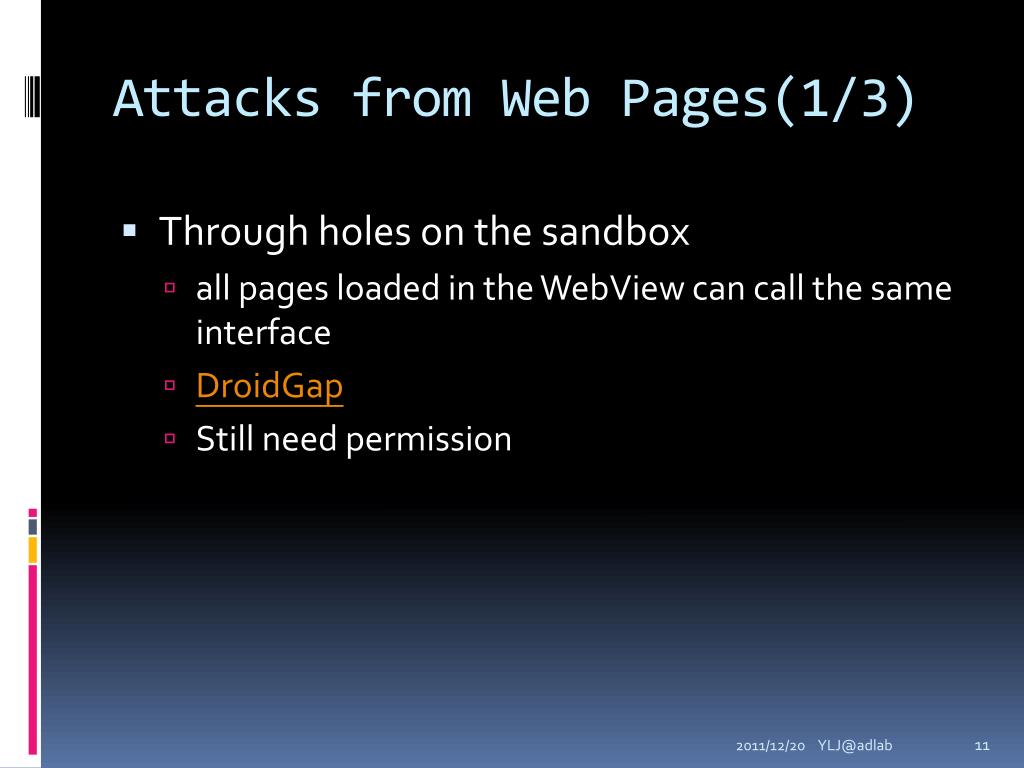

  11. Attacks from Web Pages(1/3) • Through holes on the sandbox • all pages loaded in the WebView can call the same interface • DroidGap • Still need permission

  12. Attacks from Web Pages(2/3) • Through Frame Confusion Public class CameraLauncher{ public void failPicture(String paramString){

  13. Attacks from Web Pages(3/3) • Through Frame Confusion

  14. Attack from Malicious Apps(1/3) • JavaScript Injection • Event Sniffing and Hijacking

  15. Attack from Malicious Apps(2/3) • JavaScript Injection • Android app can inject arbitrary JavaScript code into the pages loaded by the WebView component. • Extracting Information From WebView

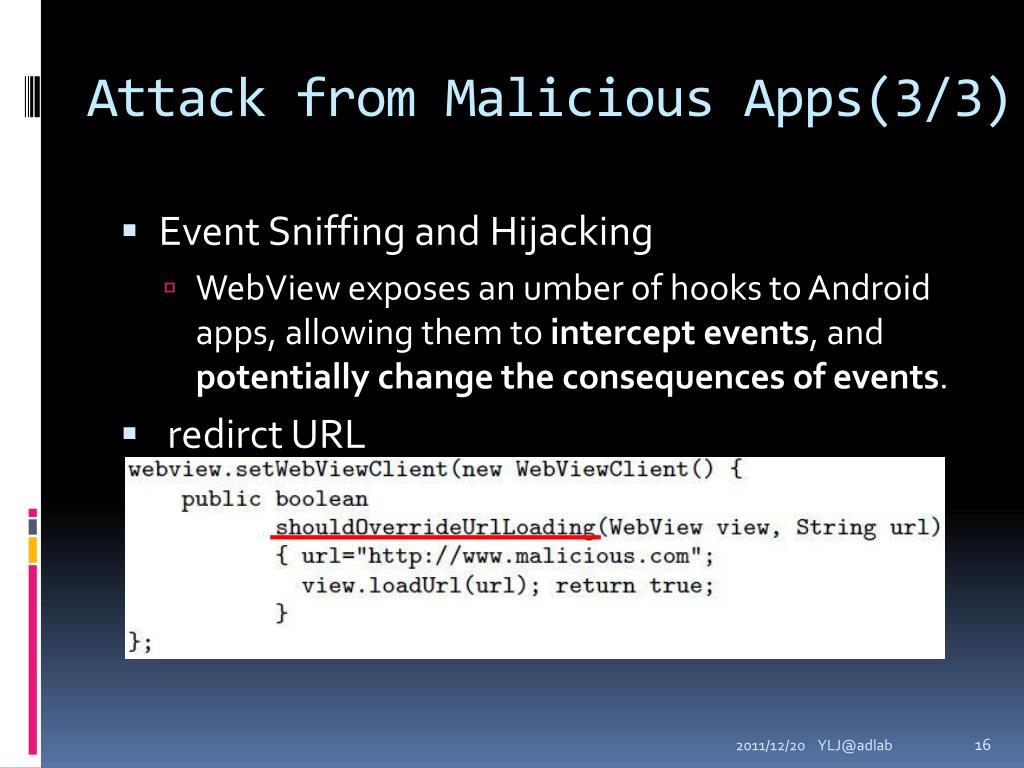

  16. Attack from Malicious Apps(3/3) • Event Sniffing and Hijacking • WebViewexposes an umber of hooks to Android apps, allowing them to intercept events, and potentially change the consequences of events. • redirct URL

  17. Case Studies • The goal is not to look for malicious or vulnerable apps, but instead to study how Android apps use WebView. • Usage of WebView • Usage of the WebView Hooks • Usage of addJavascriptInterface • Dex2jar

  18. Conclusion • In our on-going work, we are developing solutions to secure WebView • The goal is to defend against the attacks on WebView by building desirable security features in WebView.
